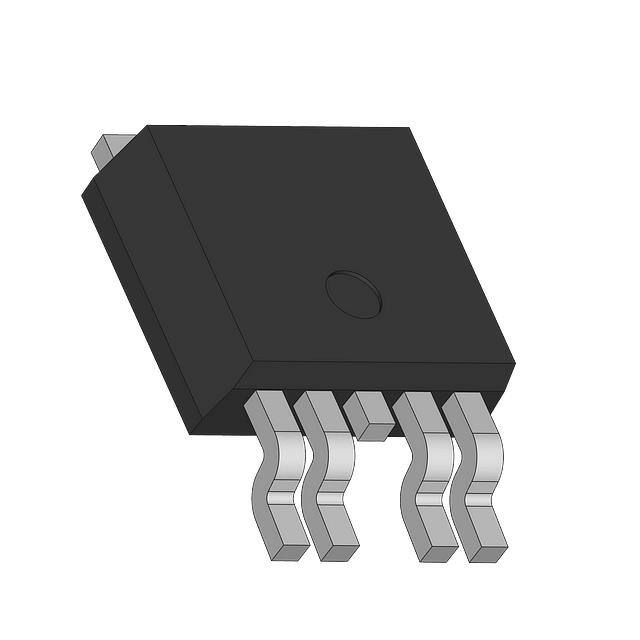

TLE42702DATMA1

OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Features • Output voltage tolerance ≤ ±2% • 650 mA output current capability • Low-drop voltage • Reset functionality • Adjustable reset time • Suitable for use in automotive electronics • Integrated overtemperature protection • Reverse polarity protection • Input voltage up to 42 V • Overvoltage protection up to 65 V (≤ 400 ms) • Short-circuit proof • Wide temperature range • ESD protection: ±2 kV HBM1) • Green Product (RoHS compliant) Potential applications General automotive applications. Product validation Qualified for automotive applications. Product validation according to AEC-Q100. Description The OPTIREG™ Linear TLE4270-2 is a 5-V low drop fixed-voltage regulator. The maximum input voltage is 42 V (65 V, ≤ 400 ms). Up to an input voltage of 26 V and for an output current up to 650 mA it regulates the output voltage within a 2% accuracy. The short circuit protection limits the output current of more than 650 mA. The device incorporates overvoltage protection and a temperature protection which turns off the device at high temperatures. 1) ESD susceptibility, Human Body Model (HBM) according to EIA/JESD 22-A114B. Datasheet www.infineon.com/OPTIREG-Linear 1 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Type Package Marking TLE4270-2G P-TO263-5 4270-2G TLE4270-2D P-TO252-5 4270-2D Datasheet 2 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Table of contents Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Potential applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Product validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 2.1 2.2 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Pin definitions and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 3.1 3.2 3.3 General product characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Functional range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Thermal resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4.1 4.2 4.3 Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Circuit description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Typical performance graphs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5 5.1 5.2 5.3 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Design notes for external components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Reset circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Reset timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Datasheet 3 6 6 6 7 13 13 14 14 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Block diagram 1 Block diagram Saturation Control and Protection Circuit Temperature Sensor I 1 5 Control Amplifier Q Buffer Bandgap Reference Reset Generator 2 4 RO D Adjustment 3 GND Figure 1 Datasheet AEB01924 Block diagram 4 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Pin configuration 2 Pin configuration 2.1 Pin assignment PG-TO263-5 PG-TO262-5 GND 1 5 Ι RO GND D 1 Ι RO Q Figure 2 Pin configuration (top view) 2.2 Pin definitions and functions 5 D Q Pin Symbol Function 1 I Input; block to ground directly at the IC with a ceramic capacitor. 2 RO Reset output; the open collector output is connected to the 5-V output via an integrated resistor of 30 kΩ. 3 GND Ground; internally connected to heatsink. 4 D Reset delay; connect a capacitor to ground for delay time adjustment. 5 Q 5-V output; block to ground with 22 µF capacitor, ESR < 3 Ω. Datasheet 5 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator General product characteristics 3 General product characteristics 3.1 Absolute maximum ratings Table 1 Absolute maximum ratings Tj = -40 to 150°C Parameter Symbol Values Min. Typ. Max. Unit Note or Test Condition Number Input I Voltage VI -42 – 42 V – P_3.1.1 Voltage VI – – 65 V t ≤ 400 ms P_3.1.2 Current II – – – – Internally limited P_3.1.3 Voltage VRO -0.3 – 7 V – Current IRO – – – – Internally limited P_3.1.5 Voltage VD -0.3 – 7 V – Current ID – – – – Internally limited P_3.1.7 Voltage VQ -1.0 – 16 V – Current IQ – – – – Internally limited P_3.1.9 IGND -0.5 – – A – P_3.1.10 Junction temperature Tj – – 150 °C – P_3.1.11 Storage temperature Tstg -50 – 150 °C – P_3.1.12 Reset output RO P_3.1.4 Reset delay D P_3.1.6 Output Q P_3.1.8 Ground GND Current Temperatures 3.2 Functional range Table 2 Functional range Parameter Symbol Values Min. Typ. Max. Unit Note or Test Condition Number Input voltage VI 6 – 42 V – P_3.2.1 Junction temperature Tj -40 – 150 °C – P_3.2.2 Datasheet 6 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator General product characteristics 3.3 Thermal resistance Table 3 Thermal resistance Parameter Symbol Values Unit Note or Test Condition Number P_3.3.1 P_3.3.3 Min. Typ. Max. – – 65 K/W – – 79 K/W TO263,1) TO252 1) – – 3 K/W TO-263 Packages Thermal resistance Junction ambient Junction case RthJA RthJC P_3.3.2 3 1) Mounted on PCB, 80 × 80 × 1.5 mm ; 35 µ Cu; 5 µ Sn; footprint only; zero airflow. Datasheet 7 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Functional description 4 Functional description 4.1 Circuit description The control amplifier compares a reference voltage, which is kept highly accurate by resistance adjustment, to a voltage that is proportional to the output voltage and drives the base of a series transistor via a buffer. Saturation control as a function of the load current prevents any over-saturation of the power element. The IC also incorporates a number of internal circuits for protection against: • Overload • Overvoltage • Overtemperature • Reverse polarity 4.2 Electrical characteristics Table 4 Electrical characteristics VI = 13.5 V; Tj = -40 to 125°C (unless otherwise specified) Parameter Symbol Values Unit Note or Test Condition Number Min. Typ. Max. VQ 4.90 5.00 5.10 V 5 mA ≤ IQ ≤ 550 mA; 6 V ≤ VI ≤ 26 V P_4.0.1 VQ 4.90 5.00 5.10 V 26 V ≤ VI ≤ 36 V; IQ ≤ 300 mA P_4.0.2 Output current limiting IQmax 650 850 – mA VQ = 0 V P_4.0.3 Current consumption Iq = II - IQ Iq – 1 1.5 mA IQ = 5 mA P_4.0.4 Iq – 55 75 mA IQ = 550 mA P_4.0.5 Iq – 70 90 mA IQ = 550 mA; VI = 5 V Output voltage 1) P_4.0.6 Drop voltage VDR – 350 700 mV IQ = 550 mA Load regulation ∆VQ,Lo – 25 50 mV IQ = 5 to 550 mA; VI = 6 V P_4.0.8 Line regulation ∆VQ,Li – 12 25 mV VI = 6 to 26 V IQ = 5 mA P_4.0.9 Power supply ripple rejection PSRR – 54 – dB fr = 100 Hz; Vr = 0.5 Vpp P_4.0.10 Switching threshold VRT 4.5 4.65 4.8 V – P_4.0.11 Reset high voltage VROH 4.5 – – V – P_4.0.7 Reset generator Reset low voltage Reset pull-up Datasheet P_4.0.12 2) VROL – 60 – mV Rint = 30 kΩ ; 1.0 V ≤ VQ ≤ 4.5 V P_4.0.13 VROL – 200 400 mV IR = 3 mA, VQ = 4.4 V P_4.0.14 Rint 18 30 46 kΩ Internally connected to Q P_4.0.15 8 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Functional description Table 4 Electrical characteristics (cont’d) VI = 13.5 V; Tj = -40 to 125°C (unless otherwise specified) Parameter Symbol Values Min. Typ. Max. Unit Note or Test Condition Number Charge current ID,c 8 14 25 µA VD = 1.0 V P_4.0.16 Upper reset timing threshold VDU 1.4 1.8 2.3 V – P_4.0.17 Lower reset timing threshold VDL 0.2 0.45 0.8 V VQ < VRT P_4.0.18 Delay time trd – 13 – ms CD = 100 nF P_4.0.19 Reset reaction time trr – – 3 µs CD = 100 nF P_4.0.20 VI, ov 42 44 46 V – P_4.0.21 Overvoltage protection Turn-off voltage 1) Drop voltage = VI - VQ (measured when the output voltage has dropped 100 mV from the nominal value obtained at 13.5 V input). 2) Reset peak is always lower than 1.0 V. Datasheet 9 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Functional description 4.3 Typical performance graphs Typical performance characteristics Output voltage VQ vs. junction temperature Tj VQ Output voltage VQ vs. input voltage VI AED01928 5.2 V AED01929 12 VQ 5.1 V 10 VI = 13.5 V 5.0 8 4.9 6 4.8 4 4.7 2 4.6 -40 0 40 80 0 120 ˚C 160 R L = 25 Ω 0 2 4 6 Tj Output current IQ vs. junction temperature Tj Output current IQ vs. input voltage VI AED01930 1200 mA IQ 1.0 800 0.8 600 0.6 400 0.4 200 0.2 40 80 0 120 ˚C 160 Tj Datasheet A 1000 0 AED03038 1.2 I Q max 0 -40 8 V 10 VΙ T j = 125 ˚C 25 ˚C 0 10 20 30 40 V 50 VI 10 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Functional description Current consumption Iq vs. output current IQ Current consumption Iq vs. output current IQ AED03092 3 Ι q mA Ιq AED03093 80 mA 70 60 2 50 40 VΙ = 13.5 V 30 1 VΙ = 13.5 V 20 10 0 20 0 40 60 80 0 mA 120 0 100 200 300 400 mA 600 ΙQ ΙQ Current consumption Iq vs. input voltage VI Drop voltage VDR vs. output current IQ AED01934 120 AED01935 800 VDR mV 700 Iq mA 100 600 80 500 R L = 10 Ω 60 T j = 125 ˚C 25 ˚C 400 300 40 R L = 20 Ω 50 Ω 20 0 200 100 0 10 20 30 0 40 V 50 VI Datasheet 0 200 400 600 mA 1000 IQ 11 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Functional description Typical performance characteristics Charge current ID,c vs. junction temperature Tj Upper reset timing threshold VDU vs. junction temperature Tj AED03047 20 µA I 18 V DU AED03094 4.0 mA 3.5 3.0 16 I D, c 14 2.5 VΙ = 13.5 V VI = 13.5 V VD = 1 V 12 2.0 V DU 10 1.5 8 1.0 6 0.5 4 -40 0 40 80 0 -40 120 ˚C 160 Tj Datasheet 0 40 80 120 ˚C 160 Tj 12 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Application information 5 Application information The IC regulates an input voltage in the range of VI = 5.5 V to 36 V to VQ,nom = 5.0 V. Up to 26 V it produces a regulated output current of more than 650 mA. Above 26 V the save-operating-area protection allows operation up to 36 V with a regulated output current of more than 300 mA. Overvoltage protection limits operation at 42 V. The overvoltage protection hysteresis restores operation if the input voltage has dropped below 36 V. A reset signal is generated for an output voltage of VQ < 4.5 V. The delay for power-on reset can be set externally with a capacitor. II I 1 1000 µF Q 5 IQ 470 nF 22 µF TLE4270-2G 2 3 GND 4 D VI RO IR VQ VR ID VD IGND CD AES01925 Figure 3 Test circuit I 1 Input 470 nF Reset to µC 5 Q 5 V - Output TLE4270-2G RO 2 4 3 D 22 µF GND 100 nF AES01926 Figure 4 Application circuit 5.1 Design notes for external components An input capacitor CI is necessary for compensation of line influences. The resonant circuit consisting of lead inductance and input capacitance can be damped by a resistor of approx. 1 Ω in series with CI. An output capacitor CQ is necessary for the stability of the regulating circuit. Stability is guaranteed at values of CQ ≥ 22 µF and an ESR of < 3 Ω. Datasheet 13 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Application information 5.2 Reset circuitry If the output voltage decreases below 4.5 V, an external capacitor CD on pin 4 (D) will be discharged by the reset generator. If the voltage on this capacitor drops below VDL, a reset signal is generated on pin 2 (RO), i.e. reset output is set low. If the output voltage rises above the reset threshold, CD will be charged with constant current. After the power-on-reset time the voltage on the capacitor reaches VDU and the reset output will be set high again. The value of the power-on-reset time can be set within a wide range depending of the capacitance of CD. 5.3 Reset timing The power-on reset delay time is defined by the charging time of an external capacitor CD which can be calculated as follows: CD = (∆t × ID,c)/∆V (5.1) Definitions: • CD = delay capacitors • ∆t = reset delay time trd • ID,c = charge current, typical 14 µA • ∆V = VDU, typical 1.8 V VDU = upper reset timing threshold at CD for reset delay time trd = ∆V × CD/ID,c (5.2) The reset reaction time trr is the time it takes the voltage regulator to set the reset out LOW after the output voltage has dropped below the reset threshold. It is typically 1 µs for delay capacitor of 47 nF. For other values for CD the reaction time can be estimated using the following equation: trr ≈ 20 s/F × CD (5.3) VI < trr VQ VRT dV ID, c = dt CD VDU VD VDL trr trd VRO Power-ON Reset Figure 5 Datasheet Thermal Shutdown Voltage Drop at Input Undervoltage Secondary Load Spike Bounce AES01927 Reset time response 14 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Package information 6 Package information 4.4 10 ±0.2 1.27 ±0.1 0...0.3 B 0.05 2.4 0.1 4.7 ±0.5 2.7 ±0.3 7.55 1) 1±0.3 9.25 ±0.2 (15) A 8.5 1) 0...0.15 5 x 0.8 ±0.1 0.5 ±0.1 4 x 1.7 0.25 M A B 8˚ MAX. 0.1 B 1) Typical Metal surface min. X = 7.25, Y = 6.9 All metal surfaces tin plated, except area of cut. Figure 6 GPT09113 1) P-TO263-5 (plastic transistor single outline) 6.5 +0.15 -0.05 A 1) 2.3 +0.05 -0.10 0.9 +0.20 -0.01 0...0.15 5 x 0.6 ±0.1 1.14 4.56 0.5 +0.08 -0.04 0.51 MIN. 0.15 MAX. per side B (5) 0.8 ±0.15 (4.24) 1 ±0.1 9.98 ±0.5 6.22 -0.2 5.7 MAX. 0.5 +0.08 -0.04 0.1 B 0.25 M A B 1) Includes mold flashes on each side. All metal surfaces tin plated, except area of cut. Figure 7 P-TO252-5 (plastic transistor single outline)1) Green product (RoHS compliant) To meet the world-wide customer requirements for environmentally friendly products and to be compliant with government regulations the device is available as a green product. Green products are RoHS-Compliant (i.e Pb-free finish on leads and suitable for Pb-free soldering according to IPC/JEDEC J-STD-020). Further information on packages https://www.infineon.com/packages 1) Dimensions in mm. Datasheet 15 Rev. 1.9 2020-02-25 OPTIREG™ Linear TLE4270-2 5-V low drop fixed voltage regulator Revision history 7 Revision history Version Date Changes 1.9 2020-02-25 Editorial changes, including rearranged content. 1.8 2007-11-09 Page 1: Changed ESD specification from “>4000V” to “±2 kV HBM” according to PCN No. 2007-08 1.7 2007-03-20 Initial version of RoHS-compliant derivate of TLE 4270. Change of product name to TLE4270-2 due to modified chip layout and size. Page 1: AEC certified statement added Page 1 and Page 15: RoHS compliance statement and Green product feature added Page 1 and Page 15: Package changed to RoHS compliant version Legal Disclaimer updated Datasheet 16 Rev. 1.9 2020-02-25 Trademarks All referenced product or service names and trademarks are the property of their respective owners. Edition 2020-02-25 Published by Infineon Technologies AG 81726 Munich, Germany © 2004 Infineon Technologies AG. All Rights Reserved. Do you have a question about any aspect of this document? Email: erratum@infineon.com Document reference Z8F56238277 IMPORTANT NOTICE The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics ("Beschaffenheitsgarantie"). With respect to any examples, hints or any typical values stated herein and/or any information regarding the application of the product, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party. In addition, any information given in this document is subject to customer's compliance with its obligations stated in this document and any applicable legal requirements, norms and standards concerning customer's products and any use of the product of Infineon Technologies in customer's applications. The data contained in this document is exclusively intended for technically trained staff. It is the responsibility of customer's technical departments to evaluate the suitability of the product for the intended application and the completeness of the product information given in this document with respect to such application. For further information on technology, delivery terms and conditions and prices, please contact the nearest Infineon Technologies Office (www.infineon.com). WARNINGS Due to technical requirements products may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies office. Except as otherwise explicitly approved by Infineon Technologies in a written document signed by authorized representatives of Infineon Technologies, Infineon Technologies’ products may not be used in any applications where a failure of the product or any consequences of the use thereof can reasonably be expected to result in personal injury.
