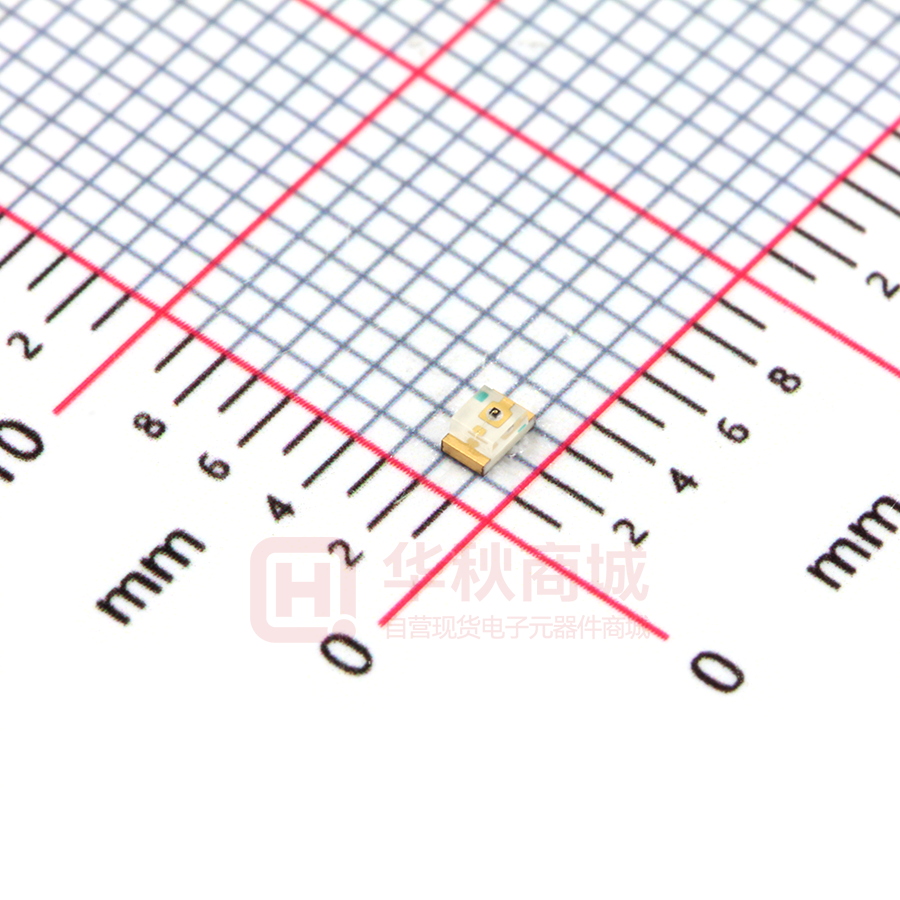

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet 0805 Package Chip LED (0.8mm Height) 17-215/GVC-CF2H1AX/3T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version Descriptions ․The 17-215 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Part No. 17-215/GVC-CF2H1AX /3T Chip Material Emitted Color Resin Color Green Water Clear AlGaInP Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 1 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Package Outline Dimensions Note: The tolerances unless mentioned are ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 2 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA IFP 60 mA Power Dissipation Pd 60 mW Electrostatic Discharge(HBM) ESD 2000 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +90 ℃ Soldering Temperature Tsol Peak Forward Current (Duty 1/10 @1KHz) Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Luminous Intensity Iv 1.4 ----- 3.6 mcd Viewing Angle 2θ1/2 ----- 130 ---- deg Peak Wavelength λp ---- 568 ---- nm Dominant Wavelength Spectrum Radiation Bandwidth λd 561.5 ---- 569.5 nm △λ ----- 20 ---- nm Forward Voltage VF 1.55 ---- 2.15 V Reverse Current IR ---- ---- 10 μA Condition IF =2mA VR=5V Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 3 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Bin Range Of Dom. Wavelength Group C Bin Min Max C12 561.5 563.5 C13 563.5 565.5 C14 565.5 567.5 C15 567.5 569.5 Unit Condition nm IF =2mA Unit Condition mcd IF =2mA Unit Condition V IF =2mA Bin Range Of Luminous Intensity Bin Min Max F2 1.40 1.80 G1 1.80 2.30 G2 2.30 2.80 H1 2.80 3.60 Bin Range Of Luminous Voltage Group Bin Min Max 00 1.55 1.75 0 1.75 1.95 1 1.95 2.15 A 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 4 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Typical Electro-Optical Characteristics Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 5 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank xxxxxx xxxxxx REF: Forward Voltage Rank RoHS xxxxxxxxxxxx xxxx xxxxxxxx Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 6 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Carrier Tape Dimensions: Loaded quantity 3000PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Desiccant Label Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 7 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% Test Sample Hours/Cycles Size No. Items Test Condition 1 Reflow Soldering Temp. : 260℃±5℃ Min. 5sec. 6 Min. 22 PCS. 0/1 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 300 Cycles 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec L : -10℃ 5min 300 Cycles 22 PCS. 0/1 Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1 Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1 2 3 4 5 High Temperature Storage Low Temperature Storage Ac/Re 6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1 7 High Temperature / High Humidity 85℃/ 85% RH 1000 Hrs. 22 PCS. 0/1 Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 8 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 9 of 10 EVERLIGHT ELECTRONICS CO.,LTD. 17-215/GVC-CF2H1AX/3T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Device No. DSE-0000118 Prepared date:24-Sep-2008 Prepared by:Qilong Chen Ver.: Release Date: 　 狀態: Page: 10 of 10
