Technical Data Sheet

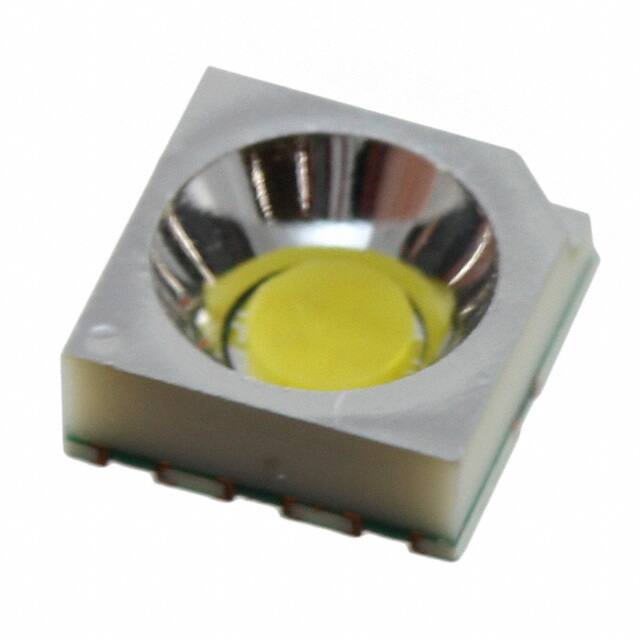

Luminosity white Color LED
59-14UTD/TR8
Features
․Super luminosity white LED.
․Built in 4 LED chips.
․Wide viewing angle.
․Soldering methods: Reflow soldering.
․High performance.
․Package in 12mm tape on 7〞diameter reel.
․Pb-free.
․The product itself will remain within RoHS
compliant version.
Descriptions
․The 59-14 SMD LED is much smaller than lead
frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
․Amusement equipment.
․Information boards.
․Flashlight for digital camera of cellular phone.
․Lighting for small size device.
Device Selection Guide
Chip
Resin Color
Revision
Material
Emitted Color
InGaN
White
Yellow diffused
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 1 of 10
Prepared by: Ashley Kuo.
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Package Outline Dimensions
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Revision
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 2 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Symbol
Rating
Unit
Reverse Voltage
VR
5
V
Forward Current
IF
30
mA
Peak Forward Current
(Duty 1/10 @ 400ms)
IFP
100
mA
Power Dissipation
Pd
110
mW
Electrostatic Discharge(HBM)
ESD
1000
V
Operating Temperature
Topr
-40 ~ +85
℃
Storage Temperature
Tstg
-40 ~ +90
℃
Soldering Temperature
Tsol
Reflow Soldering : 260 ℃ for 10 sec.
Hand Soldering : 350 ℃ for 3 sec.
* The value are base d on the 1-die performance.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity*1
Viewing Angle*1
Symbol
Min.
Typ.
Max.
5.0
8.5
15.0
Forward Voltage*2
10.0
25.0
45.0
-----
60
-----
2.7
3.3
3.7
Forward Voltage*2
Reverse Current*2
IR
deg
3.6
4.4
5.2
-----
-----
50
IFP=100mA*2
(Duty 1/10 @ 400ms)
IF=20mA*2
IF=20mA*2
V
VF
Condition
IF=20mA*2
cd
Iv
2θ1/2
Unit
IFP=100mA*2
(Duty 1/10 @ 400ms)
μA
VR=5V*2
*1 When
4 LED dies are operated simultaneously.
*2 For each die.
Note: The products are sensitive to static electricity and care must be fully taken when
handling products.
Revision
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 3 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Color Ranks
x
0.280
Rank A0
0.264
0.283
y
0.248
0.267
0.305
0.296
x
0.276
y
0.287
Rank B3
0.283
0.304
0.307
0.295
0.305
0.315
Rank B4
0.330
Rank B5
x
0.307
0.304
0.330
0.330
x
0.296
0.287
0.307
0.311
y
0.315
0.330
0.360
0.339
y
0.276
0.295
0.315
0.294
x
0.311
Rank B6
0.307
0.330
0.330
x
0.330
Rank C0
0.330
0.361
0.356
y
0.294
0.315
0.318
y
0.318
0.360
0.351
0.339
0.385
*The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01).
CIE Chromaticity Diagram
Revision
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 4 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Typical Electro-Optical Characteristics Curves
Forward Current vs.
Forward Voltage
Spectrum Distribution
Ta=25°C
Forward Current IF (mA)
Relative luminous intensity (% )
Ta=25°C
Wavelength λ (nm)
Forward Voltage VF (V)
Luminous Intensity vs
Luminous Intensity vs.
Forward Current
Relative luminous intensity (% )
Relative luminous intensity (% )
Ambient Temperature
Ta=25°
f=1KHz
Duty=1/10
Forward Current I F (mA)
Ambient Temperature Ta (°C)
Radiation Diagram
Ta=25°
Forward Current FI (mA)
Forward Current Derating Curve
Ambient Temperature Ta (°C)
Revision
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 5 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Label Explanation
CAT: Luminous Intensity Rank
Pb
HUE: Chromaticity Coordinates
CPN :
P N : XXXXXXXXXXXXX
REF: Forward Voltage Rank
XXXXXXXXXXXXX
EVERLIGHT
RoHS
CAT : XXX
HUE : XXX
REF : XXX
QTY : XXX
LOT NO : XXXXXXXXXX
Reference : XXXXXXXX
MADE IN TAIWAN
Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Revision
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 6 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Carrier Tape Dimensions: Loaded quantity 800 PCS per reel
(4)
(3)
(2)
(1)
(8)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
(8)
(7)
(6)
(5)
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Revision
Aluminum moisture-proof bag
Desiccant
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Label
Rev.2
Page: 7 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
Ac/Re
Items
Test Condition
1
Reflow Soldering
Temp. : 260℃±5℃
Max. 10sec.
6 Min.
22 PCS.
0/1
Temperature Cycle
H : +100℃ 15min
∫ 5 min
L : -40℃ 15min
300 Cycles
22 PCS.
0/1
Thermal Shock
H : +100℃ 5min
∫ 10 sec
L : -10℃ 5min
300 Cycles
22 PCS.
0/1
Temp. : 100℃
1000 Hrs.
22 PCS.
0/1
Temp. : -40℃
1000 Hrs.
22 PCS.
0/1
2
3
High Temperature
Storage
Low Temperature
Storage
4
5
Revision
Test
Sample
Hours/Cycles
Size
No.
6
DC Operating Life
IF = 20 mA
1000 Hrs.
22 PCS.
0/1
7
High Temperature /
High Humidity
85℃/ 85%RH
1000 Hrs.
22 PCS.
0/1
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 8 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
Precautions For Use
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.
If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition
3.1 Pb-free solder temperature profile
2 6 0°C M ax .
1 0sec. M ax .
A b o ve2 5 5°C
30 se c.M ax .
3 °C /sec.M ax.
6°C /sec.M ax.
P re-h eatin g
A b o v e 2 1 7 °C
6 0~ 1 5 0 sec.
1 5 0 ~ 2 0 0 °C
6 0 ~ 1 2 0 sec.
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Revision
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 9 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
59-14UTD/TR8
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do
soldering of each terminal. Be careful because the damage of the product is often started at the time of
the hand solder.
5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether
the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Revision
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http://www.everlight.com
Everlight Electronics Co., Ltd.
http://www.everlight.com
Device No. : DSE-0005849
Prepared date: 17-Oct-2011
:2
LifecyclePhase:
Rev.2
Page: 10 of 10
Prepared by: Ashley Kuo
Release Date:2011-10-18 19:28:01.0
Expired Period: Forever
