G6C-FN2P2B

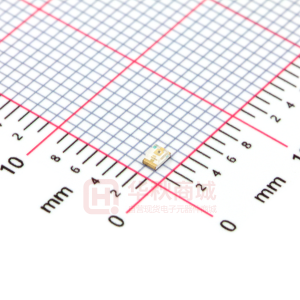

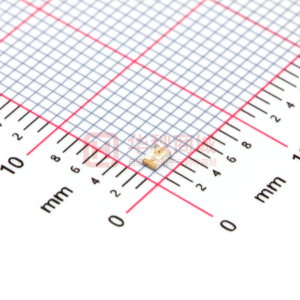

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet 0805 Package Chip LED (0.8mm Height) 17-215/G6C –FN2P2B/3T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain with in RoHS compliant version Descriptions ․The 17-215 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․ Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. ․Indoor signboard use. Device Selection Guide Chip Material AlGaInP Part No. 17-215/G6C-FN1P2B/3T Emitted Color Brilliant Yellow Green Resin Color Water Clear Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 1 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Package Outline Dimensions Note: The tolerances unless mentioned are ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 2 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Forward Current Peak Forward Current (Duty 1/10 @1KHz) Power Dissipation Electrostatic Discharge(HBM) Operating Temperature Storage Temperature Soldering Temperature Symbol VR IF IFP Pd ESD Topr Tstg Tsol Rating 5 25 60 60 2000 -40 ~ +85 -40 ~ +90 Unit V mA mA mW V ℃ ℃ Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃) Parameter Luminous Intensity Viewing Angle Peak Wavelength Dominant Wavelength Spectrum Radiation Bandwidth Forward Voltage Reverse Current Symbol Iv 2θ1/2 λp λd △λ VF IR Min. 36.0 ------570.0 ---1.75 ---Typ. ----130 575 ---20 ------Max. 72.0 ------574.5 ---2.35 10 Unit mcd deg nm nm nm V μA VR=5V IF =20mA Condition Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 3 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Bin Range Of Dom. Wavelength Group F Bin CC2 CC3 CC4 Min 570.5 571.5 573.0 Max 571.5 573.0 574.5 nm IF =20mA Unit Condition Bin Range Of Luminous Intensity Bin N2 P1 P2 Min 36.0 45.0 57.0 Max 45.0 57.0 72.0 mcd IF =20mA Unit Condition Bin Range Of Luminous Voltage Group B Bin 0 1 2 Min 1.75 1.95 2.15 Max 1.95 2.15 2.35 V IF =20mA Unit Condition Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 4 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Typical Electro-Optical Characteristics Curves Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 5 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank xxxxxx xxxxxx RoHS xxxxxxxxxxxx xxxx xxxxxxxx Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 6 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Carrier Tape Dimensions: Loaded quantity 3000PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 7 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85% RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 0/1 4 5 6 7 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 8 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 9 of 10 Prepared by: Zhouhua EVERLIGHT ELECTRONICS CO.,LTD. 17-215/G6C-FN2P2B/3T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder . 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. Device No. : SZDSE-175-G14 http://www.everlight.com Prepared date: 27-Oct-2007 Rev.2 Page: 10 of 10 Prepared by: Zhouhua
