IR26-51C

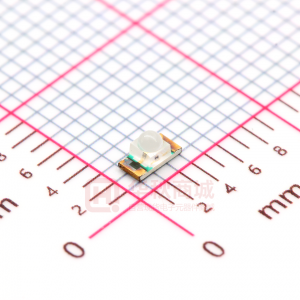

Technical Data Sheet 1.6mm round Subminiature Side Looking Infrared LED IR26-51C/L110/TR8 Features ․Small double-end package ․Low forward voltage ․Good spectral matching to Si photo detector ․Package in 8mm tape on 7〞diameter reel. ․Pb free ․The product itself will remain within RoHS compliant version. Descriptions ․IR26-51C/L110/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor Applications ․PCB mounted infrared sensor ․Infrared emitting for miniature light barrier ․Floppy disk drive ․Optoelectronic switch ․Smoke detector Device Selection Guide LED Part No. IR Chip Material GaAlAs Lens Color Water Clear Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 1 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm Absolute Maximum Ratings (Ta=25℃) Parameter Continuous Forward Current Reverse Voltage Operating Temperature Storage Temperature Soldering Temperature *1 Power Dissipation at(or below) 25℃Free Air Temperature Symbol IF VR Topr Tstg Tsol Pd Rating 65 5 -25 ~ +85 -40 ~ +100 260 130 Units mA V ℃ ℃ ℃ mW Notes: *1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 2 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Electro-Optical Characteristics (Ta=25℃) Parameter Radiant Intensity Peak Wavelength Spectral Bandwidth Symbol Ie λp Δλ Condition IF=20mA IF=100mA Pulse Width≦100μs ,Duty≦1% Min. 1.0 --------- Typ. 3.5 15 940 45 1.2 1.5 2.6 -20 Max. ----1.5 1.8 4.0 10 -- Units mW /sr nm nm IF=20mA IF=20mA IF=20mA IF=100mA Forward Voltage VF Pulse Width≦100μs ,Duty≦1% V IF=1A Pulse Width≦100μs ,Duty≦1% Reverse Current View Angle IR 2θ1/2 VR=5V IF=20mA μA deg Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 3 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Typical Electro-Optical Characteristics Curves Fig.1 Forward Current vs. Ambient Temperature 140 120 100 80 60 40 20 0 Fig.2 Spectral Distribution 100 80 60 40 20 0 20 40 60 80 100 IF=20mA Ta=25° C -25 0 Fig.3 Peak Emission Wavelength Ambient Temperature 980 Fig.4 Forward Current vs. Forward Voltage 4 10 960 3 10 940 2 10 920 900 -25 0 25 50 1 10 75 100 0 1 2 3 4 Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 4 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Typical Electro-Optical Characteristics Curves Fig.5 Relative Intensity vs. Forward Current Fig.6 Relative Radiant Intensity vs. Angular Displacement 1000 Ie-Radiant Intensity(mW/sr) -20 -10 0 10 20 30 100 1.0 0.9 40 50 60 70 80 0.6 0.4 0.2 0 0.2 0.4 0.6 10 0.8 0.7 0 1 2 3 0 10 10 10 10 10 4 IF-Forward Current (mA) Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 5 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 The LEDs should be used within a year. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 6 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 7 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Cycles Sizes 22pcs 22pcs IR≧U×2 Ie≦L×0.8 VF≧U×1.2 U：Upper Specification Limit L：Lower Specification Limit Failure Judgement Criteria Ac/Re 1 REFLOW Soldering TEMP.：260℃±5℃ 6Mins 10secs 15mins 50Cycles 2 Temperature Cycle H : +100℃ 5mins L : -40℃ 15mins 3 Thermal Shock H :+100℃ L :-10℃ 4 High Temperature Storage 5 Low Temperature Storage 5mins 50Cycles 10secs 5mins 1000hrs 1000hrs 1000hrs 1000hrs 0/1 0/1 22pcs 0/1 TEMP.：+100℃ TEMP.：-40℃ 22pcs 22pcs 22pcs 22pcs 0/1 0/1 0/1 0/1 6 DC Operating Life IF=20mA 7 High Temperature/ 85℃ / 85% R.H High Humidity Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 8 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Package Dimensions Taping Dimensions Unit:mm Anode Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 9 of 10 Hsu Prepared by：Posen IR26-51C/L110/TR8 Packing Quantity Specification 1.1500Pcs/1Volume，1Volume/1Bag 2.10Boxes/1Carton Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place RoHS IR26-51C/L110/TR8 Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. Device No：DTR-026-270 http:\\www.everlight.com Prepared date：03-06-2006 Rev 1 Page: 10 of 10 Hsu Prepared by：Posen
