ITR20403

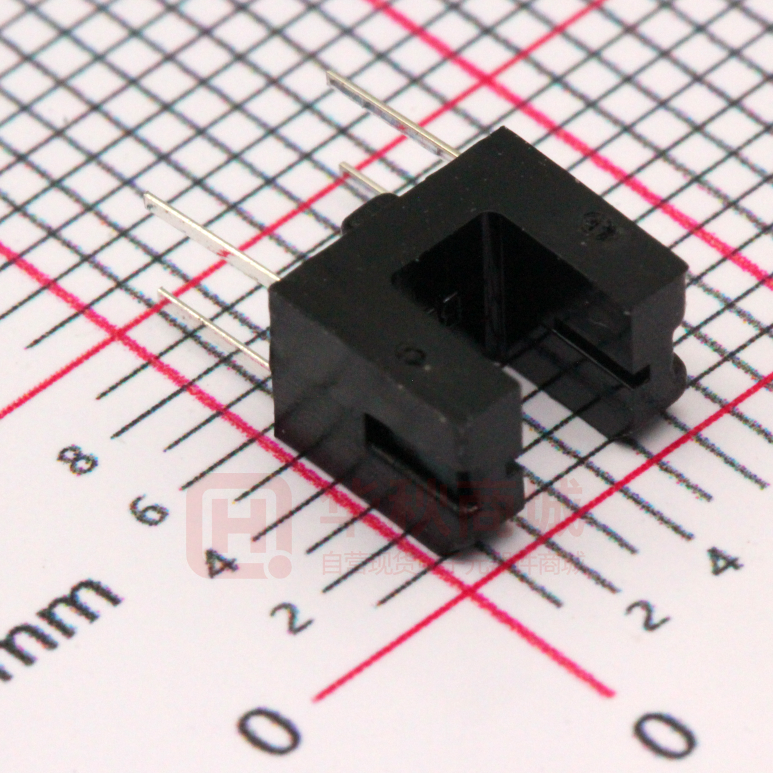

ITR20403 Features ․Fast response time ․High sensitivity ․Thin and small package ․Pb free ․This product itself will remain within RoHS compliant version Description The ITR20403 consists of an infrared emitting diode and a silicon phototransistor encased in a black thermo-plastic housing. The advantage of the device is the small package. Phototransistor receives radiation from the IR LED only, and avoids the noise from ambient light. Applications ․Camera ․Copier ․Scanner ․Non-contact Switching 1 Copyright Revision :5 © LifecyclePhase: Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev.5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Device Selection Guide Device No. Chip Material IR1918C PT1918B GaAlAs Silicon Absolute Maximum Ratings (Ta=25℃) Parameter Input Output Power Dissipation at(or below) 25℃ Free Air Temperature Reverse Voltage Forward Current Peak Forward Current (*1) Pulse width ≦100μs, Duty cycle=1% Collector Power Dissipation Collector Current Collector-Emitter Voltage Emitter-Collector Voltage Operating Temperature Storage Temperature Lead Soldering Temperature (*2) Notes: (＊1) 2 Copyright Revision :5 © LifecyclePhase: tw=100 μsec. , T=10 msec. (＊2) Symbol Ratings Unit Pd 75 mW VR IF 5 50 V mA IFP 1 A PC IC B VCEO B VECO Topr Tstg Tsol 75 20 30 5 -25~+85 -40~+85 260 mW mA V V ℃ ℃ ℃ t=5 Sec Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Electro-Optical Characteristics (Ta=25℃) Parameter Input Symbol Min. Typ. Forward Voltage VF --- 1.2 1.6 V IF=20mA Reverse Current IR --- --- 10 μA VR=5V Peak Wavelength λP --- 940 --- nm IF=20mA ICEO --- 1 100 nA VCE=10V VCE(sat) --- --- 0.4 V IC=2mA ,Ee=1mW/cm2 Collector Current IC(ON) 0.2 --- 5 mA VCE=5V, IF=20mA Leakage Current ICEOD --- --- 1 μA VCE=5V IF=20mA Rise time tr --- 15 --- μsec Fall time tf --- 15 --- μsec Dark Current Output Transfer Characteristics 3 Copyright Revision :5 © LifecyclePhase: C-E Saturation Voltage Max. Unit Conditions VCE=2V IC=1mA RL=1K Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Typical Electrical/Optical/Characteristics Curves for IR Forward Current vs. Ambient Temperature Spectral Distribution Forward Current Relative Radiant Intensity 4 Copyright Revision :5 © LifecyclePhase: vs. Ambient Temperature vs. Angular Displacement Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Typical Electro/Optical/Characteristics Curves for PT Collector Dark Current vs. Ambient Temperature Relative Collector Current vs Ambient Temperature Collector Current vs. Irradiance c Collector Power Dissipation vs. Ambient Temperature 5 Copyright Revision :5 © LifecyclePhase: Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Package Dimension Cathode Anode Collector Emitter 1 1 2 3 4 Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.2mm 6 Copyright Revision :5 © LifecyclePhase: Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Test Hours/ Sample Item Test Conditions Cycle Size 1 Solder Heat TEMP : 260℃ ± 5 ℃ H : +100℃ 2 3 Temperature Cycle 10 sec 22 PCs L : -40℃ 15 min H : +100℃ 5 min 0/1 300 cycle 22 PCs L :Lower specification limit 5 6 7 High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 7 Copyright Revision :5 © LifecyclePhase: 0/1 300 cycle 22 PCs L : -10℃ 5 min TEMP. : +100℃ 1000 hrs 22 PCs 0/1 TEMP. : -40℃ 1000 hrs 22 PCs 0/1 VCE=5V IF=20mA 1000 hrs 1000 hrs 22 PCs 22 PCs 0/1 0/1 Thermal Shock 10 sec 4 Ac/Re Ic(on)≦L×0.8 15 min 5 min Failure Judgement Criteria 85℃ / 85% R.H. 0/1 Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever DATASHEET ITR20403 Packing Quantity Specification 200 pcs/1bag，6 bags/1box，10 boxes/1carton Label Form Specification Pb EVERLIGHT RoHS ITR20403 X ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧QTY: Packing Quantity ‧CAT: Luminous Intensity Rank ‧HUE: Dom. Wavelength Rank ‧REF: Forward Voltage Rank ‧LOT No: Lot Number ‧X: Month ‧Reference: Identify Label Number Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 8 Copyright Revision :5 © LifecyclePhase: Release Date:2014-04-02 17:45:11.0 2010, Everlight All Rights Reserved. Release Date : Mar.28.2014. Issue No: DRX-0000138 Rev5 www.everlight.com Expired Period: Forever
