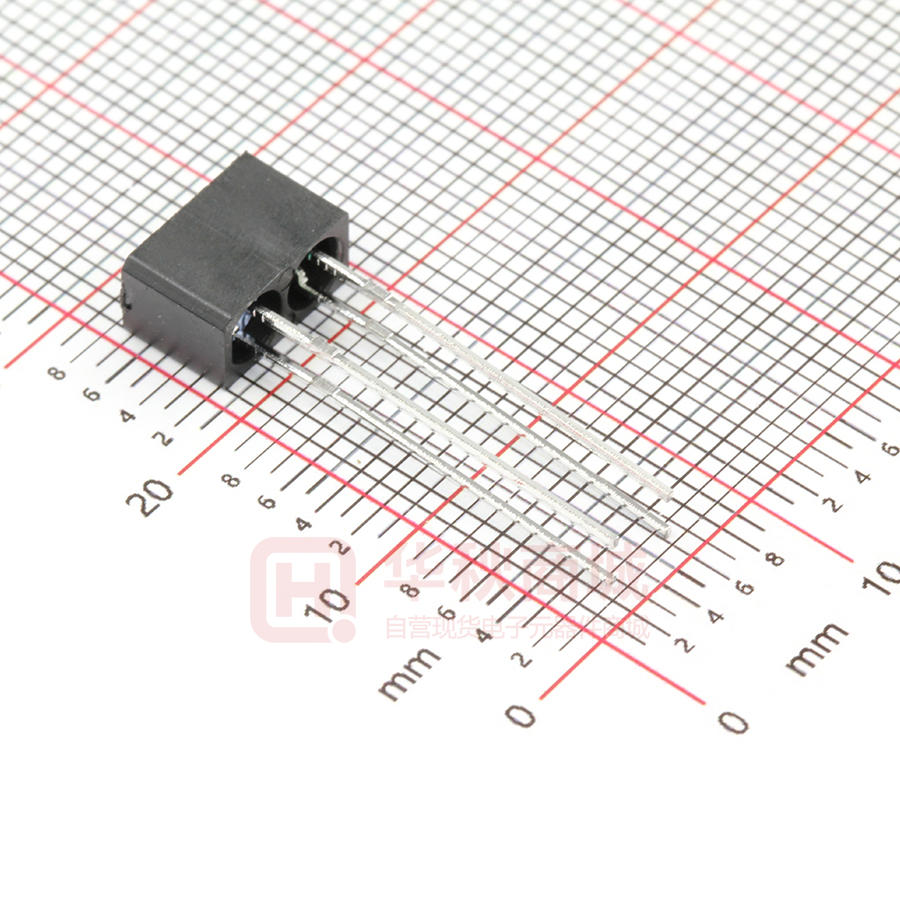

Technical Data Sheet Opto Interrupter ITR9909 █ Features ․Fast response time ․High analytic ․Peak wavelength λp=940nm ․High sensitivity ․Pb free ․This product itself will remain within RoHS compliant version. █ Descriptions The ITR9909 consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing . The phototransistor does not receive radiation from IR LED in normal situation, but when an object comes closer, the radiation is reflected by the object and phototransistor receives the more radiation as closer the object comes. For additional component information, please refer to IR and PT. █ Applications ․Mouse Copier ․Switch Scanner ․Floppy disk driver ․Non-contact Switching ․For Direct Board █ Device Selection Guide Device No. Chip Material LENS COLOR IR GaAlAs Blue PT Silicon Black Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 ：2009/6/10 Rev.4 ： Page: 1 of 7 Prepared by huangzhenwei ITR9909 █ Package Dimensions Notes: 1.All dimensions are in millimeters. 2.Tolerances unless dimensions ±0.25mm. 3.Lead spacing is measured where the lead emerge from the package. 4.Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 5.These specification sheets include materials protected under copyright of EVERLIGHT corporation . Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 6.When using this product , please observe the absolute maximum ratings and the instructions for use outlined in these specification sheets. EVERIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 ：2009/6/10 Rev.4 ： Page: 2 of 7 Prepared by huangzhenwei ITR9909 █ Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Power Dissipation at(or below) 25℃ Free Symbol Ratings Unit Pd 100 mW Reverse Voltage VR 5 V Forward Current IF 50 mA Peak Forward Current (*1) Pulse width ≦100μs, Duty cycle=1% IFP 1 A Collector Power Dissipation PC 100 mW Collector Current IC 50 mA Collector-Emitter Voltage B VCEO 30 V Emitter-Collector Voltage B VECO 5 Operating Temperature Topr -25~+85 V ℃ Storage Temperature Tstg -40~+100 ℃ Tsol 260 ℃ Air Temperature Input Output Lead Soldering Temperature (*2) (1/16 inch form body for 5 seconds) (＊1) tw=100 μsec. , T=10 msec. (＊2) t=5 Sec █ Electro-Optical Characteristics (Ta=25℃ ℃) Parameter Input Min. Typ. Max. Unit Conditions VF1 --- 1.2 1.5 Forward Voltage VF2 --- 1.4 1.85 V Reverse Current VF3 IR λP ----- 2.6 --- 4.0 10 μA VR=5V --- 940 --- nm IF=20mA View Angle 2θ1/2 --- 60 --- Deg IF=20mA Dark Current ICEO --- --- 100 nA VCE=20V,Ee=0mW/cm2 C-E Saturation Voltage VCE(sat) --- --- 0.4 V IC=2mA ,Ee=1mW/cm2 Collect Current IC(ON) 0.2 --- --- mA tr --- 15 --- μsec tf --- 15 --- μsec Peak Wavelength Output Symbol Transfer Rise time Characteristics Fall time Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 ：2009/6/10 IF=20mA μs,tp/T=0.01 I =1A,tp=100μs,tp/T=0.01 IF=100mA,tp=100 F VCE=5V IF=20mA VCE=5V IC=1mA RL=1KΩ Rev.4 ： Page: 3 of 7 Prepared by huangzhenwei ITR9909 █ Typical Electrical/Optical/Characteristics Curves for IR Fig.1 Forward Current vs. Fig.2 Spectral Distribution Ambient Temperature 140 100 IF=20mA Ta=25°C 120 100 80 80 60 60 40 40 20 20 0 0 -40 -20 0 20 40 60 80 100 Fig.3 Radiant Intensity vs. Forward Current Fig.4 Relative Radiant Intensity vs. Angular Displacement Ie-Radiant Intensity(mW/sr) 1000 -20 -10 0 10 20 30 100 10 0 0 10 1 10 2 10 10 3 10 1.0 40 0.9 50 0.8 0.7 60 4 0.6 0.4 0.2 0 IF-Forward Current (mA) Fig.5 Forward Current vs. Forward Voltage 4 0.2 0.4 0.6 Fig.6 Peak Emission Wavelength Ambient Temperature 10 10 70 80 980 960 3 940 10 2 920 1 10 0 1 2 3 900 -25 4 Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 ：2009/6/10 0 Rev.4 50 25 ： 75 100 Page: 4 of 7 Prepared by huangzhenwei ITR9909 █ Typical Electrical/Optical/Characteristics Curves for PT Fig.1 Collector Power Dissipation vs. Ambient Temperature Fig.2 Spectral Sensitivity 100 1.0 80 0.8 60 0.6 40 0.4 20 0.2 Ta=25 C 0 0 -25 25 0 50 75 85 100 Fig.3 Relative Collector Current vs.. 700 800 900 1000 1100 1300 Fig.4 Collector Current vs. Ambient Temperature Irradiance 100 160 2 140 C 10 120 100 80 1 60 40 0.1 20 0 0 10 20 30 40 50 60 70 0.01 0.5 3 1.5 1 2 Fig.5 Collector Dark Current vs. Ambient Temperature 10 Fig.6 Collector Current vs. Collector-Emitter Voltage 14 12 10 10 8 10 6 4 10 2 10 0 25 50 75 100 0 0 Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 ：2009/6/10 1 2 Rev.4 3 ： 4 Page: 5 of 7 Prepared by huangzhenwei ITR9909 █ Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Condition Test Hours/ Sample Size Failure Judgement Cycle 1 Solder Heat TEMP : 260℃ ± 5 ℃ H : +100 2 ℃ 5 min ℃ H : +100℃ L : -40 4 High Temperature Storage 5 Low Temperature Storage 6 7 DC Operating Life High Temperature / High Humidity ℃ ℃ VCE=5V IF=20mA 85 0/1 300 cycle 22 PCs 0/1 22 PCs 1000 hrs 22 PCs 0/1 1000 hrs 22 PCs 0/1 1000 hrs 22 PCs 0/1 ℃ / 85% R.H. 1000 hrs 22 PCs 0/1 Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 Attenuation of Light Current value>20% 300 cycle 0/1 5 min TEMP. : +100 TEMP. : -40 22 PCs 5 min 10 sec ℃ 10 sec 15 min Thermal Shock L : -10 Criteria 15 mins Temperature Cycle 3 Ac/Re ：2009/6/10 Rev.4 ： Page: 6 of 7 Prepared by huangzhenwei ITR9909 █ Packing Quantity Specification 150 pcs/1bag，5 bags/1box，10 boxes/1carton █ Label Form Specification Pb CPN: Customer’s Production Number EVERLIGHT X RoHS ITR9909 P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number X: Month Reference: Identify Label Number █ Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. http://www.everlight.com Device No Prepared date ：DRX-0000009 ：2009/6/10 Rev.4 ： Page: 7 of 7 Prepared by huangzhenwei
