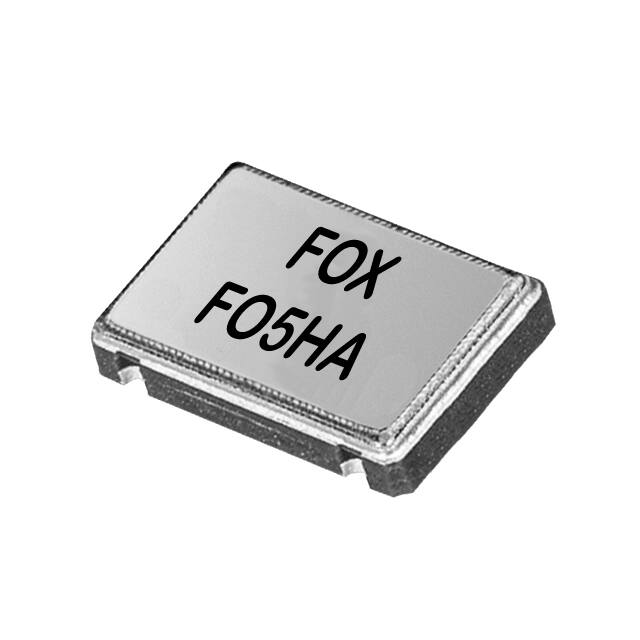

FO5HA 5mm x 3.2mm HCMOS SMD Oscillator (Former FA510, FA530, FA540) Features • • • • AEC-Q200 Qualified IATF-16949 Certified Temperature Ranges from -40°C to +125°C Supply Voltages: 1.8V, 2.5V, 3.3V 1.8V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Temperature Range Storage (TSTG) Supply Voltage (VDD) Input Current (IDD) 1.000 ~ 9.999999 MHz 10.000 ~ 31.999999 MHz 32.000 ~ 50.000 MHz Standby Current (IST) Ta = -40 ~ +85°C Ta = -40 ~ +105°C/125°C Output Symmetry (50% VDD) Rise/Fall Time (10%~90%VDD Levels) (TR/TF) Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 MAX (Unless otherwise noted) 1.000 ~ 50.000 MHz -55°C ~ +150°C 1.8V±5% 5 mA 6 mA 15 mA 10µA 20µA 40 % ~ 60 % 5 nS 10 % VDD 90 % VDD Min 15 pF 10 mS 100 nS 10 mS ENABLE / DISABLE FUNCTION Pin1 OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 1.8V Frequency Stability ±100PPM2 ±100PPM2 ±100PPM2 ±50PPM2 ±50PPM2 ±50PPM2 ±25PPM3 Operating Temperature (°C) -40 ~ +85 -40 ~ +105 -40 ~ +125 -40 ~ +85 -40 ~ +105 -40 ~ +125 -40 ~ +85 Frequency Range (MHz) 1.000 ~ 50.000 1.000 ~ 50.000 1.000 ~ 50.000 1.000 ~ 50.000 1.000 ~ 50.000 1.000 ~ 50.000 1.000 ~ 50.000 An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, one-year aging, shock, and vibration. 3 Inclusive of 25°C tolerance and operating temperature range. 1 2 Revised D: 07/29/2020 Page 1 of 5 www.foxonline.com FO5HA 5mm x 3.2mm HCMOS SMD Oscillator (Former FA510, FA530, FA540) 2.5V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Temperature Range Storage (TSTG) Supply Voltage (VDD) Input Current (IDD) 1.000 ~ 9.999999 MHz 10.000 ~ 31.999999 MHz 32.000 ~ 75.000 MHz Standby Current (IST) Ta = -40 ~ +85°C Ta = -40 ~ +105°C/125°C Output Symmetry (50% VDD) Rise/Fall Time (10%~90%VDD Levels) (TR/TF) 1.000 ~ 49.999999 MHz 50.000 ~ 75.000 MHz Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 MAX (Unless otherwise noted) 32.768 kHz -55°C ~ +125°C 2.5V±10% 6 mA 8 mA 20 mA 10µA 20µA 40 % ~ 60 %4 5 nS 4 nS 10 % VDD 90 % VDD Min 15 pF 10 mS 100 nS 10 mS ENABLE / DISABLE FUNCTION Pin1 OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 2.5V Frequency Stability Operating Temperature (°C) ±100PPM2 -40 ~ +85 2 ±100PPM -40 ~ +105 ±100PPM2 -40 ~ +125 2 ±50PPM -40 ~ +85 ±50PPM2 -40 ~ +105 ±50PPM2 -40 ~ +125 ±25PPM3 -40 ~ +85 Frequency Range (MHz) 1.000 ~ 75.000 1.000 ~ 75.000 1.000 ~ 75.000 1.000 ~ 75.000 1.000 ~ 75.000 1.000 ~ 75.000 1.000 ~ 75.000 An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, one-year aging, shock, and vibration. 3 Inclusive of 25°C tolerance and operating temperature range. 4 45/55 Symmetry available on an inquiry basis 1 2 Revised D: 07/29/2020 Page 2 of 5 www.foxonline.com FO5HA 5mm x 3.2mm HCMOS SMD Oscillator (Former FA510, FA530, FA540) 3.3V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Temperature Range Storage (TSTG) Supply Voltage (VDD) Input Current (IDD) 1.000 ~ 19.999999 MHz 20.000 ~ 31.999999 MHz 32.000 ~ 49.999999 MHz 50.000 ~ 79.999999 MHz 80.000 ~ 99.999999 MHz 100.000 ~ 135.000 MHz Standby Current (IST) Ta = -40 ~ +85°C Ta = -40 ~ +105°C/125°C Output Symmetry (50% VDD) Rise/Fall Time (10%~90%VDD Levels) (TR/TF) 1.000 ~ 49.999999 MHz 50.000 ~ 79.999999 MHz 80.000 ~ 99.999999 MHz 100.000 ~ 135.000 MHz Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 MAX (Unless otherwise noted) 1.000 ~ 135.000 MHz -55°C ~ +150°C 3.3V±10% 7 mA 12 mA 20 mA 25 mA 30 mA 40 mA 10µA 20µA 40 % ~ 60 %4 10 nS 8 nS 5 nS 4 nS 10 % VDD 90 % VDD Min 15 pF 10 mS 100 nS 10 mS ENABLE / DISABLE FUNCTION Pin1 OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 3.3V Frequency Stability Operating Temperature (°C) ±100PPM2 -40 ~ +85 ±100PPM2 -40 ~ +105 ±100PPM2 -40 ~ +125 ±50PPM2 -40 ~ +85 2 ±50PPM -40 ~ +105 ±50PPM2 -40 ~ +125 3 ±25PPM -40 ~ +85 Frequency Range (MHz) 1.000 ~ 135.000 1.000 ~ 135.000 1.000 ~ 135.000 1.000 ~ 135.000 1.000 ~ 135.000 1.000 ~ 135.000 1.000 ~ 135.000 An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, one-year aging, shock, and vibration. 3 Inclusive of 25°C tolerance and operating temperature range. 1 2 Revised D: 07/29/2020 Page 3 of 5 www.foxonline.com FO5HA 5mm x 3.2mm HCMOS SMD Oscillator (Former FA510, FA530, FA540) 4 45/55 Symmetry available on an inquiry basis DIMENSIONS / MECHANICAL SPECIFICATIONS ` Note: 1, A 0.01μF capacitor should be placed between VDD (Pin 4) and GND (Pin2) to minimize power supply line noise. 2, Dimensional drawing is for reference to critical specifications defined by size measurements. Certain non-critical visual attributes, such as side castellation’s, etc. may vary. STANDARD SPECIFICATIONS PARAMETERS Maximum Soldering Temp / Time Moisture Sensitivity Level (MSL) Termination Finish Seal Method Lead (Pb) Free ROHS Compliant ROHS/REACH Compliant (latest version) Revised D: 07/29/2020 MAX (Unless otherwise noted) 260°C / 10 Seconds x 2 N/A Au (0.3~1µm) over Ni (1.27~8.89µm) Seam Yes Yes, no exemptions Yes Page 4 of 5 www.foxonline.com FO5HA 5mm x 3.2mm HCMOS SMD Oscillator (Former FA510, FA530, FA540) TAPE SPECIFICATIONS (mm) REEL SPECIFICATIONS (mm) A B C D E F REEL QTY G H I J K L M ø1.55 4.0 8.0 5.5 12.0 1.5 -T1 = 1,000 2.0 Ø13 Ø21 Ø62 Ø180 13.5 2.0 Available Options & Part Identification* Sample PN: FO5HACBM25.0 F O5HA C B M Fox Model Number Voltage C = 3.3V±10% H = 2.5V±5% K = 1.8V±5% Stability A = ±100 PPM B = ±50 PPM D = ±25 PPM 25.0 -T1 Operating Frequency Values Added Temperature (MHz) Options M = -40 to +85˚C Blank = Bulk P = -40 to +105˚C T1 = 1,000 pcs I = -40 to +125˚C *Not all frequencies in the frequency range, or every combination of stability, temp range, and voltage available Reliability Test Conditions Please contact Abracon Quality Assurance department Revised D: 07/29/2020 Page 5 of 5 www.foxonline.com
