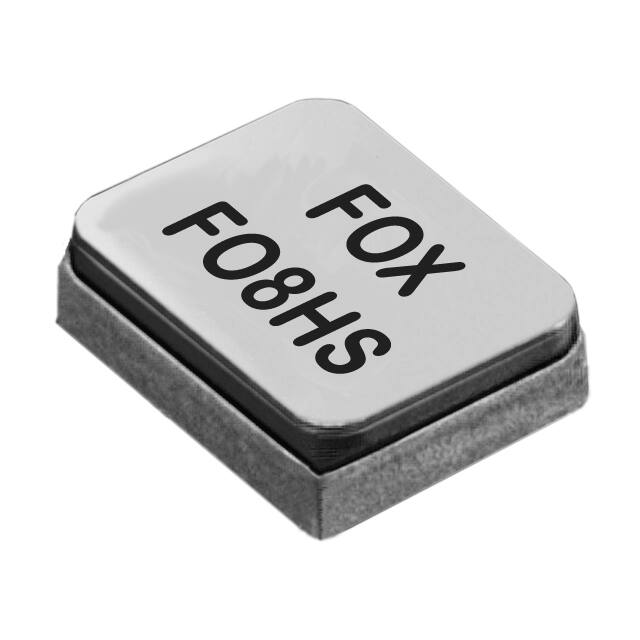

FO8HS (Former F610, F630, F640 Series) 1.6mm x 1.2mm HCMOS SMD Oscillator Features • • • • HCMOS Output Stabilities to ±20 PPM Temperature Ranges to -40°C to +85°C Supply Voltage: 1.8V, 2.5V, 3.3V 1.8V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Storage Temperature Range (TSTG) Supply Voltage (VDD) Input Current (IDD) 1.000 ~ 10.000 MHz 10.000001 ~ 30.000 MHz 30.000001 ~ 40.000 MHz 40.000001 ~ 60.000 MHz 60.000001 ~ 70.000 MHz 70.000001 ~ 80.000 MHz Standby Current Output Symmetry (50% VDD) Rise/Fall Time (10%/90% VDD Levels) (TR/TF) Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 Maximum Solder Temp/Time Moisture Sensitivity Layer Termination Finish Lead-Free RoHS/REACH Compliant Revised A: 01/20/2020 MAX (Unless otherwise noted) 1.000 ~ 80.000 MHz -55 ~ +125°C 1.8V±10% 2 mA 3 mA 4 mA 5 mA 6 mA 7 mA 10 µA 45% ~ 55% 4.5 nS 10% VDD 90% VDD Min 15pF 5 mS 200 nS 5 mS 260°C / 10 Seconds x2 1 Au (0.3~1µm) over Ni (1.27~8.89µm Yes Yes Page 1 of 6 www.foxonline.com FO8HS (Former F610, F630, F640 Series) 1.6mm x 1.2mm HCMOS SMD Oscillator ENABLE / DISABLE FUNCTION Pin OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD 1 Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 1.8V2 Frequency Stability ±100PPM ±100PPM ±50PPM ±50PPM ±30PPM ±30PPM ±25PPM ±20PPM* 1 Operating Temperature (°C) -20 ~ +70 -40 ~ +85 -20 ~ +70 -40 ~ +85 -20 ~ +70 -40 ~ +85 -20 ~ +70 -20 ~ +70 Frequency Range (MHz) 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open. of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, and one-year aging. *Excludes Shock/Vibration. 2Inclusive Revised A: 01/20/2020 Page 2 of 6 www.foxonline.com FO8HS (Former F610, F630, F640 Series) 1.6mm x 1.2mm HCMOS SMD Oscillator 2.5V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Storage Temperature Range (TSTG) Supply Voltage (VDD) Input Current (IDD) 1.000 ~ 20.000 MHz 20.000001 ~ 30.000 MHz 30.000001 ~ 40.000 MHz 40.000001 ~ 50.000 MHz 50.000001 ~ 60.000 MHz 60.000001 ~ 70.000 MHz 70.000001 ~ 80.000 MHz Standby Current Output Symmetry (50% VDD) Rise/Fall Time (10%/90% VDD Levels) (TR/TF) Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 Maximum Solder Temp/Time Moisture Sensitivity Layer Termination Finish Lead-Free RoHS/REACH Compliant MAX (Unless otherwise noted) 1.000 ~ 80.000 MHz -55 ~ +125°C 2.5V±10% 3 mA 4 mA 5 mA 6 mA 7 mA 8 mA 9 mA 10 µA 45% ~ 55% 4.5 nS 10% VDD 90% VDD Min 15 pF 2 mS 200 nS 2 mS 260°C / 10 Seconds x2 1 Au (0.3~1µm) over Ni (1.27~8.89µm Yes Yes ENABLE / DISABLE FUNCTION Pin OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD 1 Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 2.5V2 Frequency Stability ±100PPM ±100PPM ±50PPM ±50PPM ±30PPM ±30PPM ±25PPM ±20PPM* Operating Temperature (°C) -20 ~ +70 -40 ~ +85 -20 ~ +70 -40 ~ +85 -20 ~ +70 -40 ~ +85 -20 ~ +70 -20 ~ +70 Frequency Range (MHz) 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1 An 2 internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, and one-year aging. *Excludes Shock/Vibration. Revised A: 01/20/2020 Page 3 of 6 www.foxonline.com FO8HS (Former F610, F630, F640 Series) 1.6mm x 1.2mm HCMOS SMD Oscillator 3.3V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Storage Temperature Range (TSTG) Supply Voltage (VDD) Input Current (IDD) 1.000 ~ 10.000 MHz 10.000001 ~ 20.000 MHz 20.000001 ~ 30.000 MHz 30.000001 ~ 40.000 MHz 40.000001 ~ 50.000 MHz 50.000001 ~ 60.000 MHz 60.000001 ~ 70.000 MHz 70.000001 ~ 80.000 MHz Standby Current Output Symmetry (50% VDD) Rise/Fall Time (10%/90% VDD Levels) (TR/TF) Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 Maximum Solder Temp/Time Moisture Sensitivity Layer Termination Finish Lead-Free RoHS/REACH Compliant MAX (Unless otherwise noted) 1.000 ~ 80.000 MHz -55 ~ +125°C 3.3V±10% 3 mA 4 mA 5 mA 6 mA 7 mA 8 mA 9 mA 10 mA 10µA 45% ~ 55% 4.5nS 10% VDD 90% VDD Min 15 pF 2 mS 200 nS 2 mS 260°C / 10 Seconds x2 1 Au (0.3~1µm) over Ni (1.27~8.89µm) Yes Yes ENABLE / DISABLE FUNCTION Pin OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD 1 Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 2.5V2 Frequency Stability ±100PPM ±100PPM ±50PPM ±50PPM ±30PPM ±30PPM ±25PPM ±20PPM* Operating Temperature (°C) -20 ~ +70 -40 ~ +85 -20 ~ +70 -40 ~ +85 -20 ~ +70 -40 ~ +85 -20 ~ +70 -20 ~ +70 Frequency Range (MHz) 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1.0 ~ 80 1 An 2 internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, and one-year aging. *Excludes Shock/Vibration. Revised A: 01/20/2020 Page 4 of 6 www.foxonline.com FO8HS 1.6mm x 1.2mm HCMOS SMD Oscillator (Former F610, F630, F640 Series) DIMENSIONS / MECHANICAL SPECIFICATIONS #4 Top View 1.6±0.1 #3 Part Marking #2 #1 Side View Bottom 1.2±0.1 0.7 Max 0.5 #1 #2 0.3 0.4±0.1 #4 #3 0.5±0.1 Recommended Solder Pad Layout 1.1 #4 #3 #1 #2 0.3 0.5 0.6 0.8 0.5 Note: *A 0.01μF capacitor should be placed between VDD (Pin 4) and GND (Pin2) to minimize power supply line noise. *Dimensional drawing is for reference to critical specifications defined by size measurements. Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary. Revised A: 01/20/2020 Page 5 of 6 www.foxonline.com FO8HS 1.6mm x 1.2mm HCMOS SMD Oscillator (Former F610, F630, F640 Series) TAPE SPECIFICATIONS (mm) A B C D E F ø1.5 4.0 4.0 3.5 8.0 0.8 REEL SPECIFICATIONS (mm) REEL QTY -T3=3,000 default -T1 = 1,000 G H I J K L M 2.0 Ø13 Ø21 Ø60 Ø180 9.0 1.2 Available Options & Part Identification for HCMOS SMD Oscillator O8HS* Sample PN: FO8HSCBM25.0-T3 F O8HS C B M 25.0 -T3 Fox Model Number Voltage C = 3.3V±10% J = 2.5V±10% L = 1.8V±10% Stability A = ±100 PPM B = ±50 PPM C = ±30 PPM D = ±25 PPM E = ±20 PPM Operating Temperature F = -20 to +70°C M = -40 to +85°C Frequency (MHz) Values Added Options Blank = Bulk T1 = 1,000 pcs T3 = 3,000 pcs * Not all frequencies in the frequency range, or every combination of stability, temp range, and voltage available. Reliability Test Conditions Please contact Abracon Quality Assurance department Revised A: 01/20/2020 Page 6 of 6 www.foxonline.com
