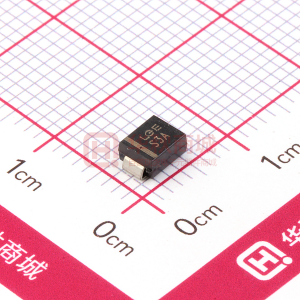

S3A

S3A THRU S3M SURFACE MOUNT RECTIFIER Reverse Voltage - 50 to 1000 Volts DO-214AB MODIFIED J-BEND Forward Current - 3.0 Amperes FEATURES ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ For surface mount applications ♦ Low profile package ♦ Built-in strain relief, ideal for automated placement ♦ Glass passivated chip junction ♦ High temperature soldering: 260°C/10 seconds at terminals 0.126 (3.20) 0.114 (2.90) 0.245 (6.22) 0.220 (5.59) 0.280 (7.11) 0.260 (6.60) 0.012 (0.305) 0.006 (0.152) MECHANICAL DATA Case: JEDEC DO-214AB molded plastic body over passivated chip Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.007 ounce, 0.25 gram 0.103 (2.62) 0.079 (2.06) 0.060 (1.52) 0.030 (0.76) 0.320 (8.13) 0.305 (7.75) 0.008 (0.203) MAX. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. SYMBOLS S3A SA S3B SB S3D SD S3G SG S3J SJ S3K SK S3M SM UNITS Device marking code Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=75°C (NOTE 3) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) TL=75°C Maximum instantaneous forward voltage at 2.5A Maximum DC reverse current at rated DC blocking voltage TA=25°C TA=125°C VRRM VRMS VDC I(AV) 50 35 50 100 70 100 200 140 200 400 280 400 3.0 600 420 600 800 560 800 1000 700 1000 Volts Volts Volts Amps IFSM VF IR trr CJ RΘJA RΘJL TJ, TSTG 100.0 1.15 10.0 250.0 2.5 60.0 47.0 13.0 -55 to +150 Amps Volts µA µs pF °C/W °C Typical reverse recovery time (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range NOTES: (1) Reverse recovery test conditions: IF=0.5A, IR=1.0A, Irr=0.25A (2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts (3) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3 x 0.3” (8.0 x 8.0mm) copper pad areas 4/98 RATINGS AND CHARACTERISTIC CURVES S3A THRU S3M FIG. 1 - FORWARD CURRENT DERATING CURVE FIG. 2 - MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 3.5 AVERAGE FORWARD CURRENT, AMPERES RESISTIVE OR INDUCTIVE LOAD 200 PEAK FORWARD SURGE CURRENT, AMPERES 3.0 2.5 2.0 1.5 1.0 0.5 P.C.B. MOUNTED on 0.3 x 0.3” (8.0 x 8.0mm) COPPER PAD AREAS TL=75°C 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 100 0 50 60 70 80 90 100 110 120 130 140 150 160 LEAD TEMPERATURE, °C 10 1 10 NUMBER OF CYCLES AT 60 HZ 100 FIG. 3 - TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS FIG. 4 - TYPICAL REVERSE CHARACTERISTICS 100 INSTANTANEOUS FORWARD CURRENT, AMPERES INSTANTANEOUS REVERSE CURRENT, MICROAMPERES 100 10 10 TJ=125°C TJ=25°C PULSE WIDTH=300µs 1% DUTY CYCLE 1 1 TJ=25°C 0.1 0.1 0 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE, % 0.01 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 INSTANTANEOUS FORWARD VOLTAGE, VOLTS FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE (°C/W) 100 FIG. 5 - TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF MOUNTED ON 0.20 x 0.27” (5 x 7mm) COPPER PAD AREAS 100 TJ=25°C f=1.0 MHZ Vsig=50mVp-p 10 1 10 1 10 REVERSE VOLTAGE, VOLTS 100 0.1 0.01 0.1 1 t, PULSE DURATION, sec 10 100
