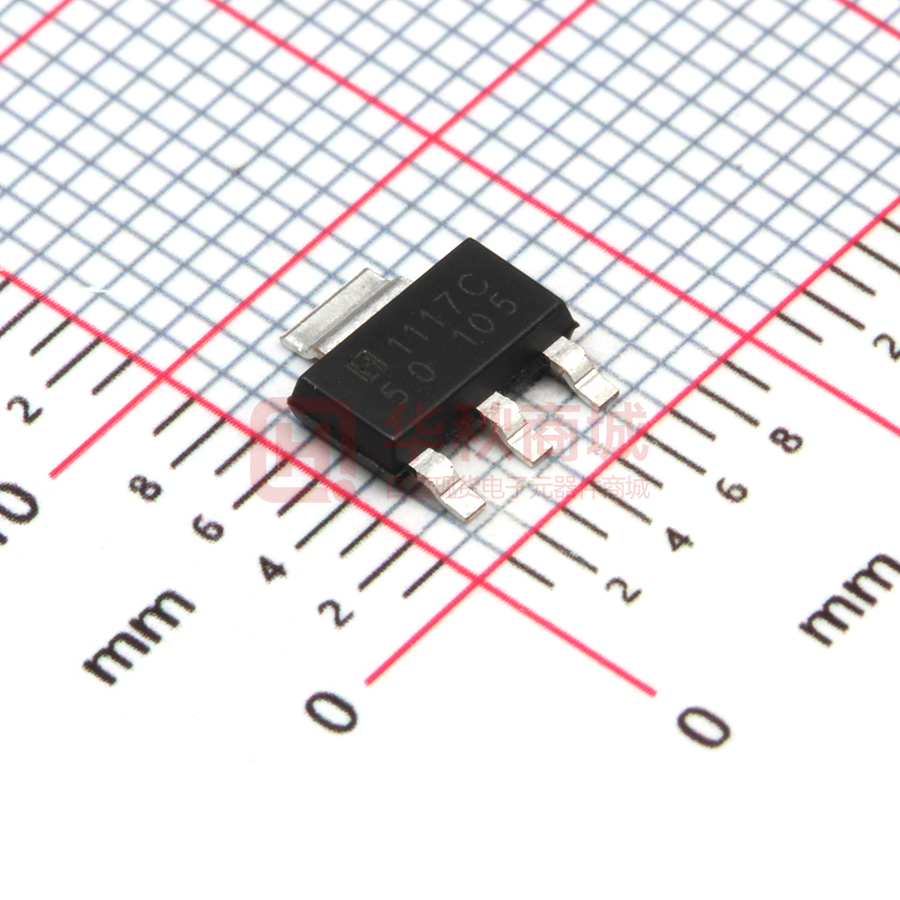

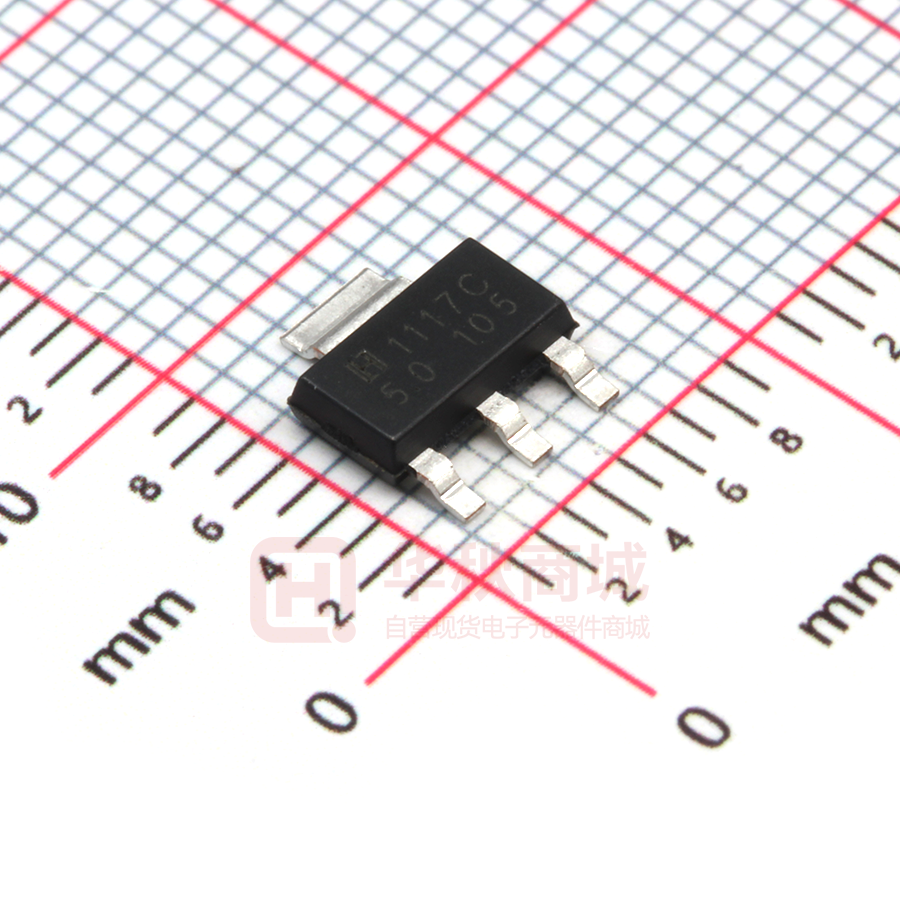

LM1117S-5.0

1A L.D.O VOLTAGE REGULATOR LM1117 SOT-223 PKG FEATURES z Output Current up to 1 A z Low Dropout Voltage (1.2V at 1A Output current) z Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V z Line Regulation typically at 0.1% max. z Load Regulation typically at 0.2% max. z Internal Current and Terminal Protection z Maximum Input Voltage 20V z Surface Mount Package SOT-223, TO-252, SOT-89 z 100% Thermal Limit Burn-In z Moisture Sensitivity Level 3 TO-252 PKG SOT-89 PKG ORDERING INFORMATION APPLICATION z z z z z z z Device Package LM1117S-ADJ LM1117S-X.X SOT-223 3L LM1117GS-ADJ LM1117GS-X.X LM1117RS-ADJ LM1117RS-X.X TO-252 3L LM1117GRS-ADJ LM1117GRS-X.X LM1117F-ADJ LM1117F-X.X SOT-89 3L LM1117GF-ADJ LM1117GF-X.X X.X = Output Voltage = 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V Active SCSI Terminators Portable/ Plan Top/ Notebook Computers High Efficiency Linear Regulators SMPS Post Regulators Mother B/D Clock Supplies Disk Drives Battery Chargers DESCRIPSION The LM1117 is a low power positive-voltage regulator designed to meet 1A output current and comply with SCSI-II specifications with a fixed output voltage of 2.85V. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low quiescent current and very low dropout voltage of 1V at a full load and lower as output current decreases. LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 2.85, 3.3V, and 5.0V output voltages. The LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10㎌ or larger is needed for output stability of LM1117 as required by most of the other regulator circuits. Absolute Maximum Ratings (TA = 25℃, unless otherwise specified) CHARACTERISTIC SYMBOL MIN. MAX. UNIT VIN - 20 V Lead Temperature (Soldering, 5 seconds) TSOL - 260 ℃ Operating Junction Temperature Range TOPR -40 125 ℃ Storage Temperature Range TSTG -65 150 ℃ DC Input Voltage Mar. 2013 Rev. 1.22 -1- HTC 1A L.D.O VOLTAGE REGULATOR LM1117 Ordering Information VOUT ADJ 1.2V 1.5V 1.8V 2.5V 2.85V Package Order No. Package Marking Supplied As Status SOT-223 LM1117S-ADJ 1117C ADJ Reel Active SOT-223 LM1117GS-ADJ 1117GC ADJ Reel Contact us TO-252 LM1117RS-ADJ LM1117C ADJ Reel Active TO-252 LM1117GRS-ADJ LM1117GC ADJ Reel Contact us SOT-89 LM1117F-ADJ 1117C ADJ Reel Active SOT-89 LM1117GF-ADJ 1117GC ADJ Reel Active SOT-223 LM1117S-1.2V 1117C 1.2 Reel Active SOT-223 LM1117GS-1.2V 1117GC 1.2 Reel Contact us TO-252 LM1117RS-1.2V LM1117C 1.2 Reel Active TO-252 LM1117GRS-1.2V LM1117GC 1.2 Reel Contact us SOT-89 LM1117F-1.2V 1117C 1.2 Reel Active SOT-89 LM1117GF-1.2V 1117GC 1.2 Reel Active SOT-223 LM1117S-1.5V 1117C 1.5 Reel Active SOT-223 LM1117GS-1.5V 1117GC 1.5 Reel Contact us TO-252 LM1117RS-1.5V LM1117C 1.5 Reel Active TO-252 LM1117GRS-1.5V LM1117GC 1.5 Reel Contact us SOT-89 LM1117F-1.5V 1117C 1.5 Reel Active SOT-89 LM1117GF-1.5V 1117GC 1.5 Reel Active SOT-223 LM1117S-1.8V 1117C 1.8 Reel Active SOT-223 LM1117GS-1.8V 1117GC 1.8 Reel Contact us TO-252 LM1117RS-1.8V LM1117C 1.8 Reel Active TO-252 LM1117GRS-1.8V LM1117GC 1.8 Reel Contact us SOT-89 LM1117F-1.8V 1117C 1.8 Reel Active SOT-89 LM1117GF-1.8V 1117GC 1.8 Reel Active SOT-223 LM1117S-2.5V 1117C 2.5 Reel Active SOT-223 LM1117GS-2.5V 1117GC 2.5 Reel Contact us TO-252 LM1117RS-2.5V LM1117C 2.5 Reel Active TO-252 LM1117GRS-2.5V LM1117GC 2.5 Reel Contact us SOT-89 LM1117F-2.5V 1117C 2.5 Reel Active SOT-89 LM1117GF-2.5V 1117GC 2.5 Reel Active SOT-223 LM1117S-2.85V 1117C 2.85 Reel Active SOT-223 LM1117GS-2.85V 1117GC 2.85 Reel Contact us TO-252 LM1117RS-2.85V LM1117C 2.85 Reel Active TO-252 LM1117GRS-2.85V LM1117GC 2.85 Reel Contact us SOT-89 LM1117F-2.85V 1117C 2.85 Reel Active SOT-89 LM1117GF-2.85V 1117GC 2.85 Reel Active Mar. 2013 Rev. 1.22 -2- HTC 1A L.D.O VOLTAGE REGULATOR LM1117 Ordering Information VOUT 3.3V 5.0V (Continued) Package Order No. Package Marking Supplied As Status SOT-223 LM1117S-3.3V 1117C 3.3 Reel Active SOT-223 LM1117GS-3.3V 1117GC 3.3 Reel Contact us TO-252 LM1117RS-3.3V LM1117C 3.3 Reel Active TO-252 LM1117GRS-3.3V LM1117GC 3.3 Reel Contact us SOT-89 LM1117F-3.3V 1117C 3.3 Reel Active SOT-89 LM1117GF-3.3V 1117GC 3.3 Reel Active SOT-223 LM1117S-5.0V 1117C 5.0 Reel Active SOT-223 LM1117GS-5.0V 1117GC 5.0 Reel Contact us TO-252 LM1117RS-5.0V LM1117C 5.0 Reel Active TO-252 LM1117GRS-5.0V LM1117GC 5.0 Reel Contact us SOT-89 LM1117F-5.0V 1117C 5.0 Reel Active SOT-89 LM1117GF-5.0V 1117GC 5.0 Reel Active Mar. 2013 Rev. 1.22 -3- HTC 1A L.D.O VOLTAGE REGULATOR LM1117 PIN CONFIGURATION SOT-223 TO-252 SOT-89 PIN DESCRIPTION SOT-223 / TO-252 / SOT-89 Pin No. Name Function 1 ADJ/GND Adjustable / Ground 2 VOUT Output Voltage 3 VIN Input Voltage Mar. 2013 Rev. 1.22 -4- HTC 1A L.D.O VOLTAGE REGULATOR LM1117 ELECTRICAL CHARACTERISTICS (TA=25℃, CO = 10uF unless otherwise specified) For ADJ Output Voltage Symbol Parameters Condition Min. Typ. Max. Unit 1.250 1.262 V 1.281 V VREF Reference Voltage VIN=5V, IO=10mA 1.238 VREF Reference Voltage IO = 10mA to 1A, VIN - VREF = 1.5V to 13.75V (TJ = 0 ~ 125℃) 1.219 ΔVLINE Line Regulation IO = 10mA , VIN - VREF = 1.5V to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 10mA to 1A, VIN - VREF = 2 V 0.2 0.4 % 12 V VIN Operating Input Voltage IADJ Adjustment pin Current VIN - VREF = 1.5V to 12V, IO = 100mA 50 120 uA ΔIADJ Adjustment Pin Current Change VIN - VREF = 1.5V to 12V, IO = 100mA to 1A 0.5 5 uA IO(MIN) Minimum Load Current VIN=5V, VREF=0V 5 10 mA IO Current Limit VIN - VREF = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VREF = 3V, VRIPPLE = 1VPP SVR 1000 % 75 dB (TA=25℃, CO = 10uF unless otherwise specified) For 1.2V Output Voltage Symbol 60 0.003 Parameters Condition Min. Typ. Max. Unit 1.200 1.224 V 1.248 V VO Output Voltage VIN = 2.7V, IO = 10mA 1.176 VO Output Voltage VIN = 2.7V to 12V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 1.152 ΔVLINE Line Regulation IO = 0mA , VIN = 2.7V to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 10mA to 1A, VIN = 3.2V 0.2 0.4 % 12 V 5 10 ㎃ 1250 1600 ㎃ VIN Operating Input Voltage ID Quiescent Current VIN - VO = 5V IO Current Limit VIN - VO = 5V EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 1.5V, VRIPPLE = 1VPP SVR Mar. 2013 Rev. 1.22 1000 -5- 60 0.003 % 75 dB HTC 1A L.D.O VOLTAGE REGULATOR (TA=25℃, CO = 10uF unless otherwise specified) For 1.5V Output Voltage Symbol LM1117 Parameters Condition Min. Typ. Max. Unit 1.5 1.515 V 1.530 V VO Output Voltage VIN = 3.0V , IO = 10mA 1.485 VO Output Voltage VIN = 3.0V to 12V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 1.470 ΔVLINE Line Regulation IO = 0mA , VIN = 3.0V to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 0mA to 1A, VIN = 3.5 V 0.2 0.4 % VIN Operating Input Voltage IO = 100mA 12 V ID Quiescent Current VIN - VO = 5V 5 10 mA IO Current Limit VIN - VO = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 3V, VRIPPLE = 1VPP SVR 1000 uV 75 dB (TA=25℃, CO = 10uF unless otherwise specified) For 1.8V Output Voltage Symbol 60 100 Parameters Condition Min. Typ. Max. Unit 1.8 1.818 V 1.836 V VO Output Voltage VIN = 3.3V, IO = 10mA 1.782 VO Output Voltage VIN = 3.3V to 12V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 1.764 ΔVLINE Line Regulation IO = 0mA , VIN = 3.3V to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 0mA to 1A, VIN = 3.8 V 0.2 0.4 % VIN Operating Input Voltage IO = 100mA 12 V ID Quiescent Current VIN - VO = 5V 5 10 mA IO Current Limit VIN - VO = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 3V, VRIPPLE = 1VPP SVR Mar. 2013 Rev. 1.22 1000 -6- 60 100 uV 75 dB HTC 1A L.D.O VOLTAGE REGULATOR (TA=25℃, CO = 10uF unless otherwise specified) For 2.5V Output Voltage Symbol LM1117 Parameters Condition Min. Typ. Max. Unit 2.5 2.525 V 2.550 V VO Output Voltage VIN = 4.0V, IO = 10mA 2.475 VO Output Voltage VIN = 4.0V to 12V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 2.450 ΔVLINE Line Regulation IO = 0mA , VIN = 4.0V to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 0mA to 1A, VIN = 4.5 V 0.2 0.4 % VIN Operating Input Voltage IO = 100mA 12 V ID Quiescent Current VIN - VO = 5V 5 10 mA IO Current Limit VIN - VO = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 3V, VRIPPLE = 1VPP SVR 1000 uV 75 dB (TA=25℃, CO = 10uF unless otherwise specified) For 2.85V Output Voltage Symbol 60 100 Parameters Condition Min. Typ. Max. Unit 2.85 2.878 V 2.907 V VO Output Voltage VIN = 4.4V, IO = 10mA 2.821 VO Output Voltage VIN = 4.4V to 12V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 2.793 ΔVLINE Line Regulation IO = 0mA , VIN = 4.4 to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 0mA to 1A, VIN = 4.85 V 0.2 0.4 % VIN Operating Input Voltage IO = 100mA 12 V ID Quiescent Current VIN - VO = 5V 5 10 mA IO Current Limit VIN - VO = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 3V, VRIPPLE = 1VPP SVR Mar. 2013 Rev. 1.22 1000 -7- 60 100 uV 75 dB HTC 1A L.D.O VOLTAGE REGULATOR (TA=25℃, CO = 10uF unless otherwise specified) For 3.3V Output Voltage Symbol LM1117 Parameters Condition Min. Typ. Max. Unit 3.3 3.333 V 3.366 V VO Output Voltage VIN = 4.8V, IO = 10mA 3.267 VO Output Voltage VIN = 4.8V to 12V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 3.234 ΔVLINE Line Regulation IO = 0mA , VIN = 4.8V to 12V 0.1 0.2 % ΔVLOAD Load Regulation IO = 0mA to 1A, VIN = 5.3 V 0.2 0.4 % VIN Operating Input Voltage IO = 100mA 12 V ID Quiescent Current VIN - VO = 5V 5 10 mA IO Current Limit VIN - VO = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 3V, VRIPPLE = 1VPP SVR 1000 uV 75 dB (TA=25℃, CO = 10uF unless otherwise specified) For 5.0V Output Voltage Symbol 60 100 Parameters Condition Min. Typ. Max. Unit 5.0 5.050 V 5.100 V VO Output Voltage VIN = 6.5V, IO = 10mA 4.950 VO Output Voltage VIN = 6.5V to 15V, IO = 0mA to 1A (TJ = 0 ~ 125℃) 4.900 ΔVLINE Line Regulation IO = 0mA , VIN = 6.5V to 15V 0.1 0.2 % ΔVLOAD Load Regulation IO = 0mA to 1A, VIN = 7.0 V 0.2 0.4 % VIN Operating Input Voltage IO = 100mA 12 V ID Quiescent Current VIN - VO = 5V 5 10 mA IO Current Limit VIN - VO = 5V 1250 1600 mA EN Output Noise(%VO) B = 10Hz to 10kHz, TJ = 25℃ Supply Voltage Rejection IO = 1A, f = 120Hz, VIN - VO = 3V, VRIPPLE = 1VPP SVR Mar. 2013 Rev. 1.22 1000 -8- 60 100 uV 75 dB HTC 1A L.D.O VOLTAGE REGULATOR (TA=25℃, CO = 10uF unless otherwise specified) For All Output Voltage Symbol VD Parameters Dropout Voltage LM1117 Condition Typ. Max. Unit IO = 100mA 1.0 1.1 V IO = 500mA 1.1 1.2 V IO = 1A 1.2 1.3 V Temperature Stability Long Term Stability 1000 hrs, TJ = 125℃ Thermal Regulation TA = 25℃ 30ms Pulse Min. 0.5 % 0.3 % 0.003 %/W TYPICAL APPLICATION CIRCUIT Fig.1 1A Current Output Fig.2 Typical Adjustable Regulator Mar. 2013 Rev. 1.22 -9- HTC 1A L.D.O VOLTAGE REGULATOR LM1117 Fig.3 Negative Supply Fig.4 Active Terminator for SCSI-2BUS Fig.5 Voltage Regulator with Reference Fig.6 Battery Backed-up Regulated Supply Mar. 2013 Rev. 1.22 - 10 - HTC 1A L.D.O VOLTAGE REGULATOR LM1117 TYPICAL OPERATING CHARACTERISTICS Fig.8 DROPOUT VOLTAGE VS OUTPUT CURRENT Fig.7 OUTPUT VOLTAGE CHANGE VS TEMPERATURE Fig.10 OUTPUT SHORT CIRCUIT CURRENT VS TEMPERATURE IQ, QUIESCENT CURRENT CHANGE (%) Fig.9 OUTPUT SHORT CIRCUIT CURRENT VS DIFFERENTIAL VOLTAGE Fig.12 QUIESCENT CURRENT CHANGE VS TEMPERATURE Fig.11 ADJ PIN CURRENT VS TEMPERATURE Mar. 2013 Rev. 1.22 - 11 - HTC 1A L.D.O VOLTAGE REGULATOR LM1117 APPLICATION INFORMATION Maximum Output Current Capability The LM1117 can deliver a continuous current of 1A over the full operating junction temperature range. However, the output current is limited by the restriction of power dissipation which differs from packages. A heat sink may be required depending on the maximum power dissipation and maximum ambient temperature of application. With respect to the applied package, the maximum output current of 1A may be still undeliverable due to the restriction of the power dissipation of LM1117. Under all possible conditions, the junction temperature must be within the range specified under operating conditions. The temperatures over the device are given by: TC = TA + PD X θCA / TJ = TC + PD X θJC / TJ = TA + PD X θJA where TJ is the junction temperature, TC is the case temperature, TA is the ambient temperature, PD is the total power dissipation of the device, θCA is the thermal resistance of case-to-ambient, θJC is the thermal resistance of junction-to-case, and θJA is the thermal resistance of junction to ambient. The total power dissipation of the device is given by: PD = PIN – POUT = (VIN X IIN)–(VOUT X IOUT) = (VIN X (IOUT+IGND)) – (VOUT X IOUT) = (VIN - VOUT) X IOUT + VIN X IGND where IGND is the operating ground current of the device which is specified at the Electrical Characteristics. The maximum allowable temperature rise (TRmax) depends on the maximum ambient temperature (TAmax) of the application, and the maximum allowable junction temperature (TJmax): TRmax = TJmax – TAmax The maximum allowable value for junction-to-ambient thermal resistance, θJA, can be calculated using the formula: θJA = TRmax / PD = (TJmax – TAmax) / PD LM1117 is available in SOT223, TO252 and SOT89 packages. The thermal resistance depends on amount of copper area or heat sink, and on air flow. If the maximum allowable value of θJA calculated above is over 137°C/W for SOT-223 package, over 105 °C/W for TO252 package, over 315 °C/W for SOT-89 package, no heat sink is needed since the package can dissipate enough heat to satisfy these requirements. If the value for allowable θJA falls near or below these limits, a heat sink or proper area of copper plane is required. In summary, the absolute maximum ratings of thermal resistances are as follow: Absolute Maximum Ratings of Thermal Resistance Characteristic Symbol Rating Unit Thermal Resistance Junction-To-Ambient / SOT-223 θJA-SOT-223 137 °C/W Thermal Resistance Junction-To-Ambient / TO-252 θJA-TO-252 105 °C/W Thermal Resistance Junction-To-Ambient / SOT-89 θJA-SOT-89 315 °C/W No heat sink / No air flow / No adjacent heat source / 0.066 inch2 copper area. (TA=25°C) Mar. 2013 Rev. 1.22 - 12 - HTC
