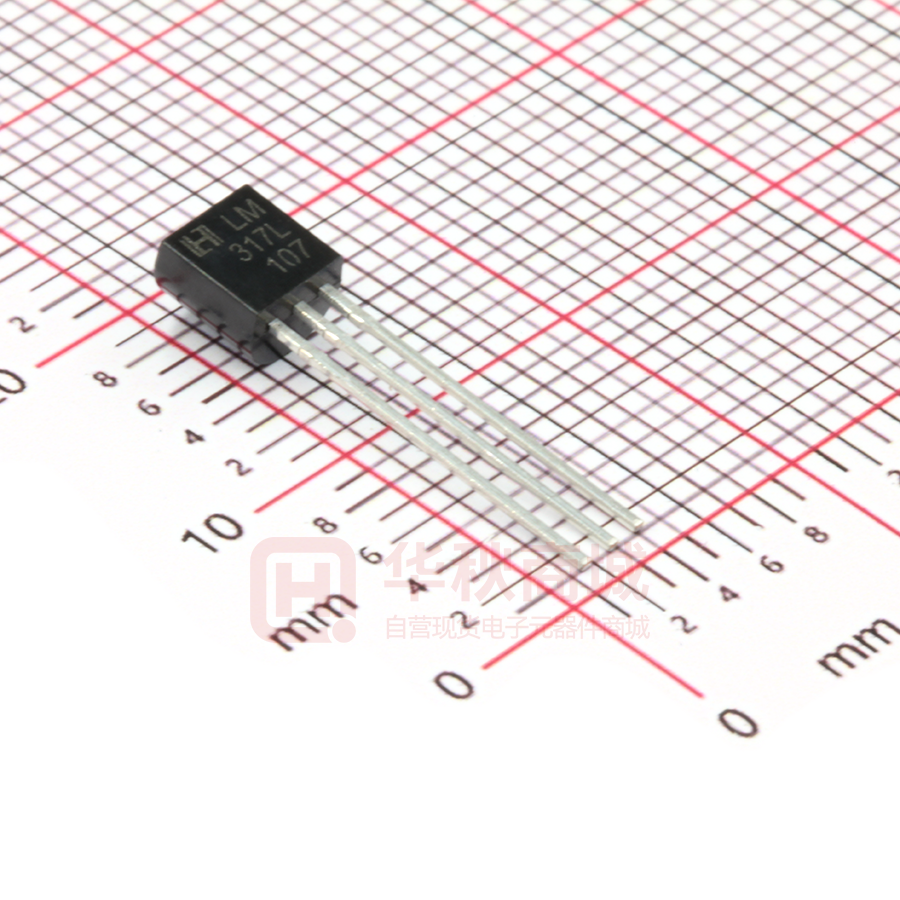

LM317L

ADJUSTABLE VOLTAGE REGULATOR (POSITIVE) 3-TERMINAL 100mA POSITIVE ADJUSTABLE REGULATOR This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 100mA of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting, thermal shut-down and safe area compensation. TO-92 PKG (TOP VIEW) 3. VIN 2. VOUT 1. ADJ LM317L SOT-89 PKG (FRONT VIEW) FEATURES ◇ ◇ ◇ ◇ ◇ Output current in Excess of 100mA Output Adjustable Between 1.2V and 37V Internal Thermal-Overload Protection Internal Short-Circuit Current-Limiting Output Transistor Safe-Area Compensation 1.Adj 2. Vout 3. Vin ◇ Floating operation for high voltage applications ORDERING INFORMATION Device LM317L LM317F Marking LM317L 317 Package TO-92 SOT-89 BLOCK DIAGRAM HTC 53 ADJUSTABLE VOLTAGE REGULATOR (POSITIVE) LM317L TYPICAL APPLICATIONS Fig.5 Programmable Regulator CI is required when regulator is located in appreciable distance from power supply filter. Co is not needed for stability, however, it does improve transient response. Since lADJ is controlled to less than 100㎂, the error associated with this term is negligible in most applications. HTC 54 ADJUSTABLE VOLTAGE REGULATOR (POSITIVE) ABSOLUTE MAXIMUM RATINGS (TA=25℃, unless otherwise specified) Characteristic Input-output Voltage Differential Lead Temperature Power Dissipation Operating Temperature Range Storage Temperature Range Symbol VI-Vo TLEAD PD TOPR TSTG Value 40 230 Internally limited 0 ∼ +125 -65 ∼ +125 LM317L Unit V ℃ ℃ ℃ ELECTRICAL CHARACTERISTICS (VI-Vo=5V, Io=0.5A, 0℃≤TJ≤125℃, IMAX=1.5A, PMAX= 1.5 W, unless otherwise specified) Characteristic Line Regulation Symbol △Vo Test condition TA=0 ∼ 125℃ 3V≤VI-Vo≤40V 3V≤VI-Vo≤40V TA=25℃, 10㎃≤Io≤IMAX Vo≤5V Vo≥5V 10㎃≤Io≤IMAX Vo≤5V Vo≥5V 3V≤VI-Vo≤40V 10㎃≤Io≤IMAX P≤PMAX 3V≤VIN-VOUT≤40V 10㎃≤Io≤IMAX PD≤PMAX VI-Vo=40V VI-Vo≤5V, PD≤PMAX VI-Vo≤40V, PD≤PMAX, TA=25℃ TA=25℃, 10Hz≤f≤10KHz Vo=10V, f=120Hz without CADJ CADJ=10 ㎌ TA=25℃, for end point measurements, 1000HR 100 0.156 Min. Typ. 0.01 0.02 10 0.1 20 0.3 46 0.2 Max. 0.04 0.07 25 0.5 70 1.5 100 5 Unit %/V %/V ㎷ %/Vo ㎷ %/Vo ㎂ ㎂ Load Regulation △Vo Adjustable Pin Current Adjustable Pin Current Change IADJ △IADJ Reference Voltage Temperature Stability Minimum Load Current to Maintain Regulation Maximum Output Current RMS Noise, % of VOUT Ripple Rejection Long-Term Stability, TJ=THIGH VREF STT L(MIN) Io(MAX) eN RR ST 1.20 1.25 0.7 3.5 200 0.4 0.003 60 75 0.3 1.30 V %/Vo ㎃ mA 10 0.01 %/Vo ㏈ 66 1 % * Load and line regulation are specified at constant junction temperature. Change in VD due to heating effects must be taken into account separately. Pulse testing with low duty is used. (Pmax = 1500 mW) HTC 55
