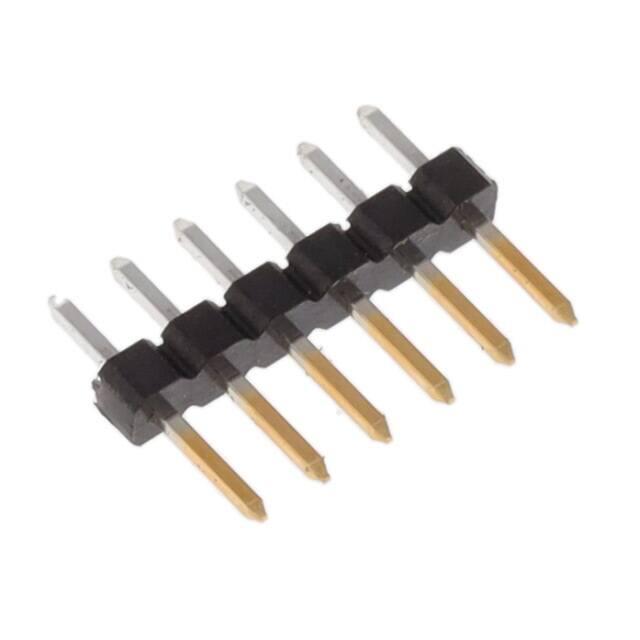

2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm 2355104-6  ACTIVE AMPMODU | AMPMODU 2 mm TE Internal #: 2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [. 079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm View on TE.com > Connectors > PCB Connectors > PCB Headers & Receptacles PCB Connector Assembly Type: PCB Mount Header PCB Mount Orientation: Vertical Connector System: Board-to-Board Number of Positions: 6 Number of Rows: 1 Features Product Type Features PCB Connector Assembly Type PCB Mount Header Connector System Board-to-Board Header Type Breakaway Connector & Contact Terminates To Printed Circuit Board Configuration Features Stackable No PCB Mount Orientation Vertical Number of Positions 6 Number of Rows 1 Electrical Characteristics Dielectric Withstanding Voltage (Max) 500 VAC Operating Voltage 125 VAC Body Features Assembly Process Feature Material  For support call+1 800 522 6752 Thermoplastic 01/02/2024 09:38PM | Page 1 2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm Assembly Process Feature Material Thermoplastic Connector Profile Standard Primary Product Color Black Contact Features Contact Mating Area Length 4 mm[.157 in] Mating Square Post Dimension .5 mm[.02 in] PCB Contact Termination Area Plating Material Thickness 2 µm[78.74 µin] Contact Layout Inline Contact Underplating Material Thickness .5 µm[19.69 µin] PCB Contact Termination Area Plating Material Finish Bright Contact Shape & Form Square Contact Underplating Material Nickel PCB Contact Termination Area Plating Material Tin Contact Base Material Brass Contact Mating Area Plating Material Gold Contact Mating Area Plating Material Thickness .1 µm[3.94 µin] Contact Type Pin Contact Current Rating (Max) 2A Termination Features Square Termination Post & Tail Dimension .5 mm[.02 in] Termination Post & Tail Length 2.8 mm[.11 in] Termination Method to Printed Circuit Board Through Hole - Solder Housing Features Centerline (Pitch) 2 mm[.079 in] Housing Material PA9T GF Dimensions Connector Length 12 mm[.472 in] Connector Width 2 mm[.079 in] PCB Thickness (Recommended) 1.6 mm[.063 in] Usage Conditions Housing Temperature Rating High Operating Temperature Range -40 – 125 °C[-40 – 257 °F] Operation/Application  Assembly Process Feature For support call+1 800 522 6752 Pick and Place Cover, Plastic Cap01/02/2024 09:38PM | Page 2 2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm Assembly Process Feature Pick and Place Cover, Plastic Cap Circuit Application Signal Industry Standards UL Rating Recognized Agency/Standard UL Approved Standards UL E28476 UL Flammability Rating UL 94V-0 Packaging Features Packaging Type Tube Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2023 (235) Does not contain REACH SVHC Halogen Content Not Low Halogen - contains Br or Cl > 900 ppm. Solder Process Capability Reflow solder capable to 260°C Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts  For support call+1 800 522 6752 01/02/2024 09:38PM | Page 3 2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm TE Part # 2307725-6 TE Part # 2314928-6 TE Part # 2314936-6 TE Part # 2307813-6 6P,2MM,B-B,REC,SRHZ,SMD,0.1AU,TR 6P,2MM,B-B,REC,SRHZ,2.1,0.1AU,TB 6P,2MM,B-B,REC,SRHZ,2.8,0.1AU,TR 6P,2MM,BB,REC,SRVT,SMD,0.1AU,TR, W/CP TE Part # 2314868-6 TE Part # 2316102-6 TE Part # 2314944-6 TE Part # 2307703-6 6P,2MM,BB,REC,SRVT,2.0,0.1AU,TB,W 6P,2MM,REC,HSG,SR,CRIMP,PLAIN, 6P,2MM,B-B,REC,SRHZ,SMD,0.1AU,TB 6P,2MM,B-B,REC,SRHZ,2.1,0.1AU,TR /CP BOX TE Part # 2307704-6 TE Part # 2307705-6 TE Part # 2314848-6 TE Part # 2307767-6 6P,2MM,B-B,REC,SRHZ,2.8,0.1AU,TB 6P,2MM,B-B,REC,SRHZ,3.4,0.1AU, 6P,2MM,BB,REC,SRVT,SMD,0.1AU,TB, 6P,2MM,BB,REC,SRVT,2.0,0.1AU,TR,W TUBE W/CP /CP TE Part # 2314876-6 TE Part # 2314880-6 TE Part # 2307768-6 TE Part # 2307769-6 6P,2MM,B-B,REC,SRVT,2.7,0.1AU,TB 6P,2MM,BB,REC,SRVT,2.7,0.1AU,TB,W /CP 6P,2MM,BB,REC,SRVT,2.7,0.1AU,TR,W /CP 6P,2MM,B-B,REC,SRVT,3.2,0.1AU,TUBE TE Part # 2314900-6 TE Part # 2307835-6 TE Part # 2314908-6 TE Part # 2314912-6 6P,2MM,BB,REC,SRVT,OTR,2.3,AU.1, TB,W/CP 6P,2MM,BB,REC,SRVT,OTR,2.3,AU.1, TR,W/CP 6P,2MM,B-B,REC,SRVT,OTR,2.8,0.1AU, TB 6P,2MM,BB,REC,SRVT,OTR,2.8,AU.1, TB,W/CP Also in the Series AMPMODU 2 mm  For support call+1 800 522 6752 01/02/2024 09:38PM | Page 4 2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm Connector Contacts(27) PCB Headers & Receptacles(10406) Wire-to-Board Connector Assemblies & Housings(202) Customers Also Bought TE Part #9-146258-0 TE Part #5-146280-6 TE Part #1393310-2 TE Part #1571983-4 80 MODII HDR DRST B/A .100CL 06 MODII HDR SRST B/A .100CL VCFM-1000=FROM SEC GDH04S04=DIP SWITCH TE Part #8-1734508-0 TE Part #HPP845E131R5 TE Part #1462037-1 TE Part #3-1393292-8 AMPMODU,2.0MM, HDR, VRT MT, 8u" AU, 80P HTU21DF RH/T SENSOR IC B5000 IM01GR=IM RELAY 140mW 3V V23074A1002A403-EV-CBOX TE Part #2327678-3 TE Part #6-1393788-8 RECEPTACLE ASSY, 84 P, VERT, SLIVER 2.0 V23079E1201B301 Documents Product Drawings 6P,2MM,BRK HDR,SRVT,2.8,0.1AU,TB W/CAP English CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_2355104-6_B.2d_dxf.zip  English For support call+1 800 522 6752 01/02/2024 09:38PM | Page 5 2355104-6 PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2 mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder, Signal, Black, AMPMODU 2 mm ENG_CVM_CVM_2355104-6_B.2d_dxf.zip English Customer View Model ENG_CVM_CVM_2355104-6_B.3d_igs.zip English Customer View Model ENG_CVM_CVM_2355104-6_B.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Product Specifications Application Specification English  For support call+1 800 522 6752 01/02/2024 09:38PM | Page 6
