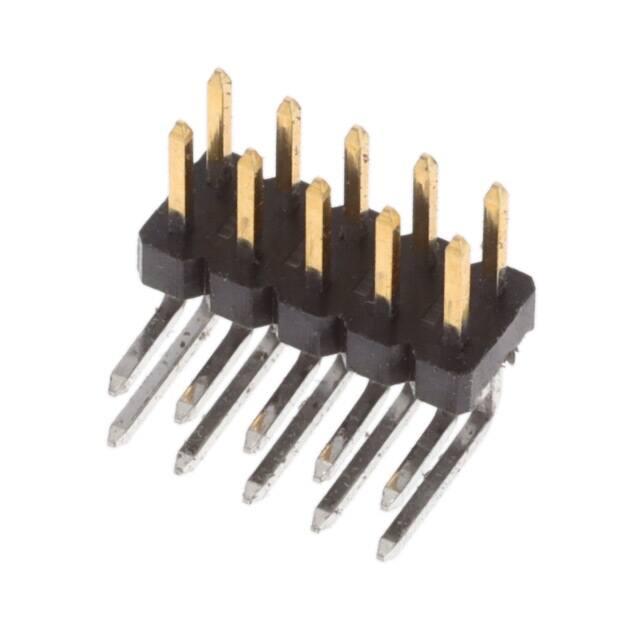

PCB Mount Header, Right Angle, Board-to-Board, 10 Position, 2 mm [.079 in]
Centerline, Breakaway, Gold, Through Hole - Solder, Signal, AMPMODU 2 mm
2842152-5
ACTIVE
AMPMODU | AMPMODU 2 mm
TE Internal #: 2842152-5
PCB Mount Header, Right Angle, Board-to-Board, 10 Position, 2
mm [.079 in] Centerline, Breakaway, Gold, Through Hole - Solder,
Signal, AMPMODU 2 mm
View on TE.com >
Connectors > PCB Connectors > PCB Headers & Receptacles
PCB Connector Assembly Type: PCB Mount Header
PCB Mount Orientation: Right Angle
Connector System: Board-to-Board
Number of Positions: 10
Number of Rows: 2
Features
Product Type Features
PCB Connector Assembly Type
PCB Mount Header
Connector System
Board-to-Board
Header Type
Breakaway
Connector & Contact Terminates To
Printed Circuit Board
Configuration Features
Stackable
No
PCB Mount Orientation
Right Angle
Number of Positions
10
Number of Rows
2
Electrical Characteristics
Dielectric Withstanding Voltage (Max)
500 VAC
Operating Voltage
125 VAC
Body Features
Connector Profile
For support call+1 800 522 6752
Standard
01/02/2024 09:58PM | Page 1
2842152-5
PCB Mount Header, Right Angle, Board-to-Board, 10 Position, 2 mm [.079 in]
Centerline, Breakaway, Gold, Through Hole - Solder, Signal, AMPMODU 2 mm
Connector Profile
Standard
Primary Product Color
Black
Contact Features
Contact Mating Area Length
4 mm[.157 in]
Mating Square Post Dimension
.5 mm[.02 in]
PCB Contact Termination Area Plating Material Thickness
2 µm[78.74 µin]
Contact Layout
Inline
Contact Underplating Material Thickness
.5 µm[19.69 µin]
PCB Contact Termination Area Plating Material Finish
Bright
Contact Shape & Form
Square
Contact Underplating Material
Nickel
PCB Contact Termination Area Plating Material
Tin
Contact Base Material
Brass
Contact Mating Area Plating Material
Gold
Contact Mating Area Plating Material Thickness
.76 µm[29.92 µin]
Contact Type
Pin
Contact Current Rating (Max)
2A
Termination Features
Square Termination Post & Tail Dimension
.5 mm[.02 in]
Termination Post & Tail Length
2.8 mm[.11 in]
Termination Method to Printed Circuit Board
Through Hole - Solder
Housing Features
Centerline (Pitch)
2 mm[.079 in]
Housing Material
PA9T GF
Dimensions
Connector Length
10 mm[.394 in]
Connector Width
4 mm[.157 in]
Row-to-Row Spacing
2 mm[.079 in]
PCB Thickness (Recommended)
1.6 mm[.063 in]
Usage Conditions
Housing Temperature Rating
High
Operating Temperature Range
-40 – 125 °C[-40 – 257 °F]
Operation/Application
Assembly
Process Feature
For support call+1
800 522 6752
Without Pick and Place Cover
01/02/2024 09:58PM | Page 2
2842152-5
PCB Mount Header, Right Angle, Board-to-Board, 10 Position, 2 mm [.079 in]
Centerline, Breakaway, Gold, Through Hole - Solder, Signal, AMPMODU 2 mm
Assembly Process Feature
Without Pick and Place Cover
Circuit Application
Signal
Industry Standards
UL Rating
Recognized
Agency/Standard
UL
Approved Standards
UL E28476
UL Flammability Rating
UL 94V-0
Packaging Features
Packaging Type
Tube
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant
EU ELV Directive 2000/53/EC
Compliant
China RoHS 2 Directive MIIT Order No 32, 2016
No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JUNE 2023
(235)
Candidate List Declared Against: JUNE
2022 (224)
Does not contain REACH SVHC
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Solder Process Capability
Reflow solder capable to 260°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
Compatible Parts
For support call+1 800 522 6752
01/02/2024 09:58PM | Page 3
2842152-5
PCB Mount Header, Right Angle, Board-to-Board, 10 Position, 2 mm [.079 in]
Centerline, Breakaway, Gold, Through Hole - Solder, Signal, AMPMODU 2 mm
TE Part # 1-2314846-0
TE Part # 1-2307819-0
TE Part # 1-2314814-0
TE Part # 1-2314822-0
10P,2MM,BB,REC,DRVT,SMD,AU.76,
TB,W/CP
10P,2MM,BB,REC,DRVT,SMD,AU.76,
TR,W/CP
10P,2MM,B-B,REC,DRVT,2.0,0.76AU,
TB,W/CAP
10P,2MM,B-B,REC,DRVT,2.7,0.76AU,TB
TE Part # 1-2314826-0
TE Part # 1-2316108-0
TE Part # 1-2307785-0
TE Part # 1-2307786-0
10P,2MM,B-B,REC,DRVT,2.7,0.76AU,
10P,2MM,REC,HSG,DR,CRIMP,PLAIN,
10P,2MM,B-B,REC,DRVT,2.0,0.76AU,
10P,2MM,B-B,REC,DRVT,2.7,0.76AU,
TB,W/CAP
BOX
TR,W/CAP
TR,W/CAP
TE Part # 1-2307787-0
TE Part # 1-2341413-0
TE Part # 1-2307829-0
TE Part # 1-2314862-0
10P,2MM,B-B,REC,DRVT,3.2,0.76AU,
10P,2MM,REC,DRVT,OTR,2.3,.76AU,
10P,2MM,REC,DRVT,OTR,2.3,0.76AU,
10P,2MM,BB,REC,DRVT,OTR,2.8,0.76
TUBE
TB,W/CP
TR,W/CP
AU,TB
TE Part # 1-2314866-0
TE Part # 1-2307830-0
TE Part # 1-2307831-0
10P,2MM,REC,DRVT,OTR,2.8,0.76AU,
TB W/CP
10P,2MM,REC,DRVT,OTR,2.8,0.76AU,
TR,W/CP
10P,2MM,B-B,REC,DRVT,OTR,3.4,0.76
AU,TUBE
Also in the Series AMPMODU 2 mm
Connector Contacts(27)
PCB Headers & Receptacles(10406)
Wire-to-Board Connector Assemblies
& Housings(202)
Customers Also Bought
For support call+1 800 522 6752
01/02/2024 09:58PM | Page 4
2842152-5
PCB Mount Header, Right Angle, Board-to-Board, 10 Position, 2 mm [.079 in]
Centerline, Breakaway, Gold, Through Hole - Solder, Signal, AMPMODU 2 mm
TE Part #3-2319848-1
TE Part #4-2176391-7
TE Part #2176314-4
TE Part #1-928836-2
END STACK DIP 10P G RECESS SEAL
TUBE
RQ 1206 37K4 0.1% 10PPM 5K RL
MELF SMA_A 180R 0.1% 15PPM 0102
0.3W
MOD2 PIN WITH A-PIN L/P
TE Part #7-2176246-6
TE Part #3-1415020-1
TE Part #1-1437581-1
CRGS2512 5% 1M8
PT570N20
ASE22RL=AUTOSLIDE DP
