36501E10NJ

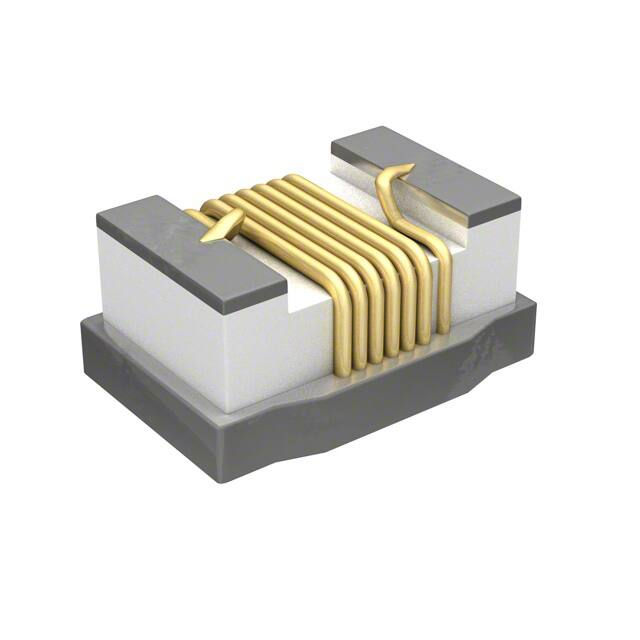

Low Inductance, High Frequency Chip Inductor Type 3650 Series Key Features Ceramic base provides high SRF Ultra-compact inductors provide high Q factors High Q and high current versions available Suitable for fully automated assembly Outstanding endurance from Pull-up force, mechanical shock and pressure TE Connectivity is proud to announce that the 3650 Series wire wound Low Inductance, High Frequency Chip Inductor (standard version) is now AEC-Q200 Qualified. The 3650 is available in four package sizes, includes High Current and High Q versions and is designed for automatic placement. Please note; These products are now supplied unmarked. Characteristics – Electrical Type 36501E Series – 0402 Package AEC-Q200 AEC-Q200 Qualified (Standard Type only) 1773163 Rev. G 01/2020 Inductance Code NH 1N0 1N9 2N0 2N2 2N4 2N7 3N3 3N6 3N9 4N3 4N7 5N1 5N6 6N2 6N8 7N5 8N2 8N7 9N0 9N5 1.0 1.9 2.0 2.2 2.4 2.7 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 8.7 9.0 9.5 Tolerance (± %) 10 10 10 10 10 10 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 5, 10 L Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 Dimensions in millimetres unless otherwise specified Quality Factor Min. 16 16 16 19 15 16 19 19 19 18 18 20 20 20 20 22 22 18 22 18 SRF (GHz) Min 12.70 11.30 11.10 10.80 10.50 10.40 7.00 6.80 5.80 6.00 4.70 4.80 4.80 4.80 4.80 4.80 4.40 4.10 4.16 4.00 DCR Ω Max. 0.045 0.070 0.070 0.070 0.070 0.120 0.066 0.066 0.066 0.091 0.130 0.083 0.083 0.083 0.083 0.104 0.104 0.200 0.104 0.200 Dimensions Shown for reference purposes only. Specifications subject to change IDC (mA) Max. 1360 1040 1040 960 790 640 840 840 840 700 640 800 760 760 680 680 680 480 680 480 L 900MHz Q L 1.02 1.72 1.93 2.19 2.24 2.23 3.10 3.56 3.89 4.19 4.55 5.15 5.16 6.16 6.56 7.91 8.50 8.78 9.07 9.42 77 68 54 59 51 42 65 45 50 47 48 56 54 52 63 60 57 54 62 54 1.02 1.74 1.93 2.23 2.27 2.25 3.12 3.62 4.00 4.30 4.68 5.25 5.28 6.37 6.93 8.22 8.85 9.21 9.53 9.98 1.7GHz Q 69 82 75 100 68 61 87 71 75 71 68 82 81 76 78 88 84 73 78 69 For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Characteristics – Electrical Type 36501E Series – 0402 Package (Continued) Inductance Code nH 10N 11N 12N 13N 15N 16N 18N 19N 20N 22N 23N 24N 27N 30N 33N 36N 39N 40N 43N 47N 51N 56N 68N 82N R10 R12 10 11 12 13 15 16 18 19 20 22 23 24 27 30 33 36 39 40 43 47 51 56 68 82 100 120 Tolerance (± %) 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 L Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 Quality Factor Min. 21 24 24 24 24 24 25 24 25 25 24 25 24 25 24 24 25 24 25 25 25 25 22 22 22 20 SRF (GHz) Min 3.90 3.68 3.60 3.45 3.28 3.10 3.10 3.04 3.00 2.80 2.72 2.70 2.48 2.35 2.35 2.32 2.10 2.24 2.03 2.10 1.75 1.76 1.62 1.26 1.16 >1.80 DCR Ω Max. 0.195 0.120 0.120 0.210 0.172 0.220 0.230 0.202 0.250 0.300 0.300 0.300 0.300 0.350 0.350 0.440 0.550 0.500 0.810 0.830 0.820 0.970 1.120 1.550 2.000 2.660 IDC (mA) Max. 480 640 640 440 560 560 420 480 420 400 400 400 400 400 400 320 200 320 100 150 100 100 100 50 30 50 L 900MHz Q 9.80 10.70 11.90 13.40 14.60 16.60 18.30 19.10 20.70 23.20 23.80 25.10 28.70 31.10 34.90 39.50 41.70 39.00 45.80 50.00 50.40 57.40 69.60 - 50 52 53 51 55 46 57 50 52 53 49 51 49 46 31 44 47 44 49 38 47 49 45 - L 1.7GHz Q 10.10 11.20 12.70 14.60 15.50 18.80 20.30 21.10 23.70 26.80 26.90 29.50 33.50 38.50 41.70 48.40 50.20 47.40 61.60 55.80 59.40 72.40 83.40 - 67 78 71 57 77 47 62 67 53 53 64 50 63 39 32 53 45 33 34 37 37 40 38 - Type 36501J Series – 0603 Package AEC-Q200 Inductance Code nH 1N6 1N8 2N2 2N3 3N3 3N6 3N9 4N3 4N5 4N7 5N1 5N6 6N2 6N3 6N8 7N5 8N2 8N7 9N1 9N5 1773163 Rev. G 01/2020 1.6 1.8 2.2 2.3 3.3 3.6 3.9 4.3 4.5 4.7 5.1 5.6 6.2 6.3 6.8 7.5 8.2 8.7 9.1 9.5 Tolerance (± %) 5, 10 5, 10 5, 10 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 Dimensions in millimetres unless otherwise specified L Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 Quality Factor Min. 24 16 15 16 22 22 22 22 20 25 20 20 25 25 27 28 27 28 35 28 SRF (GHz) Min 12.5 12.5 6.00 >4.00 >6.00 5.80 >6.00 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80 4.80 4.80 4.80 4.80 5.40 DCR Ω Max. 0.030 0.045 0.100 0.140 0.080 0.063 0.080 0.063 0.120 0.120 0.160 0.170 0.110 0.110 0.110 0.106 0.110 0.109 0.130 0.135 Dimensions Shown for reference purposes only. Specifications subject to change IDC (mA) Max. 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 L 900MHz Q L 1.53 1.63 2.18 2.32 3.35 3.53 3.95 4.32 4.74 4.65 5.13 5.53 6.28 6.67 6.75 7.70 8.25 8.86 9.20 9.70 35 35 41 32 47 49 49 49 55 53 47 56 60 41 60 60 64 62 70 59 1.58 1.66 2.20 2.35 3.40 3.58 3.96 4.43 4.87 4.80 5.36 5.86 6.40 6.86 7.10 7.82 8.40 9.32 9.70 9.92 1.7GHz Q 55 50 64 40 65 65 67 67 92 67 56 77 85 61 85 61 81 58 80 61 For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36501J Series – 0603 Package (continued) Inductance Code nH 10N 11N 12N 15N 16N 17N 18N 20N 22N 23N 24N 27N 30N 33N 36N 39N 43N 47N 51N 56N 62N 68N 72N 82N 91N R10 R11 R12 R13 R14 R15 R16 R18 R22 R26 R27 R28 R30 R33 R39 R47 10 11 12 15 16 17 18 20 22 23 24 27 30 33 36 39 43 47 51 56 62 68 72 82 91 100 110 120 130 140 150 160 180 220 260 270 280 300 330 390 470 Tolerance (± %) 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 2, 5, 10 L Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 200 200 200 200 200 200 150 150 150 150 150 150 150 100 100 100 100 100 100 100 100 100 100 100 100 Quality Factor Min. 31 31 35 35 35 35 35 40 38 38 38 40 40 40 37 40 38 38 38 38 37 37 34 34 30 34 32 32 30 28 28 25 25 25 25 25 25 25 25 25 23 SRF (GHz) Min 4.80 4.00 4.00 4.00 3.30 3.20 3.10 3.00 3.00 2.85 2.80 2.80 2.80 2.30 2.30 2.20 2.00 2.00 1.90 1.90 1.80 1.70 1.70 1.70 1.70 1.40 1.35 1.30 1.40 1.30 1.30 1.30 1.25 1.20 1.00 0.90 1.00 0.75 0.90 0.90 0.60 DCR Ω Max. 0.130 0.086 0.130 0.170 0.110 0.170 0.170 0.190 0.190 0.190 0.130 0.220 0.150 0.220 0.250 0.250 0.280 0.280 0.280 0.310 0.340 0.340 0.490 0.540 0.500 0.580 0.610 0.650 0.720 0.870 0.950 1.400 1.400 1.600 2.000 2.100 2.400 2.500 3.800 4.350 3.600 IDC (mA) Max. 700 700 700 700 700 700 700 700 700 700 700 600 600 600 600 600 600 600 600 600 600 600 600 400 400 400 300 300 300 280 280 280 250 250 200 200 100 150 100 100 80 900MHz Q L 10.0 11.3 12.3 15.4 16.5 17.6 18.7 20.7 22.8 24.1 25.7 29.2 31.4 36.0 39.1 42.7 46.9 52.2 55.5 62.5 68.0 80.5 82.0 96.2 110.0 124.0 138.0 166.0 185.0 190.0 230.0 215.0 305.0 377.0 469.0 523.0 524.0 539.7 680.4 734.5 - 66 53 72 64 55 56 70 80 73 71 45 74 47 67 47 60 44 62 69 56 40 54 53 54 50 49 43 39 60 80 25 20 22 21 21 19 18 21 20 29 - L 1.7GHz Q 10.6 12.1 13.5 16.8 18.0 19.4 21.4 23.5 26.1 28.0 30.9 34.6 39.8 49.5 48.9 60.2 60.3 77.2 82.2 97.0 110 168 135 177 416.4 319.5 342.7 529.3 - 83 56 83 89 52 44 69 30 71 71 40 65 28 42 24 40 21 35 34 26 10 21 20 21 6 13 15 8 - Type 36502A Series – 0805 Package AEC-Q200 Inductance 1773163 Rev. G 01/2020 Code nH 2N7 2N8 3N0 3N3 3N9 4N7 5N6 2.7 2.8 3.0 3.3 3.9 4.7 5.6 Tolerance ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% Dimensions in millimetres unless otherwise specified L. Freq. (MHz) 250 250 250 250 250 250 250 Quality Factor Min. 80 @ 1500MHz 80 @ 1500MHz 65 @ 1500MHz 50 @ 1500MHz 50 @ 1500MHz 65 @ 1000MHz 65 @ 1000MHz Dimensions Shown for reference purposes only. Specifications subject to change SRF (GHz) min. 7.900 7.900 7.900 6.000 5.500 5.500 5.500 DCR Ω max. 0.06 0.06 0.06 0.08 0.08 0.08 0.08 IDC (mA) max. 800 800 800 600 600 600 600 For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36502A Series – 0805 Package (continued) Inductance Tolerance 1773163 Rev. G 01/2020 Code nH 6N2 6N8 7N5 8N2 8N7 10N 12N 15N 18N 20N 22N 24N 27N 30N 33N 36N 39N 43N 47N 56N 68N 72N 82N 91N R10 R11 R12 R15 R16 R18 R20 R22 R24 R25 R27 R30 R33 R36 R39 R43 R47 R56 R60 R62 R68 R75 R82 1R0 1R2 1R5 1R8 2R2 2R7 3R3 4R7 6.2 6.8 7.5 8.2 8.7 10 12 15 18 20 22 24 27 30 33 36 39 43 47 56 68 72 82 91 100 110 120 150 160 180 200 220 240 250 270 300 330 360 390 430 470 560 600 620 680 750 820 1000 1200 1500 1800 2200 2700 3300 4700 ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% Dimensions in millimetres unless otherwise specified L. Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 200 200 200 200 150 150 150 150 150 150 100 100 100 100 100 100 100 100 100 100 100 100 50 50 25 25 25 25 25 25 25 7.9 7.9 7.9 7.9 7.9 7.9 7.9 Quality Factor Min. 50 @ 1000MHz 50 @ 1000MHz 50 @ 1000MHz 50 @ 1000MHz 50 @ 1000MHz 60 @ 500MHz 50 @ 500MHz 50 @ 500MHz 50 @ 500MHz 55 @ 500MHz 55 @ 500MHz 50 @ 500MHz 55 @ 500MHz 60 @ 500MHz 60 @ 500MHz 55 @ 500MHz 60 @ 500MHz 60 @ 500MHz 60 @ 500MHz 60 @ 500MHz 60@ 500MHz 65 @ 500MHz 65 @ 500MHz 65 @ 500MHz 65 @ 500MHz 50 @ 250MHz 50 @ 250MHz 50 @ 250MHz 50 @ 250MHz 50 @ 250MHz 50 @ 250MHz 50 @ 250MHz 44 @ 250MHz 50 @ 250MHz 48 @ 250MHz 48 @ 250MHz 48 @ 250MHz 48 @ 250MHz 48 @ 250MHz 33 @ 100MHz 33 @ 100MHz 23 @ 50MHz 23 @ 50MHz 23 @ 50MHz 23 @ 50MHz 23 @ 50MHz 23 @ 50MHz 20 @ 50MHz 18 @ 25MHz 16 @ 25MHz 16 @ 7.9MHz 16 @ 7.9MHz 16 @ 7.9MHz 15 @ 7.9MHz 15 @ 7.9MHz Dimensions Shown for reference purposes only. Specifications subject to change SRF (GHz) min. 5.500 5.500 4.500 4.700 4.000 4.200 4.000 3.400 3.300 2.600 2.600 2.000 2.500 2.050 2.050 1.700 2.000 1.650 1.650 1.550 1.450 1.400 1.300 1.200 1.200 1.000 1.100 0.920 0.870 0.870 0.860 0.850 0.690 0.680 0.650 0.620 0.600 0.580 0.560 0.430 0.375 0.340 0.260 0.220 0.200 0.200 0.200 0.100 0.100 0.100 0.080 0.060 0.050 0.040 0.040 DCR Ω max. 0.11 0.11 0.14 0.12 0.21 0.10 0.15 0.17 0.20 0.22 0.22 0.22 0.25 0.25 0.27 0.27 0.29 0.34 0.31 0.34 0.38 0.40 0.42 0.48 0.46 0.48 0.51 0.56 0.60 0.64 0.66 0.70 1.00 1.00 1.00 1.20 1.40 1.45 1.50 1.70 1.70 1.90 1.60 2.20 2.20 2.30 2.35 2.50 2.50 2.50 2.50 2.70 3.10 4.40 6.40 IDC (mA) max. 600 600 600 600 400 600 600 600 600 500 500 500 500 500 500 500 500 500 500 500 500 500 400 400 400 400 400 400 400 400 400 400 350 350 350 330 310 300 290 230 250 230 450 210 190 180 180 170 170 170 170 160 150 90 90 For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36502C Series – 1008 Package AEC-Q200 Inductance Code nH 4N7 5N6 10N 12N 15N 18N 22N 24N 27N 30N 33N 36N 39N 47N 56N 62N 68N 75N 82N 91N R10 R12 R15 R18 R22 R24 R27 R30 R33 R36 R39 R43 R47 R56 R62 R68 R75 R82 R91 1R0 1R2 1R5 1R8 2R2 2R7 3R3 3R9 4R7 5R6 6R8 8R2 103 123 153 4.7 *5.6 *10 *12 *15 *18 *22 24 *27 30 *33 36 *39 *47 *56 *62 *68 75 *82 91 *100 *120 *150 *180 *220 *240 *270 *300 *330 *360 *390 *430 *470 *560 *620 *680 *750 *820 *910 *1000 *1200 *1500 *1800 *2200 *2700 *3300 *3900 *4700 5600 6800 8200 10000 12000 15000 Tolerance ±5, ±10% ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% L. Freq. (MHz) 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 7.9 2.52 2.52 2.52 Quality Factor Min. 50 @ 1500MHz 50 @ 1500MHz 50 @ 500MHz 50 @ 500MHz 50 @ 500MHz 50 @ 350MHz 55 @ 350MHz 55 @ 350MHz 55 @ 350MHz 60 @ 350MHz 60 @ 350MHz 60 @ 350MHz 60 @ 350MHz 65 @ 350MHz 65 @ 350MHz 65 @ 350MHz 65 @ 350MHz 60 @ 350MHz 60 @ 350MHz 50 @ 350MHz 60 @ 350MHz 60 @ 350MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 45 @ 100MHz 35 @ 50MHz 35 @ 50MHz 35 @ 50MHz 28 @ 50MHz 28 @ 50MHz 28 @ 50MHz 22 @ 25MHz 22 @ 25MHz 18 @ 25MHz 18 @ 25MHz 16 @ 7.96MHz 15 @ 7.96MHz 15 @ 7.96MHz 15 @ 7.96MHz 15 @ 7.96MHz 15 @ 7.96MHz SRF (GHz) min. 4.000 4.000 4.100 3.300 2.500 2.400 2.400 1.900 1.600 1.600 1.600 1.600 1.500 1.500 1.300 1.250 1.300 1.100 1.000 1.000 1.000 0.950 0.850 0.750 0.700 0.650 0.600 0.585 0.570 0.530 0.500 0.480 0.450 0.415 0.375 0.375 0.360 0.350 0.320 0.290 0.250 0.200 0.160 0.160 0.140 0.110 0.100 0.090 0.020 0.040 0.025 0.020 0.018 0.015 DCR Ω max. 0.15 0.15 0.08 0.09 0.11 0.12 0.12 0.13 0.13 0.14 0.14 0.15 0.15 0.16 0.18 0.20 0.20 0.21 0.22 0.45 0.56 0.63 0.70 0.77 0.84 0.88 0.91 1.00 1.05 1.10 1.12 1.15 1.19 1.33 1.40 1.47 1.54 1.61 1.68 1.75 2.00 2.30 2.60 2.80 3.20 3.40 3.60 4.00 4.00 4.90 6.00 9.00 10.5 11.5 IDC (mA) max. 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 650 650 800 620 500 500 690 450 450 470 630 470 470 580 300 540 360 400 380 370 310 330 300 280 290 290 260 260 240 200 170 150 130 120 * Test Methods / Instrument: Network / Spectrum Analyzer 1773163 Rev. G 01/2020 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36521J Series – 0603 Package – High Current Inductance Code nH 1N6 3N6 3N9 6N8 7N5 8N2 10N 12N 15N 18N 22N 24N 1.6 3.6 3.9 6.8 7.5 8.2 10 12 15 18 22 24 Tolerance ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% L. Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 Quality Factor Min. SRF (GHz) min. 24 24 25 35 38 38 38 38 38 40 42 42 12.50 5.90 5.90 5.80 3.70 3.70 3.70 3.00 2.80 2.80 2.40 2.40 DCR Ω max. 0.030 0.048 0.054 0.054 0.059 0.060 0.071 0.075 0.080 0.099 0.099 0.105 IDC (mA) max. 2400 2300 2200 2100 2100 2000 2000 2000 1900 1900 1800 1800 Type 36531J Series – 0603 Package – High Q Inductance Code nH 1N8 2N2 3N3 1.8 2.2 3.3 3N6 3.6 3N9 3.9 4N3 4.3 4N7 4.7 5N1 5.1 5N6 5.6 6N 6 6N8 6.8 7N2 7.2 7N5 7.5 8N2 8.2 8N7 8.7 9N1 9.1 9N5 9.5 10N 10 11N 11 12N 12 1773163 Rev. G 01/2020 Tolerance ±5, ±10% ±5, ±10% ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% Dimensions in millimetres unless otherwise specified 2100 900 1900 900MHz L Q typ typ 1.77 40 2.14 25 3.28 67 1.7GHz L Q typ typ 1.77 65 2.12 35 3.32 104 0.031 1900 3.59 70 3.62 116 7.50 0.039 1600 3.88 68 3.95 108 30 7.50 0.080 1300 4.29 58 4.31 91 250 26 7.90 0.100 1100 4.65 48 4.71 75 250 40 8.90 0.036 1700 5.08 84 5.12 140 250 48 6.60 0.036 1700 5.6 87 5.73 456 250 49 6.00 0.036 1700 5.92 94 6.12 154 250 42 5.80 0.042 1400 6.83 88 7.05 143 250 48 5.40 0.052 1400 7.25 96 7.38 139 250 41 5.30 0.080 1300 7.55 81 7.85 12 250 46 5.90 0.054 1400 8.21 96 8.39 148 250 46 5.50 0.054 1400 8.73 97 9.00 149 250 40 5.10 0.037 1400 9.18 76 9.64 109 250 49 4.90 0.053 1400 9.56 98 9.99 149 250 49 4.30 0.048 1400 10.16 90 10.64 142 250 41 4.10 0.058 1400 11.06 78 11.82 108 250 37 4.10 0.088 1100 12.26 69 13.2 91 L Freq MHz Q typ 250 (MHz) SRF Typ GHz DCR Ω Max IDC mA Max 250 250 250 23 13 32 16.0 15.0 9.60 0.033 0.180 0.024 250 40 9.70 250 35 250 Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36531J Series – 0603 Package – High Q (cont.) Inductance Cod e 1773163 Rev. G 01/2020 nH 15N 15 16N 16 18N 18 22N 22 23N 23 24N 24 27N 27 30N 30 33N 33 36N 36 39N 39 43N 43 47N 47 51N 51 56N 56 68N 68 72N 72 75N 75 82N 82 91N 91 R10 100 R11 110 R12 120 R15 150 R18 180 R20 200 R21 210 R22 220 Tolerance ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% Dimensions in millimetres unless otherwise specified L Freq MHz Q typ 250 (MH z) SRF Typ GHz DCR Ω Max 250 48 3.60 0.078 250 45 3.50 0.085 250 41 3.30 0.066 250 44 3.15 250 40 3.00 900MHz IDC mA Max L typ 120 0 110 0 120 0 15.4 1 16.3 7 18.5 6 0.140 850 22.7 77 0.183 850 24 69 24.9 77 Q ty p 83 77 76 1.7GHz L typ 17. 2 18. 7 20. 9 25. 9 29. 53 28. 9 34. 0 37. 9 42. 9 50. 0 51. 9 Q typ 124 116 100 88 80 250 42 2.95 0.074 110 0 250 44 2.80 0.150 780 28.4 74 250 49 2.80 0.130 920 31.5 82 250 45 2.70 0.170 680 34.9 76 250 44 2.50 0.225 720 38.5 69 250 48 2.45 0.19 680 41.5 78 250 45 2.45 0.17 810 45.7 83 58.1 76 200 47 2.30 0.24 680 50.6 77 66.9 72 200 49 2.30 0.28 660 54.6 73 71.3 62 200 50 2.20 0.30 610 60.3 74 79.9 56 200 46 2.00 0.33 600 75.5 73 113. 3 49 150 46 1.90 0.42 550 80.8 69 - - 150 46 1.90 0.52 500 84.6 71 - - 150 45 1.80 0.46 510 94 62 - - 150 45 1.65 0.58 440 103 64 - - 150 49 1.70 0.54 470 114 69 - - 150 47 1.60 0.58 440 63 - - 150 47 1.55 0.72 420 61 - - 150 47 1.35 0.82 390 57 - - 100 48 1.30 1.50 310 50 - - 100 47 1.25 2.00 280 265 47 - - 100 48 1.20 2.00 280 288 45 - - 100 47 1.10 2.00 280 315 41 - - Dimensions Shown for reference purposes only. Specifications subject to change 126. 2 142. 4 188. 8 232. 2 91 84 82 80 64 74 For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36531J Series – 0603 Package – High Q (cont.) Inductance Code nH R25 250 R27 270 R30 300 R33 330 R36 360 R39 390 Tolerance ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% 900MHz L Q typ typ 1.7GHz L Q typ typ L Freq MHz Q typ 250 (MHz) SRF Typ GHz DCR Ω Max IDC mA Max 100 45 1.05 3.00 240 - - - - 100 46 1.05 2.25 260 - - - - 100 47 0.99 2.80 220 - - - - 100 46 0.93 3.60 180 - - - - 100 47 0.93 4.00 170 - - - - 100 47 0.88 4.00 170 - - - - Type 36532A Series – 0805 Package – High Q Inductance Tolerance Code nH 2N5 5N6 6N2 6N8 8N2 10N 12N 15N 16N 18N 20N 22N 27N 30N 39N 48N 51N 2.5 5.6 6.2 6.8 8.2 10 12 15 16 18 20 22 27 30 39 48 51 ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% Inductance Tolerance L. Freq. (MHz) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 200 200 Quality Factor Min. 80 @ 1500MHz 98 @ 1500MHz 88 @ 1000MHz 80 @ 1000MHz 75 @ 1000MHz 80@ 1000MHz 80 @ 1000MHz 80 @ 1000MHz 72 @ 500MHz 75 @ 500MHz 70 @ 500MHz 80 @ 500MHz 75 @ 500MHz 65 @ 500MHz 65 @ 500MHz 65 @ 500MHz 65 @ 500MHz L. Freq. (MHz) 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 Quality Factor Min. 70 @ 1500MHz 75 @ 1500MHz 75 @ 1500MHz 75 @ 500MHz 60 @ 500MHz 70 @ 500MHz 62 @ 350MHz 62 @ 350MHz 75 @ 350MHz 75 @ 350MHz 75 @ 350MHz 75 @ 350MHz 80 @ 350MHz 80 @ 350MHz 50@ 350MHz SRF (GHz) min. 6.00 6.00 4.75 4.40 3.00 3.00 3.00 2.80 2.95 2.55 2.05 2.00 2.00 1.95 1.60 1.40 1.40 Type 36532C Series – 1008 Package – High Q Code nH 3N0 3N9 4N1 7N8 10N 12N 18N 22N 33N 39N 47N 56N 68N 82N R10 3.0 3.9 4.1 7.8 10 12 18 22 33 39 47 56 68 82 100 ±5, ±10% ±5, ±10% ±5, ±10% ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% ±2, ±5, ±10% SRF (GHz) min. 6.00 6.00 6.00 3.80 3.60 2.80 2.70 2.05 1.70 1.30 1.45 1.23 1.15 1.06 0.82 DCR Ω max. 0.020 0.035 0.035 0.035 0.075 0.060 0.045 0.100 0.060 0.060 0.055 0.100 0.070 0.095 0.110 0.095 0.120 DCR Ω max. 0.04 0.05 0.05 0.05 0.06 0.06 0.07 0.07 0.09 0.09 0.12 0.12 0.13 0.16 0.16 IDC (mA) max. 1600 1600 1600 1600 1000 1600 1600 1200 1500 1400 1400 1200 1300 1200 1100 1200 1000 IDC (mA) max. 1600 1600 1600 1600 1600 1500 1400 1400 1300 1300 1200 1200 1100 1100 1000 Parts (3.0nH, 7.8nH) are wound on a low profile bobbin. (Max 2.4 x 2.01 x 1.09) 1773163 Rev. G 01/2020 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Type 36541E Series – 0402 Package – High SRF Inductance Code nH 1N0 1.0 2N0 2.0 2N2 2.2 2N4 2.4 2N7 2.7 3N3 3.3 3N6 3.6 3N9 3.9 4N3 4N7 5N1 5N6 6N2 6N8 7N5 8N2 8N7 9N0 9N5 10N 11N 12N 13N 15N 16N 18N 19N 20N 21N 22N 23N 24N 25N 26N 27N 30N 33N 36N 37N 39N 40N 43N 47N 51N 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 8.7 9.0 9.5 10 11 12 13 15 16 18 19 20 21 22 23 24 25 26 27 30 33 36 37 39 40 43 47 51 1773163 Rev. G 01/2020 Tolerance ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.2nH,±0.5nH, ±5%, ±10% ±0.5nH, ±5%, ±10% ±0.5nH, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%,±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% ±2%, ±5%, ±10% Dimensions in millimetres unless otherwise specified L. Freq. (MHz) Quality Factor 900MHz 1.7GHz SRF (GHz) min. DCR Ω max. IDC (mA) max. 250 46 75 16.0 0.030 2300 250 58 85 15.2 0.038 2100 250 60 86 15.1 0.038 2100 250 60 83 14.0 0.042 2000 250 62 85 13.0 0.075 1500 250 66 95 12.8 0.045 1700 250 65 94 11.7 0.045 1700 250 64 98 9.50 0.045 1700 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 63 58 54 73 73 68 60 68 68 67 64 62 68 66 62 62 57 58 61 58 48 60 60 55 57 56 62 61 61 59 57 56 56 52 48 52 90 83 76 105 100 94 82 95 95 92 90 90 98 100 82 85 77 74 88 76 62 74 77 71 73 74 86 87 80 76 72 84 75 68 62 59 7.15 6.85 6.80 6.50 5.80 5.80 5.40 5.40 5.00 5.00 4.70 4.70 4.70 4.40 4.20 3.90 3.70 3.55 3.50 3.50 1.70 3.30 3.30 3.15 3.15 3.15 3.20 2.90 2.80 2.80 2.70 2.60 2.60 2.50 2.40 2.30 0.050 0.070 0.115 0.050 0.055 0.065 0.090 0.065 0.065 0.080 0.090 0.100 0.065 0.100 0.150 0.110 0.140 0.120 0.145 0.185 0.460 0.160 0.160 0.200 0.250 0.285 0.320 0.330 0.330 0.380 0.460 0.430 0.430 0.520 0.580 0.700 1600 1500 1200 1600 1600 1500 1400 1500 1500 1400 1400 1300 1400 1200 870 1100 850 900 850 780 450 800 800 700 600 450 450 450 490 480 470 450 450 450 420 360 Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Soldering condition IR Reflow Soldering (1) Time of IR reflow soldering at maximum temperature point 260°C 10s Construction Dimensions Type Size A max B max C max D max E F G H I J 36501E 36501J 36502A 36502C 36521J 36531E 36531J 36532A 36532C 0402 0603 0805 1008 0603 0402 0603 0805 1008 1.27 1.80 2.29 2.92 1.80 1.27 1.80 2.29 2.92 0.76 1.12 1.73 2.79 1.12 0.76 1.12 1.73 2.79 0.61 1.02 1.52 2.13 1.02 0.61 1.02 1.52 2.03 0.15 0.38 0.51 0.65 0.38 0.15 0.38 0.51 0.65 0.51 0.76 1.27 2.03 0.76 0.51 0.76 1.27 2.03 0.23 0.33 0.44 0.51 0.33 0.23 0.33 0.44 0.51 0.56 0.86 1.02 1.52 0.86 0.56 0.86 1.02 1.52 0.66 1.02 1.78 2.54 1.02 0.66 1.02 1.78 2.54 0.50 0.64 1.02 1.02 0.64 0.50 0.64 1.02 1.02 0.46 0.64 0.76 1.27 0.64 0.46 0.64 0.76 1.27 1773163 Rev. G 01/2020 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change Weight (g) (1000 pcs) 0.8 3.46 12.13 30.73 3.46 0.8 3.46 12.13 30.73 For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Environmental Characteristics Electrical Performance Test Item Requirement Test Method Refer to standard electrical characteristic spec. HP4286 / E4982A HP4286 / E4982A HP4286 / E4982A Micro-Ohm meter (Gom 801G) / E4982A Applied the current to coils, the temperature of coil increases ΔT15°C (Ta=25°C) Over Load Inductors shall have no evidence of electrical and mechanical damage Applied 2 times of rated allowed DC current to inductor for a period of 5 minutes Withstanding Voltage Inductors shall bear no evidence of electrical and mechanical damage. AC voltage of 500 VAC applied between inductors terminal and case for 1 min. Insulation Resistance 1000M ohm min. 100 VDC applied between inductor terminal and case Inductance Q SRF DC Resistance (RDC) Rated Current (IDC) Mechanical Performance Test Item Requirement Appearance: No damage L change: within ±5% Q change: within ±10% Vibration Resistance to Soldering Heat Component Adhesion (Push Test) Drop No damage Solderability Resistance to Solvent 1773163 Rev. G 01/2020 1 lbs. For 0402 2 lbs. For 0603 3 lbs. For the rest 90% covered with solder No damage on appearance and marking Dimensions in millimetres unless otherwise specified Test Method Test device shall be soldered on the substrate Oscillation Frequency: 10 to 55 to 10Hz for 1min Amplitude: 1.5mm Time: 2 hrs for each axis (X, Y &Z), total 6 hrs Solder Temperature: 260±5 °C Immersion Time: 10±2 seconds The device should be soldered (260±5 for 10 seconds) to a tinned copper substrate. A dynamiter force gauge should be applied to the side of the component. The device must withstand a minimum force of 2 or 4 pounds without a failure of adhesion on termination Dropping chip by each side and each corner. Drop 10 times in total Drop height: 100cm Drop weight: 125g Inductor shall be dipped in a melted solder bath at 245±5 for 3 seconds MIL-STD-202, Method 215 Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Climatic Test Item Temperature Characteristic Requirement -40 ~+125 °C Humidity Low Temperature Storage Test Method Appearance: No damage L change: within ±10% Q change: within ±20% Temperature: 40±2 °C Relative Humidity: 90~95% Time: 96±2 hrs Measured after exposure in the room condition for 2hrs Temperature: -40±2 °C Time: 96±2 hrs Inductors are tested after 1 hour at room temperature One Cycle: Thermal Shock High Temperature Storage High Temperature Load Life There should be no evidence of short or open circuit. Damp Heat with Load Total 5 cycles Temperature: 125±2 °C Time: 96±2 hrs Measured after exposure in the room condition for 1 hour Temperature: 85±2 °C Time: 1000±12 hrs Load: Allowed DC current Temperature: 40±2°C Relative Humidity: 90~95% Time: 1000±12 hrs Load: Allowed DC current Storage Temperature: 15~28 °C; Humidity < 80% RH Packaging Reel dimensions 1773163 Rev. G 01/2020 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help Low Inductance, High Frequency Chip Inductor Paper Tape Specification and Packaging Quantity Type A B H F P P0 P1 W 0402 0603 0.81 1.35 1.23 1.95 0.73 0.95 3.50 3.50 2.00 4.00 4.00 4.00 2.00 2.00 8.00 8.00 Reel (EA) 4,000 4,000 Embossed Plastic Tape Specification and Packaging Quantity Type A B C D E F G H J 0805 1008 8 8 1.85 2.70 4 4 2.30 2.80 3.5 3.5 1.75 1.75 2 2 1.45 2.00 0.23 0.23 Reel (EA) 2,000 2,000 How To Order 3650 Common Part 3650 – Standard 3652 – High Current 3653 – High Q 1773163 Rev. G 01/2020 1J Case size 1E – 0402 1J – 0603 2A – 0805 2C - 1008 Dimensions in millimetres unless otherwise specified 7N5 Inductance Code See relevant table for inductance value J Tolerance G – ±2% J - ±5% K - ±10% M - ±20% D - ±0.2nH C - ±0.5nH Dimensions Shown for reference purposes only. Specifications subject to change TDG Packaging TDG – 2000 Pieces per reel TE – 4000 Pieces per reel (1E & 1J only) For Email, phone or live chat, go to: www.te.com/help
