6-968970-1

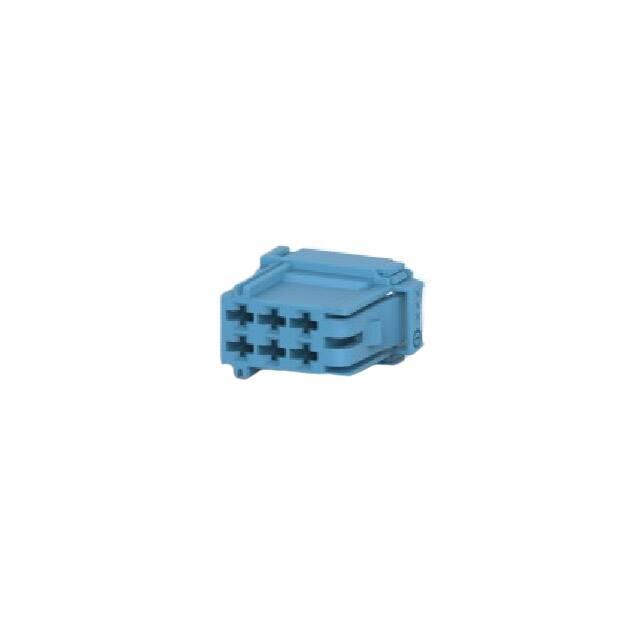

6-968970-1 Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Signal, Cable Mount (Free-Hanging), Hybrid 6-968970-1  ACTIVE AMP | AMP MCP 2.8, AMP MCP Connector System TE Internal #: 6-968970-1 Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Signal, Cable Mount (Free-Hanging), Hybrid View on TE.com > Connectors > Automotive Connectors > Automotive Housings > AMP MCP Unsealed Connector Housings Connector System: Wire-to-Wire Number of Positions: 6 Connector & Housing Type: Housing for Female Terminals Centerline (Pitch): 5 mm [ .197 in ] Sealable: No All AMP MCP Unsealed Connector Housings (188) Features Product Type Features Mixed & Hybrid Connector No Connector Shape Rectangular Connector System Wire-to-Wire Connector & Housing Type Housing for Female Terminals Sealable No Primary Locking Feature On the Terminal Configuration Features Number of Positions 6 Number of Rows 2 Electrical Characteristics Operating Voltage 28 VDC Nominal Voltage Architecture 12 V, 24 V Body Features  Cable Exit6752 Angle For support call+1 800 522 180° 01/02/2024 11:06PM | Page 1 6-968970-1 Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Signal, Cable Mount (Free-Hanging), Hybrid Cable Exit Angle 180° Primary Product Color Blue Connector & Keying Code C Contact Features Contact Size 2.8mm Contact Type Receptacle Mating Tab Width 2.8 mm[.11 in] Mechanical Attachment Terminal Position Assurance Yes Strain Relief Without Mating Alignment Type Keyed Mating Alignment With Connector Mounting Type Cable Mount (Free-Hanging) Housing Features Housing Material PBT GF Centerline (Pitch) 5 mm[.197 in] Dimensions Connector Height 24 mm[.945 in] Product Width 16 mm[.63 in] Product Length 16 mm[.63 in] Row-to-Row Spacing 5 mm[.197 in] Usage Conditions Operating Temperature (Max) 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C[158 °F][167 °F][176 ° F][185 °F][194 °F][212 °F][221 °F][230 °F][248 °F] Operating Temperature Range -40 – 120 °C[-40 – 248 °F] Operation/Application Circuit Application Signal Packaging Features Packaging Quantity 2400 Packaging Method Box Other  Serviceable For support call+1 800 522 6752 No 01/02/2024 11:06PM | Page 2 6-968970-1 Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Signal, Cable Mount (Free-Hanging), Hybrid Other Serviceable No Connector Position Assurance Capable No Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2023 (235) Does not contain REACH SVHC Halogen Content Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free Solder Process Capability Not applicable for solder process capability Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts TE Part # 3-965641-1 TE Part # CAT-AM705-T273 TE Part # 4-966140-6 TAB HSG 2.8MM 6POS. AMP MCP, RECEPTACLE AND TAB TAB HEADER2,8X0,8MM 21POS Also in the Series AMP MCP 2.8  For support call+1 800 522 6752 01/02/2024 11:06PM | Page 3 6-968970-1 Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Signal, Cable Mount (Free-Hanging), Hybrid Automotive Connector Caps & Covers (1) Automotive Connector Locks & Position Assurance(5) Automotive Housings(167) Automotive Terminals(9) Connector Seals & Cavity Plugs(1) Insertion & Extraction Tools(6) Module Components(1) PCB Headers & Receptacles(1) Also in the Series AMP MCP Connector System Automotive Connector Caps & Covers Automotive Connector Locks & (23) Position Assurance(6) Connector Seals & Cavity Plugs(7) Insertion & Extraction Tools(13) Automotive Housings(333) Automotive Terminals(130) Other Automotive Connector Accessories(2) PCB Headers & Receptacles(28) Customers Also Bought  For support call+1 800 522 6752 01/02/2024 11:06PM | Page 4 6-968970-1 Housing for Female Terminals, Wire-to-Wire, 6 Position, .197 in [5 mm] Centerline, Blue, Signal, Cable Mount (Free-Hanging), Hybrid TE Part #1394048-1 TE Part #6-968971-1 TE Part #1-965641-1 TE Part #3-1564520-1 12POS MQS REC AMP MCP Unsealed Connector Housings FLACH-STE-GEH2,8 6P 12POS,TAB 1.6X0.6,TAB HSG,ASSY TE Part #1-968875-2 AMP MCP 2.8, CONTACT SWS (LP) Documents Product Drawings AMP MCP 2.8 HSG 6POS 2.LOCKING English CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_6-968970-1_F.2d_dxf.zip English Customer View Model ENG_CVM_CVM_6-968970-1_F.3d_igs.zip English Customer View Model ENG_CVM_CVM_6-968970-1_F.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Product Specifications Application Specification English  For support call+1 800 522 6752 01/02/2024 11:06PM | Page 5
