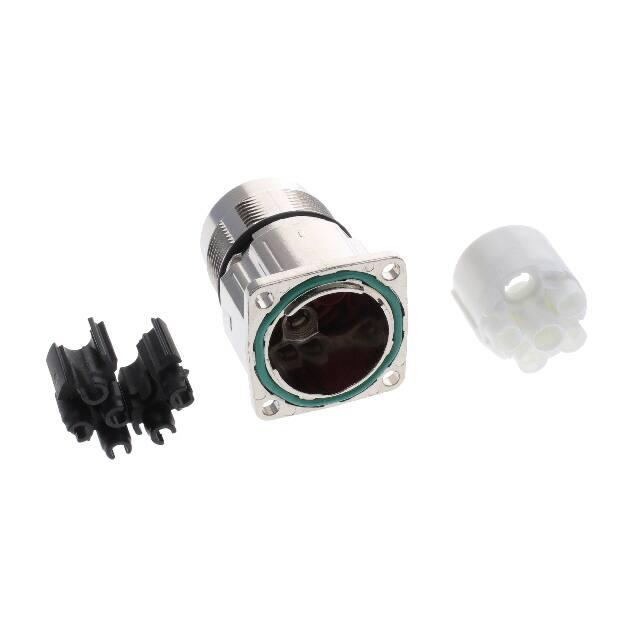

BEGA116NN00000200000 数据手册
BEGA116NN00000200000
Standard Circular Connectors, Cable-to-Panel, Power, Panel Mount, Electrodeposited
Nickel, Zinc Alloy, PBT GF, Size 23, Shielded, Receptacle
BEGA116NN00000200000
ACTIVE
TE Internal #: BEA116N00000200000
Standard Circular Connectors, Cable-to-Panel, Power, Panel Mount,
Electrodeposited Nickel, Zinc Alloy, PBT GF, Size 23, Shielded,
Receptacle
View on TE.com >
Connectors > Circular Connectors > Standard Circular Connectors
Connector System: Cable-to-Panel
Sealable: No
Circuit Application: Power
Connector Mounting Type: Panel Mount
Shell Plating Material: Electrodeposited Nickel
Features
Product Type Features
Product Type
Connector Assembly
Connector System
Cable-to-Panel
Sealable
No
Circular Connector Type
Receptacle
Shell Type
Metal
Electrical Characteristics
Operating Voltage
630 VAC
Body Features
Environmental Protection
IP67
Shell Plating Material
Electrodeposited Nickel
Shell Base Material
Zinc Alloy
Circular Connector Insulation Material Type
PBT GF
Mechanical Attachment
Mating Retention Type
Speedtec (Triple Start Threaded)
Panel Mount Feature Type
Flange with Mounting Holes
For support call+1 800 522 6752
01/02/2024 11:51PM | Page 1
BEGA116NN00000200000
Standard Circular Connectors, Cable-to-Panel, Power, Panel Mount, Electrodeposited
Nickel, Zinc Alloy, PBT GF, Size 23, Shielded, Receptacle
Panel Mount Feature Type
Flange with Mounting Holes
Connector Mounting Type
Panel Mount
Housing Features
Circular Connector Shell Size
23
Alignment Keyed
0°
Usage Conditions
Operating Temperature Range
-20 – 130 °C[-4 – 266 °F]
Operation/Application
Durability Rating
500 Cycles
Circuit Application
Power
Shielded
Yes
Industry Standards
UL Flammability Rating
UL 94V-0
Approved Standards
UL
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant with Exemptions
EU ELV Directive 2000/53/EC
Compliant with Exemptions
China RoHS 2 Directive MIIT Order No 32, 2016
Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JUNE 2023
(235)
Candidate List Declared Against: JUNE
2023 (235)
SVHC > Threshold:
Pb (2.8% in Component part)
Article Safe Usage Statements:
Do not eat, drink or smoke when using this product. Wash thoroughly after
handling. Recycle if possible and dispose of the article by following all applicable
governmental regulations relevant to your geographic location.
Halogen Content
Not Yet Reviewed for halogen content
Solder Process Capability
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
For support call+1 800 522 6752
01/02/2024 11:51PM | Page 2
BEGA116NN00000200000
Standard Circular Connectors, Cable-to-Panel, Power, Panel Mount, Electrodeposited
Nickel, Zinc Alloy, PBT GF, Size 23, Shielded, Receptacle
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
Compatible Parts
TE Part # BSA085N00420235000
TE Part # BSA085N00480235000
TE Part # BSA085N00550235000
TE Part # BSA085N00580100000
923 PLUG
923 PLUG
923 PLUG
923 PLUG, SPEEDTEC
TE Part # BSA085N00580235000
TE Part # BSA107N00480236000
TE Part # BSA107N00590236000
TE Part # C0-0004-000-000
923 PLUG
923 PLUG, SHORT
923 PLUG, SHORT
POSITIONING INSERT FOR 2 MM
CONTACTS
TE Part # C0-0201-000-000
TE Part # C0-0236-000-000
TE Part # C0-0252-000-000
CRIMPING TOOL MID-SIZE
DIGITAL CRIMPING TOOL, MID SIZE
POSITIONING INSERT FOR 1 MM
CONTACTS
Customers Also Bought
TE Part #350374-1
TE Part #AEA139N00000201000
TE Part #60-0302-011-000
TE Part #61-0197-011-000
12P STR/REL HSG HNGD V0
623 RECEPTACLE, SPEEDTEC-READY
CONTACT SOCKET 2 MM
CONTACT PIN 2 MM
For support call+1 800 522 6752
01/02/2024 11:51PM | Page 3
BEGA116NN00000200000
Standard Circular Connectors, Cable-to-Panel, Power, Panel Mount, Electrodeposited
Nickel, Zinc Alloy, PBT GF, Size 23, Shielded, Receptacle
TE Part #AGC052N00001215000
TE Part #BGC106N00001200000
TE Part #BGC110N00001216000
TE Part #BEA120N00000200000
623 RECEPTACLE ANGLED
ROTATABLE
923 RECEPTACLE, ANGLED,
ROTATABLE
923 RECEPTACLE, ANGLED,
ROTATABLE
923 RECEPTACLE, SPEEDTEC-READY
TE Part #BKA186N00420200000
TE Part #CGE270N00000051000
923 EXTENSION, SPEEDTEC-READY
940 RECEPTACLE ANGLED,
ROTATABLE,SP-READY
Documents
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_BEA116N00000200000_A.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_BEA116N00000200000_A.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_BEA116N00000200000_A.3d_stp.zip
English
By downloading the CAD file I accept and agree to the Terms and Conditions of use.
Datasheets & Catalog Pages
BEA116N00000200000
English
fuer Datenblaetter, die online konfigurierbar sind
German
Product Specifications
German
