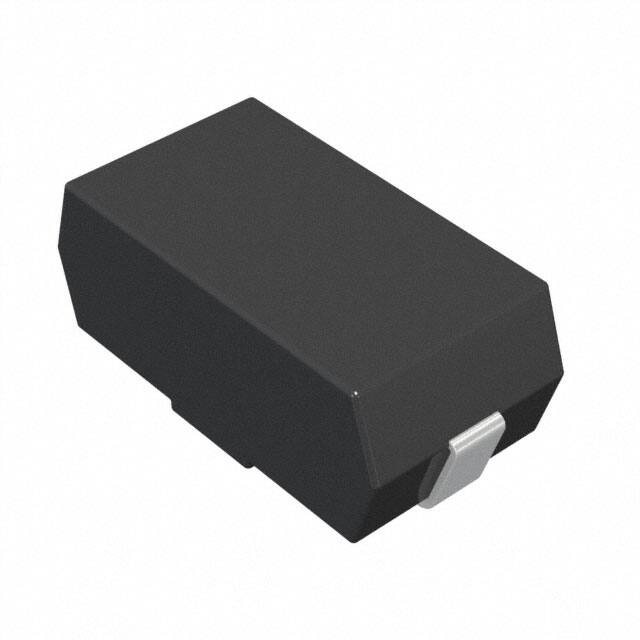

SMV1W680KJT

METAL GLAZE HIGH VOLTAGE SMD RESISTORS Type SMV Series Key Features Flameproof UL94V0 molded package, resistant to sulfuration, heat and humidity. Metal-glaze elements provide high stable performance against environmental conditions and overload. High surge withstanding & pulse withstanding performance. TE Connectivity is pleased to introduce our Metal Glaze high voltage power resistor, the sister to our SM series power resistor, giving UL94V0 flame resistance and resistance to sulfur along with high surge and pulse withstand capabilities Characteristics – Electrical Excellent mechanical strength & electrical stability. Characteristics Resistance Tolerance Resistance Temp. Coeff. Power Rating Load Short Time Overload △R±1% No evidence of mechanical damage or insulation breakdown Insulation Resistance , MΩ Pulse Loading Capability △R/R≦±2% Dielectric Withstanding Voltage Solderability Resistance to Soldering Heat 1773242-1 CIS WR 02/2018 Standards ±5% (J) ±1% (F) ±200ppm / ℃ Surface Temp. 275℃ Max. △R/R≦±1% Dimensions in millimetres unless otherwise specified Minimum 95% coverage No evidence of mechanical damage. △R/R≦±1% Dimensions Shown for reference purposes only. Specifications subject to change Test Methods -65℃ ~ 200℃ Rated voltage for 30 minutes 2.5 times of rated voltage for 5 sec. AC 1000V for 1min. DC 500V megger IEC 60065 14.1 235℃±5℃ for 2 seconds 270 ±5℃ for 10±1 seconds For Email, phone or live chat, go to: www.te.com/help METAL GLAZE HIGH VOLTAGE SMD RESISTORS Environmental Characteristics Characteristics Standards Temp. cycle △R/R≦±2% Load life △R/R≦±5% Moisture-proof Load Life △R/R≦±5% Test Methods - °C i s → Roo Te p. i s → + °C i s → Roo Temp.(3mins) / (5 cycles) Rated power load 90 minutes ON 30 minutes OFF 70℃ 1000 hours Rated power load 90 minutes ON 30 minutes OFF 40℃ 95% RH 1000 hours Reference Standards: JIS C 5201 Dimensions and Resistance Range: Rated Power @20°C 1W 2W 3W A ±0.3 (mm) 4.0 5.5 7.3 B ±0.3 (mm) 6.7 10.5 13.5 C ±0.3 (mm) 1.4 1.7 1.7 D ±0.3 (mm) 3.55 5.0 6.8 E max. (mm) 7.9 12 17 F ±0.3 (mm) 1.5 2.3 2.5 Resistance Ra ge Ω 100K~10M 100K~10M 100K~10M Max. Working Voltage DC RMS 1600V 1150V 3500V 2500V 5000V 3500V Rated Continuous Working Voltage (RCWV) shall be determined from RCWV = √Rated Power x Resista ce Value or Max. Permissible Voltage listed above Whichever is lowest 1773242-1 CIS WR 02/2018 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help METAL GLAZE HIGH VOLTAGE SMD RESISTORS Derating Curve For resistors operated in ambient temperatures above 20℃, power rating must be derated in accordance with the curve below Surface Temperature rise 1773242-1 CIS WR 02/2018 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help METAL GLAZE HIGH VOLTAGE SMD RESISTORS Lightning Surge The resistors are designed to withstand 1.2/50 ㎲ pulse & 10/700 ㎲ according to IEC61000-4-5，30 pulse per voltage, 30 seconds between each pulse. The resistance value change rate between pre- and post-test shall be within ±5% 1773242-1 CIS WR 02/2018 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help METAL GLAZE HIGH VOLTAGE SMD RESISTORS Pulse Characteristics Packaging Reel Dimensions (mm) 1773242-1 CIS WR 02/2018 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help METAL GLAZE HIGH VOLTAGE SMD RESISTORS Tape dimensions (mm) PWR 1W 2W 3W B0 ±0.2 8 11.8 17.5 A0 ±0.2 4.3 5.8 7.8 P1 ±0.1 8 12 16 P2 ±0.1 2 2 2 P0 ±0.1 4 4 4 D0 ±0.1 1.5 1.5 1.5 E ±0.1 1.75 1.75 1.75 F ±0.1 7.5 11.5 14.2 W ±0.3 16 24 32 D1 ±0.1 1.5 1.5 1.5 T ±0.1 4.15 5.8 7.5 RL QTY 2000 1000 500 How To Order SMV Common Part 2W Power rating 100K Resistance Value J T Tolerance Pack Style 100 K ohms 100,000 ohm s100K SMV 1W 2W 3W 1 M ohm 1,000,000 ohms 1M0 F – 1% J – 5% T – Tape & Reel 10 M ohms 10,000,000 ohms 10M 1773242-1 CIS WR 02/2018 Dimensions in millimetres unless otherwise specified Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help
