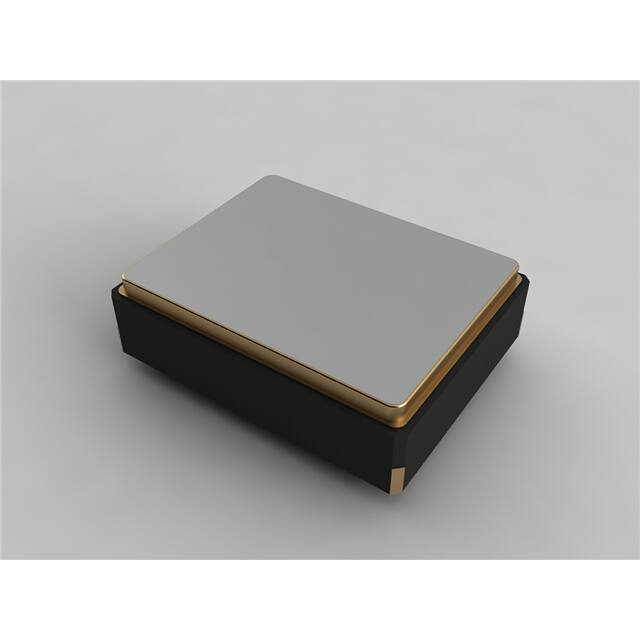

ILCX13-FF5F10-40.000MHZ 数据手册
ILCX13 Series
Product Feature:
Applications:
SMD Package
Small package Foot Print
Supplied in Tape and Reel
Compatible with Leadfree
Processing
PCMCIA Cards
Storage
PC’s
Wireless Lan
Frequency
10 MHz to 150 MHz
ESR (Equivalent Series Resistance)
10.0 MHz – 11.9 MHz
12.0 MHz – 15.6 MHz
16.0 MHz – 19.9 MHz
20.0 MHz – 23.9 MHz
24.0 MHz – 60.0 MHz
60.0 MHz – 150.0 MHz (3rd O/T)
250 Ohms Maximum
100 Ohms Maximum
80 Ohms Maximum
60 Ohms Maximum
40 Ohms Maximum
100 Ohms Maximum
Shunt Capacitance (C0)
3.5pF Maximum
Frequency Tolerance @ 25° C
(See Part Number Guide)
Frequency Stability over
Temperature
(See Part Number Guide)
Crystal Cut
AT Cut
Load Capacitance
8pF to 32pF or Specify
Drive Level
100µW Maximum
Aging
±3ppm/Year Maximum
Operating Temperature Range
(See Part Number Guide)
Storage Temperature Range
-40°C to +85°C
Part Number Guide
Package
ILCX13 -
Sample Part Number:
ILCX13 - FB1F18 - 20.000000 MHz
Tolerance
(ppm) at Room
Temperature
Stability
(ppm) over
Operating
Temperature
Operating
Temperature Range
B = ±50 ppm
B = ±50 ppm
0 = 0°C to +50°C
F = Fundamental
F = ±30 ppm
F = ±30 ppm
1 = 0°C to +70°C
3 = 3rd overtone
G = ±25 ppm
G = ±25 ppm
2 = -10°C to +60°C
H = ±20 ppm
H = ±20 ppm
3 = -20°C to +70°C
I = ±15 ppm
I = ±15 ppm**
5 = -40°C to +85°C
J = ±10 ppm*
J = ±10 ppm**
Mode
(overtone)
Load
Capacitance
(pF)
Frequency
8pF to 32pF
Or Specify
- 20.000
MHz
9 = -10°C to +50°C
D = -10°C to +105°C*
E = -40°C to +105°C*
* Not available at all frequencies. ** Not available for all temperature ranges.
Revised K: 3/20/2018
Page 2 of 6
www.ilsiamerica.com
ILCX13 Series
Pb Free Solder Reflow Profile:
Units are backward compatible with 240C reflow processes
Ts max to TL (Ramp-up Rate)
Preheat
Temperature min (Ts min)
Temperature typ (Ts typ)
Temperature max (Ts max)
Time (Ts)
Ramp-up Tate (TL to Tp
Time Maintained Above
Temperature (TL)
Time (TL)
Peak Temperature (Tp)
Time within 5ºC to Peak
Temperature (Tp)
Ramp-down Rate
Tune 25ºC to Peak Temperature
3ºC / second max
150ºC
175ºC
200ºC
60 to180 seconds
3ºC / second max
217ºC
60 to 150 seconds
260ºC max for 10 seconds
20 to 40 seconds
6ºC / second max
8 minutes max
Package Information:
MSL = 1
Termination = e4 (Au over Ni over W base metal).
Tape and Reel Information:
Quantity per Reel
A
B
C
D
E
F
Revised K: 3/20/2018
Page 3 of 6
3000
8.0 ±0.2
4.0 ±0.2
3.5 ±0.2
12.0 ±3.0
60 / 80
180
www.ilsiamerica.com
