JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD

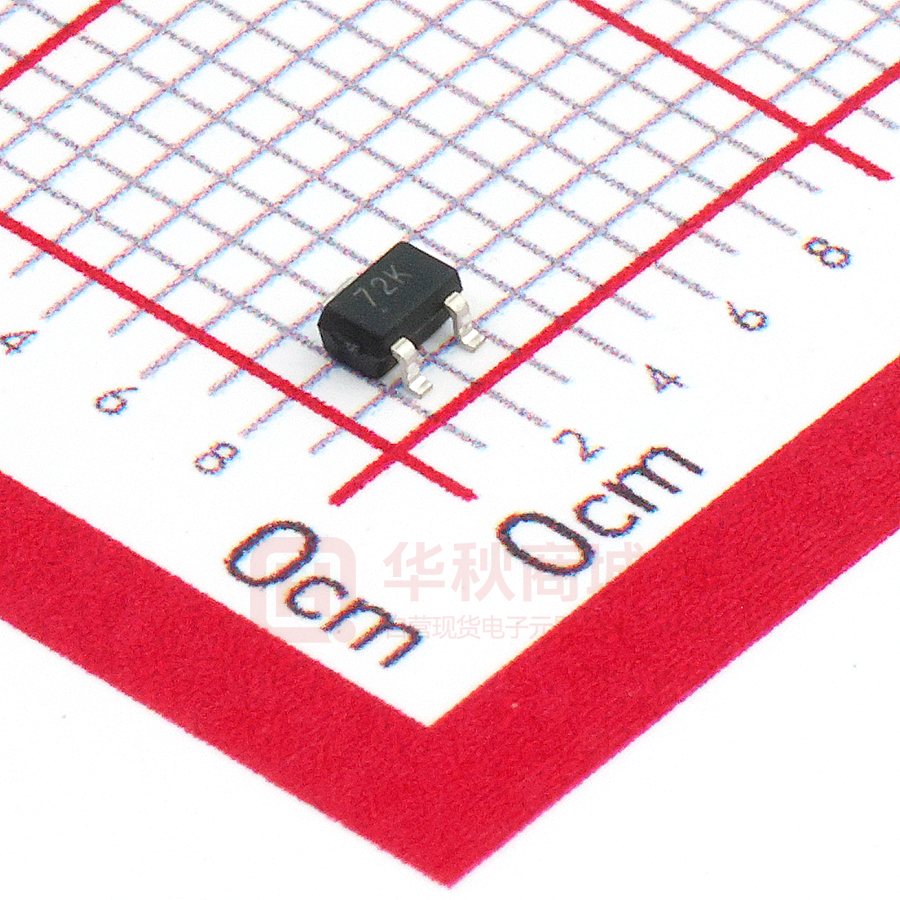

SOT-323 Plastic-Encapsulate MOSFETS
2N7002KW
N-Channel MOSFET
V(BR)DSS
' (
ID
RDS(on)MAX
SOT-323
2.5)*(
3
+,
+)*,(
FEATURE
1.
GATE
2.
SOURCE
3.
DRAIN
1
2
APPLICATION
z High density cell design for Low RDS(on)
z
!" #
z
z Voltage controlled small signal switch !$%!$$
&"
z Rugged and reliable
z High saturation current capability
z ESD protected
Equivalent Circuit
M
MOSFET MAXIMUM RATINGS (Ta=25Я unless otherwise noted)
Symbol
Parameter
Value
Unit
VDS
Drain-Source Voltage
60
V
VS
-Source Voltage
±0
V
ID
Continuous Drain Current
340
mA
IDM
Pulsed Drain Current(note1)
800
mA
PD
Power Dissipation
0.2
W
Tj
Junction Temperature
150
Я
Tstg
Storage Temperature
-55~+150
Я
RșJA
Thermal Resistance from Junction to Ambient
625
Я/W
www.jscj-elec.com
1
Rev. - 1.0
Ta =25 Я unless otherwise specified
Parameter
Symbol
Test Condition
Min
Typ
Max
Unit
STATIC PARAMETERS
Drain-source Breakdown Voltage
V (BR) DSS
VGS = 0V, ID =250μA
60
1
GateThreshold Voltage (note 2)
VGS(th)
VDS =VGS, ID =1mA
Zero Gate Voltage Drain Current
IDSS
VDS =48V,VGS = 0V
Gate-Source Leakage Current
IGSS
VGS =±20V, VDS = 0V
Drain-Source On-Resistance (note 2)
V
1.3
V
1
μA
±10
μA
VGS =4.5V, ID =200mA
1.1
3
VGS =10V, ID =500mA
0.9
2.5
40
pF
30
pF
10
pF
RDS(on)
DYNAMIC PARAMETERS (note 3)
Input Capacitance
Ciss
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
VDS =10V,VGS =0V,f =1MHz
SWITCHING PARAMETERS(note 3)
Turn-on Delay Time
td(on)
VGS=10V,VDD=50V, RG=50ȍ
10
ns
Turn-off Delay Time
td(off)
RGS=50ȍ, RL=250ȍ
15
ns
Reverse Recovery Time
trr
Recovered Charge
Qr
VGS=0V,IS=300mA,VR=25V,
dIs/dt=-100A/us
VGS=0V,IS=300mA,VR=25V
dIs/dt=-100A/us
30
ns
30
nC
GATE-SOURCE ZENER DIODE
Gate-Source Breakdown Voltage
BVGSO
Igs=f1mA(Open Drain)
f21.5
f30
V
1.5
V
DRAIN-SOURCE DIODE
Diode Forward Voltage(note 2)
VSD
IS=300mA, VGS = 0V
Continuous Diode Forward Current
IS
0.2
A
Pulsed Diode Forward Current(note1)
ISM
0.53
A
Notes :
1.
Repetitive rating˖Pluse width limited by junction temperature.
2.
Pulse Test : Pulse width300μs, duty cycle%.
3.
Guaranteed by design, not subject to production testing.
www.jscj-elec.com
2
Rev. - 1.0
Output Characteristics
Transfer Characteristics
1.2
1.2
Ta=25℃
VDS=3V
VGS=5V,6V,7V,10V
Pulsed
Pulsed
(A)
(A)
VGS=4V
VGS=3V
0.4
0.0
DRAIN CURRENT
DRAIN CURRENT
ID
ID
0.8
0
1
2
3
4
DRAIN TO SOURCE VOLTAGE
VDS
0.8
Ta=100℃
0.4
0.0
5
Ta=25℃
0
(V)
2
4
6
GATE TO SOURCE VOLTAGE
VGS
8
(V)
RDS(ON) —— VGS
RDS(ON) —— ID
5
10
Ta=25℃
Ta=25℃
Pulsed
Pulsed
RDS(ON)
3
ON-RESISTANCE
ON-RESISTANCE
RDS(ON)
( )
8
( )
4
2
VGS=4.5V
1
ID=500mA
6
4
2
VGS=10V
0
0
300
600
900
DRAIN CURRENT
ID
1200
0
1500
0
(mA)
2
4
8
VGS
10
(V)
Threshold Voltage
IS —— VSD
2
1
6
GATE TO SOURCE VOLTAGE
1.8
Pulsed
VTH
0.1
Ta=100℃
THRESHOLD VOLTAGE
SOURCE CURRENT
IS (A)
(V)
1.6
Ta=25℃
0.01
1.4
ID=250uA
1.2
1.0
0.8
0.6
1E-3
0.0
0.2
0.4
0.6
0.8
1.0
SOURCE TO DRAIN VOLTAGE
www.jscj-elec.com
1.2
1.4
0.4
25
1.6
VSD (V)
50
75
JUNCTION TEMPERATURE
3
100
Tj
125
( ℃)
Rev. - 1.0
SOT-323 Package Outline Dimensions
Dimensions In Millimeters
Min
Max
0.900
1.100
0.000
0.100
0.900
1.000
0.200
0.400
0.080
0.150
2.000
2.200
1.150
1.350
2.150
2.450
0.650 TYP
1.200
1.400
0.525 REF
0.260
0.460
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Inches
Min
Max
0.035
0.043
0.000
0.004
0.035
0.039
0.008
0.016
0.003
0.006
0.079
0.087
0.045
0.053
0.085
0.096
0.026 TYP
0.047
0.055
0.021 REF
0.010
0.018
0°
8°
SOT-323 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
4
Rev. - 1.0
SOT-323 Tape and Reel
SOT-323 Embossed Carrier Tape
P0
d
P1
Packaging Description:
SOT-323 parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a multilayer
film (Heat Activated Adhesive in nature) primarily
composed of polyester film, adhesive layer, sealant,
and anti-static sprayed agent. These reeled parts in
standard option are shipped with 3,000 units per 7"
or 17.8cm diameter reel. The reels are clear in color
and is made of polystyrene plastic (anti-static
coated).
E
C
B
F
W
A
P
A
A
A-A
Dimensions are in millimeter
Pkg type
A
B
C
d
E
F
P0
P
P1
W
SOT-323
2.25
2.55
1.19
Ø1.55
1.75
3.50
4.00
4.00
2.00
8.00
SOT-323 Tape Leader and Trailer
Trailer Tape
50±2 Empty Pockets
Leader Tape
100±2 Empty Pockets
Components
SOT-323 Reel
D
I
G
W2
3000
H
2500
2000
1500
1000
D2
D1
500
W1
Dimensions are in millimeter
Reel Option
D
D1
D2
G
H
I
W1
W2
7''Dia
Ø178.00
54.40
13.00
R78.00
R25.60
R6.50
9.50
12.30
G.W.(kg)
REEL
3000 pcs
www.jscj-elec.com
Reel Size
Box
7 inch
30,000 pcs
Box Size(mm)
Carton
Carton Size(mm)
203×203×195
120,000 pcs
438×438×220
5
Rev. - 1.0
