JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
SOD-323 Plastic-Encapsulate Diodes
BAT54WS

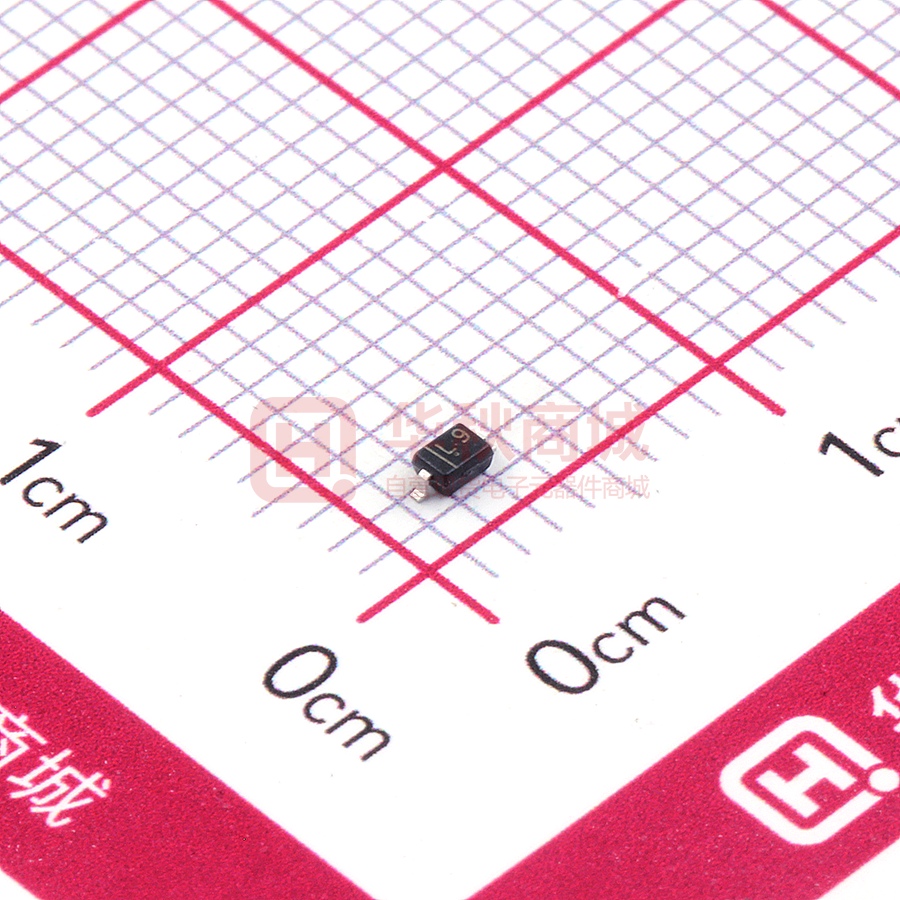

SOD-323
Schottky Barrier Diode
FEATURES
z Extremely Fast Switching Speed
z
Low Forward Voltage
MARKING: L9
The marking bar indicates the cathode
Solid dot = Green molding compound device,if none,
the normal device.
Maximum Ratings @Ta=25℃
Parameter
Symbol
Limit
Unit
Non-Repetitive Peak Reverse Voltage
VRM
30
V
DC Blocking Voltage
VR
21
V
Average Rectified Output Current
IO
100
mA
Forward Continuous Current
IF
200
mA
Repetitive Peak Forward Current
IFRM
300
mA
Non-repetitive Peak Forward Surge Current
@t=8.3ms
IFSM
600
mA
Power Dissipation
PD
200
mW
RθJA
500
℃/W
Thermal Resistance Junction to Ambient
Operating Junction Temperature Range
TJ
-40 ~ +125
℃
Storage Temperature Range
TSTG
-55 ~ +150
℃
Electrical Characteristics @Ta=25℃
Parameter
Symbol
Conditions
Min
V (BR)
IR=100μA
30
VF1
IF=0.1mA
240
mV
VF2
=
IF 1.0mA
320
mV
VF3
=
IF 10mA
400
mV
VF4
=
IF 30mA
500
mV
VF5
=
IF 100mA
1000
mV
Reverse current
IR
=
VR 25V
2.0
uA
Reverse recovery time
trr
5.0
ns
Capacitance between terminals
CT
10
pF
Reverse breakdown voltage
Forward voltage
www.jscj-elec.com
IF=10mA, IR=10mA to 1mA ,
RL=100Ω
VR=1V,f=1MHz
1
Typ
Max
Unit
V
Rev. - 2.1
Typical Characteristics
Forward Characteristics
200
Reverse Characteristics
100
Pulsed
Pulsed
(uA)
T=
a 2
5℃
FORWARD CURRENT
10
REVERSE CURRENT IR
a
T
IF
=1
00
℃
(mA)
100
1
0.1
0
200
400
FORWARD VOLTAGE
600
VF
Ta=25℃
0.1
0
(mV)
5
10
15
20
REVERSE VOLTAGE
Capacitance Characteristics
20
1
0.01
800
Ta=100℃
10
25
VR
30
(V)
Power Derating Curve
250
(mW)
f=1MHz
200
PD
16
12
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
8
4
0
0
5
10
REVERSE VOLTAGE
www.jscj-elec.com
15
VR
150
100
50
0
20
0
25
50
75
AMBIENT TEMPERATURE
(V)
2
100
Ta
125
(℃)
Rev. - 2.1
CHANGJING ELEC.TECH.
PACKAGE OUTLINE AND PAD LAYOUT INFORMATION
Dimensions In Millimeters
Min
Max
1.100
0.000
0.100
1.000
0.800
0.250
0.350
0.080
0.150
1.200
1.400
1.600
1.800
2.750
2.500
0.475 REF
0.250
0.400
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
L
L1
θ
Dimensions In Inches
Min
Max
0.043
0.000
0.004
0.039
0.031
0.010
0.014
0.003
0.006
0.047
0.055
0.063
0.071
0.098
0.108
0.019 REF
0.010
0.016
0°
8°
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
3
Rev. - 2.1
SOD-323 Tape and Reel
www.jscj-elec.com
4
Rev. - 2.1
