JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
SOD-123 Plastic-Encapsulate Diodes
BAV19W~BAV21W
SWITCHING DIODE
SOD-123
FEATURES
Low Reverse Current
z
Surface Mount Package Ideally Suited for Automatic Insertion
z
Fast Switching Speed
For General Purpose Switching Applications
z
z
MARKING:
BAV19W
A8
BAV20W
T2
A8
T2
A8

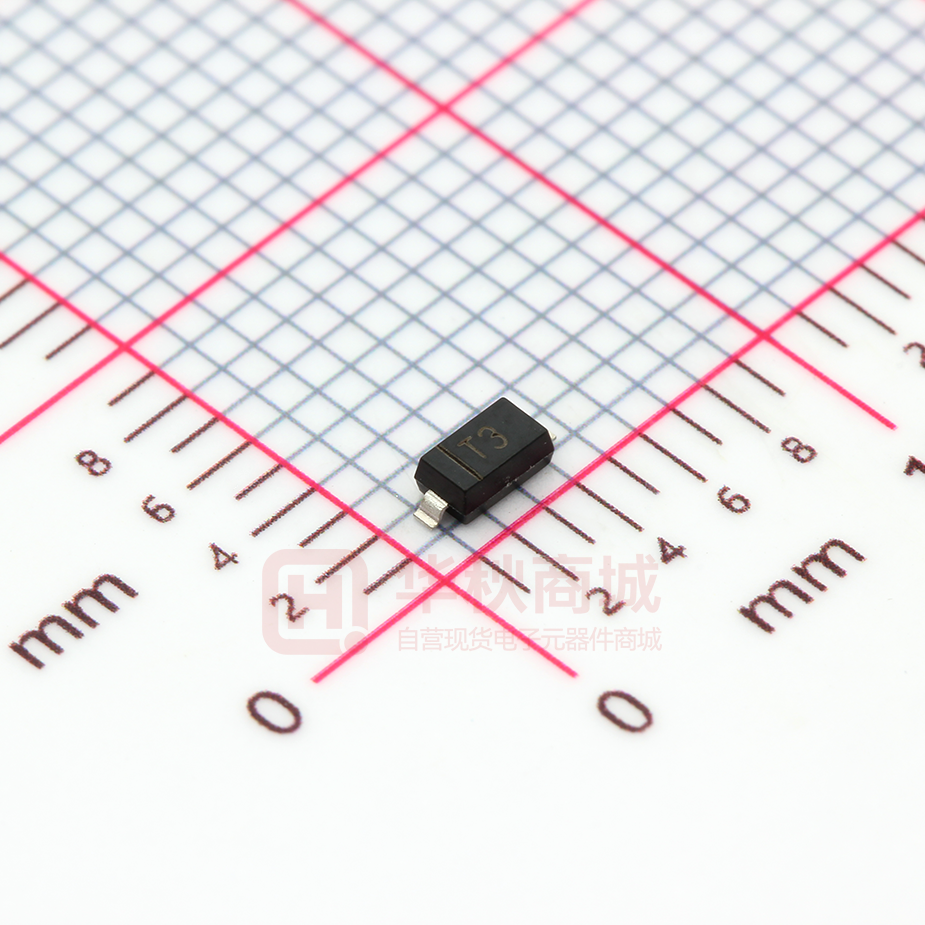

BAV21W
T3
T3
T3
T2
The marking bar indicates the cathode
Solid dot = Green molding compound device,
if none,the normal device.
MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted )
Value
Symbol
VRM
Non-Repetitive Peak Reverse Voltage
VRRM
Peak Repetitive Reverse Voltage
VRWM
Working Peak Reverse Voltage
VR(RMS)
Unit
Parameter
BAV19W
BAV20W
BAV21W
120
200
250
100
150
200
71
106
141
RMS Reverse Voltage
V
V
V
Average Rectified Output Current
200
mA
IFSM
Non-repetitive Peak Forward Surge Current @ t= 8.3ms
2.0
A
PD
Power Dissipation
500
mW
Thermal Resistance from Junction to Ambient
250
℃/W
-55~+150
℃
IO
RΘJA
TJ,Tstg
Operation Junction and Storage Temperature Range
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Parameter
Reverse current
Symbol
Test conditions
Min
BAV19W
0.1
IR
=
VR 150V
BAV20W
0.1
VR 200V
=
BAV21W
0.1
1
1.25
Total capacitance =
=
VR 0V,f 1MHz
Ctot
www.jscj-elec.com
Max
=
VR 100V
=
IF 100mA
VF
Forward voltage
=
IF 200mA
Reverse recovery time
Typ
trr
IF= IR =30mA, Irr=0.1*IR , RL=100Ω
1
Unit
uA
V
5
pF
50
ns
Rev. - 2.0
BAV19W Typical Characteristics
Forward
Characteristics
Reverse
1000
Characteristics
Pulsed
Pulsed
100
Ta=100℃
(nA)
100
REVERSE CURRENT IR
30
T=
a 2
5℃
T=
a 1
00
℃
FORWARD CURRENT
IF
(mA)
400
10
10
Ta=25℃
1
3
1
0.2
0.4
0.6
0.8
FORWARD VOLTAGE
1.0
VF
1.2
0.1
1.4
20
40
60
REVERSE VOLTAGE
80
VR
100
120
125
150
(V)
Power Derating Curve
Capacitance Characteristics
1.4
0
(V)
600
Ta=25℃
500
PD
(mW)
1.2
1.0
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
f=1MHz
0.8
0.6
0.4
400
300
200
100
0
5
10
REVERSE VOLTAGE
www.jscj-elec.com
15
VR
0
20
(V)
0
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
(℃)
Rev. - 2.0
SOD-123 Package Outline Dimensions
Dimensions In Millimeters
Min
Max
1.050
1.250
0.000
0.100
1.050
1.150
0.450
0.650
0.080
0.150
1.500
1.700
2.600
2.800
3.550
3.850
0.500 REF
0.250
0.450
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
L
L1
θ
Dimensions In Inches
Min
Max
0.049
0.041
0.000
0.004
0.041
0.045
0.018
0.026
0.003
0.006
0.059
0.067
0.102
0.110
0.140
0.152
0.020 REF
0.010
0.018
0°
8°
SOD-123 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
3
Rev. - 2.0
SOD-123 Tape and Reel
www.jscj-elec.com
4
Rev. - 2.0
