JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOT-23 Plastic-Encapsulate Transistors
JC(T

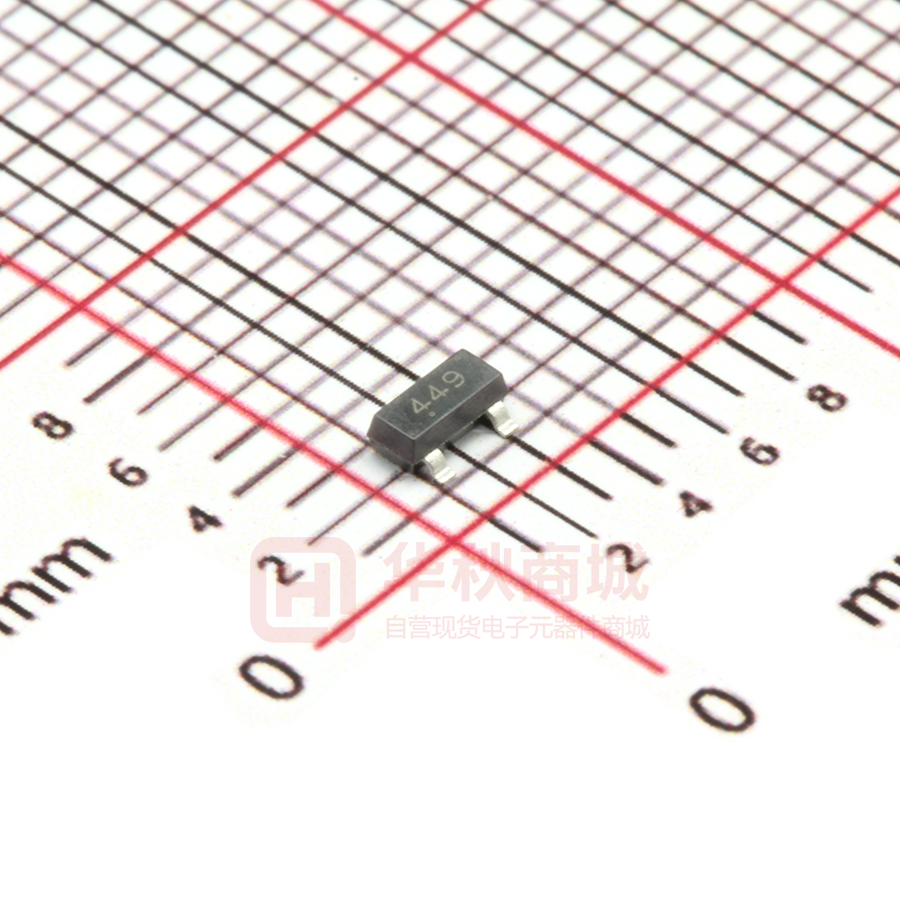

FMMT449
TRANSISTOR (NPN)
SOT–23
FEATURES
Low Equivalent On-Resistance
MARKING: 449
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol
Parameter
1. BASE
Value
Unit
VCBO
Collector-Base Voltage
50
V
VCEO
Collector-Emitter Voltage
30
V
VEBO
Emitter-Base Voltage
5
V
IC
Collector Current
1
A
PC
Collector Power Dissipation
200
mW
Thermal Resistance From Junction To Ambient
625
℃/W
Tj
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~+150
℃
RΘJA
2. EMITTER
3. COLLECTOR
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Min
Typ
Max
Unit
Collector-base breakdown voltage
V(BR)CBO
IC=1mA, IE=0
50
V
Collector-emitter breakdown voltage
V(BR)CEO
IC=10mA, IB=0
30
V
Emitter-base breakdown voltage
V(BR)EBO
IE=100µA, IC=0
5
V
Collector cut-off current
ICBO
VCB=40V, IE=0
0.1
µA
Emitter cut-off current
IEBO
VEB=4V, IC=0
0.1
µA
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
hFE(1) *
VCE=2V, IC=50mA
70
hFE(2) *
VCE=2V, IC=500mA
100
hFE(3) *
VCE=2V, IC=1A
80
hFE(4) *
VCE=2V, IC=2A
40
VCE(sat)1*
IC=1A, IB=100mA
0.5
V
VCE(sat)2*
IC=2A, IB=200mA
1
V
VBE(sat)*
IC=1A, IB=100mA
1.25
V
1
V
Base-emitter voltage
VBE*
Transition frequency
fT
Collector output capacitance
300
Cob
VCE=2V, IC=1A
VCE=10V,IC=50mA,
f=100MHz
VCB=10V, IE=0, f=1MHz
150
MHz
15
pF
*Pulse test
www.cj-elec.com
1
B,Oct,2014
A,Jun,2014
SOT-23 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP
1.800
2.000
0.550 REF
0.300
0.500
0°
8°
Dimensions In Inches
Min
Max
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP
0.071
0.079
0.022 REF
0.012
0.020
0°
8°
SOT-23 Suggested Pad Layout
www.cj-elec.com
2
B,Oct,2014
A,Jun,2014
SOT-23 Tape and Reel
www.cj-elec.com
3
B,Oct,2014
A,Jun,2014
