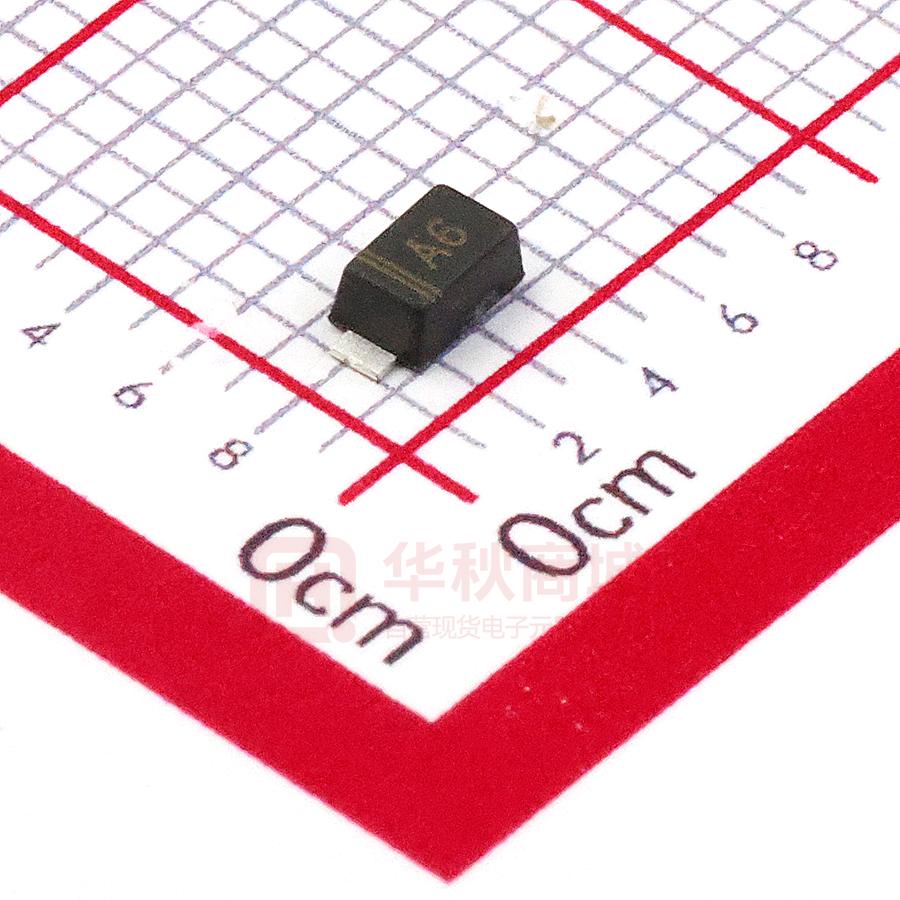

S1KL

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123FL Plastic-Encapsulate Diodes S1AL THRU S1ML G eneral Purpose Rectifier Diodes Features ●IF(AV) 1A ● VRRM 50V-1000V SOD-1 23FL ●High surge current capability ● Polarity: Color band denotes cathode Applications ● Rectifier Marking ● AX X : From 1 To 7 Limiting Values(Absolute Maximum Rating) Item Symbol Unit S1 Test Conditions AL BL DL GL JL KL ML Repetitive Peak Reverse Voltage VRRM V 50 100 200 400 600 800 1000 Maximum RMS Voltage V RMS V 35 70 140 280 420 560 700 Maximum DC Blocking Voltage VDC V 50 100 200 400 600 800 1000 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，TL(Fig.1) 1.0 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ 30 Junction Temperature TJ ℃ -55 ~ +150 Storage Temperature TSTG ℃ -55 ~ +150 KL ML Electrical Characteristics (T=25℃ Unless otherwise specified） Item Maximum Peak Forward Voltage Maximum Peak Reverse Current Typical Junction Capacitance Typical Thermal Resistance Symbol Unit VF IRRM1 IRRM2 CJ RθJ-A RθJ-L V μA pF ℃/ W Test Condition IF =1.0A VRM=VRRM S1 AL BL DL GL JL 1.0 Ta =25℃ 10 Ta =125℃ Measured at 1MHz and applied reverse voltage of 4.0V D.C. 50 Between junction and ambient 95 Between junction and terminal 10 7 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas www.jscj-elec.com 1 Rev. - 1.0 Typical Characteristics IFSM(A) FIG.2:MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT P.C.B mounted on 30 25 0.2*0.2"(5.0*5.0mm) 8.3ms SINGLE HALF SINE-WAVE copper pad areas 20 15 Single Phase Half Wave 60Hz Resistive or inductive Load 10 5 0 175 TL(℃) 1 20 10 10 20 100 Number of Cycles FIG.4:TYPICAL REVERSE CHARACTERISTICS IR(uA) IF(A) FIG.3: TYPICAL FORWARD CHARACTERISTICS 2 TJ=25 C PULSE WIDTH=300 µs 1000 100 2%DUTY CYCLE TJ=125 C 10 1.0 1.0 TJ=75 C 0.1 0.1 0.01 0.2 TJ=25 C 0.01 0.6 www.jscj-elec.com 1.0 1.4 1.8 2.0 VF(V) 0 2 20 40 60 80 100 Voltage(%) Rev. - 1.0 SOD-1 23FL 1.8± 0.1 １．０ ±0.15 Cathode Band Top View 1.3± 0.1 0.12-0.20 2.8 ±0.15 0.8±0.1 3.7 ±0.15 Dimensions in millimeters SOD-1 23FL 1.4 2.85 1.2 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.0 Reel Taping Specifications For Surface Mount Devices-SOD-123FL FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING SOD-123FL 54 1.0 2.13 0.039 www.jscj-elec.com 4 Rev. - 1.0
