JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
SMAG Plastic-Encapsulate Diodes

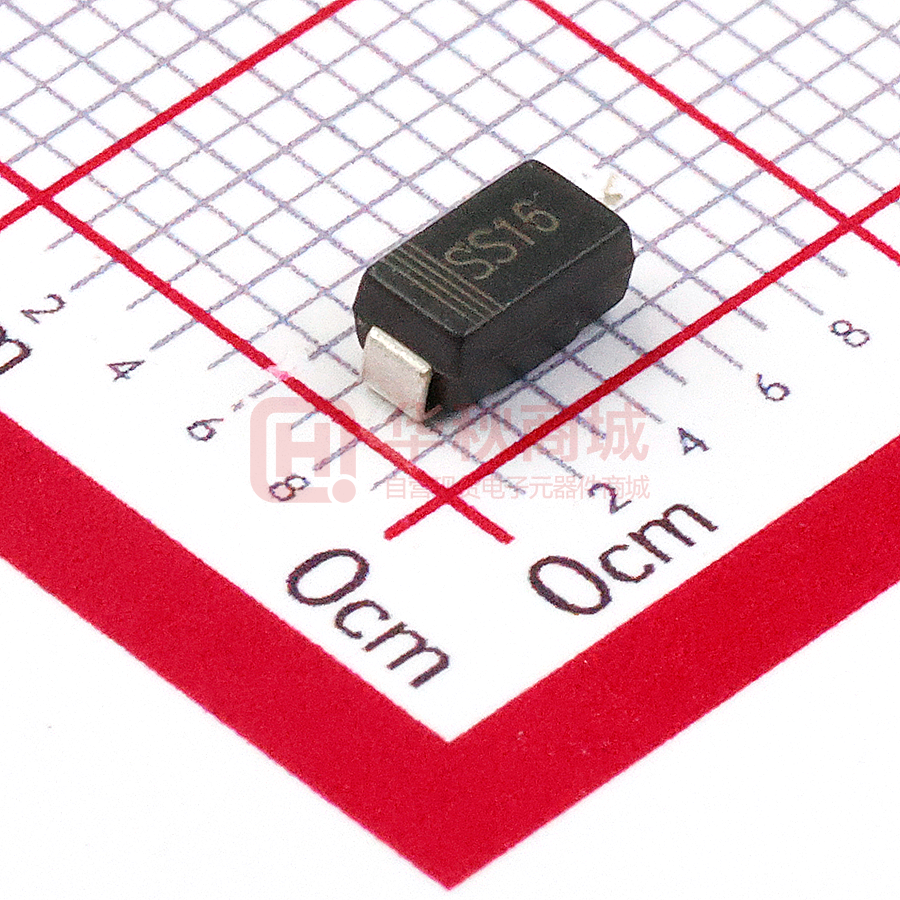

SS12 THRU SS120
Schottky Rectifier Diodes
Features
● IF(AV)
1A
● VRRM
20V-200V
SMAG
● High surge current capability
● Polarity: Color band denotes cathode
Applications
● Rectifier
Marking
● SS1X
X : From 2 To 20
Limiting Values(Absolute Maximum Rating)
Item
Symbol Unit
SS1
Test Conditions
2
3
4
5
6
8
10
15
20
Repetitive Peak Reverse Voltage
VRRM
V
20
30
40
50
60
80
100
150
200
Maximum RMS Voltage
V RMS
V
14
21
28
35
42
56
70
105
140
Average Forward Current
IF(AV)
A
60Hz Half-sine wave,
Resistance load,FIG.1
1.0
Surge(Non-repetitive)Forward
Current
IFSM
A
60Hz Half-sine wave,
1 cycle,Ta=25℃
30
TJ
℃
TSTG
℃
Junction Temperature
Storage Temperature
-55~+125
-55~+150
-55 ~ +150
Electrical Characteristics (T =25℃ Unless otherwise specified)
Item
Peak Forward Voltage
Peak Reverse Current
Thermal
Resistance(Typical)
Symbol Unit
VF
IRRM1
IRRM2
RθJ-A
RθJ-L
V
mA
℃/
W
SS1
Test Condition
2
IF =1.0A
VRM=VRRM
3
4
0.55
5
6
0.5
Ta =100℃
10
10
15
0.85
0.70
Ta =25℃
8
20
0.95
0.1
5.0
Between junction and ambient
65
Between junction and terminal
20
Notes:
Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper
pad areas
www.jscj-elec.com
1
Rev. - 1.0
Typical Characteristics
FIG2:Surge Forward Current Capadility
1.0
IF SM(A)
IO(A)
FIG.1: FORWARD CURRENT DERATING CURVE
SS12 -SS14
SS15 -SS120
50
0.8
40
0.6
30
0.4
20
10
0.2
Resistive or Inductive Load
P.C.B. Mounted on 0.2"×0.2"
(5.0mm×5.0mm)Copper Pad Areas
0
0
0
25
75
50
125
100
1
150
2
5
10
20
TL(℃)
FIG.4:TYPICAL REVERSE CHARACTERISTICS
IR(mA)
IF(A)
100
Number of Cycles
FIG.3: TYPICAL FORWARD CHARACTERISTICS
100
50
TJ=25 ℃
Pulse width=300us
1% Duty Cycle
100
SS12 -SS16
SS18 -SS120
10
10
Tj=125℃
1.0
1.0
0.1
SS12-SS14
SS15-SS16
SS18-SS110
SS115-SS120
0.1
Tj=75℃
0.01
Tj=25℃
0.01
0.001
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
20
40
60
80
100
Voltage(%)
VF(V)
www.jscj-elec.com
0
2
Rev. - 1.0
SMAG
0.106(2.70)
0.096(2.45)
SMAG
4.12
1.8
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein.JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
3
Rev. - 1.0
Reel Taping Specifications For Surface Mount Dev ices- SMAG
FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING
G
279 2.0 (11 0.079)
75 1.0 2.95 0.039
www.jscj-elec.com
4
Rev. - 1.0
