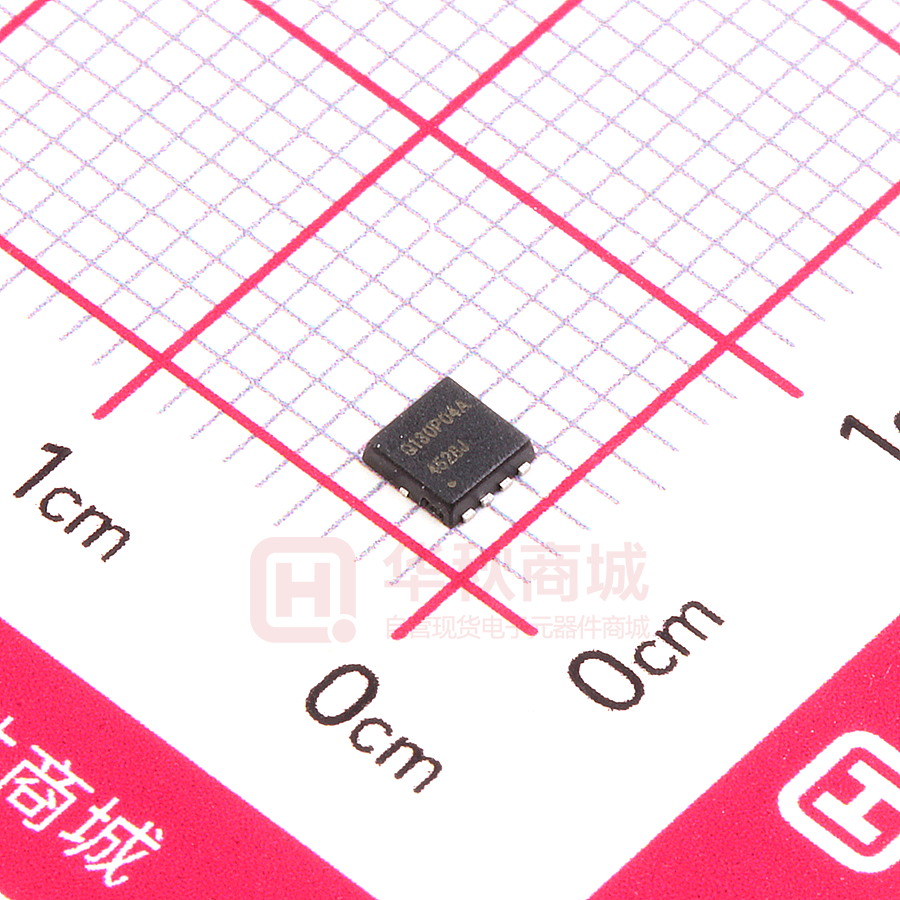

JMTQ130P04A

JMTQ130P04A Description JMT P-channel Enhancement Mode Power MOSFET Features Application  VDS= -40V, ID= -30A RDS(ON) < 13mΩ @ VGS = -10V RDS(ON) < 19mΩ @ VGS = -4.5V  PWM Applications  Load Switch  Power Management  Advanced Trench Technology  Excellent RDS(ON) and Low Gate Charge  Lead free product is acquired PDFN3x3-8L 100% UIS TESTED! 100% ΔVds TESTED! Marking and pin Assignment Schematic Diagram Package Marking and Ordering Information Device Marking Device OUTLINE Device Package Reel Size Reel (PCS) Per Carton (PCS) Q130P04A JMTQ130P04A TAPING PDFN3x3-8L 13inch 5000 50000 Absolute Maximum Ratings (TC=25℃ unless otherwise specified) Symbol Parameter Max. Units VDSS Drain-Source Voltage -40 V VGSS Gate-Source Voltage ±20 V TC = 25℃ -30 A TC = 100℃ -20 A -120 A 110 mJ 20 W 6.3 ℃/W -55 to +150 ℃ ID Continuous Drain Current IDM Pulsed Drain Current note1 EAS Single Pulsed Avalanche Energy PD Power Dissipation RθJC TJ, TSTG note2 TC = 25℃ Thermal Resistance, Junction to Case Operating and Storage Temperature Range JieJie Microelectronics CO. , Ltd Version : 1.2 -1- JMTQ130P04A Electrical Characteristics (TJ=25℃ unless otherwise specified) Symbol Parameter Test Condition Min. Typ. Max. Units Off Characteristic V(BR)DSS Drain-Source Breakdown Voltage VGS=0V, ID= -250μA -40 - - V IDSS Zero Gate Voltage Drain Current VDS= -40V, VGS=0V - - -1 μA IGSS Gate to Body Leakage Current VDS=0V, VGS= ±20V - - ±100 nA Gate Threshold Voltage VDS=VGS, ID= -250μA -1.0 -1.5 -2.5 V Static Drain-Source on-Resistance VGS= -10V, ID= -20A - 10.3 13 note3 VGS= -4.5V, ID= -10A - 13.6 19 - 3700 - pF - 340 - pF - 290 - pF - 68 - nC - 10 - nC - 14 - nC - 10 - ns - 82 - ns - 93 - ns - 74 - ns On Characteristics VGS(th) RDS(on) mΩ Dynamic Characteristics Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance Qg Total Gate Charge Qgs Gate-Source Charge Qgd Gate-Drain(“Miller”) Charge VDS= -20V, VGS=0V, f=1.0MHz VDS= -20V, ID= -20A, VGS= -10V Switching Characteristics td(on) Turn-on Delay Time tr Turn-on Rise Time td(off) Turn-off Delay Time tf VDD= -20V, ID= -20A, VGS= -10V, RGEN=2.4Ω Turn-off Fall Time Drain-Source Diode Characteristics and Maximum Ratings IS Maximum Continuous Drain to Source Diode Forward Current - - -30 A ISM Maximum Pulsed Drain to Source Diode Forward Current - - -120 A VSD Drain to Source Diode Forward Voltage VGS=0V, IS= -30A - -0.8 -1.2 V VGS=0V, IS= -30A, di/dt=100A/μs - 20 - ns - 13 - nC trr Reverse Recovery Time Qrr Reverse Recovery Charge Notes:1. Repetitive Rating: Pulse Width Limited by Maximum Junction Temperature 2. EAS condition: TJ= 25℃, VDD= -20V, VG= -10V, L= 0.5mH, RG= 25Ω, IAS= -21A 3. Pulse Test: Pulse Width≤300μs, Duty Cycle≤2% JieJie Microelectronics CO. , Ltd Version : 1.2 -2- JMTQ130P04A Typical Performance Characteristics Figure 2: Typical Transfer Characteristics Figure1: Output Characteristics -I D (A) 50 10V 40 40 4.5V 25℃ 4V 30 30 3V 125℃ 20 20 10 10 0 -I D (A) 50 V GS=2.5V -V DS (V) 0 1 2 3 4 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 Figure 4 : Body Diode Characteristics Figure 3: On-resistance vs. Drain Current 21 -V GS (V) 0 5 R DS(ON) (mΩ) -I S(A) 10 18 15 125℃ V GS =-4.5V 12 25℃ 1 9 V GS =-10V 6 3 0 0 -I D(A) 5 10 15 20 25 0.1 0.0 30 Figure 5: Gate Charge Characteristics 10 8 0.2 0.4 V SD (V) 0.6 0.8 1.0 1.2 1.4 Figure 6: Capacitance Characteristics -VGS (V) 105 V DS =-20V I D=-20A C(pF) 10 4 C iss 6 103 C oss 4 0 0 C rss 102 2 Q g (nC) 12 24 36 -V DS (V) 1 48 60 10 72 JieJie Microelectronics CO. , Ltd 0 5 10 15 20 25 30 Version : 1.2 -3- JMTQ130P04A Figure 8: Normalized on Resistance vs. Junction Temperature Figure 7: Normalized Breakdown Voltage vs. Junction Temperature VBR(DSS) 1.3 2.5 1.2 RDS (on) 2.0 1.1 1.5 1.0 1.0 0.9 0 -100 Tj (℃) -50 0 50 100 150 0.5 -100 200 0 50 100 150 200 Figure 10: Maximum Continuous Drain Current vs. Case Temperature Figure 9: Maximum Safe Operating Area -I D (A) 35 3 10 -I D(A) 30 25 102 10μs 20 100μs 1 10 100 TC=25℃ Single pulse -1 0.01 0.1 15 1ms Limited by RDS(on) 10 Tj (℃) -50 10 10ms 100ms 5 DC -VDS (V) 1 10 0 100 0 25 50 75 Tc (℃) 100 125 150 175 Figure.11: Maximum Effective Transient Thermal Impedance, Junction-to-Case 101 Zth J-C (℃/W) 10-1 10 D=0.5 D=0.2 D=0.1 D=0.05 D=0.02 D=0.01 Single pulse -2 10-3 -6 10 10-5 10-4 TP(s) 10 -3 10 -2 P DM 100 t1 t2 Notes: 1.Duty factor D=t1/t2 2.Peak T J=P DM *ZthJC +TC 10 -1 10 0 101 JieJie Microelectronics CO. , Ltd Version : 1.2 -4- JMTQ130P04A Test Circuit JieJie Microelectronics CO. , Ltd Version : 1.2 -5- JMTQ130P04A Package Mechanical Data- PDFN3x3-8L Information furnished in this document is believed to be accurate and reliable. However, Jiangsu JieJie Microelectronics Co.,Ltd assumes no responsibility for the consequences of use without consideration for such information nor use beyond it. Information mentioned in this document is subject to change without notice, apart from that when an agreement is signed, Jiangsu JieJie complies with the agreement. Products and information provided in this document have no infringement of patents. Jiangsu JieJie assumes no responsibility for any infringement of other rights of third parties which may result from the use of such products and information. This document supersedes and replaces all information previously supplied. is a registered trademark of Jiangsu JieJie Microelectronics Co.,Ltd. Copyright ©2022 Jiangsu JieJie Microelectronics Co.,Ltd. Printed All rights reserved. JieJie Microelectronics CO. , Ltd Version : 1.2 -6-
