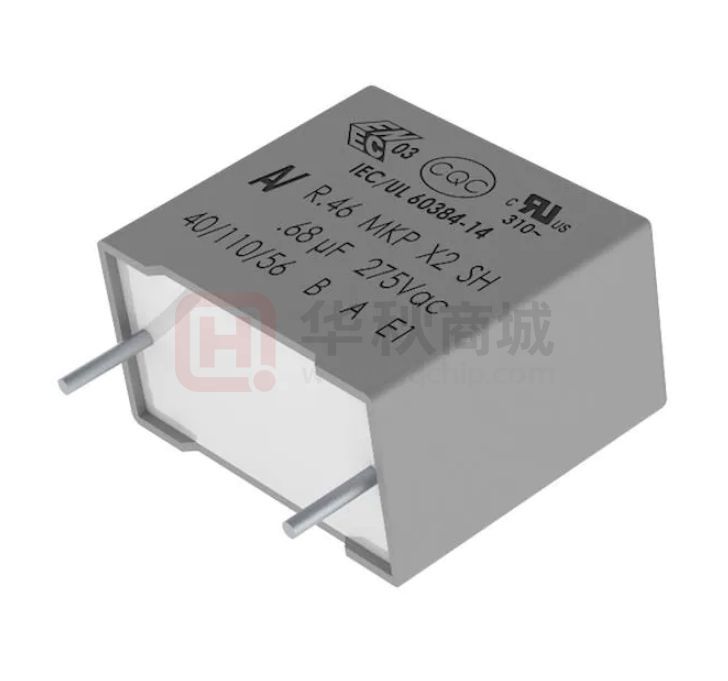

Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Overview Applications The R46 series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material that meets the requirements of UL 94 V–0. Not for New Design. For worldwide use in electromagnetic interference (EMI) suppression in across-the-line applications that require X2 safety classification. Intended for use in situations in which capacitor failure would not result in exposure to electric shock. Not for use in "series with mains" type applications. Benefits • Approvals: ENEC, UL, cUL, CQC • X2 CLASS (IEC 60384-14) • Rated voltage: 275 VAC 50/60 Hz • Capacitance range: 0.01 – 1 µF • Lead spacing: 10.0 – 22.5 mm • Capacitance tolerance: ±20%, ±10% • Climatic category 40/125/56, IEC 60068–1 • Tape & Reel in accordance with IEC 60286–2 • RoHS compliant and lead-free terminations • Operating temperature range of −40˚C to +125˚C • 100% screening factory test at 2,200 VDC/1,500 VAC • Self healing properties Part Number System R46 K N 3220 00 H1 M Series Rated Voltage (VAC) Lead Spacing (mm) Capacitance Code (pF) Packaging Internal Use Capacitance Tolerance See Ordering Options Table H = High Temperature H1 H2 H3 H4 X2, Metallized Polypropylene K = 275 F = 10.0 I = 15.0 N = 22.5 The last three digits represent significant figures. The first digit specifies number of zeros to be added. K = ±10% M = ±20% Built Into Tomorrow © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 1 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Ordering Options Table Lead Spacing Nominal (mm) Lead Length (mm) Lead and Packaging Code 4+2/−0 H0= 18.5 ±0.5 00 DQ Tape & Reel (Large Reel) H0= 18.5 ±0.5 CK Bulk (Bag) – Short Leads 2.7 +0.5/−0 JA Bulk (Bag) – Short Leads 3.5 +0.5/−0 JB Bulk (Bag) – Short Leads 4.0 +0.5/−0 JE Bulk (Bag) – Short Leads 3.2 +0.3/−0.2 JH Bulk (Bag) – Long Leads 18 ±1 JM Bulk (Bag) – Long Leads 30 +5/−0 40 25 +2/−1 50 Type of Leads and Packaging Standard Lead and Packaging Options Bulk (Bag) – Short Leads Ammo Pack Other Lead and Packaging Options 10 15 22.5 Bulk (Bag) – Long Leads Bulk (Bag) – Insulated Rigid Leads Bulk (Bag) – Insulated Flexible Leads © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com 30 +5/−0 (sp 8 ±2) 150 ±5 (sp 8 ±2) 51 52 F3006_R46_X2_275_125C • 8/10/2023 2 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Dimensions – Millimeters FRONT VIEW SIDE VIEW L T H S LL F S T H L F Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 5.0 6.0 5.0 6.0 6.0 7.5 7.5 8.5 9.0 10.0 11.0 13.0 6.0 7.0 10.0 11.0 13.0 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 +0.2/−0.5 11.0 12.0 11.0 12.0 17.5 13.5 18.5 14.5 12.5 16.0 19.0 12.0 15.0 16.0 18.5 20.0 22.0 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 +0.1/−0.5 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 +0.2/−0.5 +0.2/−0.5 +0.3/−0.5 +0.3/−0.5 +0.3/−0.5 +0.5/−0.5 +0.5/−0.5 +0.5/−0.5 +0.5/−0.5 +0.5/−0.5 +0.5/−0.5 +0.5/−0.5 +0.3/−0.5 +0.3/−0.5 +0.3/−0.5 +0.3/−0.5 +0.3/−0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 Note: See Ordering Options Table for lead length (LL/H0) options. © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 3 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Performance Characteristics Dielectric Plates Winding Leads Protection Related Documents Rated Voltage VR Recommended DC Voltage Polypropylene film Metal layer deposited by evaporation under vacuum Non-inductive type Tinned wire Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94. IEC 60384–14, EN 60384–14 275 VAC (50/60 Hz) ≤ 560 VDC Capacitance Range 0.010 – 1 µF Capacitance Values E6 series (IEC 60063) measured at 1 kHz and +20±1°C Capacitance Tolerance Temperature Range Climatic Category ±10%, ±20% −40°C to +125°C 40/125/56 IEC 60068-1 Storage time: ≤ 24 months from the date marked on the label package Average relative humidity per year ≤ 70% Storage Conditions RH ≤ 85% for 30 days randomly distributed throughout the year Dew is absent Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below) Approvals Dissipation Factor (tanδ) Test Voltage Between Terminals ENEC, UL, cUL, CQC ≤ 0.1% (0.06%*) at 1 kHz, +25°C ±5°C (* typical value) The 100% screening factory test is carried out at 2,200 VDC/1,500 VAC. The voltage level is selected to meet the requirements in applicable equipment standards. All electrical characteristics are checked after the test. This test cannot be repeated, as there is a risk of damaging the capacitor. KEMET is not liable in such cases for any failures. Measured at +25°C ±5°C, according to IEC 60384–2 Insulation Resistance Minimum Values Between Terminals Voltage Charge Voltage Charge Time C ≤ 0.33 μF C > 0.33 μF 1 minute ≥ 1 • 10 MΩ ( ≥ 5 • 105 MΩ )* ≥ 30,000 MΩ • µF ( ≥ 150,000 MΩ • µF )* 100 VDC 5 * Typical value © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 4 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Performance Characteristics cont. Maximum Humidity in Storage Condition 100 Relative Humidity (%) 90 80 70 60 50 40 30 Days Annual Average 30 20 10 0 −40 −20 0 20 Temperature (°C) 40 60 80 Impedance Graph Z[Ω] 100 10 1 0.1 0.01 0.001 4.7 μF p.37.5 0.1 1 0.1 μF p.15 0.33 μF p.22.5 1 μF p.27.5 F [MHz] 10 0.01 μF p.10 100 © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 5 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Environmental Test Data Test IEC Publication Procedure Endurance EN/IEC 60384–14 Vibration IEC 60068–2–6 Test Fc 3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98 m/s2 Bump IEC 60068–2–29 Test Eb 1,000 bumps at 390 m/s2 Change of Temperature IEC 60068–2–14 Test Na Upper and lower rated temperature 5 cycles Active Flammability IEC 60384–14 VR + 20 surge pulses at 2.5 kV (pulse every 5 seconds) Passive Flammability IEC 60384–14 IEC 60384–1, IEC 60695–11–5 Needle flame test Damp Heat Steady State IEC 60068–2–78 Test Cab 1.25 x VR VAC 50 Hz, once every hour increase to 1,000 VAC for 0.1 second, 1,000 hours at upper rated temperature +40°C and 93% RH, 56 days Approvals Certification Body Mark Specification File Number IMQ S-p.A. EN/IEC 60384–14 CA08.00063 UL UL 60384–14 and CAN/CSA E60384–14 (310VAC) E97797 CQC IEC 60384–14 CQC15001128630 CQC15001128703 CQC15001128705 Environmental Compliance All KEMET EMI capacitors are RoHS compliant. © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 6 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Table 1 – Ratings & Part Number Reference Dimensions in mm Capacitance Value (µF) T H 0.010 0.015 0.022 0.033 0.047 0.068 0.010 0.015 0.022 0.033 0.047 0.068 0.10 0.15 0.15 0.15 0.22 0.22 0.22 0.22 0.33 0.33 0.33 0.47 0.15 0.22 0.33 0.47 0.68 1.0 5.0 5.0 5.0 5.0 6.0 6.0 5.0 5.0 5.0 5.0 5.0 5.0 6.0 6.0 9.0 7.5 8.5 6.0 9.0 7.5 10.0 7.5 13.0 11.0 6.0 6.0 7.0 10.0 11.0 13.0 11.0 11.0 11.0 11.0 12.0 12.0 11.0 11.0 11.0 11.0 11.0 11.0 12.0 17.5 12.5 13.5 14.5 17.5 12.5 18.5 16.0 18.5 12.0 19.0 15.0 15.0 16.0 18.5 20.0 22.0 Capacitance Value (µF) T (mm) H (mm) L Lead Spacing (S) dV/dt (V/µs) KEMET Part Number Legacy Part Number 13.0 13.0 13.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 500 500 500 500 500 500 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 200 200 200 200 200 200 46KF2100(1)H1(2) 46KF2150(1)H1(2) 46KF2220(1)H1(2) 46KF2330(1)H1(2) 46KF2470(1)H1(2) 46KF2680(1)H1(3) 46KI2100(1)H1(2) 46KI2150(1)H1(2) 46KI2220(1)H1(2) 46KI2330(1)H1(2) 46KI2470(1)H1(2) 46KI2680(1)H1(2) 46KI3100(1)H1(2) 46KI3150(1)H2(2) 46KI3150(1)H3(2) 46KI3150(1)H1(2) 46KI3220(1)H1(2) 46KI3220(1)H2(3) 46KI3220(1)H3(3) 46KI3220(1)H4(2) 46KI3330(1)H1(3) 46KI3330(1)H2(3) 46KI3330(1)H3(3) 46KI3470(1)H1(3) 46KN3150(1)H1(2) 46KN3220(1)H1(2) 46KN3330(1)H1(2) 46KN3470(1)H1(2) 46KN3680(1)H1(2) 46KN4100(1)H1(2) R46KF2100(1)H1(2) R46KF2150(1)H1(2) R46KF2220(1)H1(2) R46KF2330(1)H1(2) R46KF2470(1)H1(2) R46KF2680(1)H1(3) R46KI2100(1)H1(2) R46KI2150(1)H1(2) R46KI2220(1)H1(2) R46KI2330(1)H1(2) R46KI2470(1)H1(2) R46KI2680(1)H1(2) R46KI3100(1)H1(2) R46KI3150(1)H2(2) R46KI3150(1)H3(2) R46KI3150(1)H1(2) R46KI3220(1)H1(2) R46KI3220(1)H2(3) R46KI3220(1)H3(3) R46KI3220(1)H4(2) R46KI3330(1)H1(3) R46KI3330(1)H2(3) R46KI3330(1)H3(3) R46KI3470(1)H1(3) R46KN3150(1)H1(2) R46KN3220(1)H1(2) R46KN3330(1)H1(2) R46KN3470(1)H1(2) R46KN3680(1)H1(2) R46KN4100(1)H1(2) L (mm) Lead Spacing (S) dV/dt (V/µs) KEMET Part Number Legacy Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) M = ±20%, K = ±10% (3) M = ±20% (only available tolerance). © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 7 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Soldering Process The implementation of the RoHS directive has resulted in the selection of SnAuCu (SAC) alloys or SnCu alloys as primary solder material. This has increased the liquidus temperature from 183°C for SnPb eutectic alloys to 217 – 221°C for the new alloys. As a result, the heat stress to the components, even in wave soldering, has increased considerably due to higher preheat and wave temperatures. Polypropylene capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170°C). Wave soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 – 15 mm). Great care must be taken during soldering. The recommended solder profiles from KEMET should be used. Consult KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760-1 Edition 2 serves as a solid guideline for successful soldering. See Figure 1. Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the above-recommended limits may result to degradation of or permanent damage to the capacitors. Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert through-hole parts after curing surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven, if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended. Allow time for the capacitor surface temperature to return to normal temperature before performing the second soldering cycle. Wave Soldering Recommendations Manual Soldering Recommendations Following is the recommendation for manual soldering with a soldering iron. 300 Second Wave First Wave Recommended Soldering Temperature 200 Temperature (°C) 400 350 Soldering Iron Bit Temperature (°C) 2+3 seconds max 260°C 250 300 250 ∆ T < 150°C Cooling Preheating 150 ca. 2°C/second ca. 3.5°C/second typical ca. 5°C/second Tpreheat 100 Typical 200 50 150 100 0 50 0 40 80 120 160 200 240 Time (seconds) 0 0 1 2 3 4 5 6 7 8 Soldering Time (seconds) The soldering iron tip temperature should be set at 350°C (+10°C maximum), with the soldering duration not to exceed more than 3 seconds. © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 8 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Soldering Process cont. Wave Soldering Recommendations cont. 1. The table indicates the maximum set-up temperature of the soldering process. Dielectric Film Material Maximum Preheat Temperature Maximum Peak Soldering Temperature Capacitor Capacitor Capacitor Capacitor Pitch Pitch Pitch Pitch ≤ 15 mm > 15 mm ≤ 15 mm > 15 mm Polyester 130°C 130°C 270°C 270°C Polypropylene 125°C 130°C 260°C 270°C Paper 130°C 140°C 270°C 270°C Polyphenylene Sulphide 150°C 160°C 270°C 270°C 2. The maximum temperature measured inside the capacitor: set the temperature so that the maximum temperature inside the element is below the limit. Dielectric Film Material Maximum Temperature Measured Inside the Element Polyester 160°C Polypropylene 125°C Paper 160°C Polyphenylene Sulphide 160°C Temperature monitored inside the capacitor. Selective Soldering Recommendations Selective dip soldering is a variation of reflow soldering. In this method, the printed circuit board with through-hole components to be soldered is preheated and transported over the solder bath as it is in normal flow soldering, without touching the solder. When the board is over the bath, it is stopped. Pre-designed solder pots are lifted from the bath with molten solder, only at the places of the selected components, and pressed against the lower surface of the board to solder the components. The temperature profile for selective soldering is similar to the double wave flow soldering outlined in this document. However, instead of two baths, there is only one with a time from 3 – 10 seconds. In selective soldering, the risk of overheating is greater than in double wave flow soldering, and great care must be taken so that the parts do not overheat. © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 9 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Construction Molded Plastic Case Single-sided Metallized Polypropylene Film (First Layer) Detailed Cross Section Molded Plastic Self-Extinguishing Case Resin Single-sided Metallized Polypropylene Film (Second Layer) Margin Margin Metal Contact Layer Metal Contact Layer Margin FILM WINDING SCHEME OPTIONS Leads Single-sided Metallized Polypropylene Film Double-sided Winding Scheme Single-sided Metallized Polypropylene Film 1 Section Single-sided Metallized Polypropylene Film 2 Sections Single-sided Metallized Polypropylene Film 3 Sections Double-sided Metallized Polyester Carrier Film 1 Section Single-sided Metallized Polypropylene Film 4 Sections © KEMET Electronics Corporation • One East Broward Boulevard Polypro Film Die Metallized Impregnated Paper Metallized Polyphenylene Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com Sulfide Film (SMR) Double-sided Metallized Polyester Carrier Film Polyprop Film Die 3 Sections F3006_R46_X2_275_125C • 8/10/2023 10 Polyp Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Marking Lead Spacing 10 mm FRONT TOP Capacitance Tolerance Series, Dielectric Code, Safety Class, Self Healing Capacitance, Rated Voltage Approval Marks Manufacturer’s Logo IEC Climatic Category Date Code Manufacturing Plant Passive Flammability Category: C for volume < 1750 mm3 NOTE: Hot imprinting with or without color or ink jet or laser marking Lead Spacing 15 mm, 22.5 mm, and 27.5 mm FRONT TOP Capacitance Tolerance Series, Dielectric Code, Safety Class, Self Healing Capacitance, Rated Voltage Approval Marks Manufacturer’s Logo IEC Climatic Category Date Code Manufacturing Plant Passive Flammability Category: B for volume ≥ 1750 mm3 C for volume < 1750 mm3 NOTE: Hot imprinting with or without color or ink jet or laser marking Manufacturing Date Code (IEC–60062) Lead Spacing 22.5 and 27.5 mm (alternatives*) and 37.5 mm Year 2010 2011 2012 2013 2014 Approval Marks 2015 2016 2017 2018 2019 Code A B C D E F H J K L FRONT Y = Year, Z = Month Year Code 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 M N P R S T U V W X © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com Month Code TOP Month Series Dielectric Safety Self January 1 Code Class July Healing February 2 August March 3 September April 4 October Manufacturer’s May 5 November Logo June 6 December IEC Climatic Category Code 7 8 9 Capacitance, O Capacitance N Tolerance, D Rated Voltage QA Number Passive Flammability Category Manufacturing Date Code F3006_R46_X2_275_125C • 8/10/2023 Plant 11 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Packaging Quantities Lead Spacing (mm) Thickness (mm) Height (mm) Length (mm) Bulk Short Leads Bulk Long Leads Standard Reel ø 355 mm Large Reel ø 500 mm Ammo Taped 10 5 6 11 12 13 13 1,300 1,000 1,500 1,200 600 500 1,250 1,000 800 680 15 5 6 6 7.5 7.5 8.5 9 10 11 13 11 12 17.5 13.5 18.5 14.5 12.5 16 19 12 18 18 18 18 18 18 18 18 18 18 2,000 1,750 1,000 1,000 900 1,000 1,000 750 450 750 1,000 900 700 700 500 500 520 500 350 490 600 500 500 350 – 300 270 300 – 200 1,250 1,000 1,000 800 800 700 650 600 500 480 800 680 680 500 500 440 410 380 340 280 22.5 6 7 10 11 13 15 16 18.5 20 22 26.5 26.5 26.5 26.5 26.5 805 700 396 360 300 500 500 300 250 200 – – – – – 700 550 350 350 300 464 380 235 217 – © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 12 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Lead Taping & Packaging (IEC 60286–2) Figure 1 Lead Spacing 10 mm Figure 2 Lead Spacing 15 mm Figure 3 Lead Spacing 22.5 – 27.5 mm P W2 P2 ød A B W W0 W1 H0 P1 P0 F P h h D0 P1 P2 A-B t Taping Specification Dimensions (mm) Description Symbol 10 Fig. 1 Lead Space 15 22.5 Fig. 2 Fig. 3 27.5 Fig. 3 Tol. Lead wire diameter d 0.6 0.6–0.8 0.8 0.8 ±0.05 Taping lead space P 25.4 25.4 38.1 38.1 ±1 Feed hole lead space * P0 12.7 12.7 12.7 12.7 ±0.2 ** Centering of the lead wire P1 7.7 5.2 7.8 5.3 ±0.7 Centering of the body P2 12.7 12.7 19.05 19.05 ±1.3 Lead spacing (pitch) *** F 10 15 22.5 27.5 +0.6/−0.1 Component alignment ∆h 0 0 0 0 ±2 Height of component from tape center H 0 **** 18.5 18.5 18.5 18.5 ±0.5 Carrier tape width W 18 18 18 18 +1/−0.5 Hold down tape width W0 9 10 10 10 Minimum Hole position W1 9 9 9 9 ±0.5 Hold down tape position W2 3 3 3 3 Maximum Feed hole diameter D0 4 4 4 4 ±0.2 Total tape thickness t 0.7 0.7 0.7 0.7 ±0.2 * 15 mm also available ** Maximum of 1 mm on 20 lead spaces *** Pitches 15 mm and 10 mm taped to 7.5 mm (crimped leads) available upon request **** H0 = 16.5 mm is available upon request © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 13 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C Lead Taping & Packaging (IEC 60286–2) cont. Ammo Specifications Dimensions (mm) H W T 360 340 59 H T W Reel Specifications Reel Size Standard Large Dimensions (mm) D H W 355 500 30 25 55 Maximum D H W © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 14 Metallized Polypropylene Film EMI Suppression Capacitors R46, Class X2, 275 VAC, 125°C KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer YAGEO Corporation and its affi liates do not recommend the use of commercial or automotive grade products for high reliability applications or manned space fl ight. All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicated or that other measures may not be required. Additional information about production site flexibility can be found KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3006_R46_X2_275_125C • 8/10/2023 15 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: KEMET: R46KN3680JHH1K R46KN410000H1K R46KN410000H1M R46KN410045H1M R46KN410050H1K R46KN410055H1M R46KN4100CKH1K R46KF247000H1M R46KF268000H1M R46KF268050H1M R46KI2470JBH1M R46KI268045H1M R46KI310050H1M R46KI315045H2M R46KI322000H1K R46KI322045H2M R46KI322050H1M R46KI322050H2M R46KI322055H2M R46KI3220CKH3M R46KI3220DQH1K R46KI3220JHH1K R46KI3220JHH4K R46KI333000H1M R46KI333000H2M R46KI333000H3M R46KI333045H2M R46KI333050H1M R46KI333050H2M R46KI333055H2M R46KI3330CKH3M R46KI3330JHH2M R46KI3330JPH2M R46KI347000H1M R46KI347045H1M R46KI3470JPH1M R46KN3270JHH1K R46KN3330DQH1M R46KN3330JHH1K R46KN347000H1K R46KN347000H1M R46KN347045H1K R46KN347045H1M R46KN368055H1M R46KN368000H1M R46KN3470DQH1M R46KN4100CKH1M R46KI3470JHH1M R46KI347040H1M R46KF222040H1M R46KN315040H1M R46KI322040H2M R46KF215040H1M R46KF233040H1M R46KN322040H1M R46KF210040H1M R46KF247040H1M R46KI310040H1M R46KN333040H1M R46KN368040H1M R46KN410040H1M R46KI333040H2M R46KF268040H1M R46KI315040H2M R46KN347040H1M 463N3470JHN0K 463F3100JHM1M 463I2470JH01M 463I2680JH01K 463I3220JHM2M 46KF233045H1K 46KI333050H3M 46KI3330JHP2M 46KN4100DQH1K 46KR3680JHM1M 46KI222000H1K 46KI310000H1K 46KI310000H1M 46KI315000H2M 46KI3470JHM1M 46KI322000H2M 46KR3470JH01M 46KI315000H2K 46KR4220JHM1M 46KR4330JHM2K 46KR4470JHM1K 46KF247000H1K 46KF2680DQH1M 46KI3330CKH1M 46KN3680DQH1K R46KN3680DQH1K R46KI310000H1M R46KI3330DQH2M R46KF233045H1K R46KF2330JHH1K R46KF247000H1K R46KF2680DQH1M R46KI222000H1K R46KI268000H1M R46KI2680DQH1M
