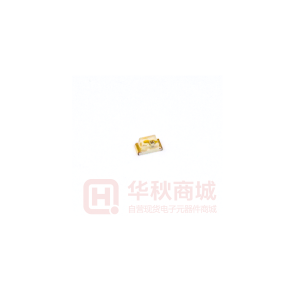

APT1608SYC

1.6X0.8mm SMD CHIP LED LAMP P/N: APT1608SYC SUPER BRIGHT YELLOW Features zLOW z1.6mmX0.8mm zW IDE Description SMT LED, 0.75mm THICKNESS. The Super Bright Yellow device is made with DH InGaAlP (on GaAs substrate) light emitting diode chip . POWER CONSUMPTION. VIEW ING ANGLE. FOR BACKLIGHT AND INDICATOR. COLORS AND LENS TYPES AVAILABLE. 2000PCS / REEL . SENSITIVITY LEVEL : LEVEL 3. zIDEAL zVARIOUS zPACKAGE: zRoHS zMOISTURE COMPLIANT. Package Dimension s Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3.Specifications are subject to change without notice. SPEC NO: DSAD0930 APPROVED: J. Lu REV NO: V.4 CHECKED: Allen Liu DATE: MAR/25/2006 DRAWN: Z.Z.YANG PAGE: 1 OF 5 ERP: 1203005328 Selection Guid e Part No. Dice Lens Type Iv (mcd) [2] @ 20mA Min. APT1608SYC SUPER BRIGHT YELLOW (InGaAlP) WATER CLEAR 36 Typ. 150 Viewing Angle[1] 2 θ 1/2 120° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol λpeak λD [1] ∆λ1/2 C VF [2] IR Parameter Peak Wavelength Dominant Wavelength Spectral Line Half-width Capacitance Forward Voltage Reverse Current Device Super Bright Yellow Super Bright Yellow Super Bright Yellow Super Bright Yellow Super Bright Yellow Super Bright Yellow Typ. 590 588 28 25 2.0 2.5 10 Max. Units nm nm nm pF V uA Test Conditions IF=20mA IF=20mA IF=20mA VF=0V;f=1MHz IF=20mA VR = 5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating/Storage Temperature Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. Super Bright Yellow 125 30 150 5 -40°C To +85°C Units mW mA mA V SPEC NO: DSAD0930 APPROVED: J. Lu REV NO: V.4 CHECKED: Allen Liu DATE: MAR/25/2006 DRAWN: Z.Z.YANG PAGE: 2 OF 5 ERP: 1203005328 Super Bright Yellow APT1608SYC SPEC NO: DSAD0930 APPROVED: J. Lu REV NO: V.4 CHECKED: Allen Liu DATE: MAR/25/2006 DRAWN: Z.Z.YANG PAGE: 3 OF 5 ERP: 1203005328 APT1608SYC Recommended Soldering Pattern (Units : mm ) Tape Specifications (Units : mm ) SPEC NO: DSAD0930 APPROVED: J. Lu REV NO: V.4 CHECKED: Allen Liu DATE: MAR/25/2006 DRAWN: Z.Z.YANG PAGE: 4 OF 5 ERP: 1203005328 PACKING & LABEL SPECIFICATIONS APT1608SYC SPEC NO: DSAD0930 APPROVED: J. Lu REV NO: V.4 CHECKED: Allen Liu DATE: MAR/25/2006 DRAWN: Z.Z.YANG PAGE: 5 OF 5 ERP: 1203005328
