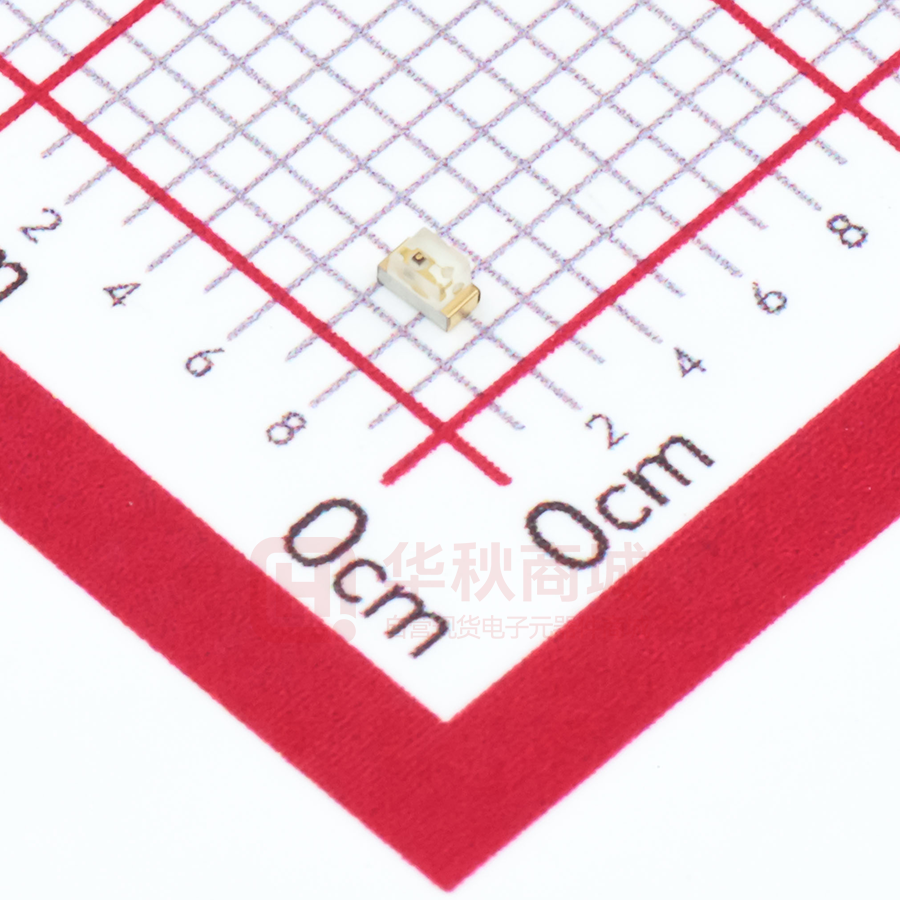

1.6X0.8mm SMD CHIP LED LAMP
Part Number: KP-1608SURCK
Features
Hyper Red
Description
1.6mmX0.8mm SMD LED, 1.1mm thickness.
The Hyper Red source color devices are made with Al-
Low power consumption.
GaInP on GaAs substrate Light Emitting Diode.
Wide viewing angle.
Ideal for backlight and indicator.
Package: 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Package Dimensions
K
g
in
ig
r
b
t
h
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.1(0.004") unless otherwise noted.
3.The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAB5337
REV NO: V.21A
DATE: MAY/26/2016
PAGE: 1 OF 5
APPROVED: Wynec
CHECKED: Allen Liu
DRAWN: W.Q.Zhong
ERP: 1203000076
Selection Guide
Part No.
Emitting Color (Material)
Iv (mcd) [2]
@ 20mA
Lens Type
Min.
Typ.
120
230
*40
Hyper Red (AlGaInP)
KP-1608SURCK
Viewing
Angle [1]
*80
Water Clear
2θ1/2
120°
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity / luminous Flux: +/-15%.
* Luminous intensity value is traceable to CIE127-2007 standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
Parameter
Emitting Color
Typ.
λpeak
Peak Wavelength
Hyper Red
Dominant Wavelength
Hyper Red
630
Δλ1/2
Spectral Line Half-width
Hyper Red
28
C
Capacitance
Hyper Red
35
VF [2]
Forward Voltage
IR
Reverse Current
t
h
645
λD [1]
Max.
Units
Test Conditions
nm
IF=20mA
nm
IF=20mA
nm
IF=20mA
pF
VF=0V;f=1MHz
2.5
V
IF=20mA
10
uA
VR=5V
g
in
ig
r
b
Hyper Red
1.95
Hyper Red
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to CIE127-2007 standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
K
Absolute Maximum Ratings at TA=25°C
Parameter
Values
Units
Power dissipation
75
mW
DC Forward Current
30
mA
Peak Forward Current [1]
185
mA
5
V
3000
V
Reverse Voltage
Electrostatic Discharge Threshold (HBM)
Operating Temperature
-40°C To +85°C
Storage Temperature
-40°C To +85°C
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static
electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033.
SPEC NO: DSAB5337
REV NO: V.21A
DATE: MAY/26/2016
PAGE: 2 OF 5
APPROVED: Wynec
CHECKED: Allen Liu
DRAWN: W.Q.Zhong
ERP: 1203000076
Hyper Red
KP-1608SURCK
t
h
ig
r
b
g
in
K
SPEC NO: DSAB5337
REV NO: V.21A
DATE: MAY/26/2016
PAGE: 3 OF 5
APPROVED: Wynec
CHECKED: Allen Liu
DRAWN: W.Q.Zhong
ERP: 1203000076
KP-1608SURCK
Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Dimensions
(Units : mm)
K
g
in
ig
r
b
t
h
Reel Dimension
SPEC NO: DSAB5337
REV NO: V.21A
DATE: MAY/26/2016
PAGE: 4 OF 5
APPROVED: Wynec
CHECKED: Allen Liu
DRAWN: W.Q.Zhong
ERP: 1203000076
PACKING & LABEL SPECIFICATIONS
KP-1608SURCK
t
h
ig
r
b
g
in
K
Terms and conditions for the usage of this document
1. The information included in this document reflects representative usage scenarios and is intended for technical reference only.
2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without
notice. Before production usage customer should refer to the latest datasheet for the updated specifications.
3. When using the products referenced in this document, please make sure the product is being operated within the environmental
and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible
for any subsequent issues.
4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has
special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with
Kingbright representative for further assistance.
5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright.
6. All design applications should refer to Kingbright application notes available at http://www.kingbright.com/application_notes
SPEC NO: DSAB5337
REV NO: V.21A
DATE: MAY/26/2016
PAGE: 5 OF 5
APPROVED: Wynec
CHECKED: Allen Liu
DRAWN: W.Q.Zhong
ERP: 1203000076
