235

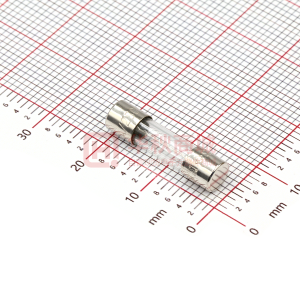

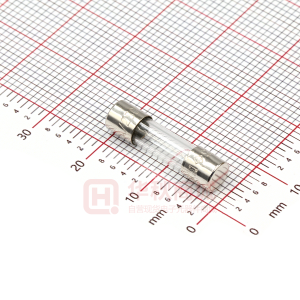

Axial Lead and Cartridge Fuses Designed to UL/CSA Standards RoHS Pb 5 x 20 mm Fast-Acting Fuse 235 Series UL ® ® • Designed to UL/CSA/ANCE 248 Standard. • Available in Cartridge and Axial Lead Format. • Available in ratings of 0.100 to 6 amperes. • RoHS compliant and Pb-free version available, add XP suffix to standard catalog number ELECTRICAL CHARACTERISTICS: % of Ampere Rating 100% 135% 200% Opening Time 4 hours, Minimum 1 hour, Maximum 5 second, Maximum INTERRUPTING RATING: 0.10-1A 10,000 amperes at 125 VAC, 0.7-0.8 power factor 35 amperes at 250 VAC, 0.7-0.8 power factor 1.25A-3.15A 10,000 amperes at 125 VAC, 0.7-0.8 power factor 100 amperes at 250 VAC, 0.7-0.8 power factor 4A-6A 10,000 amperes at 125 VAC, 0.7-0.8 power factor ENVIRONMENTAL SPECIFICATIONS: Operating temperature: -55˚C to 125˚C Thermal Shock: MIL-STD-202F Method 107G, Test Condition B: (5 cycles –65°C to +125°C) ORDERING INFORMATION: RoHS compliant and Pb-free version available, add XP suffix to standard catalog number Catalog Number 235.100 235.125 235.200 235.250 235.300 235.400 235.500 235.600 235.700 235.800 235 001 235 1.25 235 01.6 235 002 235 02.5 235 003 235 004 235 005 235 006 Ampere Rating .100 .125 .200 .250 .300 .400 .500 .600 .700 .800 1 1.25 1.6 2 2.5 3 4 5 6 Nominal Voltage Resistance Rating Cold Ohms 250 8.40 250 5.75 250 3.15 250 2.25 250 1.60 250 1.08 250 0.455 250 0.318 250 0.263 250 0.195 250 0.153 250 0.106 250 0.0775 250 0.0600 250 0.0438 250 0.0348 125 0.0248 125 0.0185 125 0.0150 Nominal Melting I2t A2 Sec. 0.00160 0.00280 0.00890 0.0170 0.0330 0.0600 0.0710 0.115 0.160 0.260 0.480 1.12 2.08 2.72 5.59 8.62 17.60 28.15 48.60 Vibration: MIL-STD-202F Method 201A Humidity: MIL-STD-202F Method 103B, Test Condition A. high relative humidity (95%) and elevated temperature (40°C) for 240 hours. Salt Spray: MIL-STD-202F Method 101D, Test Condition B PHYSICAL SPECIFICATIONS: Material: Body: Glass Cap: Nickel Plated Brass Leads: Tin Plated Copper Terminal Strength: MIL-STD-202F Method 211A, Test Condition A Solderability: Reference IEC 60127 Second Edition 2003-01 Annex A Terminal strength: MIL-STD-202F Method 211A, Test Condition A Product Marking: Cap 1: current and voltage rating. Cap 2: Agency approval markings. Packaging: Available in Bulk (v=5, H=100, M=1000 pcs/pkg) or on Tape/Reel (MRET1=1000 pcs/reel). 424 w w w. l i t t e l f u s e . c o m Axial Lead and Cartridge Fuses Designed to UL/CSA Standards RoHS Pb 5 x 20 mm Fast-Acting Fuse 235 Series 20+0.5 UL ® ® Agency Approvals Agency Approvals Certificate No. Cartridge NBK290502-E10480 NBK280602-E10480 NBK290502-E10480 Leaded NBK290502-E10480 NBK280602-E10480 NBK290502-E10480 Certificate No. SU05001-3007 SU05001-2002 SU05001-2003 UL ® Ampere Range 02350001 G C I H D J 1A – 3A 250V 100A 4A & 5A 125V 10000A 6A 125V 500A 1A – 3A 250V 100A 4A & 5A 125V 10000A 6A 125V 500A 100mA – 400mA 500mA – 3A 4A – 6A 40 5.1+0.6 5.1+0.6 5.2+0.1 -0.2 0235.100 XE2 to 0235.400 XE2 22.5 MAX 6.0 MAX 0.65 Listed File No. Guide No. File No. Cert. Class No. E10480 JDYX 029862 LR1422-01 100mA – 6A ® 0235.500 XE2 to 0235006.XE2 40 22.5 MAX 5.8 MAX 0.65* All dimensions in mm Notes: * Ratings above 6.3A ø0.8 mm dia lead 1 For RoHS compliant parts add suffix 'XP' 2 For RoHS compliant parts add suffix 'P' Average Time Current Curves 0.100A 0.125A 0.200A 0.250A 0.300A 0.400A 0.500A 0.600A 0.700A 0.800A 1A 1.25A 1.6A 2A 2.5A 3A 4A 5A 6A 11 AXIAL LEAD AND CARTRIDGE FUSES 10000 1000 100 TIME IN SECONDS 10 1 0.1 0.01 0.1 1 10 CURRENT IN AMPERES 100 1000 w w w. l i t t e l f u s e . c o m 425
