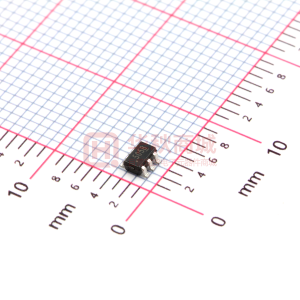

SP0505BAHTG

SPA™ Silicon Protection Array Products Surface Mount TVS Avalanche Diode Array HF RoHS Pb GREEN SP050xBA Lead-Free/Green Series Description The surface mount family of arrays are designed to suppress ESD and other transient overvoltage events. These arrays are used to meet the International Electrotechnical Compatibility (IEC transient immunity standards IEC 61000-4-2 for Electrostatic Discharge Requirements). The series are used to help protect sensitive digital or analog input circuits on data, signal, or control lines with voltage levels up to 5VDC. The monolithic silicon arrays are comprised of specially designed structures for transient voltage suppression(TVS). The size and shape of these structures have be tailored for transient protection. The low capacitance and clamp voltage are ideal for high speed signal line protection. Pinout SP0502BAHTG SP0502BAJTG 1 1 SP0503BAHTG SP0504BAHTG SP0504BAJTG 1 5 Features small SC70, SOT-23, SOT-143, MSOP or TSSOP packages 4 3 2 - IEC 61000-4-2, Direct Discharge ........ 20kV (Level 4) 2 - IEC 61000-4-2, Air Discharge .............. 30kV (Level 4) 2 3 3 4 - MIL STD 883 3015.7 ..........................................30kV ..................................................
