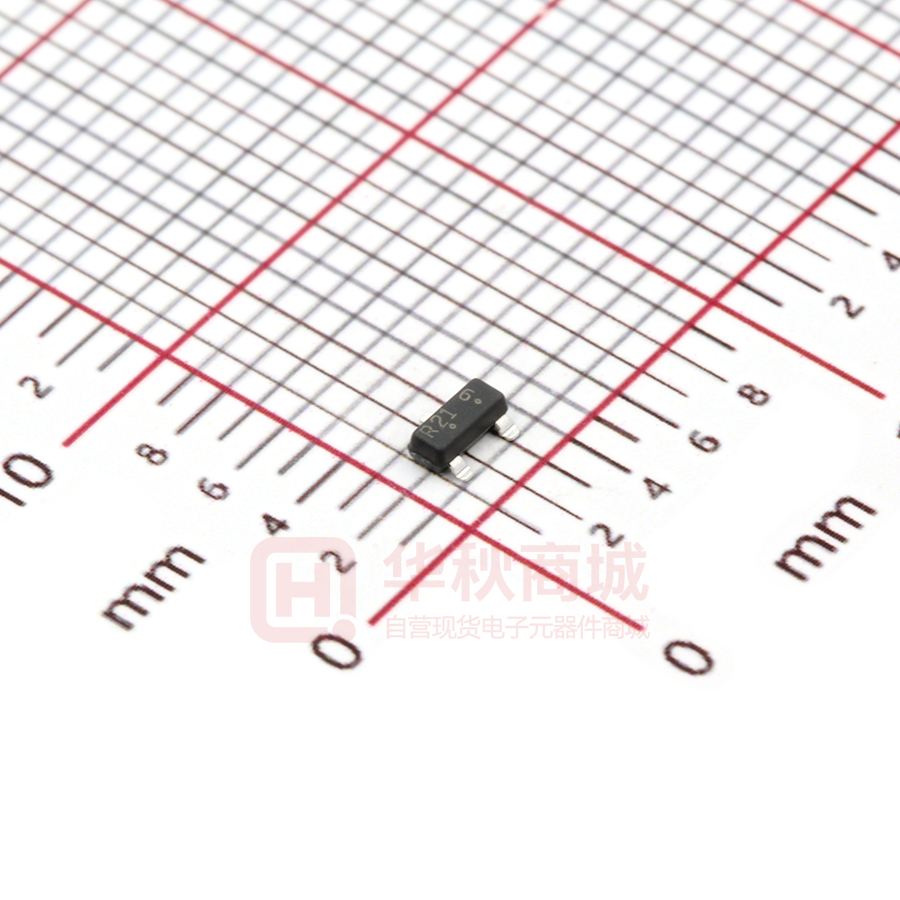

S-LR2105LT1G

LESHAN RADIO COMPANY, LTD. LR210 5LT1G S-LR210 5LT1G LR2105LT1G S-LR2105LT1G ESD Protection Diode FEATURES ● Ultra low leakage: nA level. Low clamping voltage. ● We declare that the material of product compliance with ● RoHS requirements and Halogen Free. ● S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. APPLICATIONS ● CAN bus protection ● Automotive applications DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping R21 3000/Tape&Reel LR2105LT1G MAXIMUM RATINGS(Ta = 25ºC) Parameter IEC 61000−4−2 (ESD) Symbol Contact Air Limits Unit ±30 kV ±30 PPP 350 peak pulse current @8/20 µs IPP 8 W A Storage Temperature Range Tstg −55∼+150 −55∼+125 ºC ºC peak pulse power@8/20 µs Operating Temperature Range TJ Rev.O 1/3 LESHAN RADIO COMPANY, LTD. LR2105LT1G,S-LR2105LT1G ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Symbol IPP Parameter Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF Ppk Peak Power Dissipation C Capacitance @ VR = 0 and f = 1.0 MHz ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Symbol VRWM Min. - Typ. - Max. 24 Unit V IRM - - 200 nA - - 200 VBR 26.2 - 32 V Clamping Voltage (IPP = 5A (8 x 20µs pulse) VC - - 33 V Clamping Voltage (IPP = 8A (8 x 20µs pulse) VC - - 36 V CJ - 30 - pF Characteristic reverse stand-off voltage reverse leakage current (VRWM = 24 V,Pin 1、2to Pin 3) (VRWM = 24 V,Pin 3 to Pin 1、2) breakdown voltage (IT = 1 mA,Pin 1、2to Pin 3 ) (IT = 1 mA,Pin 3 to Pin 1、2 ) Junction Capacitance (VR = 0V, f = 1MHz) Rev.O 2/3 LESHAN RADIO COMPANY, LTD. LR2105LT1G,S-LR2105LT1G OUTLINE AND DIMENSIONS SOT23E DIM MIN NOR MAX A 0.90 1.00 1.10 A1 0.01 0.06 0.10 b 0.30 0.40 0.50 c 0.10 D 2.80 0.17 2.90 0.20 3.00 E 1.20 1.30 1.40 e 1.80 1.90 2.00 L 0.20 0.40 0.60 L1 0.60REF HE θ 2.20 0º 2.40 - 2.60 10º All Dimensions in mm GENERAL NOTES 1.Top package surface finish Ra0.4±0.2um 2.Bottom package surface finish Ra0.7±0.2um 3.Side package surface finish Ra0.4±0.2um SOLDERING FOOTPRINT DIM SOT23E (mm) X 0.80 Y 0.90 A 2.00 B 0.95 C 0.95 Rev.O 3/3
