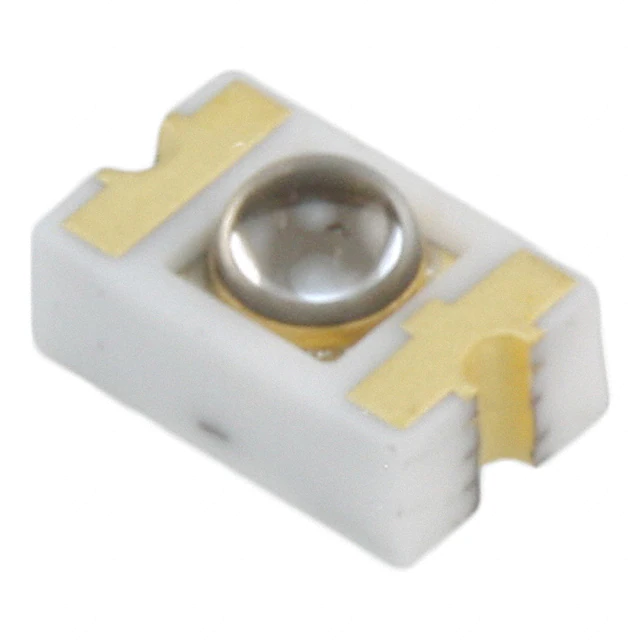

MTE8600CP

High Power Infrared Emitter Product No: M TE8600CP Peak Emission Wavelength: 850nm The 850nm IR emitter series is designed for applications requiring high output and precise optical / mechanical axis alignment. Custom package solutions and sorting are available. FEATURES APPLICATIONS > Ceramic Dome Surface Mount 3.5×2.2×1.91 > Optical Switches / Security Systems > High Reliability > Bar-code Reader > High Output Power > Fiber Optical Communications > Narrow Beam Angle Absolute Maximum Ratings (Ta=25ºC) ITEMS SYMBOL RATINGS UNIT Forward Current IF 80 mA Forward Current (Pulse)*1 IFP 0.5 A Reverse Voltage VR 5 V Power Dissipation PD 160 mW Operating Temperature Range Topr -20 ~ +80 ºC Storage Temperature Range Tstg -30 ~ +100 ºC Junction Temperature Tj 100 ºC *1: Tw=10µsec, T=10msec. Electrical & Optical Characteristics (Ta = 25ºC) ITEMS SYMBOL CONDITIONS MIN TYP MAX UNIT Power Output PO IF=50mA -- 11.0 -- mW Forward Voltage VF IF=50mA -- 1.45 1.9 V Reverse Current IR VR=5V -- -- 100 µA Peak Emission Wavelength λp IF=50mA -- 850 -- nm Spectral Line Half Width ∆λ IF=50mA -- 30 -- nm Half Intensity Beam Angle Ө IF=50mA -- ±10 -- deg Switching Times Tr, Tf IF=50mA -- 100 150, -- ns 2019-11-19 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 1 High Power Infrared Emitter Product No: M TE8600CP LENS IS BOROSILICATE GLASS Unit: mm, Tolerance: ±0.2 2019-11-19 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 2 High Power Infrared Emitter Product No: M TE8600CP 2019-11-19 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 3 High Power Infrared Emitter Product No: M TE8600CP The information contained herein is subject to change without notice. 2019-11-19 Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: www.marktechopto.com 518-785-4725 • EMAIL: info@marktechopto.com 4
