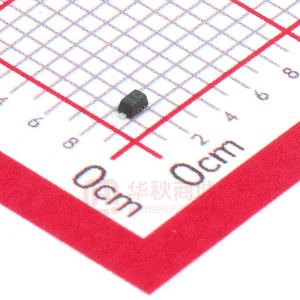

RB521S-30

MCC Micro Commercial Components TM
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# RB521S-30 Features • • • • • Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 High Reliability Low Reverse Current and Low Forward Voltage. Small Surface Mount Type Marking :C Lead Free Finish/RoHS Compliant("P" Suffix designates RoHS Compliant. See ordering information) 200 mA Schottky Barrier Diode 30 Volts • Maximum Ratings Symbol VR IO IFSM TJ TSTG Rating DC Reverse Voltage Mean Rectifying Current Peak Forward Surge Current* Junction Temperature Storage Temperature Rating 30 200 1 125 -40 to +125 Unit V mA A C SOD-523 A B E G Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Forward Voltage (IF=200mAdc) Reverse Current (VR=10Vdc) Min Typ Max Units D F H VF IR ----- ----- 0.5 30 Vdc uAdc DIMENSIONS INCHES DIM A B C D E F G H MIN .059 .043 .030 .001 .010 .003 .020 .020 MAX .067 .051 .033 .003 .014 .006 .028 .031 MIN 1.50 1.10 0.75 0.01 0.25 0.08 0.50 0.51 MM MAX 1.70 1.30 0.85 0.07 0.35 0.15 0.70 0.77 NOTE Revision: A www.mccsemi.com 1 of 3 2011/01/01 MCC RB521S-30 Electrical characteristic curves (Ta=25°C) 1 100m 10m Ta = 5° C REVERSE CURRENT : IR (A) TM Micro Commercial Components 10m Ta=125°C CAPACITANCE BETWEEN TERMINALS : CT (pF) 100 50 Ta=25˚C f=1MHz FORWARD CURRENT : IF (A) 1m 75°C 12 °C 100µ 10µ 1µ 100n 10n −25°C 25°C 20 10 5 75 25 1m 100µ 10µ 1µ −2 5° C °C 2 1 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0 10 20 30 2 4 6 8 10 12 14 REVERSE VOLTAGE : VR (V) FORWARD VOLTAGE : VF (V) REVERSE VOLTAGE : VR (V) Fig. 1 Forward characteristics Fig. 2 Reverse characteristics Fig. 3 Capacitance between terminals characteristics 100 Io CURRENT (%) 80 60 40 20 0 0 25 50 75 100 125 AMBIENT TEMPERATURE : Ta (°C) Fig. 4 Derating curve (mounting on glass epoxy PCBs) www.mccsemi.com Revision: A 2 of 3 2011/01/01 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel: 3Kpcs/Reel ***IMPORTANT NOTICE* ** Micro Comme rcial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Comme rcial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Co mponents Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from A uthorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC' s quality standards for handling and storage. MCC will not pro vide any warranty coverage or o ther assistance for parts bought from Unau thorized Source s. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: A 3 of 3 2011/01/01 2
