SK52L THRU SK510L
Features
• Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates
Compliant. See Ordering Information)
• High Current Capability
• For Surface Mount Application
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
• Halogen Free Available Upon Request By Adding Suffix "-HF"
5 Amp
Schottky
Rectifier
20 to 100 Volts
Maximum Ratings
• Operating Junction Temperature Range: -55°C to +150°C
• Storage Temperature Range: -55°C to +150°C

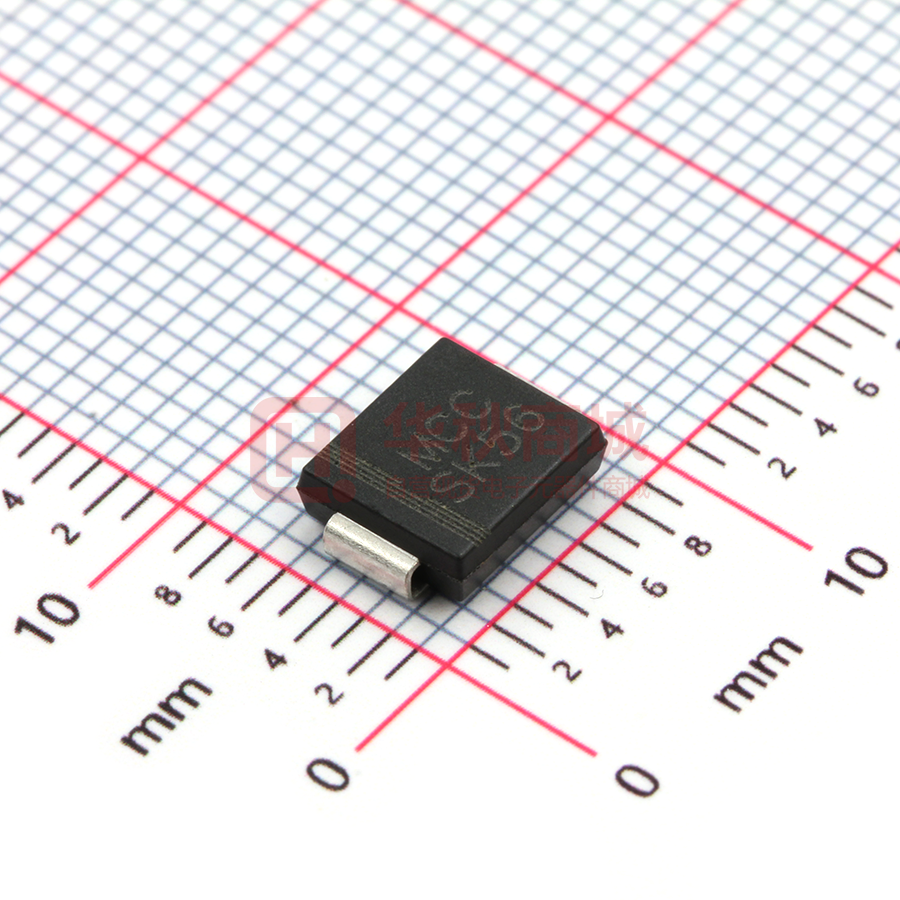

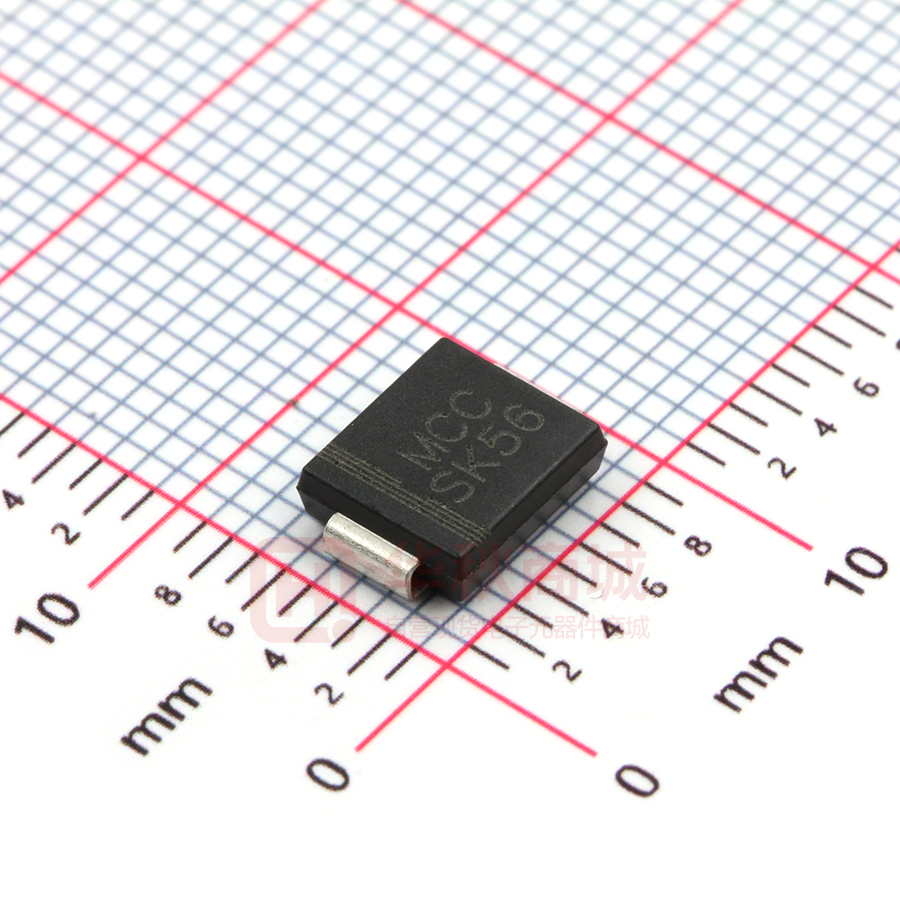

SMC (DO-214AB)
• Maximum Thermal Resistance: 16°C/W Junction to Lead
• Maximum Thermal Resistance: 55°C/W Junction to Ambient
MCC
Part Number
Device
Marking
SK52L
SK53L
SK54L
SK55L
SK56L
SK58L
SK510L
SK52
SK53
SK54
SK55
SK56
SK58
SK510
Maximum
Maximum DC
Recurrent
Maximum
Blocking
Peak Reverse RMS Voltage
Voltage
Voltage
20V
30V
40V
50V
60V
80V
100V
14V
21V
28V
35V
42V
56V
70V
G
H
20V
30V
40V
50V
60V
80V
100V
Cathode Mark
D
A
C
E
B
F
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward
Current
IF(AV)
5.0A
TC=120⁰C
Peak Forward Surge
Current
IFSM
100A
8.3ms,Half Sine
VF
0.55V
0.75V
0.85V
IFM=5.0A;
TJ=25⁰C
Maximum
Instantaneous
Forward Voltage
SK52L~54L
SK55L~56L
SK58L~510L
DIM
A
B
C
D
E
F
G
H
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.079 0.103 2.00 2.62
0.108 0.128 2.75 3.25
0.002 0.008 0.051 0.203
0.006 0.012 0.152 0.305
0.030 0.060 0.76 1.52
0.305 0.320 7.75 8.13
0.260 0.280 6.60 7.11
0.220 0.245 5.59 6.22
NOTE
Suggested Solder Pad Layout
Maximum DC Reverse
Current at Rated DC
Blocking Voltage
IR
0.1mA
10mA
TJ=25⁰C;
TJ=100⁰C
Typical Junction
Capacitance
CJ
200pF
Measured at 1.0MHz,
VR=4.0V
4.40mm
3.30mm
*Pulse Test: Pulse Width 200 μsec, Duty Cycle 2%
Note: 1. High Temperature Solder Exemptions Applied, See EU Directive Annex 7a.
Rev.3-1-01012019
1/4
2.50mm
MCCSEMI.COM
SK52L THRU SK510L
Curve Characteristics
120
5
100
Peak Forward Surge Current (A)
Average Forward Current (A)
Fig. 1 - Forward Current Derating Curve
6
4
3
2
1
0
Resistive or Inductive Load
0
25
50
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current
80
60
40
20
8.3 ms Single Half Sin
75
100
125
0
150
1
Number of Cycles at 60 Hz
Fig. 4 - Typical Instantaneous Forward Characteristics
Fig. 3 - Typical Instantaneous Forward Characteristics
20
20
10
TJ=125°C
5
Instantaneous Forward Current (A)
Instantaneous Forward Current (A)
10
2
1
0.5
TJ=75°C
0.2
0.1
0.05
TJ=25°C
0.02
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
5
2
TJ=125°C
1
TJ=75°C
0.5
0.2
0.1
0.05
TJ=25°C
0.02
SK52L~54L
0.01
0.0
0.01
0.0
1.0
SK55L~56L
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Instantaneous Forward Voltage (V)
Instantaneous Forward Voltage (V)
Fig. 5 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Reverse Leakage Characteristics
20
Instantaneous Reverse Leakage Current (μA)
5
2
TJ=125°C
1
TJ=75°C
0.5
0.2
0.1
0.05
TJ=25°C
0.02
0.01
0.0
SK58L~510L
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
TJ=125°C
1000
100
TJ=75°C
10
TJ=25°C
1
20
SK52L~54L
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Instantaneous Forward Voltage (V)
Rev.3-1-01012019
1.0
10000
10
Instantaneous Forward Current (A)
100
10
Case Temperature (°C)
2/4
MCCSEMI.COM
SK52L THRU SK510L
Curve Characteristics
Fig. 8 - Typical Reverse Leakage Characteristics
Fig. 7 - Typical Reverse Leakage Characteristics
Instantaneous Reverse Leakage Current (μA)
Instantaneous Reverse Leakage Current (μA)
10000
TJ=125°C
1000
100
TJ=75°C
10
TJ=25°C
1
20
40
60
SK55L~56L
80
100
Percent of Rated Peak Reverse Voltage (%)
Rev.3-1-01012019
1000
TJ=125°C
100
10
TJ=75°C
1
0.1
0.01
20
TJ=25°C
SK58L~510L
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
3/4
MCCSEMI.COM
SK52L THRU SK510L
Ordering Information
Device
Packing
Part Number-TP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
4/4
MCCSEMI.COM
