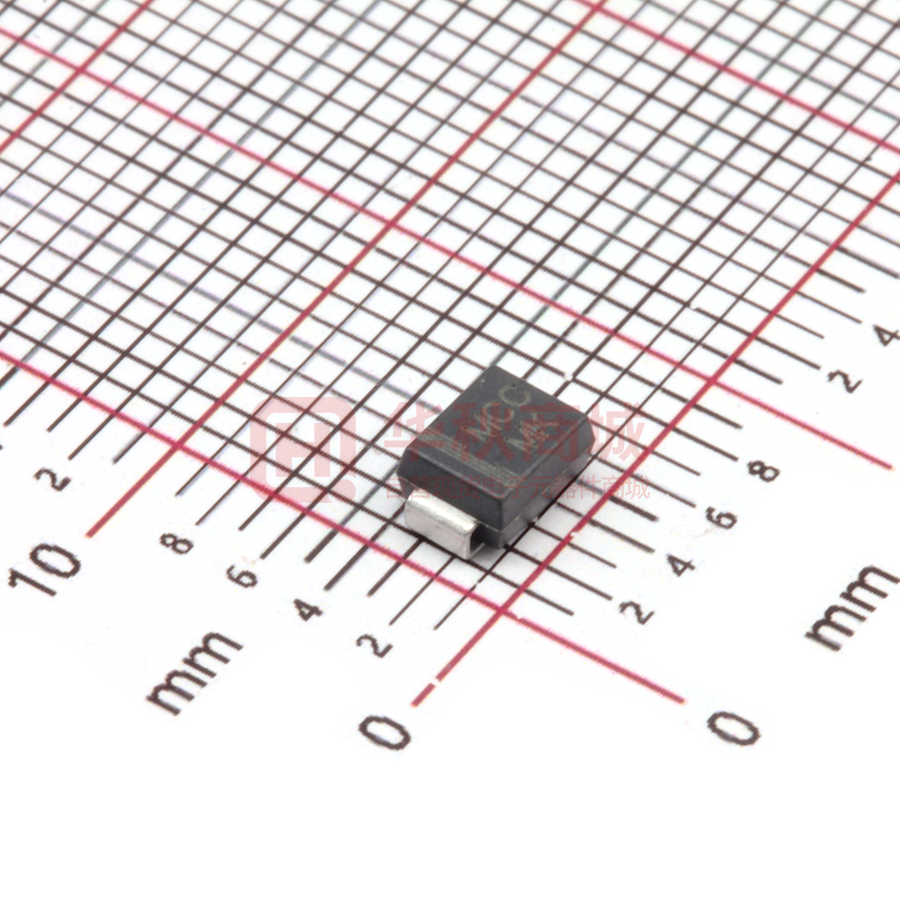

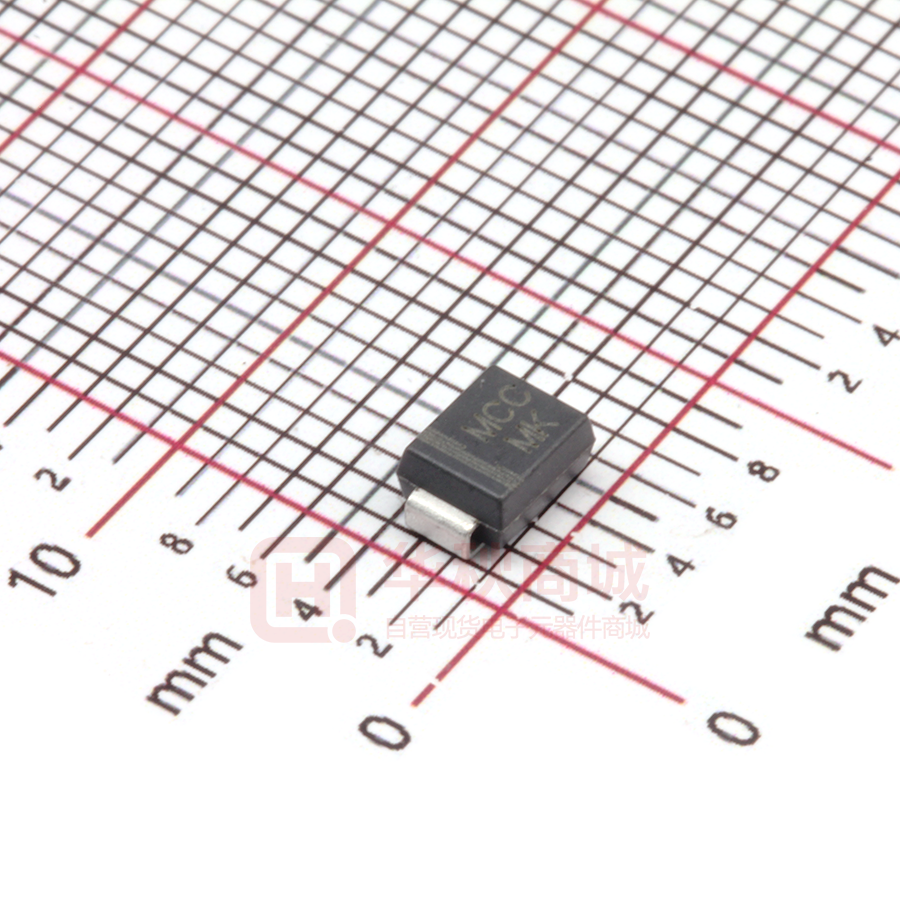

SMBJ30A-TP

SMBJ5.0 THRU SMBJ440CA E480232 Features • • • • • • • • For Surface Mount Applicationsin Order to Optimize Board Space Low Inductance Fast Response Time: Typical Less than 1ps From 0V to VBR min Halogen Free Available Upon Request By Adding Suffix "-HF" Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information) For Bidirectional Devices Add “C” To The Suffix of The Part Number: i.e.SMBJ5.0CA for 5% Tolerance 600 Watt TVS 5.0 to 440 Volts SMB (DO-214AA) (LEAD FRAME) Mechanical Data • Polarity: Color Band Denotes Positive end( cathode) Except Bi-directional Types H • Maximum Soldering Temperature:260°C for 10 Seconds • Terminals: Solderable Per MIL-STD-750, Method 2026 J Maximum Ratings • • • • Cathode Mark Operating Junction Temperature Range: -55°C to +175°C Storage Temperature Range: -55°C to +175°C Thermal Resistance :20°C/W Junction to Lead Thermal Resistance :25°C/W Junction to Case A E IPP Peak Pulse Power Dissipation PPP Steady State Power Dissipation PM(AV) See the Table Note 2 600W 5.0W Note 2,3,4 Note 5 NOTES: 1. 2. 3. 4. 5. High Temperature Solder Exemption Applied, see EU Directive Annex 7a. Non-repetitive current pulse, per Fig.3 and derated above TA=25 °C per Fig.4 Mounted on 5.0mm2 copper pads to each terminal. Peak pulse current waveform is 10/1000us, with maximum duty Cycle of 0.01%. Power dissipation, on infinite heat sink at TL=75oC D F B G Electrical Characteristics @ 25°C Unless Otherwise Specified Peak Pulse Power Surge Current on 10/1000μs Waveform C DIM A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.103 2.00 2.62 0.075 0.087 1.91 2.21 0.002 0.008 0.05 0.20 0.006 0.012 0.15 0.31 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.200 0.220 5.08 5.59 0.160 0.191 4.06 4.85 0.130 0.155 3.30 3.94 NOTE Suggested Solder Pad Layout 1.80mm Pin Configuration: 2.30mm Cathode Anode Uni-directional Rev.3-3-06052020 Bi-directional 2.50mm 1/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Electrical Characteristics @ 25°C Unless Otherwise Specified MCC PART NUMBER SMBJ5.0 SMBJ5.0A SMBJ6.0 SMBJ6.0A SMBJ6.5 SMBJ6.5A SMBJ7.0 SMBJ7.0A SMBJ7.5 SMBJ7.5A SMBJ8.0 SMBJ8.0A SMBJ8.5 SMBJ8.5A SMBJ9.0 SMBJ9.0A SMBJ10 SMBJ10A SMBJ11 SMBJ11A SMBJ12 SMBJ12A SMBJ13 SMBJ13A SMBJ14 SMBJ14A SMBJ15 SMBJ15A SMBJ16 SMBJ16A SMBJ17 SMBJ17A SMBJ18 SMBJ18A SMBJ20 SMBJ20A SMBJ22 SMBJ22A SMBJ24 SMBJ24A SMBJ26 SMBJ26A SMBJ28 SMBJ28A SMBJ30 SMBJ30A REVERSE STAND-OFF VOLTAGE VWM VOLTS 5.0 5.0 6.0 6.0 6.5 6.5 7.0 7.0 7.5 7.5 8.0 8.0 8.5 8.5 9.0 9.0 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 20 20 22 22 24 24 26 26 28 28 30 30 BREAKDOWN VOLTAGE V(BR) @IT (VOLTS) MIN 6.40 6.40 6.67 6.67 7.22 7.22 7.78 7.78 8.33 8.33 8.89 8.89 9.44 9.44 10.0 10.0 11.1 11.1 12.2 12.2 13.3 13.3 14.4 14.4 15.6 15.6 16.7 16.7 17.8 17.8 18.9 18.9 20.0 20.0 22.2 22.2 24.4 24.4 26.7 26.7 28.9 28.9 31.1 31.1 33.3 33.3 MAX 7.30 7.00 8.15 7.37 8.82 7.98 9.51 8.60 10.2 9.21 10.9 9.83 11.5 10.4 12.2 11.1 13.6 12.3 14.9 13.5 16.3 14.7 17.6 15.9 19.1 17.2 20.4 18.5 21.8 19.7 23.1 20.9 24.4 22.1 27.1 24.5 29.8 26.9 32.6 29.5 35.3 31.9 38.0 34.4 40.7 36.8 IT(mA) 10 10 10 10 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MAXIMUM CLAMPING VOLTAGE@IPP PEAK PULSE CURRENT IPP MAXIMUM REVERSE LEAKAGE @ VWM ID VOLTS 9.6 9.2 11.4 10.3 12.3 11.2 13.3 12.0 14.3 12.9 15.0 13.6 15.9 14.4 16.9 15.4 18.8 17.0 20.1 18.2 22.0 19.9 23.8 21.5 25.8 23.2 26.9 24.4 28.8 26.0 30.5 27.6 32.2 29.2 35.8 32.4 39.4 35.5 43.0 38.9 46.6 42.1 50.0 45.4 53.5 48.4 (AMPS) 62.5 65.2 52.6 58.3 48.7 53.6 45.1 50.0 42.0 46.5 40.0 44.1 37.7 41.7 35.5 39.0 31.9 35.3 29.9 33.0 27.3 30.2 25.2 27.9 23.3 25.8 22.3 24.0 20.8 23.1 19.7 21.7 18.6 20.5 16.7 18.5 15.2 16.9 14.0 15.4 12.4 14.2 12.0 13.2 11.2 12.4 (μA) 800 800 800 800 500 500 200 200 100 100 50 50 10 10 5 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MARKING CODE KD KE KF KG KH KK KL KM KN KP KQ KR KS KT KU KV KW KX KY KZ LD LE LF LG LH LK LL LM LN LP LQ LR LS LT LU LV LW LX LY LZ MD ME MF MG MH MK For parts without A, the VBR is +10%. Rev.3-3-06052020 2/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Electrical Characteristics @ 25°C Unless Otherwise Specified MCC PART NUMBER SMBJ33 SMBJ33A SMBJ36 SMBJ36A SMBJ40 SMBJ40A SMBJ43 SMBJ43A SMBJ45 SMBJ45A SMBJ48 SMBJ48A SMBJ51 SMBJ51A SMBJ54 SMBJ54A SMBJ58 SMBJ58A SMBJ60 SMBJ60A SMBJ64 SMBJ64A SMBJ70 SMBJ70A SMBJ75 SMBJ75A SMBJ78 SMBJ78A SMBJ85 SMBJ85A SMBJ90 SMBJ90A SMBJ100 SMBJ100A SMBJ110 SMBJ110A SMBJ120 SMBJ120A SMBJ130 SMBJ130A SMBJ150 SMBJ150A SMBJ160 SMBJ160A SMBJ170 SMBJ170A SMBJ180A REVERSE STAND-OFF VOLTAGE VWM VOLTS 33 33 36 36 40 40 43 43 45 45 48 48 51 51 54 54 58 58 60 60 64 64 70 70 75 75 78 78 85 85 90 90 100 100 110 110 120 120 130 130 150 150 160 160 170 170 180 BREAKDOWN VOLTAGE V(BR) @IT (VOLTS) MIN 36.7 36.7 40.0 40.0 44.4 44.4 47.8 47.8 50.0 50.0 53.3 53.3 56.7 56.7 60.0 60.0 64.4 64.4 66.7 66.7 71.1 71.1 77.8 77.8 83.3 83.3 86.7 86.7 94.4 94.4 100 100 111 111 122 122 133 133 144 144 167 167 178 178 189 189 201 MAX 44.9 40.6 48.9 44.2 54.3 49.1 58.4 52.8 61.1 55.3 65.1 58.9 69.3 62.7 73.3 66.3 78.7 71.2 81.5 73.7 86.9 78.6 95.1 86.0 102 92.1 106 95.8 115 104 122 111 136 123 149 135 163 147 176 159 204 185 218 197 231 209 222 IT(mA) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MAXIMUM CLAMPING VOLTAGE@IPP PEAK PULSE CURRENT IPP MAXIMUM REVERSE LEAKAGE @ VWM ID VOLTS 59.0 53.3 64.3 58.1 71.4 64.5 76.7 69.4 80.3 72.7 85.5 77.4 91.1 82.4 96.3 87.1 103 93.6 107 96.8 114 103 125 113 134 121 139 126 151 137 160 146 179 162 196 177 214 193 231 209 268 243 287 259 304 275 292 (AMPS) 10.2 11.3 9.3 10.3 8.4 9.3 7.8 8.6 7.5 8.3 7.0 7.7 6.6 7.3 6.2 6.9 5.8 6.4 5.6 6.2 5.3 5.8 4.8 5.3 4.5 4.9 4.3 4.7 3.9 4.4 3.8 4.1 3.4 3.7 3.0 3.4 2.8 3.1 2.6 2.9 2.2 2.5 2.1 2.3 2.0 2.2 2.1 (μA) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MARKING CODE ML MM MN MP MQ MR MS MT MU MV MW MX MY MZ ND NE NF NG NH NK NL NM NN NP NQ NR NS NT NU NV NW NX NY NZ PD PE PF PG PH PK PL PM PN PP PQ PR PT For parts without A, the VBR is +10%. Rev.3-3-06052020 3/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Electrical Characteristics @ 25°C Unless Otherwise Specified MCC PART NUMBER SMBJ200A SMBJ220A SMBJ250A SMBJ300A SMBJ350A SMBJ400A SMBJ440A SMBJ5.0C SMBJ5.0CA SMBJ6.0C SMBJ6.0CA SMBJ6.5C SMBJ6.5CA SMBJ7.0C SMBJ7.0CA SMBJ7.5C SMBJ7.5CA SMBJ8.0C SMBJ8.0CA SMBJ8.5C SMBJ8.5CA SMBJ9.0C SMBJ9.0CA SMBJ10C SMBJ10CA SMBJ11C SMBJ11CA SMBJ12C SMBJ12CA SMBJ13C SMBJ13CA SMBJ14C SMBJ14CA SMBJ15C SMBJ15CA SMBJ16C SMBJ16CA SMBJ17C SMBJ17CA SMBJ18C SMBJ18CA SMBJ20C SMBJ20CA SMBJ22C SMBJ22CA SMBJ24C SMBJ24CA REVERSE STAND-OFF VOLTAGE VWM VOLTS 200 220 250 300 350 400 440 5.0 5.0 6.0 6.0 6.5 6.5 7.0 7.0 7.5 7.5 8.0 8.0 8.5 8.5 9.0 9.0 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 20 20 22 22 24 24 BREAKDOWN VOLTAGE V(BR) @IT (VOLTS) MIN 224 246 279 335 391 447 492 6.40 6.40 6.67 6.67 7.22 7.22 7.78 7.78 8.33 8.33 8.89 8.89 9.44 9.44 10.0 10.0 11.1 11.1 12.2 12.2 13.3 13.3 14.4 14.4 15.6 15.6 16.7 16.7 17.8 17.8 18.9 18.9 20.0 20.0 22.2 22.2 24.4 24.4 26.7 26.7 MAX 247 272 309 371 432 494 543 7.30 7.00 8.15 7.37 8.82 7.98 9.51 8.60 10.2 9.21 10.9 9.83 11.5 10.4 12.2 11.1 13.6 12.3 14.9 13.5 16.3 14.7 17.6 15.9 19.1 17.2 20.4 18.5 21.8 19.7 23.1 20.9 24.4 22.1 27.1 24.5 29.8 26.9 32.6 29.5 IT(mA) 1 1 1 1 1 1 1 10 10 10 10 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MAXIMUM CLAMPING VOLTAGE@IPP PEAK PULSE CURRENT IPP MAXIMUM REVERSE LEAKAGE @ VWM ID VOLTS 324 356 405 486 567 648 713 9.6 9.2 11.4 10.3 12.3 11.2 13.3 12.0 14.3 12.9 15.0 13.6 15.9 14.4 16.9 15.4 18.8 17.0 20.1 18.2 22.0 19.9 23.8 21.5 25.8 23.2 26.9 24.4 28.8 26.0 30.5 27.6 32.2 29.2 35.8 32.4 39.4 35.5 43.0 38.9 (AMPS) 1.9 1.7 1.5 1.3 1.1 0.9 0.9 62.5 65.2 52.6 58.3 48.7 53.6 45.1 50.0 42.0 46.5 40.0 44.1 37.7 41.7 35.5 39.0 31.9 35.3 29.9 33.0 27.3 30.2 25.2 27.9 23.3 25.8 22.3 24.0 20.8 23.1 19.7 21.7 18.6 20.5 16.7 18.5 15.2 16.9 14.0 15.4 (μA) 1 1 1 1 1 1 1 800 800 800 800 500 500 200 200 100 100 50 50 10 10 5 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MARKING CODE PV PX PZ QE QG QK QM AD AE AF AG AH AK AL AM AN AP AQ AR AS AT AU AV AW AX AY AZ BD BE BF BG BH BK BL BM BN BP BQ BR BS BT BU BV BW BX BY BZ For parts without A, the VBR is +10%. Rev.3-3-06052020 4/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Electrical Characteristics @ 25°C Unless Otherwise Specified MCC PART NUMBER SMBJ26C SMBJ26CA SMBJ28C SMBJ28CA SMBJ30C SMBJ30CA SMBJ33C SMBJ33CA SMBJ36C SMBJ36CA SMBJ40C SMBJ40CA SMBJ43C SMBJ43CA SMBJ45C SMBJ45CA SMBJ48C SMBJ48CA SMBJ51C SMBJ51CA SMBJ54C SMBJ54CA SMBJ58C SMBJ58CA SMBJ60C SMBJ60CA SMBJ64C SMBJ64CA SMBJ70C SMBJ70CA SMBJ75C SMBJ75CA SMBJ78C SMBJ78CA SMBJ85C SMBJ85CA SMBJ90C SMBJ90CA SMBJ100C SMBJ100CA SMBJ110C SMBJ110CA SMBJ120C SMBJ120CA SMBJ130C SMBJ130CA SMBJ150C REVERSE STAND-OFF VOLTAGE VWM VOLTS 26 26 28 28 30 30 33 33 36 36 40 40 43 43 45 45 48 48 51 51 54 54 58 58 60 60 64 64 70 70 75 75 78 78 85 85 90 90 100 100 110 110 120 120 130 130 150 BREAKDOWN VOLTAGE V(BR) @IT (VOLTS) MIN 28.9 28.9 31.1 31.1 33.3 33.3 36.7 36.7 40.0 40.0 44.4 44.4 47.8 47.8 50.0 50.0 53.3 53.3 56.7 56.7 60.0 60.0 64.4 64.4 66.7 66.7 71.1 71.1 77.8 77.8 83.3 83.3 86.7 86.7 94.4 94.4 100 100 111 111 122 122 133 133 144 144 167 MAX 35.3 31.9 38.0 34.4 40.7 36.8 44.9 40.6 48.9 44.2 54.3 49.1 58.4 52.8 61.1 55.3 65.1 58.9 69.3 62.7 73.3 66.3 78.7 71.2 81.5 73.7 86.9 78.6 95.1 86.0 102 92.1 106 95.8 115 104 122 111 136 123 149 135 163 147 176 159 204 IT(mA) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MAXIMUM CLAMPING VOLTAGE@IPP PEAK PULSE CURRENT IPP MAXIMUM REVERSE LEAKAGE @ VWM ID VOLTS 46.6 42.1 50.0 45.4 53.5 48.4 59.0 53.3 64.3 58.1 71.4 64.5 76.7 69.4 80.3 72.7 85.5 77.4 91.1 82.4 96.3 87.1 103 93.6 107 96.8 114 103 125 113 134 121 139 126 151 137 160 146 179 162 196 177 214 193 231 209 268 (AMPS) 12.4 14.2 12.0 13.2 11.2 12.4 10.2 11.3 9.3 10.3 8.4 9.3 7.8 8.6 7.5 8.3 7.0 7.7 6.6 7.3 6.2 6.9 5.8 6.4 5.6 6.2 5.3 5.8 4.8 5.3 4.5 4.9 4.3 4.7 3.9 4.4 3.8 4.1 3.4 3.7 3.0 3.4 2.8 3.1 2.6 2.9 2.2 (μA) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 MARKING CODE CD CE CF CG CH CK CL CM CN CP CQ CR CS CT CU CV CW CX CY CZ DD DE DF DG DH DK DL DM DN DP DQ DR DS DT DU DV DW DX DY DZ ED EE EF EG EH EK EL For parts without A, the VBR is +10%. Rev.3-3-06052020 5/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Electrical Characteristics @ 25°C Unless Otherwise Specified MCC PART NUMBER SMBJ150CA SMBJ160C SMBJ160CA SMBJ170C SMBJ170CA SMBJ180CA SMBJ200CA SMBJ220CA SMBJ250CA SMBJ300CA SMBJ350CA SMBJ400CA SMBJ440CA REVERSE STAND-OFF VOLTAGE VWM VOLTS 150 160 160 170 170 180 200 220 250 300 350 400 440 BREAKDOWN VOLTAGE V(BR) @IT (VOLTS) MIN 167 178 178 189 189 201 224 246 279 335 391 447 492 MAX 185 218 197 231 209 222 247 272 309 371 432 494 543 IT(mA) 1 1 1 1 1 1 1 1 1 1 1 1 1 MAXIMUM CLAMPING VOLTAGE@IPP PEAK PULSE CURRENT IPP MAXIMUM REVERSE LEAKAGE @ VWM ID VOLTS 243 287 259 304 275 292 324 356 405 486 567 648 713 (AMPS) 2.5 2.1 2.3 2.0 2.2 2.1 1.9 1.7 1.5 1.3 1.1 0.9 0.9 (μA) 1 1 1 1 1 1 1 1 1 1 1 1 1 MARKING CODE EM EN EP EQ ER ET EV EX EZ FE FG FK FM For parts without A, the VBR is +10%. Rev.3-3-06052020 6/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Curve Characteristics Fig. 2 - Typical Junction Capacitance Fig. 1 - Peak Pulse Power Rating Curve 10000 Non-repetitive pulse Waveform shown in Fig.3 TA= 25 OC Measured at Zero Bias CJ - Junction Capacitance (pF) PPP - Peak Pulse Power (W) 100000 10000 1000 100 0.1 1 10 100 1000 Uni-directional 1000 Bi-directional 100 TJ = 25 OC f = 1.0 MHz Vsig = 50 mVp-p 10 10000 1 10 Fig. 3 - Pulse Waveform 120 Peak Value IPPM 100 Peak Pulse Power (PPP) or Current (IPPM) Derating in Percentage (%) TJ= 25 OC Pulse Width(td) is defined as the Point where the Peak Current decays to 50 % of IPPM tr = 10 μs IPPM - Peak Pulse Current, % IRSM 1000 Fig. 4 - Pulse Derating Curve 150 100 Half Value - IPP 2 I PPM 50 10/1000 μs Waveform as defined by R.E.A. td 0 100 VBR - Breakdown Voltage (V) td - Pulse Width (μs) 0 1 2 3 60 40 20 0 4 0 25 50 75 100 125 150 175 200 TA - Ambient Temperature (OC) t - Time (ms) Rev.3-3-06052020 80 7/8 MCCSEMI.COM SMBJ5.0 THRU SMBJ440CA Ordering Information Device Packing Part Number-TP Tape&Reel:3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-06052020 8/8 MCCSEMI.COM
