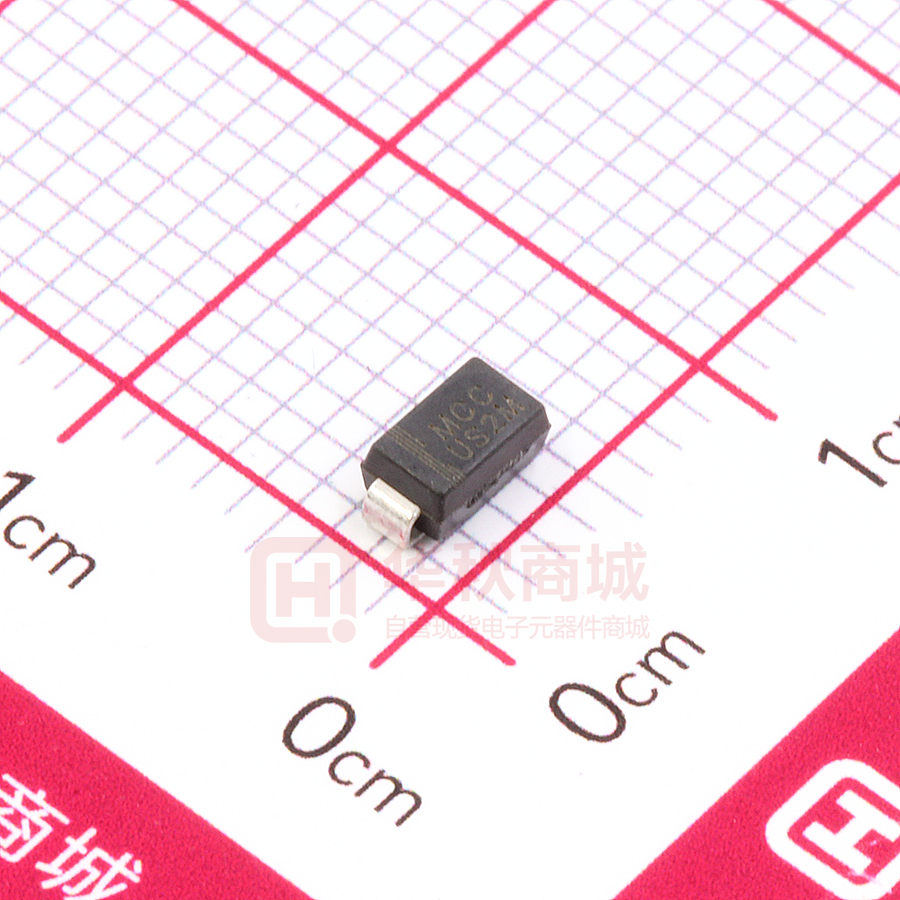

US2MA-TP

US2AA THRU US2MA Features Halogen Free Available Upon Request By Adding Suffix "-HF" Glass Passivated Chip Super Fast Switching For High Efficiency Low Reverse Leakage Current Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • • • • 2 Amp Ultra Fast Rectifier 50 to 1000 Volts Maximum Ratings • Operating Junction Temperature Range: -50⁰C to +150⁰C • Storage Temperature Range: -50⁰C to +150⁰C • Maximum Thermal Resistance: 20°C/W Junction to Lead MCC Part Number US2AA US2BA US2CA US2DA US2GA US2JA US2KA US2MA Device Marking SMA (DO-214AC) Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage US2A US2B US2C US2D US2G US2J US2K US2M 50V 100V 150V 200V 400V 600V 800V 1000V 35V 70V 105V 140V 280V 420V 560V 700V H 50V 100V 150V 200V 400V 600V 800V 1000V J Cathode Mark A E IF(AV) 2.0A TL=110⁰C Peak Forward Surge Current IFSM 50A 8.3ms,Half Sine VF 1.0V 1.4V 1.7V IFM=2.0A; Maximum Instantaneous Forward Voltage US2AA-US2DA US2GA US2JA-US2MA Maximum DC Reverse Current At Rated DC Blocking Voltage Maximum Reverse Recovery Time US2AA-US2GA US2JA-US2MA Typical Junction Capacitance 5.0μA A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.096 2.00 2.44 0.050 0.064 1.27 1.63 0.002 0.008 0.051 0.203 --- 0.020 --0.51 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.189 0.220 4.80 5.59 0.157 0.181 4.00 4.60 0.090 0.115 2.25 2.92 NOTE SUGGESTED SOLDER PAD LAYOUT 50μA TA=25⁰C; TA=125⁰C Trr 50ns 75ns IF=0.5A; IR=1.0A; Irr=0.25A CJ 28pF Measured at 1.0MHz, VR=4.0V IR B G DIM TA=25⁰C D F Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current C 2.27mm 2.16mm 1.78mm Note :1. High Temperature Solder Exemption Applied, See EU Directive Annex Notes 7a. Rev.3-1-01012019 1/3 MCCSEMI.COM US2AA THRU US2MA Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Fig. 1 - Forward Current Derating Curve 50 Peak Forward Surge Current (A) Average Forward Current (A) 2.5 2.0 1.5 1.0 0.5 0.0 Resistive or Inductive Load 0 25 50 75 100 125 30 20 10 0 150 8.3 ms Single Half Sine-Wave 10 1 100 Lead Temperature (°C) Number of Cycles at 60 Hz Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Reverse Leakage Characteristics 100 Instantaneous Reverse Leakage Current (μA) 10 Instantaneous Forward Current (A) 40 US2AA-2DA US2JA-2MA 1 US2GA 0.1 TA=25°C 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 TA=125°C TA=75°C 1 TA=25°C 0.1 0.01 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-1-01012019 10 2/3 MCCSEMI.COM US2AA THRU US2MA Ordering Information Device Packing Part Number-TP Tape&Reel: 5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 3/3 MCCSEMI.COM
