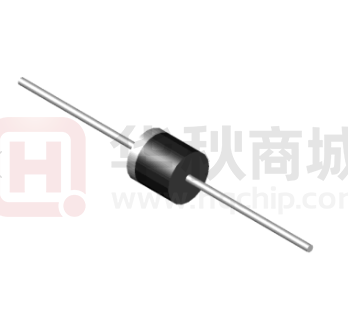

6A8

AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER VOLTAGE RANGE CURRENT 6A05 THRU 6A10 50 to 1000 Volts 6.0 Ampere FEATURES • • • • • .052(1.3) DIA .048(1.2) Low coat construction Low forward voltage drop Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension 1.0(25.4) MIN. .360(9.1) .340(8.6) MECHANICAL DATA • • • • • • .360(9.1) DIA .340(8.6) Case: Transfer molded plastic Epoxy: UL94V-O rate flame retardant Polarity: Color band denotes cathode end Lead: Plated axial lead, solderable per MIL-STD-202E method 208C Mounting position: Any Weight: 0.07 ounce, 2.0 grams 1.0(25.4) MIN. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS • • • Dimensions in inches and (millimeters) Ratings at 25OC ambient temperature unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load For capacitive load derate current by 20% SYMBOLS VRRM VRMS VDC Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 0.375”(9.5mm) lead length at T A= 60℃ Peak Forward Surge Current 8.3mS single half sine wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage @ 6.0A Maximum DC Reverse Current at Rated DC Blocking Voltage per element TA = 25℃ TA = 100℃ Maximum Full Load Reverse Current, full cycle average 0.375”(9.5mm)lead length at TL=105℃ Typical Junction Capacitance (Note 1) Typical Thermal Resistance (Note 2) Operating Junction Temperature Range 6A05 50 35 50 6A1 100 70 100 6A2 200 140 200 6A4 400 280 400 6A6 600 420 600 6A8 800 560 800 6A10 1000 700 1000 UNITS Volts Volts Volts I(AV) 6.0 Amps IFSM 300 Amps VF 0.95 10 1.0 Volts µAmps mAmps IR(AV) 1.0 mAmps CJ 150 pF RθJA 10 ℃/W TJ，TSTG -55 to +150 ℃ IR Notes: 1. Measured at 1.0MHz and Applied Reverse Voltage of 4.0V Volts. 2. Thermal Resistance from junction to Ambient at .375”(9.5mm)lead length, P.C.board mounted with 1.1”× 1.1”(30× 30mm)copper heatsink . E-mail: sales@cnmic.com Web Site: www.cnmic.com AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER VOLTAGE RANGE CURRENT 6A05 THRU 6A10 50 to 1000 Volts 6.0 Ampere RATING AND CHRACTERISTIC CURVES 6A05 Thur 6A10 FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 60 Hz Resistive or Inductive loads Group Plane 1" X 1" Copper Surface Area Recommended P.C. Board Mounting 4.0 3.0 2.0 P.C. Board Standard P.C. Board Mounting 1.0 0 0 25 50 60 100 75 150 125 CURRENT, (A) 300 PEAK FORWARD SURGE 5.0 (A) AVERAGE FORWARD CURRENT, 6.0 8.3ms Single Half Sine-Wave (JEDEC Method) =T T j jmax 200 100 0 175 1 5 2 8 20 10 50 100 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE, (° C) FIG.4-TYPICAL REVERSE CHARACTERISTICS FIG.3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 1000 INSTANTANEOUS REVERSE CURRENT, (mA) 10 10 (A) INSTANTANEOUS FORWARD CURRENT, 100 1 Tj =25° C Pulse Width=300us 1% Duty Cycle Tj =100° C 1.0 0.1 Tj =25° C 0.01 0 20 0.6 0.8 1.0 1.2 1.4 1.6 1.8 80 REVERSE VOLTAGE,(%) FIG.5-TYPICAL JUNCTION CAPACITANCE 1000 CAPACITANCE,(pF) 60 2.0 INSTANTANEOUS FORWARD VOLTAGE,(V) 100 TJ=25° C F=1MHz 10 0.1 40 PERCENT OF RATED PEAK 0.1 1.0 4.0 10.0 100 REVERSE VOLTAGE,(VOLTS) E-mail: sales@cnmic.com Web Site: www.cnmic.com 100 120 140
