HFCN-440+

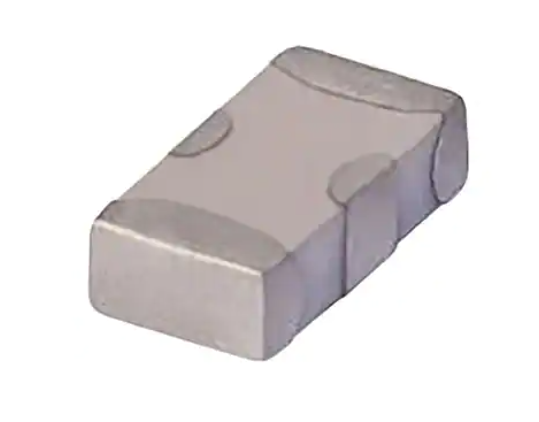

Ceramic High Pass Filter 50Ω HFCN-440+ 500 to 2500 MHz Features Maximum Ratings Operating Temperature -55ºC to 100ºC Storage Temperature -55ºC to 100ºC RF Power Input* 7W max. at 25ºC *Passband rating, derate linearly to 3W at 100°C ambient. Permanent damage may occur if any of these limits are exceeded. Pin Connections RF IN 1 RF OUT 3 GROUND 2,4 • Low cost • Small size • 7 sections • Temperature stable • Excellent power handling, 7W • Hermetically sealed • LTCC construction • Patent pending Generic photo used for illustration purposes only CASE STYLE: FV1206 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications and Reel Available Tape cost at no extra Devices/Reel 20, 50, 100, 200, 500,1000, 3000 Applications • Military • Sub-harmonic rejection • Transmitters / receivers Reel Size 7” Electrical Specifications(1,2) at 25°C Outline Drawing (ON TOP) STOPBAND (MHz) Min. VSWR POWER NO. OF Typ. INPUT SECTIONS (W) Frequency (MHz) (Loss 3 dB) (Loss < 1.3dB) (Loss < 2dB) 1.5:1 (Loss > 40dB) (Loss > 20dB) Typ. Max. Typ. Stopband Max. 230 (ON TOP) fco, MHz Nom. 350 440 PASSBAND (MHz) 600-1700 500-2500 20:1 500-1700 7 7 (1) In Application where DC voltage is present at either input or output ports, coupling capacitors are required. (2) Measured on Mini-Circuits Characterization Test Board TB-270. electrical schematic AT T E NUAT ION typical frequency response PCB Land Pattern R F IN 40dB R F OUT 20dB 3dB F co F R E QUE NC Y F 1.3dB Typical Performance Data at 25oC Suggested Layout, Tolerance to be within ±.002 H .087 2.21 Outline Dimensions ( inch mm ) B .063 1.60 C .037 0.94 D .020 0.51 E .032 0.81 F .009 0.23 G .169 4.29 J .024 0.61 K .122 3.10 L .024 0.61 M .087 2.21 N .012 0.30 P wt .071 grams 1.80 .020 Demo Board MCL P/N: TB-270 Suggested PCB Layout (PL-137) 50 100 230 350 385 410 86.32 81.31 46.84 30.62 15.56 7.73 1737.18 579.06 75.53 16.72 7.73 3.29 440 450 500 510 600 800 3.08 2.53 1.52 1.40 0.83 0.53 1.29 1.26 1.48 1.45 1.18 1.25 1000 1500 1700 2500 4000 0.38 0.49 0.70 1.97 4.69 1.07 1.56 1.87 3.54 5.89 HFCN-440+ INSERTION LOSS 90 INSERTION LOSS (dB) Insertion Loss (dB) 3.0 80 VSWR (:1) HFCN-440+ VSWR 1000 6 5 2.5 70 4 2.0 60 1.5 VSWR A .126 3.20 Frequency (MHz) 1.0 50 0.5 40 0.0 500 30 750 1000 1250 1500 1750 2000 2250 2500 100 3 2 1 0 500 10 750 1000 1250 1500 1750 2000 2250 2500 20 10 1 0 0 500 1000 1500 2000 2500 3000 3500 4000 0 500 1000 1500 2000 2500 3000 3500 4000 FREQUENCY (MHz) FREQUENCY (MHz) Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com REV. B M151107 EDR-8822/7F1 HFCN-440+ RAV/CP/AM 150729 Page 1 of 1
