64319-1211

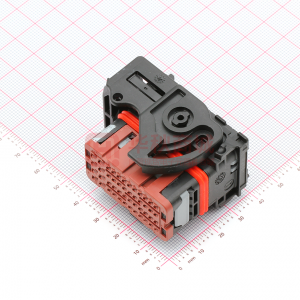

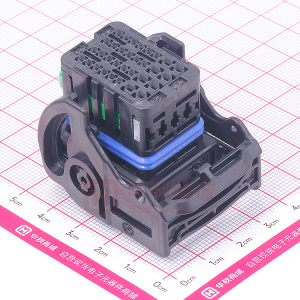

FEATURES AND SPECIFICATIONS CMC Hybrid Connectors Standard and Power Versions Standard Receptacles 64319 32-Circuit Receptacle and Wire Cap 64320 48-Circuit Receptacle and Wire Cap 64325 Plug Power Receptacles 64318 28-Circuit Receptacle 64320 28-Circuit Wire Cap 64321 53-Circuit Receptacle and Wire Cap 64325 Plug CMC Connectors – sealed, high-density, modular and cost-effective connection system for heavy-duty applications The CMC connector family from Molex is a sealed, high-density connection system developed for the transportation industry. It is a cost-effective, modular, hybrid system that fits with various headers. Standard version CMC hybrid connectors hold two different terminal sizes, 0.635mm (.025”) and 1.50mm (.059”). The 1.50mm (.059”) terminals are rated up to 24.0A for operating temperatures between -40 and +100°C. Power version CMC hybrid connectors hold three different terminal sizes, 0.635mm (.025”), 1.50mm (.059”) and 2.80mm (.110”), with the largest rated up to 40.0A at operating temperatures between -40 and +125°C. The CMC modular system offers various color codings associated with mechanical keying for easy mating with the header. With an audible click, the integrated locking lever locks the connector to the header. A wire cap guides the wires away from the connector either to the right or to the left. Robust CP terminals are specially designed to perform in high-conductivity applications and in harsh environments. The CMC connection system can be used for various transportation vehicles, such as cars, trucks, busses, agricultural equipment, motorcycles and marine equipment. CMC is used in various power-train applications such as engine-control units, compartment applications, gear boxes, electronic-park breaks and suspension controllers. For more inforamtion on CMC products, visit:www.molex.com/product/cmc.html. Features and Benefits Standard and Power Connector Features and Benefits ■ Color coding provides easy visual installation ■ Mechanical polarization avoid mis-mating ■ Audible click during locking secures locking with the header ■ Tie wrap as additional fixing feature provides added security of the wire output ■ Multiple terminal sizes available support low, medium and high-current data requirements ■ Various backplate configurations and plug seals offer flexibility and high reliability when cavities are not used Molex High Performing Sealing Function Features and Benefits Wire Side ■ Matte seal technology used for CP 0.635mm (.025”) and 1.50mm (.059”) terminals provide high-performing sealing due to seal cavity design ■ Single wire-seal technology used for CP 2.80mm (.110”) terminals provide secure and reliable sealing for 2.80mm (.110”) CP terminals ■ Multiple choices of backplate configurations allow customer to reduce the number of circuits used with a closed-cavity backplate configuration ■ Blind plugs for unused circuits secure sealing system when flexibility is required for unused cavities with a standard backplate Molex High Performing Sealing Function Features and Benefits Mating Side ■ Perimeter seal secures seal between the connector and mating header 32- and 48-Circuit CMC Connector Harness SPECIFICATIONS Reference Information Packaging: Box with Carton Interleaf Mates with: 32-Way: No mating header available yet at Molex, in development soon 48-Way: Series 36638 and Series 500762 Use with: Terminals: Series 64322 CP 0.635mm (.025”) pitch Series 64323 CP 1.50mm (.059”) pitch Plugs: 64325-1010 CP 0.635mm (.025”) pitch terminals 64325-1023 CP 1.50mm (.059”) pitch terminals Wire Caps: 32-Way: 64319-1201 48-Way: 64320-1301 Designed in: Millimeters Electrical Voltage: 14V Current: max. 10.0A - 0.635mm (.025”) pitch terminals max. 24.0A - 1.50mm (.059”) pitch terminals Contact Resistance: 0.635mm (.250”) pitch terminal: 8 milliohms max. 1.50mm (.059”) pitch terminal: 4 milliohms max. Dielectric Withstanding Voltage: 1000V AC min. Insulation Resistance: 100 Megohms min. 32-Circuit CMC Receptacle CMC Hybrid Connectors Standard and Power Versions Mechanical Contact Insertion Force: 0.635mm (.025”) pitch terminal: 10.00N (2.25 lb) 1.50mm (.059”) pitch terminal: 15.00N (3.37 lb) Contact Retention to Housing: 0.635mm (.025”) pitch terminal: 60.00N (13.49 lb) 1.50mm (.059”) pitch terminal: 100.00N (22.48 lb) Wire Pull-Out Force: 100.00N (22.48 lb) Mating Force: 80.00N (17.98 lb) max. Unmating Force : 80.00N (17.98 lb) max. Durability: 10 mating cycles Physical Housing: PBT Polyester, Glass-filled Lead-Free: Yes Operating Temperature: -40 to +100°C Standard Receptacles 64319 32-Circuit Receptacle and Wire Cap 64320 48-Circuit Receptacle and Wire Cap 64325 Plug 48-Circuit CMC Receptacle ORDERING INFORMATION Receptacles Order No. 64319-3211 64319-3216 64319-3218 64319-3219 64319-1211 64319-1216 64319-1218 64319-1219 64320-3311 64320-3315 64320-3318 64320-3319 64320-1311 64320-1315 64320-1318 64320-1319 48 32 Circuits Coding Key Color Black Blue Grey Brown Black Blue Grey Brown Black Green Grey Brown Black Green Grey Brown Left Right Left Right Wire Output Wire Caps Order No. 64319-1201 64320-1301 Circuits 32 48 Housing Color Black 32- and 48-Circuit Plugs Order No. 64325-1010 64325-1023 Terminal Path 0.635mm (.025”) 1.50mm (.059”) Housing Color White Orange SPECIFICATIONS Reference Information Packaging: Box with Carton Interleaf Mates with: 28-Way: Generic headers available soon 53-Way: 64321-2211 CMC Header Use with: Terminals: Series 64322 CP 0.635mm (.025”) pitch Series 64323 CP 1.50mm (.059”) pitch Series 64324 CP 2.80mm (.110”) pitch Plugs: 64325-1010 CP 0.635mm (.025”) pitch terminals 64325-1023 CP 1.50mm (.059”) pitch terminals 64325-1091 Seal Plug CP 2.80mm (.110”) pitch terminals Wire Caps: 28-Way: 64320-1301 53-Way: 64321-1101 Designed in: Millimeters Electrical Voltage: 14V Current: max. 10.0A - 0.635mm (.025”) pitch terminals max. 24.0A - 1.50mm (.059”) pitch terminals max. 40.0A - 2.80mm (.110”) pitch terminals Contact Resistance: 0.635mm (.250”) pitch terminal: 8 milliohms max. 1.50mm (.059”) pitch terminal: 4 milliohms max. 2.80mm (.110”) pitch terminal: 4 milliohms max. Dielectric Withstanding Voltage: 1000V AC min. Insulation Resistance: 100 Megohms min. 28-Circuit CMC Receptacle CMC Hybrid Connectors Standard and Power Versions Mechanical Contact Insertion Force: 0.635mm (.025”) pitch terminal: 10.00N (2.25 lb) 1.50mm (.059”) pitch terminal: 15.00N (3.37 lb) 2.80mm (.110”) pitch terminal: 15.00N (3.37 lb) Contact Retention to Housing: 0.635mm (.025”) pitch terminal: 60.00N (13.49 lb) 1.50mm (.059”) pitch terminal: 100.00N (22.48 lb) 2.80mm (.110”) pitch terminal: 100.00N (22.48 lb) Wire Pull-Out Force: 100.00N (22.48 lb) Mating Force: 60.00N (13.49 lb) max. Unmating Force: 60.00N (13.49 lb) max. Durability: 10 mating cycles Physical Housing: PBT Polyester, Glass-filled Lead-Free: Yes Operating Temperature: -40 to +125°C Power Receptacles 64318 28-Circuit Receptacle 64320 28-Circuit Wire Cap 64321 53-Circuit Receptacle and Wire Cap 64325 Plug 53-Circuit CMC Receptacle ORDERING INFORMATION Receptacles Order No. 64318-3011 64318-3018 64318-3019 64318-1011 64318-1018 64318-1019 64321-2011 64321-2018 64321-2019 64321-1011 64321-1018 64321-1019 53 28 Circuits Coding Key Color Black Grey Brown Black Grey Brown Black Grey Brown Black Grey Brown Left Right Left Right Wire Output Wire Caps Order No. 64320-1301 64321-1101 Circuits 28 53 Housing Color Black 28- and 53-Circuit Plugs Order No. 64325-1010 64325-1023 64325-1091 Terminal Path 0.635mm (.025”) 1.50mm (.059”) 2.80mm (.110”) Housing Color White Orange Black APPLICATIONS CMC Hybrid Connectors Standard and Power Versions Standard Receptacles 64319 32-Circuit Receptacle and Wire Cap 64320 48-Circuit Receptacle and Wire Cap 64325 Plug Power Receptacles 64318 28-Circuit Receptacle 64320 28-Circuit Wire Cap 64321 53-Circuit Receptacle and Wire Cap 64325 Plug Engine Control Box Electronic Body Application ■ Markets - Cars - Trucks - Busses - Agricultural equipment - Motorcycle - Marine ■ Applications: Wire-to-Board Power Train - Engine control unit - Gear box - Suspension controller Body Electronics - Junction box - Lightning control system - Electrical doors Powertrain Application www.molex.com/product/cmc.html Americas Headquarters Lisle, Illinois 60532 U.S.A. 1-800-78MOLEX amerinfo@molex.com Order No. 987650-2003 Asia Pacific North Headquarters Yamato, Kanagawa, Japan 81-46-265-2325 apninfo@molex.com Asia Pacific South Headquarters Jurong, Singapore 65-6268-6868 apsinfo@molex.com USA/KP/2008.05 European Headquarters Munich, Germany 49-89-413092-0 eurinfo@molex.com Corporate Headquarters 2222 Wellington Ct. Lisle, IL 60532 U.S.A. P: 630-969-4550 F: 630-969-1352 © 2008, Molex
