HarshIO IP67 Compact
Modules for EtherNet/IP
HarshIO IP67 I/O Compact Modules for EtherNet/IP* provide a reliable solution for
connecting industrial controllers to I/O devices through on-machine mounting in
harsh environments, saving precious control cabinet space and enabling localized
troubleshooting and modification
Features and Benefits
Harsh-duty design
IP67 rating and construction materials eliminate need for a protective cabinet
in harsh environments,. Tested to withstand shock, high-vibration and high
temperature. Potted with resin and uses metallic connectors
Tree rotary switches
select IP Address
Decreases modules
commissioning times
and simplifies device
replacement
Two integrated fieldbus ports
Enables wiring of the entire module application without
an additional tee. Utilizes daisy-chain wiring topology
which creates cost savings for the customer
Versatile Interface
8 user configurable Inputs and Outputs.
Supports PNP input sensoras. Visible
diagnostic LEDs provide maintenance
personnel with the ability to easily determine
I/O, module & network status
Ambient-temperature
resistance of 70°C
Enhances design flexibility
and can withstand harsh-duty
environmental stresses
Compact Design
30mm housing saves space on
machines while using industrystandard M8 or M12 I/O
connectivity
Diagnostic notifications
via fieldbus messaging and
visible diagnostic LEDs
Enables both internal and
external solutions
Mounting Holes
Suitable for 2 screws

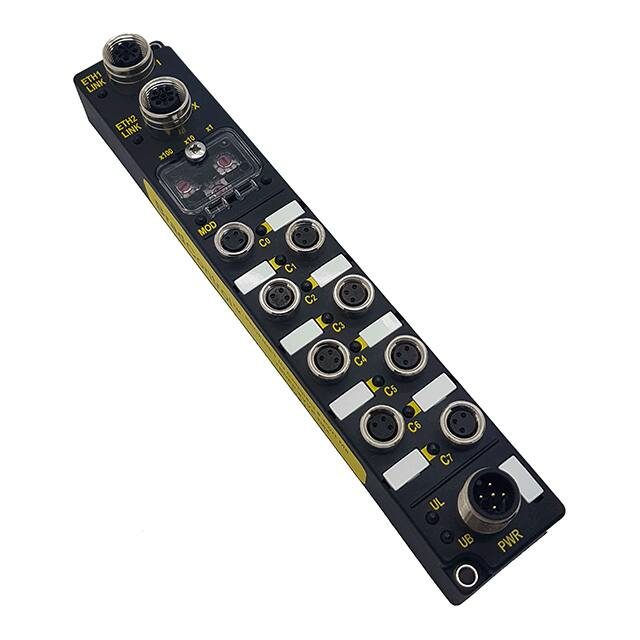

8-Port Model Shown
Part Number: 112095-5071
Engineering Number: TBDEI-8YYP-D84
Applications
Industrial Automation
Compact Machines
High-Speed Machines
CNC Machines
Food and Beverage
Plastic Injection
Robot & Tool Makers
Material Handling
Packaging
Automatic Guided Vehicles
Food Processing
Automated Guided Vehicles
CNC Machines
HarshIO IP67 Compact
Modules for EtherNet/IP
Specifications
HARDWARE
Compact size: 30 x 175 x 20mm
Operating Temperature: -25 to +70ºC
Storage Temperature: -40 to +90ºC
Housing material: PBT VALOX 420 SEO
Black 7701
POWER SUPPLY
Power connector: M12, A-Coded, 5-pin, male,
nickel brass
Module & Input power: 24V DC, -15/+20%
(protected against power crossing)
Output power: 24V DC, -15/+20%
(protected against power crossing)
2x Diagnostic LEDs (Logic/Input + Output)
with detection of low voltage operation
FIELDBUS
Network IN connector: M12, 4-pin, female,
D-Coded, stainless steel
Network OUT connector: M12, 4-pin, female,
D-Coded, stainless steel
Diagnostic LED per port (Link / Speed / Activity)
3x Rotary switches (Static IP, DHCP, etc)
Protocol: EtherNet/IP Adapter
Support of I/O and explicit messaging
Ethernet Packet: Manage up to 3000 packet/sec
Min refresh I/O Interval: 1ms
Description file: Yes (EDS)
ODVA certification
INPUT CHANNEL(S)
Connector: Ultra-Lock M12 5-pin A-Coded or M8
3-pole, Female, nickel brass
Input type: PNP, Sinking, 2/3-wire sensors
Sensor power supply: 250mA
Input channel voltage (“1”): 10V … 25V
Input channel voltage (“0”): -0.2V … 5V
Electronic short circuit protection
Input filter: 0.5 … 3 ms
(1 ms by default, filter step 0.5)
OUTPUT CHANNEL(S)
Connector: Ultra-Lock M12 5-pin A-Coded or M8
3-pole, Female, nickel brass
Output type: PNP, Sourcing
Output current: 0.5A per channel
Maximum output current: 4.0A at 25°C
Electronic short circuit protection
Switching frequency: 200 Hz
SHOCK AND VIBRATION
MIL-STD-202F, method 204D, condition A (Vibration)
MIL-STD-202F, method 213B, condition B
(Mechanical Shock)
MIL-STD-1344A (Thermal Shock)
REGULATORY APPROVALS
CE
REACH
Ordering Information
Order No.
Engineering No.
112095-5071
TBDEI-8YYP-D84
112095-5083
TBDEI-4YYP-D8U
Protocol
EtherNet/IP
No. of Ports
8
4
Housing Size
30mm
I/O Connectors
I/O Configuration
Input
Output
I/O Channel
M8
8x User Configurable
PNP
M12
8x User Configurable
PNP
www.molex.com/link/harshio.html
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners.
Order No. 987651-8091
USA/0k/GF/2018.02
©2018 Molex
