PRODUCT CATALOG
Safety. Reliability. Performance.
TA B L E O F C O N T E N T S
PORTABLE
LIGHTING
Specialty Lighting . . . . . . . . . . . . . . . . . A-4
Hand Lamps . . . . . . . . . . . . . . . . . . . . . A-12
Wide-Area Lighting . . . . . . . . . . . . . . . . A-24
Stringlights. . . . . . . . . . . . . . . . . . . . . . A-32
REELS
Standard-Duty Cord Reels . . . . . . . . . . . B-4
Industrial-Duty Cable Reels . . . . . . . . . . B-9
Specialty Reels . . . . . . . . . . . . . . . . . . . B-18
GRIPS
Strain-Relief Grips . . . . . . . . . . . . . . . . . C-4
Support Grips . . . . . . . . . . . . . . . . . . . . C-32
Pulling Grips . . . . . . . . . . . . . . . . . . . . . C-41
WIRING
DEVICES
Wiring Device Selection Guide,
Watertite® . . . . . . . . . . . . . . . . . . . . . D-4
Wiring Device Selection Guide,
Heavy-Duty, Industrial . . . . . . . . . . . . D-6
Wet Location . . . . . . . . . . . . . . . . . . . . . D-8
Heavy-Duty Industrial . . . . . . . . . . . . . D-62
POWER
DISTRIBUTION

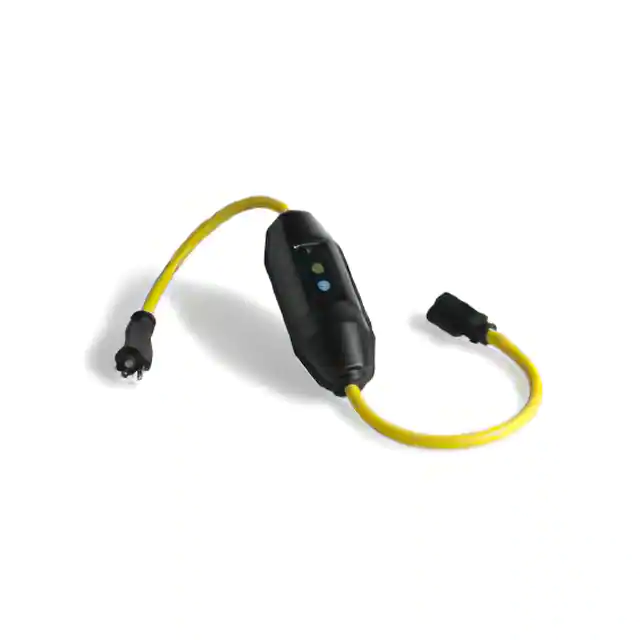

GFCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
Outlet Boxes . . . . . . . . . . . . . . . . . . . . E-27
TEST/
CONTROL
Push-Button Pendant Products . . . . . . . . . . F-4
Testers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-11
Portable Lighting
A
PORTABLE LIGHTING
www.molex.com/woodhead
Specialty Lighting . . . . . . . . . . . .
Hazardous Location Handlamps .
Low Voltage Workstations . . . . .
Low Voltage Handlamps . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. A-4
. A-5
. A-9
A-10
Handlamps . . . . . . . . . . . . . . . . .
Wet Location Handlamps . . . .
Industrial Duty Handlamps . . .
Commercial Duty Handlamps .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
A-12
A-13
A-15
A-20
Wide-Area Lighting . . . . . . .
Hazardous Duty . . . . . . . . .
Industrial Duty Fluorescent
Wet Location . . . . . . . . . . .
Quartz Halogen . . . . . . . . .
High Bays . . . . . . . . . . . . . .
Machine Lights . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
A-24
A-25
A-26
A-29
A-30
A-30
A-31
Stringlights . . . . . . . . . . . . . . . . . . . . . .
Hazardous Location and Wet Location
Industrial Duty . . . . . . . . . . . . . . . . . .
Commercial Duty . . . . . . . . . . . . . . . .
Commercial and General Duty . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
A-32
A-33
A-34
A-36
A-37
.
.
.
.
.
.
.
.
.
.
.
.
.
.
PORTABLE
LIGHTING
SPECIALTY LIGHTING Hazardous location, low-voltage specialty and
machine-tool lights that are durable, easy-to-handle and capable of continuous
operation in demanding environments.
HANDLAMPS The industry’s most extensive line of portable handlamps
for use in wet, industrial and commercial environments.
WIDE-AREA LIGHTING An extensive range of portable lighting
solutions suitable for rugged and harsh applications in hazardous, wet and
industrial environments.
STRINGLIGHTS The largest variety of stringlights constructed for rugged,
reliable service for industrial and commercial settings.
SPECIALTY LIGHTING
WOODHEAD®
HAZARDOUS
LOCATION,
LOW-VOLTAGE
SPECIALTY
AND
MACHINE-TOOL LIGHTS ARE DURABLE, EASY-TO-HANDLE AND CAPABLE
OF CONTINUOUS OPERATION IN DEMANDING ENVIRONMENTS
Woodhead Specialty Lights include low voltage, hazardous location, spotlights and machineWRRO OLJKWV +D]DUGRXV ORFDWLRQ OLJKWV DUH DYDLODEOH LQ ERWK LQFDQGHVFHQW DQG ÁXRUHVFHQW DQG
FRPSO\ZLWK26+$UHTXLUHPHQWVIRUFODVVLÀHGORFDWLRQV/RZYROWDJHOLJKWVDUHHTXLSSHGZLWK
low-voltage transformers, providing maximum protection in wet or conductive environments.
Low-voltage lights are available in a variety of styles including hazardous location, wet location,
spotlights and more.
FEATURES AND
BENEFITS
APPLICATIONS
NEo
¯TEX® rubber
molded construction
Provides the most abrasion- and chemical-resistant
specialty lighting available
Low-voltage products
Promotes maximum safety in wet and
conductive environments
Flexible-mounting
options
Provides solutions for a range of space and
lighting requirements
9DULHW\RIZDWWDJHDQG
OLJKWVRXUFHRSWLRQV
&XVWRPHUVZLOOÀQGDOLJKWIURP:RRGKHDGWKDW
ZLOOÀWWKHLUQHHGV
• Petrochemical plant shut downs
• Hull and bilge cleaning
• Machine-tool lighting
• Painting and chipping
• Sandblasting
• Tank and vessel inspections
• Washdown-work areas
Features and Benefits
• Integral LED light source
• High-output LED
Reference Information
UL File No.: E30252
Hazardous Locations:
Class I, Division I, Groups C and D
Class II, Division I, Groups F and G
Class I, Zone I, Group IIB
Temperature Rating: T4
High-Output LED
20W
Cord Type
16/3 SOOW
16/3 SOOW
16/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
Electrical
Fixture Voltage: 120V AC
NEMA Configuration
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Cord Length
7.62m
15.24m
30.48m
7.62m
15.24m
30.48m
(25.0')
(50.0')
(100.0')
(25.0')
(50.0')
(100.0')
A
Physical
Switch: No
Lumens: 750
Portable Lighting
Handlamps
Haztex®
Hazardous Location
Environmental
NEMA Rating: NEMA 4X
Woodhead No.
61450
61450A163
61450B163
61450D163
61450A143
61450B143
61450D143
Order No.
130104-0082
130104-0086
130104-0087
130104-0088
130104-0083
130104-0084
130104-0085
Replacement Parts
Description
Guard Assembly
Socket and Handle Assembly
Glass Globe
Hook Assembly
Replacement Light Source
www.molex.com/woodhead
Woodhead No.
61451
61452
61455
61436
61457
Order No.
130104-0095
130104-0096
130104-0097
130104-0057
130104-0098
A-5
Portable Lighting
Handlamps
®
A Haztex
Hazardous Location
Features and Benefits
• Integral LED light source
• High-output LED
• Low-voltage options provide additional protection in wet
or conductive locations. Driver must remain outside the
conductive area
Low Voltage
High-Output LED
21W
Cord Type
14/3 SOOW
14/3 SOOW
Reference Information
UL File No.: E30252
Hazardous Locations:
Class I, Division I, Groups C and D
Class II, Division I, Groups F and G
Class I, Zone I, Group IIB
Temperature Rating: T4
NEMA Configuration
NEMA 5-15
NEMA 5-15
Cord Length
7.62m (25.0')
15.24m (50.0')
Electrical
Fixture Voltage: 12V
Physical
Switch: No
Environmental
NEMA Rating: NEMA 4X
Woodhead No.
1655-12A
1655-12B
Order No.
130105-0082
130105-0083
Replacement Parts
Description
Low Voltage Replacement Light Source
Low Voltage Cover Assembly
Low Voltage Carrying Handle
A-6
Woodhead No.
1679-12
1676-EX
1677
Order No.
130112-0272
130112-0133
130112-0134
www.molex.com/woodhead
Features and Benefits
• Lights are designed to stringent specifications of NEC
Article 500 and are agency listed for safety in classified
locations
• Low-voltage options provide additional protection in
wet or conductive locations. Transformer must remain
outside the conductive area
Fluorescent
26W
Primary
Fixture Voltage
120V AC 60 Hz
12V AC
12V AC
12V AC
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
230V AC 50 Hz
Physical
Bulb Size: PL-C 26/41/4P
Switch: No
Construction: Aluminum with rubber bumpers
Lumens: 1800
A
Portable Lighting
Handlamps
Haztex®
Hazardous Location
Reference Information
UL File No.: E30252 (except 230V rated products)
CSA File No.: LR39801
Hazardous Locations:
Class I, Division I, Groups C and D
Class II, Division I, Groups F and G
Class I, Zone 1, Group IIB
UL Temperature Rating: T3B
Secondary
Fixture Voltage
12V AC
12V AC
12V AC
12V AC
12V AC
Cord Type
NEMA Configuration
16/3 SOOW
16/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
14/3 SOOW
16/3 SOOW
16/3 SOOW
14/3 SOOW
16/3 SOOW
Non-NEMA
Non-NEMA
Non-NEMA
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Cord Length
Without cord
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
Transformer Type
Workstation
Workstation
Workstation
In-line
In-line
In-line
In-line
In-line
Woodhead No.
Order No.
1090-HZ
1090-HZ12A163
1090-HZ12B163
1090-HZ12D143
1090-HZA143
1090-HZB143
1090-HZD143
1090-HZA163
1090-HZB163
1090-HZD163
1090-HZ12ID143
1090-HZ12IA163
1090-HZ12IB163
1090-HZ12ID143P
1090-HZ12IB163P
130104-0021
130104-0022
130104-0023
130104-0024
130104-0030
130104-0032
130104-0034
130104-0031
130104-0033
130104-0035
130104-0028
130104-0025
130104-0026
130104-0029
130104-0027
Replacement Parts
Description
Cap Bumper
Guard Bumper
Handle Bumper
Glass Globe
Handle Assembly
Lamp Guard Assembly
www.molex.com/woodhead
Woodhead No.
00-1470
00-1480
00-1490
40-9442
40-9456
40-9441
Order No.
130180-0179
130180-0181
130180-0182
130113-0007
130186-0561
130186-0719
A-7
Portable Lighting
Handlamps
®
A Haztex
Hazardous Location
Incandescent
100W Max
Cord Type
NEMA Configuration
14/3 SOOW
14/3 SOOW
14/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Features and Benefits
Electrical
Fixture Voltage: 250V max.
• Lights are designed to stringent specifications of NEC
Article 500 and are agency listed for safety in classified Voltage with Plug: 120V AC
locations
Physical
Bulb Size: A21
Reference Information
Switch: No
UL File No.: E30252
Construction: Aluminum with nylon handle
CSA File No.: LR39801
Fixture Lumens: 650 (100W)
Hazardous Locations:
Class I, Division I, Groups C and D (100W max.)
Environmental
Class II, Division I, Groups F and G (75W max.)
NEMA Rating: NEMA 4X
Class I, Zone 1, Group IIB
UL Temperature Rating: T3B
Cord Length
Without cord
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
61430
61430A143
61430B143
61430D143
61430A163
61430B163
61430D163
Order No.
130104-0041
130104-0042
130104-0044
130104-0048
130104-0043
130104-0045
130104-0049
Replacement Parts
Description
Guard Assembly (includes glass globe)
Socket and Handle Assembly
Glass Globe
Hook Assembly
Replacement Light Source
A-8
Woodhead No.
61451
61452
61455
61435
61457
Order No.
130104-0054
130104-0055
130104-0056
130104-0057
130104-0098
www.molex.com/woodhead
Features and Benefits
• Lights are designed to stringent specifications of NEC
Article 500 and are agency listed for safety in classified
locations
• Low-voltage options provide additional protection in
wet or conductive locations. Transformer must remain
outside the conductive area
Low Voltage
Incandescent
75W Max.
Reference Information
UL File No.: E30252 (except 1645-12)
CSA File No.: LR39801
Hazardous Locations:
Class I, Division I, Groups C and D
Class II, Division I, Groups F and G
Class I, Zone 1, Group IIB
UL Temperature Rating: T3B
Electrical
Bulb: All fixtures supplied with 12V, 75W, A21 bulb
Fixture Voltage: 250V max.
A
Physical
Bulb Size: A21
Switch: No
Construction: Aluminum with nylon handle
Portable Lighting
Handlamps
Haztex®
Hazardous Location
Environmental
NEMA Rating: NEMA 4X
Primary
Fixture Voltage
Secondary
Fixture Voltage
Primary
Cord Type
Secondary
Cord Type
NEMA
Configuration
Cord Length
Transformer Type
Woodhead No.
Order No.
12V AC
120V AC 60 Hz
120V AC 60 Hz
12V AC
12V AC
16/3 SOOW
16/3 SOOW
14/3 SOOW
Non-NEMA
NEMA 5-15
NEMA 5-15
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
Workstation
In-line
In-line
1645-12
1635-12A
1635-12B
130104-0038
130105-0045
130105-0046
Replacement Parts
Description
In-Line Transformer Cover for Haz Duty Handlamps
Handle for In-Line Transformer
In-Line Transformer for Hazardous Duty Incandescent Handlamp
12V, 75W Bulb
Workstations
Low Voltage
Woodhead No.
1676-EX
1677
1678-12
1652-12
Order No.
130112-0133
130112-0134
130112-0135
130191-0031
Features and Benefits
• Converts 120V power to 12V for use in wet locations
with 12V lights and tools
• 12V power protects workers in damp or conductive
locations. The transformer must be kept out of the wet
or conductive location.
• Durable construction allows for operation in the most
demanding industrial environments
200W, 400W
Electrical
Overcurrent Protection: 15A
NEMA Configuration:
Plug—NEMA 5-15
Receptacles—Non-NEMA crowfoot
Physical
Cord Type: 16/3 SOOW
Cord Length: 6'
Environmental
NEMA 3R
Primary Fixture Voltage
120V AC 60 Hz
Secondary Fixture Voltage
12V AC
12V AC
www.molex.com/woodhead
Maximum Lamp Wattage
400W
200W
Number of Outlets
4
2
Woodhead No.
1640-12
1642-12
Order No.
130105-0050
130105-0052
A-9
Portable Lighting
Handlamps
A Wet Location
Features and Benefits
• Wet location rated handlamps meet and exceed OSHA
requirements for wet location use
• In-line transformer converts 120V power to 12V
for added protection in conductive locations. The
transformer must remain outside of the conductive
location.
• Rubber handles and 8-gauge Steel guards provide
maximum protection for bulbs and electrical components
• Guard and globe options ensure the perfect product for
the required protection in wet work environments
Low Voltage
Incandescent
75W
Electrical
Bulb: All fixtures supplied with 12V, 75W, A21 bulb
Physical
Bulb Size: A21
Switch: No
Construction: Rubber handles (except lights with Teflon®
globe; thermoset polyester for lights with Teflon globes).
Environmental
NEMA Rating: NEMA 4X
Reference Information
UL File No.: E59049
CSA File No.: LR85374 (except 1646-12, 1649-12)
Primary
Secondary
Fixture Voltage Fixture Voltage
12V AC
120V AC 60 Hz
230V AC 50 Hz
12V AC
12V AC
12V AC
12V AC
12V AC
12V AC
12V AC
Guard Material
Globe Material
Primary
Cord Type
#8 Gauge Zinc-plated Steel
Tempered glass
Teflon
Tempered glass
Tempered glass
Teflon
Teflon
Tempered glass
Tempered glass
Tempered glass
14/2 SOOW
14/2 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
Cast Aluminum
Cast Aluminum
#8 Gauge Zinc-plated Steel
Secondary
Cord Type
NEMA
Configuration
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
Non-NEMA
Non-NEMA
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Cord Length
15.24m
15.24m
7.62m
15.24m
7.62m
15.24m
7.62m
15.24m
15.24m
(50.0')
(50.0')
(25.0')
(50.0')
(25.0')
(50.0')
(25.0')
(50.0')
(50.0')
Transformer
Type
Woodhead No.
Order No.
Workstation
Workstation
In-line
In-line
In-line
In-line
In-line
In-line
In-line
1649-12
1646-12
1621-12A
1621-12B
1625-12A
1625-12B
1631-12A
1631-12B
1621-12B-P
130105-0059
130105-0056
130105-0037
130105-0038
130105-0041
130105-0042
130105-0043
130105-0044
130105-0039
Replacement Parts
Description
#8 Gauge Zinc-plated Steel Guard
Glass Globe
Teflon Globe with Hook
12V, 75W Bulb
In-Line Transformer Cover
In-Line Transformer
Handlamps
Industrial Duty
Woodhead No.
1255
1253
1229
1652-12
1676
1675-12
Order No.
130112-0111
130191-0086
130112-0110
130191-0031
130112-0132
130112-0131
Features and Benefits
• In-line transformer converts 120V power to 12V
for added protection in conductive locations. The
transformer must remain outside of the conductive
location.
• Rubber handles and 8-gauge Steel guards provide
maximum protection for bulbs and electrical
components
• Ergonomically designed fencer’s flange handle helps
protect users from accidentally touching a hot guard
Low Voltage
Incandescent
75W
Electrical
Bulb: All fixtures supplied with 12V, 75W, A21 bulb
Physical
Bulb Size: A21
Switch: No
Construction: Rubber handles
Guard: 8-gauge Zinc-plated Steel, screw release
Reference Information
UL File No.: E59049
CSA File No.: LR85374 (except 1648-12)
Primary
Fixture Voltage
Secondary
Fixture Voltage
12V AC
120V AC 60 Hz
12V AC
12V AC
12V AC
12V AC
Reflector
Yes
No
No
Yes
Yes
Primary
Cord Type
Secondary
Cord Type
NEMA
Configuration
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
Non-NEMA
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Cord Length
15.24m
7.62m
15.24m
7.62m
15.24m
(50.0')
(25.0')
(50.0')
(25.0')
(50.0')
Transformer Type
Woodhead No.
Order No.
Workstation
In-line
In-line
In-line
In-line
1648-12
1600-12A
1600-12B
1601-12A
1601-12B
130105-0058
130105-0028
130105-0029
130105-0030
130105-0031
Replacement Parts
Description
#8 Gauge Zinc-plated Steel Guard, No Reflector
#8 Gauge Zinc-plated Steel Guard With Reflector
12V, 75W Bulb
In-Line Transformer Cover
In-Line Transformer
A-10
Woodhead No.
1152
1156
1652-12
1676
1675-12
Order No.
130112-0079
130112-0085
130191-0031
130112-0132
130112-0131
www.molex.com/woodhead
Features and Benefits
• NEMA 4X rating provides assurance for safe operation
in wet locations
• Low-voltage designs provide an added level of safety in
wet or conductive environments. The transformer must
remain outside of the conductive location.
Low Voltage
Spotlights
30W, 100W
Switch
No
Yes
Primary
Fixture Voltage
Reference Information
UL File No.: E59049
CSA File No.: LR85374 (except switched versions and
1647-12)
Secondary
Fixture Voltage
12V
12V AC
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
220V AC 60 Hz
Lamp Wattage
Candle Power
Beam Spread
30W
30W
100W
30W
100W
30W
30W
50000
50000
60000
50000
60000
50000
50000
6° × 5°
6° × 5°
14° × 6°
6° × 5°
14° × 6°
6° × 5°
6° × 5°
12V AC
12V AC
12V AC
12V AC
12V AC
Electrical
Bulb: All fixtures supplied with 12V, PAR36 bulb
A
Physical
Bulb Size: PAR36
Construction: Rubber handles
Cord Length:
Primary (for in-line transformer)—10'
Secondary—50'
Portable Lighting
Handlamps
Wet Location
Environmental
NEMA 4X
Primary
Cord Type
Secondary
Cord Type
NEMA
Configuration
Transformer
Type
Woodhead No.
Order No.
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
N/A
Non-NEMA
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 6-15
Battery clips
Workstation
In-line
In-line
In-line
In-line
In-line
1606
1647-12
1691-12B
1610
1691-12BS
1610S
1684S
130105-0032
130105-0057
130105-0064
130105-0033
130105-0065
130105-0034
130105-0062
Replacement Parts
Description
Guard, Vinyl Coated
Handle Assembly with Guard, No Switch
Handle Assembly with Guard, With Switch
Handlamps
Wet Location
No
Yes
Order No.
130112-0130
130112-0128
130112-0129
Features and Benefits
• NEMA 4X rating provides assurance for safe operation
in wet locations
• Low-voltage designs provide an added level of safety in
wet or conductive environments. The transformer must
remain outside of the conductive location.
Low Voltage
Floodlights
35W, 60W
Switch
Woodhead No.
1668
1660
1660S
Reference Information
UL File No.: E59049
CSA File No.: LR85374 (except switched versions and
1638-12)
Primary
Fixture Voltage
Secondary
Fixture Voltage
12V AC
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
12V AC
12V AC
12V AC
12V AC
Lamp Wattage
60W
35W
60W
35W
60W
Electrical
Bulb: All fixtures supplied with 12V, PAR36 bulb
Physical
Bulb Size: PAR36
Construction: Rubber handles
Cord Length:
Primary (for in-line transformer)—10'
Secondary—50'
Beam Spread: 110°
Environmental
NEMA 4X
Primary
Cord Type
Secondary
Cord Type
NEMA Configuration
Transformer Type
Woodhead No.
Order No.
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
14/2 SOOW
Non-NEMA
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Workstation
In-line
In-line
In-line
In-line
1638-12
1612
1692-12B
1612S
1692-12BS
130105-0048
130105-0035
130105-0066
130105-0036
130105-0067
Replacement Parts
Description
Guard, Vinyl Coated
Handle Assembly with Guard, No Switch
Handle Assembly with Guard, With Switch
www.molex.com/woodhead
Woodhead No.
1668
1660
1660S
Order No.
130112-0130
130112-0128
130112-0129
A-11
HANDLAMPS
WOODHEAD® OFFERS THE MOST EXTENSIVE LINE OF PORTABLE HANDLAMPS FOR USE IN WET, INDUSTRIAL AND COMMERCIAL ENVIRONMENTS
Task lighting in industrial environments can be a challenge for any process. Woodhead handlamps feature the most rugged, longest-lasting enclosures for use in all harsh environments:
wet location, industrial duty, commercial duty and general duty.
FEATURES AND
BENEFITS
APPLICATIONS
Wide variety
of light sources
Fixtures can be selected based on the actual
type and amount of light needed for the application
Wide variety of
enclosure ratings
Fixtures can be selected based on the application
requirements for material, moisture, ruggedness
The most rugged highperformance enclosures
Products can be used for extended periods in the
most harsh environments
• Electrical cabinets
• General task lighting
• Spray and washdown areas
• Vaults and inspection areas
Features and Benefits
• Wet location rated handlamps meet and exceed OSHA
requirements for wet location use
• Options on guards and globe types ensure the correct
configuration for the application
Wet Location
Incandescent
75W, 100W
Reference Information
UL File No.: E59251 (only grounded guards and 1220)
E59049 (1223, 1225 only)
CSA File No.: LR85374 (except polycarbonate globe)
Grounded Quick Open
Reflector
Guard
Guard
Insulated
Guard
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Guard Material
Globe Material
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
#8 Gauge Zinc-plated Steel
Cast Aluminum
Cast Aluminum
Cast Aluminum
Cast Aluminum
Cast Aluminum
Cast Aluminum
Cast Aluminum
Cast Aluminum
N/A
N/A
N/A
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Clear polycarbonate
Tempered glass
Tempered glass
Clear polycarbonate
Clear polycarbonate
Clear polycarbonate
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Clear polycarbonate
Tempered glass
Clear polycarbonate
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
Tempered glass
PTFE
PTFE
PTFE
Electrical
Voltage: 120V AC
A
Physical
Bulb Size: A21
Switch: No
Handle Construction:
Rubber for 1203 and 1207 series
Thermoset polyester for 1220 series
Portable Lighting
Handlamps
Watertite®
Environmental
NEMA Rating: NEMA 4X
Cord Type
NEMA
Configuration
16/3 SOOW
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
NEMA 5-15
7.62m (25.00')
15.24m (50.00')
30.48m (100.00')
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
7.62m
15.24m
15.24m
30.48m
16/3 SOOW
NEMA 5-15
7.62m (25.00')
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
7.62m
7.62m
15.24m
15.24m
16/3 SOOW
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
NEMA 5-15
7.62m (25.00')
15.24m (50.00')
30.48m (100.00')
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
NEMA 5-15
NEMA 5-15
7.62m (25.00')
15.24m (50.00')
16/2 SOOW
16/2 SOOW
NEMA 1-15
NEMA 1-15
7.62m (25.00')
15.24m (50.00')
Cord Length
(25.00')
(50.00')
(50.00')
(100.00')
(25.00')
(25.00')
(50.00')
(50.00')
Lamp Wattage
(max.)
Woodhead No.
Order No.
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
75W
100W
100W
75W
75W
75W
100W
100W
100W
100W
100W
100W
75W
100W
75W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
100W
1203
1203A163
1203B163
1203D163
1203GC
1203GCA163
1203GCB163
1203I
1203IA163
1203IB163
1203IB163P
1203ID163
1203IGC
1203P
1203PQOA163
1203PRI
1203QO
1203QOA163
1203QOB163
1203QOGC
1203R
1203RA163
1203RA163P
1203RB163
1203RB163P
1203RGC
1203RI
1203RIA163
1203RIB163
1203RID163
1207
1207A163
1207B163
1207GC
1207R
1207RA163
1207RB163
1207RGC
1220
1223
1225
130103-0014
130103-0015
130103-0016
130103-0017
130103-0018
130103-0019
130103-0020
130103-0021
130103-0022
130103-0024
130103-0025
130103-0026
130103-0027
130103-0029
130103-0030
130103-0034
130103-0035
130103-0036
130103-0037
130103-0038
130103-0041
130103-0042
130103-0043
130103-0044
130103-0045
130103-0048
130103-0049
130103-0050
130103-0052
130103-0054
130103-0055
130103-0056
130103-0057
130103-0058
130103-0060
130103-0061
130103-0062
130103-0063
130103-0064
130103-0065
130103-0066
Replacement Parts
Description
#8 Gauge Zinc-plated Steel Guard
#8 Gauge Zinc-plated Steel Guard, with Reflector
#8 Gauge Zinc-plated Steel Guard, Quick-Open
Glass Globe
Polycarbonate Globe
Teflon Globe with Hook
www.molex.com/woodhead
Woodhead No.
1255
1255R
1259
1253
41-6762
1229
Order No.
130112-0111
130112-0114
130112-0119
130191-0086
130112-0186
130112-0110
A-13
Portable Lighting
Handlamps
A Wet Location
®
Features and Benefits
• Wet location rated handlamps meet and exceed OSHA
requirements for wet location use.
• Fluorescent handlamps offer bright, diffused
illumination but remain cool to the touch
• Fluorescent bulbs and rubber design provide added
durability and safety
Watertite
Fluorescent
13W, 26W , 40W
A-14
Cord Length
7.62m (25.0')
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
7.62m (25.0')
Lumens
900
900
1800
1800
3150
Physical
Switch: Yes
Cord Type: 16/3 SJTOOW
Environmental
NEMA Rating: NEMA 4X
Reference Information
CSA File No.: LR85374
Lamp Wattage
13W
13W
26W
26W
40W
Electrical
Voltage: 120V AC, 60Hz
NEMA Configuration: NEMA 5-15 Watertite plug
Lamp Type
PL13/41
PL13/41
PL-C 26/41/4P
PL-C 26/41/4P
PL-L 40/41
Woodhead No.
1913SA
1913SB
1926SA
1926SB
1940SA
Order No.
130108-0170
130108-0173
130108-0179
130108-0181
130108-0183
www.molex.com/woodhead
Features and Benefits
• The Super-Safeway line of handlamps offer heavyduty construction and long operating life in the most
demanding operating applications
• Rubber handles and 8-gauge Steel guards provide
maximum protection for bulbs and electrical components
• Ergonomically designed fencer’s flange handle helps
protect users from accidentally touching a hot guard
• Available with or without a switch, outlet, quick-open or
insulated guard ensuring the correct configuration for
the application
Industrial Duty
Incandescent
100W Max.
Electrical
NEMA Configuration,
Product with Plug or Outlet: NEMA 5-15
Voltage: 240V max.
A
Physical
Bulb Size: A21
Handle Construction: Rubber
Guard Material: 8-gauge Zinc-plated Steel
Guard Style: Closed end, 75–100W with reflector
Portable Lighting
Handlamps
Super-Safeway™
Reference Information
UL File No.: E59251
CSA File No.: LR85374
Handle Assembly
Guard
Replacement Handle Assembly
Outlet
Switch
Yes
None
No
Yes
Side
No
Woodhead
Number
1174
1174
1174
1174
1174
1174
1174
1174
1173
1173
1173
1173
1173
1173
1173
1173
1173
1175US
1175US
1175US
1175US
1175US
1175US
1175US
1175US
1175US
1175U
1175U
1175U
1175U
1175U
1175U
1175U
1175U
1175U
www.molex.com/woodhead
Order No.
130102-0207
130102-0207
130102-0207
130102-0207
130102-0207
130102-0207
130102-0207
130102-0207
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
Guard Style
Quick Open
Quick Open
Quick Open
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Quick Open
Quick Open
Quick Open
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Quick Open
Quick Open
Quick Open
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Quick Open
Quick Open
Quick Open
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Screw Release
Insulated
Guard
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Complete Light
Replacement Guard
Woodhead
Number
1166
1166
1166
1156
1156
1156
1156IG
1156IG
1166
1166
1166
1156
1156
1156
1156IG
1156IG
1156IG
1166
1166
1166
1156
1156
1156
1156IG
1156IG
1156IG
1166
1166
1166
1156
1156
1156
1156IG
1156IG
1156IG
Order No.
130112-0105
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
130112-0087
130112-0087
130112-0105
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
130112-0087
130112-0087
130112-0087
130112-0105
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
130112-0087
130112-0087
130112-0087
130112-0105
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
130112-0087
130112-0087
130112-0087
Cord Type
Cord Length
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
Woodhead
Number
Order No.
105S
105SA163
105SB163
106S
106SA163
106SB163
106SI
106SIB163
105
105A163
105B163
106
106A163
106B163
106I
106IA163
106IB163
105US
105USA163
105USB163
106US
106USA163
106USB163
106USI
106USIA163
106USIB163
105U
105UA163
105UB163
106U
106UA163
106UB163
106UI
106UIA163
106UIB163
130102-0083
130102-0084
130102-0085
130102-0101
130102-0102
130102-0103
130102-0106
130102-0107
130102-0080
130102-0081
130102-0082
130102-0095
130102-0096
130102-0097
130102-0098
130102-0099
130102-0100
130102-0090
130102-0091
130102-0093
130102-0114
130102-0117
130102-0120
130102-0123
130102-0124
130102-0125
130102-0086
130102-0087
130102-0088
130102-0108
130102-0109
130102-0110
130102-0111
130102-0112
130102-0113
A-15
Portable Lighting
Handlamps
™
A Super-Safeway
Features and Benefits
• The Super-Safeway line of handlamps offer heavyduty construction and long operating life in the most
demanding operating applications
• Unique quick-open nylon guard runs cooler than
standard metal guards
• Available with or without switch or outlet ensuring the
correct configuration for the application
Industrial Duty
Incandescent, 100W Max.
Reference Information
UL File No.: E59251
CSA File No.: LR85374
Outlet
Replacement Handle Assembly
Switch
Order No.
Woodhead Number
Order No.
1173
130102-0204
1168
130112-0106
None
Side
Side
Yes
A-16
130102-0212
130102-0204
1168
130112-0106
16/3 SOOW
7.62m (25.00')
118A163
130102-0213
1168
130112-0106
16/3 SOOW
15.24m (50.00')
118B163
130102-0214
118S
130102-0215
118SA163
130102-0216
1174
130102-0207
1168
130112-0106
1174
130102-0207
1168
130112-0106
16/3 SOOW
7.62m (25.00')
1174
130102-0207
1168
130112-0106
16/3 SOOW
15.24m (50.00')
118SB163
130102-0217
No
1175U
130102-0210
1168
130112-0106
16/3 SOOW
15.24m (50.00')
118UB163
130102-0221
1175US
130102-0211
1168
130112-0106
118US
130102-0222
1175US
130102-0211
1168
130112-0106
16/3 SOOW
7.62m (25.00')
118USA163
130102-0223
1175US
130102-0211
1168
130112-0106
16/3 SOOW
15.24m (50.00')
118USB163
130102-0224
Features and Benefits
• The Super-Safeway line of handlamps offer heavyduty construction and long operating life in the most
demanding operating applications
• Rubber handles and 8-gauge Steel guards provide
maximum protection for bulbs and electrical
components
• Ergonomically designed fencer’s flange handle helps
protect users from accidentally touching a hot guard
• Available with or without a switch, outlet, reflector or
insulated guard ensuring the correct configuration for
the application
Reference Information
CSA File No.: LR85374
Electrical
NEMA Configuration,
Product with Plug or Outlet: NEMA 5-15
Voltage: 240V max.
Physical
Bulb Size: A21
Handle Construction: Rubber
Guard Material: 8-gauge Zinc-plated Steel
Guard Style: Open end, 75–100W
Guard
Replacement Handle Assembly
No
Order No.
118
130102-0204
Handle Assembly
No
Woodhead Number
1173
Industrial Duty
Incandescent, 100W Max.
None
Cord Length
Yes
Yes
Switch
Complete Light
Cord Type
1173
Handlamps
Super-Safeway™
Outlet
Physical
Bulb Size: A21
Handle Construction: Rubber
Guard Material: Nylon
Guard Style: Closed end, 75–100W, quick open
Replacement Guard
Woodhead Number
No
Electrical
NEMA Configuration,
Product with Plug or Outlet: NEMA 5-15
Voltage: 240V max.
Woodhead
Number
Order No.
1173
1173
1173
1173
1175U
1175U
1175U
1175U
1175U
1175U
1175U
1175US
1175US
1175US
1175US
1175US
1175US
130102-0204
130102-0204
130102-0204
130102-0204
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
Complete Light
Replacement Guard
Reflector
Insulated Guard
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Woodhead
Number
Order No.
1160
1164
1164
1164
1160
1160
1160
1164
1164
1164
1164IG
1160
1164
1164
1164IG
1164
1164IG
130112-0092
130112-0099
130112-0099
130112-0099
130112-0092
130112-0092
130112-0092
130112-0099
130112-0099
130112-0099
130112-0101
130112-0092
130112-0099
130112-0099
130112-0101
130112-0099
130112-0101
Cord Type
Cord Length
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
7.62m
7.62m
15.24m
15.24m
(25.00')
(25.00')
(50.00')
(50.00')
Woodhead
Number
Order No.
110
114
114A163
114B163
110U
110UA163
110UB163
114U
114UA163
114UB163
114UI
110US
114US
114USA163
114USIA163
114USB163
114USIB163
130102-0138
130102-0167
130102-0168
130102-0169
130102-0140
130102-0141
130102-0142
130102-0171
130102-0172
130102-0173
130102-0176
130102-0143
130102-0177
130102-0178
130102-0183
130102-0180
130102-0184
www.molex.com/woodhead
Features and Benefits
• The Super-Safeway line of handlamps offer heavyduty construction and long operating life in the most
demanding operating applications
• Rubber handles and 8-gauge Steel guards provide
maximum protection for bulbs and electrical
components
• Ergonomically designed fencer’s flange handle helps
protect users from accidentally touching a hot guard
• Available with or without switch, outlet, reflector or
insulated guard ensuring the correct configuration for
the application
Industrial Duty
Incandescent
100W Max.
Electrical
NEMA Configuration,
Product with Plug or Outlet: NEMA 5-15
Voltage: 240V max.
A
Physical
Bulb Size: A23
Handle Construction: Rubber
Guard Material: 8-gauge Zinc-plated Steel
Guard Style: Open end, 200–300W
Portable Lighting
Hand Lamps
Super-Safeway™
Reference Information
CSA File No.: LR85374
Handle Assembly
Guard
Replacement Handle Assembly
Outlet
None
Switch
Woodhead
Number
Order No.
1173
1173
1173
1173
1173
1173
1173
1173
1174
1175U
1175U
1175U
1175U
1175U
1175U
1175U
1175U
1175US
1175US
1175US
1175US
1175US
1175US
1175US
1175US
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0204
130102-0207
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0210
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
130102-0211
No
Yes
No
Side
Yes
www.molex.com/woodhead
Complete Light
Replacement Guard
Reflector
Insulated Guard
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Woodhead
Number
Order No.
1161
1161
1161
1161IG
1165
1165IG
1165
1165IG
1161
1161
1161
1161
1161
1165
1165
1165
1165IG
1161
1161
1165
1165
1165
1165IG
1165
1165IG
130112-0095
130112-0095
130112-0095
130112-0097
130112-0102
130112-0104
130112-0102
130112-0104
130112-0095
130112-0095
130112-0095
130112-0095
130112-0095
130112-0102
130112-0102
130112-0102
130112-0104
130112-0095
130112-0095
130112-0102
130112-0102
130112-0102
130112-0104
130112-0102
130112-0104
Cord Type
Cord Length
16/3 SOOW
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
15.24m (50.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
15.24m (50.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
7.62m (25.00')
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
7.62m
7.62m
15.24m
15.24m
(25.00')
(25.00')
(50.00')
(50.00')
Woodhead
Number
Order No.
111
111A163
111B163
111IB163
115
115I
115B163
115IB163
111S
111U
111UA163
111UB163
111UIB163
115U
115UI
115UA163
115UB163
111US
111USA163
115US
115USI
115USA163
115USIA163
115USB163
115USIB163
130102-0145
130102-0146
130102-0148
130102-0152
130102-0185
130102-0189
130102-0188
130102-0190
130102-0153
130102-0158
130102-0159
130102-0160
130102-0163
130102-0192
130102-0196
130102-0193
130102-0194
130102-0164
130102-0165
130102-0198
130102-0201
130102-0199
130102-0202
130102-0200
130102-0203
A-17
Portable Lighting
Hand Lamps
™
A Super-Safeway
Features and Benefits
• The Super-Safeway line of hand lamps offer heavyduty construction and long operating life in the most
demanding operating applications
• Rubber handles and 8-gauge Steel guards provide
maximum protection for bulbs and electrical
components
• Ergonomically designed fencer’s flange handle helps
protect users from accidentally touching a hot guard
• Available with or without a switch or outlet ensuring the
correct configuration for the application
Industrial Duty
Incandescent
PAR38 Bulb
Handle Assembly
Outlet
Switch
No
None
Yes
Side
Yes
No
A-18
Physical
Bulb Size: PAR38
Handle Construction: Rubber
Guard Material: 8-gauge Zinc-plated Steel
Guard Style: Open end, PAR38
Guard
Replacement Handle Assembly
Woodhead Number
1173
1173
1173
1174
1174
1175US
1175US
1175U
Electrical
NEMA Configuration,
Product with Plug or Outlet: NEMA 5-15
Voltage: 240V max.
Order No.
130102-0204
130102-0204
130102-0204
130102-0207
130102-0207
130102-0211
130102-0211
130102-0210
Complete Light
Replacement Guard
Woodhead Number
1181
1181
1181
1181
1181
1181
1181
1181
Order No.
130112-0108
130112-0108
130112-0108
130112-0108
130112-0108
130112-0108
130112-0108
130112-0108
Cord Type
Cord Length
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
16/3 SOOW
7.62m (25.00')
16/3 SOOW
16/3 SOOW
7.62m (25.00')
15.24m (50.00')
Woodhead Number
Order No.
119
119A163
119B163
119S
119SA163
119US
119USA163
119UB163
130102-0226
130102-0227
130102-0228
130102-0229
130102-0230
130102-0234
130102-0235
130102-0233
www.molex.com/woodhead
Features and Benefits
• Fluorescent hand lamps offer bright, diffused
illumination but remain cool to the touch
• Fluorescent bulbs and rubber design provide added
durability and safety
• Dual hooks provide additional options for mounting
Industrial Duty
Fluorescent
4W, 8W, 15W, 30W
Switch
No
Lamp Wattage
4W
8W
15W
Yes
30W
Electrical
NEMA Configuration: NEMA 5-15
Voltage: 120V 60Hz
A
Physical
Handle Construction: Rubber
Cord Type: 18/3 SJTW
Portable Lighting
Hand Lamps
Super-Safeway™
Reference Information
UL File No.: E59049 (except 1013-3, 1015-3)
CSA File No.: LR85374
Ballast Location
Cord
Cord
Handle
Handle
Cord
Cord
Hand Lamps
Super-Safeway™
Cord Length
5.49m (18.00')
5.49m (18.00')
7.62m (25.00')
15.24m (50.00')
7.62m (25.00')
15.24m (50.00')
Lumens
95
300
910
910
2000
2000
Features and Benefits
• Fluorescent handlamps offer bright, diffused
illumination but remain cool to the touch
• Fluorescent bulbs and rubber design provide added
durability and safety
• Models available for European & Asian electrical
requirements
Industrial Duty
Fluorescent
13W, 27W, 40W
Lamp Type
F4/T5
F8/T5
F15/T8
F15/T8
F30/T8
F30/T8
Woodhead No.
1045
1049
1003-3
1005-3
1013-3
1015-3
Order No.
130108-0091
130108-0092
130108-0078
130108-0083
130108-0085
130108-0088
Physical
Handle Construction: Rubber
Guard Material: Butyrate
Reference Information
UL File No.: E59049 (only 120V AC 60Hz with switch and
ballast in handle)
CSA File No.: LR85374
Switch
Fixture Voltage
No
120V AC 60 Hz
120V AC 60 Hz
Yes
Lamp Wattage
Cord Type
16/3 SJTOW
18/3 SJTOOW
Ballast Location
Handle
Cord
16/3 SJTOW
Handle
13W
NEMA Configuration
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
230V AC 50 Hz
18/3 SJTOOW
27W
120V AC 60 Hz
40W
Cord
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
Cord Length
7.62m (25.00')
7.62m (25.00')
7.62m (25.00')
15.24m (50.00')
7.62m (25.00')
15.24m (50.00')
7.62m (25.00')
15.24m (50.00')
7.62m (25.00')
15.24m (50.00')
7.62m (25.00')
15.24m (50.00')
Lumens
Lamp Type
900
PL13/41
1800
PL-L27/41
3150
PL-L40/41
Woodhead No.
1086-3NS
1083-3NS
1086-3
1087-3
1083-3
1085-3
1083-3-P
1085-3-P
1093-3
1095-3
1097-3
1099-3
Order No.
130108-0134
130108-0122
130108-0128
130108-0136
130108-0106
130108-0125
130108-0123
130108-0126
130108-0139
130108-0143
130108-0144
130108-0149
Replacement Parts
Description
13W Replacement Lamp
27W Replacement Lamp
40W Replacement Lamp
1083-3 with Switch, Head Only
1086-3 with Switch & Ballast, Head Only
Shield Assembly for 13W Lights
www.molex.com/woodhead
Woodhead No.
34-0350
34-0130
34-0120
1083-3HON
1086-3HO
40-1040
Order No.
130191-0021
130191-0036
130191-0035
130112-0068
130108-0133
130112-0176
A-19
Portable Lighting
Hand Lamps
®
A Safeway
Features and Benefits
• Phenolic handle and 8-gauge Steel guard provide
rugged protection for bulb and electrical components
• Available with or without a switch, outlet or quickopen guard ensuring the correct configuration for
the application
Commercial Duty
Incandescent
100W Max.
Reference Information
UL File No.: E59251
CSA File No.: LR85374
Handle Assembly
Outlet
None
Switch
Yes
No
Side
Yes
A-20
Physical
Bulb Size: A21
Handle Construction: Phenolic
Guard Material: 8-gauge Zinc-plated Steel
Guard Style: Closed end, 75–100W with reflector
Guard
Replacement Handle Assembly
Woodhead No.
270-1
270-1
270-1
270-1
270-1
270-2
270-2
270-2
270-2
270-2
270-2
270-3
270-3
270-3
270-3
270-3
270-3
Electrical
NEMA Configuration,
Product with Plug or Outlet: NEMA 5-15
Voltage: 240V max.
Order No.
130102-0245
130102-0245
130102-0245
130102-0245
130102-0245
130102-0246
130102-0246
130102-0246
130102-0246
130102-0246
130102-0246
130102-0247
130102-0247
130102-0247
130102-0247
130102-0247
130102-0247
Guard Style
Quick Open
Screw Release
Quick Open
Screw Release
Quick Open
Screw Release
Complete Light
Replacement Guard
Woodhead No.
1166
1166
1156
1156
1156
1166
1166
1166
1156
1156
1156
1166
1166
1166
1156
1156
1156
Order No.
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
130112-0105
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
130112-0105
130112-0105
130112-0105
130112-0085
130112-0085
130112-0085
Cord Type
Cord Length
16/3 SJTOW
15.24m (50.0')
16/3 SJTOW
16/3 SJTOW
7.62m (25.0')
15.24m (50.0')
16/3 SJTOW
16/3 SJTOW
7.62m (25.0')
15.24m (50.0')
16/3 SJTOW
16/3 SJTOW
7.62m (25.0')
15.24m (50.0')
16/3 SJTOW
16/3 SJTOW
7.62m (25.0')
15.24m (50.0')
16/3 SJTOW
16/3 SJTOW
7.62m (25.0')
15.24m (50.0')
Woodhead No.
Order No.
276S
276SB163
271S
271SA163
271SB163
276U
276UA163
276UB163
271U
271UA163
271UB163
276US
276USA163
276USB163
271US
271USA163
271USB163
130102-0266
130102-0268
130102-0252
130102-0253
130102-0254
130102-0269
130102-0270
130102-0271
130102-0256
130102-0257
130102-0258
130102-0272
130102-0273
130102-0274
130102-0259
130102-0260
130102-0261
www.molex.com/woodhead
Commercial Duty
Incandescent
100W Max.
Cord Length
7.62m (25.0')
15.24m (50.0')
www.molex.com/woodhead
Features and Benefits
• Nylon handle with switch and outlet provides
convenience
• Quick-open guard makes bulb changes quick and easy
Reference Information
UL File No.: E59049
CSA File No.: LR85374
Woodhead No.
402
405
Electrical
NEMA Configuration: NEMA 5-15
Voltage: 120V AC 60Hz
A
Physical
Bulb Size: A21
Handle Construction: Nylon
Guard Material: 10-gauge Zinc-plated Steel
Guard Style: Quick open with reflector
Cord Type: 16/3 SJTOW
Outlet: Yes
Switch: Yes
Portable Lighting
Handlamps
Safeway®
Order No.
130109-0007
130109-0009
A-21
Portable Lighting
Handlamps
®
A Pro-Yellow
Commercial Duty
Incandescent
150W Max.
Cord Length
7.62m (25.0')
15.24m (50.0')
Handlamps
Pro-Yellow®
General Duty
Incandescent
100W Max.
Woodhead No.
WT6C-25
WT6C-50
Features and Benefits
• Hide-away guard rotates for easy bulb changes
• All plastic guard will run cooler than metal guards
• Elastomeric grips on handle improve comfort during use
Reference Information
UL File No.: E59049
Cord Length
6.10m (20.0')
A-22
Features and Benefits
Electrical
NEMA Configuration: NEMA 5-15
• Rating of 150W allows for maximum light output for
Voltage: 120V AC 60Hz
demanding applications
• Elastomeric grips on handle improve comfort during use
Physical
Bulb Size: A21
Reference Information
Handle Construction: Nylon
UL File No.: E59049
Guard Material: 10-gauge Zinc-plated Steel
Guard Style: Quick open with reflector
Cord Type: 16/3 SJTW
Outlet: Yes
Switch: Yes
Woodhead No.
WT3C-20
Order No.
130109-0026
130109-0027
Electrical
NEMA Configuration: NEMA 5-15
Voltage: 120V AC 60Hz
Physical
Bulb Size: A21
Handle Construction: Nylon
Guard Material: Polypropylene
Guard Style: Hide away
Cord Type: 18/3 SJTW
Outlet: No
Switch: Yes
Order No.
130109-0017
www.molex.com/woodhead
Commercial Duty
Fluorescent
26W
Cord Length
7.62m (25.0')
15.24m (50.0')
Handlamps
Pro-Yellow®
General Duty
Fluorescent
13W
Cord Length
6.10m (20.0')
www.molex.com/woodhead
Features and Benefits
• Fluorescent handlamps run cooler and are more durable
than incandescent
• The 26W lamp provides maximum light output in a
compact size
• Elastomeric grips on handle improve comfort during use
Reference Information
UL File No.: E59049
Lumens
1800
1800
Reference Information
UL File No.: E59049
Woodhead No.
WT3F-20
A
Physical
Bulb Size: PL-C26/41/4P
Handle Construction: Nylon
Guard Material: Polycarbonate
Cord Type: 18/3 SJTW
Outlet: No
Switch: Yes
Woodhead No.
WT6F-25
WT6F-50
Features and Benefits
• Fluorescent handlamps run cooler and are more durable
than incandescent
• The 13W lamp provides adequate light for most general
duty tasks
• Elastomeric grips on handle improve comfort during use
Lumens
900
Electrical
NEMA Configuration: NEMA 5-15
Voltage: 120V AC 60Hz
Portable Lighting
Handlamps
Pro-Yellow®
Order No.
130109-0028
130109-0029
Electrical
NEMA Configuration: NEMA 5-15
Voltage: 120V AC 60Hz
Physical
Bulb Size: PL13/41
Handle Construction: Nylon
Guard Material: Polycarbonate
Cord Type: 18/3 SJTW
Outlet: No
Switch: Yes
Order No.
130109-0020
A-23
WIDE-AREA LIGHTING
WOODHEAD® WIDE-AREA LIGHTING PRODUCTS OFFER AN EXTENSIVE RANGE
OF PORTABLE LIGHTING SOLUTIONS SUITABLE FOR RUGGED AND HARSH
APPLICATIONS FOR HAZARDOUS, WET AND INDUSTRIAL ENVIRONMENTS
The need for temporary wide-area lighting can arise in virtually any application. Woodhead offers
WKHODUJHVWDUUD\RISRUWDEOHOLJKWLQJÀ[WXUHVDQGYDULHWLHVRIOLJKWVRXUFHVWRPHHWDQ\OLJKWLQJ
QHHG7KHFRPELQDWLRQRIFRQQHFWLRQPHWKRGVDSSOLFDWLRQVW\OHVDQGHQYLURQPHQWDOFHUWLÀFDtions ensures these products will meet the requirements of any wide-area lighting application.
FEATURES AND
BENEFITS
APPLICATIONS
9DULHW\RI
light sources
)L[WXUHVFDQEHVHOHFWHGEDVHGRQWKHW\SH
and amount of light for the application
5DQJHRI
enclosure ratings
)L[WXUHVFDQEHVHOHFWHGEDVHGRQWKHDSSOLFDWLRQ
requirements for material, moisture, ruggedness
6HOHFWLRQRI
mounting methods
)L[WXUHVFDQEHLQVWDOOHGLQDYDULHW\
of applications
• Manufacturing
• Natural gas utility service vehicles
• Construction site lighting
• Petrochemical plant shut downs
• Utility plant shut downs
• Maintenance and Repair Operations (MRO)
LED
80W
Features and Benefits
• Rugged cast aluminum enclosure with unique rubber
lens gasket assembly provide superior strength and
durability, impact and corrosion resistance
• Four, 20W LED arrays that resist breakage during rough
handling and deliver 5270 lumens at 5100K color
temperature
• Operating rage of −40° C to +40° C allows for use in a
wide range of temperatures
• Versatile mounting clamp/handle/cord wrap and a
variety of electrical fitting options provide mounting
flexibility
Electrical
Voltage: 120 to 277VAC, 50/60Hz
Physical
Switch: No
Construction: Cast aluminum housing, polycarbonate lens
Environmental
NEMA Enclosure rating: NEMA 3 indoor/outdoor
Reference Information
QPS File No.: LR1111-2
Hazardous Locations: Class I, Division 2,
Groups B, C and D; Zone 2
Temperature Code: T4A/+120° C
Cord Type
14/3 SOOW
14/3 SOOW
12/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
12/3 SOOW
Cord Length-Primary
7.62m (25.0')
0.91m (3.0')
0.91m (3.0')
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
0.91m (3.0')
12/3 SOOW
0.91m (3.0')
14/3 SOOW
15.24m (50.0')
Wide Area Lights
Hazardous Duty
Fluorescent
110W
Cord Length-Secondary
Plug Type
NEMA 5-15, Watertite ®
Connector Type
0.91m (3.0')
0.91m (3.0')
0.91m (3.0')
0.91m (3.0')
0.91m (3.0')
NEMA 5-15, Watertite
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
90 Brad Power
Straight Brad Power
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
Straight Brad Power
Features and Benefits
• Rugged cast aluminum enclosure with unique rubber
lens gasket assembly provide superior strength and
durability, impact and corrosion resistance
• Two, 55W fluorescent lamps that are shock-mounted
resist breakage during rough handling
• Operating rage of −40° C to +40° C with a cold-start
temperature of −20° C or colder allows for use in a
wide range of temperatures
• Versatile mounting clamp/handle/cord wrap and a
variety of electrical fitting options provide mounting
flexibility
Woodhead No,
1076HZ25025143
1076HZ2F003143F003
1076HZ2F003123F003
1076HZ25050143
1076HZ2X025143X003
1076HZ2X050143X003
1076HZ2X003123X003
1076HZ21L19BPC
1076HZ2F003123
1076HZ21L1RBPC1L1R
1076HZ2X050143
Order No.
130243-0021
130243-0022
130243-0023
130243-0025
130243-0027
130243-0028
130243-0029
130243-0030
130243-0031
130243-0032
130243-0033
Electrical
Voltage: 120 to 277VAC, 50/60Hz
Physical
Switch: No
Construction: Cast aluminum housing, polycarbonate lens
Environmental
NEMA Enclosure rating: NEMA 3 indoor/outdoor
Reference Information
QPS File No.: LR1111
Hazardous Locations: Class I, Division 2,
Groups B, C and D; Zone 2
Temperature Code: T3A
Cord Type
14/3 SOOW
14/3 SOOW
12/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
12/3 SOOW
Cord Length-Primary
7.62m (25.0')
0.91m (3.0')
0.91m (3.0')
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
0.91m (3.0')
www.molex.com/woodhead
Cord Length-Secondary
Plug Type
NEMA 5-15, Watertite ®
Connector Type
0.91m (3.0')
0.91m (3.0')
0.91m (3.0')
0.91m (3.0')
0.91m (3.0')
NEMA 5-15, Watertite
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
NEMA 5-15, Haz Loc
Woodhead No,
1075HZ25025143
1075HZ2F003143F003
1075HZ2F003123F003
1075HZ25050143
1075HZ2X025143X025
1075HZ2X050143X050
1075HZ2X003123X003
Order No.
130243-0001
130243-0002
130243-0003
130243-0005
130243-0007
130243-0008
130243-0009
A-25
A
Portable Lighting
Wide Area Lights
Hazardous Duty
Portable Lighting
Wide Area Lights
A Industrial Duty
Tube Light
LED
40W, 72W
Lamp Length
1.22m (4.0')
1.22m (4.0')
1.22m (4.0')
1.22m (4.0')
0.61m (2.0')
0.61m (2.0')
0.61m (2.0')
0.61m (2.0')
A-26
Features and Benefits
• High-output LED
• Includes adjustable nylon strap for mounting
convenience
• Rubber end caps and reinforced channel ensure
durability
Electrical
Fixture Voltage: 120V AC
NEMA Configuration, Plug and Connector:
Watertite NEMA 5-15
Physical
Switch: No
Construction: Rubber end caps and butyrate shields
Reference Information
UL File No.: E174254
Fixture Wattage
72W
72W
72W
72W
40W
40W
40W
40W
Primary Cord Length
7.62m (25.0')
7.62m (25.0')
1.22m (4.0')
1.22m (4.0')
7.62m (25.0')
7.62m (25.0')
1.22m (4.0')
1.22m (4.0')
Feed-Thru Cord Length
Receptacle Max. Load
0.15m (6.0")
0.15m (6.0")
11A
11A
0.15m (6.0")
0.15m (6.0")
11A
11A
Woodhead No.
2000-LED
2001-LED
2002-LED
2003-LED
2010-LED
2011-LED
2012-LED
2013-LED
Order No.
130108-0300
130108-0301
130108-0302
130108-0303
130108-0304
130108-0305
130108-0306
130108-0307
www.molex.com/woodhead
Tube Light, Purged
Fluorescent
128W
Features and Benefits
• Purge light utilizes compressed air flowing through the
fixture to prevent the entry of explosive vapors
• Rubber end caps and bumpers provide protection for
the light during transport and use.
• 128W in a portable fixture provides maximum lighting
wherever needed.
• Velcro mounting strap included
Electrical
NEMA Configuration, Plug: Watertite NEMA 5-15
A
Physical
Switch: No
Construction: Rubber end caps and butyrate shields
Cord Type: 16/3 SOOW
Portable Lighting
Wide Area Lights
Hazardous Duty
Reference Information
CSA File No.: LR39801
Hazardous Locations: Class I, Division I, Groups B, C and D
Temperature Code: T5
Fixture Voltage
120VAC 60HZ
Fixture Wattage
128W
Wide Area Lights
Industrial Duty
Tube Light
Fluorescent
80W, 128W
Cord Length
7.62m (25.0')
Lumens
11400
Lamp Type
F32/T8
Features and Benefits
• Rubber end caps and bumpers provide protection for
the light during transport and use
• Up to 128W in a portable fixture provides maximum
lighting wherever needed
• Velcro mounting strap included for mounting
convenience
Reference Information
UL File No.: E174254 (except 2031-P)
CSA File No.: LR85374
Outlet
None
Feed-through
Fixture Voltage (max.) Fixture Wattage (max.)
120V AC 60 Hz
80W
120V AC 60 Hz
128W
120V AC 60 Hz
128W
120V AC 60 Hz
80W
120V AC 60 Hz
128W
120V AC 60 Hz
128W
230V AC 50 Hz
80W
www.molex.com/woodhead
Primary Cord Length
7.62m (25.00')
0.91m (3.00')
7.62m (25.00')
7.62m (25.00')
1.22m (4.00')
7.62m (25.00')
7.62m (25.00')
Secondary Cord Length
0.152m
0.152m
0.152m
0.152m
(6.00")
(6.00")
(6.00")
(6.00")
Woodhead No.
2000PLX25
Order No.
130108-0188
Electrical
NEMA Configuration, Plug and Connector:
NEMA 5-15 (except 2031-P, that has no plug
or connector)
Physical
Switch: No
Construction: Rubber end caps and butyrate shields
Cord Type: 16/3 SOOW
Fixture length: 95.6cm (37.6") for 80W
173.4cm (68.3") for 128W
Lumens
6300
11400
11400
6300
11400
11400
6300
Lamp Type
PL-L 40/41
F32/T8
F32/T8
PL-L 40/41
F32/T8
F32/T8
PL-L 40/41
Woodhead No.
2030
2003
2000
2031
2002
2001
2031-P
Order No.
130108-0199
130108-0194
130108-0187
130108-0202
130108-0193
130108-0191
130108-0203
A-27
Portable Lighting
Wide Area Lights
A Industrial Duty
Fluorescent
30W, 50W, 64W, 80W, 160W
Features and Benefits
• Multiple lamp wattages and fixture sizes mean the right
light for the job
• Rubber endcaps and reinforced center channel make
this the most durable temporary fluorescent fixture on
the market
• Feed-thru options make stringing multiple lights
together quick and easy
Electrical
Fixture Voltage: 120V 60 Hz max.
NEMA Configuration,
Plug and Connector: NEMA 5-15 Watertite®
Physical
Switch: No
Construction: Rubber end caps and butyrate shields
Cord Type; 16/3 SJOW
Reference Information
UL File No.: E174254 (except 1060 series)
CSA File No.: LR85374 (except 1060 series and -PL
versions)
Outlet
Fixture Wattage
(max.)
30W
50W
64W
80W
160W
30W
30W
50W
50W
64W
64W
80W
80W
160W
160W
None
Feed-through
Wide Area Lights
Industrial Duty
Low Voltage
Fluorescent
64W, 80W
Secondary Cord
Length
Primary Cord Length
7.62m
7.62m
7.62m
7.62m
7.62m
1.22m
7.62m
1.22m
7.62m
1.22m
7.62m
1.22m
7.62m
1.22m
7.62m
(25.0')
(25.0')
(25.0')
(25.0')
(25.0')
(4.0')
(25.0')
(4.0')
(25.0')
(4.0')
(25.0')
(4.0')
(25.0')
(4.0')
(25.0')
0.152m
0.152m
0.152m
0.152m
0.152m
0.152m
0.152m
0.152m
0.152m
0.152m
(6.00")
(6.00")
(6.00")
(6.00")
(6.00")
(6.00")
(6.00")
(6.00")
(6.00")
(6.00")
Lumens
Lamp Type
1820
4160
5700
6300
12600
1820
1820
4160
4160
5700
5700
6300
6300
12600
12600
F15/T8
F25/T8
F32/T8
PL-L 40/41
PL-L 40/41
F15/T8
F15/T8
F25/T8
F25/T8
F32/T8
F32/T8
PL-L 40/41
PL-L 40/41
PL-L 40/41
PL-L 40/41
Features and Benefits
• Low-voltage fixtures provide added safety in
conductive environments using Woodhead® low-voltage
workstations to provide the power
• Multiple lamp wattages and fixture sizes mean the right
light for the job
• Rubber end caps and reinforced center channel ensure
durability
• Feed-thru options make stringing multiple lights
together quick and easy
Fixture Length
62.5cm
108.3cm
138.8cm
77.2cm
138.8cm
62.5cm
62.5cm
108.3cm
108.3cm
138.8cm
138.8cm
77.2cm
77.2cm
138.8cm
138.8cm
(24.6")
(42.6")
(54.6")
(30.4")
(54.6")
(24.6")
(24.6")
(42.6")
(42.6")
(54.6")
(54.6")
(30.4")
(30.4")
(54.6")
(54.6")
Woodhead No.
Order No.
1324
1326
1350
1050-PL
1060-PL
1335
1334
1337
1336
1352
1351
1052-PL
1051-PL
1062-PL
1061-PL
130108-0151
130108-0155
130108-0162
130108-0094
130108-0103
130108-0157
130108-0156
130108-0160
130108-0158
130108-0167
130108-0164
130108-0101
130108-0098
130108-0105
130108-0104
Electrical
Fixture Voltage: 12V AC max.
NEMA Configuration, Plug and Connector: Non-NEMA
Power Source: 1640-12 workstation or equivalent
Physical
Switch: No
Construction: Rubber end caps and butyrate shields
Fixture Length: 63.6cm (30.4") for 80W
138.8cm (54.6") for 64W
Reference Information
UL File No.: E174254 (except 1051-12, 1052-12)
CSA File No.: LR85374
Outlet
None
Feed-through
A-28
Fixture Wattage (max.)
64W
80W
64W
80W
64W
80W
Primary Cord Length
7.62m (25.0')
7.62m (25.0')
7.62m (25.0')
7.62m (25.0')
1.22m (4.0')
1.22m (4.0')
Secondary Cord Length
0.152m
0.152m
0.152m
0.152m
(6.00")
(6.00")
(6.00")
(6.00")
Lumens
5300
6300
5300
6300
5300
6300
Lamp Type
F32/T8
PL-L 40/41
F32/T8
PL-L 40/41
F32/T8
PL-L 40/41
Woodhead No.
1050-12
1050-PL12
1051-12
1051-PL12
1052-12
1052-PL12
Order No.
130108-0093
130108-0095
130108-0097
130108-0099
130108-0100
130108-0102
www.molex.com/woodhead
Features and Benefits
• Heavy-duty mounting magnets mean easy installation
on many metal surfaces
• Feed-through connector option makes it easy to string
together multiple lights in a large area
• LED
LED Light
40W
Reference Information
UL File No.: E174254
Electrical
Fixture Voltage: 120V AC 60 Hz
NEMA Configuration: NEMA 5-15 (Watertite® connector on
feed-thru outlet)
Physical
Switch: No
Cord Type: 16/3 SJTOW
Construction: Cast Aluminum housing and polycarbonate
lens with heavy-duty mounting magnet
Environmental
Rating: Suitable for wet locations
Outlet
None
Feed-Through
Lamp Wattage
Primary Cord Length
3.04m (10.0')
3.04m (10.0')
2 x 20W
Secondary Cord Length
Woodhead No.
8565-LED
8565F-LED
0.152m (6.0")
Order No.
130110-0060
130110-0061
Replacement Parts
Description
Replacement Lens
Replacement Magnet
Wide Area Lights
Wet Location
HID Lighting
70W
Woodhead No.
37-8574
130112-0263
Order No.
130185-0471
130112-0263
Features and Benefits
• Heavy-duty mounting magnets mean easy installation
on many metal surfaces
• Feed-thru connector option makes it easy to string
together multiple lights in a large area
• Choice of metal halide or high-pressure sodium provides
the desired lighting for the application
Electrical
Fixture Voltage: 120V/60 Hz
NEMA Configuration: NEMA 5-15 (Watertite® connector on
feed thru outlet)
Reference Information
UL File No.: E174254
Physical
Switch: No
Cord Type: 16/3 SJTOW
Construction: Cast Aluminum housing and polycarbonate
lens with heavy-duty mounting magnet
Environmental
Rating: Suitable for wet locations
Outlet
Lamp Type
HPS
MH70
HPS
MH70
Feed-through
None
Lamp Wattage
70W
Primary Cord Length
3.04m (10.0')
3.04m (10.0')
3.04m (10.0')
3.04m (10.0')
Secondary Cord Length
0.305m (1.00')
0.305m (1.00')
Woodhead No.
8565F
8565F-MH
8565
8565-MH
Order No.
130110-0033
130110-0034
130110-0031
130110-0035
Replacement Parts
Description
Replacement Lens - 8565 Series
Replacement Magnet - 8565 Series
www.molex.com/woodhead
Woodhead No.
37-8574
37-8564
Order No.
130185-0471
130185-0558
A-29
A
Portable Lighting
Wide Area Lights
Wet Location
Portable Lighting
Wide Area Lights
A Industrial Duty
Halogen Floodlights
100W, 500W, 1000W
GFCI Outlet
Switch
No
No
Yes
Yes
Mount
Magnet
Magnet
Stand
Stand
Stand
Stanchion
Stanchion
Features and Benefits
• Heavy-duty Steel guards and Steel frames protect the
lamps and support the fixture for rigorous use
• Stanchion available with GFCI outlet for convenient,
safe auxiliary power
Physical
Lamp Type: Quartz halogen
Construction: Heavy-duty Steel guards and Steel frames
Reference Information
CSA File No.: LR85374 (8506 only)
Fixture Voltage (max.)
12V AC/DC
120V AC 60 Hz
12V AC/DC
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
120V AC 60 Hz
Lamp Wattage
100W
500W
100W
500W
1000W
500W (2)
500W (2)
NEMA Configuration
Non-NEMA
NEMA 5-15
Non-NEMA
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-20*
Cord Type
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
16/3 SOOW
12/3 SOOW
12/3 SOOW
Cord Length
7.62m (25.0')
7.62m (25.0')
7.62m (25.0')
7.62m (25.0')
7.62m (25.0')
0.457m (1.50')
0.457m (1.50')
Woodhead No.
8500M
8506M
8500
8506
8511
SBS2500
SBG2500
Order No.
130110-0021
130110-0022
130091-0192
130135-0323
130110-0023
130110-0043
130110-0042
* Receptacle is NEMA 5-15
Wide Area Lights
Commercial Duty
High Bay
Metal Halide
400W
Features and Benefits
• 400W metal halide bulb provides economical, efficient
temporary lighting on commercial, industrial and
residential construction sites
• Type “O” lamp and mogul socket complies with
NEC 2005 and ANSI C78.387 to prevent the use of lamps
without filament protection and increases job safety
• Spring-loaded hook and molded cordset allow for quick
installation on the job site
• Knock-outs on the wiring compartment provide easy
feed-thru connections or for connection to alternate
power sources
• 8575-MH-PS has NEC compliant pulse-start technology
Electrical
Fixture Voltage: 120V/60 Hz (with quad-tap ballast for
120V/208V/240V/277V, 60 Hz hardwiring)
NEMA Configuration, Plug: NEMA 5-15
Physical
Switch: No
Cord Type: 18/3 SJTW, 3' long with molded plug
Construction: 10-gauge plated wire guard, spring-loaded
hook, type O lamp and mogul socket included
Environmental
Rating: Suitable for damp locations
Reference Information
UL File No.: E174253 (8575-MH for use in Canada only)
Lamp Type
BT37/ED-37 Type O
BT37/ED-37 Type O
Lumens
36000
36000
Woodhead No.
8575-MH
8575-MH-PS
Order No.
130110-0038
130110-0050
Replacement Parts
Description
Wire Lamp Guard
Wire Frame Guard Cover (Bottom)
A-30
Woodhead No.
50-8575
50-8578
Order No.
130112-0196
130201-0750
www.molex.com/woodhead
Machine Lights
Industrial Duty
Fluorescent
13W, 26W, 27W, 40W
Mount Type
Magnetic-bracket
Screw-bracket
1
Physical
Switch: Yes
Construction: Rubber end caps and butyrate shields
Cord Length: 4.57m (15.0')
A
Portable Lighting
Features and Benefits
• Four different lamp wattages provide the right amount
of light for the application
• Fixed mount or temporary magnet mounting provide
flexibility to fit different machines
Reference Information
UL File No.: E174254 (except 24V rated product)
CSA File No.: LR85374
Primary Fixture Voltage
Lamp Wattage
Cord Type
24V DC
13W
13W
13W
26W
27W
40W
13W
13W
26W
27W
40W
18/3 SJTOOW
18/3 SJTOOW
16/3 SJTOOW
16/3 SJTOOW
18/3 SJTOOW
18/3 SJTOOW
18/3 SJTOOW
16/3 SJTOOW
16/3 SJTOOW
18/3 SJTOOW
18/3 SJTOOW
120V AC 60 Hz
120 VAC 60 Hz
NEMA Configuration
Lamp Type
Woodhead No.
Order No.
NEMA 5-15
NEMA 5-151
NEMA 5-151
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-151
NEMA 5-151
NEMA 5-15
NEMA 5-15
PL13/41
PL13/41
PL13/41
PL-C 26/41/4P
PL-L 27/41
PL-L 40/41
PL13/41
PL13/41
PL-C 26/41/4P
PL-L 27/41
PL-L 40/41
1083-3MM-24
1083-3MM
2113MS
2126MS
1093-3MM
1097-3MM
1083-3M
2113S
2126S
1093-3M
1097-3M
130108-0121
130108-0120
130108-0206
130108-0209
130108-0142
130108-0148
130108-0119
130108-0207
130108-0210
130108-0141
130108-0146
Includes Watertite® plug
Machine Lights
Industrial Duty
Features and Benefits
• Fixed mounting or temporary magnet mounting provide
flexibility to fit different machines
• Flexible neck designs allow for pinpoint accuracy in
directing light where it is needed most
Halogen
20W
Reference Information
CSA File No.: LR85374
Electrical
NEMA Configuration: NEMA 5-15
Voltage: 120V AC
Physical
Switch: Yes
Construction: 18/3 SJTO cord
Cord Length: 3.05m (10.0')
Environmental
NEMA Rating: Rain tight
Bulb Type
Quartz halogen
Quartz halogen
www.molex.com/woodhead
Mount Type
Magnet
Screw-bracket
Lens Material
Tempered glass
Tempered glass
Lamp Wattage
20W
20W
Woodhead No.
8540M
8540P
Order No.
130110-0026
130110-0027
A-31
STRINGLIGHTS
WOODHEAD® OFFERS THE LARGEST VARIETY OF STRINGLIGHTS CONSTRUCTED FOR RUGGED, RELIABLE SERVICE FOR INDUSTRIAL AND COMMERCIAL
SETTINGS
Ideal for lighting large areas, Woodhead stringlights are constructed for quick installation in a
wide range of industrial settings. Easy-to-replace repair parts assure quick, convenient serviceability. Heavy-duty guards protect bulbs and electrical components, prolonging service life
DQG UHGXFLQJ PDLQWHQDQFH IUHTXHQF\ DQG FRVWV $YDLODEOH LQ PDQ\ VWDQGDUG FRQÀJXUDWLRQV
WKHVH VWULQJOLJKWV FDQ EH PRGLÀHG WR DFFRPPRGDWH VSHFLÀF QHHGV DQG WR PHHW HOHFWULFDO
current demands.
FEATURES AND
BENEFITS
APPLICATIONS
NEo
¯TEX® rubber
molded construction
Provides the most abrasion- and chemical- resistant
stringlight available
Lamp-It-In-The-BoxTM
packaging
Makes installation easier and saves money for
the installer
Customizable designs
Woodhead can adapt the physical and electrical
FRQÀJXUDWLRQWRDYDULHW\RIFXVWRPHUV·DSSOLFDWLRQV
:LGHVWVHOHFWLRQ
of lighting strings
&XVWRPHUVZLOOÀQGDVWULQJOLJKWWRÀW
any application
• Backyards, carnivals, festivals
• Construction site lighting
5HÀQHU\VKXWGRZQOLJKWLQJ
• Shipyards
• Staging areas
• Utility plant shut downs
100W, 26W
12/3 SOOW
Bulb Type
Incandescent
Fluorescent
Lamp Wattage
100W
100W
26W
Stringlights
Watertite®
Wet Location
Features and Benefits
• The only portable, hazardous-duty stringlight that is
third-party certified as a complete assembly for use in
hazardous areas
• Strings include 7.62m (25') lead to allow for connection
to power outside of the hazardous area
• Cord is 600V rated and drops are molded rubber for the
highest level of durability
• Watertite® plug included
Electrical
NEMA Plug Configuration: NEMA 5-15
Voltage: 120V AC, 60 Hz
Reference Information
CSA File No.: LR39801
Hazardous Locations:
Class I, Division I, Groups C and D
Class II, Division I, Groups F and G
Class I, Zone 1, Group IIB
Environmental
NEMA Rating: NEMA 4X
Lamp Type
A21
A21
PL-C 26/41/4P
Cord Length
13.72m (45.0')
19.81m (65.0')
19.81m (65.0')
Number of Drops
3
5
5
Features and Benefits
• Strings include 7.62m (25') lead to allow for maximum
flexibility in supplying power
• Watertite plug included
• Cord is 600V rated and drops are molded rubber for the
highest level of durability
• Watertite plug included
100W, 26W
12/3 SOOW
Electrical
NEMA Plug Configuration: NEMA 5-15
Voltage: 120V AC, 60 Hz
Bulb Type
Lamp Wattage
Lamp Type
Incandescent
100W
A21
Fluorescent
26W
PL-C 26/41/4P
www.molex.com/woodhead
Cord Length
13.72m (45.0')
19.81m (65.0')
35.05m (115.0')
19.81m (65.0')
35.05m (115.0')
A
Physical
Cords: 12/3 SOOW with 14/3 SOOW drops
Drop Spacing: 3.05m (10') intervals
Fixture: Utilizes 61430 (incandescent) or
1090-HZ (fluorescent) handlamps
Tee Drop Construction: Rubber molded
Woodhead No.
340310A
340510A
342510A
Portable Lighting
Stringlights
Haztex®
Hazardous Location
Order No.
130104-0039
130104-0040
130106-0120
Physical
Cords: 12/3 SOOW with 14/3 SOOW drops
Drop Spacing: 3.05m (10') intervals
Fixture: Utilizes 1203 (incandescent) or
1926 (fluorescent) handlamps
Tee Drop Construction: Rubber molded
Environmental
NEMA Rating: NEMA 4X
Number of Drops
3
5
10
5
10
Woodhead No.
380310A
380510A
380010A
387510A
387010A
Order No.
130107-0039
130107-0040
130107-0038
130107-0043
130107-0042
A-33
Portable Lighting
Stringlights
™
A Super-Safeway
Industrial Duty
Features and Benefits
• Watertite® plug and connector included for quick
installation
• Cord is 600V rated and drops are molded rubber for
the highest level of durability
200W
Incandescent
12/3 SOOW
Physical
Lead Length: 1.52m (5')
Tail Length: 1.52m (5')
Drop Spacing: 3.05m (10') intervals
Sockets: 15.24m (50') string—5 sockets
30.48m (100') string—10 sockets
Neck Diameter: 44.45mm (1.75")
Socket Construction: Rubber molded
Reference Information
CSA File No.: LR85374 (for models that include guards)
Environmental
NEMA Rating: Rain Tight
Electrical
Voltage: 120V AC, 60 Hz
Guard Included
NEMA Configuration
Cord Length
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
NEMA 5-15
NEMA 5-20
377
NEMA L5-15
NEMA L5-20
NEMA 5-15
NEMA 5-20
No
NEMA L5-15
NEMA L5-20
Woodhead No.
323526
323126
323525
323125
323536
323136
323535
323135
323523
323123
323524
323124
323533
323133
323534
323134
Order No.
130106-0115
130106-0107
130106-0114
130106-0106
130106-0119
130106-0111
130106-0118
130106-0110
130106-0112
130106-0104
130106-0113
130106-0105
130106-0116
130106-0108
130106-0117
130106-0109
Complete Guard Family for Use with Super-Safeway Molded Stringlights which Feature 1¾" Neck Diameters
372
372V
377
378V
378
381R
377V
370
383
385
Stringlight Guards Replacement Parts
Lamp Description
Metal wire—bottom cover
Vinyl Coated
Yes
Metal wire
Yes
Yes
Clear polycarbonate
Clear polycarbonate with bottom cover
Clear polycarbonate—bottom cover
A-34
Type
A23
A23
A19, A21
A19, A21
PS25, PS30
PS25, PS30
A19, A21
A19, A21
Length
0.18m
0.18m
0.15m
0.15m
0.25m
0.25m
0.17m
0.17m
0.17m
(7.0")
(7.0")
(6.0")
(6.0")
(10.0")
(10.0")
(6.8")
(6.8")
(6.8")
Diameter
127.0mm
127.0mm
127.0mm
127.0mm
127.0mm
127.0mm
101.6mm
101.6mm
114.3mm
(5.0")
(5.0")
(5.0")
(5.0")
(5.0")
(5.0")
(4.0")
(4.0")
(4.5")
Woodhead No.
370
372
372V
377
377V
378
378V
381R
383
385
Order No.
130112-0160
130112-0161
130112-0162
130112-0163
130112-0164
130114-0019
130112-0166
130112-0171
130112-0173
130112-0174
www.molex.com/woodhead
Features and Benefits
• Super-Safeway plug included for quick installation
• Cord is 600V rated and sockets assemblies are rubber
for the highest level of durability
• Easy-to-replace socket parts assure quick, convenient
serviceability
200W
Incandescent
12/3 SOOW, 14/3 SOOW
Reference Information
CSA File No.: LR85374
Electrical
Voltage: 120V AC, 60 Hz
A
Physical
Lead Length: 3.05m (10')
String Length: 30.48m (100')
Drop Spacing: 3.05m (10') intervals
Sockets: 10 per per string
Guard: 362 included
Neck Diameter: 38.1mm (1.5")
Socket Construction: Assembled
Portable Lighting
Stringlights
Super-Safeway™
Industrial Duty
Environmental
NEMA Rating: Rain Tight
Cord Type
NEMA Configuration
NEMA 5-15
NEMA 5-20
NEMA L5-15
NEMA L5-20
NEMA 5-15
NEMA L5-15
12/3 SOOW
14/3 SOOW
Woodhead No.
310123
310323
310223
310423
310143
310243
Order No.
130107-0030
130107-0032
130107-0046
130107-0033
130107-0031
130106-0097
Lamp Holders for Assembled Stringlights
Description
Lamp holder with screw clamp cord grip
Lamp holder with three wire NEMA 5-15 receptacle
Lamp holder with weather resistant cord grip
Lamp holder with weather resistant cord grip
Lamp holder with screw clamp cord grip
Max. Lamp Wattage
200W
Guard Included
200W
200W
200W
Woodhead No.
300
302U
300W
310W
310
362
362
Order No.
130107-0024
130107-0028
130107-0025
130107-0034
130107-0029
Replacement Parts
Description
Super-Safeway lamp holder cover (300 and 310)
Super-Safeway housing (300 and 310)
Woodhead No.
305
306
Pigtail Sockets and
Lampholders
Watertite®
Features and Benefits
• Rubber construction with water-resistant lip molds
around bulb to form a seal
• Ceramic base interior with full-thread, medium-base
Copper screw shell mean a durable socket design
300W
Reference Information
CSA File No.: LR1533
600
Description
Socket with 4½" leads
Socket with 3½" cover plate
Socket with flange
Socket with flange for 3.5" or 4" boxes
www.molex.com/woodhead
601
603
Woodhead No.
600
601
603
606
Order No.
130112-0144
130191-0085
Electrical
Voltage: 600V
Power: 300W
Current: 15A max.
Physical
Lead Wires: 14 gauge
Neck Diameter: 38.1mm (1.5")
606
Order No.
130152-0016
130152-0020
130144-0094
130152-0021
A-35
Portable Lighting
Stringlights
®
A Safety Yellow
Commercial Duty
Features and Benefits
• Molded NEMA plug included for quick installation
• Cord is 300V rated and sockets are molded to withstand
hard usage
• 5000 includes Lamp-It-In-the-Box™ packaging to make
installing bulbs a snap
200W
Incandescent
Reference Information
UL File No.: E112216
Electrical
Voltage: 120V AC, 60 Hz
Physical
Lead Length: 2.44m (8')
Tail Length: 0.61m (2')
Drop Spacing: 3.05m (10') intervals
Sockets: 5 per string for 15.24m (50')
10 per string for 30.48m (100')
Bulb Size: A21
Neck Diameter: 38.1mm (1.5")
Socket Construction: Molded
Environmental
NEMA Rating: Rain Tight
Cord Type
14/2 SJTW
Cord Length
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
12/3 SJTW
NEMA Configuration
NEMA 1-15
NEMA 5-15
NEMA 5-15
Guard Included
STR101
None
None
Woodhead No.
5000
5003
5002
Order No.
130111-0027
130111-0031
130111-0030
Complete Guard Family for Use with 5000 Series Safety Yellow Stringlights or Assembled Stringlight Sockets that Feature 1½" Diameter Necks
362
362V
364
367
367V
368
364V
380R
382
Safety Yellow Stringlight Guards
Description
Vinyl Coated
Yes
Metal wire guard
Yes
Yes
Clear polycarbonate guard
Clear polycarbonate guard with bottom cover
A-36
Lamp Type
A23
A23
PAR38, R40
PAR38, R40
A19, A21
A19, A21
PS25, PS30
A19, A21
A19, A21
Length
0.18m (7.0")
0.18m (7.0")
0.19m (7.5")
0.19m (7.5")
0.15m (6.0")
0.15m (6.0")
0.25m (10.0")
0.17m (6.8")
0.17m (6.8")
Diameter
127.0mm (5.0")
127.0mm (5.0")
165.1mm (6.5")
165.1mm (6.5")
127.0mm (5.0")
127.0mm (5.0")
127.0mm (5.0")
114.3mm (4.5")
114.3mm (4.5")
Woodhead No.
362
362V
364
364V
367
367V
368
380R
382
Order No.
130114-0017
130112-0153
130114-0018
130112-0154
130112-0156
130112-0157
130112-0158
130112-0169
130112-0172
www.molex.com/woodhead
Features and Benefits
• Multiple options give you the right product for the job
• 302SRL series includes Lamp-It-In-the-Box™ packaging
to make installing bulbs a snap
Reference Information
UL File No.: E112216 (see table)
150W
Incandescent
Cord Type
14/2
14/2 SJTW
12/2 TC
Electrical
Voltage: 120V AC, 60 Hz
NEMA Configuration
N/A
NEMA 1-15
Guard Included
STR101
STR105
STR101
STR101
STR101
Socket Construction
Assembled
Molded
Assembled
Assembled
Assembled
Physical
Lead Length: 2.44m (8')
Tail Length: 0.61m (2')
Drop Spacing: 3.05m (10') intervals
String Length: 30.48m (100')
Sockets: 10 per string
Bulb Type: A21
Neck Diameter: 38.1mm (1.5")
A
Portable Lighting
Stringlights
Pro-Yellow®
Commercial and
General Duty
Environmental
NEMA Rating: Rain Tight
Agency Certification
UL
cULus
Woodhead No.
202SRL
5030
302SRL
302SRLCA
302SRLCA-F*
Order No.
130111-0023
130111-0044
130111-0024
130111-0026
130111-0047
* 302SRLCA-F includes NEMA 1-15 Watertite® Connector
Guards—For Use with Pro-Yellow StringLights
Description
Yellow polypropylene for 202SRL, 302SRL, 302SRLCA
Yellow polypropylene for 5030
www.molex.com/woodhead
Woodhead No.
STR101
STR105
Order No.
130112-0246
130112-0258
A-37
Reels
B
REELS
Standard-Duty Cord Reels
With Fluorescent Lights . .
With Incandescent Lights .
With Power Accessories . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Industrial-Duty Cable Reels . . . . . .
With Fluorescent and Incandescent
With Power Accessories . . . . . . . . .
Heavy Duty . . . . . . . . . . . . . . . . . .
Technical Information . . . . . . . . . .
Cable Reels Customization . . . . . .
Cable Reel RFQ . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
B-4
B-6
B-7
B-8
......
Lights .
......
......
......
......
......
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. B-9
B-11
B-12
B-13
B-15
B-16
B-17
SPECIALTY REELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-18
Hand Wind Reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-19
Welding Reels and Hose Reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-20
www.molex.com/woodhead
REELS
STANDARD-DUTY CORD REELS
Available in swing- or rigid-mount
versions; are renowned for their exceptional performance, long service life and ease
of maintenance in dry, indoor applications.
INDUSTRIAL-DUTY CABLE REELS
Includes Pow-R-Mite® and
Pow-R-Matic®; designed for the most demanding indoor and outdoor industrial applications.
HEAVY-DUTY HAND-WIND REELS
Designed with a robust steel construction
for the storage of extension cords, power cables, ropes and hoses; provide protection from
crimping, knots and damage
STANDARD-DUTY
CORD REELS
STANDARD-DUTY CORD REELS ARE RENOWNED FOR THEIR EXCEPTIONAL
PERFORMANCE, LONG SERVICE LIFE AND EASE OF MAINTENANCE IN DRY
INDOOR APPLICATIONS
Standard-duty cord reels are available in swing- or rigid-mount versions with a variety of options
and accessories. Constructed with precision electrical and mechanical components, standardduty cord reels are ideal for keeping hand lamps and power boxes accessible and out of the
way. These reels are suitable for use with portable-power supplies, mobile-material-handling
equipment and portable lighting.
FEATURES AND
BENEFITS
APPLICATIONS
+ROGVXSWRP
of standard-duty cord
,QFUHDVHVÁH[LELOLW\IRUKLJKHUFHLOLQJKHLJKWV
or longer distance use
$GMXVWDEOH
spring tension
0RGLÀHVWHQVLRQGHSHQGLQJRQZHLJKW
of accessory
Built-in
ratchet locks
Allows user to position cord at desired location
• Hospitals
• Maintenance shops
• Technical school centers
• Work benches
Features and Benefits
• Powder coated Steel construction provides durability
• Swing mount or rigid mount, enclosed or open drum to
fit any application
• Simple tension adjustment and ratchet disengagement
make it simple to customize for the job
Reference Information
UL File No.: E22769
CSA File No.: LR29921 (only 997, 997L, 998 and 998L)
Electrical
Voltage: 120 V AC
Physical
Construction: All reels include 2' primary cord
with plug
Working End: Flying leads and a ball stop
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Retraction Weight: Up to 3 lb
B
Reels
Cord Reels
Standard Duty
Environmental
NEMA Rating: NEMA 1
980/990/997
945-3
Cord Type
16/3 SJTOW
16/3 SJTOW
14/3 SJTOW
Current
6A
8A
11A
12/3 SJTOW
15A
12/3 SJTOW
20A
Plug
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA L5-15
NEMA 5-20
NEMA L5-20
Standard Duty Cord Reel 945-3 Dimensions
www.molex.com/woodhead
Cord Length
10.67m (35.0')
15.24m (50.0')
13.72m (45.0')
Construction
Steel
Steel/Polycarbonate
Steel/Polycarbonate
Mounting Style
Swinging
Rigid
Rigid
Retraction Weight
0.9kg (2.0 lb)
1.4kg (3.0 lb)
1.4kg (3.0 lb)
10.67m (35.0')
Steel/Polycarbonate
Rigid
1.4kg (3.0 lb)
10.67m (35.0')
Steel/Polycarbonate
Rigid
1.4kg (3.0 lb)
Woodhead No.
945-3
980
990
997
997L
998
998L
Order No.
130090-0009
130091-0013
130091-0045
130091-0085
130091-0210
130091-0202
130091-0205
Standard Duty Cord Reel 980/990/997/998 Dimensions
B-5
Cord Reels
Standard Duty
With Fluorescent Lights
13W
Reels
B
Features and Benefits
• Powder coated Steel construction provides durability
• Swing mount or rigid mount, enclosed or open drum to
fit any application
• Simple tension adjustment and ratchet disengagement
make it simple to customize for the job
• Rubber handle and butyrate guard mean a durable
light and non-conductive guard
• Bulb included in all models and auto-switch available
for ultimate convenience
Reference Information
UL File No.: E22769 (except auto-switch versions)
CSA File No.: LR29921 (only 980-83, 980-86,
990-83, 990-86)
Cord Reel
B-6
Base Reel
Woodhead No.
Order No.
945-3
130090-0009
980
130091-0013
990
130091-0045
Electrical
NEMA Configuration: NEMA 5-15 plug
Voltage: 120 V AC
Physical
Construction: All reels include 2' primary cord
with molded plug
Working End: Includes a ball stop and light, bulb included
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Environmental
NEMA Rating: NEMA 1
Cord Type
Cord Length
Ballast Location
Switch Location
16/3 SJTOW
10.67m (35.0')
Handle
16/3 SJTOW
16/3 SJTOW
16/3 SJTOW
14/3 SJTOW
14/3 SJTOW
14/3 SJTOW
15.24m
15.24m
15.24m
13.72m
13.72m
13.72m
Primary cord
Handle
Primary cord
Primary cord
Handle
Primary cord
(50.0')
(50.0')
(50.0')
(45.0')
(45.0')
(45.0')
Cord Reel with Light
Woodhead No.
Order No.
Handle
945-3-86
130090-0010
Handle
Handle
Auto switch on reel
Handle
Handle
Auto switch on reel
980-83
980-86
980A-83
990-83
990-86
990A-83
130091-0027
130091-0028
130091-0030
130091-0061
130091-0062
130091-0064
www.molex.com/woodhead
With Incandescent Lights
100W Incandescent,
30W Low Voltage Spot LIght
271US
Features and Benefits
• Powder coated Steel construction provides durability
• Swing mount or rigid mount, enclosed or open drum to
fit any application
• Simple tension adjustment and ratchet disengagement
make it simple to customize for the job
• Handlamps have switch and convenience outlet on
handle
• Spot light has switch and is wet location rated and low
volt (12V) for added safety
Electrical
NEMA Configuration: NEMA 5-15 plug
Voltage: 120 V AC
Physical
Construction: All reels include 2' primary cord
with molded plug
Working End: Includes a ball stop and light, bulb not
included (except for low voltage spot lights, which
include a bulb)
Switch: Included on handle
Low Voltage Spot Light Version: Includes 125V to 12V
Reference Information
transformer on primary side
UL File No.: E22769 (except reels with 1610S light fixture)
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
B
Reels
Cord Reels
Standard Duty
Environmental
NEMA Rating: NEMA 1
106US
1610S
Cord Reel
Base Reel
Woodhead No.
Order No.
945-3
130090-0009
980
990
www.molex.com/woodhead
130091-0013
130091-0045
Light Fixture
Woodhead No.
Order No.
Lamp
Wattage
10.67m (35.0')
1610S
130105-0034
30W
10.67m (35.0')
106US
130102-0114
100W
Cord Type
Cord Length
16/3 SJTOW
16/3 SJTOW
16/3 SJTOW
15.24m (50.0')
1610S
130105-0034
30W
16/3 SJTOW
15.24m (50.0')
271US
130102-0259
100W
14/3 SJTOW
13.72m (45.0')
1610S
130105-0034
30W
14/3 SJTOW
13.72m (45.0')
106US
130102-0114
100W
14/3 SJTOW
13.72m (45.0')
271US
130102-0259
100W
Convenience
Outlet on Handle
Cord Reel with Light
Woodhead No.
Order No.
965
130090-0018
NEMA 5-15
963
130090-0015
980-1610S
130091-0020
NEMA 5-15
980-271US
130091-0021
990-1610S
130091-0055
NEMA 5-15
990-106US
130091-0049
NEMA 5-15
990-271US
130091-0056
B-7
Cord Reels
Standard Duty
Reels
B
With Power Accessories
Connector, Duplex Outlet,
GFCI Duplex
3070-GFI
Features and Benefits
• Powder coated Steel construction provides durability
• Rigid mount, enclosed or open drum to fit any
application
• Simple tension adjustment and ratchet disengagement
make it simple to customize for the job
• Options from one to four outlets provide flexibility for
many applications
• GFCI version provides added protection of personnel
from electrical hazards associated with ground faults
Electrical
Voltage: 120 V AC
Physical
Construction: All reels include 2' primary cord
with plug
Working End: Includes a ball stop and connector or
outlet box
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Environmental
NEMA Rating: NEMA 1
Reference Information
UL File No.: E22769 (except reels with 3070-GFI and
Order Numbers 130091-0201 through 13091-0214)
CSA File No.: LR29921 (reels with 12/3 SJTOW only)
3000-1
1547
Cord Reel
Plug Type
NEMA 5-15
NEMA 5-20
Working End
Cord Type
Cord Length
Number of
Outlets
NEMA 5-15 Connector
16/3 SJTOW
10.67m (35.0')
Double Duplex Outlet Box, NEMA 5-15
16/3 SJTOW
Double Duplex Outlet Box, NEMA 5-15
Single Duplex GFCI Outlet Box, NEMA 5-15
NEMA 5-15 Connector
Double Duplex Outlet Box, NEMA 5-15
Single Duplex GFCI Outlet Box, NEMA 5-15
NEMA 5-15 Connector
Double Duplex Outlet Box, NEMA 5-15
Single Duplex GFCI Outlet Box, NEMA 5-15
GFCI Protected
Woodhead No.
Order No.
1
945-1547
130090-0008
10.67m (35.0')
4
966
130090-0019
16/3 SJTOW
16/3 SJTOW
14/3 SJTOW
14/3 SJTOW
14/3 SJTOW
12/3 SJTOW
12/3 SJTOW
12/3 SJTOW
15.24m
15.24m
13.72m
13.72m
13.72m
10.67m
10.67m
10.67m
(50.0')
(50.0')
(45.0')
(45.0')
(45.0')
(35.0')
(35.0')
(35.0')
4
2
1
4
2
1
4
2
980-3000
980-3070G
990-1547
990-3000
990-3070G
997-1547
997-3000
997-3070G
130091-0023
130091-0025
130091-0053
130091-0057
130091-0059
130091-0087
130091-0090
130091-0094
NEMA 5-20 Connector
12/3 SJTOW
10.67m (35.0')
1
998-1533
130091-0203
Single Duplex GFCI Outlet Box, NEMA 5-20
12/3 SJTOW
10.67m (35.0')
2
998-3070G20
130091-0204
Double Duplex Outlet Box, NEMA 5-20
12/3 SJTOW
10.67m (35.0')
4
998-3080
130091-0201
NEMA L5-20 Locking Connector
12/3 SJTOW
10.67m (35.0')
1
998L-2747
130091-0206
Single Duplex GFCI Outlet Box, NEMA 5-20
12/3 SJTOW
10.67m (35.0')
2
998L-3070G20
130091-0207
NEMA 5-20 Connector
12/3 SJTOW
10.67m (35.0')
1
998L-1533
130091-0208
Double Duplex Outlet Box, NEMA 5-20
12/3 SJTOW
10.67m (35.0')
4
998L-3080
130091-0209
NEMA 5-15 Connector
12/3 SJTOW
10.67m (35.0')
1
997-1547
130091-0087
Single Duplex GFCI Outlet Box, NEMA 5-15
12/3 SJTOW
10.67m (35.0')
2
997-3070G
130091-0094
Double Duplex Outlet Box, NEMA 5-15
12/3 SJTOW
10.67m (35.0')
4
997-3000
130091-0090
NEMA L5-15 Locking Connector
12/3 SJTOW
10.67m (35.0')
1
997L-2547
130091-0211
Single Duplex GFCI Outlet Box, NEMA 5-15
12/3 SJTOW
10.67m (35.0')
2
997L-3070G
130091-0212
NEMA 5-15 Connector
12/3 SJTOW
10.67m (35.0')
1
997L-1547
130091-0213
Double Duplex Outlet Box, NEMA 5-15
12/3 SJTOW
10.67m (35.0')
4
997L-3000
130091-0214
Yes
Yes
Yes
Yes
Yes
NEMA L5-20, Locking
NEMA 5-15
Yes
Yes
NEMA L5-15, Locking
B-8
www.molex.com/woodhead
INDUSTRIAL-DUTY
CABLE REELS
INDUSTRIAL-DUTY CABLE REELS ARE DESIGNED FOR THE MOST DEMANDING
OF INDOOR/OUTDOOR INDUSTRIAL APPLICATIONS
Industrial-duty cable reels such as Pow-R-Mite® and Pow-R-Matic® are spring-powered reels
made of precision electrical and mechanical components to accommodate up to 48.8m (160')
of 16/3 AWG cable or up to 15.3m (50') of 6/3 AWG cable. Cable reels have NEMA-3 and
NEMA-4 ratings for indoor and outdoor use to protect against water and corrosion for weather
DQGGXVWUHVLVWDQFH3UHFLVLRQFROOHFWRUULQJVFDQEHVSHFLÀHGIRUXSWRFRQGXFWRUV
FEATURES AND
BENEFITS
APPLICATIONS
Containerized
mainspring
Provides easy and safe replacement of mainspring
NEMA-3 and
NEMA-4 enclosure
Provides personal protection against incidental
contact; designed for indoor and outdoor use
Anti-lock-out
ratchet system
Ensures user will never be locked out of a full
cable extension
Modular
collector rings
Enables easy replacement of collector rings
• Fire trucks
• Food and beverage
• Lifting magnets for cranes
• Movable equipment
• Overhead cranes
• Service vehicle
• Standard cranes
• Wastewater treatment
Cable Reels
Industrial Duty
Up to 50'
Retraction Weight 4 lb
Reels
B
Features and Benefits
• NEMA 4 rating provides protection to water or dust,
indoor and out
• Cable guide is adjustable every 5° over a 270°
arc allowing for the exact configuration to suit the
application
• Design prohibits annoying “lock-out” when cable is fully
extended
• Containerized main spring allow for safe, simple
handling and replacement
• Reels are constructed with spring tension to lift or
stretch cable with no more than 10% sag
Reference Information
UL File No.: E22769
CSA File No.: LR29921
Wire Gauge
16
14
12
10
Reel without Cable
Reference No.
095105203
095105203
095105204
095105204
095105206
095105208
095106208
095106210
095106212
095105203
095104203
095104204
095104204
095104206
095104208
095106208
095106210
095104203
095104203
095106203
095104204
095106204
095106206
095106208
095105203
095106203
095106204
095106206
Cable Range
up to 50'
up to 50'
up to 50'
up to 50'
up to 50'
up to 38'
38-50'
up to 40'
up to 40'
up to 25'
25-50'
up to 50'
up to 50'
up to 40'
up to 20'
20-30'
up to 20'
up to 35'
up to 35'
35-50'
up to 30'
30-40'
up to 30'
up to 20'
up to 30'
30-40'
up to 30'
up to 20'
Conductors
Current
3
3
4
4
6
8
8
10
12
3
3
4
4
6
8
8
10
3
3
3
4
4
6
8
3
3
4
6
9A
9A
7A
7A
7A
6A
6A
5A
5A
13A
13A
11A
11A
11A
8A
8A
7A
18A
18A
18A
14A
14A
14A
12A
22A
22A
16A
14A
Electrical
Cord/Cable: SOW, 600V rated
Collector Ring Rating: 30A
Physical
Primary Cord Entry: 1" NPT
Construction: Cast Aluminum with yellow powder coat finish
Working End: Flying leads; ball stop not included
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access
Spring: Containerized, easily replaceable
Environmental
NEMA Rating: NEMA 4
Cable Length
Woodhead No.
Order No.
9.14m
15.24m
9.14m
15.24m
13.72m
11.58m
15.24m
9.14m
9.14m
7.62m
15.24m
7.62m
13.72m
10.67m
6.10m
9.14m
6.10m
7.62m
10.67m
15.24m
9.14m
12.19m
9.14m
(30.0')
(50.0')
(30.0')
(50.0')
(45.0')
(38.0')
(50.0')
(30.0')
(30.0')
(25.0')
(50.0')
(25.0')
(45.0')
(35.0')
(20.0')
(30.0')
(20.0')
(25.0')
(35.0')
(50.0')
(30.0')
(40.0')
(30.0')
9224
9228
9234
9238
9206
9208
92481
92401
92411
9253
9358
9363
9367
9306
9308
92482
92402
9383
9385
92433
9394
92443
92463
130083-0224
130083-0225
130083-0227
130083-0228
130083-0222
130083-0223
130083-0239
130083-0229
130083-0231
130083-0242
130083-0249
130083-0262
130083-0263
130083-0247
130083-0248
130083-0240
130083-0230
130083-0264
130083-0279
130083-0232
130083-0284
130083-0234
130083-0237
6.10m
12.19m
9.14m
6.10m
(20.0')
(40.0')
(30.0')
(20.0')
9242
92434
92444
92464
130084-0318
130083-0233
130083-0236
130083-0238
Note: Use pivot base 9501
Reel Dimensions
13.50
(34.3)
6.97
(17.7)
4.58
(11.6)
2.28(15.8)
R9.68
(24.6)
14.50
(36.8)
15.9
(38.6)
06.50
(16.5)
3.25
(8.3)
7.75
(19.7)
4.44
(11.3)
7.25
(18.4)
B-10
.65
(1.7)
1˚ N.P.T.
Line entry
0.47(1.2)
thru 2-places
.94
(2.4)
5.66 (14.4)
6.88 (17.5)
9.62 (24.4)
3 OR 4 COND.
10.82 (27.4)
6 OR 8 COND.
12.93 (32.8)
10 OR 12 COND.
www.molex.com/woodhead
Features and Benefits
• NEMA 4 (reel only) rating provides protection to water
or dust, indoor and out
• Cable guide is adjustable every 5° over a 270°
arc allowing for the exact configuration to suit the
application
• Design prohibits annoying “lock-out” when cable is fully
extended
• Containerized main spring allow for safe, simple
handling and replacement
• Rubber handle and butyrate guard mean a durable
light and non-conductive guard
• Switch in handle and bulb included for ultimate
convenience
With Fluorescent Lights
13W
Electrical
Cord/Cable: SOW, 600V rated
Collector Ring Rating: 30A
Physical
Primary Cord Entry: 1" NPT
Construction: Cast Aluminum with yellow powder coat finish
Working End: Has handlamp with ball stop included
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access
Spring: Containerized, easily replaceable
Environmental
NEMA Rating: NEMA 4 (reel only)
Reference Information
UL File No.: E22769
Cord Reel
Base Reel
Cord Type
Cord Length
130083-0224
16/3 SOW
130083-0225
16/3 SOW
Woodhead No.
Order No.
9224
9228
Cable Reels
Industrial Duty
Order No.
9.14m (30.0')
9224-86
130083-0767
15.24m (50.0')
9228-86
130083-0775
Features and Benefits
• NEMA 4 (except handlamp) rating provides protection
to water or dust, indoor and out
• Cable guide is adjustable every 5° over a 270°
arc allowing for the exact configuration to suit the
application
• Design prohibits annoying “lock-out” when cable is fully
extended
• Containerized main spring allow for safe, simple
handling and replacement
• Handlamps have switch and convenience outlet on
handle
• Spot light has switch and is wet location rated and low
volt (12V) for added safety
With Incandescent Lights
100W Incandescent,
30W Low Volt Spot Light
Cord Reel with Light
Woodhead No.
Reference Information
UL File No.: E22769 (only 9228-106US)
Electrical
Cord/Cable: SOW, 600V rated
Collector Ring Rating: 30A
Physical
Primary Cord Entry: 1" NPT
Construction: Cast aluminum with yellow powder coat finish
Working End: Includes a ball stop and light, bulb not
included (except for low voltage spot lights, which
include a bulb)
Switch: Included on handle
Low Voltage Spot Light Version: Includes 125V to 12V
transformer on primary side
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access
Spring: Containerized, easily replaceable
Environmental
NEMA Rating: NEMA 4 (except handlamp)
1610S
106US
Cord Reel
Base Reel
Woodhead No.
9224
Order No.
130083-0224
9228
130083-0225
9253
130083-0242
9358
130083-0249
www.molex.com/woodhead
Cord Type
16/3 SOW
16/3 SOW
16/3 SOW
14/3 SOW
14/3 SOW
14/3 SOW
Cord Length
9.14m
15.24m
15.24m
7.62m
15.24m
15.24m
(30.0')
(50.0')
(50.0')
(25.0')
(50.0')
(50.0')
Light Fixture
Lamp Wattage
1610S
106US
1610S
1610S
106US
1610S
30W
100W
30W
30W
100W
30W
Convenience
Outlet on Handle
NEMA 5-15
NEMA 5-15
Cord Reel with Light
Woodhead No.
9224-1610S
9228-106US
9228-1610S
9253-1610S
9358-106US
9358-1610S
Order No.
130083-0766
130083-0772
130083-0773
130083-0245
130083-0250
130083-0852
B-11
B
Reels
Cable Reels
Industrial Duty
Cable Reels
Industrial Duty
Reels
B
With Power Accessories
Connector, Duplex Outlet,
GFCI Duplex
3070-GFI
Features and Benefits
• NEMA 4 (reel only) rating provides protection to water
or dust, indoor and out
• Cable guide is adjustable every 5° over a 270°
arc allowing for the exact configuration to suit the
application
• Design prohibits annoying “lock-out” when cable is fully
extended
• Containerized main spring allow for safe, simple
handling and replacement
• Options from one to four outlets provide flexibility for
many applications
• GFCI version provides added protection of personnel
from electrical hazards associated with ground faults
Electrical
Cord/Cable: SOW, 600V rated
Collector Ring Rating: 30A
Physical
Primary Cord Entry: 1" NPT
Construction: Cast Aluminum with yellow powder coat finish
Working End: Includes a ball stop and connector or
outlet box
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access; easily replaceable spring
Environmental
NEMA Rating: NEMA 4 (reel only)
Reference Information
UL File No.: E22769 (except reels with 3070-GFI)
CSA File No.: LR29921 (except 9253-3000 and
reels with 3070-GFI)
3000-1
1547
Cord Reel
B-12
Base Reel
Woodhead No.
9253
Order No.
130083-0242
9358
130083-0249
9383
130083-0264
9385
130083-0279
92433
130083-0232
92434
130083-0233
Cord Type
14/3 SOW
14/3 SOW
14/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
12/3 SOW
10/3 SOW
Cord Length
7.62m
15.24m
15.24m
7.62m
7.62m
7.62m
7.62m
7.62m
10.67m
15.24m
15.24m
15.24m
15.24m
15.24m
12.19m
(25.0')
(50.0')
(50.0')
(25.0')
(25.0')
(25.0')
(25.0')
(25.0')
(35.0')
(50.0')
(50.0')
(50.0')
(50.0')
(50.0')
(40.0')
Power Accessory
Outlet Type
Number of
Outlets
3000-1
1547
3070-GFI
1547
3000-1
3070-GFI
1533
3080-10
3080-10
1547
3000-1
3070-GFI
1533
3080-10
3080-10
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-20
NEMA 5-20
NEMA 5-20
NEMA 5-15
NEMA 5-15
NEMA 5-15
NEMA 5-20
NEMA 5-20
NEMA 5-20
4
1
2
1
4
2
1
4
4
1
4
2
1
4
4
GFCI Protected
Yes
Yes
Yes
Cord Reel with Accessory
Woodhead No.
9253-3000
9358-1547
9358-3070G
9383-1547
9383-3000
9383-3070G
9383-1533
9383-3080
9385-3080
92433-1547
92433-3000
92433-3070G
92433-1533
92433-3080
92434-3080
Order No.
130083-0246
130083-0252
130083-0254
130083-0266
130083-0269
130083-0270
130083-0265
130083-0271
130083-0280
130083-0782
130083-0784
130083-0786
130083-0781
130083-0787
130083-0913
www.molex.com/woodhead
Features and Benefits
• Containerized main spring allow for safe, simple
handling and replacement
• Reels are constructed with spring tension to lift or
stretch cable with no more than 10% sag
20 to 70'
Retraction Weight 4 lb
Wire Gauge
16
14
12
10
8
6
Reels without Cable
Reference No.
10511303G0L000
10511304G0L000
10511306G0L000
10511308G0L000
10511310G0L000
10511312G0L000
10511303G0L000
10511304G0L000
10511306G0L000
10512306G0L000
10512308G0L000
10512310G0L000
10511312G0L000
10512312G0L000
10511303G0L000
10511304G0L000
10512306G0L000
10512308G0L000
10512303G0L000
10512304G0L000
10512304G0L000
10513306G0L000
10511403G0L000
10512403G0L000
10511404G0L000
10513404G0L000
1051340200L000
10513403G0L000
10513404G0L000
Cable Range
up to 70'
up to 70'
up to 70'
up to 70'
up to 50'
up to 50'
up to 70'
up to 70'
up to 50'
50-70'
up to 60'
up to 50'
up to 30'
30-40'
up to 70'
up to 60'
up to 60'
up to 50'
up to 70'
up to 70'
up to 70'
up to 50'
up to 30'
30-50'
up to 20'
30-40'
40-50'
up to 30'
up to 30'
Electrical
Cord/Cable: SOW and Type W, 600V rated
Collector Ring Rating: 30A for AWG sizes 10-16
Collector Ring Rating: 75A for AWG sizes 6 and 8
Physical
Construction: Steel with yellow powder coat finish
Ball Bearings: Bronze
Working End: Flying leads; ball stop not included
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access
Spring: Containerized, easily replaceable
Cable Type: SOW for 10-16 AWG
Type W for 6 and 8 AWG
Reference Information
CSA File No.: LR29921
Environmental
NEMA Rating: NEMA 3
Conductors
Current
3
4
6
8
10
12
3
4
6
6
8
10
12
12
3
4
6
8
3
4
4
6
3
3
4
4
2
3
4
10A
8A
8A
7A
5A
5A
15A
12A
12A
12A
10A
7A
7A
7A
20A
16A
14A
14A
25A
20A
20A
20A
35A
35A
28A
28A
45A
45A
36A
Cable Length
21.34m
21.34m
21.34m
21.34m
15.24m
15.24m
21.34m
21.34m
15.24m
21.34m
18.29m
15.24m
6.10m
12.19m
21.34m
18.29m
18.29m
15.24m
21.34m
15.24m
21.34m
15.24m
9.14m
15.24m
6.10m
12.19m
15.24m
9.14m
6.10m
B
Reels
Cable Reels
Heavy Duty
Woodhead No.
Order No.
92531N
92541N
92561N
92581N
92501AN
92511AN
92532N
92542N
92562AN
92562BN
92582N
92502N
92512AN
92512BN
92533N
92543N
92663
92583N
92534N
92544AN
92544BN
92564N
92535AN
92535BN
92545AN
92545BN
92526BN
92536N
92546N
130084-0129
130084-0138
130084-0146
130084-0150
130084-0119
130084-0121
130084-0131
130084-0139
130084-0147
130084-0148
130084-0151
130084-0120
130084-0123
130084-0124
130084-0132
130084-0140
130084-0155
130084-0152
130084-0133
130084-0141
130084-0142
130084-0149
130084-0134
130084-0135
130084-0143
130084-0144
130084-0128
130084-0136
130084-0145
(70.0')
(70.0')
(70.0')
(70.0')
(50.0')
(50.0')
(70.0')
(70.0')
(50.0')
(70.0')
(60.0')
(50.0')
(20.0')
(40.0')
(70.0')
(60.0')
(60.0')
(50.0')
(70.0')
(50.0')
(70.0')
(50.0')
(30.0')
(50.0')
(20.0')
(40.0')
(50.0')
(30.0')
(20.0')
Note: Use pivot base 9503
Heavy Duty Cable Reel Dimensions, 20 to 70'
1000 Series Reel
Woodhead Series No.
Without Cable
1051-x-303
1051-x-304
1051-x-306
1051-x-308
1051-x-310
1051-x-312
1051-x-402
1051-x-403
1051-x-404
www.molex.com/woodhead
Dimension A
423mm
423mm
423mm
479mm
479mm
479mm
423mm
423mm
479mm
(16.67")
(16.67")
(16.67")
(18.84")
(18.84")
(18.84")
(16.67")
(16.67")
(18.84")
Weight
(without Cable)
81 lb
81 lb
82 lb
82 lb
83 lb
83 lb
81 lb
81 lb
82 lb
B-13
Cable Reels
Heavy Duty
40 to 160'
Retraction Weight 7 lb
Reference Information
CSA File No.: LR29921
Reels
B
Features and Benefits
• Containerized main spring allow for safe, simple
handling and replacement
• Reels are constructed with spring tension to lift or
stretch cable with no more than 10% sag
Electrical
Cord/Cable: SOW and Type W, 600V rated
Collector Ring Rating: 30A for AWG sizes 10-16
Collector Ring Rating: 75A for AWG sizes 6 and 8
Physical
Construction: Steel with yellow powder coat finish
Ball Bearings: Bronze
Working End: Flying leads; ball stop not included
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access
Spring: Containerized, easily replaceable
Cable Type: SOW for 10-16 AWG,
Type W for 6 and 8 AWG
Environmental
NEMA Rating: NEMA 3R
Wire Gauge
16
14
12
10
8
6
Reels without Cable
Reference No.
114310303G0L
114310306G1L
114310308G1L
114310303G1L
114310304G1L
116505304G1L
116505306G2L
116505308G2L
116505310G3L
116505312G3L
114310303G1L
116505303G1L
114310304G2L
116505304G2L
116505308G3L
116505304G2L
116505306G3L
116505403G4L
116505404G5L
116505402J4L
116505403G5L
116505404G6L
Cable Range
up to 115'
up to 100'
up to 95'
up to 110'
up to 110'
110-160'
up to 115'
up to 90'
up to 60'
up to 60'
up to 95'
95-160'
up to 80'
80-140'
up to 60'
up to 120'
up to 85'
up to 85'
up to 60'
up to 65'
up to 50'
up to 40'
Conductors
Current
3
6
8
3
4
4
6
8
10
12
3
3
4
4
8
4
6
3
4
2
3
4
9A
7A
6A
13A
11A
11A
11A
8A
7A
6A
18A
18A
14A
14A
12A
16A
14A
35A
32A
55A
45A
44A
Cable Length
35.05m
30.48m
28.96m
33.53m
33.53m
48.77m
35.05m
27.43m
18.29m
18.29m
28.96m
48.77m
24.38m
42.67m
18.29m
36.58m
25.91m
25.91m
18.29m
19.81m
15.24m
12.19m
Woodhead No.
Order No.
92631*
92661*
92681*
92632*
92642*
92742 †
92762 †
92782 †
92702†
92712†
92633*
92733†
92643*
92743 †
92783 †
92744†
92764†
92735†
92745†
92726†
92736†
92746†
130085-0359
130085-0365
130085-0366
130085-0360
130085-0363
130085-0373
130085-0379
130085-0381
130085-0367
130085-0368
130085-0361
130085-0370
130085-0364
130085-0374
130085-0382
130085-0375
130085-0025
130085-0905
130085-0376
130085-0949
130085-0372
130085-0377
(115.0')
(100.0')
(95.0')
(110.0')
(110.0')
(160.0')
(115.0')
(90.0')
(60.0')
(60.0')
(95.0')
(160.0')
(80.0')
(140.0')
(60.0')
(120.0')
(85.0')
(85.0')
(60.0')
(65.0')
(50.0')
(40.0')
* Use pivot base 9504
†
Use pivot base 9505
Pivot Base
Reel Series
9200/9300/92400
92500
92600
92700
Heavy Duty Cable Reel Dimensions, 40 to 160'
Woodhead No.
9501
9503
9504
9505
Order No.
130226-1600
130226-1601
120226-1602
130086-0177
1100 Series Reel
Woodhead Series No.
Without Cable
1143-xx-303
1143-xx-304
1143-xx-306
1143-xx-308
1143-xx-402
1165-xx-303
1165-xx-304
1165-xx-306
1165-xx-308
1165-xx-310
1165-xx-312
1165-xx-402
1165-xx-403
1165-xx-404
B-14
Dimension W
416.1mm
416.1mm
466.9mm
466.9mm
466.9mm
527.1mm
527.1mm
577.9mm
577.9mm
628.9mm
628.9mm
577.9mm
577.9mm
577.9mm
(16.38")
(16.38")
(18.38")
(18.38")
(18.38")
(20.75")
(20.75")
(22.75")
(22.75")
(24.75")
(24.75")
(22.75")
(22.75")
(22.75")
Weight
(without Cable)
138 lb
138 lb
139 lb
140 lb
139 lb
188 lb
188 lb
189 lb
190 lb
191 lb
192 lb
189 lb
189 lb
190 lb
www.molex.com/woodhead
Woodhead® Industrial Cable reels are designed for top
performance, long life, and easy maintenance. Series
9200, 9300, and 92400 are perfect for mobile electrical
equipment, portable lighting, or hand-held power tools,
and can handle cord lengths up to 50'. For longer cord
lengths and heavier gauge cord, our 92500, 92600,
and 92700 cord reels are available and are ideal for
hoists, large electric tools, and moving equipment. All of
our industrial reels are suitable for vertical lift, vertical
recovery, and drag applications. We also have reels which
have the correct spring tension for horizontal stretch and
recovery applications. Where minimum cable sag is not
critical, our industrial cord reels can be used for stretch
service where an expected cable sag at mid-point of 10%
is allowable.
Applications
Cord reel applications include horizontal stretch, drag,
vertical lift, recovery, and vertical recovery. Different
applications require different variations in spring
tension for optimal performance. Definition of cord reel
applications are below.
Horizontal Stretch
Cable is suspended in the air, supported at both ends. The tension must
accommodate about twice the total weight of the cable to maintain an acceptable
6% sag.
Drag
The reel is mounted in a permanent location. Cable is dragged over surface to
and from fixed mounted reel. The tension required is about the same as the lift
application.
Vertical Lift
Reel is mounted overhead. Cable pays out downward and is retracted up via
spring power. Reel must have enough tension to lift the total weight of the cable
and any additional weight attached to it, e.g., pendant station, cable overhang.
Recovery
Mounted on a moving carrier, reel picks up cable from stationary base. The closer
the reel is to the recovery surface, the less tension is required.
Vertical Recovery
Base mounted reel pays out cable upward. The reel is required only to recover the
cable on the spool, as the cable moves downward. Minimal tension is needed to
recover cable into the reel.a
www.molex.com/woodhead
B-15
B
Reels
Technical Information
Reels
Cable Reels
Customization
As shown on the previous pages, our standard catalog
reels can handle up to 160' of cable, depending on
the gauge and conductor count. We also offer several
more frame sizes of reels that can be fitted with the
exact amount and type of cable you require.
Features and Benefits
• Frames can accommodate up to 250' of 16 AWG cable
or up to 160' of 1 AWG cable
• Precision collector rings can be specified for up to
36 conductors
• All reels are custom made to fit your needs and are
available with or without cable installed
• NEMA 3 and NEMA 4 enclosures (depending on the
frame size)
• Anti-lock-out ratchet design for reels with ratchet
• Silver-plated rings and brushes available for low-level
signals
Convenience Package Option
Reels For Hazardous Locations
How To Order A Custom Reel
For reels used in critical processes, where downtime
must be held to an absolute minimum, or where high
labor costs make it necessary to minimize installation
time, you can choose a reel with a convenience
package (formerly referred to as Mill Duty) for
reels in our 2000 through 2800 series. Convenience
package includes:
Reels in our 1100 through 2800 series are available
with enclosures designed to comply with requirements as
defined in the National Electrical Code for equipment used
in classified locations. Features include:
Simply complete the Cable Reel RFQ on the next page
and submit to our Technical Support group. They will
typically respond with a quote within 24 hours.
Capabilities
Reels
B
•
•
•
• Two junction boxes which provide quick, easy access for •
all working and lead-in cable connections
• Quick-change spring motors allow the spring motor to
be changed in moments
• Fast-tensioning end plate is designed so that set-up
and tensioning of a reel can be completed in seconds,
reducing downtime to a minimum
B-16
Class I, Division 1, Group C & D
Class II, Division 1, Group E, F & G
Class III, Division 1, Outdoor hazardous locations
Fully enclosed junction boxes with connecting leads
www.molex.com/woodhead
Cable Reel RFQ
State:
Quote Needed By:
Zip:
Contact:
E-mail:
Phone:
Fax:
B
Reels
Customer:
Address:
City:
Today’s Date:
Projected Purchase Date:
1. System Quantity
2a. Where will reel(s) be mounted?
2b. Is reel for manual pullout or hooked to a machine for automated use?
2c. If for automated use, is it a lift, stretch, recover or drag application?
3a.
Ambient conditions (in-/outdoors, dust, humidity, corrosive elements, explosion hazard, etc.).
For hazardous reels the location designation is needed.
3b. Ambient temperature change.
Max.
Min.
°F
(meters or feet)
4a. What is the total travel?
4b.
°F
How many conductors?
What amperage and voltage rating?
4c. Has a cable AWG size been picked?
4d.
Will cable be supplied or will the customer supply their own? If customer will supply, then
supply cable OD and weight is needed.
4e. May a special cable (premium type) be needed due to the application?
5 Expected duty? (Severe, Heavy, Moderate, Light)
If manual pull out, are there end of cable options like, outlet box, hand lamps, or plugs which
need to be quoted?
6 Is customer going to install their own end of cable option? If so, then we need to know the
part weight.
If manual pull-out, a roller guide and cable stop will be quoted if not part of the standard reel.
7. Might a pivot base be needed or considered to reduce cable reel size?
8. Include a single eye cable grip?
On some models we can consider special convenience options like junction boxes and/or
9. fast-tensioning plates, which shorten repair time. Might these features have value for the
application?
fpm
10. Maximum speed?
11. Any mounting space limitations?
12.
Width
Height
Depth
Additional relevant information pertaining to the selection of your cable reel?
(past issues with other reels, etc.)
13. Do you require additional data with the quotation?
14. Send information to Molex
www.molex.com/woodhead
Installation/Service Manual
Catalog
Drawings (CAD?)
Fax: 1 847 883 8732 Email: witechsup@molex.com
B-17
SPECIALTY
REELS
WOODHEAD® HEAVY-DUTY HAND-WIND REELS ARE DESIGNED WITH A
ROBUST STEEL CONSTRUCTION FOR THE STORAGE OF EXTENSION CORDS,
POWER CABLES, ROPES AND HOSES, PROVIDING PROTECTION FROM
CRIMPING, KNOTS AND DAMAGE
Woodhead heavy-duty hand-wind reels for storage applications are perfect for storing
extension cords, power cables, ropes, hoses or for continuous power service. Hand-wind reels
provide easier, more organized cable storage versus wrapping cable, eliminating cable knots
and kinks. The heavy-duty hand-wind reels, robust steel construction protects service cords
from damage.
FEATURES AND
BENEFITS
APPLICATIONS
Heavy-duty
steel design
Provides longer-lasting and increased robustness
Large-spool
design
Allows greater storage capacity
Steel-rod
frame
Improves support
• Construction site
• Portable tools
• Service vehicle
Features and Benefits
• Capable of storing 200' of 16/3, 125' of 14/3 or 100'
of 12/3 SOW cord
• Heavy-duty design provides convenient storage of
extension cords, power cables, rope or hose
Reference Information
UL File No.: E22769 (930 only)
E19795 (reel with cable)
CSA File No.: LR29921 (930 only)
Cord Type
14/3 SOW
14/3 SOW
12/3 SOW
12/3 SOW
www.molex.com/woodhead
Cord Length
15.24m
30.48m
15.24m
30.48m
(50.0')
(100.0')
(50.0')
(100.0')
Woodhead No.
930
930B143
930D143
930B123
930D123
Electrical
Versions with cord: NEMA 5-15 plug and connector
Cord: SOW, 600V rated
Physical
Construction: Steel with yellow powder coat finish, no
spring hand wind design
Models with Cord: NEMA 5-15 plug at working end of cord
and NEMA 5-15 connector at reel end
Order No.
130087-0057
130087-0059
130087-0064
130087-0058
130087-0063
B-19
B
Reels
Hand Wind Reels
100' 12/3 SOW
to 200' 16/3 SOW
Welding Reels
Features and Benefits
• NEMA 4 rating provides protection from water or dust,
indoor and out
• Cable guide is adjustable every 5° over a 270 degree
arc allowing for the exact configuration to suit the
application
• Standard models cover the four most popular wire sizes
• Ratchet design prohibits annoying “lock-out” when
cable is fully extended
• Containerized mainspring for safe, simple handling and
replacement
• Reel includes cable (except ERA4000)
Reels
B
Wire Gauge
less cable
2
1
1/0
2/0
Length
15.24m
15.24m
12.19m
12.19m
(50.0')
(50.0')
(40.0')
(40.0')
Hose Reels
Inlet Hose Fitting (NPT)
1/4
3/8
3/8
3/8
1/2
1/2
B-20
Current Rating
375
250
250
350
375
Electrical
Collector Ring Rating: 375A
Physical
Primary Cord Entry: 1" NPT
Construction: Cast Aluminum with yellow powder coat finish
Working End: Flying leads; ball stop not included
Ratchet Lock: Easily disengaged as needed
Tension: Easily adjusted
Junction Box: Large, easy-access
Spring: Containerized, easily replaceable
Environmental
NEMA Rating: NEMA 4
Woodhead No.
ERA4000
ERA4250
ERA4150
ERA4040
ERA4940
Order No.
130083-0286
130083-0289
130083-0288
130083-0287
130083-0291
Features and Benefits
Physical
Hose Type: EPDM/SBR tube, red SBR cover
• Steel construction and epoxy powder-coat finish for
Maximum Hose Temperature: 176° F (80° C)
long life
• Containerized mainspring for safe, simple handling and
replacement
• Adjustable guide arm with four-roller guide to suit the
application
• Brass and Stainless Steel fluid path and nitrile seals
minimize maintenance
• Ratchet lock and easy tension adjustment for ease
of use
• Hose stop included on all models
Hose Inner Diameter (in.)
1/4
3/8
3/8
3/8
1/2
1/2
Hose Length
9.14m (30.0')
without hose
9.14m (30.0')
15.24m (50.0')
without hose
15.24m (50.0')
Pressure (psi)
300
300
300
300
300
300
Woodhead No.
DA230
DA300
DA330
DB350
DB400
DB450
Order No.
130161-0005
130161-0006
130161-0007
130161-0009
130161-0012
130161-0014
www.molex.com/woodhead
Grips
C
GRIPS
Strain-Relief Grips . . . . . . . . . C-4
Strain Relief Grips for Flexible Cord
Dust-Tight
Strain Relief Grips. . . . . . . . . C-5
Deluxe Cord Grips; All Metal
(General Duty, Wet Location,
Hazardous Location) . . . . . . . C-6
MAX-LOC® Cord Grips;
Nylon/Metal (General Duty,
Wet Location) . . . . . . . . . . . C-11
MAX-LOC Accessories . . . . . C-23
Strain Relief Stainless Steel
Grips; All Stainless
Steel (General Duty,
Wet Location) . . . . . . . . . . . C-24
Liquid-Tight Conduit
Malleable Iron or Zinc-Plated
Steel Body . . . . . . . . . . . . . C-25
Flexible Conduit
Liquid-Tight, Non-Metallic,
Type “A” Flexible
Conduit Grips . . . . . . . . . . . C-26
Strain Relief Watertite® Cord Grip
Stainless Steel or
Non-Metallic Mesh . . . . . . . C-27
I-Grips for Wiring Devices . . C-30
www.molex.com/woodhead
Support Grips . .
Standard Duty . . .
Single Eye . . .
Double Eye . . .
Offset Eye. . . .
Locking Bale/
Universal Eye .
Heavy Duty . . . . .
Single Eye . . .
Double Eye . . .
Service Drop . . . .
Bus Drop . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
C-31
C-32
C-32
C-33
C-34
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
C-35
C-36
C-36
C-37
C-38
C-39
Pulling Grips . . . . . . . . . . . .
Junior Duty . . . . . . . . . . . . . . .
Light Duty . . . . . . . . . . . . . . .
Medium Duty . . . . . . . . . . . . .
Heavy Duty . . . . . . . . . . . . . .
Multi-Weave . . . . . . . . . . . . . .
High Strength . . . . . . . . . . . . .
Single Eye Fiber Optic Grip . .
Rotating Eye Fiber Optic Grip .
.
.
.
.
.
.
.
.
.
C-40
C-41
C-41
C-42
C-43
C-45
C-46
C-48
C-48
Technical Information . . . . . . . . C-49
C-1
GRIPS
STRAIN-RELIEF GRIPS 3URYLGHVWUDLQUHOLHIIRUFRUGVRUÁH[LEOH
conduit on plugs, connectors, push-button stations, enclosures and
pendant or hanging boxes used on portable equipment.
SUPPORT GRIPS Indoor and outdoor support grips designed to distribute
ZHLJKWRIYHUWLFDORUVORSLQJUXQVRIHOHFWULFDODQGÀEHURSWLFFDEOHPHWDOURGV
tubing or hose over the entire length of the grip.
PULLING GRIPS Designed for overhead, underground or in-plant wiring
applications; serve as reusable tools for pulling insulated conductors, bare wires,
FDEOHÀEHURSWLFFDEOHQ\ORQDQGZLUHURSH
STRAIN-RELIEF GRIPS
WOODHEAD® HEAVY-DUTY GRIPS PROVIDE STRAIN RELIEF FOR CORDS
AND
FLEXIBLE
CONDUIT
ON
PLUGS,
CONNECTORS,
PUSH-BUTTON
STATIONS, ENCLOSURES, AND PENDANT OR HANGING BOXES USED ON
PORTABLE EQUIPMENT FOR COMMERCIAL, INSTITUTIONAL AND INDUSTRIAL APPLICATIONS
Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help
to prevent pullout. Woodhead offers a solution for both standard and wet-location environments
to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic Max-Loc® grips are available with an O-ring and stainless steel or
QRQPHWDOOLFPHVKDQGDUHVXLWDEOHIRUZHWORFDWLRQV6WDLQOHVVVWHHO0D[/RFÀWWLQJVDQGZLUH
mesh assemblies offer the greatest impact and chemical resistance to be applied in food
processing, dairy, aerospace and clean room environments.
FEATURES AND
BENEFITS
APPLICATIONS
Full-diameter cord range
Allows grips for any cord size for
customer convenience
Threaded-style bodies available in
stainless steel and non-metallic
Ensures environmental compatibility
Threaded-style bodies available
in a full range of sizes
3URYLGHVFXVWRPHUSURGXFWÁH[LELOLW\
• Electricians
• HVAC contractors
• Irrigation equipment
• Panel builders
Aluminum Body
Galvanized Steel Mesh
Straight Male
Insulated Bushing
Thread Size
½" NPT
½" NPT
½" NPT
¾" NPT
1" NPT
1¼" NPT
1½" NPT
2" NPT
2½" NPT
2½" NPT
Features and Benefits
• Wide diameter range and general purpose character
accommodate many applications including electrical
boxes and enclosures, machine tools and bus drops
• Galvanized Steel mesh construction provides great
strength
• Insulated throat provides conductor protection upon
flexing and wire entry/exit
Physical
Threaded Body: Aluminum
Nut: Zinc-plated Steel
Mesh Collar: Zinc-plated Steel and Aluminum
Dust Seal Gasket: Neoprene
Mesh Material: Galvanized Steel
Insulating bushing: Thermoplastic
Weave Type: Single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
Rating: Dust-tight, general purpose
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–13.72mm (.40–.54")
13.21–18.54mm (.52–.73")
17.78–24.64mm (.70–.97")
23.88–31.75mm (.94–1.25")
30.48–38.10mm (1.20–1.50")
35.56–44.45mm (1.40–1.75")
41.15–50.80mm (1.62–2.00")
50.80–62.23mm (2.00–2.45")
www.molex.com/woodhead
Mesh Length
0.083m 3.250"
0.095m 3.750"
0.121m 4.750"
0.146m 5.750"
0.178m 7.000"
0.229m 9.000"
0.298m 11.750"
0.337m 13.250"
0.343m 13.500"
0.349m 13.750"
Woodhead No.
36501
36503
36505
36508
36512
36515
36516
36517
36518
36519
C
Grips
Strain Relief
Dust-Tight, Wide Range
Order No.
130097-0256
130097-0258
130097-0260
130097-0262
130097-0265
130097-0269
130097-0271
130097-0272
130097-0273
130097-0274
C-5
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
½" NPT
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Grips
C
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
Cable Diameter
4.75–6.35mm
6.35–9.53mm
9.53–12.70mm
12.70–15.88mm
15.88–19.05mm
19.05–22.23mm
(.187–.250")
(.250–.375")
(.375–.500")
(.500–.625")
(.625–.750")
(.750–.875")
Form Size
F2
F3
Straight Male
Woodhead No.
36250
36251
36254
36256
36245
36246
Order No.
130097-0160
130097-0161
130097-0163
130097-0165
130097-0156
130097-0157
Straight Female
Woodhead No.
36280
36282
36284
36286
Order No.
130097-0184
130097-0185
130097-0186
130097-0187
Right Angle Male
Woodhead No.
36340
36342
36344
36346
Order No.
130097-0210
130097-0211
130097-0212
130097-0213
45° Angle Male
Woodhead No.
36310
36312
36314
36316
Order No.
130097-0197
130097-0198
130097-0199
130097-0200
Note: See Technical Section for compnent details
C-6
www.molex.com/woodhead
Aluminum Body
Stainless Steel Mesh
¾" NPT
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Straight Male
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.88–19.05mm (.625–.750")
19.05–22.23mm (.750–.875")
Form Size
F2
F3
Woodhead No.
36257
36259
36261
36263
36248
Order No.
130097-0166
130097-0167
130097-0168
130097-0170
130097-0158
Woodhead No.
36290
36292
36294
36296
Order No.
130097-0191
130097-0627
130097-0192
130097-0496
Woodhead No.
36347
36349
36351
36353
Order No.
130097-0214
130097-0215
130097-0216
130097-0217
Woodhead No.
36317
36319
36321
36323
Order No.
130097-0201
130097-0202
130097-0203
130097-0204
Straight Female
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.93–19.05mm (.627–.750")
Form Size
F2
F3
Right Angle Male
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.88–19.05mm (.625–.750")
Form Size
F3
45° Angle Male
Cable Diameter
6.35–9.53mm (.250–.375")
9.53–12.70mm (.375–.500")
12.70–15.88mm (.500–.625")
15.88–19.05mm (.625–.750")
Form Size
F3
Note: See Technical Section for compnent details
www.molex.com/woodhead
C-7
C
Grips
Strain Relief
Deluxe Cord Grip
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
1" NPT
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Grips
C
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
Cable Diameter
11.10–14.27mm
11.10–14.40mm
14.27–17.45mm
14.40–17.45mm
15.88–19.05mm
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
(.437–.562")
(.437–.567")
(.562–.687")
(.567–.687")
(.625–.750")
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
Form Size
F4
F5
Straight Male
Straight Female
Woodhead No.
Order No.
Woodhead No.
Order No.
36249
130097-0159
36818
130097-0293
36275
36265
36267
36269
36270
36276
130097-0179
130097-0171
130097-0172
130097-0173
130097-0174
130097-0180
36819
36298
36300
36302
130097-0628
130097-0193
130097-0194
130097-0195
Right Angle Male
45° Angle Male
Woodhead No.
36829
Order No.
130097-0295
Woodhead No.
36826
Order No.
130097-0629
36830
130097-0296
36827
130097-0294
36355
36357
36359
130097-0218
130097-0219
130097-0220
36326
36328
36330
130097-0205
130097-0206
130097-0207
Note: See Technical Section for compnent details
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
1¼" NPT
Cable Diameter
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
31.75–34.93mm
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
(1.250–1.375")
Form Size
F5
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Straight Male
Woodhead No.
36277
36271
36272
36273
36274
Order No.
130097-0181
130097-0175
130097-0176
130097-0177
130097-0178
Right Angle Male
Woodhead No.
36831
36361
36362
36363
36364
Order No.
130097-0297
130097-0221
130097-0222
130097-0223
130097-0224
Note: See Technical Section for compnent details
C-8
www.molex.com/woodhead
Aluminum Body
Stainless Steel Mesh
1½" NPT
Cable Diameter
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
31.75–34.93mm
33.32–36.50mm
36.50–39.67mm
39.63–42.67mm
42.67–45.97mm
44.45–47.50mm
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
(1.250–1.375")
(1.312–1.437")
(1.437–1.562")
(1.560–1.680")
(1.680–1.810")
(1.750–1.870")
Form Size
F5
F6
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Straight Male
Woodhead No.
36278
36475
36476
36477
36478
36479
36480
36481
36482
36483
Order No.
130097-0182
130097-0235
130097-0236
130097-0237
130097-0238
130097-0239
130097-0240
130097-0241
130097-0242
130097-0243
Right Angle Male
Woodhead No.
Order No.
36470
36471
36472
36473
130097-0231
130097-0232
130097-0233
130097-0234
Note: See Technical Section for compnent details
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
2" NPT
Cable Diameter
31.75–34.93mm
33.32–36.50mm
36.50–39.67mm
39.63–42.67mm
42.67–45.97mm
44.45–47.63mm
46.02–49.20mm
49.20–52.37mm
52.37–55.55mm
55.55–58.72mm
58.72–61.90mm
(1.250–1.375")
(1.312–1.437")
(1.437–1.562")
(1.560–1.680")
(1.680–1.810")
(1.750–1.875")
(1.812–1.937")
(1.937–2.062")
(2.062–2.187")
(2.187–2.312")
(2.312–2.437")
Form Size
F6
F7
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Straight Male
Woodhead No.
36484
36279
36485
36486
36487
36488
36489
36816
36287
36288
36289
Order No.
130097-0244
130097-0183
130097-0245
130097-0246
130097-0247
130097-0248
130097-0249
130097-0292
130097-0188
130097-0189
130097-0190
Right Angle Male
Woodhead No.
Order No.
36497
36498
36499
36500
130097-0252
130097-0253
130097-0254
130097-0255
Note: See Technical Section for compnent details
www.molex.com/woodhead
C-9
C
Grips
Strain Relief
Deluxe Cord Grip
Strain Relief
Deluxe Cord Grip
Aluminum Body
Stainless Steel Mesh
2½" NPT and 3" NPT
Physical
Threaded Body, Compression Nut, Mesh Collar: Aluminum
Grommet: Rubber
Friction Ring: Zinc-plated Steel
Mesh Material: Stainless Steel
Weave Type: Half double and half single weave mesh
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Hazardous Location Ratings:
Class I, Division 2
Class II, Division 1 and 2
Class III, Division 1 and 2
Grips
C
Features and Benefits
• Aluminum/Stainless Steel material construction
performs well to resist corrosion
• 50% double weave construction improves cable
protection and pull-out resistance
• Robust design good for indoor and outdoor use
2½" NPT, Straight Male
Cable Diameter
42.85–46.02mm (1.687–1.812")
46.02–49.20mm (1.812–1.937")
49.20–52.37mm (1.937–2.062")
52.37–55.55mm (2.062–2.187")
55.55–58.72mm (2.187–2.312")
58.72–61.90mm (2.312–2.437")
Form Size
F7
Woodhead No.
36800
36801
36802
36803
36804
36805
Order No.
130097-0276
130097-0277
130097-0278
130097-0279
130097-0280
130097-0281
Woodhead No.
36806
36807
36808
36809
36810
36811
36812
36813
36814
36815
Order No.
130097-0282
130097-0283
130097-0284
130097-0285
130097-0286
130097-0287
130097-0288
130097-0289
130097-0290
130097-0291
3" NPT, Straight Male
Cable Diameter
42.88–46.02mm (1.688–1.812")
46.02–49.20mm (1.812–1.937")
49.20–52.37mm (1.937–2.062")
52.37–55.55mm (2.062–2.187")
55.55–58.72mm (2.187–2.312")
58.72–61.90mm (2.312–2.437")
61.90–66.68mm (2.437–2.625")
66.68–71.42mm (2.625–2.812")
71.42–76.20mm (2.812–3.000")
76.20–82.55mm (3.000–3.250")
Form Size
F8
Note: See Technical Section for compnent details
C-10
www.molex.com/woodhead
Strain Relief Grips
MAX-LOC® Cord Seal
Straight Male
¼" NPT
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Physical
Compression Nut Form Size: 0
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Cable Diameter
Grommet Color
1.91–3.43mm (.075–.135")
3.43–5.08mm (.135–.200")
5.08–6.73mm (.200–.265")
Black
Gray
Green
Grips
Reference Information
UL File No.: E76954
Without O-Ring/Locknut*
Woodhead No.
5398†
5400
5402 ‡
Order No.
130098-0024
130098-0025
130098-0026
Replacement Grommet
Woodhead No.
00-0920
00-0921
00-0922
Order No.
130180-0335
130180-0336
130180-0337
* See MAX-LOC Accessories if o-ring or locknut is required
†
UL unattainable
‡
Cable jacket may need to be stripped for clearance
Strain Relief Grips
MAX-LOC® Cord Seal
Straight Male
³/8" NPT
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Physical
Compression Nut Form Size: 1
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Cable Diameter
3.18–4.75mm
4.75–6.35mm
6.35–7.93mm
7.93–9.53mm
9.53–11.10mm
(.125–.187")
(.187–.250")
(.250–.312")
(.312–.375")
(.375–.437")
Grommet Color
Yellow
Orange
Black
Gray
Green
Without O-Ring/Locknut*
Woodhead No.
5500
5502
5504
5506
5508†
Order No.
130098-0027
130098-0029
130098-0031
130098-0032
130098-0034
Replacement Grommet
Woodhead No.
00-4960
00-4961
00-4962
00-4963
00-4964
Order No.
130180-0398
130180-0399
130180-0186
130180-0163
130180-0400
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
www.molex.com/woodhead
C
C-11
Strain Relief Grips
MAX-LOC® Cord Seal
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
• Available Stainless Steel mesh yields high strength,
corrosion resistance and slight conductivity
• Available non-metallic mesh yields moderate strength,
corrosion resistance, great flexibility and no conductivity
Straight Male
½" NPT
Grips
C
Physical
Compression Nut Form Size: 2
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Weave Type: Half double weave, half single weave mesh
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Without Mesh
Cable Diameter
1.57–3.18mm
3.18–4.75mm
4.75–6.35mm
6.35–7.93mm
7.93–9.53mm
9.53–11.10mm
11.10–12.70mm
12.70–14.27mm
14.27–15.88mm
Grommet Color
(.062–.125")
(.125–.187")
(.187–.250")
(.250–.312")
(.312–.375")
(.375–.437")
(.437–.500")
(.500–.562")
(.562–.625")
Black
Yellow
Orange
Black
Gray
Green
Orange
Black
Gray
Without O-Ring/Locknut*
Woodhead No.
5518†
5520
5522
5524
5526
5528
5530
5532 ‡
5534 ‡
Order No.
130098-0036
130098-0041
130098-0046
130098-0052
130098-0061
130098-0069
130098-0076
130098-0082
130097-0327
With O-Ring/Locknut
Woodhead No.
5518W*
5520W
5522W
5524W
5526W
5528W
5530W
5532W ‡
5534W ‡
Order No.
130098-0038
130098-0043
130098-0049
130098-0056
130098-0064
130098-0071
130098-0078
130098-0086
130098-0092
Replacement Grommet
Woodhead No.
00-4978
00-4970
00-4971
00-4972
00-5263
00-5264
00-4975
00-5266
00-5267
Order No.
130180-0405
130180-0401
130180-0402
130180-0403
130180-0286
130180-0287
130180-0404
130180-0288
130180-0289
* See MAX-LOC Accessories if o-ring or locknut is required
†
UL unattainable
‡
Cable jacket may need to be stripped for clearance
With Mesh
Cable Diameter
4.75–6.35mm
6.35–7.93mm
7.93–9.53mm
9.53–11.10mm
11.10–12.70mm
12.70–14.27mm
14.27–15.88mm
Grommet Color
(.187–.250")
(.250–.312")
(.312–.375")
(.375–.437")
(.437–.500")
(.500–.562")
(.562–.625")
Orange
Black
Gray
Green
Orange
Black
Gray
Stainless Steel Mesh Without O-Ring/Locknut* Non-Metalllic Mesh Without O-Ring/Locknut*
Woodhead No.
5522M
5524M
5526M
5528M
5530M
5532M†
5534M†
Order No.
130099-0068
130099-0072
130099-0076
130099-0080
130099-0084
130099-0088
130099-0090
Woodhead No.
5522NM
5524NM
5526NM
5528NM
5530NM
Order No.
130099-0069
130099-0073
130099-0077
130099-0081
130099-0085
Replacement Grommet
Woodhead No.
00-4971
00-4972
00-5263
00-5264
00-4975
00-5266
00-5267
Order No.
130180-0402
130180-0403
130180-0286
130180-0287
130180-0404
130180-0288
130180-0289
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
C-12
www.molex.com/woodhead
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Black nylon body is resistant to impact, corrosion and
UV/Sunlight
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Straight Male
½" NPT
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Cable Diameter
6.35–9.53mm
7.93–9.53mm
9.53–11.10mm
11.10–12.70mm
12.70–14.27mm
†
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Stability: UV resistant
* Trademark of SABIC Innovative Plastics IP BV
With O-Ring/Locknut
Grommet Color
(.250–.375")
(.312–.375")
(.375–.437")
(.437–.500")
(.500–.562")
Physical
Compression Nut Form Size: 2
Black Cord Grip Body and Compression Nut: Valox*
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Woodhead No.
5524WBLK
5526WBLK
5528WBLK
5530WBLK
5532WBLK†
Black
Gray
Green
Orange
Black
Replacement Grommet
Order No.
130098-0057
130098-0065
130098-0072
130098-0079
130098-0087
Woodhead No.
00-4972
00-5263
00-5264
00-4975
00-5266
Order No.
130180-0403
130180-0286
130180-0287
130180-0404
130180-0288
Cable jacket may need to be stripped for clearance
Strain Relief Grips
MAX-LOC® Cord Seal
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Gray nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Specialty
Multi-Hole or Oval Hole
½" NPT
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Compression Nut Form Size: 2
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Straight Male Multi-Hole
Cable Diameter
Number of Holes
Grommet Color
3.96mm
4.75mm
5.72mm
6.35mm
7.37mm
2, 3, or 4*
2, 3, 4, 5, 6, or 7*
2, 3, or 4*
2 or 3*
2
Orange
Yellow
Black
Gray
Black
(.156")
(.187")
(.225")
(.250")
(.290")
Without O-Ring/Locknut
Woodhead No.
5594-007
5594-008
5594-004
5594-005
5594-006
With O-Ring/Locknut
Order No.
130098-0202
130098-0204
130098-0195
130098-0197
130098-0199
Woodhead No.
5594-007W
5594-008W
5594-004W
5594-005W
5594-006W
Order No.
130098-0203
130098-0205
130098-0196
130098-0198
130098-0200
Replacement Grommet
Woodhead No.
00-1924
00-1925
00-1921
00-1922
00-1923
Order No.
130180-0318
130180-0319
130180-0315
130180-0316
130180-0317
* Indicates one or more holes are covered by a thin membrane which can be easily be "poked" open if required
Oval Hole (UF Cable)
Cable Diameter
5.54×10.69mm (.218×.421") Oval
5.54×16.26mm (.218×.640") Oval
Straight Male without O-Ring/Locknut*
Woodhead No.
5580
5582
Order No.
130098-0185
130098-0188
Straight Male with O-Ring/Locknut
Woodhead No.
5580W
5582W
Order No.
130098-0186
130098-0189
Replacement Grommet
Woodhead No.
00-4940
00-4941
Order No.
130180-0392
130180-0393
* See MAX-LOC Accessories if o-ring or locknut is required
www.molex.com/woodhead
C-13
C
Grips
Strain Relief Grips
Black MAX-LOC® Cord Seal
Strain Relief Grips
MAX-LOC® Cord Seal
Straight Male
¾" NPT
Grips
C
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
• Available Stainless Steel mesh yields high strength,
corrosion resistance and slight conductivity
• Available non-metallic mesh yields moderate strength,
corrosion resistance, great flexibility and no conductivity
Physical
Compression Nut Form Size: 3
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Weave Type: Half double weave, half single weave mesh
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Without Mesh
Cable Diameter
4.75–6.35mm
6.35–9.53mm
9.53–11.10mm
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
(.187–.250")
(.250–.375")
(.375–.437")
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
Grommet Color
Orange
Gray
Green
Black
Gray
Green
Orange
Yellow
Without O-Ring/Locknut*
Woodhead No.
5620
5622
5624
5536
5538
5540
5542
5544†
Order No.
130098-0235
130098-0236
130098-0225
130098-0096
130098-0103
130098-0112
130098-0118
130098-0126
With O-Ring/Locknut
Woodhead No.
5620W
5622W
5624W
5536W
5538W
5540W
5542W
5544W†
Order No.
130098-0215
130098-0221
130098-0227
130098-0099
130098-0107
130098-0114
130098-0121
130098-0129
Replacement Grommet
Woodhead No.
00-4985
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
00-4984
Order No.
130180-0407
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
130180-0406
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
With Mesh
Cable Diameter
4.75–6.35mm
6.35–9.53mm
9.53–11.10mm
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
(.187–.250")
(.250–.375")
(.375–.437")
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
Grommet Color
Orange
Gray
Green
Black
Gray
Green
Orange
Yellow
Stainless Steel Mesh Without O-Ring/Locknut*
Woodhead No.
5620M
5622M
5624M
5536M
5538M
5540M
5542M
5544M†
Order No.
130099-0153
130099-0157
130099-0161
130099-0092
130099-0096
130099-0100
130099-0104
130099-0108
Non-Metallic Mesh Without O-Ring/Locknut*
Woodhead No.
5620NM
5622NM
5624NM
5536NM
5538NM
5540NM
5542NM
Order No.
130099-0154
130099-0158
130099-0162
130099-0093
130099-0097
130099-0101
130099-0105
Replacement Grommet
Woodhead No.
00-4985
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
00-4984
Order No.
130180-0407
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
130180-0406
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
C-14
www.molex.com/woodhead
Black Straight Male Single Hole
Special Gray Straight Male
Oval (UF cable)
¾" NPT
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Gray nylon body is resistant to impact and corrosion
• Black nylon body is resistant to impact, corrosion and
UV/Sunlight
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Compression Nut Form Size: 3
Black Cord Grip Body and Compression Nut: Valox*
Gray Cord Grip Body and
Compression Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Stability: UV resistant (Black nylon)
* Trademark of SABIC Innovative Plastics IP BV
Black, Standard Cable
Cable Diameter
4.75–6.35mm
6.35–9.53mm
9.53–11.10mm
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
(.187–.250")
(.250–.375")
(.375–.437")
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
Grommet Color
Orange
Gray
Green
Black
Gray
Green
Orange
With O-Ring/Locknut
Woodhead No.
5620WBLK
5622WBLK
5624WBLK
5536WBLK
5538WBLK
5540WBLK
5542WBLK
Order No.
130098-0216
130098-0222
130098-0228
130098-0100
130098-0108
130098-0115
130098-0122
Replacement Grommet
Woodhead No.
00-4985
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
Order No.
130180-0407
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
Oval (UF Cable)
Cable Diameter
5.54×10.69mm (.218×.421") Oval
5.54×16.26mm (.218×.640") Oval
www.molex.com/woodhead
Straight Male
Woodhead No.
5584
5586
Replacement Grommet
Order No.
130098-0191
130098-0192
Woodhead No.
00-4950
00-4951
Order No.
130180-0395
130180-0396
C-15
C
Grips
Strain Relief Grips
MAX-LOC® Cord Seal
Strain Relief Grips
MAX-LOC® Cord Seal
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
• Available Stainless Steel mesh yields high strength,
corrosion resistance and slight conductivity
• Available non-metallic mesh yields moderate strength,
corrosion resistance, great flexibility and no conductivity
Straight Male
1" NPT
Grips
C
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Compression Nut Form Size: 4
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Weave Type: Half double weave, half single weave mesh
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Without Mesh
Cable Diameter
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
19.05–22.23mm
20.62–23.80mm
22.23–25.40mm
25.40–28.58mm
Grommet Color
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
(.750–.875")
(.812–.937")
(.875–1.000")
(1.000–1.125")
Black
Gray
Green
Orange
Yellow
Black
Gray
Green
Black
Without O-Ring/Locknut*
Woodhead No.
5546
5548
5550
5552
5554
5556
5558
5560
5562 †
Order No.
130098-0132
130098-0136
130098-0139
130098-0143
130098-0150
130098-0155
130098-0161
130098-0166
130098-0171
With O-Ring/Locknut
Woodhead No.
5546W
5548W
5550W
5552W
5554W
5556W
5558W
5560W
5562W†
Replacement Grommet
Order No.
130098-0133
130098-0137
130098-0141
130098-0146
130098-0151
130098-0157
130098-0164
130098-0167
130098-0172
Woodhead No.
00-4990
00-4991
00-4992
00-4993
00-4994
00-4995
00-4996
00-4997
00-4998
Order No.
130180-0410
130180-0411
130180-0282
130180-0283
130180-0412
130180-0413
130180-0284
130180-0414
130180-0285
With Mesh
Cable Diameter
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
19.05–22.23mm
20.62–23.80mm
22.23–25.40mm
Grommet Color
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
(.750–.875")
(.812–.937")
(.875–1.000")
Black
Gray
Green
Orange
Yellow
Black
Gray
Green
Stainless Steel Mesh Without O-Ring/Locknut* Non-Metallic Mesh Without O-Ring/Locknut*
Woodhead No.
5546M
5548M
5550M
5552M
5554M
5556M
5558M
5560M
Order No.
130099-0110
130099-0113
130099-0116
130099-0119
130099-0123
130099-0127
130099-0131
130099-0134
Woodhead No.
5546NM
5548NM
5550NM
5552NM
5554NM
5556NM
5558NM
5560NM†
Order No.
130099-0111
130099-0114
130099-0117
130099-0120
130099-0124
130099-0128
130099-0132
130099-0135
Replacement Grommet
Woodhead No.
00-4990
00-4991
00-4992
00-4993
00-4994
00-4995
00-4996
00-4997
Order No.
130180-0410
130180-0411
130180-0282
130180-0283
130180-0412
130180-0413
130180-0284
130180-0414
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
Strain Relief Grips
Black MAX-LOC® Cord Seal
Straight Male
1" NPT
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Black nylon body is resistant to impact, corrosion and
UV/Sunlight
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Cable Diameter
15.88–19.05mm
17.45–20.62mm
19.05–22.23mm
20.62–23.80mm
22.23–25.40mm
C-16
(.625–.750")
(.687–.812")
(.750–.875")
(.812–.937")
(.875–1.000")
Grommet Color
Orange
Yellow
Black
Gray
Green
Physical
Compression Nut Form Size: 4
Black Cord Grip Body and Compression Nut: Valox*
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Stability: UV resistant
* Trademark of SABIC Innovative Plastics IP BV
With O-Ring/Locknut
Woodhead No.
5552WBLK
5554WBLK
5556WBLK
5558WBLK
5560WBLK
Order No.
130098-0147
130098-0152
130098-0158
130098-0429
130098-0168
Replacement Grommet
Woodhead No.
00-4993
00-4994
00-4995
00-4996
00-4997
Order No.
130180-0283
130180-0412
130180-0413
130180-0284
130180-0414
www.molex.com/woodhead
Strain Relief Grips
MAX-LOC® Cord Seal
Straight Male
1¼" NPT
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Physical
Compression Nut Form Size: 5
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Cable Diameter
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
31.75–34.42mm
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
(1.250–1.355")
Grommet Color
Orange
Yellow
Black
Green
Gray
Grips
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Without O-Ring/Locknut*
Woodhead No.
5568
5570
5572
5574
5576†
Order No.
130098-0174
130098-0176
130098-0178
130098-0180
130098-0182
Replacement Grommet
Woodhead No.
00-5070
00-5071
00-5072
00-5073
00-5074
Order No.
130180-0308
130180-0309
130180-0310
130180-0311
130180-0312
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
www.molex.com/woodhead
C
C-17
C
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Grips
Strain Relief Grips
MAX-LOC® Cord Seal
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Right Angle Male
³/8" NPT
Cable Diameter
3.18–4.75mm
4.75–6.35mm
6.35–7.92mm
7.92–9.53mm
9.53–11.10mm
Grommet Color
(.125–.187")
(.187–.250")
(.250–.312")
(.312–.375")
(.375–.437")
Yellow
Orange
Black
Gray
Green
Physical
Compression Nut Form Size: 1
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Without O-Ring/Locknut*
Woodhead No.
5501
5503
5505
5507
5509†
Replacement Grommet
Order No.
130098-0028
130098-0030
130098-0425
130098-0033
130098-0035
Woodhead No.
00-4960
00-4961
00-4962
00-4963
00-4964
Order No.
130180-0398
130180-0399
130180-0186
130180-0163
130180-0400
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
Strain Relief Grips
MAX-LOC® Cord Seal
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
• Available Stainless Steel mesh yields high strength,
corrosion resistance and slight conductivity
• Available non-metallic mesh yields moderate strength,
corrosion resistance, great flexibility and no conductivity
Right Angle Male
½" NPT
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Without Mesh
Cable Diameter
1.57–3.18mm
3.18–4.75mm
4.75–6.35mm
6.35–7.93mm
7.93–9.53mm
9.53–11.10mm
11.10–12.70mm
12.70–14.27mm
14.27–15.88mm
Physical
Compression Nut Form Size: 2
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Weave Type: Half double weave, half single weave mesh
Grommet Color
(.062–.125")
(.125–.187")
(.187–.250")
(.250–.312")
(.312–.375")
(.375–.437")
(.437–.500")
(.500–.562")
(.562–.625")
Black
Yellow
Orange
Black
Gray
Green
Orange
Black
Gray
Without O-Ring/Locknut*
Woodhead No.
5519 ‡
5521
5523
5525
5527
5529
5531
5533†
5535†
Order No.
130098-0039
130098-0044
130098-0050
130098-0058
130098-0066
130098-0073
130098-0080
130098-0089
130098-0093
With O-Ring/Locknut
Woodhead No.
5519W ‡
5521W
5523W
5525W
5527W
5529W
5531W
5533W †
5535W †
Order No.
130098-0040
130098-0045
130098-0051
130098-0060
130098-0068
130098-0075
130098-0081
130098-0090
130098-0095
Replacement Grommet
Woodhead No.
00-4978
00-4970
00-4971
00-4972
00-5263
00-5264
00-4975
00-5266
00-5267
Order No.
130180-0405
130180-0401
130180-0402
130180-0403
130180-0286
130180-0287
130180-0404
130180-0288
130180-0289
With Mesh
Cable Diameter
4.75–6.35mm
6.35–7.93mm
7.93–9.53mm
9.53–11.10mm
11.10–12.70mm
12.70–14.27mm
14.27–15.88mm
Grommet Color
(.187–.250")
(.250–.312")
(.312–.375")
(.375–.437")
(.437–.500")
(.500–.562")
(.562–.625")
Orange
Black
Gray
Green
Orange
Black
Gray
Stainless Steel Mesh Without O-Ring/Locknut* Non-Metallic Mesh Without O-Ring/Locknut*
Woodhead No.
5523M
5525M
5527M
5529M
5531M
5533M†
5535M†
Order No.
130099-0070
130099-0074
130099-0078
130099-0082
130099-0086
130099-0089
130099-0091
Woodhead No.
5523NM
5525NM
5527NM
5529NM
5531NM
Order No.
130099-0071
130099-0075
130099-0079
130099-0083
130099-0087
Replacement Grommet
Woodhead No.
00-4971
00-4985
00-5263
00-5264
00-4975
00-5266
00-5267
Order No.
130180-0402
130180-0407
130180-0286
130180-0287
130180-0404
130180-0288
130180-0289
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
‡
UL unattainable
C-18
www.molex.com/woodhead
Right Angle Male
Specialty
Multi-Hole
½" NPT
Cable Diameter
3.96mm
4.75mm
5.72mm
6.35mm
7.37mm
(.156")
(.187")
(.225")
(.250")
(.290")
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Gray nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Reference Information
UL File No.: E76954
CSA File No.: LR32159
No. of Holes
Grommet Color
2, 3, or 4
2, 3, 4, 5, 6, or 7
2, 3, or 4
2 or 3
2
Orange
Yellow
Black
Gray
Black
Without O-Ring/Locknut*
Physical
Compression Nut Form Size: 2
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
With O-Ring/Locknut
Woodhead No.
Order No.
5595-008
5595-004
130098-0212
130098-0207
Woodhead No.
5595-007W
5595-008W
5595-004W
5595-005W
5595-006W
Replacement Grommet
Order No.
130098-0238
130098-0213
130098-0208
130098-0210
130098-0241
Woodhead No.
00-1924
00-1925
00-1921
00-1922
00-1923
Order No.
130180-0318
130180-0319
130180-0315
130180-0316
130180-0317
Oval Hole (UF Cable)
Cable Diameter
5.54×10.69mm (.218×.421") Oval
5.54×16.26mm (.218×.640") Oval
Right Angle Male Without O-Ring/Locknut*
Woodhead No.
5581
5583
Order No.
130098-0187
130098-0190
Replacement Grommet
Woodhead No.
00-4940
00-4941
Order No.
130180-0392
130180-0393
* See MAX-LOC Accessories if o-ring or locknut is required
www.molex.com/woodhead
C-19
C
Grips
Strain Relief Grips
MAX-LOC® Cord Seal
Strain Relief Grips
MAX-LOC® Cord Seal
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
• Available Stainless Steel mesh yields high strength,
corrosion resistance and slight conductivity
• Available non-metallic mesh yields moderate strength,
corrosion resistance, great flexibility and no conductivity
• Multi-hole available to accommodate a wide application
range
Right Angle Male
¾" NPT
Grips
C
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Compression Nut Form Size: 3
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Weave Type: Half double weave, half single weave mesh
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Without Mesh
Cable Diameter
4.75–6.35mm
6.35–9.53mm
9.53–11.10mm
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
Grommet Color
(.187–.250")
(.250–.375")
(.375–.437")
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
Orange
Gray
Green
Black
Gray
Green
Orange
Yellow
Without O-Ring/Locknut*
Woodhead No.
5621
5623
5625
5537
5539
5541
5543
5545 †
Order No.
130098-0217
130098-0223
130098-0229
130098-0101
130098-0109
130098-0116
130098-0123
130098-0130
With O-Ring/Locknut
Woodhead No.
5621W
5623W
5625W
5537W
5539W
5541W
5543W
5545W†
Replacement Grommet
Order No.
130098-0218
130098-0224
130098-0230
130098-0102
130098-0111
130098-0117
130098-0125
130098-0131
Woodhead No.
00-4985
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
00-4984
Order No.
130180-0407
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
130180-0406
With Mesh
Cable Diameter
6.35–9.53mm
9.53–11.10mm
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
Grommet Color
(.250–.375")
(.375–.437")
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
Gray
Green
Black
Gray
Green
Orange
Yellow
Stainless Steel Mesh Without O-Ring/Locknut*
Woodhead No.
5623M
5625M
5537M
5539M
5541M
5543M
5545M
Order No.
130099-0159
130099-0227
130099-0094
130099-0098
130099-0102
130099-0106
130099-0109
Non Metalic Mesh Without O-Ring/Locknut*
Woodhead No.
5623NM
5625NM
5537NM
5539NM
5641NM
5543NM
Replacement Grommet
Order No.
130099-0160
130099-0163
130099-0095
130099-0099
130099-0103
130099-0107
Woodhead No.
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
00-4984
Order No.
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
130180-0406
Oval Hole (UF Cable)
Cable Diameter
5.54×10.69mm (.218×.421") Oval
5.54×16.26mm (.218×.640") Oval
Right Angle Without O-Ring/Locknut*
Woodhead No.
5585
5587
Order No.
130098-0239
130098-0193
Replacement Grommet
Woodhead No.
00-4950
00-4951
Order No.
130180-0395
130180-0396
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
C-20
www.molex.com/woodhead
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
• Available Stainless Steel mesh yields high strength,
corrosion resistance and slight conductivity
• Available non-metallic mesh yields moderate strength,
corrosion resistance, great flexibility and no conductivity
Right Angle Male
1" NPT
Physical
Compression Nut Form Size: 4
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
O-Ring: Neoprene
Nut: Zinc-plated Steel
Weave Type: Half double weave, half single weave mesh
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Without Mesh
Cable Diameter
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
19.05–22.23mm
20.62–23.80mm
22.23–25.40mm
25.40–28.58mm
Grommet Color
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
(.750–.875")
(.812–.937")
(.875–1.000")
(1.000–1.125")
Black
Gray
Green
Orange
Yellow
Black
Gray
Green
Black
Without O-Ring/Locknut*
Woodhead No.
5547
5549
5551
5553
5555
5557
5559
5561
5563 †
Order No.
130098-0134
130098-0138
130098-0142
130098-0148
130098-0153
130098-0159
130098-0165
130098-0169
130098-0173
With O-Ring/Locknut
Woodhead No.
5547W
Order No.
130098-0135
5553W
5555W
5557W
130098-0149
130098-0154
130098-0160
5561W
130098-0170
Replacement Grommet
Woodhead No.
00-4990
00-4991
00-4992
00-4993
00-4994
00-4995
00-4996
00-4997
00-4998
Order No.
130180-0410
130180-0411
130180-0282
130180-0283
130180-0412
130180-0413
130180-0284
130180-0414
130180-0285
With Mesh
Cable Diameter
11.10–14.27mm
12.70–15.88mm
14.27–17.45mm
15.88–19.05mm
17.45–20.62mm
19.05–22.23mm
22.23–25.40mm
Grommet Color
(.437–.562")
(.500–.625")
(.562–.687")
(.625–.750")
(.687–.812")
(.750–.875")
(.875–1.000")
Black
Gray
Green
Orange
Yellow
Black
Green
Stainless Steel Mesh Without O-Ring/Locknut* Non-Metallic Mesh Without O-Ring/Locknut*
Woodhead No.
Order No.
5551M
5553M
5555M
5557M
5561M
130099-0118
130099-0121
130099-0125
130099-0129
130099-0136
Woodhead No.
5547NM
5549NM
Order No.
130099-0112
130099-0115
5553NM
5555NM
5557NM
5561NM
130099-0122
130099-0126
130099-0130
130099-0137
Replacement Grommet
Woodhead No.
00-4990
00-4991
00-4992
00-4993
00-4994
00-4995
00-4997
Order No.
130180-0410
130180-0411
130180-0282
130180-0283
130180-0412
130180-0413
130180-0414
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
www.molex.com/woodhead
C-21
C
Grips
Strain Relief Grips
MAX-LOC® Cord Seal
C
Features and Benefits
• Rugged construction suitable for boxes, cabinets,
pushbutton and general use enclosures
• Nylon body is resistant to impact and corrosion
• Rubber grommet provides a liquid-tight seal and
reduces cord pull-out
• Grommets are color-coded for easy identification
• Rubber grommet is best material to resist chemicals and
handles a wide temperature range
Grips
Strain Relief Grips
MAX-LOC® Cord Seal
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Right Angle Male
1¼" NPT
Cable Diameter
19.05–22.23mm
22.23–25.40mm
25.40–28.58mm
28.58–31.75mm
31.75–34.42mm
(.750–.875")
(.875–1.000")
(1.000–1.125")
(1.125–1.250")
(1.250–1.355")
Grommet Color
Orange
Yellow
Black
Green
Gray
Without O-Ring/Locknut*
Woodhead No.
5569
5571
5573
5575
5577†
Order No.
130098-0175
130098-0177
130098-0179
130098-0181
130098-0184
Physical
Compression Nut Form Size: 5
Gray Cord Grip Body and Compression Nut,
Washer (white): Nylon
Grommet: Rubber
Environmental
Cord Seal: Liquid-tight
Rating: NEMA 6P when used with correct NPT-sized O-ring
Replacement Grommet
Woodhead No.
00-5070
00-5071
00-5072
00-5073
00-5074
Order No.
130180-0308
130180-0309
130180-0310
130180-0311
130180-0312
* See MAX-LOC Accessories if o-ring or locknut is required
†
Cable jacket may need to be stripped for clearance
C-22
www.molex.com/woodhead
MAX-LOC®
Accessories
Physical
Nut: Zinc-plated Steel
Gasket Sealing Ring: Neoprene
O-Ring: Neoprene
Grips
C
Locknuts
Thread Size
¼" NPT
³⁄ 8" NPT
½" NPT
¾" NPT
1" NPT
1¼" NPT
Woodhead No.
5599
5600
5601
5602
5603
5604
Order No.
130099-0141
130099-0142
130099-0143
130099-0144
130099-0145
130099-0146
Sealing Rings/Gaskets for Deluxe and MAX-LOC Grips that do not come with O-ring
Thread Size
¼" NPT
³⁄ 8" NPT
½" NPT
¾" NPT
1" NPT
1¼" NPT
Woodhead No.
5609
5610
5611
5612
5613
5614
Order No.
130099-0147
130099-0148
130099-0149
130099-0150
130099-0151
130099-0152
O-Rings (Replacements for MAX-LOC)
Thread Size
½" NPT
¾" NPT
1" NPT
www.molex.com/woodhead
Woodhead No.
00-0820
00-0822
00-0824
Order No.
130180-0314
130180-0333
130180-0334
C-23
Strain Relief
Stainless Steel Grips
Stainless Steel Body with and
without Stainless Steel Mesh
Straight Male
C
Features and Benefits
• Stainless Steel construction performs well to resist
corrosion
• Body design features a recessed area to contain o-ring
and keep intact for an optimum long-term seal
• Indoor and outdoor rated for use in a wide range of
applications including marine and food processing
Grips
Reference Information
UL File No.: E76954
CSA File No.: LR32159
Physical
Threaded Body: Stainless Steel, type 303
Nut: Stainless Steel, type 303
Compression Ring: Polyethylene (included in non-mesh
version)
Mesh Collars: Stainless Steel, type 303/304
Mesh Material: Stainless Steel
Weave Type: Half double weave, half single weave mesh
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with O-ring (from MAX-LOC Accessories on page C-23)
placed between fitting and box
½" NPT
Cable Diameter
1.52–3.30mm
3.30–4.83mm
4.83–6.35mm
6.35–7.87mm
7.87–9.65mm
9.65–11.18mm
11.18–12.70mm
12.70–14.22mm
14.22–16.00mm
(.06–.13")
(.13–.19")
(.19–.25")
(.25–.31")
(.31–.38")
(.38–.44")
(.44–.50")
(.50–.56")
(.56–.63")
Form Size
F2
Without Stainless Steel Mesh
With Stainless Steel Mesh
Woodhead No.
5518SS*
5520SS
5522SS
5524SS
5526SS
5528SS
5530SS
5532SS
5534SS
Order No.
130098-0037
130098-0424
130098-0048
130098-0055
130098-0063
130098-0070
130098-0077
130098-0085
130098-0243
Woodhead No.
Order No.
5522MSS
5524MSS
5526MSS
5528MSS
5530MSS
5532MSS
5534MSS
130097-0321
130097-0322
130097-0323
130097-0324
130097-0325
130097-0326
130097-0328
Woodhead No.
5622SS
5624SS
5536SS
5538SS
5540SS
5542SS
5544SS
Order No.
130098-0244
130098-0245
130098-0246
130098-0106
130098-0113
130098-0426
130098-0128
Woodhead No.
5622MSS
5624MSS
5536MSS
5538MSS
5540MSS
5542MSS
5544MSS
Order No.
130097-0340
130097-0341
130097-0329
130097-0330
130097-0331
130097-0332
130097-0333
Woodhead No.
5546SS
5548SS
5550SS
5552SS
5554SS
5556SS
5558SS
5560SS
5562SS
Order No.
130098-0248
130098-0249
130098-0250
130098-0145
130098-0251
130098-0252
130098-0253
130098-0254
130098-0255
Woodhead No.
5546MSS
5548MSS
5550MSS
5552MSS
5554MSS
5556MSS
5558MSS
5560MSS
5562MSS
Order No.
130097-0630
130097-0334
130097-0631
130097-0335
130097-0336
130097-0337
130097-0632
130097-0338
130097-0633
¾" NPT
Cable Diameter
6.35–9.65mm (.25–.38")
9.65–11.18mm (.38–.44")
11.18–14.22mm (.44–.56")
12.70–16.00mm (.50–.63")
14.22–17.53mm (.56–.69")
16.00–19.05mm (.63–.75")
17.53–20.57mm (.69–.81")
Form Size
F3
1" NPT
Cable Diameter
11.18–14.22mm (.44–.56")
12.70–16.00mm (.50–.63")
14.22–17.53mm (.56–.69")
16.00–19.05mm (.63–.75")
17.53–20.57mm (.69–.81")
19.05–22.35mm (.75–.88")
20.57–23.88mm (.81–.94")
22.35–25.40mm (.88–1.00")
25.40–27.94mm (1.00–1.10")
Form Size
F4
* UL unattainable
Technical Information
Straight Body
Straight Body with Stainless Steel Mesh Grip
C-24
www.molex.com/woodhead
Features and Benefits
• Robust design works with Liquid-Tight conduit for
flexible conduit including motor applications
• Stainless Steel mesh construction performs well to resist
corrosion
• Insulated throat provides protection upon flexing,
temperature change and wire entry/exit
Malleable Iron or
Zinc-Plated Steel Body
Stainless Steel Mesh
Insulated Throat
Conduit
NPT Fitting Size
³⁄ 8"
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
½"
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
Reference Information
UL File No.: E61303
CSA File No.: LR32159
Mesh Length
0.067m
0.098m
0.111m
0.133m
0.143m
0.146m
0.191m
0.244m
0.270m
0.305m
(2.625")
(3.875")
(4.375")
(5.25")
(5.625")
(5.75")
(7.50")
(9.625")
(10.625")
(12.00")
Straight Male
Woodhead No.
36440
36370
36371
36372
36373
36374
36375
37030
37031
37032
Order No.
130096-0056
130096-0034
130096-0036
130096-0037
130096-0038
130096-0039
130096-0040
130096-0065
130096-0066
130096-0067
Physical
Threaded Body: Malleable Iron or Zinc-plated Steel
Nut: Zinc-plated Steel
Mesh Collars: Zinc-plated Steel and Aluminum
Ferrule to Mate with Flexible Conduit: Aluminum
Gasket Sealing Ring: Neoprene
Mesh Material: Stainless Steel
Weave Type: Single weave mesh
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Right Angle Male
Woodhead No.
36443
36400
36401
36402
36403
36404
36405
Order No.
130096-0058
130096-0050
130096-0051
130096-0052
130096-0053
130096-0054
130096-0055
45° Male
Straight Female
Woodhead No.
Order No.
Woodhead No.
Order No.
36390
36391
36392
36393
36394
36395
130096-0044
130096-0045
130096-0046
130096-0047
130096-0048
130096-0049
36380
36381
36382
130096-0041
130096-0042
130096-0043
Technical Information
Straight Male
45° Male
Straight Female
90° Male
www.molex.com/woodhead
C-25
C
Grips
Strain Relief
Liquid-Tight Conduit
Strain Relief
Liquid-Tight, Non-Metallic
Conduit for UL Type “A”
Flexible Conduit
Grips
C
Malleable Iron or
Zinc-Plated Steel Body
Stainless Steel Mesh
Conduit
NPT Fitting Size
½"
¾"
1"
1¼"
1½"
2"
½"
¾"
1"
1¼"
1½"
2"
Features and Benefits
• Robust design works with Liquid-Tight non-metallic
conduit including motor applications
• Stainless Steel mesh construction performs well to resist
corrosion
• Insulated throat provides protection upon flexing,
temperature change and wire entry/exit
Physical
Threaded Body: Malleable Iron or Zinc-plated Steel
Nut: Zinc-plated Steel
Mesh Collars: Zinc-plated Steel and Aluminum
Ferrule to Mate with Flexible Conduit: Nylon
Mesh Material: Stainless Steel
Weave Type: Single weave mesh
Reference Information
UL File No.: E61303 (straight body only)
Environmental
NEMA Rating: Wet location suitable for NEMA 4 enclosures
with gasket placed between fitting and box
Straight Male
Mesh Length
0.254m
0.267m
0.305m
0.432m
0.546m
0.610m
Woodhead No.
37101
37102
37103
37104
37105
37106
(10.0")
(10.5")
(12.0")
(17.0")
(21.5")
(24.0")
Right Angle Male
Order No.
130096-0069
130096-0071
130096-0073
130096-0075
130096-0077
130096-0079
Woodhead No.
37101-90
37102-90
37103-90
37104-90
Order No.
130096-0070
130096-0072
130096-0074
130096-0076
Technical Information
Ordering Information
Straight Male Fitting
NPT Trade Size
Woodhead No.
37101
37102
37103
37104
37105
37106
⁄2"
3
⁄4"
1"
11⁄4"
11⁄2"
2"
1
Right Angle Male Fitting
Order No.
130096-0069
130096-0071
130096-0073
130096-0075
130096-0077
130096-0079
Woodhead No.
37101-90
37102-90
37103-90
37104-90
37105-90
Order No.
130096-0070
130096-0072
130096-0074
130096-0076
130096-0078
Dimensional Information
A
10"
10½"
12"
17"
21½"
24"
C-26
B
⁄32"
19
⁄32"
23
⁄32"
¾"
¾"
¾"
19
C
15⁄16"
15⁄8"
115⁄16"
213⁄32"
2 25⁄32"
3 3⁄8"
D
19⁄32"
17⁄16"
1¾"
131⁄32"
2¼"
213⁄32"
www.molex.com/woodhead
Strain Relief
Watertite® Cord Grip
Physical
Form Size: F2 ½"
Grip Body and Compression Nut: Nylon
Collar and Mesh: Nylon or Stainless Steel
Environmental
Rating: Watertite
C
Grips
Wiring Device, Pendant, Enclosure
Stainless Steel or
Non-Metallic Mesh
Features and Benefits
• Common application for Watertite Wiring Devices,
Pendant Drops and Enclosures
• Simple installation reduces stress of arc bend and cord
pull-out from wiring device or enclosure
• Corrosion resistant mesh provides additional strength
for cord entrance
• Wide size range available to accommodate 2, 3, 4 and
5-wire devices
Non-Metallic Mesh Strain Relief, F2
Cable Diameter
7.88–9.49mm (.310–.370")
9.50–10.92mm (.370–.430")
10.92–12.70mm (.430–.500")
Woodhead No.
5630NM
5631NM
5632NM
Order No.
130099-0166
130099-0168
130099-0170
Woodhead No.
5630M
5631M
5632M
5647M
5648M
Order No.
130099-0165
130099-0167
130099-0169
130099-0189
130099-0190
Metallic Mesh Strain Relief, F2
Cable Diameter
7.88–9.49mm (.310–.370")
9.53–11.10mm (.375–.437")
10.92–12.70mm (.430–.500")
12.70–14.27mm (.500–.562")
14.27–15.88mm (.560–.625")
www.molex.com/woodhead
C-27
Strain Relief
Watertite® Cord Grip
Wiring Device, Pendant, Enclosure
Stainless Steel or
Non-Metallic Mesh
Physical
Form Size: F3 ¾"
Grip Body and Compression Nut: Nylon
Collar and Mesh: Nylon or Stainless Steel
Environmental
Rating: Watertite
Grips
C
Features and Benefits
• Common application for Watertite Wiring Devices,
Pendant Drops and Enclosures
• Simple installation reduces stress of arc bend and cord
pull-out from wiring device or enclosure
• Corrosion resistant mesh provides additional strength
for cord entrance
• Wide size range available to accommodate 2, 3, 4 and
5-wire devices
Non-Metallic Mesh Strain Relief, F3
Cable Diameter
11.10–14.27mm (.437–.562")
12.70–15.88mm (.500–.625")
14.22– 17.27mm (.560–.680")
15.75–19.05mm (.620–.750")
Woodhead No.
5633NM
5634NM
5635NM
5640NM
Order No.
130099-0172
130099-0174
130099-0176
130099-0186
Woodland No.
5628M
5633M
5634M
5635M
5640M
5645M
Order No.
130099-0164
130099-0171
130099-0173
130099-0175
130099-0185
130099-0187
Metallic Mesh Strain Relief, F3
Cable Diameter
9.53–11.10mm (.375–.437")
11.10–14.27mm (.437–.562")
12.70–15.88mm (.500–.625")
14.27–17.45mm (.562–.687")
15.88–19.05mm (.625–.75")
17.27–20.57mm (.680–.810")
C-28
www.molex.com/woodhead
Strain Relief
Watertite® Cord Grip
Physical
Form Size: F4 1" and F5 1¼"
Grip Body and Compression Nut: Nylon
Collar and Mesh: Nylon or Stainless Steel
Environmental
Rating: Watertite
C
Grips
Wiring Device, Pendant, Enclosure
Stainless Steel or
Non-Metallic Mesh
Features and Benefits
• Common application for Watertite Wiring Devices,
Pendant Drops and Enclosures
• Simple installation reduces stress of arc bend and cord
pull-out from wiring device or enclosure
• Corrosion resistant mesh provides additional strength
for cord entrance
• Wide size range available to accommodate 2, 3, 4 and
5-wire devices
Non-Metallic Mesh Strain Relief, F4
Cable Diameter
14.22–17.27mm (.560–.680")
15.88–19.05mm (.625–750")
19.05–22.23mm (.750–875")
22.23–25.40mm (.875–1.00")
Woodhead No.
5636NM
5637NM
5638NM
5639NM
Order No.
130099-0178
130099-0180
130099-0182
130099-0184
Woodhead No.
5636M
5637M
5638M
5646M
5639M
Order No.
130099-0177
130099-0179
130099-0181
130099-0188
130099-0183
Metallic Mesh Strain Relief, F4
Cable Diameter
14.22–17.27mm (.560–.680")
15.88–19.05mm (.625–.750")
19.05–22.23mm (.750–.875")
20.57–23.88mm (.810–.940")
22.23–25.40mm (.875–1.00")
www.molex.com/woodhead
C-29
Strain Relief Grips
Safeway®
Wiring Device I-Grips
Galvanized Steel Mesh
Grips
C
Features and Benefits
• Common application for Super-Safeway™ and Safeway
wiring devices and most other manufacturers requires
stock of only one part number per cable size
• Universal installation reduces stress of cord arc bend
and cord pull-out from the wiring device
• Galvanized Steel mesh construction provides excellent
strength
• Wide size range available to accommodate 2, 3, 4 and
5 wire wiring devices
Physical
Assembly: Crimped eye tabs install between the two wiring
device cord clamp pieces
Mesh Material: Galvanized Steel
Crimp: Aluminum
Weave Type: Single weave mesh
Environmental
Rating: Indoor use only
Reference Information
CSA File No.: LR32159
Cable Diameter
7.62–10.92mm
10.16–14.22mm
13.21–18.54mm
17.78–21.59mm
20.83–25.40mm
23.88–31.75mm
(.30–.43")
(.40–.56")
(.52–.73")
(.70–.85")
(.82–1.00")
(.94–1.25")
Without O-Ring/Locknut
Woodhead No.
36550
36551
36552
36553
36554
36555
Order No.
130096-0059
130096-0060
130096-0061
130096-0062
130096-0063
130096-0064
E
M
.114m 4.500"
.140m 5.500"
.165m 6.500"
.203m 8.000"
.203m 8.000"
.254m 10.000"
Eyelet hole diameter = 0.325"
.048m
.053m
.053m
.060m
.060m
.060m
C-30
1.875"
2.094"
2.094"
2.344"
2.344"
2.344"
www.molex.com/woodhead
SUPPORT GRIPS
WOODHEAD® INDOOR AND OUTDOOR SUPPORT GRIPS ARE DESIGNED
TO DISTRIBUTE WEIGHT OF VERTICAL OR SLOPING RUNS OF ELECTRICAL
AND FIBER-OPTIC CABLE, METAL RODS, TUBING OR HOSE OVER THE
ENTIRE LENGTH OF THE GRIP TO AVOID DAMAGE
Standard closed-mesh and open-mesh support grips are available in a wide variety of eye styles
and cable ranges. Support grips are woven from corrosion-resistant tinned-bronze wire, except
for bus-drop grips, which are made from galvanized steel. Many of these grips can be upgraded
to stainless-steel wire for applications demanding a higher level of corrosion resistance.
FEATURES AND
BENEFITS
APPLICATIONS
Integrated-metal shield
Provides reinforcement at critical point
Provides longer, trouble-free service
Available in four eye styles:
single, double, universal and offset
Provides customer convenience
Available in closed- or open-mesh for
end-of-cable or mid-cable installation
Provides customer convenience
• Electrical contractors
• General manufacturing
• Utility companies
Support Grips
Standard Duty
Features and Benefits
• Single eye/bale is universally applied and most
common
• Tinned-Bronze wire mesh provides corrosion resistance
• Top-mounted reinforced eye protector provides stable,
longer-life support
• Closed mesh provides permanent support when cable
end is available
• Split lace provides permanent support for mid-cable
placement
• Split rod provides support for mid-cable placement
Single Eye
Grips
C
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Single weave mesh
Mesh Type: Closed, split lace or split rod
Closed Mesh
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.203m (8.00")
0.203m (8.00")
0.229m (9.00")
0.254m (10.00")
0.305m (12.00")
0.356m (14.00")
0.406m (16.00")
0.457m (18.00")
0.533m (21.00")
0.610m (24.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
960 lb
1300 lb
1680 lb
1680 lb
1680 lb
2640 lb
3760 lb
3760 lb
5040 lb
5040 lb
Woodhead No.
35030
35031
35032
35033
35034
35035
35036
35037
35038
35039
35040
Order No.
130094-0230
130094-0232
130094-0234
130094-0236
130094-0238
130094-0240
130094-0242
130094-0244
130094-0246
130094-0247
130094-0249
Woodhead No.
35165
35166
35167
35168
35169
35170
35171
35172
35173
35174
35175
Order No.
130094-0310
130094-0312
130094-0314
130094-0316
130094-0318
130094-0320
130094-0322
130094-0324
130094-0326
130094-0328
130094-0329
Woodhead No.
35285
35286
35287
35288
35289
35290
35291
35292
35293
35294
Order No.
130094-0385
130094-0387
130094-0389
130094-0391
130094-0393
130094-0395
130094-0397
130094-0399
130094-0401
130094-0403
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Single Eye, Split Lace
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.203m (8.00")
0.203m (8.00")
0.229m (9.00")
0.254m (10.00")
0.305m (12.00")
0.356m (14.00")
0.406m (16.00")
0.457m (18.00")
0.533m (21.00")
0.610m (24.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.380m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
960 lb
1320 lb
1680 lb
1680 lb
1680 lb
2640 lb
3760 lb
3760 lb
5040 lb
5040 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Split Rod
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
Bale Length
0.178m (7.00")
0.203m (8.00")
0.203m (8.00")
0.229m (9.00")
0.254m (10.00")
0.305m (12.00")
0.356m (14.00")
0.406m (16.00")
0.457m (18.00")
0.533m (21.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.380m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
Approximate Break Strength*
770 lb
960 lb
1320 lb
1680 lb
1680 lb
1680 lb
2640 lb
3760 lb
3760 lb
5040 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
C-32
www.molex.com/woodhead
Support Grips
Standard Duty
Features and Benefits
• Double eye/bale increases stability and holding power
• Tinned-Bronze wire mesh provides corrosion resistance
• Top-mounted reinforced eye protector provides stability
and longer-life support
• Closed mesh provides permanent support when cable
end is available
• Split lace provides permanent support for mid-cable
placement
• Split rod provides support for mid-cable placement
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Single weave mesh
Mesh Type: Closed, split lace or split rod
C
Grips
Double Eye
Reference Information
CSA File No.: LR32159
Double Eye, Closed Mesh
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.380m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
1150 lb
1320 lb
1920 lb
1920 lb
1920 lb
3150 lb
3360 lb
3360 lb
5280 lb
5280 lb
Woodhead No.
35001
35002
35003
35004
35005
35006
35007
35008
35009
35010
35011
Order No.
130094-0209
130094-0211
130094-0213
130094-0215
130094-0217
130094-0219
130094-0221
130094-0223
130094-0225
130094-0227
130094-0228
Woodhead No.
35135
35136
35137
35138
35139
35140
35141
35142
35143
35144
35145
Order No.
130094-0288
130094-0290
130094-0292
130094-0294
130094-0296
130094-0298
130094-0300
130094-0302
130094-0304
130094-0306
130094-0308
Woodhead No.
35270
35271
35272
35273
35274
35275
35276
35277
35278
35279
35280
Order No.
130094-0367
130094-0368
130094-0370
130094-0372
130094-0374
130094-0376
130094-0378
130094-0380
130094-0382
130094-0383
130094-0384
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Double Eye, Split Lace
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
76.20–88.65mm (3.00–3.49")
Bale Length
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.380m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
1150 lb
1320 lb
1920 lb
1920 lb
1920 lb
3150 lb
3360 lb
3360 lb
5280 lb
5280 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Double Eye, Split Rod
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.308m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
1150 lb
1320 lb
1920 lb
1920 lb
1920 lb
3150 lb
3360 lb
3360 lb
5280 lb
5280 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
www.molex.com/woodhead
C-33
Support Grips
Standard Duty
Features and Benefits
• Offset eye/bale allows for straight, vertical cable support
• Tinned-Bronze wire mesh provides corrosion resistance
• Top-mounted reinforced eye protector provides stability
and longer-life support
• Closed mesh provides permanent support when cable
end is available
• Split lace provides permanent support for mid-cable
placement
• Split rod provides support for mid-cable placement
Offset Eye
Grips
C
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Single weave mesh
Mesh Type: Closed, split lace or split rod
Closed Mesh
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
960 lb
960 lb
1680 lb
1680 lb
1680 lb
2640 lb
3760 lb
3760 lb
5040 lb
5040 lb
Woodhead No.
35060
35061
35062
35063
35064
35065
35066
35067
35068
35069
35070
Order No.
130094-0251
130094-0253
130094-0255
130094-0257
130094-0259
130094-0261
130094-0263
130094-0265
130094-0267
130094-0268
130094-0269
Woodhead No.
35195
35196
35197
35198
35199
35200
35201
35202
35203
35204
35205
Order No.
130094-0330
130094-0332
130094-0334
130094-0336
130094-0338
130094-0340
130094-0342
130094-0344
130094-0346
130094-0348
130094-0350
Woodhead No.
35300
35301
35302
35303
35304
35305
35306
35307
35308
35309
35310
Order No.
130094-0406
130094-0408
130094-0410
130094-0412
130094-0414
130094-0416
130094-0418
130094-0420
130094-0422
130094-0424
130094-0426
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Split Lace
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
960 lb
960 lb
1680 lb
1680 lb
1680 lb
2640 lb
3760 lb
3760 lb
5040 lb
5040 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Split Rod
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.178m (7.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
960 lb
960 lb
1680 lb
1680 lb
1680 lb
2640 lb
3760 lb
3760 lb
5040 lb
5040 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
C-34
www.molex.com/woodhead
Locking Bale/Universal Eye
Features and Benefits
• Locking bale provides easy, quick attachment to fixed
structure without the need for additional hardware
• Tinned-Bronze wire mesh provides corrosion resistance
• Closed mesh provides permanent support when cable
end is available
• Split lace provides permanent support for mid-cable
placement
• Split rod provides support for mid-cable placement
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Single weave mesh
Mesh Type: Closed, split lace or split rod
C
Grips
Support Grips
Standard Duty
Closed Mesh
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.99mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
Bale Length
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
Approximate Break Strength*
770 lb
1150 lb
1320 lb
1920 lb
1920 lb
1920 lb
3150 lb
3360 lb
3360 lb
5280 lb
Woodhead No.
35090
35091
35092
35093
35094
35095
35096
35097
35098
35099
Order No.
130094-0271
130094-0273
130094-0275
130094-0276
130094-0278
130094-0279
130094-0280
130094-0281
130094-0283
130094-0284
Woodhead No.
35225
35226
35227
35228
35229
35230
35231
35232
Order No.
130094-0352
130094-0354
130094-0356
130094-0357
130094-0358
130094-0359
130094-0360
130094-0361
Woodhead No.
35330
35331
35332
35333
35334
35335
35336
35337
35338
35339
35340
Order No.
130094-0429
130094-0430
130094-0432
130094-0434
130094-0435
130094-0436
130094-0437
130094-0438
130094-1042
130094-1400
130094-0439
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Split Lace
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
Bale Length
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
Approximate Break Strength*
770 lb
1150 lb
1320 lb
1920 lb
1920 lb
1920 lb
3150 lb
3360 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Split Rod
Cable Diameter
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.99mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Bale Length
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
0.457m (18.00")
Mesh Length
0.279m (11.00")
0.279m (11.00")
0.356m (14.00")
0.381m (15.00")
0.406m (16.00")
0.457m (18.00")
0.508m (20.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
0.711m (28.00")
Approximate Break Strength*
770 lb
1150 lb
1320 lb
1920 lb
1920 lb
1920 lb
3150 lb
3360 lb
3360 lb
5280 lb
5280 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
www.molex.com/woodhead
C-35
Support Grips
Heavy Duty
Features and Benefits
• Single eye/bale is universally applied and most
common
• Tinned-Bronze wire mesh provides corrosion resistance
• Double weave provides industrial strength
• Top-mounted reinforced eye protector provides stability
and longer-life support
• Closed mesh provides permanent support when cable
end is available
• Split lace provides permanent support for mid-cable
placement
Single Eye
Grips
C
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Double weave mesh
Mesh Type: Closed or split Lace
Single Eye, Closed Mesh
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–50.55mm (1.50–1.99")
Bale Length
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
Mesh Length
0.660m (26.00")
0.737m (29.00")
0.787m (31.00")
0.889m (35.00")
Approximate Break Strength*
2700 lb
4720 lb
4720 lb
4720 lb
Woodhead No.
35435
35436
35437
35438
Order No.
130094-0457
130094-0459
130094-0461
130094-0463
Woodhead No.
35450
35451
35452
35453
Order No.
130094-0480
130094-0482
130094-0484
130094-0486
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Single Eye, Split Lace
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–50.55mm (1.50–1.99")
Bale Length
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
Mesh Length
0.660m (26.00")
0.737m (29.00")
0.787m (31.00”)
0.889m (35.00")
Approximate Break Strength*
2700 lb
4720 lb
4720 lb
4720 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
C-36
www.molex.com/woodhead
Features and Benefits
• Double eye/bale provides increased stability, increased
holding power
• Tinned-Bronze wire mesh provides corrosion resistance
• Double weave provides industrial strength
• Top-mounted reinforced eye protector provides stability
and longer-life support
• Closed mesh provides permanent support when cable
end is available
• Split lace provides permanent support for mid-cable
placement
Double Eye
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Full double weave
Mesh Type: Closed or split lace
C
Grips
Support Grips
Heavy Duty
Double Eye, Closed Mesh
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–50.55mm (1.50–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
101.60–114.05mm (4.00–4.49")
Bale Length
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
Mesh Length
0.660m (26.00")
0.737m (29.00")
0.787m (31.00")
0.889m (35.00")
0.940m (37.00")
0.991m (39.00")
1.041m (41.00")
1.143m (45.00")
1.194m (47.00")
Approximate Break Strength*
2700 lb
4720 lb
4720 lb
4720 lb
10080 lb
10080 lb
10080 lb
13120 lb
13120 lb
Woodhead No.
35425
35426
35427
35428
35429
35430
35431
35432
35433
Order No.
130094-0440
130094-0442
130094-0444
130094-0446
130094-0448
130094-0450
130094-0452
130094-0453
130094-0455
Woodhead No.
35440
35441
35442
35443
35444
35445
35446
35447
35448
Order No.
130094-0465
130094-0466
130094-0468
130094-0470
130094-0472
130094-0474
130094-0476
130094-0478
130094-0479
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Double Eye, Split Lace
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–50.55mm (1.50–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
101.60–114.05mm (4.00–4.49")
Bale Length
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
0.254m (10.00")
Mesh Length
0.660m (26.00")
0.737m (29.00")
0.787m (31.00")
0.889m (35.00")
0.940m (37.00")
0.991m (39.00")
1.041m (41.00")
1.143m (45.00")
1.194m (47.00")
Approximate Break Strength*
2700 lb
4720 lb
4720 lb
4720 lb
10080 lb
10080 lb
10080 lb
13120 lb
13120 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
www.molex.com/woodhead
C-37
Support Grips
Service Drop
Single Eye and
Locking Bale/Universal Eye
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Tinned-Bronze wire mesh
Weave Type: Single weave mesh
Mesh Type: Closed
Grips
C
Features and Benefits
• Service drop single eye/bale or locking/universal eye
are used for service entrance cable
• Locking bale provides easy, quick attachment to fixed
structure without the need for additional hardware
• Tinned-Bronze wire mesh provides corrosion resistance
• Closed mesh top-mounted reinforced eye protector
provides stability and longer-life support
Single Eye
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–14.22mm (.40–.56")
13.21–18.54mm (.52–.73")
17.78–24.64mm (.70–.97")
23.88–31.75mm (.94–1.25")
Bale Length
0.102m (4.00")
0.127m (5.00")
0.152m (6.00")
0.203m (8.00")
0.203m (8.00")
0.254m (10.00")
Mesh Length
0.102m (4.00")
0.127m (5.00")
0.127m (5.00")
0.203m (8.00")
0.229m (9.00")
0.279m (11.00")
Approximate Break Strength*
290 lb
500 lb
500 lb
790 lb
1020 lb
1020 lb
Woodhead No.
36573
36575
36576
36577
36578
36579
Order No.
130094-0501
130094-0504
130094-0505
130094-0506
130094-0507
130094-0509
Woodhead No.
36581
36583
36585
36586
Order No.
130094-0511
130094-0513
130094-0515
130094-0516
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
Locking Bale/Universal Eye
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–14.22mm (.40–.56")
13.21–18.54mm (.52–.73")
Bale Length
0.229m (9.00")
0.254m (10.00")
0.279m (11.00")
0.330m (13.00")
Mesh Length
0.102m (4.00')
0.127m (5.00")
0.127m (5.00")
0.203m (8.00")
Approximate Break Strength*
290 lb
500 lb
500 lb
790 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
C-38
www.molex.com/woodhead
Single Eye and
Locking Bale/Universal Eye
Features and Benefits
• Bus drop single eye/bale or locking/universal eye are
used for bus drop cable
• Locking bale provides easy, quick attachment to fixed
structure without the need for additional hardware
• Closed mesh top-mounted reinforced eye protector
provides stable and longer-life support
• Galvanized Steel wire mesh is for indoor use only
• Stainless Steel is for indoor or outdoor use
Reference Information
UL File No. E76954 (except locking bale grips
and accessories)
CSA File No.: LR32159 (except accessories)
Physical
Mesh Material: Galvanized Steel or Stainless Steel wire
mesh
Weave Type: Single weave mesh
Mesh Type: Closed
Single Eye, Galvanized Steel (UL Listed)
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–14.22mm (.40–.56")
13.46–18.54mm (.53–.73")
17.78–21.59mm (.70–.85")
20.83–25.40mm (.82–1.00")
24.38–31.75mm (.96–1.25")
Bale Length
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.089m (3.50")
0.114m (4.50")
0.127m (5.00")
0.165m (6.50")
0.216m (8.50")
0.216m (8.50")
0.279m (11.00")
Approximate Break Strength*
650 lb
1100 lb
1100 lb
1100 lb
1900 lb
1900 lb
1900 lb
Woodhead No.
36560
36562
36564
36567
36569
36571
36574
Order No.
130094-0489
130094-0491
130094-0493
130094-0495
130094-0497
130094-0499
130094-0502
Woodhead No.
36560SS
36562SS
36564SS
36567SS
36569SS
36571SS
36574SS
Order No.
130094-0490
130094-0492
130094-0494
130094-0496
130094-0498
130094-0500
130094-0503
Woodhead No.
36580
36582
36584
36587
36589
36591
36594
Order No.
130094-0510
130094-0512
130094-0514
130094-0517
130094-0519
130094-0520
130094-0521
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Single Eye, Stainless Steel (UL Listed)
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–14.22mm (.40–.56")
13.46–18.54mm (.53–.73")
17.78–21.59mm (.70–.85")
20.83–25.40mm (.82–1.00")
24.38–31.75mm (.96–1.25")
Bale Length
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
0.229m (9.00")
Mesh Length
0.089m (3.50")
0.114m (4.50")
0.127m (5.00")
0.165m (6.50")
0.216m (8.50")
0.216m (8.50")
0.279m (11.00")
Approximate Break Strength*
650 lb
1100 lb
1100 lb
1100 lb
1900 lb
1900 lb
1900 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Locking Bale/Universal Eye, Galvanized Steel
Cable Diameter
5.59–8.13mm (.22–.32")
7.62–10.92mm (.30–.43")
10.16–14.22mm (.40–.56")
13.46–18.54mm (.53–.73")
17.78–21.59mm (.70–.85")
20.83–25.40mm (.82–1.00")
24.38–31.75mm (.96–1.25")
Bale Length
0.305m (12.00")
0.305m (12.00")
0.305m (12.00")
0.380m (15.00")
0.406m (16.00")
0.406m (16.00")
0.432m (17.00")
Mesh Length
0.089m (3.50")
0.114m (4.50")
0.127m (5.00")
0.165m (6.50")
0.216m (8.50")
0.216m (8.50")
0.279m (11.00")
Approximate Break Strength*
650 lb
1100 lb
1100 lb
1100 lb
1900 lb
1900 lb
1900 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Bus-Drop Accessories
Description
Load (max.)
Safety spring
Safety spring
Support hook
40 lb
80 lb
www.molex.com/woodhead
Galvanized Steel
Woodhead No.
36237
36238
36241
Stainless Steel
Order No.
130099-0051
130099-0052
130094-0488
Woodhead No.
36237SS
36238SS
36241SS
Order No.
130099-0228
130099-0229
130094-1401
C-39
C
Grips
Support Grips
Bus-Drop
38//,1**5,36
WOODHEAD® PULLING GRIPS ARE DESIGNED FOR OVERHEAD, UNDERGROUND OR IN-PLANT WIRING APPLICATIONS AND SERVE AS REUSABLE
TOOLS FOR PULLING INSULATED CONDUCTORS, BARE WIRES, CABLE, FIBER
OPTIC CABLE AND NYLON AND WIRE ROPE
Woodhead Pulling Grips are available in a wide range of styles and are made of high-quality
JDOYDQL]HGVWHHOZLUH$OOVW\OHVIHDWXUHDVPRRWKHYHQWKLQSURÀOHPDNLQJWKHVHJULSVHDV\
WRXVHTXLFNWRLQVWDOODQGUHXVDEOHPDQ\WLPHVRYHU
FEATURES AND
BENEFITS
APPLICATIONS
&KRRVHDÁH[LEOHRU
rotating eye
6XLWDEOHIRUDEURDGUDQJH
of applications
Available in light-duty through multiZHDYHKLJKVWUHQJWKPHVKYHUVLRQV
Provides a wide range of product options
WRPHHWVSHFLÀFDSSOLFDWLRQQHHGV
6KRXOGHUSURWHFWRUV
furnished as standard
(QVXUHVEXPSOHVVSXOOVDQG
long-life operation
• Electrical contractors
• Facility maintenance
• Utility companies
Pulling Grips
Junior Duty
Features and Benefits
• Flexible eye works in both generous and tight spaces
• Galvanized Steel mesh offers superior strength
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Universally applied for single cable or wire bundles
• Available as tool kit with all sizes below
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Single weave mesh
Mesh Type: Closed mesh
C
Grips
Flexible Eye
Reference Information
CSA File No.: LR32159
Cable Diameter
6.35–9.14mm (.25–.36")
9.40–12.45mm (.37–.49")
12.70–15.49mm (.50–.61")
15.75–18.80mm (.62–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
Mesh Length
0.127m (5.00")
0.178m (7.00")
0.203m (8.00")
0.254m (10.00")
0.254m (10.00")
0.305m (12.00")
Approximate Break Strength*
1700 lb
1700 lb
1700 lb
2800 lb
4100 lb
4100 lb
Woodhead No.
35970
35971
35972
35973
35974
35975
Order No.
130095-0194
130095-0196
130095-0197
130095-0198
130095-0200
130095-0201
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Flexible Eye Kit
Woodhead No.
35976
Order No.
130095-0202
Contains 1 each of the following: 35970, 35971, 35972, 35973, 35974, 35975
Pulling Grips
Light Duty
Flexible Eye
Cable Diameter
12.70–15.49mm (.50–.61")
15.88–19.05mm (.63–.75")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
Features and Benefits
• Flexible eye works in both generous and tight spaces
• Galvanized Steel mesh offers superior strength
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Universally applied for single cable or wire bundles in
commercial, industrial and underground applications
Mesh Length
0.324m (12.75")
0.356m (14.00")
0.275m (14.75")
0.419m (16.50")
0.432m (17.00")
0.508m (20.00")
0.597m (23.50")
0.584m (23.00")
0.603m (23.75")
Approximate Break Strength*
3400 lb
4100 lb
4100 lb
5800 lb
5800 lb
7500 lb
10000 lb
10000 lb
13000 lb
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Single weave mesh
Mesh Type: Closed mesh
Woodhead No.
35901
35902
35903
35904
35905
35906
35907
35908
35909
Order No.
130095-0146
130095-0147
130095-0148
130095-0149
130095-0150
130095-0151
130095-0152
130095-0153
130095-0154
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
www.molex.com/woodhead
C-41
Pulling Grips
Medium Duty
Features and Benefits
• Flexible eye works in both generous and tight spaces
• Galvanized Steel mesh offers superior strength
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Wide application for medium duty overhead and
underground pulling
• Available as tool kit with all sizes below
Flexible Eye
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Half single weave/half double weave mesh
Mesh Type: Closed mesh
Grips
C
Reference Information
CSA File No.: LR32159
Medium Duty, Short Length
Cable Diameter
9.40–12.45mm (.37–.49")
12.70–18.80mm (.50–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–50.55mm (1.50–1.99")
Mesh Length
0.305m (12.00")
0.356m (14.00")
0.457m (18.00")
0.559m (22.00")
0.610m (24.00")
0.660m (26.00")
Approximate Break Strength*
2600 lb
3400 lb
5500 lb
8100 lb
8100 lb
8100 lb
Woodhead No.
35930
35931
35932
35933
35934
35935
Order No.
130095-0165
130095-0166
130095-0167
130095-0168
130095-0169
130095-0170
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Medium Duty Kit
Woodhead No.
35937
Order No.
130095-0171
Contains 1 each of the following: 35930, 35931, 35932, 35933, 35934, 35935
C-42
www.molex.com/woodhead
Pulling Grips
Medium/Heavy Duty
Features and Benefits
• Flexible eye works in both generous and tight spaces
• Galvanized Steel mesh offers superior strength
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Wide application for medium to heavy duty
applications, higher incoming service lines
• Broad grip strength available to match the needs of the
required pull for short length, T-type, standard length,
T-type and long length
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Half single weave/half double weave mesh
Mesh Type: Closed mesh
C
Grips
Flexible Eye
Reference Information
CSA File No.: LR32159
Short Length, T-Type
Cable Diameter
12.70–15.49mm (.50–.61")
15.88–19.05mm (.63–.75")
19.05–25.15mm (.75–.99")
25.40–37.85mm (1.00–1.49")
38.10–50.55mm (1.50–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Mesh Length
0.533m (21.00")
0.610m (24.00")
0.610m (24.00")
0.610m (24.00")
0.610m (24.00")
0.610m (24.00")
0.610m (24.00")
0.610m (24.00")
0.660m (26.00")
Cable Eye Thickness
5.537mm (.218")
6.350mm (.250")
6.350mm (.250")
7.925mm (.312")
11.100mm (.437")
11.100mm (.437")
12.700mm (.500")
12.700mm (.500")
15.875mm (.625")
Approximate Break Strength*
4500 lb
5600 lb
6800 lb
9600 lb
16400 lb
18500 lb
24500 lb
24500 lb
31000 lb
Woodhead No.
35940
35941
35942
35943
35944
35945
35946
35947
35948
Order No.
130095-0172
130095-0173
130095-0174
130095-0175
130095-0176
130095-0177
130095-0178
130095-0179
130095-0180
Approximate Break Strength*
6800 lb
9600 lb
16400 lb
18500 lb
24500 lb
24500 lb
31000 lb
Woodhead No.
35950
35951
35952
35953
35954
35955
35956
Order No.
130095-0181
130095-0182
130095-0183
130095-0184
130095-0185
130095-0186
130095-0187
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Standard Length, T-Type
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–37.85mm (1.00–1.49")
38.10–50.55mm (1.50–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Mesh Length
0.914m (36.00")
0.914m (36.00")
0.914m (36.00")
0.914m (36.00")
0.914m (36.00")
0.914m (36.00")
1.016m (40.00")
Cable Eye Thickness
6.350mm (.250")
7.925mm (.312")
11.100mm (.437")
11.100mm (.437")
12.700mm (.500")
12.700mm (.500")
15.875mm (.625")
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Medium Duty, Standard Length T-Type Kit
Woodhead No.
35980
Order No.
130095-0203
Contains 1 each of the following: 35950, 35951, 35952, 35953
Meduim Duty, Long Length
Cable Diameter
19.05–25.15mm (.75–.990")
25.40–37.85mm (1.00–1.49")
38.10–50.55mm (1.50–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
Mesh Length
1.219m (48.00")
1.219m (48.00")
1.219m (48.00")
1.219m (48.00")
1.219m (48.00")
Approximate Break Strength*
8100 lb
11600 lb
19400 lb
19400 lb
25900 lb
Woodhead No.
35960
35961
35962
35963
35964
Order No.
130095-0188
130095-0189
130095-0190
130095-0191
130095-0192
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
www.molex.com/woodhead
C-43
Pulling Grips
Heavy Duty
Features and Benefits
• Rotating eye can reduce rotational torque whenever
pulling load is reduced
• Galvanized Steel mesh offers superior strength
• Forged Steel rotating eye will not bind when used with
sheaves and blocks
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Wide application for underground cables,
communication and service lines
• Available as tool kit with all sizes below
• Wide length selection to meet the preference of the
installer in short length K-type and standard length
K-type
Rotating Eye
Grips
C
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Full double weave mesh
Mesh Type: Closed mesh
Short Length, K-Type
Cable Diameter
15.88–19.05mm (.625–.75")
19.05–25.15mm (.750–.99")
25.40–31.50mm (1.000–1.24")
31.75–37.85mm (1.250–1.49")
38.10–50.55mm (1.500–1.99")
50.80–63.25mm (2.000–2.49")
63.50–75.95mm (2.500–2.99")
76.20–88.65mm (3.000–3.49")
88.90–101.35mm (3.500–3.99")
101.60–114.05mm (4.000–4.49")
Mesh Length
0.279m (11.00")
0.508m (20.00")
0.508m (20.00")
0.533m (21.00")
0.635m (25.00")
0.660m (26.00")
0.711m (28.00")
0.762m (30.00")
0.813m (32.00")
0.838m (33.00")
Eye Diameter
22.225mm (.875")
25.400mm (1.000")
34.925mm (1.375")
34.925mm (1.375")
41.275mm (1.625")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
Color Code
Dark Green
Brown
Light Blue
Gold
Black
Red
Dark Blue
Yellow
Orange
Aluminum
Approximate Break Strength*
6800 lb
9600 lb
16400 lb
16400 lb
27200 lb
33000 lb
41000 lb
48000 lb
48000 lb
48000 lb
Woodhead No.
35851
35867
35868
35869
35870
35871
35872
35873
35874
35875
Order No.
130095-0123
130095-0126
130095-0127
130095-0128
130095-0129
130095-0130
130095-0131
130095-0132
130095-0133
130095-0134
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Standard Length, K-Type
Cable Diameter
12.70–15.49mm (.50–.61")
15.88–19.05mm (.63–.75")
19.05–25.15mm (.75–.99")
25.40–37.85mm (1.00–1.49")
38.10–50.55mm (1.50–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
101.60–114.05mm (4.00–4.49")
114.30–126.75mm (4.50–4.99")
127.00–152.15mm (5.00–5.99")
152.40–177.55mm (6.00–6.99")
Mesh Length
0.406m (16.00")
0.406m (16.00")
0.813m (32.00")
0.838m (33.00")
0.864m (34.00")
0.914m (36.00")
0.965m (38.00")
0.991m (39.00")
1.041m (41.00")
1.067m (42.00")
1.473m (58.00")
1.524m (60.00")
1.676m (66.00")
Eye Diameter
22.225mm (.875")
22.225mm (.875")
25.400mm (1.000")
34.925mm (1.375")
34.925mm (1.375")
41.275mm (1.625")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
Approximate Break Strength*
5600 lb
6800 lb
9600 lb
16400 lb
16400 lb
27200 lb
33000 lb
41000 lb
48000 lb
48000 lb
48000 lb
48000 lb
48000 lb
Woodhead No.
35865
35866
35880
35881
35882
35883
35884
35885
35886
35887
38897
35898
35899
Order No.
130095-0124
130095-0125
130095-0135
130095-0136
130095-0137
130095-0138
130095-0139
130095-0140
130095-0141
130095-0142
130095-0143
130095-0144
130095-0145
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Rotating Eye Kit
Woodhead No.
36010
Order No.
130095-0205
Includes 1 each of: 35880, 35881, 35882, 35883
Rotating Eye Diameter
B
Eye Diameter
22.225mm
25.400mm
34.925mm
41.275mm
47.625mm
C-44
(.875")
(1.000")
(1.375")
(1.625")
(1.875")
D
Full Length
2.750mm
3.625mm
4.625mm
5.437mm
6.250mm
(.108")
(.143")
(.182")
(.214")
(.246")
F
Leading Eye Length
.250mm
.312mm
.375mm
.500mm
.500mm
(.010")
(.012")
(.015")
(.020")
(.020")
G
Leading Eye Thickness
.281mm
.500mm
.500mm
.625mm
.656mm
(.011")
(.020")
(.020")
(.025")
(.026")
J
Opening Length
(at center line)
.875mm
.906mm
1.000mm
1.187mm
1.375mm
(.034")
(.036")
(.039")
(.047")
(.054")
K
Eye Sidewall Thickness
.187mm
.219mm
.344mm
.375mm
.437mm
(.007")
(.009")
(.014")
(.015")
(.017")
L
Opening Width
.500mm
.562mm
.687mm
.875mm
1.000mm
(.020")
(.022")
(.027")
(.034")
(.039")
www.molex.com/woodhead
Flexible Eye or Rotating Eye
Features and Benefits
• Galvanized Steel mesh offers superior strength
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Color-coded for easy identification
• Wide application for bare or insulated conductors, wire
rope and insulated cables for distribution line stringing
and overhead transmission
• Flexible eye works in both generous and tight spaces
• Forged Steel rotating eye can reduce rotational torque
whenever pulling load is reduced
• Forged Steel rotating eye will not bind when used with
sheaves and blocks
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Galvanized Steel mesh
Weave Type:
Leading—One-third mesh triple weave
Mid—One-third double weave mesh
Trailing—One-third single weave mesh
Mesh Type: Closed mesh
C
Grips
Pulling Grips
Multi-Weave
Flexible Eye
Cable Diameter
6.35–12.45mm (.25–.49")
12.70–18.80mm (.50–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–56.90mm (1.75–2.24")
50.80–63.25mm (2.00–2.49")
Mesh Length
0.66m (26.00")
0.813m (32.00")
1.041m (41.00")
1.321m (52.00")
1.422m (56.00")
1.524m (60.00")
1.778m (70.00")
1.27m (50.00")
Eye Cable Thickness
6.350mm (.250")
7.925mm (.312")
9.525mm (.375")
12.700mm (.500")
12.700mm (.500")
12.700mm (.500")
15.875mm (.625")
15.875mm (.625")
Color Code
Dark Green
Brown
Light Blue
Gold
Black
Red
Dark Blue
Yellow
Approximate Break Strength*
6800 lb
10000 lb
14400 lb
26600 lb
30600 lb
30600 lb
48000 lb
48000 lb
Woodhead No.
36640
36641
36642
36643
36644
36645
36646
36647
Order No.
130095-0288
130095-0289
130095-0290
130095-0291
130095-0292
130095-0293
130095-0294
130095-0295
Color Code
Dark Green
Brown
Light Blue
Gold
Black
Red
Dark Blue
Yellow
Orange
Aluminum
Approximate Break Strength*
6800 lb
10000 lb
14400 lb
24600 lb
30600 lb
30600 lb
48000 lb
48000 lb
48000 lb
48000 lb
Woodhead No.
36620
36621
36622
36623
36624
36625
36626
36627
36628
36629
Order No.
130095-0278
130095-0279
130095-0280
130095-0281
130095-0282
130095-0283
130095-0284
130095-0285
130095-0286
130095-0287
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Rotating Eye
Cable Diameter
6.35–12.45mm (.25–.49")
12.70–18.80mm (.50–.74")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–56.90mm (1.75–2.24")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
Mesh Length
0.66m (26.00")
0.81m (32.00")
1.041m (41.00")
1.321m (52.00")
1.422m (56.00")
1.524m (60.00")
1.778m (70.00")
1.27m (50.00")
1.321m (52.00")
1.372m (54.00")
Eye Cable Thickness
22.225mm (.875")
25.400mm (1.000")
25.400mm (1.000")
34.925mm (1.375")
41.275mm (1.625")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
47.625mm (1.875")
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Rotating Eye Diameter
B
Eye Diameter
22.225mm
25.400mm
34.925mm
41.275mm
47.625mm
(.875")
(1.000")
(1.375")
(1.625")
(1.875")
D
Full Length
2.750mm
3.625mm
4.625mm
5.437mm
6.250mm
www.molex.com/woodhead
(.108")
(.143")
(.182")
(.214")
(.246")
F
Leading Eye Length
.250mm
.312mm
.375mm
.500mm
.500mm
(.010")
(.012")
(.015")
(.020")
(.020")
G
Leading Eye Thickness
.281mm
.500mm
.500mm
.625mm
.656mm
(.011")
(.020")
(.020")
(.025")
(.026")
J
Opening Length
(at center line)
.875mm
.906mm
1.000mm
1.187mm
1.375mm
(.034")
(.036")
(.039")
(.047")
(.054")
K
Eye Sidewall Thickness
.187mm
.219mm
.344mm
.375mm
.437mm
(.007")
(.009")
(.014")
(.015")
(.017")
L
Opening Width
.500mm
.562mm
.687mm
.875mm
1.000mm
(.020")
(.022")
(.027")
(.034")
(.039")
C-45
Pulling Grips
High Strength
Features and Benefits
• Flexible eye works in both generous and tight spaces
• Galvanized, thick wire Steel mesh—highest strength
pulling grip
• Shoulder protectors center the grip within a raceway
and provide abrasion resistance
• Color-coded for easy identification
• Wide application for bare or insulated conductors, wire
or synthetic rope
Flexible Eye
Physical
Mesh Material: Thick galvanized Steel mesh
Weave Type: Full double weave mesh
Mesh Type: Closed mesh
Grips
C
Reference Information
CSA File No.: LR32159
Cable Diameter
4.83–9.40mm (.19–.37")
9.65–15.75mm (.38–.62")
16.00–22.10mm (.63–.87")
22.35–28.45mm (.88–1.12")
28.70–34.80mm (1.13–1.37")
35.05–48.26mm (1.38–1.90")
Mesh Length
0.61m (24.00")
0.66m (26.00")
1.219m (48.00")
1.524m (60.00")
1.930m (76.00")
2.261m (89.00")
Eye Cable Thickness
5.563mm (.219")
9.525mm (.375")
11.125mm (.438")
12.700mm (.500")
15.875mm (.625")
19.050mm (.750")
Color
Black
Dark Green
Red
Dark Blue
Yellow
Aluminum
Approximate Break Strength*
6500 lb
14400 lb
20000 lb
30600 lb
46800 lb
66500 lb
Woodhead No.
36610
36611
36612
36613
36614
36615
Order No.
130095-0272
130095-0273
130095-0274
130095-0275
130095-0276
130095-0277
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
C-46
www.molex.com/woodhead
Slack/Offset Eye
Features and Benefits
• Flexible offset eye allows for easy attachment to the
pulling line
• Galvanized Steel mesh offers superior strength
• Open mesh, split rod attached mid-cable to pull slack
for final cable placement or remove cable
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Single weave mesh
Mesh Type: Open mesh, split rod
C
Grips
Pulling Grips
Medium Duty
Single Weave, Standard Length, Split Rod
Cable Diameter
12.70–15.49mm (.50–.61")
15.88–19.05mm (.63–.75")
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
Mesh Length
0.178m (7.00")
0.229m (9.00")
0.279m (11.00")
0.305m (12.00")
0.356m (14.00")
0.406m (16.00")
0.432m (17.00")
0.508m (20.00")
0.533m (21.00")
0.559m (22.00")
Approximate Break Strength*
1800 lb
1900 lb
3000 lb
4100 lb
5700 lb
5800 lb
7700 lb
9300 lb
11300 lb
15100 lb
Woodhead No.
36140
36141
36142
36143
36144
36145
36146
36147
36148
36149
Order No.
130095-0253
130095-0255
130095-0256
130095-0257
130095-0258
130095-0259
130095-0260
130095-0261
130095-0262
130095-0263
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Pulling Grips
Heavy Duty
Slack/Offset Eye
Features and Benefits
• Flexible offset eye allows for easy attachment to the
pulling line
• Galvanized Steel mesh provides strength
• Full double weave mesh offers very high strength
• Wide application to pull slack for final cable placement
or to remove cable; typically for underground cable
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Full double weave mesh
Mesh Types: Closed mesh/open mesh, split lace
Double Weave, Standard Length, Closed Mesh
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
Mesh Length
0.330m (13.00")
0.406m (16.00")
0.432m (17.00")
0.457m (18.00")
0.483m (19.00")
0.508m (20.00")
0.533m (21.00")
Approximate Break Strength*
3000 lb
4200 lb
5500 lb
7400 lb
11000 lb
11000 lb
11000 lb
Woodhead No.
36101
36102
36103
36104
36105
36106
36107
Order No.
130095-0225
130095-0227
130095-0229
130095-0230
130095-0231
130095-0232
130095-0233
Woodhead No.
36120
36121
36122
36123
36124
36125
36126
36127
36128
Order No.
130095-0240
130095-0241
130095-0242
130095-0243
130095-0244
130095-0245
130095-0246
130095-0247
130095-0248
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
Double Weave, Standard Length, Split Lace
Cable Diameter
19.05–25.15mm (.75–.99")
25.40–31.50mm (1.00–1.24")
31.75–37.85mm (1.25–1.49")
38.10–44.20mm (1.50–1.74")
44.45–50.55mm (1.75–1.99")
50.80–63.25mm (2.00–2.49")
63.50–75.95mm (2.50–2.99")
76.20–88.65mm (3.00–3.49")
88.90–101.35mm (3.50–3.99")
Mesh Length
0.330m (13.00")
0.406m (16.00")
0.432m (17.00")
0.457m (18.00")
0.483m (19.00")
0.508m (20.00")
0.533m (21.00")
0.559m (22.00")
0.584m (23.00")
Approximate Break Strength*
3000 lb
4100 lb
4100 lb
5500 lb
7300 lb
7300 lb
7300 lb
9200 lb
11000 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
www.molex.com/woodhead
C-47
Support Grips
Fiber Optic
Features and Benefits
• Single eye/bale is universally applied and most
common for fiber optic cable
• Tinned-Bronze wire mesh provides corrosion resistance
• Top-mounted reinforced eye protector provides stable
and longer-life support
• Closed mesh provides permanent support when cable
end is available
• Split rod provides support for mid-cable placement
Single Eye
Physical
Mesh Material: Tinned-Bronze wire mesh
Mesh Type: Closed or split rod
Grips
C
Reference Information
CSA File No.: LR32159
Fiber Optic, Closed Mesh, Single Eye
Cable Diameter
4.57–6.35mm (.18–.25")
5.59–8.13mm (.22–.32")
7.62–9.91mm (.30–.39")
9.40–12.19mm (.37–.48")
11.68–14.73mm (.46–.58")
14.22–18.03mm (.56–.71")
17.53–22.35mm (.69–.88")
Bale Length
0.076m (3.00")
0.076m (3.00")
0.102m (4.00")
0.127m (5.00")
0.152m (6.00")
0.178m (7.00")
0.203m (8.00")
Mesh Length
0.043m (1.70")
0.064m (2.50")
0.064m (2.50")
0.102m (4.00")
0.102m (4.00")
0.140m (5.50")
0.152m (6.00")
Approximate Break Strength*
300 lb
300 lb
300 lb
300 lb
400 lb
500 lb
800 lb
Woodhead No.
36670
36671
36672
36673
36674
36675
36676
Order No.
130094-0522
130094-0523
130094-0524
130094-0525
130094-0526
130094-0527
130094-0528
Woodhead No.
36680
36681
36682
36683
36684
36685
36686
Order No.
130094-0529
130094-0530
130094-0531
130094-0532
130094-0533
130094-0534
130094-0535
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
Fier Optic, Split Rod, Single Eye
Cable Diameter
4.75–6.35mm (.19–.25")
5.84–8.13mm (.23–.32")
7.62–9.91mm (.30–.39")
9.53–11.10mm (.38–.44")
11.68–14.73mm (.46–.58")
14.22–18.03mm (.56–.71")
17.53–22.35mm (.690–.880")
Bale Length
0.076m (3.00")
0.076m (3.00")
0.229m (9.00")
0.102m (4.00")
0.152m (6.00")
0.178m (7.00")
0.203m (8.00")
Mesh Length
0.064m (2.50")
0.064m (2.50")
0.064m (2.50")
0.064m (2.50")
0.102m (4.00")
0.140m (5.50")
0.152m (6.00")
Approximate Break Strength*
300 lb
300 lb
300 lb
300 lb
400 lb
600 lb
800 lb
* To determine Workload Safety Factor, divide Approximate Break Strength by 10. See technical section for break strength.
For Stainless Steel Support Grips, add "SS" to the part number. For example, 35425 becomes 35422SS.
Pulling Grips
Fiber Optic
Features and Benefits
• Flexible eye works in both generous and tight spaces
• Galvanized Steel mesh offers superior strength
• Rotating eye can reduce rotational torque whenever
pulling load is reduced
• Single/double weave offers high strength
• Zinc-plated Steel nose guides easily and protects cable
end
• Very flexible mesh holds multiple cables or one single
cable
Rotating Eye
Cable Diameter
5.33–8.89mm
8.89–12.19mm
10.67–15.49mm
13.46–18.80mm
(.21–.35")
(.32–.48")
(.42–.61")
(.53–.74")
Bale Length
0.120m
0.127m
0.127m
0.127m
(4.75")
(5.00")
(5.00")
(5.00")
Mesh Length
0.356m
0.457m
0.533m
0.610m
Approximate
Break Strength*
(14")
(18")
(21")
(24")
1500 lb
2200 lb
2800 lb
3300 lb
Reference Information
CSA File No.: LR32159
Physical
Mesh Material: Galvanized Steel mesh
Weave Type: Single/double weave mesh
Mesh Type: Closed mesh
Grip Body Construction: Nose of Zinc-plated Steel in front
of Aluminum body
Nose Diameter
20.32mm
22.86mm
22.86mm
30.48mm
(0.8")
(0.9")
(0.9")
(1.2")
Woodhead No.
Order No.
36661
36662
36663
36664
130095-0297
130095-0298
130095-0299
130095-0300
* To determine Workload Safety Factor, divide Approximate Break Strength by 5. See technical section for break strength.
C-48
www.molex.com/woodhead
Technical Information
Strain Relief Grips
Operating Temperatures
Temperature Range
−40° C to +149° C (−40° F to +300° F)
−34° C to +115° C (−30° F to +240° F)
−34° C to +107° C (−30° F to +225° F)
−40° C to +107° C (−40° F to +225° F)
−40° C to +107° C (−40° F to +225 ° F)
−51° C to +537° C (−60° F to +1000° F)
−34° C to +115° C (−30° F to +240° F)
−40° C to +350° C (−40° F to +662° F)
C
Grips
Material
Aluminum
Aluminum deluxe cord grips
Non-metallic deluxe cord grips
Nylon
Nylon fitting with Stainless Steel mesh
Stainless Steel
Stainless Steel deluxe cord grips
Rubber (bushings)
Flammability Rating for Non-Metallic MAX-LOC™ Grips
Component
Wire mesh grip
Fitting
Rating
94HB*
94V-2 †
Note
Non-metallic deluxe cord grips
will not support combustion
* A test method used by UL to determine a rate of burning and/or extent and time of burning of self-supporting plastics
in a horizontal position (ASTM D 635-88, IEC 707-1981, ISO/DIS 1210.2).
†
A test method used by UL for measuring the comparative extinguishing characteristics of solid plastics in a vertical
position (IEC 707-1981, ISO/DIS 1210.2).
Knockout Holes
NPT Hub Size
¼"
³/8"
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
www.molex.com/woodhead
Knockout Hole Recommended
1.37 to 1.45cm (.540 to .570")
1.70 to 1.78cm (.671 to .701")
2.18 to 2.30cm (.859 to .906")
2.78 to 2.90cm (1.094 to 1.141")
3.45 to 3.57cm (1.359 to 1.406")
4.37 to 4.49cm (1.719 to 1.766")
5.00 to 5.12cm (1.969 to 2.016")
6.23 to 6.35cm (2.453 to 2.500")
7.50 to 7.62cm (2.953 to 3.000")
9.09 to 9.21cm (3.578 to 3.625")
C-49
Technical Information
Deluxe Cord Grip
Component Detail
Grips
C
Straight Male
45° Male
Right Angle Male
Straight Female
C-50
www.molex.com/woodhead
Technical Information
MAX-LOC® Cable Grips
Non-Metallic Dimensions
Grips
C
MAX-LOC Non-Metallic Dimensions—Straight Bodies
Form
NPT
0
1
2
3
4
5
¼"
³/8"
½"
¾"
1"
1¼"
Diagram References in Inches
A
.500
1.000
1.000
1.000
1.000
1.000
B
.778
1.150
1.300
1.500
1.850
2.050
C
.370
.500
.500
.550
.687
.687
D
.187
.250
.300
.375
.375
.375
E
.921
1.250
1.450
1.700
1.800
1.800
F
.778
1.115
1.250
1.578
1.900
2.100
G
.687
1.000
1.100
1.375
1.650
1.850
H (Ref.)
1.25
1.85
2.00
2.00
2.12
2.12
F
.450
.578
.593
.800
.750
G
1.687
1.820
2.218
2.700
2.812
H (Ref.)
2.35
2.40
2.75
3.00
3.25
MAX-LOC Non-Metallic Dimensions—Right Angle Bodies
Form
NPT
1
2
3
4
5
³/8"
½"
¾"
1"
1¼"
www.molex.com/woodhead
Diagram References in Inches
A
1.000
1.000
1.000
1.000
1.000
B
1.150
1.300
1.500
1.850
2.050
C
1.100
1.165
1.600
1.850
1.965
D
.187
.187
.187
.187
.187
E
1.812
1.900
2.421
2.656
2.859
C-51
Technical Information
Cable Grips
C
Selecting Properly Sized Pulling and
Support Grips
• Select grip size based upon the outside diameter or
circumference of the cable(s)
• See the following reference tables for convenience in
determining cable diameters
• Use the following grip selection tables to determine the
grip diameter range for your application
Example for Five Cables Together with
Diameter of 0.42” Each
1. Locate “5 cables” column.
2. Read down column to range (0.38 to 0.48").
3. Read across line to grip diameter range (1.00 to 1.25").
Grips
Grip Selection for 1 or More
Cables of Equal Diameter
1. Read across top line for number of cables in 1 grip.
2. Read down for diameter of each cable.
3. Read across to the right to grip diameter range column.
Decimal and Fractional Inch Cable Diameters for 1 or More Cables of Equal Diameter
C-52
1 Cable
0.25 to 0.37 = ¼ to 3⁄8
0.37 to 0.50 = 3⁄8 to ½
0.50 to 0.62 = ½ to 5⁄8
0.62 to 0.75 = 5⁄8 to ¾
0.75 to 1.00 = ¾ to 1
1.00 to 1.25 = 1 to 1¼
1.25 to 1.50 = 1¼ to 1½
1.50 to 1.75 = 1½ to 1¾
1.75 to 2.00 = 1¾ to 2
2.00 to 2.50 = 2 to 2½
2.50 to 3.00 = 2½ to 3
3.00 to 3.50 = 3 to 3½
3.50 to 4.00 = 3½ to 4
2 Cables
0.16 to 0.25 = 1⁄64 to ¼
0.25 to 0.36 = ¼ to 23⁄64
0.27 to 0.36 = 17⁄64 to 23⁄64
0.36 to 0.45 = 23⁄64 to 29⁄64
0.45 to 0.60 = 29⁄64 to 39⁄64
0.60 to 0.76 = 39⁄64 to 49⁄64
0.76 to 0.91 = 49⁄64 to 29⁄32
0.88 to 1.08 = 49⁄64 to 15⁄64
1.08 to 1.23 = 15⁄64 to 115⁄64
1.23 to 1.54 = 115⁄64 to 135⁄64
1.54 to 1.84 = 135⁄64 to 127⁄32
1.84 to 2.15 = 127⁄32 to 25⁄32
2.15 to 2.45 = 25⁄32 to 229⁄64
3 Cables
0.15 to 0.22 = 5⁄32 to 7⁄32
0.22 to 0.33 = 7⁄32 to ²¹⁄64
0.26 to 0.33 = 17⁄64 to ²¹⁄64
0.33 to 0.36 = ²¹⁄64 to 23⁄64
0.36 to 0.49 = 23⁄64 to ³¹⁄64
0.49 to 0.63 = ³¹⁄64 to 5⁄8
0.63 to 0.75 = 5⁄8 to 49⁄64
0.76 to 0.89 = 49⁄64 to 57⁄64
0.89 to 1.02 = 57⁄64 to 1¹⁄64
1.02 to 1.28 = 1¹⁄64 to 19⁄32
1.28 to 1.53 = 19⁄32 to 117⁄32
1.53 to 1.79 = 117⁄32 to 151⁄64
1.79 to 2.05 = 151⁄64 to 2³⁄64
4 Cables
0.12 to 0.20 = 1⁄8 to 13⁄64
0.20 to 0.28 = 13⁄64 to 9⁄32
0.24 to 0.28 = 15⁄64 to 9⁄32
0.28 to 0.31 = 9⁄32 to 5⁄16
0.31 to 0.42 = 5⁄16 to 27⁄64
0.42 to 0.54 = 27⁄64 to 35⁄64
0.54 to 0.65 = 35⁄64 to 21⁄32
0.65 to 0.77 = 21⁄32 to 49⁄64
0.77 to 0.88 = 49⁄64 to 7⁄8
0.88 to 1.00 = 7⁄8 to 1
1.10 to 1.32 = 13⁄32 to 121⁄64
1.32 to 1.54 = 121⁄64 to 135⁄64
1.54 to 1.76 = 135⁄64 to 149⁄64
Grip Diameter Range
0.25 to 0.375
0.375 to 0.50
0.50 to 0.62
0.62 to 0.75
0.75 to 1.00
1.00 to 1.25
1.25 to 1.50
1.50 to 1.75
1.75 to 2.00
2.00 to 2.50
2.50 to 3.00
3.00 to 3.50
3.50 to 4.00
5 Cables
0.11 to 0.14 = 7⁄64 to 9⁄64
0.14 to 0.21 = 9⁄64 to 1⁄4
0.21 to 0.25 = 7⁄32 to 1⁄4
0.25 to 0.29 = 1⁄4 to 19⁄64
0.29 to 0.38 = 19⁄64 to 3⁄8
0.38 to 0.48 = 3⁄8 to 31⁄64
0.48 to 0.58 = 31⁄64 to 41⁄64
0.58 to 0.67 = 37⁄64 to 43⁄64
0.67 to 0.77 = 43⁄64 to 49⁄64
0.77 to 0.96 = 49⁄64 to 31⁄32
0.96 to 1.16 = 31⁄32 to 15⁄32
1.16 to 1.35 = 15⁄32 to 123⁄64
1.35 to 1.54 = 123⁄64 to 135⁄64
6 and 7 Cables
0.10 to 0.11 = 3⁄32 to 7⁄64
0.11 to 0.25 = 7⁄64 to 1⁄4
0.19 to 0.22 = 3⁄16 to 7⁄32
0.22 to 0.26 = 7⁄32 to 17⁄64
0.26 to 0.34 = 17⁄64 to 11⁄32
0.34 to 0.43 = 11⁄32 to 7⁄16
0.43 to 0.52 = 7⁄16 to 33⁄64
0.52 to 0.60 = 33⁄64 to 39⁄64
0.60 to 0.69 = 39⁄64 to 11⁄16
0.69 to 0.86 = 11⁄16 to 55⁄64
0.86 to 1.03 = 55⁄64 to 11⁄32
1.03 to 1.20 = 11⁄32 to 113⁄64
1.20 to 1.37 = 113⁄64 to 13⁄8
8 Cables
0.09 to 0.10 = 3⁄32 to 7⁄64
0.10 to 0.20 = 7⁄64 to 13⁄64
0.17 to 0.20 = 11⁄64 to 13⁄64
0.20 to 0.23 = 13⁄64 to 15⁄64
0.23 to 0.31 = 15⁄64 to 5⁄16
0.31 to 0.39 = 5⁄16 to 25⁄64
0.39 to 0.46 = 25⁄64 to 15⁄32
0.46 to 0.54 = 15⁄32 to 35⁄64
0.54 to 0.62 = 35⁄64 to 5⁄8
0.62 to 0.77 = 5⁄8 to 49⁄64
0.77 to 0.93 = 49⁄64 to 15⁄16
0.93 to 1.08 = 15⁄16 to 15⁄64
1.08 to 1.24 = 15⁄64 to 115⁄64
9 Cables
0.06 to 0.09 = 1⁄16 to 3⁄32
0.09 to 0.19 = 3⁄32 to 3⁄16
0.15 to 0.19 = 5⁄32 to 3⁄16
0.19 to 0.22 = 3⁄16 to 7⁄32
0.22 to 0.31 = 7⁄32 to 5⁄16
0.29 to 0.36 = 19⁄64 to 23⁄64
0.36 to 0.43 = 23⁄64 to 7⁄16
0.43 to 0.49 = 7⁄16 to 31⁄64
0.49 to 0.57 = 31⁄64 to 37⁄64
0.57 to 0.72 = 37⁄64 to 23⁄32
0.72 to 0.86 = 23⁄32 to 55⁄64
0.86 to 1.00 = 55⁄64 to 1
1.00 to 1.14 = 1 to 19⁄64
Grip Diameter Range
0.25 to 0.375
0.375 to 0.50
0.50 to 0.62
0.62 to 0.75
0.75 to 1.00
1.00 to 1.25
1.25 to 1.50
1.50 to 1.75
1.75 to 2.00
2.00 to 2.50
2.50 to 3.00
3.00 to 3.50
3.50 to 4.00
www.molex.com/woodhead
Technical Information
Cable Grips
Selecting Properly Sized Pulling and
Support Grips
• Grip circumference range refers to circumference of all
cables held together.
Example for Three Cables Together with
Combined Circumference of 6.35"
1. Read down “inches (decimal)” column for 6.35"
(6.29-7.86").
2. Read across line to grip diameter range (2.00-2.50").
1. Determine grip circumference range by measuring
circumference of bundle of cables to be held (as shown
in illustration).
2. Read down to locate correct range.
3. Read across to grip diameter column.
Grips
C
Circumference
Diameter
Grip Circumference Range for Cables of Different Diameters
Grip Circumference Range (inches fractional)
25
⁄32 to 111⁄64"
111⁄64 to 137⁄64"
137⁄64 to 2 3⁄8"
115⁄16 to 2 3⁄8"
2 3⁄8 to 35⁄32"
35⁄32 to 315⁄16"
315⁄16 to 423⁄32"
423⁄32 to 533⁄64"
533⁄64 to 619⁄64"
619⁄64 to 755⁄64"
755⁄64 to 9 7⁄16"
9 7⁄16 to 111⁄64"
111⁄64 to 12 37⁄64"
Grip Circumference Range (inches decimal)
0.78 to 1.17"
1.17 to 1.57"
1.57 to 2.37"
1.94 to 2.37"
2.37 to 3.15"
3.15 to 3.94"
3.94 to 4.72"
4.72 to 5.51"
5.51 to 6.29"
6.29 to 7.86"
7.86 to 9.43"
9.43 to 11.01"
11.01 to 12.58"
Grip Diameter Range
0.25 to .375"
0.375 to 0.50"
0.50 to 0.75"
0.625 to 0.75"
0.75 to 1.00"
1.00 to 1.25"
1.25 to 1.50"
1.50 to 1.75"
1.75 to 2.00"
2.00 to 2.50"
2.50 to 3.00"
3.00 to 3.50"
3.50 to 4.00"
Diameter
Cord Diameters Reference Table
For your convenience, the following are nominal overall diameters (in inches) for flexible cord.
AWG Wire Size and Type
18 SO, STO
18 SJO, SJTO
16 SO, STO
16 SJO, SJTO
14 SO, STO
12 SO, STO
10 SO, STO
8 SO, STO
6 SO, STO
www.molex.com/woodhead
2 Conductors
0.36"
0.30"
0.39"
0.32"
0.52"
0.60"
0.65"
0.83"
0.99"
3 Conductors
0.38"
0.32"
0.41"
0.34"
0.55"
0.62"
0.69"
0.88"
1.04"
4 Conductors
0.41"
0.35"
0.44"
0.37"
0.59"
0.68"
0.74"
0.99"
1.12"
5 Conductors
0.49"
0.52"
0.67"
0.74"
0.80"
1.08"
1.25"
C-53
Technical Information
Pulling and Support Grips
Diameter
Grips
C
AWG or MCM Wire Sizes
AWG or MCM
14
12
10
8
6
4
3
2
1
1/0
2/0
3/0
4/0
250
300
350
400
500
600
700
750
1000
Approximate Diameter THHM
0.105"
0.122"
0.153"
0.201"
0.257"
0.328"
0.356"
0.388"
0.450"
0.491"
0.537"
0.588"
0.646"
0.716"
0.771"
0.822"
0.869"
0.955"
1.06"
1.13"
1.16"
1.32"
Approximate Diameter THW
0.162"
0.179"
0.199"
0.259"
0.323"
0.372"
0.401"
0.433"
0.508"
0.549"
0.595"
0.647"
0.705"
0.788"
0.843"
0.895"
0.942"
1.03"
1.14"
1.21"
1.25"
1.40"
Note: This table to be used as a guide only. Sizes may vary by manufacturer.
C-54
www.molex.com/woodhead
Split Lace
Split Lace
Split Rod
Split Rod
Strength Information
The approximate breaking strength of any Woodhead®
wire mesh cable grip is based on working load information
established by Molex Incorporated engineering
laboratories. In making these determinations, it is not
possible to cover all applications and operating conditions.
Variables such as diameters, gripping surfaces, number of
items gripped, tension, movement, attachment, abrasion,
corrosion, prior use, or abuse must be assessed by the
user. Greater safety factors should be utilized when the
conditions of application are vague or unknown.
All warranties concerning product quality or performance
are based on wire mesh grips that are properly stored and
handled by the user, and grips that are maintained and
inspected at a proper frequency in keeping with their use
and condition.
Split Lace/Split Rod Attachments
(for use where end of cable is not accessible)
Beginning at the end of the grip closest to the bale fitting,
thread the lacing through the first two loops of the split,
pulling lace through until ends are centered evenly. Cross
laces and thread through next two loops, and so on down
For specific applications where strength and holding power the grip, being careful not to pull lacing too tight. Spacing
are important, consult the manufacturer. To determine
of laced closure should be approximately the same as
the recommended working load safety factor for listed
mesh weave. When end of grip is reached, twist lacing
cable grips, divide the approximate breaking strength by strands tightly together, wrap ends of lace around grip,
5 for pulling grips and 10 for support grips. Woodhead
and twist again to secure. Excess length may be cut off.
maintains a Six Sigma safety factor for pulling grips and
Split grips with rod closing are economical, since they are
a Five Sigma safety factor for support grips for these
quickly installed, and are reusable. Simply wrap the grip
recommended working loads (using average break
strengths obtained on new grips under lab test conditions). around the cable and thread the rod through the loops,
using a corkscrew motion. To remove, pull the rod out, and
Example: For pulling grips – 33,000 ÷ 5 = 6,600 lb which the grip is ready for re-use.
is the workload factor.
Example: For support grips – 10,080 ÷ 10 = 1,008 lb
which is the workload factor.
Grip Cable Range Conversion
Metric (mm)
6.35 to 9.13mm
9.52 to 12.30mm
12.70 to 15.48mm
15.88 to 18.65mm
19.05 to 25.00mm
25.40 to 31.35mm
31.75 to 37.70mm
38.10 to 50.40mm
50.80 to 63.10mm
63.50 to 75.80mm
76.20 to 88.50mm
88.90 to 101.20mm
www.molex.com/woodhead
Inches (fractional)
1
⁄4 to 23⁄64"
3
⁄8 to 31⁄64"
1
⁄2 to 39⁄64"
5
⁄8 to 47⁄64"
3
⁄4 to 63⁄64"
1 to 115⁄64"
11⁄4 to 131⁄64"
11⁄2 to 163⁄64"
2 to 2 31⁄64"
21⁄2 to 2 63⁄64"
3 to 3 31⁄64"
31⁄2 to 3 63⁄64"
Inches (decimal)
0.25 to 0.36"
0.37 to 0.49"
0.50 to 0.61"
0.62 to 0.74"
0.75 to 0.99"
1.00 to 1.24"
1.25 to 1.49"
1.50 to 1.99"
2.00 to 2.49"
2.50 to 2.99"
3.00 to 3.49"
3.50 to 3.99"
C-55
C
Grips
Technical Information
Pulling and Support Grips
Technical Information
Junior Pulling Grips
Junior Pulling Grip Selection Chart
These charts are a general guide to assist in the selection
of the correct Junior Pulling Grip for pulling various
groupings of building wire. The following charts are to
be used as a general guide for the application of Junior
Pulling Grips. Note: “Dummy wires”, short pieces, may be
used to increase the bundle diameter if needed.
Grips
C
T.H.W.N., T.H.H.N. and X.H.H.W. Building Wire
Description
J 25
J 37
J 50
J 62
J 75
J 100
Cable Diameter Range
.63–.91cm
.94–1.24cm
1.27–1.55cm
1.57–1.88cm
1.90–2.51cm
2.54–3.15cm
(.25–.36")
(.37–.49")
(.50–.61")
(.62–.74")
(.75–.99")
(1.00–1.24")
Approximate
Breaking Strength
2002N
4003N
5782N
8674N
12454N
17347N
(450 lb)
(900 lb)
(1300 lb)
(1950 lb)
(2800 lb)
(3900 lb)
Approximate Number of Wires in One Grip
#14
#12
#10
#8
#6
#4
#3
#2
#1
#1/0
19 Strand 19 Strand 19 Strand 19 Strand 19 Strand 19 Strand 19 Strand 19 Strand 37 Strand 37 Strand
4 to 8
3 to 6
2 to 3
2
1
1
1
9 to 16
6 to 11
4 to 6
3
2
1
1
1
16 to 25
11 to 17
7 to 10
4 to 5
3 to 4
2
2
26 to 37
18 to 25
11 to 14
6 to 8
5 to 6
3
3
2
2
37 to 66
26 to 47
15 to 27
9 to 16
6 to 11
4 to 7
4 to 5
3 to 4
3
2 to 3
66 to 104
47 to 74
28 to 43
16 to 24
11 to 17
8 to 10
6 to 8
5 to 7
4 to 5
4
Woodhead
No.
35970
35971
35972
35973
35974
35975
Order No.
130095-0194
130095-0196
130095-0197
130095-0198
130095-0200
130095-0201
R.H.H., R.H., R.W. and R.H.W. Building Wire
Description
J 25
J 37
J 50
J 62
J 75
J 100
Cable Diameter Range
.63–.91cm
.94–1.24cm
1.27–1.55cm
1.57–1.88cm
1.90–2.51cm
2.54–3.15cm
(.25–.36")
(.37–.49")
(.50–.61")
(.62–.74")
(.75–.99")
(1.00–1.24")
Approximate
Breaking Strength
2002N
4003N
5782N
8674N
12454N
17347N
(450 lb)
(900 lb)
(1300 lb)
(1950 lb)
(2800 lb)
(3900 lb)
#14
7 Strand
2
3
4 to 5
6 to 8
9 to 16
16 to 24
#12
7 Strand
2
2 to 3
4 to 5
6 to 7
8 to 14
15 to 22
#10
7 Strand
1
2
3 to 4
4 to 5
6 to 10
11 to 16
#8
7 Strand
1
#14
7 Strand
2 to 4
5 to 7
8 to 11
12 to 16
17 to 30
31 to 48
#12
7 Strand
2 to 3
4 to 5
6 to 8
9 to 12
13 to 24
25 to 37
#10
7 Strand
2
3 to 4
5 to 7
8 to 10
11 to 19
20 to 30
#8
7 Strand
1
2
3 to 4
5 to 6
7 to 10
11 to 17
2
3
4 to 6
7 to 10
Approximate Number of Wires in One Grip
#6
#4
#2
#1
7 Strand
7 Strand
7 Strand
19 Strand
1
1
2
3 to 4
5 to 7
2
3 to 4
4 to 6
#1/0
19 Strand
1
1
1
2 to 3
4
2
3
2 to 3
Woodhead
No.
35970
35971
35972
35973
35974
35975
Order No.
130095-0194
130095-0196
130095-0197
130095-0198
130095-0200
130095-0201
T.H.W. Building Wire
Description
J 25
J 37
J 50
J 62
J 75
J 100
C-56
Cable Diameter Range
.63–.91cm
.94–1.24cm
1.27–1.55cm
1.57–1.88cm
1.90–2.51cm
2.54–3.15cm
(.25–.36")
(.37–.49")
(.50–.61")
(.62–.74")
(.75–.99")
(1.00–1.24")
Approximate
Breaking Strength
2002N
4003N
5782N
8674N
12454N
17347N
(450 lb)
(900 lb)
(1300 lb)
(1950 lb)
(2800 lb)
(3900 lb)
Approximate Number of Wires in One Grip
#6
#4
#2
#1
7 Strand
7 Strand
7 Strand
7 Strand
1
1
1
2
2
1
3 to 4
3
2
5 to 7
4 to 5
3 to 4
2
8 to 11
6 to 8
5 to 6
3 to 4
#1/0
19 Strand
1
2
3
Woodhead
No.
35970
35971
35972
35973
35974
35975
Order No.
130095-0194
130095-0196
130095-0197
130095-0198
130095-0200
130095-0201
www.molex.com/woodhead
D
Wiring Devices
WIRING DEVICES
Wiring Device Selection Guide, Watertite®. . . . . . . . . . . . . . . . . . . . . . . . . . D-4
Wiring Device Selection Guide, Heavy-Duty Industrial . . . . . . . . . . . . . . . . . D-6
Wet Location . . . . . . . . . . . . . . . . .
Straight Blade
2-Pole/3-Wire . . . . . . . . . . . . . . .
3-Pole/3-Wire . . . . . . . . . . . . . . .
Locking Blade
2-Pole/2-Wire . . . . . . . . . . . . . . .
2-Pole/3-Wire . . . . . . . . . . . . . . .
3-Pole/3-Wire . . . . . . . . . . . . . . .
3-Pole/4-Wire . . . . . . . . . . . . . . .
4-Pole/4-Wire . . . . . . . . . . . . . . .
4-Pole/5-Wire . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . .
Grommets . . . . . . . . . . . . . . . . . . . .
Pin and Sleeve
2-Pole/3-Wire and 3-Pole/4-Wire .
Heavy-Duty Industrial
Straight Blade
2-Pole/2-Wire . . . . . .
2-Pole/3-Wire . . . . . .
3-Pole/3-Wire . . . . . .
Locking Blade
2-Pole/2-Wire . . . . . .
2-Pole/3-Wire . . . . . .
3-Pole/3-Wire . . . . . .
3-Pole/4-Wire . . . . . .
4-Pole/4-Wire . . . . . .
4-Pole/5-Wire . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-19
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. D-20
. D-22
. D-35
. D-39
. D-48
. D-50
. D-57
. D-59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-78
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. D-79
. D-81
. D-95
. D-99
D-113
D-114
Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-117
Pin and Sleeve
Exposition Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-120
2-Pole/3-Wire and 3-Pole/4-Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-121
Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-122
www.molex.com/woodhead
WIRING DEVICES
WET-LOCATION Woodhead® Watertite® Wet-Location Wiring Devices
set the standard for the roughest, wettest and most abrasive environments; they
meet NEMA type 4, 4X, 6, 6P, IP65, IP66, and IP67 standards.
HEAVY-DUTY INDUSTRIAL Rubberized Super-Safeway™ and Safeway®
tough nylon wiring devices are designed for use in rugged, industrial environments.
Wiring Device Selection Guide, Watertite®
Poles
2-Pole/2-Wire
Wiring Devices
D
2-Pole/3-Wire
3-Pole/3-Wire
3-Pole/4-Wire
4-Pole/4-Wire
4-Pole/5-Wire
D-4
NEMA Configuration
Voltage/Current
Plug
Connector
Woodhead No.
Order No.
Woodhead No.
Order No.
130146-0077
25W04
130146-0090
L1-15
15A/125V
24W04
L2-20
20A/250V
26W07
130146-0108
27W07
130146-0110
5-15
15A/125V
14W47
130143-0154
15W47
130146-0060
L5-15
15A/125V
24W47
130146-0082
25W47
130146-0099
6-15
15A/250V
14W49
130146-0044
15W49
130146-0074
L6-15
15A/250V
24W49
130146-0088
25W49
130146-0106
7-15
15A/277V
14W34
130146-0028
15W34
130146-0059
L7-15
15A/277V
24W34
130146-0079
25W34
130146-0095
5-20
20A/125V
14W33
130146-0022
15W33
130146-0052
L5-20
20A/125V
26W47
130147-0018
27W47
130147-0044
6-20
20A/250V
14W48
130146-0040
15W48
130146-0068
L6-20
20A/250V
26W48
130147-0021
27W48
130147-0048
L7-20
20A/277V
26W49
130147-0023
27W49
130147-0051
L5-30
30A/125V
28W47
130147-0072
29W47
130147-0093
L6-30
30A/250V
28W48
130147-0074
29W48
130147-0096
L7-30
30A/277V
28W49
130147-0076
29W49
130147-0099
Non-NEMA Locking CA
50A/250V
CS82W65
130155-0155
CS82W64
130155-0154
Non-NEMA Locking CA
50A/480V
CS84W65
130155-0167
CS84W64
130155-0166
Non-NEMA
15A/125V 10A/250V
14W07
130146-0015
15W07
130146-0050
Non-NEMA Locking
15A/125V 10A/250V
24W07
130146-0078
25W07
130146-0092
Non-NEMA Locking
20A/125V/250V
26W08
130147-0012
27W08
130147-0035
Non-NEMA Locking
20A/250V grounding tab
26W08G
130147-0014
27W08G
130147-0036
Non-NEMA Locking
30A/125V/250V
28W08
130147-0069
29W08
130147-0089
L14-20
20A/125V/250V
26W74
130147-0025
27W74
130147-0053
L15-20
20A/250V/3ø
26W75
130147-0027
27W75
130147-0056
L16-20
20A/480V/3ø
26W76
130147-0029
27W76
130147-0059
L14-30
30A/125V/250V
28W74
130147-0077
29W74
130147-0102
L15-30
30A/250V/3ø
28W75
130147-0079
29W75
130147-0105
L16-30
30A/480V/3ø
28W76
130147-0081
29W76
130147-0108
L17-30
30A/600V/3ø
28W77
130147-0083
29W77
130147-0111
Non-NEMA Locking CA
50A/125V/250V
CS63W65
130155-0142
CS63W64
130155-0141
Non-NEMA Locking
50A/125V/250V
63W65
130155-0105
63W64
130155-0104
Non-NEMA Locking CA
50A/250V/3ø
CS83W65
130155-0161
CS83W64
130155-0160
Non-NEMA Locking CA
50A/480V/3ø
CS81W65
130155-0149
CS81W64
130155-0148
Non-NEMA Locking
20A/120V/208V
26W09
130147-0015
27W09
130147-0038
Non-NEMA Locking
30A/120V/208V
28W09
130147-0071
29W09
130147-0091
L21-20
20A/120V/208V/3øY
26W81
130147-0031
27W81
130147-0062
Non-NEMA Locking
20A/250V 10A/600V
26W10
130147-0017
27W10
130147-0041
L22-20
20A/277V/480V/3øY
26W82
130147-0033
27W82
130147-0065
L23-20
20A/347V/600V/3øY
26W83
130147-0034
27W83
130147-0067
L21-30
30A/120V/208V/3øY
28W81
130147-0085
29W81
130147-0116
L22-30
30A/277V/480V/3øY
28W82
130147-0086
29W82
130147-0118
L23-30
30A/347V/600V/3øY
28W83
130147-0088
29W83
130147-0120
www.molex.com/woodhead
Wiring Device Selection Guide, Watertite®
2-Pole/2-Wire
2-Pole/3-Wire
NEMA Configuration
4-Pole/4-Wire
Single Flip Lid
with Male Receptacle
Connector for Male Receptacle
Woodhead No.
Order No.
Woodhead No.
Order No.
Woodhead No.
Order No.
Woodhead No.
Order No.
65W04
130018-0366
—
—
64W04
130146-0139
25W04MB
130146-0091
L2-20
20A/250V
67W07
130146-0156
67W07DPLX
130146-0157
66W07
130146-0155
27W07MB
130146-0112
5-15
15A/125V
60W47
130146-0129
60W47DPLX
130146-0131
59W47
130146-0116
15W47MB
130146-0065
L5-15
15A/125V
65W47
130146-0149
65W47DPLX
130146-0151
64W47
130146-0142
25W47MB
130146-0103
6-15
15A/250V
60W49
130146-0137
60W49DPLX
130146-0138
59W49
130146-0118
15W49MB
130146-0076
L6-15
15A/250V
65W49
130146-0153
65W49DPLX
130146-0154
64W49
130146-0143
25W49MB
130146-0107
7-15
15A/277V
60W34
130146-0127
60W34DPLX
130146-0128
—
—
—
—
L7-15
15A/277V
65W34
130146-0147
65W34DPLX
130146-0148
64W34
130146-0141
25W34MB
130146-0097
130146-0056
5-20
20A/125V
60W33
130146-0123
60W33DPLX
130146-0125
59W33
130146-0115
15W33MB
L5-20
20A/125V
67W47
130147-0141
—
—
66W47
130147-0127
27W47MB
130147-0047
6-20
20A/250V
60W48
130146-0133
60W48DPLX
130146-0135
59W48
130146-0117
15W48MB
130146-0072
L6-20
20A/250V
67W48
130147-0144
—
—
66W48
130147-0128
27W48MB
130147-0050
L7-20
20A/277V
67W49
130147-0145
—
—
66W49
130147-0129
27W49MB
130147-0052
L5-30
30A/125V
69W47
130147-0168
—
—
68W47
130147-0157
29W47MB
130147-0095
L6-30
30A/250V
69W48
130147-0169
—
—
68W48
130147-0158
29W48MB
130147-0098
L7-30
30A/277V
69W49
130147-0170
—
—
68W49
130147-0005
29W49MB
130147-0101
50A/250V
—
—
—
—
—
—
—
—
50A/480V
67W64
130147-0146
—
—
—
—
—
—
Non-NEMA
Locking
Non-NEMA
Locking
Non-NEMA
Locking
Non-NEMA
Locking
15A/125V 10A/250V
60W07
130146-0121
60W07DPLX
130146-0122
59W07
130146-0114
—
—
15A/125V 10A/250V
65W07
130146-0145
65W07DPLX
130146-0146
64W07
130146-0140
25W07MB
130146-0094
20A/125V/250V
67W08
130147-0137
—
—
66W08
130147-0124
27W08MB
130147-0037
20A/250V grounding tab
—
—
—
—
—
—
—
—
30A/125V/250V
69W08
130147-0166
—
—
68W08
130147-0155
29W08MB
130147-0090
L14-20
20A/125V/250V
67W74
130147-0147
—
—
66W74
130147-0131
27W74MB
130147-0055
L15-20
20A/250V/3ø
67W75
130147-0149
—
—
66W75
130147-0132
27W75MB
130147-0058
130147-0061
L16-20
20A/480V/3ø
67W76
130147-0150
—
—
66W76
130147-0133
27W76MB
L14-30
30A/125V/250V
69W74
130147-0173
—
—
68W74
130147-0159
29W74MB
130147-0104
L15-30
30A/250V/3ø
69W75
130147-0174
—
—
68W75
130147-0160
29W75MB
130147-0107
L16-30
30A/480V/3ø
69W76
130147-0175
—
—
68W76
130147-0161
29W76MB
130147-0110
L17-30
30A/600V/3ø
69W77
130147-0176
—
—
68W77
130147-0162
29W77MB
130147-0115
50A/125V/250V
—
—
—
—
—
—
—
—
50A/125V/250V
—
—
—
—
—
—
—
—
50A/250V/3ø
—
—
—
—
—
—
—
—
50A/480V/3ø
64W64
130147-0122
—
—
—
—
—
—
20A/120V/208V
67W09
130147-0139
—
—
66W09
130147-0125
27W09MB
130147-0040
Non-NEMA
Locking CA
Non-NEMA
Locking
Non-NEMA
Locking CA
Non-NEMA
Locking CA
Non-NEMA
Locking
Non-NEMA
Locking
L21-20
4-Pole/5-Wire
Duplex Flip Lid
with Female Receptacle
15A/125V
Non-NEMA
3-Pole/4-Wire
Single Flip Lid
with Female Receptacle
L1-15
Non-NEMA
Locking CA
Non-NEMA
Locking CA
3-Pole/3-Wire
Voltage/Current
30A/120V/208V
—
—
—
—
—
—
—
—
20A/120V/208V/3øY
67W81
130147-0151
—
—
66W81
130147-0134
27W81MB
130147-0064
130147-0043
Non-NEMA
Locking
20A/250V 10A/600V
67W10
130147-0140
—
—
66W10
130147-0126
27W10MB
L22-20
20A/227V/480V/3øY
67W82
130147-0153
—
—
66W82
130147-0135
27W82MB
130147-0066
L23-20
20A/347V/600V/3øY
67W83
130147-0154
—
—
66W83
130147-0136
27W83MB
130147-0068
130147-0117
L21-30
30A/120V/208V/3øY
69W81
130147-0177
—
—
68W81
130147-0163
29W81MB
L22-30
30A/277V/480V/3øY
69W82
130147-0178
—
—
68W82
130147-0164
29W82MB
130147-0119
L23-30
30A/347V/600V/3øY
69W83
130147-0179
—
—
68W83
130147-0165
29W83MB
130147-0121
www.molex.com/woodhead
D-5
D
Wiring Devices
Poles
Wiring Device Selection Guide, Heavy-Duty Industrial, Super-Safeway™
Poles
2-Pole/2-Wire
Wiring Devices
D
2-Pole/3-Wire
3-Pole/3-Wire
3-Pole/4-Wire
4-Pole/4-Wire
4-Pole/5-Wire
NEMA Configuration
Voltage/Current
Plug
Connector
Woodhead No.
Order No.
Woodhead No.
Order No.
1404
130141-0006
1504
130141-0023
1-15
15A/125V
1419*
130141-0008
—
—
L1-15
15A/125V
2404
130141-0043
2504
130141-0052
L2-20
20A/250V
2607
130141-0061
2707
130141-0065
5-15
15A/125V
1447
130141-0015
1547
130141-0031
L5-15
15A/125V
2447
130141-0047
2547
130141-0056
6-15
15A/250V
1449
130141-0022
1549
130141-0038
L6-15
15A/250V
2449
130141-0051
2549
130141-0060
130141-0030
7-15
15A/277V
1434
130141-0014
1534
L7-15
15A/277V
2434
130141-0045
2534
130141-0054
5-20
20A/125V
1433
130141-0010
1533
130141-0025
L5-20
20A/125V
2647
130141-0062
2747
130142-0021
6-20
20A/250V
1448
130141-0020
1548
130141-0036
L6-20
20A/250V
2648
130141-0063
2748
130141-0066
130142-0023
L7-20
20A/277V
2649
130141-0064
2749
L5-30
30A/125V
2847
130142-0033
2947
130141-0067
L6-30
30A/250V
2848
130142-0034
2948
130141-0068
L7-30
30A/277V
2849
130142-0035
2949
130141-0069
6-50
50A/250V
8664
130142-0051
8665
130142-0052
Non-NEMA
15A/125V 10A/250V
1407
130141-0007
1507
130141-0024
Non-NEMA Locking
15A/125V 10A/250V
2407
130141-0044
2507
130141-0053
Non-NEMA Locking
20A/125V/250V
2608
130142-0002
2708
130142-0017
Non-NEMA Locking
20A/250V
grounding tab
2608G
130142-0004
2708G
130142-0018
Non-NEMA Locking
30A/125V/250V
2808
130142-0031
2908
130145-0066
L14-20
20A/125V/250V
2674
130142-0009
2774
130142-0024
L15-20
20A/250V/3ø
2675
130142-0010
2775
130142-0025
L16-20
20A/480V/3ø
2676
130142-0012
2776
130142-0026
L14-30
30A/125V/250V
2874
130142-0036
2974
130142-0043
L15-30
30A/250V/3ø
2875
130142-0037
2975
130142-0044
L16-30
30A/480V/3ø
2876
130142-0038
2976
130142-0045
L17-30
30A/600V/3ø
2877
130142-0039
2977
130142-0046
Non-NEMA Locking CA
50A/125V/250V
—
—
—
—
Non-NEMA Locking CA
50A/250V/3ø
—
—
—
—
—
Non-NEMA Locking
50A/600V AC/250V DC
—
—
—
Non-NEMA Locking CA
50A/480V/3ø
—
—
—
—
Non-NEMA Locking
20A/120V/208V
2609
130142-0006
2709
130142-0019
Non-NEMA Locking
30A/120V/208V
2809
130142-0032
2909
130145-0067
L21-20
20A/120V/208V/3øY
2681
130142-0014
2781
130142-0028
L22-20
20A/227V/480V/3øY
2682
130142-0015
2782
130142-0029
L23-20
20A/347V/600V/3øY
2683
130142-0016
2783
130142-0030
L21-30
30A/120V/208V/3øY
2881
130142-0040
2981
130142-0047
L22-30
30A/277V/480V/3øY
2882
130142-0041
2982
130142-0048
L23-30
30A/347V/600V/3øY
2883
130142-0042
2983
130142-0049
* Polarized
†
Single Receptacles and not Flanged Receptacles
D-6
www.molex.com/woodhead
Wiring Device Selection Guide, Heavy-Duty Industrial, Safeway®
2-Pole/2-Wire
2-Pole/3-Wire
3-Pole/3-Wire
3-Pole/4-Wire
NEMA Configuration
Voltage/Current
Plug
Connector
Flanged Inlet
Flanged Receptacles
Woodhead No.
Order No.
Woodhead No.
Order No.
Woodhead No.
Order No.
Woodhead No.
Order No.
5166
130144-0034
5169
130144-0035
1404MB
130149-0005
—
—
5176*
130144-0008
—
—
—
—
—
—
130144-0017
25T04
130144-0019
2404MB
130143-0014
2504MB
130149-0018
1-15
15A/125V
L1-15
15A/125V
24T04
L2-20
20A/250V
26T07
130144-0021
27T07
130144-0022
—
—
—
—
5-15
15A/125V
5266
130144-0036
5269
130144-0044
1447MB
130149-0008
1547MB
130149-0012
L5-15
15A/125V
4720
130144-0023
4729
130144-0025
2447MB
130149-0016
2547MB
130149-0021
6-15
15A/250V
5666
130144-0065
5669
130144-0067
—
—
—
—
130149-0022
L6-15
15A/250V
2449MB
130149-0017
2549MB
7-15
15A/277V
5766
130144-0069
5769
130144-0071
—
—
—
—
L7-15
15A/277V
4770
130144-0031
4779
130144-0033
—
—
2534MB
130149-0020
5-20
20A/125V
5366
130144-0053
5369
130144-0057
1433MB
130149-0007
1533MB
130149-0011
L5-20
20A/125V
26T47
130145-0008
27T47
130145-0030
2647MB
130149-0027
2747MB
130149-0039
6-20
20A/250V
5466
130144-0061
5469
130144-0063
—
—
1548MB
130149-0013
L6-20
20A/250V
26T48
130145-0011
27T48
130145-0032
2648MB
130149-0028
2748MB
130149-0040
L7-20
20A/277V
26T49
130145-0013
27T49
130145-0034
—
—
2749MB
130149-0041
L5-30
30A/125V
28T47
130145-0048
29T47
130145-0071
2847MB
130149-0048
—
—
L6-30
30A/250V
28T48
130145-0050
29T48
130145-0072
2848MB
130149-0049
—
—
L7-30
30A/277V
—
—
—
—
—
—
—
—
6-50
50A/250V
—
—
—
—
—
—
—
—
Non-NEMA
15A/125V 10A/250V
—
—
—
—
—
—
—
—
Non-NEMA Locking
15A/125V 10A/250V
4730
130144-0027
4739
130144-0029
2407MB
130149-0014
2507MB
130149-0019
Non-NEMA Locking
20A/125V/250V
26T08
130145-0002
27T08
130145-0025
2608MB
130149-0024
2708MB
130149-0036
Non-NEMA Locking
20A/250V
grounding tab
—
—
—
—
—
—
—
—
Non-NEMA Locking
30A/125V/250V
—
—
—
—
—
—
—
—
L14-20
20A/125V/250V
26T74
130145-0015
27T74
130145-0035
2674MB
130149-0029
2774MB
130149-0042
L15-20
20A/250V/3ø
26T75
130145-0017
27T75
130145-0037
—
—
—
—
L16-20
20A/480V/3ø
26T76
130145-0019
27T76
130145-0039
—
—
—
—
L14-30
30A/125V/250V
28T74
130145-0052
29T74
130145-0076
2874MB
130149-0051
2974MB
130149-0059
L15-30
30A/250V/3ø
28T75
130145-0054
29T75
130145-0078
2875MB
130149-0052
2975MB
130149-0060
L16-30
30A/480V/3ø
28T76
130145-0056
29T76
130145-0080
2876MB
130149-0053
2976MB
130149-0061
L17-30
30A/600V/3ø
28T77
130145-0058
29T77
130145-0082
—
—
—
—
Non-NEMA Locking CA
50A/125V/250V
CS8365N
130155-0157
CS8364N
130155-0156
CS6375
130155-0137
CS6369†
130155-0135
Non-NEMA Locking CA
50A/250V/3ø
CS8365N
130155-0157
CS8364N
130155-0156
CS8375
130155-0159
CS8369 †
130155-0158
Non-NEMA Locking
50A/600V AC/250V DC
3765N
130155-0042
3764N
130155-0041
3775
130155-0044
3769 †
130155-0043
Non-NEMA Locking CA
50A/480V/3ø
CS8165N
130155-0145
CS8164N
130155-0144
CS8175
130155-0147
CS8169 †
130155-0146
* Polarized
†
Single receptacles and not flanged Receptacles
www.molex.com/woodhead
D-7
D
Wiring Devices
Poles
WET LOCATION
WOODHEAD® WATERTITE® WET-LOCATION WIRING DEVICES SET THE
STANDARD FOR THE ROUGHEST, WETTEST AND MOST ABRASIVE ENVIRONMENTS AND MEET NEMA TYPE 4, 4X, 6, 6P, IP65, IP66, AND IP67 STANDARDS
Woodhead Watertite wet-location wiring devices are rated for high-pressure hose-down
application up to 1,000 psi, the benchmark for the industry. The only devices made of NEo
¯TEX®
Paracril OZO rubber, yields ultimate performance within a wide temperature range, around
many oils, chemicals and abrasive conditions. Additional features include: unique multiple
ring seals that lock snugly protecting against moisture and contaminants; sturdy compressiontype
cord
grips
that
provide
high
pull-out
strength;
and
a
protective-closure
cap
that seals the connector when it is not in use. Woodhead Watertite products are time-tested
devices that professionals demand.
FEATURES AND
BENEFITS
APPLICATIONS
Rubber
construction
Provides ultimate temperature, chemical
and abrasion resistance
Self-aligning
blades
Provide lower operating temperatures,
yielding longer life
Unique integral
multiple ring seal
Locks out moisture and other contaminants
• Breweries
• Dairies
• Food and beverage
• Wastewater treatment
• Water treatment
15A 125V
2-Pole/3-Wire
NEMA 5-15
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
14W47
14W47BLK
Connector
Order No.
130146-0031
130146-0032
Woodhead No.
15W47
15W47BLK
Order No.
130146-0035
Woodhead No.
15W47GCM
Order No.
130146-0060
130146-0061
Plug and Connector with Ground Continuity Monitor
Description
Ground continuity monitor
Plug
Woodhead No.
14W47EZ
Connector
Order No.
130146-0063
Cordset
Description
Yellow, 16-gauge SOOW cord
Yellow, 14-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
14W47A163
14W47B163
14W47D163
14W47L143
14W47A143
14W47B143
14W47D143
14W47B123
14W47D123
Order No.
130143-0137
130143-0143
130143-0153
130143-0154
130143-0134
130143-0140
130143-0150
130143-0138
130143-0148
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-9
D
Wiring Devices
Watertite® Wet Location
Straight Blade
Watertite® Wet Location
Straight Blade
15A 125V
2-Pole/3-Wire
NEMA 5-15
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Cordset—E38085
Molded Y and W Cordset—E38085
CSA File No.: LR6837
Molded Y and W Cordset—LL52750
NSF No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Cordsets with Inline GFCI
Description
Yellow, 14-gauge SJOW cord with inline GFCI
Yellow, 12-gauge SJOW cord with inline GFCI
Cord Length
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
14W47A143IN
14W47B143IN
14W47D143IN
14W47B123IN
14W47D123IN
Order No.
130143-0135
130143-0141
130143-0151
130143-0139
130143-0149
Molded Y and W Cordsets
Description
Cord Length
Yellow, 12 gauge SOW cord
0.91m (3.0')
Y Cordset
Woodhead No.
14W47-Y
W Cordset
Order No.
130154-0048
Woodhead No.
14W47-W
Order No.
130154-0046
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-10
www.molex.com/woodhead
15A 125V
2-Pole/3-Wire
NEMA 5-15
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Cordset—E38085
Receptacle—E68122
Molded Y and W Cordset—E38085
CSA File No.: LR6837
Molded Y and W Cordset—LL52750
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Molded Y and W Cordsets with Inline GFCI
Description
Cord Length
Yellow, 12 gauge SJOW cord with inline GFCI
0.91m (3.0')
Y Cordset
Woodhead No.
14W47-Y-IN
W Cordset
Order No.
130154-0049
Woodhead No.
14W47-W-IN
Order No.
130154-0047
Receptacle
Single Flip Lid Female Receptacle
Description
Woodhead No.
60W47
60W47BLK
Yellow
Black
Duplex Flip Lid Female Receptacle
Order No.
130146-0129
130146-0130
Woodhead No.
60W47DPLX
Order No.
130146-0131
Single Flip Lid Male Receptacle
Woodhead No.
59W47
Order No.
130146-0116
Connector for Male Receptacle
Woodhead No.
15W47MB
Order No.
130146-0065
¾" conduit entry
Receptacle with GFCI
Description
With GFCI protection
Duplex Flip Lid Female Receptacle
Woodhead No.
60W47DPLXGF†
Order No.
130155-0092
For closure caps and additional support with strain relief grips, see accessories F2 body size
†
Not UL/CSA listed
www.molex.com/woodhead
D-11
D
Wiring Devices
Watertite® Wet Location
Straight Blade
Watertite® Wet Location
Straight Blade
15A 250V
2-Pole/3-Wire
NEMA 6-15
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Plug
Description
Woodhead No.
14W49
14W49BLK
Yellow
Black
Connector
Order No.
130146-0044
130146-0045
Woodhead No.
15W49
Order No.
130146-0074
Cordset
Description
Cord Length
7.62m (25.0')
15.24m (50.0')
Yellow, 14-gauge SOOW cord
Woodhead No.
14W49A143
14W49B143
Order No.
130143-0157
130143-0159
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
60W49
Order No.
130146-0137
Duplex Flip Lid Female Receptacle
Woodhead No.
60W49DPLX
Order No.
130146-0138
Single Flip Lid Male Receptacle
Woodhead No.
59W49
Order No.
130146-0118
Connector for Male Receptacle
Woodhead No.
15W49MB
Order No.
130146-0076
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-12
www.molex.com/woodhead
15A 277V
2-Pole/3-Wire
NEMA 7-15
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Plug
Woodhead No.
14W34
Connector
Order No.
130146-0028
Woodhead No.
15W34
Order No.
130146-0059
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
60W34
Order No.
130146-0127
Duplex Flip Lid Female Receptacle
Woodhead No.
60W34DPLX
Order No.
130146-0128
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-13
D
Wiring Devices
Watertite® Wet Location
Straight Blade
Watertite® Wet Location
Straight Blade
20A 125V
2-Pole/3-Wire
NEMA 5-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
14W33
14W33BLK
Connector
Order No.
130146-0022
130146-0023
Woodhead No.
15W33
15W33BLK
Order No.
130146-0024
Woodhead No.
15W33GCM
Order No.
130146-0052
130146-0053
Plug and Connector with Ground Continuity Monitor
Description
Ground continuity monitor
Plug
Woodhead No.
14W33EZ
Connector
Order No.
130146-0054
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-14
www.molex.com/woodhead
20A 125V
2-Pole/3-Wire
NEMA 5-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Cordset—E38085
Molded Y and W Cordset—E38085
CSA File No.: LR6837
Molded Y and W Cordset—LL52750
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Cordset
Description
Yellow, 14-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
14W33A143
14W33D143
14W33A123
14W33B123
14W33D123
Order No.
130143-0124
130143-0131
130143-0121
130143-0125
130143-0129
Cord Length
15.24m (50.0')
Woodhead No.
14W33B123IN
Order No.
130143-0126
Cordset with Inline GFCI
Description
Yellow, 12-gauge SJOW cord with Inline GFCI
Molded Y and W Cordset
Description
Cord Length
Yellow, 12-gauge SOOW cord
0.91m (3.0')
Y Cordset
Woodhead No.
14W33-Y
W Cordset
Order No.
130154-0044
Woodhead No.
14W33-W
Order No.
130154-0043
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-15
D
Wiring Devices
Watertite® Wet Location
Straight Blade
Watertite® Wet Location
Straight Blade
20A 125V
2-Pole/3-Wire
NEMA 5-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Receptacle
Single Flip Lid Female Receptacle
Description
Woodhead No.
60W33
Yellow
Duplex Flip Lid Female Receptacle
Order No.
130146-0123
Woodhead No.
60W33DPLX
Order No.
130146-0125
Single Flip Lid Male Receptacle
Woodhead No.
59W33
Order No.
130146-0115
Connector for Male Receptacle
Woodhead No.
15W33MB
Order No.
130146-0056
Receptacle with GFCI
Description
With GFCI protection
Duplex Flip Lid Female Receptacle
Woodhead No.
60W33DPLXGF †
Order No.
130155-0091
For closure caps and additional support with strain relief grips, see accessories F2 body size
†
Not UL/CSA listed
D-16
www.molex.com/woodhead
20A 250V
2-Pole/3-Wire
NEMA 6-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Molded Y and W Cordset—E38085
CSA File No.: LR6837
Molded Y and W Cordset—LL52750
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
14W48
14W48BLK
Connector
Order No.
130146-0040
130146-0041
Woodhead No.
15W48
15W48BLK
Order No.
130146-0068
130146-0069
Cordset
Description
Yellow, 14-gauge SOOW cord
Cord Length
30.48m (100.0')
Woodhead No.
14W48D143
Order No.
130143-0156
Molded Y and W Cordset
Description
Cord Length
Yellow, 12-gauge SOOW cord
0.91m (3.0')
Y Cordset
Woodhead No.
14W48-Y
W Cordset
Order No.
130154-0052
Woodhead No.
14W48-W
Order No.
130154-0050
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-17
D
Wiring Devices
Watertite® Wet Location
Straight Blade
Watertite® Wet Location
Straight Blade
20A 250V
2-Pole/3-Wire
NEMA 6-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
60W48
Order No.
130146-0133
Duplex Flip Lid Female Receptacle
Woodhead No.
60W48DPLX
Order No.
130146-0135
Single Flip Lid Male Receptacle
Woodhead No.
59W48
Order No.
130146-0117
Connector for Male Receptacle
Woodhead No.
15W48MB
Order No.
130146-0072
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-18
www.molex.com/woodhead
15A 125V/10A 250V
3-Pole/3-Wire
Non-NEMA
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E174525SP
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
14W07
Connector
Order No.
130146-0015
Woodhead No.
15W07
Order No.
130146-0050
Cordset
Description
Yellow, 16-gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
14W07A163
Order No.
130146-0016
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
60W07
Order No.
130146-0121
Duplex Flip Lid Female Receptacle
Woodhead No.
60W07DPLX
Order No.
130146-0122
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-19
D
Wiring Devices
Watertite® Wet Location
Straight Blade
Watertite® Wet Location
Locking Blade
15A 125V
2-Pole/2-Wire
NEMA L1-15
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Color
Yellow
Plug
Woodhead No.
24W04
Connector
Order No.
130146-0077
Woodhead No.
25W04
Order No.
130146-0090
Cordset
Description
Yellow, 16-gauge SOOW cord
Yellow, 14-gauge SOOW cord
Cord Length
15.24m (50.0')
7.62m (25.0')
30.48m (100.0')
Woodhead No.
24W04B162
24W04A142
24W04D142
Order No.
130143-0015
130143-0180
130143-0307
Receptacle
Color
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
65W04
Order No.
130018-0366
Single Flip Lid Male Receptacle
Woodhead No.
64W04
Order No.
130146-0139
Connector for Male Receptacle
Woodhead No.
25W04MB
Order No.
130146-0091
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-20
www.molex.com/woodhead
20A 250V
2-Pole/2-Wire
NEMA L2-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Plug
Description
Woodhead No.
26W07
Yellow
Connector
Order No.
130146-0108
Woodhead No.
27W07
Order No.
130146-0110
Receptacles
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W07
Order No.
130146-0156
Duplex Flip Lid Female Receptacle
Woodhead No.
67W07DPLX
Order No.
130146-0157
Single Flip Lid Male Receptacle
Woodhead No.
66W07
Order No.
130146-0155
Connector for Male Receptacle
Woodhead No.
27W07MB
Order No.
130146-0112
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-21
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
15A 125V
2-Pole/3-Wire
NEMA L5-15
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector with Inline GFCI
Description
Yellow
Black
Plug
Woodhead No.
24W47
24W47BLK
Connector
Order No.
130146-0082
130146-0083
Woodhead No.
25W47
25W47BLK
Order No.
130146-0084
Woodhead No.
25W47GCM
Order No.
130146-0099
130146-0100
Plug and Connector Ground Continuity Monitor
Description
Ground continuity monitor
Plug
Woodhead No.
24W47EZ
Connector
Order No.
130146-0101
Cordset
Description
Yellow, 16-gauge SOOW cord
Yellow, 14-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
15.24m (50.0')
Woodhead No.
24W47A163
24W47B163
24W47D163
24W47A143
24W47B143
24W47D143
24W47B123
Order No.
130143-0189
130143-0193
130143-0196
130143-0187
130143-0191
130143-0195
130143-0190
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-22
www.molex.com/woodhead
15A 125V
2-Pole/3-Wire
NEMA L5-15
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E38085
Molded Y and W Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Molded Y and W Non-Inline GFCI Cordset—LL52750
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Cordset with Inline GFCI
Description
Yellow, 14-gauge SJOW cord with inline GFCI
Cord Length
15.24m (50.0')
Woodhead No.
24W47B143IN
Order No.
130143-0192
Molded Y and W Cordset
Description
Cord Length
Yellow, 12-gauge SOOW cord
.91m (3.0')
Y Cordset
Woodhead No.
24W47-Y
W Cordset
Order No.
130154-0060
Woodhead No.
24W47-W
Order No.
130154-0061
Woodhead No.
24W47-W-IN
Order No.
130154-0058
Molded Y and W Cordset with Inline GFCI
Description
Cord Length
Yellow, 12-gauge SJOW cord with inline GFCI
.91m (3.0')
Y Cordset
Woodhead No.
24W47-Y-IN
W Cordset
Order No.
130154-0059
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-23
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
15A 125V
2-Pole/3-Wire
NEMA L5-15
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Receptacle
Single Flip Lid Female Receptacle
Description
Woodhead No.
65W47
65W47BLK
Yellow
Black
Duplex Flip Lid Female Receptacle
Order No.
130146-0149
130146-0150
Woodhead No.
65W47DPLX
Order No.
130146-0151
Single Flip Lid Male Receptacle
Woodhead No.
64W47
Order No.
130146-0142
Connector for Male Receptacle
Woodhead No.
25W47MB
Order No.
130146-0103
Receptacle with GFCI
Description
With GFCI protection
Duplex Flip Lid Female Receptacle
Woodhead No.
65W47DPLXGF †
Order No.
130155-0108
For closure caps and additional support with strain relief grips, see accessories F2 body size
†
Not UL/CSA listed
D-24
www.molex.com/woodhead
15A 250V
2-Pole/3-Wire
NEMA L6-15
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Plug
Description
Woodhead No.
24W49
Yellow
Connector
Order No.
130146-0088
Woodhead No.
25W49
Order No.
130146-0106
Cordset
Description
Yellow, 14-gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
24W49A143
Order No.
130143-0198
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
65W49
Order No.
130146-0153
Duplex Flip Lid Female Receptacle
Woodhead No.
65W49DPLX
Order No.
130146-0154
Single Flip Lid Male Receptacle
Woodhead No.
64W49
Order No.
130146-0143
Connector for Male Receptacle
Woodhead No.
25W49MB
Order No.
130146-0107
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-25
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
15A 277V
2-Pole/3-Wire
NEMA L7-15
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle— E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Plug
Description
Woodhead No.
24W34
24W34BLK
Yellow
Black
Connector
Order No.
130146-0079
130146-0080
Woodhead No.
25W34
25W34BLK
Order No.
130146-0095
130146-0096
Cordset
Description
Yellow, 16-gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
24W34A163
Order No.
130143-0017
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
65W34
Order No.
130146-0147
Duplex Flip Lid Female Receptacle
Woodhead No.
65W34DPLX
Order No.
130146-0148
Single Flip Lid Male Receptacle
Woodhead No.
64W34
Order No.
130146-0141
Connector for Male Receptacle
Woodhead No.
25W34MB
Order No.
130146-0097
For closure caps and additional support with strain relief grips, see accessories F2 body size
D-26
www.molex.com/woodhead
20A 125V
2-Pole/3-Wire
NEMA L5-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W47
26W47BLK
Connector
Order No.
130147-0018
130147-0019
Woodhead No.
27W47
27W47BLK
Order No.
130147-0044
130147-0045
Cordset
Description
Yellow, 14-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
26W47A143
26W47B143
26W47D143
26W47A123
26W47B123
26W47D123
Order No.
130143-0222
130143-0225
130143-0227
130143-0221
130143-0223
130143-0226
Cord Length
0.30m (1.0')
15.24m (50.0')
Woodhead No.
26W47E123IN
26W47B123IN
Order No.
130143-0228
130143-0224
Cordset with Inline GFCI
Description
Yellow, 12-gauge SJOW cord with inline GFCI
For closure caps and additional support with strain relief grips, see accessories F3 body size
www.molex.com/woodhead
D-27
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
20A 125V
2-Pole/3-Wire
NEMA L5-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E38085
Molded Y and W Non-Inline GFCI Cordset—E38085
CSA File No.: LL52750
Molded Y and W Non-Inline GFCI Cordset—LL52750
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Molded Y and W Cordset
Description
Cord Length
Yellow, 12-gauge SOOW cord
0.91m (3.0')
Y Cordset
Woodhead No.
26W47-Y
W Cordset
Order No.
130154-0070
Woodhead No.
26W47-W
Order No.
130154-0071
Woodhead No.
26W47-W-IN
Order No.
130154-0068
Molded Y and W Cordset with Inline GFCI
Description
Cord Length
Yellow, 12-gauge SJOW cord with inline GFCI
0.91m (3.0')
Y Cordset
Woodhead No.
26W47-Y-IN
W Cordset
Order No.
130154-0069
For closure caps and additional support with strain relief grips, see accessories F3 body size
D-28
www.molex.com/woodhead
20A 125V
2-Pole/3-Wire
NEMA L5-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector— E10176
Receptacle— E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Receptacle
Description
Yellow
Black
Single Flip Lid Female Receptacle
Woodhead No.
67W47
67W47BLK
Order No.
130147-0141
130147-0142
Single Flip Lid Male Receptacle
Woodhead No.
66W47
Order No.
130147-0127
Connector for Male Receptacle
Woodhead No.
27W47MB
Order No.
130147-0047
Receptacle with GFCI
Description
With GFCI protection
Single Flip Lid Female Receptacle
Woodhead No.
67W47GF †
Order No.
130155-0110
For closure caps and additional support with strain relief grips, see accessories F3 body size
†
Not UL/CSA listed
www.molex.com/woodhead
D-29
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
20A 250V
2-Pole/3-Wire
NEMA L6-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W48
26W48BLK
Connector
Order No.
130147-0021
130147-0022
Woodhead No.
27W48
27W48BLK
Order No.
130147-0048
130147-0049
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W48
Order No.
130147-0144
Single Flip Lid Male Receptacle
Woodhead No.
66W48
Order No.
130147-0128
Connector for Male Receptacle
Woodhead No.
27W48MB
Order No.
130147-0050
For closure caps and additional support with strain relief grips, see accessories F3 body size
D-30
www.molex.com/woodhead
20A 277V
2-Pole/3-Wire
NEMA L7-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector— E10176
Receptacle— E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
26W49
Connector
Order No.
130147-0023
Woodhead No.
27W49
Order No.
130147-0051
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W49
Order No.
130147-0145
Single Flip Lid Male Receptacle
Woodhead No.
66W49
Order No.
130147-0129
Connector for Male Receptacle
Woodhead No.
27W49MB
Order No.
130147-0052
For closure caps and additional support with strain relief grips, see accessories F3 body size
www.molex.com/woodhead
D-31
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
30A 125V
2-Pole/3-Wire
NEMA L5-30
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle— E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
28W47
28W47BLK
Connector
Order No.
130147-0072
130147-0073
Woodhead No.
29W47
29W47BLK
Order No.
130147-0093
130147-0094
Cordset
Description
Yellow, 12-gauge SOOW cord
Yellow, 10-gauge SOOW cord
Cord Length
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
Woodhead No.
28W47A123
28W47A103
28W47B103
Order No.
130143-0262
130143-0261
130143-0263
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W47
Order No.
130147-0168
Single Flip Lid Male Receptacle
Woodhead No.
68W47
Order No.
130147-0157
Connector for Male Receptacle
Woodhead No.
29W47MB
Order No.
130147-0095
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-32
www.molex.com/woodhead
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
30A 250V
2-Pole/3-Wire
NEMA L6-30
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
28W48
28W48BLK
Connector
Order No.
130147-0074
130147-0075
Woodhead No.
29W48
29W48BLK
Order No.
130147-0096
130147-0097
Cordset
Description
Yellow, 10-gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
28W48A103
Order No.
130143-0266
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W48
Order No.
130147-0169
Single Flip Lid Male Receptacle
Woodhead No.
68W48
Order No.
130147-0158
Connector for Male Receptacle
Woodhead No.
29W48MB
Order No.
130147-0098
For closure caps and additional support with strain relief grips, see accessories F4 body size
www.molex.com/woodhead
D-33
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
50A 250V
2-Pole/3-Wire
Non-NEMA Locking/California
Style
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F5 1¼"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Plug
Description
Woodhead No.
CS82W65
Yellow
Connector
Order No.
130155-0155
Woodhead No.
CS82W64
Order No.
130155-0154
For closure caps and additional support with strain relief grips, see accessories F5 body size
Watertite® Wet Location
Locking Blade
50A 480V
2-Pole/3-Wire
Non-NEMA Locking/California
Style
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F5 1¼"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Plug
Description
Woodhead No.
CS84W65
Yellow
Connector
Order No.
130155-0167
Woodhead No.
CS84W64
Order No.
130155-0166
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W64*
Order No.
130147-0146
For closure caps and additional support with strain relief grips, see accessories F5 body size
* Not CSA certified
D-34
www.molex.com/woodhead
15A 125V/10A 250V
3-Pole/3-Wire
Non-NEMA
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F2 ½"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Plug
Description
Woodhead No.
24W07
Yellow
Connector
Order No.
130146-0078
Woodhead No.
25W07
Order No.
130146-0092
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
65W07
Order No.
130146-0145
Duplex Flip Lid Female Receptacle
Woodhead No.
65W07DPLX
Order No.
130146-0146
Single Flip Lid Male Receptacle
Woodhead No.
64W07
Order No.
130146-0140
Connector for Male Receptacle
Woodhead No.
25W07MB
Order No.
130146-0094
For closure caps and additional support with strain relief grips, see accessories F2 body size
www.molex.com/woodhead
D-35
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
20A 125V/250V
3-Pole/3-Wire
Non-NEMA
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
26W08
Connector
Order No.
130147-0012
Woodhead No.
27W08
Order No.
130147-0035
Cordset
Description
Yellow, 14-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
Woodhead No.
26W08A143
26W08B143
Order No.
130143-0217
130143-0218
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W08
Order No.
130147-0137
Single Flip Lid Male Receptacle
Woodhead No.
66W08
Order No.
130147-0124
Connector for Male Receptacle
Woodhead No.
27W08MB
Order No.
130147-0037
For closure caps and additional support with strain relief grips, see accessories F3 body size
D-36
www.molex.com/woodhead
20A 250V with Grounding Tab
3-Pole/3-Wire
Non-NEMA
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow, with grounding tab
Plug
Woodhead No.
26W08G
Connector
Order No.
130147-0014
Woodhead No.
27W08G
Order No.
130147-0036
For closure caps and additional support with strain relief grips, see accessories F3 body size
www.molex.com/woodhead
D-37
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
30A 125/250V
3-Pole/3-Wire
Non-NEMA Locking
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
28W08
Connector
Order No.
130147-0069
Woodhead No.
29W08
Order No.
130147-0089
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W08
Order No.
130147-0166
Single Flip Lid Male Receptacle
Woodhead No.
68W08
Order No.
130147-0155
Connector for Male Receptacle
Woodhead No.
29W08MB
Order No.
130147-0090
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-38
www.molex.com/woodhead
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
20A 125/250V
3-Pole/4-Wire
NEMA L14-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset— E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W74
26W74BLK
Connector
Order No.
130147-0025
130147-0026
Woodhead No.
27W74
27W74BLK
Order No.
130147-0053
130147-0054
Cordset
Description
Yellow, 14-gauge SOOW cord
Black, 12-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
Woodhead No.
26W74A144
26W74B144
26W74A124BLK
26W74A124
26W74B124
Order No.
130143-0237
130143-0240
130143-0236
130143-0235
130143-0238
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W74
Order No.
130147-0147
Single Flip Lid Male Receptacle
Woodhead No.
66W74
Order No.
130147-0131
Connector for Male Receptacle
Woodhead No.
27W74MB
Order No.
130147-0055
For closure caps and additional support with strain relief grips, see accessories F3 body size
www.molex.com/woodhead
D-39
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
20A 250V 3ø
3-Pole/4-Wire
NEMA L15-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W75
26W75BLK
Connector
Order No.
130147-0027
130147-0028
Woodhead No.
27W75
27W75BLK
Order No.
130147-0056
130147-0057
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W75
Order No.
130147-0149
Single Flip Lid Male Receptacle
Woodhead No.
66W75
Order No.
130147-0132
Connector for Male Receptacle
Woodhead No.
27W75MB
Order No.
130147-0058
For closure caps and additional support with strain relief grips, see accessories F3 body size
D-40
www.molex.com/woodhead
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
20A 480V 3ø
3-Pole/4-Wire
NEMA L16-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W76
26W76BLK
Connector
Order No.
130147-0029
130147-0030
Woodhead No.
27W76
27W76BLK
Order No.
130147-0059
130147-0060
Cordset
Description
Yellow, 14-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
Woodhead No.
26W76A144
26W76A124
26W76B124
Order No.
130143-0246
130143-0245
130143-0247
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W76
Order No.
130147-0150
Single Flip Lid Male Receptacle
Woodhead No.
66W76
Order No.
130147-0133
Connector for Male Receptacle
Woodhead No.
27W76MB
Order No.
130147-0061
For closure caps and additional support with strain relief grips, see accessories F3 body size
www.molex.com/woodhead
D-41
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
30A 125/250V
3-Pole/4-Wire
NEMA L14-30
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
28W74
28W74BLK
Connector
Order No.
130147-0077
130147-0078
Woodhead No.
29W74
29W74BLK
Order No.
130147-0102
130147-0103
Cordset
Description
Yellow, 10-gauge SOOW cord
Black, 10-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
Woodhead No.
28W74A104
28W74B104
28W74D104
28W74A104BLK
Order No.
130143-0270
130143-0271
130143-0273
130143-0310
Receptacles
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W74
Order No.
130147-0173
Single Flip Lid Male Receptacle
Woodhead No.
68W74
Order No.
130147-0159
Connector for Male Receptacle
Woodhead No.
29W74MB
Order No.
130147-0104
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-42
www.molex.com/woodhead
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
30A 250V 3ø
3-Pole/4-Wire
NEMA L15-30
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
28W75
28W75BLK
Connector
Order No.
130147-0079
130147-0080
Woodhead No.
29W75
29W75BLK
Order No.
130147-0105
130147-0106
Cordset
Description
Black, 12-gauge SOOW cord
Yellow, 10-gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
28W75A124
28W75B124
28W75A104
28W75B104
28W75D104
Order No.
130143-0275
130143-0018
130143-0274
130143-0276
130143-0277
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W75
Order No.
130147-0174
Single Flip Lid Male Receptacle
Woodhead No.
68W75
Order No.
130147-0160
Connector for Male Receptacle
Woodhead No.
29W75MB
Order No.
130147-0107
For closure caps and additional support with strain relief grips, see accessories F4 body size
www.molex.com/woodhead
D-43
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
30A 480V 3ø
3-Pole/4-Wire
NEMA L16-30
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
28W76
28W76BLK
Connector
Order No.
130147-0081
130147-0082
Woodhead No.
29W76
29W76BLK
Order No.
130147-0108
130147-0109
Cordset
Description
Yellow, 12-gauge SOOW cord
Yellow, 10-gauge SOOW cord
Cord Length
7.62m (25.0')
7.62m (25.0')
Woodhead No.
28W76A124
28W76A104
Order No.
130143-0279
130143-0278
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W76
Order No.
130147-0175
Single Flip Lid Male Receptacle
Woodhead No.
68W76
Order No.
130147-0161
Connector for Male Receptacle
Woodhead No.
29W76MB
Order No.
130147-0110
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-44
www.molex.com/woodhead
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
30A 600V 3ø
3-Pole/4-Wire
NEMA L17-30
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector—E10176
Cordset—E38085
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
28W77
28W77BLK
Connector
Order No.
130147-0083
130147-0084
Woodhead No.
29W77
29W77BLK
Order No.
130147-0111
130147-0112
Cordset
Description
Yellow, 10-gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
28W77A104
Order No.
130143-0280
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W77
Order No.
130147-0176
Single Flip Lid Male Receptacle
Woodhead No.
68W77
Order No.
130147-0162
Connector for Male Receptacle
Woodhead No.
29W77MB
Order No.
130147-0115
For closure caps and additional support with strain relief grips, see accessories F4 body size
www.molex.com/woodhead
D-45
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
50A 125V/250V
3-Pole/4-Wire
Non-NEMA Locking
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F5 1¼"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Watertite® Wet Location
Locking Blade
50A 125/250V
3-Pole/4-Wire
Non-NEMA Locking/California
Style
Plug
Woodhead No.
63W65
Connector
Order No.
130155-0105
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Woodhead No.
63W64
Order No.
130155-0104
Reference Information
UL File No.: E10176
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F5 1¼"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow, California style
Plug
Woodhead No.
CS63W65
Connector
Order No.
130155-0142
Woodhead No.
CS63W64
Order No.
130155-0141
For closure caps and additional support with strain relief grips, see accessories F5 body size
D-46
www.molex.com/woodhead
50A 250V 3ø
3-Pole/4-Wire
Non-NEMA Locking/California
Style
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F5 1¼"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Plug
Description
Woodhead No.
CS83W65
Yellow, California style
Watertite® Wet Location
Locking Blade
50A 480V 3ø
3-Pole/4-Wire
Non-NEMA Locking/California
Style
Connector
Order No.
130155-0161
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Woodhead No.
CS83W64
Order No.
130155-0160
Reference Information
UL File No.: Plug and Connector—E10176
CSA File No.: Plug and Connector—LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F5 1¼"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Plug
Description
Woodhead No.
CS81W65
Yellow, California style
Connector
Order No.
130155-0149
Woodhead No.
CS81W64
Order No.
130155-0148
Receptacle
Description
With California style locking blade
Single Flip Lid Female Receptacle
Woodhead No.
64W64
Order No.
130147-0122
For closure caps and additional support with strain relief grips, see accessories F5 body size
www.molex.com/woodhead
D-47
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
20A 120/208V
4-Pole/4-Wire
Non-NEMA
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
* Trademark of SABIC Innovative Plastics IPB
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W09
26W09BLK
Connector
Order No.
130147-0015
130147-0016
Woodhead No.
27W09
27W09BLK
Order No.
130147-0038
130147-0039
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W09
Order No.
130147-0139
Single Flip Lid Male Receptacle
Woodhead No.
66W09
Order No.
130147-0125
Connector for Male Receptacle
Woodhead No.
27W09MB
Order No.
130147-0040
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-48
www.molex.com/woodhead
30A 120/208V
4-Pole/4-Wire
Non-NEMA Locking
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug and Connector
Description
Yellow
Plug
Woodhead No.
28W09
Connector
Order No.
130147-0071
Woodhead No.
29W09
Order No.
130147-0091
For closure caps and additional support with strain relief grips, see accessories F4 body size
www.molex.com/woodhead
D-49
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
20A 120/208V 3øY
4-Pole/5-Wire
NEMA L21-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
Reference Information
UL File No.: Plug and Connector— E10176
Cordset— E38085
Receptacle— E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Black
Plug
Woodhead No.
26W81
26W81BLK
Connector
Order No.
130147-0031
130147-0032
Woodhead No.
27W81
27W81BLK
Order No.
130147-0062
130147-0063
Cordset
Description
Yellow, 14-gauge SOOW cord
Yellow, 12-gauge SOOW cord
Cord Length
7.62m (25.0')
30.48m (100.0')
Woodhead No.
26W81A145
26W81D125
Order No.
130143-0248
130143-0308
Receptacle
Description
Yellow
Black
Single Flip Lid Female Receptacle
Woodhead No.
67W81
67W81BLK
Order No.
130147-0151
130147-0152
Single Flip Lid Male Receptacle
Woodhead No.
66W81
Order No.
130147-0134
Connector for Male Receptacle
Woodhead No.
27W81MB
Order No.
130147-0064
For closure caps and additional support with strain relief grips, see accessories F3 body size
D-50
www.molex.com/woodhead
20A 277/480V 3øY
4-Pole/5-Wire
NEMA L22-20
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
26W82
Connector
Order No.
130147-0033
Woodhead No.
27W82
Order No.
130147-0065
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W82
Order No.
130147-0153
Single Flip Lid Male Receptacle
Woodhead No.
66W82
Order No.
130147-0135
Connector for Male Receptacle
Woodhead No.
27W82MB
Order No.
130147-0066
For closure caps and additional support with strain relief grips, see accessories F3 body size
www.molex.com/woodhead
D-51
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
20A 347/600V 3øY
4-Pole/5-Wire
NEMA L23-20
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F3 ¾"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
26W83
Connector
Order No.
130147-0034
Woodhead No.
27W83
Order No.
130147-0067
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W83
Order No.
130147-0154
Single Flip Lid Male Receptacle
Woodhead No.
66W83
Order No.
130147-0136
Connector for Male Receptacle
Woodhead No.
27W83MB
Order No.
130147-0068
For closure caps and additional support with strain relief grips, see accessories F3 body size
D-52
www.molex.com/woodhead
20A 250V/10A 600V
4-Pole/5-Wire
Non-NEMA
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
With grounding tab
Plug
Woodhead No.
26W10
Connector
Order No.
130147-0017
Woodhead No.
27W10
Order No.
130147-0041
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
67W10
Order No.
130147-0140
Single Flip Lid Male Receptacle
Woodhead No.
66W10
Order No.
130147-0126
Connector for Male Receptacle
Woodhead No.
27W10MB
Order No.
130147-0043
For closure caps and additional support with strain relief grips, see accessories F4 body size
www.molex.com/woodhead
D-53
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
30A 120/208V 3øY
4-Pole/5-Wire
NEMA L21-30
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
28W81
Connector
Order No.
130147-0085
Woodhead No.
29W81
Order No.
130147-0116
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W81
Order No.
130147-0177
Single Flip Lid Male Receptacle
Woodhead No.
68W81
Order No.
130147-0163
Connector for Male Receptacle
Woodhead No.
29W81MB
Order No.
130147-0117
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-54
www.molex.com/woodhead
30A 277/480V 3øY
4-Pole/5-Wire
NEMA L22-30
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
28W82
Connector
Order No.
130147-0086
Woodhead No.
29W82
Order No.
130147-0118
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W82
Order No.
130147-0178
Single Flip Lid Male Receptacle
Woodhead No.
68W82
Order No.
130147-0164
Connector for Male Receptacle
Woodhead No.
29W82MB
Order No.
130147-0119
For closure caps and additional support with strain relief grips, see accessories F4 body size
www.molex.com/woodhead
D-55
D
Wiring Devices
Watertite® Wet Location
Locking Blade
Watertite® Wet Location
Locking Blade
30A 347/600V 3øY
4-Pole/5-Wire
NEMA L23-30
Wiring Devices
DD
Features and Benefits
• Multiple seal plug/connector interface keeps out
contaminants; resists vapor and water from highpressure wash down up to 1000psi
• Color-coded ¼" terminal screws preset in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Three piece strain relief seals cord without damaging
the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
NSF File No.: NSF/ANSI/3-A 14159-1
Physical
Cord Grip Body Size: F4 1"
Plug Blades and Connector Contacts: Nickel-plated Brass
Outer Housing and Grommet: NEo-TEX® Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Receptacle Coverplate and Closure Caps: Lexan*
Environmental
NEMA Rating: NEMA 1, 3, 4, 4X, 5, 6, 6P and 12
IEC Rating: IP55, 56, 57, 65, 66, and 67
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
* Trademark of SABIC Innovative Plastics IPB
Plug and Connector
Description
Yellow
Plug
Woodhead No.
28W83
Connector
Order No.
130147-0088
Woodhead No.
29W83
Order No.
130147-0120
Receptacle
Description
Yellow
Single Flip Lid Female Receptacle
Woodhead No.
69W83
Order No.
130147-0179
Single Flip Lid Male Receptacle
Woodhead No.
68W83
Order No.
130147-0165
Connector for Male Receptacle
Woodhead No.
29W83MB
Order No.
130147-0121
For closure caps and additional support with strain relief grips, see accessories F4 body size
D-56
www.molex.com/woodhead
Watertite® Wet Location
Accessories
Features and Benefits
• Replacement part
• Easy to install
Physical
Form Size: F2 ½"
Environmental
Rating: Watertite
Wiring Devices
D
Accessories for F2 Body Size
Description
Closure cover, F2, yellow
Closure cover, F2, black
Closure cover, F2, yellow
Closure cover, F2, black
Plug
Woodhead No.
14W
14WBLK
Connector
Order No.
130155-0020
130155-0021
Woodhead No.
Order No.
50W50*
50W50BLK*
130155-0077
130155-0078
No UL or CSA
Watertite® Wet Location
Accessories
Features and Benefits
• Replacement part
• Easy to install
Physical
Form Size: F3 ¾"
Environmental
Rating: Watertite
Accessories for F3 Body Size
Description
Closure cover, F3, yellow
Closure cover, F3, black
Closure cover, F3, yellow
Closure cover, F3, black
www.molex.com/woodhead
Plug
Woodhead No.
26W
26WBLK
Connector
Order No.
130155-0028
130155-0029
Woodhead No.
Order No.
50W52
50W52BLK
130155-0080
130155-0081
D-57
Watertite® Wet Location
Accessories
Features and Benefits
• Replacement part
• Easy to install
Physical
Form Size: F4 1"
Environmental
Rating: Watertite
Wiring Devices
DD
Accessories for F4 Body Size
Description
Cosure cover, F4, yellow
Closure cover, F4, black
Closure cover, F4, yellow
Closure cover, F4, black
Plug
Woodhead No.
28W
28WBLK
Watertite® Wet Location
Accessories
Connector
Order No.
130155-0030
130155-0031
Features and Benefits
• Replacement part
• Easy to install
Woodhead No.
Order No.
50W54
50W54BLK
130155-0082
130155-0083
Physical
Form Size: F5 1¼"
Environmental
Rating: Watertite
Accessories for F5 Body Size
Description
Closure cover, F5, yellow
Closure cover, F5, yellow
D-58
Plug
Woodhead No.
30W
Connector
Order No.
130155-0032
Woodhead No.
Order No.
50W56
130155-0084
www.molex.com/woodhead
Wiring Devices
Watertite® Wet-Location
Grommets
•
Listed below and indicated by are the cord bushings
(grommets) normally supplied with Watertite® devices.
Other diameters are available if larger or smaller diameter
grommets are required.
½" Cord Grip — F2 Body Size
Cord
Diameter
Color
0.062-0.125"
0.125-0.187"
0.187-0.250"
0.250-0.312"
0.312-0.375"
0.375-0.437"
0.437-0.500"
0.500-0.562"
0.562-0.625"
Black
Yellow
Orange
Black
Gray
Green
Orange
Black
Gray
14W04/
15W04
14W07/
15W07
14W19
14W33/
15W33
14W34/
15W34
14W47/
15W47
14W48/
15W48
14W49/
15W49
24W07/
25W07
24W34/
25W34
24W47/
25W47
24W49/
25W49
26W07/
27W07
Woodhead
No.
Order No.
00-4978
00-4970
00-4971
00-4972
00-5263
00-5264
00-4975
00-5266
00-5267
130180-0405
130180-0401
130180-0402
130180-0403
130180-0286
130180-0287
130180-0404
130180-0288
130180-0289
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
¾" Cord Grip — F3 Body Size
Cord
Diameter
Color
0.187-0.250"
0.250-0.375"
0.375-0.437"
0.437-0.562"
0.500-0.625"
0.562-0.687"
0.625-0.750"
0.687-0.812"
Orange
Gray
Green
Black
Gray
Green
Orange
Yellow
26W08/
27W08
26W47/
27W47
•
•
•
•
26W48/
27W48
•
•
•
•
26W49/
27W49
•
•
•
•
26W74/
27W74
•
•
•
•
26W75/
27W75
26W76/
27W76
•
•
•
•
•
•
•
•
•
•
•
•
26W81/
27W81
26W82/
27W82
•
•
•
26W83/
27W83
Woodhead
No.
Order No.
•
•
•
00-4985
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
00-4984
130180-0407
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
130180-0406
•
•
•
1" Cord Grip — F4 Body Size
Cord
Diameter
Color
0.437-0.562"
0.500-0.625"
0.562-0.687"
0.625-0.750"
0.687-0.812"
0.750-0.875"
0.812-0.937"
0.875-1.00"
1.00-1.10”
Black
Gray
Green
Orange
Yellow
Black
Gray
Green
Black
26W09/ 26W10/ 28W08/ 28W09/ 28W47/ 28W48/ 28W49/ 28W74/ 28W75/ 28W76/ 28W77/ 28W81/ 28W82/ 28W83/ Woodhead
27W09 27W10 29W08 29W09 29W47 29W48 29W49 29W74 29W75 29W76 29W77 29W81 29W82 29W83
No.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
00-4990
00-4991
00-4992
00-4993
00-4994
00-4995
00-4996
00-4997
00-4998
Order No.
130180-0410
130180-0411
130180-0282
130180-0283
130180-0412
130180-0413
130180-0284
130180-0414
130180-0285
1¼" Cord Grip — F5 Body Size
Cord
Diameter
Color
0.750-0.875"
0.875-1.000"
1.00-1.125"
1.125-1.25"
1.25-1.375"
Orange
Yellow
Black
Green
Gray
CS63W61/63W61
CS63W60/63W60
•
•
•
CS82W65
CS82W64
•
•
•
37W63
37W62
•
•
•
CS84W65
CS84W64
CS63W65/63W65
CS63W64/63W64
•
•
•
•
•
•
CS83W65
CS83W64
•
•
•
37W65
37W64
•
•
•
CS81W65
CS81W64
Woodhead
No.
Order No.
•
•
•
00-5070
00-5071
00-5072
00-5073
00-5074
130180-0308
130180-0309
130180-0310
130180-0311
130180-0312
Speciality Grommets (UF Cable)
Body Size
F2
F2
F3
F3
www.molex.com/woodhead
Oval Hole
5.54x10.69mm (.218-.421)
5.54x16.26mm (.218-.640)
5.54x10.69mm (.218-.421)
5.54x16.26mm (.218-.640)
Color
Black
Woodhead No.
00-4940
00-4941
00-4950
00-4951
Order No.
130180-0392
130180-0393
130180-0395
130180-0396
D-59
Wiring Devices
D
Watertite® Wet Location
Pin and Sleeve
Features and Benefits
• Integrally molded to cable—one continuous insulation
and protection jacket with no seams
• Solid Brass contacts provide maximum conductivity,
minimum resistance, and long term durability
• Spring-loaded Brass sockets ensure constant contact,
wipe connection surfaces clean on every insertion, and
minimize heat buildup
• Safe connection and disconnection with mate-first,
break-last ground contact
• Rated for high-power applications
3-Pole/4-Wire
Wiring Devices
D
Electrical
Voltage: 600V AC
Current: 30A or 60A
Ground Contact: Mate first, break last
Physical
Material: Neoprene (CPE)
Plug Pins and Connector Sockets: Solid Brass
Cable: MHSA approved
Environmental
Duty Type: General Industrial Duty
DW4 Series
Description
Current
8 AWG,
4-conductor SOOW cable
30A
Cable Length
Cable
Outside Diameter
1.83m (6')
18.03mm (.710")
Plug
Woodhead No.
DW4M20
Connector
Order No.
130150-0320
Woodhead No.
Order No.
DW4F20
130150-0325
DW730 Series, Fused Plug
Description
8 AWG,
4-conductor SOOW cable
Current
30A
Cable Length
Cable
Outside Diameter
1.98m (6.5')
18.03mm (.710")
Plug
Woodhead No.
DW730-30M
Connector
Order No.
130155-0182
Receptacle
Woodhead No.
Order No.
DW730-30F
130155-0190
Woodhead No.
Order No.
DW730-30R
130155-0183
DW760 Series, Fused Plug
Description
6 AWG,
4-conductor SOOW cable
D-60
Current
60A
Cable Length
1.83m
11.58m
22.86m
1.83m
(6')
(38')
(75')
(6')
Cable
Outside Diameter
23.62mm (.930")
Plug
Woodhead No
DW760-60M
DW760-60M38
DW760-60M75
Connector
Order No.
130155-0185
130155-0192
130155-0186
Receptacle
Woodhead No
Order No.
DW760-60F
130155-0184
Woodhead No
Order No.
DW760-60R
130155-0187
www.molex.com/woodhead
Features and Benefits
• IP67 rated
• Deadfront construction
• Self-adjusting split contact sleeves. Nickel-plated Steel
spring compensates for wear, maintains constant
pressure along contact surface to ensure electrical
continuity and grounding
• Latching mechanism prevents accidental disengagement
• Keyway for fast, accurate alignment
• Internal strain relief with “swing away” feature
• External strain relief reduces bending arc of cable
• Large, identified terminals accept conductors one or two
sizes larger or smaller than normal
• “Onion ring” neoprene bushing in cable grip
accommodates wide range of cable sizes
Physical
Pins: Brass
Housing: Type G nylon
Contact Carrier: Type G nylon
Environmental
IEC Rating: IP44
IEC Standards*: 309-1 and 309-2
Applications
• Temporary power systems
• Power disconnect for portable processing equipment
• Machinery intended for export and users of foreignbuilt equipment
* IEC 309-1 and 309-2 are a worldwide pin and sleeve standard established
by the International Electrotechnical Commission. It meets requirements of
Section 410-56(g) of the National Electrical Code
20A Watertite Devices
Pole/Wire
Color
Voltage
2-Pole/3-Wire
2-Pole/3-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
Yellow
Blue
Orange
Blue
Red
Black
125
250
125/250
3ø250
3ø480
3ø600
Pole/Wire
Color
Voltage
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
Blue
Gray
Red
3ø250
3ø480
3ø600
Pole/Wire
Color
Voltage
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
Orange
Blue
Red
Black
125/250
3ø250
3ø480
3ø600
Receptacle
Woodhead No.
320R4W
320R6W
420R12W
420R9W
420R7W
420R5W
Plug
Order No.
130150-0057
130150-0059
130150-0144
130150-0150
130150-0148
130150-0146
Woodhead No.
320P4W
320P6W
420P12W
420P9W
420P7W
420P5W
Order No.
130150-0179
130150-0177
130150-0175
Woodhead No.
430P9W
430P7W
430P5W
Order No.
130150-0207
130150-0213
130150-0211
130150-0209
Woodhead No.
460P12W
460P9W
460P7W
460P5W
Order No.
130150-0116
130150-0119
130150-0118
130150-0117
Woodhead No.
4100P12W
4100P9W
4100P7W
4100P5W
Connector
Order No.
130150-0050
130150-0053
130150-0136
130150-0142
130150-0148
130150-0138
Woodhead No.
320C4W
320C6W
420C12W
420C9W
420C7W
420C5W
Order No.
130150-0173
130150-0171
130150-0169
Woodhead No.
430C9W
430C7W
430C5W
Order No.
130150-0199
130150-0205
130150-0203
130150-0201
Woodhead No.
460C12W
460C9W
460C7W
460C5W
Order No.
130150-0112
130150-0115
130150-0114
130150-0113
Woodhead No.
4100C12W
4100C9W
4100C7W
4100C5W
Order No.
130150-0037
130150-0040
130198-0118
130150-0129
130150-0128
130150-0126
30A Watertite Devices
Receptacle
Woodhead No.
430R9W
430R7W
430R5W
Plug
Connector
Order No.
130150-0160
130150-0158
130150-0156
60A Watertite Devices
Receptacle
Woodhead No.
460R12W
460R9W
460R7W
460R5W
Plug
Connector
Order No.
130150-0186
130150-0192
130150-0190
130150-0188
100A Watertite Devices
Pole/Wire
Color
Voltage
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
Orange
Blue
Red
Black
125/250
3ø250
3ø480
3ø600
Receptacle
Woodhead No.
4100R12W
4100R9W
4100R7W
4100R5W
Plug
Connector
Order No.
130150-0105
130150-0108
130150-0107
130150-0106
Note: Angled inlet and mechanical interlock also available for 2-Pole/3-Wire, 4-Pole/5-Wire.
See Technical Section at the end of the Wiring Device Section for further IEC 309 information.
www.molex.com/woodhead
D-61
D
Wiring Devices
Watertite®
Pin and Sleeve Devices
Industrial Duty
HEAVY-DUTY
INDUSTRIAL
WOODHEAD® TOUGH NYLON SAFEWAY® AND SUPER-SAFEWAY™ RUBBERIZED
WIRING DEVICES ARE DESIGNED FOR USE IN RUGGED INDUSTRIAL
ENVIRONMENTS
Woodhead Super-Safeway products are heavy-duty industrial-wiring devices designed for
abusive conditions and dependable performance for applications that demand the unmatched
durability that rubber exclusively delivers. These rubberized industrial devices are the only
wiring devices made of NEo
¯TEX® Paracril OZO rubber, a rubber construction that yields
ultimate performance within a wide temperature range, around many oils and chemicals and
abrasive conditions.
FEATURES AND
BENEFITS
APPLICATIONS
Super-Safeway
Rubber
construction
An ultimate solution for temperature,
chemical and abrasion resistance
Safeway and
Super-Safeway
Self-aligning
blades
Lower operating temperatures
yielding longer life
Wiring screw
terminals backed out
Provides easier and quicker wiring
Stainless-steel
assembly screw
Provides a stronger, more
long-lasting product
• Aircraft construction/airports
• Construction site
• Facility maintenance
• Petrochemical
• Pulp and paper manufacturing
Wiring Devices
Straight Blade
15A 125V
2-Pole/2-Wire
NEMA 1-15
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Yellow rubber, Polarized
Plug
Woodhead No.
1404
1419
Connector
Order No.
130141-0006
130141-0008
Woodhead No.
1504
Order No.
130144-0034
130144-0008
Woodhead No.
5169
Order No.
130141-0023
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Black and white, polarized
Plug
Woodhead No.
5166
5176
Connector
Order No.
130144-0035
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-63
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Straight Blade
15A 125V
2-Pole/2-Wire
NEMA 1-15
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Receptacle—E46231
Cordset—E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Safeway Inlet
Description
White, flanged
Single Male Inlet
Woodhead No.
1404MB
Order No.
130149-0005
Super-Safeway Industrial Rubber Cordset
Description
Yellow 16 gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
1404A162
Order No.
130143-0083
Find adapters and technical support at the end of this section
D-64
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance.
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
15A 125V
2-Pole/3-Wire
NEMA 5-15
1447
1547
1447EZ
1547GCM
15L47
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
15L47BLK
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Yellow rubber
Black rubber
Yellow rubber, ground continuity monitor
Woodhead No.
1447
1447BLK
Connector
Order No.
130141-0015
130141-0016
Woodhead No.
1547
1547BLK
Lighted Plug
Order No.
130141-0031
130141-0032
Lighted Connector
Woodhead No.
Order No.
1447EZ*
130141-0017
Woodhead No.
15L47†
15L47BLK†
1547GCM*
Order No.
130141-0040
130141-0041
130141-0033
Super-Safeway Industrial Rubber Plug and Connector
Description
Hospital duty, black rubber, grommet-style grip
Hospital duty, gray rubber, grommet-style grip
Plug
Woodhead No.
85000
Lighted Connector
Order No.
130141-0070
Woodhead No.
Order No.
85002*
130141-0071
* Ground Continuity Monitor lights indicating a good ground is present
†
Light indicates power is present
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-65
D
Wiring Devices
Industrial Duty
Industrial Duty
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
15A 125V
2-Pole/3-Wire
NEMA 5-15
Wiring Devices
D
5266
5269
5266YL
85447L
5269YL
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
85269
14F47
5269L
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Yellow and white
Black, hospital duty
Yellow, hospital duty
Transparent, hospital duty
Yellow, right angle
Transparent, right angle, hospital duty
Yellow, individually fused
Plug
Woodhead No.
5266
5266YL
85266
85266YL
85447
14R47
85050
14F47*
Connector
Order No.
130144-0036
130144-0043
130144-0078
130144-0079
130144-0087
130144-0016
130144-0075
130144-0014
Woodhead No.
5269
5269YL
85269
85269YL
85547
Order No.
130144-0044
130144-0050
130144-0080
130144-0081
130144-0089
Lighted Plug
Lighted Connector
Woodhead No.
Order No.
Woodhead No.
Order No.
85447L
130144-0088
5269L
130144-0048
* UL File No. 52190, not CSA
Find adapters and technical support at the end of this section
D-66
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
15A 125V
2-Pole/3-Wire
NEMA 5-15
5261DW
1547MB
5252DWBLK
5262DWCR
1447MB
Reference Information
UL File No.: E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
85447MB
Safeway Receptacle and Inlet
Description
White, flanged
White, flanged, hospital duty
Brown
Black
Brown, heavy-duty
Ivory, heavy-duty
White, heavy-duty
Yellow, heavy-duty corrosion resistant
Brown, heavy duty, hospital duty
Ivory, heavy duty, hospital duty
Red, heavy duty, hospital duty
White, heavy duty, hospital duty
Single Receptacle
Woodhead No.
1547MB
5261DW
5261DWI
Order No.
130149-0012
130149-0087
130149-0088
Duplex Receptacle
Woodhead No.
Order No.
5252DW
5252DWBLK
5262DW
5262DWI
5262DWW
5262DWCR
85262DW
85262DWI
85262DWR
85262DWW
130148-0075
130148-0076
130148-0083
130148-0086
130148-0089
130148-0084
130148-0114
130148-0115
130148-0116
130148-0117
Single Male Inlet
Woodhead No.
1447MB
85447MB
Order No.
130149-0008
130149-0094
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-67
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Straight Blade
15A 125V
2-Pole/3-Wire
NEMA 5-15
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 16 gauge SOOW cord
Yellow 14 gauge SOOW cord
Yellow 12 gauge SOOW cord
Cord Length
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
7.62m (25.0')
15.24m (50.0')
Woodhead No.
1447A163
1447B163
1447D163
1447L143
1447A143
1447B143
1447D143
1447A123
1447B123
Order No.
130143-0097
130143-0104
130143-0113
130143-0114
130143-0095
130143-0102
130143-0111
130143-0093
130143-0099
Cord Length
15.24m (50.0')
Woodhead No.
1447B143IN
Order No.
130143-0103
Super-Safeway Industrial Rubber Cordset with Inline GFCI
Description
Yellow, 14 gauge SJOW cord with inline GFCI
Find adapters and technical support at the end of this section
D-68
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
15A 125V
2-Pole/3-Wire
NEMA 5-15
Reference Information
UL File No.: E38085
Y and W Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y and W Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Molded Y and W Cordset
Description
Color
Yellow, 12 gauge SOOW cord
Black, 12 gauge SOOW cord
Yellow
Black
Y-Cordset, 3.0'
Woodhead No.
1447-Y
1447-YB
W-Cordset, 3.0'
Order No.
130154-0038
130154-0039
Woodhead No.
1447-W
Order No.
130154-0035
Super-Safeway Industrial Rubber Molded Cordset
Description
Yellow, 12 gauge SJOW cord with inline GFCI
Y-Cordset, 3.0'
Woodhead No.
1447-Y-IN
W-Cordset, 3.0'
Order No.
130154-0040
Woodhead No.
1447-W-IN
Order No.
130154-0037
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-69
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Straight Blade
15A 250V
2-Pole/3-Wire
NEMA 6-15
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
1449
Connector
Order No.
130141-0022
Woodhead No.
1549
Order No.
130144-0065
Woodhead No.
5669
Order No.
130141-0038
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
5666
Connector
Order No.
130144-0067
Safeway Receptacle and Inlet
Description
Brown, heavy-duty
Yellow, heavy-duty corrosion resistant
Duplex Receptacle
Woodhead No.
5662DW
5662DWCR
Order No.
130148-0111
130148-0112
Find adapters and technical support at the end of this sectiona
D-70
www.molex.com/woodhead
Wiring Devices
Straight Blade
15A 250V
2-Pole/3-Wire
NEMA 6-15
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
W Cordset—E38085
CSA File No.: LR6837
W Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 14 gauge SOOW cord
Cord Length
15.24m (50.0')
Woodhead No.
1449B143
Order No.
130143-0119
Super-Safeway Industrial Rubber Molded W Cordset
Description
Yellow 12 gauge SOOW cord
W-Cordset, 3.0'
Woodhead No.
1449-W
Order No.
130154-0042
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-71
D
Wiring Devices
Industrial Duty
Industrial Duty
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
15A 277V
2-Pole/3-Wire
NEMA 7-15
Wiring Devices
D
1434
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
1534
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
1434
Connector
Order No.
130141-0014
Woodhead No.
1534
Order No.
130144-0069
Woodhead No.
5769
Order No.
130141-0030
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
5766
Connector
Order No.
130144-0071
Find adapters and technical support at the end of this section
D-72
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
20A 125V
2-Pole/3-Wire
NEMA 5-20
1433
1533
1433EZ
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
1533GCM
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Black rubber
Yellow rubber, Ground Continuity Monitor
Plug
Woodhead No.
1433
1433BLK
Connector
Order No.
130141-0010
130141-0011
Woodhead No.
1533
Lighted Plug
Order No.
130141-0025
Lighted Connector
Woodhead No.*
Order No.
Woodhead No.*
Order No.
1433EZ
130141-0012
1533GCM
130141-0027
* Ground Continuity Monitor lights indicating a good ground is present
85366
85053
85369
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Orange and white
Black, hospital duty
Transparent, right angle
Plug
Woodhead No.
5366
5366ORG
85366
85053
Connector
Order No.
130144-0053
130144-0054
130144-0082
130144-0076
Woodhead No.
5369
Order No.
130144-0057
85369
130144-0084
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-73
D
Wiring Devices
Industrial Duty
Industrial Duty
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
20A 125V
2-Pole/3-Wire
NEMA 5-20
Wiring Devices
D
1533MB
5361DW
5362DW
Reference Information
UL File No.: Receptacle—E46237 (except for 5362DWR)
Cordset—E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
5362DWCR
1433MB
Safeway Receptacle and Inlet
Description
White, flanged
Brown, heavy-duty
Black, heavy-duty
Ivory, heavy-duty
Red, heavy-duty
Blue, heavy-duty
Yellow, heavy-duty corrosion resistant
Brown, heavy-duty, hospital duty
Black, heavy-duty, hospital duty
Ivory, heavy-duty, hospital duty
Red, heavy-duty, hospital duty
White, heavy-duty, hospital duty
Single Receptacle
Woodhead No.
1533MB
5361DW*
Order No.
130149-0011
130149-0089
Duplex Receptacle
Woodhead No.
Order No.
5362DW*
5362DWBLK*
5362DWI*
5362DWR*
5362DWBL*
5362DWCR*
85362DW*
85362DWBLK*
85362DWI*
85362DWR*
85362DWW*
130148-0097
130148-0099
130148-0102
130148-0104
130148-0091
130148-0100
130148-0118
130148-0119
130148-0121
130148-0122
130148-0123
Single Male Inlet
Woodhead No.
1433MB
Order No.
130149-0007
* Not CSA listed
Super-Safeway Industrial Rubber Cordset
Description
Yellow 14 gauge SOOW cord
Yellow 12 gauge SOOW cord
Cord Length
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
Woodhead No.
1433A143
1433A123
1433B123
1433D123
Order No.
130143-0086
130143-0084
130143-0088
130143-0091
Find adapters and technical support at the end of this section
D-74
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
20A 125V
2-Pole/3-Wire
NEMA 5-20
Reference Information
UL File No.: E38085
Y and W Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y and W Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Molded Y and W Cordset
Description
Cord Length
Yellow 12 gauge SOOW cord
0.91m (3.0')
Y-Cordset
Woodhead No.
1433-Y
W-Cordset
Order No.
130154-0034
Woodhead No.
1433-W
Order No.
130154-0033
Super-Safeway Industrial Rubber Molded W Cordset with Inline GFCI
Description
Cord Length
Yellow, 12 gauge SJOW cord with inline GFCI
0.91m (3.0')
W-Cordset
Woodhead No.
1433-W-IN
Order No.
130154-0105
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-75
D
Wiring Devices
Industrial Duty
Industrial Duty
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Straight Blade
20A 250V
2-Pole/3-Wire
NEMA 6-20
Wiring Devices
D
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Woodhead No.
1448
Yellow rubber
Connector
Order No.
130141-0020
Woodhead No.
1548
Order No.
130144-0061
130144-0062
Woodhead No.
5469
5469YL
Order No.
130141-0036
Safeway Industrial Nylon Plug and Connector
Plug
Description
Woodhead No.
5466
5466YL
Black and white
Yellow and white
1548MB
5462DW
Connector
Order No.
130144-0063
130144-0064
5462DWCR
Safeway Receptacle and Inlet
Description
White, flanged
Brown
Brown, heavy-duty
Yellow, heavy-duty corrosion resistant
Single Receptacle
Woodhead No.
1548MB
Duplex Receptacle
Order No.
130149-0013
Woodhead No.
Order No.
5452DW*
5462DW*
5462DWCR*
130148-0106
130148-0107
130148-0108
* Not CSA listed
Find adapters and technical support at the end of this section
D-76
www.molex.com/woodhead
Wiring Devices
Straight Blade
20A 250V
2-Pole/3-Wire
NEMA 6-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: 38085
Y Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 14 gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
1448A143
Order No.
130143-0115
Super-Safeway Industrial Rubber Molded Y Cordset
Description
Cord Length
Yellow 12 gauge SOOW cord
0.91m (3.0')
Y-Cordset
Woodhead No.
1448-Y
Order No.
130154-0041
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-77
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Straight Blade
15A 125V
10A 250V
3-Pole/3-Wire
Non-NEMA
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway™ Outer Housing: NEo-TEX Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Woodhead No.
1407
Yellow rubber
Industrial Duty
Wiring Devices
Straight Blade
50A 250V
2-Pole/3-Wire
NEMA 6-50
Connector
Order No.
130141-0007
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Woodhead No.
1507
Order No.
130141-0024
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway™ Outer Housing: NEo-TEX Paracril OZO
rubber
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
8664
Connector
Order No.
130142-0051
Woodhead No.
8665
Order No.
130142-0052
Find adapters and technical support at the end of this section
D-78
www.molex.com/woodhead
Wiring Devices
Locking Blade
15A 125V
2-Pole/2-Wire
NEMA L1-15
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2404
Connector
Order No.
130141-0043
Woodhead No.
2504
Order No.
130144-0017
Woodhead No.
25T04
Order No.
130149-0018
Woodhead No.
2404MB
Order No.
130141-0052
Safeway Industrial Nylon Plug and Connector
Description
Black and White
Plug
Woodhead No.
24T04
Connector
Order No.
130144-0019
Safeway Receptacle and Inlet
Description
White, flanged
Single Receptacle
Woodhead No.
2504MB
Single Male
Order No.
130143-0014
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-79
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 250V
2-Pole/2-Wire
NEMA L2-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2607
Connector
Order No.
130141-0061
Woodhead No.
2707
Order No.
130144-0021
Woodhead No.
27T07
Order No.
130141-0065
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
26T07
Connector
Order No.
130144-0022
Find adapters and technical support at the end of this section
D-80
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Locking Blade
15A 125V
2-Pole/3-Wire
NEMA L5-15
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Yellow rubber ground continuity monitor
Plug
Woodhead No.
2447
Connector
Order No.
130141-0047
Woodhead No.
2547
Lighted Plug
Order No.
130141-0056
Lighted Connector
Woodhead No.*
Order No.
Woodhead No.*
Order No.
2447EZ
130141-0048
2547GCM
130141-0057
* Ground continuity monitor lights indicating a good ground is present
Safeway Industrial Nylon Plug and Connector
Plug
Description
Woodhead No.
4720
4720YL
Black and white
Yellow and white
Connector
Order No.
130144-0023
130144-0024
Woodhead No.
4729
4729YL
Order No.
130144-0025
130144-0026
Safeway Receptacle and Inlet
Description
White, flanged
Brown, heavy-duty
Single Receptacle
Woodhead No.
2547MB
Order No.
130149-0021
Duplex Receptacle
Single Male Inlet
Woodhead No.
Order No.
4700DW†
130148-0074
Woodhead No.
2447MB
Order No.
130149-0016
Not UL/CSA listed
Find adapters and technical support at the end of this section
†
www.molex.com/woodhead
D-81
D
Wiring Devices
Industrial Duty
Industrial Duty
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Locking Blade
15A 125V
2-Pole/3-Wire
NEMA L5-15
Wiring Devices
D
Reference Information
UL File No.: E38085
Y and W Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y and W Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 16 gauge SOOW cord
Cord Length
7.62m (25.0')
15.2m (50.0')
30.5m (100.0')
Yellow 14 gauge SOOW Cord
Woodhead No.
2447A163
2447B143
2447D143
Order No.
130143-0174
130143-0176
130143-0178
Super-Safeway Industrial Rubber Molded Y and W Cordset
Description
Cord Length
Yellow 12 gauge SOOW cord
0.91m (3.0')
Y-Cordset
Woodhead No.
2447-Y
W-Cordset
Order No.
130154-0056
Woodhead No.
2447-W
Order No.
130154-0055
Find adapters and technical support at the end of this section
D-82
www.molex.com/woodhead
Wiring Devices
Locking Blade
15A 250V
2-Pole/3-Wire
NEMA L6-15
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2449
Connector
Order No.
130141-0051
Woodhead No.
2549
Order No.
130149-0022
Woodhead No.
2449MB
Order No.
130141-0060
Safeway Receptacle and Inlet
Description
White, flanged
Single Receptacle
Woodhead No.
2549MB
Single Male Inlet
Order No.
130149-0017
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-83
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
15A 277V
2-Pole/3-Wire
NEMA L7-15
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2434
Connector
Order No.
130141-0045
Woodhead No.
2534
Order No.
130144-0031
Woodhead No.
4779
Order No.
130141-0054
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
4770
Connector
Order No.
130144-0033
Safeway Receptacle and Inlet
Description
White, flanged
Single Receptacle
Woodhead No.
2534MB
Order No.
130149-0020
Find adapters and technical support at the end of this section
D-84
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 125V
2-Pole/3-Wire
NEMA L5-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E68122
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .335 to .640"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2647
Connector
Order No.
130141-0062
Woodhead No.
2747
Order No.
130145-0008
130145-0010
Woodhead No.
27T47
27T47YL
Order No.
130149-0039
130149-0066
130149-0067
Woodhead No.
2647MB
Order No.
130142-0021
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Yellow and white
Plug
Woodhead No.
26T47
26T47YL
Connector
Order No.
130145-0030
130145-0031
Safeway Receptacle and Inlet
Description
White, flanged
Black, heavy-duty
Yellow, heavy-duty corrosion resistant
Single Receptacle
Woodhead No.
2747MB
4747
4747CR
Single Male Inlet
Order No.
130149-0027
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-85
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 125V
2-Pole/3-Wire
NEMA L5-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 14 gauge SOOW cord
Yellow 12 gauge SOOW cord
Cord Length
7.62m (25.0')
15.2m (50.0')
7.62m (25.0')
15.2m (50.0')
30.5m (100.0')
Woodhead No.
2647A143
2647B143
2647A123
2647B123
2647D123
Order No.
130143-0204
130143-0207
130143-0203
130143-0205
130143-0209
Cord Length
.305m (1.0')
Woodhead No.
2647E123IN
Order No.
130143-0210
Super-Safeway Industrial Rubber Cordset with Inline GFCI
Description
Yellow 12 gauge SJOW cord with inline GFCI
Find adapters and technical support at the end of this section
D-86
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Locking Blade
20A 125V
2-Pole/3-Wire
NEMA L5-20
Reference Information
UL File No.: E38085
Y and W Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y and W Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Molded Y and W Cordset
Description
Cord Length
Yellow 12 gauge SOOW cord
0.91m (3.0')
Y-Cordset
Woodhead No.
2647-Y
W-Cordset
Order No.
130154-0064
Woodhead No.
2647-W
Order No.
130154-0065
Woodhead No.
2647-W-IN
Order No.
130154-0062
Super-Safeway Industrial Rubber Molded Y and W Cordset with Inline GFCI
Description
Cord Length
Yellow 12 gauge SJOW cord with inline GFCI
0.91m (3.0')
Y-Cordset
Woodhead No.
2647-Y-IN
W-Cordset
Order No.
130154-0063
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-87
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 250V
2-Pole/3-Wire
NEMA L6-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2648
Connector
Order No.
130141-0063
Woodhead No.
2748
Order No.
130145-0011
130145-0012
Woodhead No.
27T48
27T48YL
Order No.
130149-0040
130149-0068
130149-0069
Woodhead No.
2648MB
Order No.
130141-0066
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Yellow and white
Plug
Woodhead No.
26T48
26T48YL
Connector
Order No.
130145-0032
130145-0033
Safeway Receptacle and Inlet
Description
White, flanged
Black, heavy-duty
Yellow, heavy-duty corrosion resistant
Single Receptacle
Woodhead No.
2748MB
4748
4748CR
Single Male Inlet
Order No.
130149-0028
Find adapters and technical support at the end of this section
D-88
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 250V
2-Pole/3-Wire
NEMA L6-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 14 gauge SOOW cord
Yellow 12 gauge SOOW cord
Cord Length
7.62m (25.0')
7.62m (25.0')
Woodhead No.
2648A143
2648A123
Order No.
130143-0212
130143-0211
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-89
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 277V
2-Pole/3-Wire
NEMA L7-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2649
Connector
Order No.
130141-0064
Woodhead No.
2749
Order No.
130145-0013
Woodhead No.
27T49
Order No.
130142-0023
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
26T49
Connector
Order No.
130145-0034
Safeway Receptacle and Inlet
Description
Black, heavy-duty
White, flanged
Single Receptacle
Woodhead No.
4749
2749MB
Order No.
130149-0070
130149-0041
Find adapters and technical support at the end of this section
D-90
www.molex.com/woodhead
Wiring Devices
Locking Blade
30A 125V
2-Pole/3-Wire
NEMA L5-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2847
Connector
Order No.
130142-0033
Woodhead No.
2947
Order No.
130145-0048
Woodhead No.
29T47
Order No.
130141-0067
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
28T47
Connector
Order No.
130145-0071
Super-Safeway Industrial Rubber Cordset
Description
Yellow 12 gauge SOOW cord
Cord Length
7.62m (25.0')
Woodhead No.
2847A123
Order No.
130143-0252
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-91
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
30A 250V
2-Pole/3-Wire
NEMA L6-30
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2848
Connector
Order No.
130142-0034
Woodhead No.
2948
Order No.
130145-0050
Woodhead No.
29T48
Order No.
130141-0068
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
28T48
Connector
Order No.
130145-0072
Find adapters and technical support at the end of this section
D-92
www.molex.com/woodhead
Wiring Devices
Locking Blade
30A 250V
2-Pole/3-Wire
NEMA L6-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
Y Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 12 gauge SOOW cord
Yellow, 10 Gauge SOOW Cord
Cord Length
7.62m (25.0')
7.62m (25.0')
15.2m (50.0')
Woodhead No.
2848A123
2848A103
2848B103
Order No.
130143-0255
130143-0254
130143-0312
Super-Safeway Industrial Rubber Molded Y Cordset
Description
Cord Length
Yellow 12 gauge SOOW cord
0.91m (3.0')
Y-Cordset
Woodhead No.
2848-Y
Order No.
130154-0073
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-93
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
30A 277V
2-Pole/3-Wire
NEMA L7-30
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2849
Connector
Order No.
130142-0035
Woodhead No.
2949
Order No.
130141-0069
Find adapters and technical support at the end of this section
D-94
www.molex.com/woodhead
Wiring Devices
Locking Blade
15A 125V
10A 250V
3-Pole/3-Wire
Non-NEMA Locking
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2407
Connector
Order No.
130141-0044
Woodhead No.
2507
Order No.
130144-0027
Woodhead No.
4739
Order No.
130149-0019
Woodhead No.
2407MB
Order No.
130141-0053
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
4730
Connector
Order No.
130144-0029
Safeway Receptacle and Inlet
Description
White, flanged
Single Receptacle
Woodhead No.
2507MB
Single Male Inlet
Order No.
130149-0014
Super-Safeway Industrial Rubber Cordset
Description
Yellow 16 gauge SOOW cord
Yellow 14 gauge SOOW cord
Cord Length
15.24m (50.0')
7.62m (25.0')
Woodhead No.
2407B163
2407A143
Order No.
130143-0171
130143-0169
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-95
D
Wiring Devices
Industrial Duty
Industrial Duty
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Wiring Devices
Locking Blade
20A 125/250V
3-Pole/3-Wire
Non-NEMA Locking
Wiring Devices
D
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Yellow rubber with grounding tab
Plug, No Ground
Woodhead No.
2608
Connector, No Ground
Order No.
130142-0002
Woodhead No.
2708
Order No.
130142-0017
Plug with Ground
Connector, with Ground
Woodhead No.
Order No.
Woodhead No.
Order No.
2608G
130142-0004
2708G
130142-0018
Safeway Industrial Nylon Plug and Connector, No Ground
Description
Black and white
Plug
Woodhead No.
26T08
Connector
Order No.
130145-0002
Woodhead No.
27T08
Order No.
130149-0036
Woodhead No.
2608MB
Order No.
130145-0025
Safeway Receptacle and Inlet, No Ground
Description
White, flanged
Single Receptacle
Woodhead No.
2708MB
Single Male Inlet
Order No.
130149-0024
Find adapters and technical support at the end of this section
D-96
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 125/250V
3-Pole/3-Wire
Non-NEMA Locking
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
Y Non-Inline GFCI Cordset—E38085
CSA File No.: LR6837
Y Non-Inline GFCI Cordset—LL52750
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 14 gauge SOOW cord
Cord Length
15.2m (50.0')
Woodhead No.
2608B143
Order No.
130143-0201
Super-Safeway Industrial Rubber Molded Y and W Cordsets
Description
Cord Length
Yellow 12 gauge SOOW cord
0.91m (3.0')
Y-Cordset
Woodhead No.
2608-Y
Order No.
130154-0106
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-97
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
30A 250V
3-Pole/3-Wire
Non-NEMA Locking
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2808
Connector
Order No.
130142-0031
Woodhead No.
2908
Order No.
130145-0066
Find adapters and technical support at the end of this section
D-98
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 125/250V
3-Pole/4-Wire
NEMA L14-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2674
Connector
Order No.
130142-0009
Woodhead No.
2774
Order No.
130145-0015
Woodhead No.
27T74
Order No.
130149-0042
130149-0071
Woodhead No.
2674MB
Order No.
130142-0024
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
26T74
Connector
Order No.
130145-0035
Safeway Receptacle and Inlet
Description
White, flanged
Black
Single Receptacle
Woodhead No.
2774MB
4774
Single Male Inlet
Order No.
130149-0029
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-99
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 125/250V
3-Pole/4-Wire
NEMA L14-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 16 gauge SOOW cord
Cord Length
15.2m (50.0')
Woodhead No.
2674B124
Order No.
130143-0214
Find adapters and technical support at the end of this section
D-100
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 250V 3ø
3-Pole/4-Wire
NEMA L15-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2675
Connector
Order No.
130142-0010
Woodhead No.
2775
Order No.
130145-0017
Woodhead No.
27T75
Order No.
130142-0025
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
26T75
Connector
Order No.
130145-0037
Safeway Receptacle and Inlet
Description
Black
Single Receptacle
Woodhead No.
4775
Order No.
130149-0072
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-101
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 480V 3ø
3-Pole/4-Wire
NEMA L16-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2676
Connector
Order No.
130142-0012
Woodhead No.
2776
Order No.
130145-0019
Woodhead No.
27T76
Order No.
130142-0026
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
26T76
Connector
Order No.
130145-0039
Safeway Receptacle and Inlet
Description
Black
Single Receptacle
Woodhead No.
4776
Order No.
130149-0074
Find adapters and technical support at the end of this section
D-102
www.molex.com/woodhead
Wiring Devices
Locking Blade
30A 125/250V
3-Pole/4-Wire
NEMA L14-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2874
Connector
Order No.
130142-0036
Woodhead No.
2974
Order No.
130145-0052
Woodhead No.
29T74
Order No.
130149-0059
Woodhead No.
2874MB
Order No.
130142-0043
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
28T74
Connector
Order No.
130145-0076
Safeway Receptacle and Inlet
Description
White, flanged
Single Receptacle
Woodhead No.
2974MB
Single Male Inlet
Order No.
130149-0051
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-103
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
30A 250V 3ø
3-Pole/4-Wire
NEMA L15-30
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2875
Connector
Order No.
130142-0037
Woodhead No.
2975
Order No.
130145-0054
Woodhead No.
29T75
Order No.
130149-0060
Woodhead No.
2875MB
Order No.
130142-0044
Safeway Industrial Nylon Plug and Connector
DescriptionD-104
Black and white
Plug
Woodhead No.
28T75
Connector
Order No.
130145-0078
Safeway Receptacle and Inlet
Description
White, flanged
Single Receptacle
Woodhead No.
2975MB
Single Male Inlet
Order No.
130149-0052
Find adapters and technical support at the end of this section
D-104
www.molex.com/woodhead
Wiring Devices
Locking Blade
30A 480V 3ø
3-Pole/4-Wire
NEMA L16-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: Plug and Connector—E10176
Receptacle—E46237
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2876
Connector
Order No.
130142-0038
Woodhead No.
2976
Order No.
130145-0056
Woodhead No.
29T76
Order No.
130149-0061
130149-0085
130149-0086
Woodhead No.
2876MB
Order No.
130142-0045
Safeway Industrial Nylon Plug and Connector
Description
Yellow
Plug
Woodhead No.
28T76
Connector
Order No.
130145-0080
Safeway Receptacle and Inlet
Description
White, flanged
Black
Corrosion resistant
Single Receptacle
Woodhead No.
2976MB
4976
4976CR
Single Male Inlet
Order No.
130149-0053
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-105
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
30A 480V 3ø
3-Pole/4-Wire
NEMA L16-30
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E38085
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Cordset
Description
Yellow 10 gauge SOOW cord
Cord Length
15.2m (50.0')
Woodhead No.
2876B104
Order No.
130143-0257
Find adapters and technical support at the end of this section
D-106
www.molex.com/woodhead
Wiring Devices
Locking Blade
30A 600V 3ø
3-Pole/4-Wire
NEMA L17-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2877
Connector
Order No.
130142-0039
Woodhead No.
2977
Order No.
130145-0058
Woodhead No.
29T77
Order No.
130142-0046
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
28T77
Connector
Order No.
130145-0082
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-107
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
50A 125/250V
3-Pole/4-Wire
Non-NEMA Locking CA
Wiring Devices
D
Features and Benefits
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Safeway Industrial Nylon Plug and Connector
Description
Yellow
Plug
Woodhead No.
CS6365N
Connector
Order No.
130155-0134
Woodhead No.
CS6364N
Woodhead No.
Order No.
Woodhead No.
CS6375
CS6369
130155-0135
Order No.
130155-0133
Safeway Receptacle and Inlet
Description
White, flanged
Black
Single Receptacle
Single Male Inlet
Order No.
130155-0137
Find adapters and technical support at the end of this section
D-108
www.molex.com/woodhead
Wiring Devices
Locking Blade
50A 250V 3ø
3-Pole/4-Wire
Non-NEMA Locking CA
Features and Benefits
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX® Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Safeway Industrial Nylon Plug and Connector
Description
Yellow
Plug
Woodhead No.
CS8365N
Connector
Order No.
130155-0157
Woodhead No.
CS8364N
Woodhead No.
Order No.
Woodhead No.
CS8375
CS8369
130155-0158
Order No.
130155-0156
Safeway Receptacle and Inlet
Description
White, flanged
Black
Single Receptacle
Single Male Inlet
Order No.
130155-0159
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-109
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
50A 480V 3ø
3-Pole/4-Wire
Non-NEMA Locking CA
Wiring Devices
D
Features and Benefits
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Safeway Industrial Nylon Plug and Connector
Description
Black and white
Plug
Woodhead No.
CS8165N
Connector
Order No.
130155-0145
Woodhead No.
CS8164N
Woodhead No.
Order No.
Woodhead No.
CS8175
CS8169
130155-0146
Order No.
130155-0144
Safeway Receptacle and Inlet
Description
White, flanged
Black
Single Receptacle
Single Male Inlet
Order No.
130155-0147
Find adapters and technical support at the end of this section
D-110
www.molex.com/woodhead
Wiring Devices
Locking Blade
50A 600V AC/250V DC
Grounding
3-Pole/4-Wire
Non-NEMA
Features and Benefits
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX® Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Safeway Industrial Nylon Plug and Connector
Description
Yellow
Plug
Woodhead No.
7765N
Connector
Order No.
130155-0123
Woodhead No.
7764N
Order No.
130155-0122
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-111
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
50A 600V AC/250V DC
3-Pole/4-Wire
Non-NEMA Locking
Wiring Devices
D
Features and Benefits
• Rugged nylon bodies within the Safeway® offering
provide exceptional durability and performance
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX® Paracril OZO
rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Safeway Industrial Nylon Plug and Connector
Description
Yellow
Plug
Woodhead No.
3765N
Connector
Order No.
130155-0042
Woodhead No.
3764N
Woodhead No.
Order No.
Woodhead No.
3775
3769
130155-0043
Order No.
130155-0041
Safeway Receptacle and Inlet
Description
White, Flanged
Black
Single Receptacle
Single Male Inlet
Order No.
130155-0044
Find adapters and technical support at the end of this section
D-112
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 208V
4-Pole/4-Wire
Non-NEMA
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Woodhead No.
2609
Yellow rubber
Connector
Order No.
130142-0006
Woodhead No.
2709
Order No.
130142-0019
Find adapters and technical support at the end of this section
Industrial Duty
Wiring Devices
Locking Blade
30A 208V
4-Pole/4-Wire
Non-NEMA Locking
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2809
Connector
Order No.
130142-0032
Woodhead No.
2909
Order No.
130145-0067
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-113
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
20A 208V 3ø
4-Pole/5-Wire
NEMA L21-20
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Woodhead No.
2681
Yellow rubber
Connector
Order No.
130142-0014
Woodhead No.
2781
Order No.
130142-0028
Find adapters and technical support at the end of this section
Industrial Duty
Wiring Devices
Locking Blade
20A 480V 3ø
4-Pole/5-Wire
NEMA L22-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2682
Connector
Order No.
130142-0015
Woodhead No.
2782
Order No.
130142-0029
Find adapters and technical support at the end of this section
D-114
www.molex.com/woodhead
Wiring Devices
Locking Blade
20A 600V 3ø
4-Pole/5-Wire
NEMA L23-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .325 to .840"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Woodhead No.
2683
Yellow rubber
Connector
Order No.
130142-0016
Woodhead No.
2783
Order No.
130142-0030
Find adapters and technical support at the end of this section
Industrial Duty
Wiring Devices
Locking Blade
30A 208V 3ø
4-Pole/5-Wire
NEMA L21-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" screws pre-set in open position, ready
to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2881
Connector
Order No.
130142-0040
Woodhead No.
2981
Order No.
130142-0047
Find adapters and technical support at the end of this section
www.molex.com/woodhead
D-115
D
Wiring Devices
Industrial Duty
Industrial Duty
Wiring Devices
Locking Blade
30A 480V 3ø
4-Pole/5-Wire
NEMA L22-30
Wiring Devices
D
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Plug
Description
Woodhead No.
2882
Yellow rubber
Connector
Order No.
130142-0041
Woodhead No.
2982
Order No.
130142-0048
Find adapters and technical support at the end of this section
Industrial Duty
Wiring Devices
Locking Blade
30A 600V 3ø
4-Pole/5-Wire
NEMA L23-30
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Color-coded ¼" terminal screws pre-set in open position,
ready to wire
• Wire screw terminals are tri-drive to be used with
straight blade, Phillips and square-drive screw drivers
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
• Transparent wiring guide to verify all wire strands are in
place before securing wire
• Captive, tri-drive head, Stainless Steel, speed screw
provides easy assembly and long life
• Two-piece cord-clamp strain relief includes tri-drive
screws to firmly secure the cord
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO rubber
Safeway Outer Housing: Nylon
Face Screws: Stainless Steel
Face Insert: Nylon
Wire Saddle Clamp: Brass
Cord Clamp Screws: Steel, Zinc-plated
Plug/Connector Range: .425 to 1.150"
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Super-Safeway Industrial Rubber Plug and Connector
Description
Yellow rubber
Plug
Woodhead No.
2883
Connector
Order No.
130142-0042
Woodhead No.
2983
Order No.
130142-0049
Find adapters and technical support at the end of this section
D-116
www.molex.com/woodhead
Read across for plug (blade) configuration, then read down
for receptacle (slot) configuration. Order the Woodhead
number in intersecting box.
The following letter codes indicate limited use adapters:
A For use only with receptacles wired for 125V singlephase grounding service.
B For use only up to a maximum of 15A.
C For use only with receptacles wires for 15A/125V
single-phase grounding service
Super-Safeway™ Adapters
Features and Benefits
• NEo-TEX® Paracril OZO rubber body yields the best
performance for abrasion, chemical exposure and
temperature extremes within the Super-Safeway™
offering
• Floating blade construction provides self-alignment,
and a better mechanical and electrical connection
minimizing wear and heat generation
Reference Information
UL File No.: E10176
CSA File No.: LR6837
Physical
Plug blades and connector contacts: Nickel-plated Brass
Super-Safeway Outer Housing: NEo-TEX Paracril OZO
rubber
Environmental
Operating Temperature: Maximum continuous 75° C,
minimum −40° C (no impact)
Temperature Rise: Maximum 30° C temperature rise at full
rated current after 50 cycles of overload at 150% of
rated current at a power factor of 75%.
Plug (Male End)
Receptable
(female end)
15A/125V
5-15
15A/125V*
Non-NEMA
15A/125V
5-15
15A/125V*
Non-NEMA
1702 †
20A/125V
5-20
C
15A/125V
L5-15
15A/125V*
Non-NEMA
1705
1704†
00136†
20A/125V
L5-20
C
20A/125V
P and S Pins
20A/250V
Non-NEMA
1740
1730
1706
20A/125V
5-20
1740
15A/125V
L5-15
1712
15A/125V*
Non-NEMA
1708
00137
20A/125V
L5-20
1744
B
20A/250V
Non-NEMA
1732
C
1725
C
1733
1730
A
1783
1719
1741
* Also rated 10A/250V
†
For adapter wiring, refer to wiring schematics below, not UL or CSA
Woodhead No. 1706
Woodhead No. 1702
B
2
V
25
A1
15
A
15A 125V
Woodhead No. 00136
1
10
A2
50
V
3
C
15A 125V 10A 250V NEMA 5-15P CONNECTOR
15 125V 10A 250V PLUG
Woodhead No. 00137
15A 125V NEMA 5-15R CONNECTOR
15A 125V PLUG
15A 125V 10A 250V PLUG
Woodhead No. 1704
Woodhead No. 1708
B
25
10A 0V
A
15
12
5V
2
A
C
15A 125V 10A 250V CONNECTOR
15A 125V NEMA 5-15P PLUG
www.molex.com/woodhead
15A 125V NEMA 5-15R CONNECTOR
15A 125V 10A 250V PLUG
15A 125V 10A 250V NEMA 5-15P CONNECTOR
15A 125V
15A 125V NEMA 5-15R CONNECTOR
1
3
15A 125V PLUG
D-117
D
Wiring Devices
Industrial Duty
Wiring Devices
Adapter
Wiring Devices
D
Woodhead No.
Order No.
1706* †
Adapter
Woodhead No.
Order No.
130151-0015
1719*
130151-0018
1712
130151-0017
1704*
130151-0013
1708*
130151-0016
00136* †
130151-0001
00137* †
130151-0002
1725*
130151-0019
1744*
130151-0025
1740
130151-0023
1732*
130151-0021
1783*
130151-0026
1702* †
130151-0012
1733*
130151-0022
1741
130151-0024
1730* †
130151-0020
1705
130151-0014
* Not UL listed
†
Not CSA listed
D-118
www.molex.com/woodhead
Features and Benefits
• Designed specifically for the Expo Center environment
• Woodhead Expo Connectors provide a single device
that accepts both flat and round cable, a durable
light-weight construction and a non-conductive exterior.
This new design provides compact versatility in 60A
configurations.
• Woodhead Expo Connectors are specifically designed for
power distribution from ceiling drops, wall mounts and
floor boxes to portable panel-boards.
60.0A
277V/480V
4-Pole/5-Wire
Expo Connector
Face View
Reference Information
UL File No.: E145923
CSA File No.: LR6837
Physical
Pins: Brass
Housing, Insert, Clamp: Polycarbonate
Environmental
General purpose
D
Type
Description
Woodhead No.
Order No.
Plug
60A Safeway Pin and Sleeve Device,
Exposition Plug, 4-Pole/5-Wire Grounding with Flat Cable
Y560PF
130150-0284
Inlet
60A Safeway Pin and Sleeve Device,
Exposition Inlet, 4-Pole/5-Wire Grounding
Y560B
130150-0280
Connector
60A Safeway Pin and Sleeve Device,
Exposition Connector, 4-Pole/5-Wire Grounding with Flat Cable
Y560CF
130150-0282
60A Safeway Pin and Sleeve Device,
Exposition Receptacle, 4-Pole/5-Wire Grounding
Y560R
130150-0285
60A Safeway Pin and Sleeve Device,
Exposition Receptacle with Flip Lid, 4-Pole/5-Wire Grounding
Y561R
130150-0287
Receptacle
www.molex.com/woodhead
D-119
Wiring Devices
Wiring Devices
Industrial Duty
Safeway®
Pin and Sleeve Devices
Nylon
Features and Benefits
• IP44 rated
• Deadfront construction
• Self-adjusting split contact sleeves. Nickel-plated Steel
spring compensates for wear, maintains constant
pressure along contact surface to ensure electrical
continuity and grounding
• Latching mechanism prevents accidental disengagement
• Keyway for fast, accurate alignment
• Internal strain relief with “swing away” feature
• External strain relief reduces bending arc of cable
• Large, identified terminals accept conductors one or two
sizes larger or smaller than normal
• “Onion ring” neoprene bushing in cable grip
accommodates wide range of cable sizes
Wiring Devices
D
Physical
Pins: Brass
Housing: Type G nylon
Contact Carrier: Type G nylon
Environmental
IEC Rating: IP44
IEC Standards*: 309-1 and 309-2
Applications
• Temporary power systems
• Power disconnect for portable processing equipment
• Machinery intended for export and users of foreignbuilt equipment
* IEC 309-1 and 309-2 are a worldwide pin and sleeve standard established
by the International Electrotechnical Commission. It meets requirements of Section 410-56(g) of the National Electrical Code
20A Safeway Devices
Pole/Wire
Color
Voltage
2-Pole/3-Wire
2-Pole/3-Wire
2-Pole/3-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
4-Pole/5-Wire
5-Pole/5-Wire
Yellow
Blue
Gray
Orange
Blue
Red
Black
Blue
Red
125
250
277
125/250
3ø250
3ø480
3ø600
3øY 120/208
3øY 277/480
Pole/Wire
Color
Voltage
3-Pole/4-Wire
Red
3ø480
Pole/Wire
Color
Voltage
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
3-Pole/4-Wire
Orange
Blue
Red
Black
125/250
3ø250
3ø480
3ø600
Receptacle
Woodhead No.
320R4
320R6
320R5
420R12
420R9
420R7
420R5
520R9
520R7
Plug
Order No.
130150-0056
130150-0058
130150-0289
130150-0143
130150-0149
130150-0147
130150-0145
130150-0244
130150-0242
Woodhead No.
320P4
320P6
320P5
420P12
420P9
420P7
420P5
520P9
520P7
Order No.
130150-0147
Woodhead No.
430P7
Order No.
130150-0206
130150-0212
130150-0210
130150-0208
Woodhead No.
460P12
460P9
460P7
460P5
Connector
Order No.
130150-0049
130150-0052
130150-0051
130150-0135
130150-0141
130150-0139
130150-0137
130150-0240
130150-0238
Woodhead No.
320C4
320C6
320C5
420C12
420C9
420C7
420C5
520C9
520C7
Order No.
130150-0170
Woodhead No.
430C7
Order No.
130150-0198
130150-0204
130150-0202
130150-0200
Woodhead No.
460C12
460C9
460C7
460C5
Order No.
130150-0036
130150-0039
130150-0038
130198-0124
130150-0288
130150-0127
130150-0125
130150-0229
130150-0227
30A Safeway Devices
Receptacle
Woodhead No.
420R7
Plug
Connector
Order No.
130150-0157
60A Safeway Devices
Receptacle
Woodhead No.
460R12
460R9
460R7
460R5
Plug
Connector
Order No.
130150-0185
130150-0191
130150-0189
130150-0187
Note: Angled inlet and mechanical interlock also available for 2-Pole/3-Wire, 4-Pole/5-Wire
D-120
www.molex.com/woodhead
Technical Information
Safeway®
Pin and Sleeve Devices
Industrial Duty
IEC 309 PIN AND SLEEVE CONFIGURATION AND COLOR-CODING STANDARD
Voltage Rating Color-Code
The housings of every device in a particular voltage group are identical in color for instant identification. Example: All 480V AC devices are red, all 250V AC devices are blue.
Amperage Rating Identification
Amperage differences can be identified by the relative sizes of the devices. Smallest is 20A, largest is 60A.
Woodhead Catalog Numbering System
First Digit of Woodhead Number
3 = 3-Wire
4 = 4-Wire
5 = 5-Wire
Second Series of Digits
20 = 20A
30 = 30A
60 = 60A
100 = 100A
Letter
P = Plug
R = Receptacle
C = Connector
B = Inlet
BA = Angled Inlet
Third Digit
Clock position of female grounding contact
Examples: 430R7 = Woodhead 4-Wire, 30A receptacle with a grounding sleeve at seven o’clock.
430P7 = Woodhead 4-Wire, 30A plug which mates with a grounding sleeve at seven o’clock.
Cord Grip Ranges
Plug and Connector Type
Cable Diameter
Min. (in.)
Cable Diameter
Max. (in.)
320
420
520
330
430
530
60A
.395
.395
.395
.395
.710
.710
.710
.825
.825
.825
.825
1.20
1.20
1.20
Note: For Watertite® products, see page D-61
www.molex.com/woodhead
D
Wiring Devices
Contact Positions
The grounding contact position is based on a clock face. With the keyway at bottom, the female grounding contact will appear at one of the 12 clock positions. Example: all 480V AC
receptacles and connectors, regardless of amperage, have their grounding sleeve at 7 o’clock (which puts the grounding pin on all mating plugs and inlets at 5 o’clock).
D-121
Technical Information
Woodhead® Wiring Devices
Technical Reference
Super-Safeway™ Adapters
Wiring Diagrams for NEMA Configurations
Configurations shown are for female devices.
Wiring Devices
D
125V
2P, 2W
250V
2P, 2W
125V
W
250V
SYS.
GR.
NEMA
ANSI
125
2P, 3W
GROUNDING
1-15R
———
C73.10
NEMA
ANSI
L1-15R
———
C73.31
L2-20R
———
C73.32
125V
W
G
SYS.
GR.
EQUIP.
GR.
NEMA
ANSI
5-15R
———
C73.11
250V
2P, 3W
GROUNDING
5-20R
———
C73.12
L5-15R
———
C73.42
L5-20R
———
C73.72
L5-30R
———
C73.33
250V
G
NEMA
ANSI
277VAC
2P, 3W
GROUNDING
EQUIP.
GR.
6-15R
———
C73.20
6-20R
———
C73.51
L6-20R
———
C73.75
L6-30R
———
C73.76
Non-NEMA 1
—————
20A
277V
W
G
SYS.
GR.
EQUIP.
GR.
NEMA
ANSI
7-15R
———
C73.28
L7-15R
———
C73.43
L7-20R
———
C73.77
L7-30R
———
C73.78
Previously rated 20A/250V or 10A/600V.
Previously rated 30A/250V.
Note: The above diagrams are intended to show wiring device terminal identification only.
1
2
D-122
www.molex.com/woodhead
Technical Information
Woodhead® Wiring Devices
Technical Reference
Wiring Diagrams for NEMA Configurations
Configurations shown are for female devices.
15A 125V/10A 250V
2P, 3W
GROUNDING
125V or 250V
Wiring Devices
D
SYS.
GR.
EQUIP.
GR.
NEMA
ANSI
125/250V
3P, 3W
Non-NEMA
250V
Non-NEMA
125V
W
125V
SYS.
GR.
NEMA
ANSI
125/250V
3P, 4W
GROUNDING
Non-NEMA 1
—————
20A
250V
Non-NEMA 2
—————
30A
125V
W
125V
SYS.
GR.
G
EQUIP.
GR.
NEMA
ANSI
L14-20R
———–
C73.83
L14-30R
———–
C73.84
Previously rated 20A/250V or 10A/600V.
Previously rated 30A/250V.
Note: The above diagrams are intended to show wiring device terminal identification only.
1
2
www.molex.com/woodhead
D-123
Technical Information
Woodhead® Wiring Devices
Technical Reference
Wiring Diagrams for NEMA Configurations
Configurations shown are for female devices.
Wiring Devices
D
3ø
250V
3P, 4W
GROUNDING
250V
250V
250V
G
EQUIP.
GR.
NEMA
ANSI
L15-20R
———–
C73.85
3ø
480V
3P, 4W
GROUNDING
480V
L15-30R
———–
C73.86
480V
480V
G
EQUIP.
GR.
NEMA
ANSI
L16-20R
———–
C73.87
L16-30R
———–
C73.88
Note: The above diagrams are intended to show wiring device terminal identification only.
D-124
www.molex.com/woodhead
Technical Information
Woodhead® Wiring Devices
Technical Reference
Wiring Diagrams for NEMA Configurations
Configurations shown are for female devices.
3ø
600V
3P, 4W
GROUNDING
600V
600V
D
Wiring Devices
600V
G
EQUIP.
GR.
NEMA
ANSI
L17-30R
–———
C73.89
3ø
120/208V
4P, 4W
SYS.
GR.
Non-NEMA 1
—————
20A
NEMA
ANSI
3 øY
120/208V
4P, 5W
GROUNDING
208V
W
208V
120V
SYS.
GR.
Non-NEMA 2
—————
30A
120V
120V
208V
G
EQUIP.
GR.
NEMA
ANSI
L21-20R
–———
C73.90
L21-30R
–———
C73.91
Previously rated 20A/250V or 10A/600V.
Previously rated 30A/250V.
Note: The above diagrams are intended to show wiring device terminal identification only.
1
2
www.molex.com/woodhead
D-125
Technical Information
Woodhead® Wiring Devices
Technical Reference
Wiring Diagrams for NEMA Configurations
Configurations shown are for female devices.
Wiring Devices
D
3øY
277/480V
4P, 5W
GROUNDING
480V
277V
W
480V
277V
277V
SYS.
GR.
480V
G
EQUIP.
GR.
NEMA
ANSI
3øY
347/600V
4P, 5W
GROUNDING
600V
L22-20R
———–
C73.92
L22-30R
———–
C73.93
L23-20R
———–
C73.94
L23-30R
———–
C73.95
347V
W
600V
347V
SYS.
GR.
347V
600V
G
EQUIP.
GR.
Note: The above diagrams are intended to show wiring device terminal identification only.
D-126
www.molex.com/woodhead
Technical Information
Woodhead® Wiring Devices
Technical Reference
Terminal Identification
Most Woodhead plugs, connectors, and receptacles are standard NEMA configurations. As such, standard terminal
identification is used to incorporate these devices in the wiring system.
1
Letter Designation
G
W
X, Y, Z
Description
Grounding terminal
Grounded terminal
Hot terminals
Conductor
Green, Green w/Yellow Stripe
White or Gray
Black, Red, Blue, Etc.1
D
Wiring Devices
Terminal
Green
White
X, Y, Z
There is no standard that matches color to letters. Once a correlation is chosen, it should be used consistently.
Watertite® Devices Cord Range
Dimensional Reference Information
F2
F3
F4
F5
Cord Range
0.2–1.6cm (.062–.625")
0.5–2.1cm (.187–.812")
1.1–2.8cm (.437–1.10")
2.2–3.5cm (.875–1.375")
Super-Safeway™, Safeway® Devices Cord Range
Dimensional Reference Information
2
3
4
www.molex.com/woodhead
Cord Range
0.8–1.7cm (.300–.675")
0.8–2.1cm (.325–.840")
1.1–2.9cm (.425–1.150")
D-127
Technical Information
Woodhead® Wiring Devices
Technical Reference
Horsepower Ratings for NEMA Configuration Attachment Plugs and Receptacles
15A
Phases
1
1
Poles
2
2
Horsepower Rating
½
2
NEMA Designation
1-15, L1-15, 5-15, L5-15
6-15, L6-15, 7-15, L7-15
AC Voltage Rating
125
250
277
125/250
250
480
120/208
277/480
Phases
1
1
1
1
3
3
3
3
Poles
2
2
2
3
3
3
4
4
Horsepower Rating
1
2
2
2 L-L, 1 L-N
5
10
3
10
NEMA Designation
5-20, L5-20
L2-20, 6-20, L6-20
L7-20
10-20, L10-20, L14-20
L11-20, L15-20
L16-20
L21-20
L22-20
AC Voltage Rating
125
250
277
125/250
250
480
120/208
277/480
Phases
1
1
1
1
3
3
3
3
Poles
2
2
2
3
3
3
4
4
Horsepower Rating
2
3
3
2 L-N
7½
15
5
15
NEMA Designation
L5-30
L6-30
L7-30
L14-30
L15-30
L16-30
L21-30
L22-30
20A
Wiring Devices
DD
AC Voltage Rating
125
250
30A
L-L: Motor connected line-to-line
L-N: Motor connected line-to-neutral
Note: Horsepower ratings are not applicable to devices incorporating overcurrent protection or a switch.
Refer to ANSI/NEMA WD6-1988 for configurations of the NEMA designations.
D-128
www.molex.com/woodhead
Technical Information
Woodhead® Wiring Devices
Technical Reference
Selecting the Proper Cable Size
1. Determine the load ampacity requirements.
2. Read across for the number of current-carrying conductors.
3. Read down until the value meets or exceeds the requirements established in Step 1.
4. Read back across to left to determine the appropriate size cord.
2 Current-Carrying Conductors*
3A
10A
13A
18A
25A
30A
40A
55A
70A
95A
3 Current-Carrying Conductors*
3A
7A
10A
15A
20A
25A
35A
45A
60A
80A
D
4-6 Current-Carrying Conductors*
3A
5A
8A
12A
16A
20A
28A
36A
48A
64A
Wiring Devices
AWG
22
18
16
14
12
10
8
6
4
2
* In determining cord capacity, count only those conductors that are current-carrying. The grounding conductor is not counted.
Note: For further information consult Table 400-5 of the National Electrical Code.
Nominal Cord Diameter*
AWG
22
18
16
14
12
10
8
6
4
2
2 Conductors
0.215–0.235
0.340–0.385
0.365–0.410
0.495–0.550
0.565–0.625
0.615–0.685
0.780–0.880
0.920–1.050
1.060–1.210
1.210–1.400
3 Conductors
0.215–0.235
0.360–0.400
0.385–0.430
0.520–0.575
0.590–0.655
0.650–0.720
0.830–0.930
0.970–1.100
1.130–1.280
1.300–1.500
4 Conductors
0.240–0.260
0.385–0.430
0.410–0.460
0.560–0.620
0.640–0.710
0.700–0.775
0.925–1.050
1.050–1.200
1.250–1.450
1.450–1.650
5 Conductors
0.250–0.270
0.460–0.510
0.490–0.550
0.630–0.705
0.700–0.770
0.760–0.840
1.000–1.150
1.180–1.330
* Cord types S, SE, SOO, SO, SEO, ST, STOO, and STO. Information for 2- through 18-AWG cable taken from U.L. Standard 62 “Flexible Cord and Fixture Wire.”
Information for 22 AWG cable based on Woodhead cord.
www.molex.com/woodhead
D-129
Technical Information
Watertite® Rubber Devices
Dimensions
A
PATENT NO. 5,098,310
B
F5
Male Plug
Cord Grip/Body Size
F2
F3
F4
F5
A Diameter
4.7cm (1.85")
6.4cm (2.50")
6.9cm (2.75")
10.8cm (4.25")
B Length
6.7cm (2.62")
7.6cm (3.00")
7.6cm (3.00")
8.3cm (3.25")
A
F2, F3, F4
PATENT NO. 5,098,310
B
Daniel Woodhead
Wiring Devices
F2, F3, F4
Daniel Woodhead
DD
F5
Female Connectors
Cord Grip/Body Size
F2
F3
F4
F5
A Diameter
4.7cm (1.85")
6.4cm (2.50")
6.9cm (2.75")
8.3cm (3.25")
B Length
10.2cm (4.03")
12.0cm (4.75")
12.0cm (4.75")
16.2cm (6.38")
F2, F3, F4
Female Connector for Flip Lid with Male Receptacle
Cord Grip/Body Size
F2
F3
F4
D-130
A Length
4.1cm (1.63")
5.0cm (1.95")
5.1cm (2.00")
B Length
2.8cm (1.09")
3.6cm (1.43")
3.8cm (1.49")
C Length
1.8cm (.72")
2.9cm (1.13")
2.9cm (1.13")
D Diameter
3.3cm (1.30")
4.2cm (1.66")
4.7cm (1.86")
E Diameter
4.7cm (1.85")
6.4cm (2.50")
7.0cm (2.75")
www.molex.com/woodhead
Technical Information
Watertite® Rubber Devices
Dimensions
Wiring Devices
D
With Receptacle
Without Receptacle
Flip Lid (Front View)
Flip Lid
Description
Female locking 15A receptacles
Female locking straight-blade 15A and 20A receptacles
Female locking 20A and 30A receptacles
X Depth with Female Receptacle
2.3cm (0.91")
2.3cm (0.91")
3.8cm (1.50")
Description
Male locking 15A receptacles
Male locking straight-blade 15A and 20A receptacles
Male locking 20A and 30A receptacles
X Depth with Male Receptacle
4.8cm (1.88")
4.8cm (1.88")
4.8cm (1.88")
GFCI Receptacle
9.1
(3.58”)
Front
View
24.7
(9.75”)
26.4
(10.41”)
7.9
(3.10”)
www.molex.com/woodhead
Side
View
13.9
(5.50”)
D-131
Technical Information
Watertite® Rubber Devices
Dimensions
F.S. Box
11.3 (4.44)
8.2 (3.25)
cm
(inch)
Wiring Devices
DD
8.3 (3.28)
4.8
7.0
(1.88) (2.75)
6.5
(2.55)
F.D. Box
11.6 (4.59)
cm
(inch)
8.2 (3.25)
8.3 (3.28)
4.8 8.0
(1.88) (3.13)
#6-32 threads (6)
8.0
(3.13)
D-132
www.molex.com/woodhead
Technical Information
Super-Safeway™
Rubber Devices
Dimensions
Wiring Devices
D
Male Plug
Current
All 15A devices and 20A straight-blade devices
20A locking
30A locking
A Length
5.8cm (2.27")
6.6cm (2.59")
6.7cm (2.64")
B Length
3.7cm (1.44")
4.5cm (1.76")
4.6cm (1.81")
C Diameter
3.9cm (1.53")
4.9cm (1.93")
5.4cm (2.11")
D Diameter
3.9cm (1.53")
4.2cm (1.60")
4.4cm (1.72")
Female Connector
Current
All 15A devices and 20A straight-blade devices
20A Locking
30A Locking
A Length
7.6cm (2.99")
9.5cm (3.74")
9.6cm (3.77")
B Length
5.5cm (2.16")
5.6cm (2.19")
7.5cm (2.94")
C Diameter
3.9cm (1.53")
4.9cm (1.93")
5.4cm (2.13")
D Diameter
4.2cm (1.66")
5.3cm (2.07")
5.9cm (2.31")
E Diameter
3.9cm (1.53")
4.1cm (1.60")
4.4cm (1.72")
10.2 (4.0) REF
14.6 (5.75) REF
9.55 (3.76) REF
Woodhead No.
8664
8665
www.molex.com/woodhead
10.2 (4.0) REF
Order No.
130142-0051
130142-0052
D-133
Technical Information
Safeway® Nylon Devices
Dimensions
Wiring Devices
DD
Safeway Plug
Dimensional Reference Information
All 15A devices and 20A straight-blade
20A Locking
30A Locking
A Diameter
3.9cm (1.53")
4.9cm (1.94")
5.4cm (2.14")
B Length
5.5cm (2.17")
6.6cm (2.58")
6.7cm (2.64")
C Length
3.4cm (1.34")
4.5cm (1.75")
4.6cm (1.81")
D Diameter
3.9cm (1.53")
4.1cm (1.60")
4.4cm (1.72")
Safeway Connector
Dimensional Reference Information
All 15A devices and 20A straight-blade
20A Locking
30A Locking
A Diameter
3.9cm (1.53")
4.9cm (1.94")
5.4cm (2.14")
B Length
7.3cm (2.88")
9.5cm (3.75")
9.7cm (3.80")
C Length
3.4cm (1.34")
4.5cm (1.75")
4.6cm (1.81")
D Diameter
3.9cm (1.53")
4.1cm (1.60")
4.4cm (1.72")
E Diameter
3.3cm (1.30")
4.2cm (1.67")
4.8cm (1.87")
F Length
1.8cm (71")
3.0cm (1.17")
2.9cm (1.16")
A Diameter
5.8cm (2.25")
4.7cm (1.84")
5.2cm (2.04")
B Length
6.7cm (2.62")
5.0cm (1.95")
5.1cm (2.0")
C Length
.5cm (0.19")
.5cm (0.19")
.5cm (0.19")
D Diameter
3.8cm (1.5")
6.4cm (2.5")
6.9cm (2.7")
E Diameter
5.1cm (2.02")
4.8cm (1.88")
5.2cm (2.03")
F Length
8.9cm (3.5")
7.3cm (2.88")
7.7cm (3.03")
C
D
A
B
E
F
Flanged Inlet Receptacle
Dimensional Reference Information
All 15A devices and 20A straight-blade
20A Locking
30A Locking
D-134
www.molex.com/woodhead
Technical Information
Safeway® Nylon Devices
Dimensions
50A Plug
Wiring Devices
D
50A Connector*
* Cord range: 1.7–2.9cm (.680–1.125")
50A Receptacle
50A Flanged Inlet
Dimensions for all duplex receptacles
Dimensions for all straight-blade single receptacles
Duplex Receptacles
Straight-Blade Single Receptacles
www.molex.com/woodhead
D-135
Technical Information
Safeway® Nylon Devices
Dimensions
Wiring Devices
D
Hospital-Grade Devices
Description
Right Angle Plug
Woodhead No.
85447
85447L
14R47
85050
Hospital-Grade Devices
Right Angle Plug
Order No.
130144-0087
130144-0088
130144-0016
130144-0075
3.8
(1.48)
6.6
(2.58)
Individually Fused Grounding Plug
Description
Woodhead No.
14F47
85125
5269L
Individually Fused Grounding Plug
Lighted Connector
Lighted Connector
Order No.
130144-0014
130144-0077
130144-0048
Flip Lid Cover
20A/30A Locking Single Receptacle
Current
20A
30A
D-136
Face Diameter
4.0cm (1.56")
4.1cm (1.63")
www.molex.com/woodhead
POWER
DISTRIBUTION
GFCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . .
GFCI Super-Safeway™ Technical Information
Commercial . . . . . . . . . . . . . . . . . . . . . . . . .
GFCI Safeway® Technical Information . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Power Distribution
E
.
.
.
.
.
.
.
.
.
.
Outlet Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watertite®
Dual-Sided GFCI Duplex FD Outlet Box . . . . . . . . . . .
Quad Outlet Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated Quad Outlet Box . . . . . . . . . . . . . . . . . . .
GFCI Four-sided Outlet Box. . . . . . . . . . . . . . . . . . . . .
Pendant Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FD Boxes and Cover plates. . . . . . . . . . . . . . . . . . . . .
Industrial
Dual-Sided Duplex Outlet Box, 3000 Series
With Receptacles, NEMA 5-15 . . . . . . . . . . . . . . .
With Receptacles, NEMA 5-20 . . . . . . . . . . . . . . .
Boxes and Coverplates, Yellow . . . . . . . . . . . . . . .
With Receptacles, Boxes and Coverplates, Black .
3-Phase Stringer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Angled Outlet and Angled GFCI Outlet Box . . . . . . . .
Quad GFCI Outlet Box. . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated Quad Outlet Box . . . . . . . . . . . . . . . . . . .
FS/FD Boxes and Coverplates . . . . . . . . . . . . . . . . . . .
Angled and Quad Boxes and Coverplates. . . . . . . . . .
Low Profile Outlet Box . . . . . . . . . . . . . . . . . . . . . . . .
Super-Safeway Multi-Tap Strip . . . . . . . . . . . . . . . . . .
Safeway Multi-Tap Strip . . . . . . . . . . . . . . . . . . . . . . .
3400 Boxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3100 Boxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pendant Quad-Tap . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .
www.molex.com/woodhead
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. E-4
. E-5
E-20
E-22
E-26
. . . . . . . . . . . . . E-27
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
E-28
E-29
E-29
E-30
E-31
E-32
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
E-34
E-37
E-39
E-41
E-43
E-44
E-47
E-48
E-49
E-50
E-52
E-53
E-54
E-55
E-56
E-57
E-58
E-1
POWER
DISTRIBUTION
GFCI GFCI products are required in commercial and industrial applications even
when water is not present; designed for protection, reliability and safety wherever
portable power or power cords are used.
OUTLET BOXES Made of durable NEo¯TEX® rubber to withstand harsh
industrial elements and deliver years of service anywhere portable or temporary
power is required.
GFCI
GFCI PRODUCTS ARE REQUIRED IN COMMERCIAL AND INDUSTRIAL
APPLICATIONS EVEN WHEN WATER IS NOT PRESENT; WOODHEAD® GFCI
PRODUCTS ARE DESIGNED FOR PROTECTION, RELIABILITY AND SAFETY
WHEREVER PORTABLE POWER OR POWER CORDS ARE USED
Woodhead GFCI products are designed to prevent the occurrences of serious injury or death
associated with electrical accidents in construction sites and other rugged industrial settings.
Portable GFCI products are equipped with an open-neutral relay that meets OSHA requirements,
safeguarding workers and employees against ground faults.
FEATURES AND
BENEFITS
APPLICATIONS
3OXJFRQQHFWRUW\SHÁ\LQJOHDG
box-style products available
3URYLGHVFXVWRPHUDFRVWEHQHÀW
Available in 15.0, 20.0 or
30.0A, 120 or 240V
Provides customer convenience with
several electrical options
Weatherproof, NEMA 3R, 4X
and 6P ratings available
Provides a GFCI product for
any application
• Construction site
• Electrical service companies
• Maintenance departments
• Vending machines
• Water/drinking fountains
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
15A
NEMA 5-15
Single Phase
Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJTW
Environmental
Duty Type: General industrial duty
GFCI NEMA Rating: 15A Products—NEMA enclosure
rating of 3R
E
Power Distribution
GFCI
Super-Safeway™
Flying Lead
Current/Voltage
15A 120V
Cord Length
0.61m (2.0')
Cord Type
12/3 SJTW
GFCI Reset
Manual
Receptacle
Single
Woodhead No.
15051-0M
Order No
130153-0267
GFCI Reset
Woodhead No.
15050-1M
15050-6M
15050-25M
15050-50M
15050-1A
15050-6A
15050-25A
15050-50A
Order No
130153-0021
130153-0038
130153-0024
130153-0032
130153-0020
130153-0037
130153-0023
130153-0031
Woodhead No.
15050-3TTM
15050-6TTM
15050-50TTM
15050-25TTM
15050-3TTA
15050-6TTA
15050-25TTA
15050-50TTA
Order No
130153-0030
130153-0041
130153-0035
130153-0027
130153-0029
130153-0040
130153-0026
130153-0034
Molded Plug and Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
Manual
12/3 SJTW
Automatic
Molded Plug and Tri-Tap Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
www.molex.com/woodhead
Cord Length
0.61m (2.0')
1.83m (6.0')
15.24m (50.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
GFCI Reset
Manual
12/3 SJTW
Automatic
E-5
GFCI
Super-Safeway™
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
15A
NEMA 5-15
Single Phase
Power Distribution
E
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJTW
Environmental
Duty Type: General industrial duty
GFCI NEMA Rating: NEMA enclosure rating of 3R
Reference Information
UL/cUL File No.: E66308
Super-Safeway Plug and Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
GFCI Reset
Manual
12/3 SJTW
Automatic
Woodhead No.
15051-1M
15051-6M
15051-25M
15051-50M
15051-1A
15051-6A
15051-25A
15051-50A
Order No
130153-0044
130153-0053
130153-0047
130153-0050
130153-0043
130153-0052
130153-0046
130153-0049
Woodhead No.
15052-1M
15052-6M
15052-25M
15052-50M
15052-1A
15052-6A
15052-25A
15052-50A
Order No
130153-0059
130153-0070
130153-0063
130153-0066
130153-0056
130153-0068
130153-0061
130153-0065
Woodhead No.
—
09484
Order No
130153-0227
130153-0017
Watertite® Plug and Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
GFCI Reset
Manual
12/3 SJTW
Automatic
Flying Lead Primary, NEMA 5-15 Receptacle Secondary*
Current/Voltage
Cord Length
Cord Type
GFCI Reset
15A 120V
0.61m (2.0')
12/3 SJEOOW
Manual
Receptacle
Single
Triple
* UL recognized for US and Canada (GFCI body NEMA 4X suitable)
E-6
www.molex.com/woodhead
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
15A
NEMA 5-15
Single Phase
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJTW
Environmental
Duty Type: General industrial duty
GFCI NEMA Rating: 15A Products—NEMA enclosure
rating of 3R
E
Power Distribution
GFCI
Super-Safeway™
Reference Information
UL/cUL File No.: E66308
Field Attachable*
Configuration
Current/Voltage
Cord Length
15A 120V
Field Attachable
NEMA 5-15
GFCI Reset
Woodhead No.
Order No
Manual
15054M
130153-0100
Automatic
15054A
130153-0099
* UL recognized for US and Canada
Right Angle Plug and Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
Cord Length
0.61m (2.0')
7.62m (25.0')
0.61m (2.0')
7.62m (25.0')
Cord Type
12/3 SJTW
12/3 SJTW
12/3 SJTW
12/3 SJTW
GFCI Reset
Cord Length
0.61m (2.0')
7.62m (25.0')
0.61m (2.0')
7.62m (25.0')
Cord Type
GFCI Reset
Manual
Automatic
Number of Receptacles
1
1
1
1
Woodhead No.
15054-1M
15054-25M
15054-1A
15054-25A
Order No
130153-0092
130153-0096
130153-0091
130153-0095
Number of Receptacles
3
3
3
3
Woodhead No.
15054-1TTM
15054-25TTM
15054-1TTA
15054-25TTA
Order No
130153-0094
130153-0098
130153-0093
130153-0097
Right Angle Plug and Tri-Tap Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
www.molex.com/woodhead
Manual
12/3 SJTW
Automatic
E-7
GFCI
Super-Safeway™
GFCI Industrial Duty
15A
NEMA 5-15
Single Phase
Power Distribution
E
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJTW
Environmental
Duty Type: General industrial duty
Outlet Box*
Configuration
Current/Voltage
15A 120V
NEMA 5-15
Cord Length
0.61m (2.0')
7.62m (25.0')
15.24m (50.0')
0.61m (2.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
GFCI Reset
Manual
12/3 SJTW
Automatic
Number of Receptacles
4
4
4
4
4
4
Woodhead No.
15053-2M
15053-25M
15053-50M
15053-2A
15053-25A
15053-50A
Order No
130153-0076
130153-0074
130153-0079
130153-0075
130153-0073
130153-0078
* NEMA 1 enclosure rating
Outlet Box with Flip Lids†
Configuration
Current/Voltage
15A 120V
NEMA 5-15
†
Cord Length
0.61m (2.0')
7.62m (25.0')
15.24m (50.0')
0.61m (2.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
Flip-Lid
12/3 SJTW
Yes
GFCI Reset
Manual
Automatic
Number of Receptacles
4
4
4
4
4
4
Woodhead No.
15053W-2M
15053W-25M
15053W-50M
15053W-2A
15053W-25A
15053W-50A
Order No
130153-0085
130153-0083
130153-0088
130153-0084
130153-0082
130153-0087
NEMA 3R enclosure rating
E-8
www.molex.com/woodhead
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault –
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
20A
NEMA 5-20
Single Phase
• Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
E
Power Distribution
GFCI
Super-Safeway™
Flying Leads*
Current/Voltage
20A 120V AC
20A 240V AC
20A 120V AC
20A 240V AC
Cord Length
0.61m (2.0')
0.61m (2.0')
0.61m (2.0')
0.61m (2.0')
Cord Type
GFCI Reset
Woodhead No.
20051-0M
24052-0M
20051-0A
24052-0A
Manual
12/3 SJEOOW
Automatic
Order No
130153-0110
130153-0154
130153-0109
130153-0153
* UL recognized for US and Canada (GFCI body NEMA 4X suitable)
Super-Safeway™ Plug and Connector‡
Configuration
Current/Voltage
20A 120V
NEMA 5-20
‡
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
GFCI Reset
Manual
12/3 SJEOOW
Automatic
Woodhead No.
20051-1M
20051-6M
20051-25M
20051-1A
20051-6A
20051-25A
Order No
130153-0113
130153-0121
130153-0118
130153-0112
130153-0120
130153-0117
UL and cUL listed assembly is NEMA 3R rated (GFCI body NEMA 4X suitable)
www.molex.com/woodhead
E-9
GFCI
Super-Safeway™
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault –
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
20A
NEMA 5-20
Single Phase
Power Distribution
E
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
NEMA Rating: NEMA enclosure rating of 4X
Reference Information
cULus File No.: E66308
Watertite Plug and Connector
Configuration
Current/Voltage
20A 120V
NEMA 5-20
E-10
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
GFCI Reset
Manual
12/3 SJEOOW
Automatic
Woodhead No.
20052-1M
20052-6M
20052-25M
20052-1A
20052-6A
20052-25A
Order No
130153-0126
130153-0134
130153-0130
130153-0123
130153-0132
130153-0128
www.molex.com/woodhead
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault –
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
20A
NEMA 5-20
Single Phase
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
E
Power Distribution
GFCI
Super-Safeway™
Reference Information
UL/cUL File No.: E66308
Outlet Box*
Configuration
Current/Voltage
Cord Length
Cord Type
0.61m (2.0')
20A 120V
GFCI Reset
Number of Receptacles
Woodhead No.
Order No
Manual
4
20053-2M
130153-0139
Automatic
4
20053-2A
130153-0138
12/3 SJEOOW
0.61m (2.0')
NEMA 5-20
* NEMA 1 enclosure rating (GFCI body NEMA 4X suitable)
Outlet Box with Flip Lid†
Configuration
Current/Voltage
Cord Length
Cord Type
Flip-Lid
0.61m (2.0')
20A 120V
NEMA 5-20
†
12/3 SJEOOW
0.61m (2.0')
GFCI Reset
Number of Receptacles
Woodhead No.
Order No
Manual
4
20053W-2M
130153-0142
Automatic
4
20053W-2A
130153-0141
Yes
NEMA 3R enclosure rating (GFCI body NEMA 4X suitable)
www.molex.com/woodhead
E-11
GFCI
Super-Safeway™
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault –
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
20A
NEMA L5-20
Single Phase
Power Distribution
E
Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
Molded Plug and Connector*
Configuration
Current/Voltage
Cord Length
Cord Type
GFCI Reset
Woodhead No.
Order No
0.61m (2.0’)
12/3 SJEOOW
Manual
20051-1MLDM
130153-0115
0.61m (2.0’)
12/3 SJEOOW
Automatic
20051-1MLDA
130153-0114
20A 120V
NEMA L5-20
* UL and cUL listed assembly is NEMA 1 rated (GFCI body NEMA 4X suitable)
E-12
www.molex.com/woodhead
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault –
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
• Optional Super-Safeway NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
GFCI Industrial Duty
20A
NEMA L6-20
Single Phase
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
NEMA Rating: NEMA enclosure rating of 4X
E
Power Distribution
GFCI
Super-Safeway™
Reference Information
UL/cUL File No.: E66308
Molded Plug and Connector 240V
Configuration
Current/Voltage
Cord Length
Cord Type
0.61m (2.0')
20A 240V
Woodhead No.
Order No
Manual
24052-1MLDM
130153-0158
Automatic
24052-1MLDA
130153-0157
GFCI Reset
Woodhead No.
24052-1M
24052-6M
24052-25M
24052-1A
24052-6A
24052-25A
Order No
130153-0156
130153-0162
130153-0160
130153-0155
130153-0161
130153-0159
12/3 SJEOOW
0.61m (2.0')
NEMA L6-20
GFCI Reset
Watertite® Plug and Connector 240V
Configuration
Current/Voltage
20A 240V
NEMA L6-20
www.molex.com/woodhead
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
Manual
12/3 SJEOOW
Automatic
E-13
GFCI
Super-Safeway™
Features and Benefits
• Specifically filtered to minimize nuisance trips in
welding, variable frequency drive and other “electrically
noisy” applications
• Fixed mount and portable with a wide range of plug
and connector products assures the proper fit for any
application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough-service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault—
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
GFCI Industrial Duty
30A 120V
NEMA L5-30
Single Phase
Power Distribution
E
Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
Portable Flying Leads
Current/Voltage
Cord Length
0.61m (2.0')
0.61m (2.0')
30A/120V
Cord Type
10/3 SJEOOW
10/3 SJEOOW
GFCI Reset
Automatic
Manual
Woodhead No.
30051-0A
30051-0M
Order No.
130153-0261
130153-0262
Molded Plug and Connector†
Configuration
Current/Voltage
30A 120V
Cord Length
0.61m (2.0')
Cord Type
Woodhead No.
Order No
Manual
30051-1MLDM
130153-0167
Automatic
30051-1MLDA
130153-0166
GFCI Reset
Woodhead No.
30051-1M
30051-6M
30051-25M
30051-1A
30051-6A
30051-25A
Order No
130153-0165
130153-0172
130153-0169
130153-0164
130153-0171
130153-0168
10/3 SJEOOW
NEMA L5-30
†
GFCI Reset
UL and cUL listed assembly is NEMA 4X rated (GFCI body is NEMA 6P suitable)
Super-Safeway™ Plug and Connector‡
Configuration
Current/Voltage
30A 120V
NEMA L5-30
‡
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
Manual
10/3 SJEOOW
Automatic
UL and cUL listed assembly is NEMA 1 rated (GFCI body is NEMA 6P suitable)
E-14
www.molex.com/woodhead
Features and Benefits
• Specifically filtered to minimize nuisance trips in
welding, variable frequency drive and other “electrically
noisy” applications
• Fixed mount and portable with a wide range of plug
and connector products assures the proper fit for any
application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault—
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
GFCI Industrial Duty
30A 120V
NEMA L5-30
Single Phase
Reference Information
UL/cUL File No.: E10176
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
NEMA Rating: NEMA enclosure rating of 6P
E
Power Distribution
GFCI
Super-Safeway™
Watertite® Plug and Connector
Configuration
Current/Voltage
30A 120V
NEMA L5-30
www.molex.com/woodhead
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
GFCI Reset
Manual
10/3 SJEOOW
Automatic
Woodhead No.
30052-1M
30052-6M
30052-25M
30052-1A
30052-6A
30052-25A
Order No
130153-0175
130153-0180
130153-0177
130153-0174
130153-0179
130153-0176
E-15
GFCI
Super-Safeway™
Features and Benefits
• Specifically filtered to minimize nuisance trips in
welding, variable frequency drive and other “electrically
noisy” applications
• Fixed mount and portable with a wide range of plug
and connector products assures the proper fit for any
application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault—
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
GFCI Industrial Duty
30A 240V
Flying Lead and NEMA L6-30
Single Phase
Power Distribution
E
Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
Flying Leads
Current/Voltage
30A/240V
Cord Length
0.61m (2.0')
0.61m (2.0')
Cord Type
10/3 SJEOOW
10/3 SJEOOW
GFCI Reset
Automatic
Manual
Woodhead No.
30053-0A
30053-0M
Order No.
130153-0181
130153-0182
Super-Safeway™ Plug and Connector*
Configuration
Current/Voltage
30A 240V
NEMA L6-30
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
GFCI Reset
Manual
10/3 SJEOOW
Automatic
Woodhead No.
30053-1M
30053-6M
30053-25M
30053-1A
30053-6A
30053-25A
Order No
130153-0185
130153-0191
130153-0188
130153-0184
130153-0190
130153-0187
* UL and cUL listed assembly is NEMA 1 rated (GFCI body is NEMA 6P suitable)
E-16
www.molex.com/woodhead
Features and Benefits
• Specifically filtered to minimize nuisance trips in
welding, variable frequency drive and other “electrically
noisy” applications
• Fixed mount and portable with a wide range of plug
and connector products assures the proper fit for any
application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rain-proof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly visible LED indicator confirms power and fault—
even at a distance
• Internal strain relief provides superior hold to keep cord
in place at this critical juncture
GFCI Industrial Duty
30A 240V
NEMA L6-30
Single Phase
Reference Information
UL/cUL File No.: E66308
Physical
GFCI Housing: Impact resistant nylon
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Cord Type: Yellow SJEOOW
Environmental
Duty Type: General industrial duty
E
Power Distribution
GFCI
Super-Safeway™
Watertite® Plug and Connector†
Configuration
Current/Voltage
30A 240V
NEMA L6-30
†
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
GFCI Reset
Manual
10/3 SJEOOW
Automatic
Woodhead No.
30054-1M
30054-6M
30054-25M
30054-1A
30054-6A
30054-25A
Order No
130153-0194
130153-0200
130153-0197
130153-0193
130153-0199
130153-0196
UL and cUL listed assembly is NEMA 6P rated
Fixed Mount
Current/Voltage
Lead Length
Lead Type
30A/240V
0.61m (24")
10/3 AWG
www.molex.com/woodhead
GFCI Reset
Automatic
Manual
Woodhead No.
30053-2AF
30053-2MF
Order No.
130153-0265
130153-0266
E-17
GFCI
Super-Safeway™
Features and Benefits
• Specifically filtered to minimize nuisance trips in
welding, variable frequency drive and other “electrically
noisy” applications
• Fixed mount and portable with a wide range of plug
and connector products assures the proper fit for any
application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rainproof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open-neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return, or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly-visible LED indicator confirms power and fault—
even at a distance
• Portable units have internal strain relief to provide
superior hold to keep cord in place at this critical
juncture
• User installed plug and receptacle
GFCI Industrial Duty
30A
Multiphase, Portable
Power Distribution
E
Reference Information
cULus File No.: E66308
Physical
GCI Housing: Impact-resistant polyester/PVC
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Sealed and strongly resistant to
pull-out
Line Side Cord: 1', 10 AWG
Load Side Cord: 1', 10 AWG
Cable: SEOOW
Outside Diameter:
4-conductor—0.55"
5-conductor— 0.76"
Environmental
Duty Type: General Industrial Duty
NEMA Rating: Enclosure rating of 4X/6P
Recommended Woodhead Plug/Receptacle
GFCI Reset
Automatic
Manual
Voltage
Phase
208V
240V
120 /208V
120/240V
208V
240V
120/208V
120/240V
3P
3P
3P
Split Phase
3P
3P
3P
Split Phase
Cord
Woodhead No.
10/4
10/4
10/5
10/4
10/4
10/4
10/5
10/4
30053-0A2P
30053-0A3P
30053-0A5P
30053-0A6P
30053-0M2P
30053-0M3P
30053-0M5P
30053-0M6P
Order No.
130153-0253
130153-0252
130153-0254
130153-0251
130153-0249
130153-0248
130153-0250
130153-0247
Industrial Grade
Plug
2875
2875
2881
2874
2875
2875
2881
2874
Receptacle
2975
2975
2981
2974
2975
2975
2981
2974
Watertite
Plug
28W75
28W75
28W81
28W74
28W75
28W75
28W81
28W74
Receptacle
29W75
29W75
29W81
29W74
29W75
29W75
29W81
29W74
4.52 REF.
15.00±2.00
15.00±2.00
4.00±.50
.50±.13
4.00±.50
.50±.13
RESET
OWE
AU L
F
TEST
P
TEST
T
R
RESET
LINE
WARNING : Test Before Each Use. See Side For Details.
3.03 REF.
LOAD
CABLE (BLACK) 10 AWG 4 OR 5 CONDUCTOR 600V
TYPE SEOOW UL LISTED FOR U.S. AND EITHER
CUL LISTED OR CSA CERTIFIED FOR CANADA
SPLIT PHASE (120 / 208 VOLTS, 120 / 240 VOLTS) (4-WIRE)
LINE 1 (BLACK)
LINE 2 (RED)
NEUTRAL (WHITE)
GROUND (GREEN)
LINE
LOAD
LINE 1 (BLACK)
LINE 2 (RED)
NEUTRAL (WHITE)
GROUND (GREEN)
THREE PHASE (NO NEUTRAL) (208 / 240 VOLTS) (4-WIRE)
LINE 1 (BLACK)
LINE 2 (RED)
LINE 3 (WHITE)
GROUND (GREEN)
LINE
LOAD
LINE 1 (BLACK)
LINE 2 (RED)
LINE 3 (WHITE)
GROUND (GREEN)
THREE PHASE (WITH NEUTRAL) (120 / 208 VOLTS) (5-WIRE)
LINE 1 (BLACK)
LINE 2 (RED)
LINE 3 (ORANGE)
NEUTRAL (WHITE)
GROUND (GREEN)
E-18
LINE
LOAD
LINE 1 (BLACK)
LINE 2 (RED)
LINE 3 (ORANGE)
NEUTRAL (WHITE)
GROUND (GREEN)
www.molex.com/woodhead
Features and Benefits
• Specifically filtered to minimize nuisance trips in
welding, variable frequency drive and other “electrically
noisy” applications
• Fixed mount and portable with a wide range of plug
and connector products assures the proper fit for any
application
• Electromagnetic latching mechanism prevents nuisance
tripping during rough service applications
• Rugged, rainproof, UV-stabilized enclosure resists
abuse, sunlight, oils and chemicals
• Open-neutral sensing relay detects and prevents
operation under threatening conditions
• Choose manual reset functionality to protect personnel
upon power return, or automatic reset functionality to
reset lighting and HVAC equipment upon power return
• Highly-visible LED indicator confirms power and fault—
even at a distance
• Surface or panel mountable
GFCI Industrial Duty
30A
Multiphase, Fixed Mount
GFCI Reset
Voltage
208V
240V
120/208V
120/240V
208V
240V
120/208V
120/240V
Automatic
Manual
Phase
3P
3P
3P
Split Phase
3P
3P
3P
Split Phase
Leads
10/4
10/4
10/5
10/4
10/4
10/4
10/5
10/4
Reference Information
cULus File No.: E66308
Physical
GCI Housing: Impact-resistant polyester/PVC
Cover Face Screws and Washer: Stainless Steel
Leads: 24", 10 AWG
Fitting: 3/4" NPT
Environmental
Duty Type: General Industrial Duty
NEMA Rating: Enclosure rating of 4X/6P
E
Woodhead No.
30053-2A2F
30053-2A3F
30053-2A5F
30053-2A6F
30053-2M2F
30053-2M3F
30053-2M5F
30053-2M6F
Power Distribution
GFCI
Super-Safeway™
Order No.
130153-0245
130153-0244
130153-0246
130153-0243
130153-0241
130153-0240
130153-0242
130153-0239
SPLIT PHASE (120 / 208 VOLTS, 120 / 240 VOLTS)
3.37
2.47
(PANEL MOUNT)
Ø.20
}
LINE 1 (black)
LINE
LINE 2 (red)
NEUTRAL (white)
NEUTRAL (white w/black stripe)
LINE 2 (red w/black stripe)
LINE 1 (black w/white stripe)
}
LOAD
OWE
RESET
TEST
T
RESET
TEST
R
AU L
F
3.28
(PANEL MOUNT)
P
2.87
1.79
(PANEL MOUNT)
THREE PHASE (NO NEUTRAL) (208 / 240 VOLTS)
}
LINE 1 (black)
LINE
LINE 2 (red)
LINE 3 (orange)
LINE 3 (orange w/black stripe)
5.95 REF.
.75
.75
WARNING: Test Before Each Use. See Side For Details.
LINE 2 (red w/black stripe)
LINE 1 (black w/white stripe)
}
LOAD
THREE PHASE "Y" (WITH NEUTRAL) (120 / 208 VOLTS)
NEUTRAL (white)
LINE 1 (black)
LINE
LINE 2 (red)
LINE 3 (orange)
LINE 3 (orange w/black stripe)
}
LINE 2 (red w/black stripe)
LINE 1 (black w/white stripe)
NEUTRAL (white w/black stripe)
www.molex.com/woodhead
}
LOAD
E-19
Technical Information
Super-Safeway™
GFCI
Industrial Duty
In-Line
Super-Safeway GFCI 15A
L Dimension
.70m (2.3')
2.2m (7.3')
8.02m (26.3')
15.6m (51.3')
.70m (2.3')
2.2m (7.3')
8.02m (26.3')
15.6m (51.3')
A Dimension
.31m (1.0')
1.8m (6.0')
7.62m (25.0')
15.2m (50.0')'
.31m (1.0')
1.8m (6.0')
7.62m (25.0')
15.2m (50.0')'
Power-Up
Auto
Manual
Woodhead Number
15050-3TTA
15050-6TTA
15050-25TTA
15050-50TTA
15050-3TTM
15050-6TTM
15050-25TTM
15050-50TTM
Order Number
130153-0029
130153-0040
130153-0026
130153-0034
130153-0030
130153-0041
130153-0027
130153-0035
Technical Information
Super-Safeway™
GFCI
Industrial Duty
In-Line
L DIM.
LOAD
LINE
F
TEST
R
W E
TEST
A UL T
O
P
RESET
RESET
Power Distribution
E
2.10
PLUG CONFIGURATION:
SEE TABLE
CONNECTOR CONFIGURATION:
SEE TABLE
Super-Safeway GFCI 20A
L Dimension
.75m (2.4')
.85m (2.8')
2.4m (7.8')
8.17m (26.8')
.75m (2.4')
.85m (2.8')
2.4m (7.8')
8.17m (26.8')
E-20
A Dimension
.31m (1.0')
.31m (1.0')
1.83m (6.0')
7.62m (25.0')
.305m (1.0')
.305m (1.0')
1.83m (6.0')
7.62m (25.0')
Power-Up
Auto
Manual
Line Plug
None
1433
1433
1433
None
1433
1433
1433
Load Connector
None
1533
1533
1533
None
1533
1533
1533
Woodhead Number
20051-0A
20051-1A
20051-6A
20051-25A
20051-0M
20051-1M
20051-6M
20051-25M
Order Number
130153-0109
130153-0112
130153-0120
130153-0117
130153-0110
130153-0113
130153-0121
130153-0118
www.molex.com/woodhead
Technical Information
Super-Safeway™
GFCI
Industrial Duty
In-Line
Power Distribution
E
Super-Safeway GFCI 30A
L Dimension
.701m (2.3')
.823m (2.7')
2.35m (7.7')
8.14m (26.7')
.701m (2.3')
.823m (2.7')
2.35m (7.7')
8.14m (26.7')
A Dimension
.31m (1.0')
.31m (1.0')
1.8m (6.0')
7.62m (25.0')
.31m (1.0')
.31m (1.0')
1.8m (6.0')
7.62m (25.0')
Power-Up
Auto
Manual
Line Plug
None
2847
2847
2847
None
2847
2847
2847
Load Connector
None
2947
2947
2947
None
2947
2947
2947
Woodhead Number
30051-0A
30051-1A
30051-6A
30051-25A
30051-0M
30051-1M
30051-6M
30051-25M
Order Number
130153-0261
130153-0164
130153-0171
130153-0168
130153-0262
130153-0165
130153-0172
130153-0169
Technical Information
Super-Safeway™
GFCI
Industrial
In-Line
Super-Safeway Right Angle
L Dimension
.686m (2.25')
7.70m (25.25')
.686m (2.25')
7.70m (25.25')
www.molex.com/woodhead
Power-Up
Auto
Manual
Woodhead No.
15054-1A
15054-25A
15054-1M
15054-25M
Order No.
130153-0091
130153-0095
130153-0092
130153-0096
E-21
GFCI
Safeway®
GFCI Commercial Duty
15A
Power Distribution
E
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Impact resistant nylon housing provides high
performance at an affordable price
• Manual reset functionality protects personnel upon
power return
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Lighted pushbutton operation provides visual “Readyto-Run” status
• Spring-loaded contacts assure consistent conductivity
and extended life
• Internal strain relief provides excellent hold to keep
cord in place at this critical juncture
Reference Information
UL File No.: E66308
CSA File No.: LR6837
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Double C-clamp metal band
Cord Type: Yellow SJTW
Environmental
Duty Type: General commercial duty
Rating: Rainproof
Field Attachable
Configuration
Field Attachable
Current/Voltage
15A/20A 120V
Woodhead No.
20054
Order No
130153-0144
Molded Plug and Connector
Configuration
Current/Voltage
Cord Length
Cord Type
0.61m (2.0')
15A 120V
1.83m (6.0')
14/3 SJTW
7.62m (25.0')
NEMA 5-15
Number of Receptacles
Woodhead No.
Order No
1
15050-1
130153-0019
1
15050-6
130153-0036
1
15050-25
130153-0022
Number of Receptacles
3
3
3
3
Woodhead No.
15050-3TT
15050-6TT
15050-25TT
15050-50TT
Order No
130153-0028
130153-0039
130153-0025
130153-0033
Number of Receptacles
1
1
1
1
Woodhead No.
15051-1
15051-6
15051-25
15051-50
Order No
130153-0042
130153-0051
130153-0045
130153-0048
Molded Plug and Tri-Tap Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
12/3 SJTW
Super-Safeway™ Plug and Connector
Configuration
Current/Voltage
15A 120V
NEMA 5-15
E-22
Cord Length
0.61m (2.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Type
14/3 SJTW
www.molex.com/woodhead
GFCI Commercial Duty
15A
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Impact resistant nylon housing provides high
performance at an affordable price
• Manual reset functionality protects personnel upon
power return
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Lighted pushbutton operation provides visual “Readyto-Run” status
• Spring-loaded contacts assure consistent conductivity
and extended life
• Internal strain relief provides excellent hold to keep
cord in place at this critical juncture
• Optional Super-Safeway™ NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
Reference Information
UL File No.: E66308
CSA File No.: LR6837
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Double C-clamp metal band
Cord Type: Yellow SJTW
Environmental
Duty Type: General commercial duty
Rating: Rainproof
E
Power Distribution
GFCI
Safeway®
Outlet Box
Configuration
NEMA 5-15
Current/Voltage
Cord Length
Cord Type
Flip-Lid
Number of Receptacles
Woodhead No.
Order No
15A 120V
0.61m (2.0')
12/3 SJTW
No
4
15053-2
130153-0071
15A 120V
7.62m (25.0')
14/3 SJTW
No
4
15053-25
130153-0072
15A 120V
15.24m (50.0')
12/3 SJTW
No
4
15053-50
130153-0077
Cord Length
Cord Type
Flip-Lid
Number of Receptacles
Woodhead No.
Order No
4
15053W-2
130153-0080
4
15053W-25
130153-0081
Weather Resistant Outlet Box
Configuration
Current/Voltage
0.61m (2.0')
15A 120V
12/3 SJTW
Yes
7.62m (25.0')
NEMA 5-15
Right Angle Plug
Configuration
Field Attachable
Current/Voltage
15A 120V
Cord Length
Cord Type
Number of Receptacles
Woodhead No.
15054
Order No
130153-0089
0.61m (2.0')
14/3 SJTW
1
15054-1
130153-0090
NEMA 5-15
www.molex.com/woodhead
E-23
GFCI
Safeway®
GFCI Commercial Duty
20A
Power Distribution
E
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Impact resistant nylon housing provides high
performance at an affordable price
• Manual reset functionality protects personnel upon
power return
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Lighted pushbutton operation provides visual “Readyto-Run” status
• Spring-loaded contacts assure consistent conductivity
and extended life
• Internal strain relief provides excellent hold to keep
cord in place at this critical juncture
• Optional Super-Safeway™ NEo-TEX® Paracril OZO rubber
multiple outlet box available for application flexibility
Reference Information
UL File No.: E66308
CSA File No.: LR6837
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Double C-clamp metal band
Cord Type: Yellow SJTW
Environmental
Duty Type: General commercial duty
Rating: Rainproof
Field Attachable
Configuration
Field Attachable
Current/Voltage
15A/20A 120V
Woodhead No.
20054
Order No
130153-0144
Super-Safeway™ Plug and Connector
Configuration
Current/Voltage
20A 120V
NEMA 5-20
Number of Receptacles
Woodhead No.
Order No
0.61m (2.0')
Cord Length
Cord Type
1
20051-1
130153-0111
1.83m (6.0')
1
20051-6
130153-0119
7.62m (25.0')
1
20051-25
130153-0116
1
20054-1
130153-0145
12/3 SJTW
0.61m (2.0')
20A 240V
NEMA L6-20
1.83m (6.0')
1
20054-6
130153-0147
7.62m (25.0')
1
20054-25
130153-0146
Outlet Box
Configuration
Current/Voltage
Cord Length
Cord Type
Number of Receptacles
Woodhead No.
Order No
20A 120V
0.61m (2.0')
12/3 SJTW
4
20053-2
130153-0137
NEMA 5-20
Weather Resistant Outlet Box
Configuration
Current/Voltage
Cord Length
Cord Type
Flip-Lid
Number of Receptacles
12/3 SJTW
Yes
4
0.61m (2.0')
20A 120V
NEMA 5-20
E-24
1.83m (6.0')
Woodhead No.
Order No
20053W-2
130153-0140
20053W-6
130153-0143
www.molex.com/woodhead
Features and Benefits
• Wide range of plug and connector products assures the
proper fit for any application
• Impact resistant nylon housing provides high
performance at an affordable price
• Manual reset functionality protects personnel upon
power return
• Open neutral sensing relay detects and prevents
operation under threatening conditions
• Lighted pushbutton operation provides visual “Readyto-Run” status
• Spring-loaded contacts assure consistent conductivity
and extended life
• Internal strain relief provides excellent hold to keep
cord in place at this critical juncture
GFCI Commercial Duty
30A
Reference Information
UL File No.: E66308
CSA File No.: LR6837
Physical
GFCI Housing: Impact resistant polycarbonate
Cover Face Screws and Washer: Stainless Steel
Internal Strain Relief: Double C-clamp metal band
Cord Type: Yellow SJTW
Environmental
Duty Type: General commercial duty
Rating: Rainproof
E
Power Distribution
GFCI
Safeway®
Super-Safeway™ Plug and Connector
Configuration
Current/Voltage
Cord Length
Cord Type
0.61m (2.0')
30A 240V
NEMA L5-30
www.molex.com/woodhead
Woodhead No.
Order No
30051-1
130153-0163
30051-6
130153-0170
10/3 SJTW
1.83m (6.0')
E-25
Technical Information
Safeway®
GFCI
Commercial Duty
In-Line
Safeway GFCI 15A, 20A
15.2cm (6.00˝)
12.7cm (5.00˝)
Power Distribution
E
Safeway GFCI 30A
22.9cm (9.00˝)
± 0.5˝
Cord
Length
17.8cm (7.00˝)
4.70cm
(1.85˝)
Safeway GFCI Right Angle
4.24cm
(1.67˝)
9.35cm
(3.68˝)
5.18cm
(2.04˝)
E-26
www.molex.com/woodhead
287/(7%2;(6
WOODHEAD® OUTLET BOXES, MADE OF DURABLE NEďTEX® RUBBER TO
WITHSTAND HARSH INDUSTRIAL ELEMENTS, DELIVER YEARS OF SERVICE
ANYWHERE PORTABLE OR TEMPORARY POWER IS REQUIRED
Woodhead outlet boxes provide options for pre-wired solutions or components of dead-end
ER[HVIHHGWKURXJKER[HVFRYHUSODWHVÁLSOLGFRYHUV0D[/RF® or cord-clamp connections,
customizable to all applications. The multiple outlet-box products serve needs from single- or
double-duplex receptacle solutions to multi-tap outlet boxes for numerous plug-in applicaWLRQV$YDLODEOHLQYDULRXVFRQÀJXUDWLRQV:RRGKHDGFDQSURYLGHDQRXWOHWER[WKDWPHHWV\RXU
VSHFLÀFQHHGV
FEATURES AND
BENEFITS
APPLICATIONS
Pre-wired
solutions
)DFWRU\FHUWLÀHGVDYHVWLPHDQGPRQH\
6WDQGDUGFRPSRQHQWV
and replacement parts
3URYLGHIRUH[FHSWLRQDOO\
long-life products
Custom-built
products
Allow unique application solutions
$VVHPEO\VWDWLRQV
• Construction site
)DFLOLW\PDLQWHQDQFH
6KLS\DUGV
• Work benches
• Workstations
Outlet Boxes
Watertite®
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty receptacles yield long-term performance
• MAX-LOC® cord grip provides superior strain relief for
long life
• Lids with spring-loaded closure caps for increased
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay (contained within the back side)
• Select a ground continuity monitor light to ensure good
ground from power source
• High-performance SOOW cords are standard for
optimum performance
• Plug matches receptacle type for application consistency
• When properly mated with a Woodhead® Watertite
plug, the connector or receptacle connection meets the
requirements of NEMA Type 4X
Dual-Sided GFCI Duplex
FD Outlet Box
Power Distribution
E
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial-duty single receptacles
Receptacle Coverplate and Closure Caps: Lexan
GFCI Coverplate: Silicone
Cover Screws and Lid Springs: Stainless Steel
Cord: Rubber SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Plug Body: Watertite NEo-TEX Paracril OZO rubber with
nylon insert and Stainless Steel screws
Open Neutral Relay: Yes
Environmental
Rating: Wet industrial duty
Dual-Sided, Duplex Receptacle, FD Outlet Box
NEMA
Configuration and Rating
Amps/Hz/Volts
15A 50/60Hz 120V
NEMA 5-15
20A 50/60Hz 120V
NEMA 5-20
E-28
Cord Length
1.83m
1.83m
7.62m
7.62m
15.24m
15.24m
30.48m
1.83m
1.83m
7.62m
7.62m
15.24m
30.48m
(6.0')
(6.0')
(25.0')
(25.0')
(50.0')
(50.0')
(100.0')
(6.0')
(6.0')
(25.0')
(25.0')
(50.0')
(100.0')
Cord Type
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
Ground Continuity
Monitor
Yes
Yes
Yes
Yes
Yes
Number of
Duplex Receptacles
Woodhead No.
Order No.
1
1
1
1
1
1
1
1
1
1
1
1
1
3301GFL143
3301GGFL143
3301GFA143
3301GGFA143
3301GFB143
3301GGFB143
3301GFD143
3304GGFL123
3304GFL123
3304GGFA123
3304GFA123
3304GFB123
3304GFD123
130137-0224
130137-0227
130137-0221
130137-0225
130137-0222
130137-0226
130137-0223
130137-0240
130137-0237
130137-0238
130137-0234
130137-0235
130137-0236
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty receptacles yield long-term performance
• Watertite closure caps for increased protection
• High-performance SOOW cords are standard for
optimum performance
• Plug matches receptacle type for application consistency
• When properly mated with a Woodhead® Watertite
plug, the connector or receptacle connection meets the
requirements of NEMA Type 4X
• Universal ground ring and wires provided for ease of
wiring
Quad Outlet Box
Physical
Box Housing, Coverplate and Plug Body: NEo-TEX Paracril
OZO rubber
Receptacles: Industrial-duty nylon single receptacles
Cover Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Plug Body: Watertite NEo-TEX Paracril OZO rubber with
nylon insert and Stainless Steel screws
Environmental
Rating: Wet industrial duty
E
Reference Information
CSA File No.: LR6837
Heavy Duty Outlet Box
NEMA Configuration
and Rating
Closure Caps
Number of
Single Receptacles
Cord Diameter
Woodhead No.
Order No.
Yes
4
11.1–17.5mm (.437–.687")
32W47
130135-0230
Yes
4
32W47A123
130135-0231
20A 50/60Hz 120V
Yes
4
11.1–17.5mm (.437–.687")
32W33
130135-0228
15A 50/60Hz 120V
Yes
4
11.1–17.5mm (.437–.687")
35W47
130135-0317
15A 50/60Hz 277V
Yes
4
11.1–17.5mm (.437–.687")
35W34
130135-0316
Amps/Hz/Volts
Cord Length
Cord Type
15A 50/60Hz 120V
7.62m (25.0')
NEMA 5-15
12/3 SOOW
NEMA 5-20
NEMA L5-15
NEMA L7-15
Outlet Boxes
Watertite®
Illuminated Quad (Locator)
Outlet Box
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty receptacles yield long-term performance
• Watertite closure caps for increased protection
• MAX-LOC® Stainless Steel strain relief included as
standard to provide maximum cord pull-out resistance
• High-performance SOOW cords are standard for
optimum performance
• Plug matches receptacle type for application consistency
• When properly mated with a Woodhead® Watertite
plug, the connector or receptacle connection meets the
requirements of NEMA Type 4X
Reference Information
CSA File No.: LR6837
Physical
Box Housing, Coverplate, Bulb Socket, Recessed Bumpers
and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial-duty nylon single receptacles
Cover Gasket: Neoprene
Globe Assembly: Teflon®
Hinged Hook: Polypropylene
Cover Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC strain relief with Stainless Steel
mesh, nylon compression nut with rubber grommet
Plug Body: Watertite NEo-TEX Paracril OZO rubber with
nylon insert and Stainless Steel screws
Environmental
Meets NFPA 1901 Requirements
Rating: Wet industrial duty
Illuminated Quad (Locator) Outlet Box
NEMA Configuration
and Rating
Amps/Hz/Volts
15A 50/60/Hz 120V
NEMA 5-15
Cord Length
Cord Type
0.305m (1.0')
14/3 SOOW
15.24m (50.0')
14/3 SOOW
Number of
Single Receptacles
Cord Diameter
4
11.1–17.5mm (.437–.687")
4
4
4
11.1–17.5mm (.437–.687")
Woodhead No.
Order No.
32W90-1
130135-0233
32W90-1E143
130135-0234
32W90-1B143
130135-0329
32W90-2
130135-0235
32W90-2E143
130135-0236
15A 50/60/Hz 120V
NEMA L5-15
www.molex.com/woodhead
0.305m (1.0')
14/3 SOOW
4
E-29
Power Distribution
Outlet Boxes
Watertite®
Outlet Boxes
Watertite®
GFCI Four-Sided Outlet Box
Power Distribution
E
Features and Benefits
• Workstation is molded of high-strength, non-conductive,
glass-reinforced polyester
• Four industrial duty receptacles yield long-term
performance
• GFCI protection complete with an open-neutral sensing
relay to prevent operation under life-threatening
conditions
• MAX-LOC® Stainless Steel strain relief included as
standard to provide maximum cord pull-out resistance
• Six feet of high performance SOOW cord are standard
for optimum performance
• When properly mated with a Woodhead® Watertite
plug, the connector or receptacle connection meets the
requirements of NEMA Type 4X
Physical
Workstation Body: Glass-reinforced polyester
Industrial Duty Receptacles: Nylon
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC strain relief with Stainless Steel
mesh, nylon compression nut with rubber grommet
Environmental
Rating: Wet industrial/commercial duty
Reference Information
UL File No.: E10176 (Housing)
CSA File No.: LR6837
GFCI Portable Work Station
Side A
GFCI Configuration
NEMA
Configuration and Rating
Duplex NEMA 5-15
Side B
Configuration
Side C
Configuration
Amps/Hz/Volts
Woodhead No.
Order No.
Duplex NEMA 5-15
Duplex NEMA 5-15
15A 50/60Hz 120V
3493
130135-0314
Duplex NEMA 5-20
Duplex NEMA 5-20
20A 50/60Hz 120v
3494
130135-0315
Single NEMA L5-20
Single NEMA L5-20
20A 50/60Hz 120v
3492
130135-0313
NEMA 5-15
Duplex NEMA 5-20
NEMA 5-20
Duplex NEMA 5-20
NEMA L5-20
E-30
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable pendant drop
yields the best performance for abrasion, chemical
exposure and temperature extremes
• Pre-wired, one or two industrial duty, single receptacles
recessed for indoor or outdoor use designed to save
you time
• Watertite receptacles certified to provide protection for
damp or wet locations and keep personnel safe
• MAX-LOC® non-metallic strain relief included as
standard to provide maximum cord pull-out resistance
atop the pendant
• Woodhead® hanging double eye support grip included
for ease of installation
• High-performance SOOW cords are standard for
optimum performance
• When properly mated with a Woodhead® Watertite
plug, the connector or receptacle connection meets the
requirements of NEMA Type 4X
Pendant Drop
15A or 20A 125V
Physical
Pendant Housing: Watertite NEo-TEX Paracril OZO rubber
Receptacles: Nylon industrial duty
Cover Face Screws and Cover Springs: Stainless Steel
Strain Relief, Pendant: Heavy-duty MAX-LOC nylon mesh
and F3 ¾" compression nut
Cord: Rubber 14/3 or 12/3 SOOW
Environmental
Rating: Wet industrial duty
E
Power Distribution
Outlet Boxes
Watertite®
Pendant Drop
NEMA Configuration
and Rating
Amps/Hz/Volts
15A 50/60Hz 120V
NEMA 5-15
20A 50/60Hz 120V
NEMA 5-20
Cord Length
Cord Type
1.83m
1.83m
4.57m
4.57m
7.62m
1.83m
4.57m
4.57m
7.62m
7.62m
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
(6.0')
(6.0')
(15.0')
(15.0')
(25.0')
(6.0')
(15.0')
(15.0')
(25.0')
(25.0')
15A 50/60Hz 120V
1.83m (6.0')
14/3 SOOW
20A 50/60Hz 120V
4.57m (15.0')
12/3 SOOW
GFCI*
GFCI Reset
Yes
Manual
Yes
Yes
Manual
Yes
Manual
Yes
Manual
Number of
Receptacles†
Woodhead No.
Order No.
2
1
2
1
1
2
2
1
2
1
70W47L143
70W47L143GF
70W47M143
70W47M143GF
70W47A143GF
70W33L123
70W33M123
70W33M123GF
70W33A123
70W33A123GF
130138-0085
130138-0086
130138-0087
130138-0088
130138-0083
130138-0079
130138-0081
130138-0082
130138-0076
130138-0077
2
75W47L143
130135-0322
1
77W47M123GF
130138-0095
NEMA L5-15
Yes
Manual
NEMA L5-20
* GFCI Pendant Drop does not feature open-neutral sensing relay
†
2 = Duplex
1 = Single
www.molex.com/woodhead
E-31
Outlet Boxes
Watertite®
Features and Benefits
• Deep box design provides 30% more capacity volume
over FS boxes.
• Three configurations available provides for installation
flexibility.
• NEMA 4, 4X, 12P, IP66 rated for harsh environments.
• Dynamically vulcanized thermoplastic (TPV) gaskets
provide maximum watertight and dust-tight seal
between frame and box.
• 1" diameter unthreaded conduit openings, with ¾"
and ½" reducers (includes closure plugs for unused
openings) provide design flexibility with multiple
conduit types.
• Modular frame design allows for custom configuration
for power distribution boxes specific to customers'
applications.
• Stainless-steel mounting plates provide corrosionresistance in harsh environments.
FD Box
Power Distribution
E
Reference Information
Packaging: Individual box
cULus File No.: E117594
Physical
Box Housing: Rigid polyvinyl chloride (PVC)
Box: Reducers/Plugs: Rigid polyvinyl chloride (PVC)
Frame: Polybutylene terephthalate (PBT)
Gasket: Santoprene TPV
Threaded Inserts: Brass
Mounting Plate: Stainless Steel
Color: Yellow or Black
Grounding Wire (Green): 12 AWG, stranded Copper,
0.203m (8') long
Environmental
Operating Temperature: –29 to +60° C
Enclosure Rating: NEMA 4, 4X, 12P, IEC IP66
FD Box
Color
Yellow
Black
Gang Configuration
Single
Two
Three
Single
Two
Three
Capacity
426.06cm3 (26.0 in3)
1,102.85cm3 (67.3 in3)
1,787.83cm3 (109.1 in3)
426.06cm3 (26.0 in3)
1,102.85cm3 (67.3 in3)
1,787.83cm3 (109.1 in3)
Woodhead No.
455-FD1
455-FD2
455-FD3
455-FD1BLK
455-FD2BLK
455-FD3BLK
Order No.
130128-0150
130128-0151
130128-0152
130128-0160
130128-0161
130128-0162
Schedule 40 Threaded Adapter
Thread Diameter
1/2"
3/4"
E-32
Material
PVC
Pkg Qty
10
10
Length
37.3mm (1.47")
40.9mm (1.61")
Woodhead No
455-TA50
455-TA75
Order No.
130128-0167
130128-0168
www.molex.com/woodhead
Outlet Boxes
Watertite®
FD Boxes and Coverplates
Corrosion Resistant FD Boxes
Features and Benefits
• Boxes molded of high-strength, non-conductive, glassfilled polyester
• All metal hardware on boxes made from Stainless Steel
to provide stable anchor points and corrosion resistance
• Entry/exit points pre-threaded with knock-outs for
quick, flexible installation
• Grounding wires included and pre-installed to save time
on installation
Physical
Replacement Covers for Watertite Flip Lid Receptacles,
Receptacle Coverplate and Closure Caps: Lexan*
Cover seal provided through the Watertite NEo-TEX®
Paracril OZO rubber interface
Cover Screws and Lid Springs: Stainless Steel
Box Volume: 17.3 in.3
Reference Information
UL File No.: E117594
CSA File No.: LR32159
* Trademark of SABIC Innovative Plastics IP BV
Environmental
Rating: Wet industrial duty
Power Distribution
E
FD Box—Wet Location
Thread Diameter
½"
¾"
1"
Knock-Out Openings
2
2
2
Color
Yellow
Yellow
Yellow
Woodhead No.
452CR
453CR
454CR
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable pendant drop
yields the best performance for abrasion, chemical
exposure and temperature extremes
Order No.
130128-0114
130128-0116
130128-0119
Reference Information
CSA File No.: LR6837 (except for 3066)
FD Boxes Dual-Sided, FD Multiple Outlet Box
Cord Diameter
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
Cord Grip Body Size
F3 ¾"
F3 ¾"
Feed-Thru
No
Yes
Housing
Rubber
Rubber
Woodhead No.
3065
3066
Order No.
130137-0150
130138-0034
Features and Benefits
Reference Information
UL File No.: E117594 (Coverplates)
• Corrosion resistant FD box coverplates
• Blank standard coverplate supplied with neoprene
gasket
• Cover available with 15/20A 120V manual reset GFCI
• Clear/opaque cover plate with metallic support plate to
provide strength
• Clear/opaque and GFCI cover plate is silicone to provide
excellent corrosion resistance
Coverplates for FS/FD Boxes
Coverplate
Clear Silicone Watertite ®
Clear Silicone Watertite
Black Phenolic Heavy Duty
Current/Voltage
20A 120V
GFCI
Yes
No
No
Woodhead No.
3362GF
3362
459*
Order No.
130137-0241
130138-0047
130138-0004
* UL File No.: E117594
Features and Benefits
• UV stabilized polycarbonate with mounting plates
• All exposed metal is Stainless Steel
6702/6902
2-Hole Insert
Reference Information
UL File No.: E46237
6503/6703/6903
3-Hole Insert
Replacement Covers for Watertite Flip Lid Receptacles
Description
Fits duplex, all 15A, 20A straight blade
Fits All 15A and 20A straight blade
Fits all 20A locking 2-hole connector inserts
Fits all 20A locking 3-hole connector inserts
Fits all 30A locking 2-hole connector inserts
Fits all 30A locking 3-hole connector inserts
www.molex.com/woodhead
Duplex/Single
Duplex
Single
Single
Single
Single
Single
Woodhead No.
40-9100
6503
6702
6703
6902
6903
Order No.
130186-0535
130155-0107
130185-0358
130155-0109
130155-0017
130155-0018
E-33
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• Two-piece cord-clamp strain relief to firmly secure
the cord as standard, or select a MAX-LOC® cord grip
together with weather resistant flip lids for increased
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay (contained within the back side) is
an available option to protect personnel
• Also select a ground continuity monitor light to ensure
good ground from power source
• High-performance SOOW cords are standard for
optimum performance
• Corded versions include a NEMA 5-15 plug
Dual-Sided Duplex Outlet Box,
Series 3000, with Receptacles
15A 120V
Standard Depth (3³/8")
NEMA 5-15
Power Distribution
E
Reference Information
UL File No.: E46237
CSA File No.: LR6837
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty
Receptacle Coverplate: Nylon/polycarbonate
For Box Only Version: This is still pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 or 14/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
Standard Depth (3³/8") No Flip Lids or MAX-LOC Cord Grips
Cord Grip
Double C-Clamp
Double C-Clamp
Double C-Clamp
Double C-Clamp
Double C-Clamp
Double C-Clamp
Cord Length
0.305m
1.83m
7.62m
15.24m
1.83m
Cord Type
(1.0')
(6.0')
(25.0')
(50.0')
(6.0')
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
14/3 SOOW
GFCI
GFCI Reset
Yes-In-Line
Number of
Duplex Receptacles
2
2
2
2
2
2
Manual
Open Neutral
Relay
Cord Diameter
8.26–16.64mm (.325–.655")
Yes
Woodhead No.
Order No.
3000-1
3000-1E143
3000-1L143
3000-1A143
3000-1B143
3000-1L143IN
130137-0088
130137-0100
130137-0101
130137-0095
130137-0097
130137-0102
Standard Depth (3³/8") Flip Lids and MAX-LOC Cord Grips
Cord Grip
Cord Length
Cord Type
F2 ½"
F2 ½"
F2 ½"
F2 ½"
0.305m (1.0')
7.62m (25.0')
15.24m (50.0')
14/3 SOOW
14/3 SOOW
14/3 SOOW
Number of Duplex
Receptacles
2
2
2
2
Cord Diameter
7.92–15.88mm (.312–.625")
Woodhead No.
Order No.
3005-1
3005-1E143
3005-1A143
3005-1B143
130137-0127
130137-0132
130137-0128
130137-0130
Standard Depth (3³/8") Feed-Thru with MAX-LOC Cord Grips, No Flip Lids
E-34
Cord Grip
Feed-Thru
Number of Duplex Receptacles
F2 ½"
Yes
Coverplates only
Cord Diameter
7.92–15.88mm (.312–.625")
Woodhead No.
Order No.
3000F
130137-0115
www.molex.com/woodhead
Dual-Sided Duplex Outlet Box,
Series 3000, with Receptacles
15A 120V
Extended Depth (4³/8")
NEMA 5-15
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• Two-piece cord-clamp strain relief to firmly secure
the cord as standard, or select a MAX-LOC® cord grip
together with weather resistant flip lids for increased
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay (contained within the back side) is
an available option to protect personnel
• Also select a ground continuity monitor light to ensure the
ground connections are proper from your power source
• High-performance SOOW cords are standard for
optimum performance
• Corded versions include a NEMA 5-15 plug
Reference Information
UL File No.: E46237
CSA File No.: LR6837
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Nylon/polycarbonate
For Box Only Version: This is still pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 or 14/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
Extended Depth (4³/8") No Flip Lids or MAX-LOC Cord Grips
Cord Grip
Double C-Clamp
Number of Duplex Receptacles
2
Cord Diameter
8.26–16.64mm (.325–.655")
Woodhead No.
3080-1
Order No.
130137-0165
Extended Depth (4³/8") Flip Lids and MAX-LOC Cord Grips
Cord Grip
F3 ¾"
Flip Lid
Yes
Number of Duplex Receptacles
2
Cord Diameter
12.70–19.05mm (.500–.750")
Woodhead No.
3085-1
Order No.
130137-0191
Cord Diameter
12.70–19.05mm (.500–.750")
Woodhead No.
3080F-1
Order No.
130137-0177
Extended Depth (4³/8") Feed-Thru with MAX-LOC Cord Grips, No Flip Lids
Cord Grip
F3 ¾"
www.molex.com/woodhead
Feed-Thru
Yes
Number of Duplex Receptacles
2
E
Power Distribution
Outlet Boxes
Super-Safeway™
E-35
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• Two-piece cord-clamp strain relief to firmly secure
the cord as standard, or select a MAX-LOC® cord grip
together with weather resistant flip lids for increased
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay (contained within the back side) to
protect personnel
• Also select a ground continuity monitor light to ensure the
ground connections are proper from your power source
• High-performance SOOW cords are standard for
optimum performance
• Corded versions include a NEMA 5-15 plug
Dual-Sided Duplex Outlet Box,
Series 3000, with Receptacles
GFCI 15A 120V
Extended Depth (4³/8")
NEMA 5-15
Power Distribution
E
Reference Information
CSA File No.: LR6837
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Nylon/polycarbonate
For Box Only Version: This is still pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 or 14/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
Extended Depth (4³/8") with GFCI, with Flip Lids and MAX-LOC Cord Grips
Cord Grip
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
Cord Type
Flip Lid
GFCI Reset
Number of
Receptacles
Open Neutral
Relay
Receptacle
12/3 SOOW
14/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Manual
Manual
Manual
Manual
Manual
Manual
Manual
1
1
1
1
1
1
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
GFCI Duplex
GFCI Duplex
GFCI Duplex
GFCI Duplex
GFCI Duplex
GFCI Duplex
GFCI Duplex
Cord Length
1.83m
7.62m
7.62m
15.24m
30.48m
1.83m
(6.0')
(25.0')
(25.0')
(50.0')
(100.0')
(6.0')
Cord Diameter
12.70–19.05mm (.500–.750")
Woodhead No.
Order No.
40-3070G
3070-GFI
3070-GFIA143
3070-GFIA123
3070-GFIB123
3070-GFID123
3080-GFI
130137-0246
130137-0155
130137-0158
130137-0157
130137-0159
130137-0162
130137-0180
Extended Depth (4³/8") with GFCI, Feed-Thru, with Flip Lids and MAX-LOC Cord Grips
Cord Grip
Cord Length
Cord Type
Feed-Thru
Flip Lid
GFCI Reset
Number of
Receptacles
Open Neutral
Relay
Receptacle
Woodhead No.
Order No.
F3 ¾"
F3 ¾"
2 @ 0.91m (2 @ 3.0')
2 @ 0.91m (2 @ 3.0')
12/3 SOOW
12/3 SOOW
Yes
Yes
Yes
No
Manual
Manual
1
1
Yes
Yes
GFCI Duplex
GFCI Duplex
3070F-GFI
3080F-GFI
130137-0153
130137-0178
E-36
www.molex.com/woodhead
Dual-Sided Duplex Outlet Box,
Series 3000 With Receptacles
20A 120V
NEMA 5-20
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• Two-piece cord-clamp strain relief to firmly secure
the cord as standard, or select a MAX-LOC® cord grip
together with weather resistant flip lids for increased
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay (contained within the back side) is
an available option to protect personnel
• Also select a ground continuity monitor light to ensure the
ground connections are proper from your power source
• High-performance SOOW cords are standard for
optimum performance
• Corded versions include a NEMA 5-20 plug
Reference Information
UL File No.: E46237
E38085
CSA File No.: LR6837
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Nylon/polycarbonate
For Box Only Version: This is still pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
Standard Depth (3³/8") No Flip Lids or MAX-LOC Cord Grips
Cord Grip
Cord Length
Cord Type
Double C-Clamp
Double C-Clamp
Double C-Clamp
0.305m (1.0')
7.62m (25.0')
12/3 SOOW
12/3 SOOW
Number of
Duplex Receptacles
Cord Diameter
2
2
2
8.26–16.64mm (.325–.655")
Woodhead No.
Order No.
3000-10*
3000-10E123†
3000-10A123†
130137-0089
130137-0093
130137-0090
Woodhead No.
Order No.
3080-10*
3080-10E123†
3080-10A123†
3080-10B123†
130137-0166
130137-0171
130137-0167
130137-0169
Extended Depth (4³/8") No Flip Lids or MAX-LOC Cord Grips
Cord Grip
Cord Length
Cord Type
Double C-Clamp
Double C-Clamp
Double C-Clamp
Double C-Clamp
0.305m (1.0')
7.62m (25.0')
15.24m (50.0')
12/3 SOOW
12/3 SOOW
12/3 SOOW
Number of
Duplex Receptacles
Cord Diameter
2
2
2
2
8.26–16.64mm (.325–.655")
Extended Depth (4³/8") Flip Lids and MAX-LOC Cord Grips
Cord Grip
Cord Length
Cord Type
Flip Lid
Number of
Duplex Receptacles
F2 ½"
F2 ½"
F2 ½"
F2 ½"
7.62m (25.0')
15.24m (50.0')
30.48m (100.0')
12/3 SOOW
12/3 SOOW
12/3 SOOW
Yes
Yes
Yes
Yes
2
2
2
2
Cord Diameter
7.92–15.88mm (.312–.625")
Woodhead No.
Order No.
3085-10*
3085-10A123†
3085-10B123 †
3085-10D123 †
130137-0192
130137-0193
130137-0194
130137-0196
* UL File No. E46327
†
UL File No. E38085
www.molex.com/woodhead
E
Power Distribution
Outlet Boxes
Super-Safeway™
E-37
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• MAX-LOC® cord grip together with weather resistant flip
lids for increased protection
• Manual reset GFCI protection complete with an open
neutral sensing relay (contained within the back side) is
an available option to protect personnel
• Also select a ground continuity monitor light to ensure the
ground connections are proper from your power source
• High-performance SOOW cords are standard for
optimum performance
• Includes a NEMA 5-20 plug
Dual-Sided Duplex Outlet Box,
Series 3000 With Receptacles
GFCI 20A 120V
NEMA 5-20
Power Distribution
E
Reference Information
CSA File No.: LR6837
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Nylon/polycarbonate
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
Extended Depth (4³/8") with GFCI, Flip Lids and MAX-LOC Cord Grips
Cord Grip
Body Size
Cord Length
Cord Type
Feed-Thru
Flip Lid
GFCI
Ground Continuity
Monitor
Number of
Receptacles
Receptacle
Woodhead No.
Order No.
F3 ¾"
F3 ¾"
1.83m (6.0')
1.83m (6.0')
12/3 SOOW
12/3 SOOW
No
No
Yes
Yes
Yes
Yes
No
Yes
1
1
GFCI Duplex
GFCI Duplex
3070-GFI20
3080-GFI20
130137-0156
130137-0181
Extended Depth (4³/8") with GFCI, Feed-Thru, with Flip Lids and MAX-LOC Cord Grips
Cord Grip
Body Size
Cord Length
Cord Type
Feed-Thru
Flip Lid
GFCI
Ground Continuity
Monitor
Number of
Receptacles
Receptacle
Woodhead No.
Order No.
F3 ¾"
1.83m (6.0')
12/3 SOOW
Yes
Yes
Yes
Yes
1
GFCI Duplex
3080F-GFI20
130137-0179
E-38
www.molex.com/woodhead
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber double-sided portable
outlet boxes yield the best performance for abrasion,
chemical exposure and temperature extremes
• Many non-receptacle options provide complete
flexibility to create your own solution
• Select either double C-cord clamps or MAX-LOC® strain
relief for optimum life
Series 3000 Boxes and
Coverplates, Yellow
Physical
Double-sided portable outlet box: NEo-TEX Paracril OZO
rubber
Receptacle Coverplate: Nylon, polycarbonate,
polypropylene
Cover and Receptacle Face Screws: Stainless Steel
Environmental
Rating: General industrial duty
Reference Information
UL File No.: E46237
CSA File No.: LR6837
C-Clamp
One F (X) Fitting
Power Distribution
E
Two F (X) Fittings
Standard and Extended Depth, Dual-Sided, 2 Receptacle Box
Description
Standard depth, C-clamp
Standard depth, one (F2)
Standard depth, feed-thru, two (F2)
Extended depth, C-Clamp
Extended depth, One (F3)
Extended depth, feed-thru, two (F3)
Extended depth, one (F4)
Extended depth, feed-thru, two (F4)
Cord Diameter
8.26-16.64mm
7.92-15.88mm
7.92-15.88mm
8.26-16.64mm
12.70-19.05mm
12.70-19.05mm
19.05-24.64mm
19.05-24.64mm
0.325–0.655"
0.312–0.625"
0.312–0.625"
0.325–0.655"
0.500–0.750"
0.500–0.750"
0.750–0.970"
0.750–0.970"
Box Only
Woodhead No.
3050
3059
3050F
3090
3099
3090F
3091
3091F
Box with Duplex Plates
Order No.
130137-0147
130137-0149
130137-0148
130137-0013
130137-0216
130137-0204
130137-0014
130137-0210
Woodhead No.
3000
Box with Dual Flip Lids
Order No.
130137-0087
3080
130137-0007
3080F
130137-0176
1.39" Diameter*
Description
Standard depth, C-clamp
Extended depth, C-Clamp
Extended depth, one (F3)
Extended depth, feed-thru, two (F3)
Cord Diameter
8.26-16.64mm
8.26-16.64mm
12.70-19.05mm
12.70-19.05mm
0.325–0.655"
0.325–0.655"
0.500–0.750"
0.500–0.750"
Box with Plates
Straight Blade
Woodhead No.
3001
3081
Order No.
130137-0121
130137-0008
Woodhead No.
Order No.
3005
130137-0126
3085
3085F
130137-0010
130137-0199
1.56" Diameter†
Box with Flip Lids
Locking Blade
Woodhead No.
Order No.
3086
3086F
130137-0011
130137-0006
Box with Plates
Straight Blade
Woodhead No.
3003
3083
Order No.
130137-0124
130137-0185
Box with Flip Lids
Locking Blade
Woodhead No.
Order No.
3082
130137-0009
* 15A and 20A NEMA straight blade, 15A NEMA locking
†
20A NEMA locking
www.molex.com/woodhead
E-39
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber double-sided portable
outlet boxes yield the best performance for abrasion,
chemical exposure and temperature extremes
• Many non-receptacle options provide complete
flexibility to create your own solution
• Select either double C-cord clamps or MAX-LOC® strain
relief for optimum life
Series 3000 Boxes and
Coverplates, Yellow
Physical
Double-sided portable outlet box: NEo-TEX Paracril OZO
rubber
Receptacle Coverplate: Nylon, polycarbonate,
polypropylene
Cover and Receptacle Face Screws: Stainless Steel
Environmental
Rating: General industrial duty
Power Distribution
E
Duplex receptacle
Duplex receptacle
with flip lids
Single receptacle
1.39" opening
Single receptacle
1.39" opening
with flip lids
Single receptacle
1.56" opening
Single receptacle
1.56" opening
with flip lids
Coverplate
Duplex Opening
Description
Coverplate
Woodhead
No.
3051
1.39" Diameter*
Duplex Flip Lid
Order No.
Woodhead
No.
130138-0020
3056
1.56" Diameter†
Opening
Order No.
Woodhead
No.
130138-0025
3052
Flip LId
Order No.
Woodhead
No.
130138-0022
3057
Opening
Order No.
Woodhead
No.
130138-0028
3055
Flip Lid
Order No.
Woodhead
No.
Order No.
130138-0024
3058
130138-0029
* 15 and 20A NEMA straight blade, 15A NEMA locking
†
20A NEMA locking
Blank
GFCI
Description
Coverplate
E-40
GFCI with flip lid
Blank Plate
Woodhead No.
3054
Order No.
130138-0023
GFCI clear silicone
Watertite®
GFCI Opening
Woodhead No.
3060
Order No.
130138-0030
GFCI Flip Lid
Woodhead No.
3061
Order No.
130138-0032
GFCI Clear Silicone Watertite®
Woodhead No.
3363
Order No.
130138-0048
www.molex.com/woodhead
Outlet Boxes
Super-Safeway™
Series 3000 Power Boxes, Black
Features and Benefits
• Black NEo-TEX® Paracril OZO rubber double-sided
portable outlet boxes yield the best performance for
abrasion, chemical exposure and temperature extremes
• Many receptacle and non-receptacle options provide
complete flexibility to create your own solution
• Two-piece cord-clamp Strain Relief to firmly secure
the cord as Standard, or select a MAX-LOC® cord grip
together with weather resistant flip lids for increased
protection
• Black color selected for higher UV resistance and less
dirty appearance
• High-performance SOOW cords are standard for
optimum performance
Physical
Box Housing and Plug Body: Black NEo-TEX Paracril OZO
rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Black nylon, polycarbonate,
polypropylene
For Receptacle Versions: This is still pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: Black nylon strain relief with rubber
grommet if MAX-LOC
Plug Body: Black Super-Safeway NEo-TEX Paracril OZO
rubber
E
Environmental
Rating: General industrial duty
Power Distribution
Reference Information
UL File No.: E38085
CSA File No.: LR6837
NEMA 5-15 with Receptacles
NEMA Configuration and Rating
NEMA 5-15
Description
Woodhead No.
Order No.
Standard depth cord clamp without flip lids
3000-1BLK
130137-0099
Standard depth, feed-thru with MAX-LOC without flip lids
3000F-1BLK
130137-0117
NEMA 5-20 with Receptacles
NEMA Configuration and Rating
NEMA 5-20
Description
Cord Length
Cord Type
Plug
Woodhead No.
Order No.
Extended depth cord clamp without flip lids
7.62m (25.0')
12/3 SOOW
5-15
3000-10A123BLK
130137-0091
—
None
3085-10BLK*
130137-0195
Extended depth MAX-LOC with flip lids
* UL File No.: E46237
Multiple Outlet Box
Description
Standard depth, C-clamp
Standard depth, one (F2) MAX-LOC
Standard depth, feed-thru, two (F2) MAX-LOC
Extended depth, one (F3) MAX-LOC
Extended depth, feed-thru, two (F3) MAX-LOC
Extended depth, one (F4) MAX-LOC
Extended depth, feed-thru, two (F4) MAX-LOC
www.molex.com/woodhead
Cord Diameter
8.26–16.64mm
7.92–15.88mm
7.92–15.88mm
12.7–19.05mm
12.7–19.05mm
19.05–24.64mm
19.05–24.64mm
(0.325–0.655")
(0.312–0.625")
(0.312–0.625")
(0.500-0.750")
(0.500-0.750")
(0.750-0.970")
(0.750-0.970")
Box Only, No Receptacles
Woodhead No.
Order No.
3059BLK
130137-0293
3099BLK
3090FBLK
3091BLK
3091FBLK
130137-0217
130137-0205
130137-0294
130137-0211
Box with Duplex Plates, No Receptacles
Woodhead No.
3000BLK
Order No.
130137-0113
3000FBLK
130137-0118
E-41
Outlet Boxes
Super-Safeway™
Features and Benefits
• Black NEo-TEX® Paracril OZO rubber double-sided
portable outlet boxes yield the best performance for
abrasion, chemical exposure and temperature extremes
• Black color selected for higher UV resistance and
cleaner appearance
Series 3000 Coverplates, Black
Physical
Box Housing and Plug Body: Black NEo-TEX Paracril OZO
rubber
Receptacle Coverplate: Black nylon, polycarbonate,
polypropylene
Cover and Receptacle Face Screws: Stainless Steel
Environmental
Rating: General industrial duty
Power Distribution
E
Multiple Outlet Coverplate
Description
Coverplate
E-42
Duplex Opening
Woodhead No.
3051BLK
Order No.
130138-0021
Duplex Flip Lid
Woodhead No.
3056BLK
GFCI Flip Lid
Order No.
130138-0026
Woodhead No.
3061BLK
Order No.
130138-0033
www.molex.com/woodhead
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber double-sided portable
outlet boxes yield the best performance for abrasion,
chemical exposure and temperature extremes
• Pre-wired six 20A, industrial duty, duplex receptacles on
10' centers yield long-term performance
• Duplex receptacles are color-coded for easy three-phase
identification
• All cord clamps are Safeway® nylon strain relief type
for optimum life
• Super-Safeway plug available as a ready to use power
distribution cordset
3-Phase Stringer Set
20A 125V
NEMA 5-20
Physical
Multiple Outlet Box and Plug Body: NEo-TEX Paracril OZO
rubber
Receptacles: NEMA 5-20 industrial duty duplex receptacles
Receptacle Coverplate: Nylon
Cover and Receptacle Face Screws: Stainless Steel
Cord: Black rubber 12/5 SOW
Cord Clamps: Safeway® nylon strain relief
Receptacle Coverplate: Nylon
Environmental
Rating: General industrial duty
Reference Information
UL File No.: E135568
CSA File No.: LR6837
Plug
None
L21-20
Woodhead No.
3095-000
3095-002
Power Distribution
Cord Length
9.14m (30.0')
9.14m (30.0')
E
Order No
130137-0213
130137-0214
PHASE "C"
PHASE "B"
PHASE "A"
BLUE RECEPTACLE
RED RECEPTACLE
BLACK RECEPTACLE
(H)
(H)
(H)
(N)
(G)
(N)
(G)
(N)
(G)
BLACK
RED
BLUE
BLUE
BLUE
RED
RED
BLUE (HOT)
(Z)
RED (HOT)
BLACK (HOT)
BLACK
BLACK
WHITE (NEUTRAL)
GREEN
WHITE
(W)
(G)
(H)
(N)
(G)
(N)
(G)
(N)
RED RECEPTACLE
(X)
BLACK
GREEN
(H)
(H)
(G)
www.molex.com/woodhead
RED
WHITE
GREEN
BLUE
WHITE
GREEN
BLUE RECEPTACLE
GREEN (GROUND)
GREEN
(Y)
BLACK RECEPTACLE
E-43
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• MAX-LOC® cord grip together with weather resistant
• Spring-loaded flip lids available for increased ingress
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay is an available option to protect
personnel
• Also select a ground continuity monitor light to ensure the
ground connections are proper from your power source
• High-performance SOOW cords are standard for
optimum performance
Angled Outlet and
Angled GFCI Outlet Box
Environmental
Rating: General industrial duty
Angled Outlet Box, NEMA 5-15
NEMA Configuration and Rating
NEMA 5-15
Cord Length
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
0.305m (1.0')
1.83m (6.0')
7.62m (25.0')
Cord Type
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
Flip Lid
Woodhead No.
3330L123
3330A123
3330B123
3330RE123
3330RL123
3330RA123
Yes
Yes
Yes
Order No.
130135-0281
130135-0278
130135-0279
130135-0285
130135-0287
130135-0283
Angled GFCI Outlet Box, NEMA 5-15
NEMA Configuration and Rating
TEST
TEST
RESET
Power Distribution
E
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Polycarbonate, polypropylene
For Box Only Version: Receptacles are pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
RESET
NEMA 5-15
Cord Length
0.305m
1.83m
1.83m
7.62m
7.62m
7.62m
15.24m
30.48m
(1.0')
(6.0')
(6.0')
(25.0')
(25.0')
(25.0')
(50.0')
(100.0')
Cord Diameter or Type
12.7–19.05mm (.5–.75")
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
Flip Lid
Feed-Thru
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Ground
Continuity Monitor
Yes
Yes
Yes
Woodhead No.
Order No.
3320
3320E123
3320L123
3327L123
3320A123
3327A123
3320FA123*
3320B123
3320D123
130135-0246
130135-0249
130135-0251
130135-0276
130135-0247
130135-0273
130135-0250
130135-0248
130135-0013
* Cord 6' for Feed-Thru Loadside
Angled Outlet Box, NEMA 5-20
NEMA Configuration and Rating
NEMA 5-20
E-44
Cord Length
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
1.83m (6.0')
7.62m (25.0')
15.24m (50.0')
Cord Diameter or Type
12/3 SOOW
12/3 SOOW
12/3 SOOW
12.7–19.05mm (.5–.75")
12/3 SOOW
12/3 SOOW
12/3 SOOW
Flip Lid
Yes
Yes
Yes
Yes
Woodhead No.
3332L123
3332A123
3332B123
3332R
3332RL123
3332RA123
3332RB123
Order No.
130135-0293
130135-0291
130135-0292
130135-0294
130135-0298
130135-0295
130135-0296
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• MAX-LOC® cord grip together with weather resistant
• Spring-loaded flip lids available for increased ingress
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay is an available option to protect
personnel
• Also select a ground continuity monitor light to ensure
the ground connections are proper from your power
source
• High-performance SOOW cords are standard for
optimum performance
Angled Outlet and
Angled GFCI Outlet Box
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Polycarbonate, polypropylene
For Box Only Version: Receptacles are pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
E
Angled GFCI Outlet Box, NEMA 5-20
NEMA Configuration and Rating
RESET
TEST
TEST
RESET
NEMA 5-20
Cord Length
0.305m
1.83m
7.62m
15.24m
30.48m
1.83m
1.83m
1.83m
(1.0')
(6.0')
(25.0')
(50.0')
(100.0')
(6.0')
(6.0')
(6.0')
Cord Diameter or Type
12.7–19.05mm (.5–.75")
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
12/3 SOOW
Flip Lid
Feed-Thru
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Ground Continuity
Monitor
Yes
Yes
Yes
Yes
Woodhead No.
Order No.
3322
3322E123
3322L123
3322A123
3322B123
3322D123
3324L123
3322FL123
3324FL123
130135-0256
130135-0260
130135-0263
130135-0257
130135-0258
130135-0259
130135-0268
130135-0262
130135-0015
Angled Outlet Box, NEMA L5-15
NEMA Configuration and Rating
Cord Length
Cord Type
Flip Lid
Woodhead No.
Order No.
0.305m (1.0')
12/3 SOOW
Yes
3331RE123
130135-0289
15.24m (50.0')
12/3 SOOW
Yes
3331RB123
130135-0288
NEMA L5-15
www.molex.com/woodhead
E-45
Power Distribution
Outlet Boxes
Super-Safeway™
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• MAX-LOC® cord grip together with weather resistant
• Spring-loaded flip lids available for increased ingress
protection
• Manual reset GFCI protection complete with an open
neutral sensing relay is an available option to protect
personnel
• Also select a ground continuity monitor light to ensure
the ground connections are proper from your power
source
• High-performance SOOW cords are standard for
optimum performance
Angled Outlet and
Angled GFCI Outlet Box
Environmental
Rating: General industrial duty
Angled GFCI Outlet Box
NEMA Rating
NEMA Configuration
NEMA 5-15 and
NEMA L5-15
NEMA 5-15 and
NEMA L5-15
Cord Length
Cord Type
Flip Lid
0.305m (1.0')
12/3 SOOW
Ground Continuity
Monitor
Feed-Thru
Woodhead No.
Order No.
Yes
3321E123
130135-0254
1.83m (6.0')
12/3 SOOW
Yes
3321L123
130135-0255
NEMA 5-15 and
NEMA L5-15
7.62m (25.0')
12/3 SOOW
Yes
3321A123
130135-0014
NEMA 5-15 and
NEMA L5-15
1.83m (6.0')
12/3 SOOW
Yes
3323FL123
130135-0343
TEST
TEST
RESET
RESET
Yes
Yes
Angled GFCI Outlet Box
NEMA 5-20 and
NEMA L5-20
E-46
NEMA Configuration
TEST
NEMA Rating
TEST
RESET
Power Distribution
E
Physical
Box Housing and Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Polycarbonate, polypropylene
For Box Only Version: Receptacles are pre-wired
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
RESET
Cord Length
Cord Type
Flip Lid
Woodhead No.
Order No.
1.83m (6.0')
12/3 SOOW
Yes
3325L123
130135-0272
www.molex.com/woodhead
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty, duplex receptacles yield long-term
performance
• MAX-LOC® cord grip together with weather resistant
• Spring-loaded flip lids available for increased ingress
protection
• Also select a ground continuity monitor light to ensure
the ground connections are proper from your power
source
• High-performance SOOW cords are standard for
optimum performance
Quad GFCI Outlet Box
Physical
Box Housing and Plug: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty single receptacles
Receptacle Coverplate: Polycarbonate, polypropylene
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: Nylon strain relief with rubber grommet
if MAX-LOC
Plug Body: Super-Safeway NEo-TEX Paracril OZO rubber
Environmental
Rating: General industrial duty
E
Power Distribution
Outlet Boxes
Super-Safeway™
GFCI Multiple Outlet Box
NEMA Configuration
and Rating
Amps/Hz/Volts
15A 50/60Hz 120V
NEMA 5-15
20A 50/60Hz 120V
NEMA 5-20
www.molex.com/woodhead
Cord Length
0.305m
1.83m
7.62m
1.83m
7.62m
0.305m
7.62m
0.305m
1.83m
7.62m
(1.0')
(6.0')
(25.0')
(6.0')
(25.0')
(1.0')
(25.0')
(1.0')
(6.0')
(25.0')
Ground Continuity
Monitor
Yes
Yes
Yes
Yes
Yes
Number of Receptacles
Receptacle
Woodhead No.
Order No.
3
3
3
3
3
3
3
3
3
3
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
32G15E123
32G15L123
32G15A123
32GM15L123
32GM15A123
32G20E123
32G20A123
32GM20E123
32GM20L123
32GM20A123
130135-0207
130135-0208
130135-0333
130135-0216
130135-0213
130135-0211
130135-0209
130135-0219
130135-0220
130135-0217
E-47
Outlet Boxes
Super-Safeway™
Illuminated Quad (Locator)
Outlet Box
Reference Information
CSA File No.: LR6837
E
Power Distribution
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Industrial duty receptacles yield long-term performance
• Weather-resistant flip lids for increased protection
• MAX-LOC® Stainless Steel strain relief included as
standard to provide maximum cord pull-out resistance
• High-performance SOOW cords are standard for
optimum performance
• Plug matches receptacle type for application consistency
Physical
Box Housing, Bulb Socket, Recessed Bumpers and
Plug Body: NEo-TEX Paracril OZO rubber
Receptacles: Industrial-duty nylon single receptacles
Receptacle Coverplate: Polycarbonate, polypropylene
Globe Assembly: Teflon®
Hinged Hook: Polypropylene
Cover Face Screws: Stainless Steel
Cord: Rubber 12/3 SOOW
Cord Connection: MAX-LOC strain relief with Stainless Steel
mesh, nylon compression nut with rubber grommet
Plug Body: Super-Safeway NEo-TEX Paracril OZO rubber
with nylon insert and Stainless Steel screws
Environmental
Rating: Industrial Duty
Illuminated Outlet Box
NEMA
Configuration and Rating
Amps/Hz/Volts
Cord Length
Cord Type
Cord Diameter
12.7–19.05mm (.5–.75")
NEMA 5-15
0.305m (1.0')
14/3 SOOW
15.24m (50.0')
14/3 SOOW
15A 50/60Hz 120V
0.305m (1.0')
NEMA L5-15
Woodhead No.
Order No.
4
3290-1
130135-0195
4
3290-1E143
130135-0197
4
3290-1B143
130135-0196
4
3290-3
130135-0201
4
3290-3E123
130135-0203
12.7–19.05mm (.5–.75")
4
3290-2
130135-0198
4
3290-2E143
130135-0200
12.7–19.05mm (.5–.75")
4
3290-9
130135-0204
4
3290-9E123
130135-0205
12.7–19.05mm (.5–.75")
0.305m (1.0')
NEMA 5-20
Number of
Duplex Receptacles
12/3 SOOW
14/3 SOOW
20A 50/60Hz 250V
Non-NEMA
E-48
0.305m (1.0')
12/3 SOOW
www.molex.com/woodhead
Outlet Boxes
Industrial Duty
Features and Benefits
Reference Information
UL File No.: E117594
CSA File No.: LR32159 (except for 459)
FS/FD Boxes for Surface or Recess Mounting
• Boxes molded of high-strength, non-conductive,
phenolic resin or glass-filled polyester
• Select box with a 15/20A, manual reset GFCI and cover
Environmental
to be included
Rating: Industrial duty
• Knockout openings save time and facilitate easier
installation
FS/FD Boxes and Coverplates
FS/FD Box Coverplates
• Blank standard coverplate supplied with Neoprene gasket
• Cover available with 15/20A 120V Manual Rest GFCI
• Clear/opaque GFCI cover plate with metallic support
plate to provide strength
• Clear/opaque and GFCI cover plate is silicone to provide
excellent corrosion resistance
Power Distribution
E
FS Box
Thread Diameter
½"
¾"
Knock Out Openings
2
2
Box Color
Black
Black
Box Volume (in.3)
15.6
15.6
Woodhead No.*
450 †
451†
Order No.
130128-0111
130128-0112
* Boxes do not include receptacles.
†
Not UL Listed
For an FS/FD pushbutton coverplate, see Test/Control covers for FS/FD boxes.
FD Box
Thread Diameter
½"
¾"
¾"
¾"
¾"
Knock Out Openings
2
2
2
2
2
Box Color
Gray
Gray
Gray
Gray
Gray
GFCI Cover
Yes
Yes
Box Volume (in.3)
17.3
17.3
17.3
17.3
17.3
Woodhead No.*
452
453
453GF
454
454GF
Order No.
130128-0113
130128-0115
130128-0117
130128-0118
130128-0120
* Boxes do not include receptacles.
For an FS/FD pushbutton coverplate, see Test/Control covers for FS/FD boxes
Coverplate for 3065 and 3066 Box (above)
Feed-Thru
Blank coverplate
www.molex.com/woodhead
Material
Phenolic
Color
Black
Woodhead No.
459
Order No.
130138-0004
E-49
Outlet Boxes
Super-Safeway™
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• MAX-LOC® cord grip together with weather resistant
Angled and Quad Boxes and
Coverplates
Reference Information
CSA File No.: LR6837
Physical
Box Housing and Watertite® coverplate: NEo-TEX Paracril
OZO rubber
Receptacle Coverplate: Polycarbonate, polypropylene
Cover and Receptacle Face Screws: Stainless Steel
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: General industrial duty
Power Distribution
E
3200
3300
Boxes
Cord Diameter
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
Cord Grip Body Size
F3 ¾"
F3 ¾"
Woodhead No.*
3200
3300
Order No.
130135-0185
130135-0245
* Boxes do not include receptacles.
Box with Coverplate
Cord Diameter
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
3260
Cord Grip Body Size
F3 ¾"
F3 ¾"
3263
1.56" opening
Included (2) Coverplates
Double duplex
Double duplex with flip lids
3261
1.56" opening
Woodhead No.
3210
3215
3265
3264
1.72" opening
Order No.
130135-0186
130135-0187
3262
1.72" opening
Standard Coverplate
Opening
Double Duplex
39.62mm (1.56")†
39.62mm (1.56")†1
Blank
43.69mm (1.72") ‡
43.69mm (1.72")‡
†
‡
Woodhead No.
3260
3263
3261
3265
3264
3262
Order No.
130138-0035
130138-0041
130138-0037
130138-0044
130138-0102
130138-0039
20A NEMA locking blade
30A NEMA locking blade
Grommets F3
Cord Diameter
4.75–6.35mm (0.187-0.250")
6.35–9.53mm (0.250-0.375")
9.53–11.10mm (0.375-0.437")
11.10–14.27mm (0.437-0.562")
12.70–15.88mm (0.500-0.625")
14.27–17.45mm (0.562-0.687")
15.88– 9.05mm (0.625-0.750")
17.45–20.62mm (0.687-0.812")
E-50
Color
Orange
Gray
Green
Black
Gray
Green
Orange
Yellow
Woodhead No.
00-4985
00-4986
00-4987
00-4980
00-4981
00-4982
00-4983
00-4984
Order No.
130180-0407
130180-0408
130180-0409
130180-0278
130180-0279
130180-0280
130180-0281
130180-0406
www.molex.com/woodhead
Outlet Boxes
Super-Safeway™
Angled and Quad Boxes and
Coverplates
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• MAX-LOC® cord grip together with weather resistant
• Spring-loaded flip lids available for increased ingress
protection
Physical
Box Housing and Watertite® coverplate: NEo-TEX Paracril
OZO rubber
Receptacle Coverplate: Polycarbonate, polypropylene
Cover and Receptacle Face Screws: Stainless Steel
Cord Connection: MAX-LOC nylon strain relief with rubber
grommet
Environmental
Rating: Weather Resistant
E
3300
Power Distribution
3200
3260W
3263W
1.56" opening
3261W
1.56" opening
3264W
1.72" opening
3262W
1.72" opening
3267W
Weather Resistant Coverplate
Opening
39.62mm
39.62mm
43.69mm
43.69mm
(1.56")*
(1.56")*
(1.72") †
(1.72")†
Woodhead No.
3260W
3263W
3261W
3264W
3262W
3267W
Order No.
130138-0036
130138-0042
130138-0038
130138-0043
130138-0040
130138-0046
* 20A NEMA locking blade
†
30A NEMA locking blade
Watertite Coverplate
Flip Lid
Yes
Woodhead No.
3266
Order No.
130138-0045
Note: Use with NEMA 5-15 or NEMA 5-20 straight blade
www.molex.com/woodhead
E-51
Outlet Boxes
Safeway®
Low Profile Non-Metallic
Outlet Box
15A 125V
NEMA 5-15
Features and Benefits
• Rigid, self-extinguishing vinyl box and nylon cover in
Safety Yellow® for easy identification
• Industrial duty duplex receptacle yields long-term
performance
• Select the feed-thru option for more available power
access within an area
Reference Information
CSA File No.: LR6837 (442 only)
Physical
Right Angle Plug Body: Nylon
Housing: Vinyl
Receptacles: Industrial duty duplex
Cover and Receptacle Face Screws: Stainless Steel
Cord: SPT 300V
Environmental
Rating: Commercial duty
Power Distribution
E
Cord Length
7.62m (25.0')
E-52
Cord Type
None
None
SPT 300V
None
Feed-Thru
Yes
Number of Receptacles
1
1
1
Box Only
Receptacle
Duplex
Duplex
Duplex
Box Only
Woodhead No.
440
440F
442
446
Order No.
130138-0072
130138-0073
130136-0070
130138-0075
www.molex.com/woodhead
Multi-Tap Strip
15A & 20A 125V
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet box yields
the best performance for abrasion, chemical exposure
and temperature extremes
• Three industrial duty single receptacles yield long-term
performance
• GFCI protection complete with an open neutral sensing
relay is an available option to protect personnel
• Internal brass ground and neutral bus bar provides safe
continuity
• Double C-clamp strain relief provides excellent hold to
keep cord in place at this critical juncture
• High performance SOOW cords are standard for
optimum performance
Physical
Box Housing, Coverplate and Plug Body: NEo-TEX Paracril
OZO rubber
Receptacles: Industrial duty duplex
Ground and Neutral Bus: Brass Bar
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 14/3 or 12/3 SOOW cord
Double-C Cord Clamp: Nylon material, will accept .325.655” cord diameter
Environmental
Rating: Industrial duty
E
Reference Information
UL File No.: E10176 or E38085
CSA File No.: LR6837
NEMA Configuration
and Rating
NEMA 5-15
NEMA 5-20
NEMA 6-15
NEMA L5-15
NEMA L5-20
Receptacle/Plug Rating
Cord Length
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 2W 20A/125V
2P 2W 20A/125V
2P 2W 20A/125V
2P 2W 20A/125V
2P 3W 15A/250V
2P 3W 15A/250V
2P 3W 15A/250V
2P 3W 15A/250V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 15A/125V
2P 3W 20A/125V
2P 3W 20A/125V
2P 3W 20A/125V
2P 3W 20A/125V
Cover assembly *
Box only
Box only, 3-phase †
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
15.24m (50.0')
7.62m (25.0')
Box only
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
Box only
7.62m (25.0')
7.62m (25.0')
15.24m (50.0')
Box only
7.62m (25.0')
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
Box only
15.24m (50.0')
7.62m (25.0')
15.24m (50.0')
3P 3W 15A/125V/10A/250V
Box only
Non-NEMA
3P 3W 15A/125V/10A/250V
15.24m (50.0')
Non-NEMA
3P 3W 20A/125V/250V
3P 3W 20A/125V/250V
3P 3W 20A/125V/250V
3P 3W 20A/125V/250V
Box only
7.62m (25.0')
15.24m (50.0')
7.62m (25.0')
Cord Type
Woodhead No.
Order No
14/3 SOOW
12/3 SOOW
12/3 SOOW
40-3660
31593
315933
31593A143
31593A123
31593B143
31593B123
31593A143IN
31565
31565A143
31565A123
31565B123
31594
31594A143
31594A123
31594B123
32547
32547A143
32547B143
32547A123
32547B123
32747
32747B143
32747A123
32747B123
130138-0069
130136-0033
130136-0034
130136-0036
130136-0035
130136-0039
130136-0038
130136-0037
130136-0025
130136-0029
130136-0027
130136-0030
130136-0042
130136-0044
130136-0043
130136-0045
130136-0046
130136-0048
130136-0049
130136-0047
130136-0001
130136-0058
130136-0061
130136-0059
130136-0060
32553
130136-0050
12/3 SOOW
32553B123
130136-0052
14/3 SOOW
14/3 SOOW
12/3 SOOW
32708
32708A143
32708B143
32708A123
130136-0053
130136-0055
130136-0057
130136-0054
14/3 SOOW
12/3 SOOW
14/3 SOOW
12/3 SOOW
14/3 SJOW
14/3 SOOW
12/3 SOOW
12/3 SOOW
14/3 SOOW
12/3 SOOW
12/3 SOOW
14/3 SOOW
14/3 SOOW
12/3 SOOW
12/2 SOOW
GFCI
Yes—Inline
GFCI Reset
Manual
Open Neutral Relay
Yes
* Cover assembly only
†
Outlets wired for 3-phase input; UL File No.: E135568
www.molex.com/woodhead
E-53
Power Distribution
Outlet Boxes
Super-Safeway™
Outlet Boxes
Safeway®
Features and Benefits
• Two-piece nylon body in Safety Yellow® for easy
identification
• Three industrial duty duplex receptacles yield long-term
performance
• Circuit breaker protection is standard with manual reset
to prevent an overload condition
• GFCI protection complete with an open neutral relay
is an available option within the right angle plug to
protect personnel
• Select the option of surge protection as needed to
protect electronic equipment
• Internal Brass ground bus bar provides safe continuity
• Grommet style strain relief provides excellent hold to
keep cord in place at this critical juncture
Multi-Tap Strip Cordset
15A 125V
NEMA 5-15
E
Physical
Right Angle Plug Body: Nylon
Multi-Tap Strip Housing: Nylon
Receptacles: Industrial duty duplex
Ground Bus: Brass bar
Cover and Receptacle Face Screws: Stainless Steel
Cord: 14/3 SOOW
Cord Clamp: Heavy-duty MAX-LOC® strain relief
Environmental
Duty Type: General industrial/commercial duty
Power Distribution
Reference Information
UL File No.: E93230
CSA File No.: LR6837
Cord Length
2.44m (8.0')
7.62m (25.0')
2.44m (8.0')
E-54
GFCI
GFCI Reset
Open Neutral Relay
Yes
Manual
Yes
Over Current Protection
Yes
Woodhead No.
3510
3510A143
3510PLG
Order No
130136-0065
130136-0066
130136-0067
www.molex.com/woodhead
Multiple Outlet Box, Series 3400
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Choose three or four industrial duty, duplex receptacles
yield long-term performance
• MAX-LOC® grommet-style strain relief provides
excellent hold to keep cord in place at this critical
juncture
• Weather resistant spring-loaded flip lids available for
increased ingress protection
• High performance SOOW cord is available as a readyto-use product
Physical
Box Housing and plug: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty duplex receptacles
Receptacle Coverplate: Rubber coated Steel
Cover and Receptacle Face Screws: Stainless Steel
Cord: Rubber 12/3 SO0W
Cord Connection: Nylon strain relief with rubber grommet
MAX-LOC
Cord Range .500 to .875"
Environmental
Rating: General industrial duty
E
Reference Information
UL File No.: E135568 (except for 3400-20A123)
Multiple Outlet Box, Single Side, 3 or 4 Receptacles
NEMA Configuration
and Rating
Amps/Hz/Volts
Cord Length
Cord Type
Flip Lid
Yes
15A 50/60Hz 120V
NEMA 5-15
Yes
7.62m (25.0')
12/3 SO0W
20A 50/60Hz 120V
NEMA 5-20
www.molex.com/woodhead
Yes
Yes
Yes
Number of
Receptacles
Receptacle
4
4
4
4
4
4
4
3
4
4
3
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Duplex
Toggle Switch
Circuit Breaker
Yes
Yes
Yes
Yes
Yes
Yes
Cord Diameter
12.70–22.23mm
12.70–22.23mm
12.70–22.23mm
12.70–22.23mm
12.70–22.23mm
(.500–.875")
(.500–.875")
(.500–.875")
(.500–.875")
(.500–.875")
12.70–22.23mm
12.70–22.23mm
12.70–22.23mm
12.70–22.23mm
12.70–22.23mm
(.500–.875")
(.500–.875")
(.500–.875")
(.500–.875")
(.500–.875")
Woodhead No.
Order No.
3400
3400L
3410
3410L
3400-20
3400-20A123
3410-20
3413-20
3400L-20
3410L-20
3413L-20
130138-0049
130138-0053
130138-0057
130138-0097
130138-0050
130138-0051
130138-0058
130138-0061
130138-0054
130138-0059
130138-0096
E-55
Power Distribution
Outlet Boxes
Super-Safeway™
Outlet Boxes
Super-Safeway™
Multiple Outlet Box, Series 3100
Physical
Box Housing and plug: NEo-TEX Paracril OZO rubber
Receptacles: Industrial duty duplex receptacles
Receptacle Coverplate: Steel
Cover and Receptacle Face Screws: Stainless Steel
Cord Connection: Nylon strain relief with rubber grommet
MAX-LOC
Cord Range .500 to .937"
Environmental
Rating: General industrial duty
Reference Information
CSA File No.: LR6837
E
Power Distribution
Features and Benefits
• NEo-TEX® Paracril OZO rubber portable outlet boxes
yield the best performance for abrasion, chemical
exposure and temperature extremes
• Six industrial duty, duplex receptacles yield long-term
performance
• Six heavy-duty, thermal magnetic, weather-resistant
circuit breakers (one to protect each duplex outlet)
• MAX-LOC® grommet-style strain relief provides
excellent hold to keep cord in place at this critical
juncture
• Can be wired for 3-phase power source
Multiple Outlet Box, Dual-Sided, 6 Receptacle
Cord Diameter
12.7–23.8mm (.50–.937")
22.23–31.75mm (.875–1.250")
Cord Grip Body Size
F4 1"
F5 1 1/4"
Number of Receptacles
6
6
Receptacle*
20A, Duplex
20A, Duplex
Woodhead No.
3123
3129
Order No.
130135-0177
130135-0181
* (2) Black, (2) Red, (2) Blue
E-56
www.molex.com/woodhead
Outlet Boxes
Super-Safeway™
Pendant Quad Tap
15 or 20A 125V
NEMA 5-15 or 5-20 or L5-15
Features and Benefits
• Yellow or black NEo-TEX® Paracril OZO rubber portable
Pendant Quad Tap yields the best performance for
abrasion, chemical exposure and temperature extremes
• Pre-wired, four industrial duty, single receptacles
recessed within a bell-shaped housing for indoor or
outdoor use
• Receptacles available in an optional transparent, neon
lamp configuration for easy power on identification
• Grommet style strain relief provides excellent hold to
keep cord in place at this critical juncture
• Hanging support bracket included for ease of installation
Physical
Pendant Housing: Super-Safeway NEo-TEX Paracril OZO
rubber
Receptacles: Nylon industrial duty single receptacles
Cover Face Screws and Washer: Stainless Steel
Cord Clamp: Heavy duty MAX-LOC F3 ¾" strain relief
Allows Cord Diameter Range: .437 to .562"
Hanging Support Bracket: Steel Zinc-plated
Illumination Source: Neon
Optional Wire Mesh Grip: Nylon
Environmental
Rating: General industrial duty
Reference Information
CSA File No.: LR6837 (except for 34047L and 34547)
Receptacle Light*
Yes
NEMA 5-15
Housing Color
Black
Yes
NEMA 5-20
Yellow
Cord Grip Mesh
Non-metallic
Non-metallic
None
None
Woodhead No.
09106
09107
34047
34047L
Order No
130135-0076
130135-0078
130135-0303
130135-0304
None
34048
130135-0309
None
34547
130135-0312
Power Distribution
NEMA Configuration and Rating
E
NEMA L5-15
* Has transparent outlets with neon lamp for "On" indication.
www.molex.com/woodhead
E-57
Technical Information
Outlet Boxes
Watertite®
In-Line GFCI
Power Distribution
E
Dual-Sided GFCI Duplex FD Outlet Box
E-58
www.molex.com/woodhead
Technical Information
Outlet Boxes
Watertite®
Watertite Quad Outlet Box
Power Distribution
E
Illuminated Quad Outlet Box
www.molex.com/woodhead
E-59
Technical Information
Outlet Boxes
Watertite®
GFCI Four-sided Outlet Box
Power Distribution
E
Watertite GFCI Pendant Drop
E-60
www.molex.com/woodhead
Technical Information
Outlet Boxes
Watertite®
FS Box
11.3 (4.44)
8.2 (3.25)
cm
(inch)
E
8.3 (3.28)
Power Distribution
4.8
7.0
(1.88) (2.75)
6.5
(2.55)
FD Box
11.6 (4.59)
cm
(inch)
8.2 (3.25)
8.3 (3.28)
4.8 8.0
(1.88) (3.13)
#6-32 threads (6)
8.0
(3.13)
www.molex.com/woodhead
E-61
Technical Information
Outlet Boxes
Industrial
Power Distribution
E
Standard and Extended Outlet Box with Cord Clamp
Dimension A
Interior Box Dimensions
Height
Width
Depth
8.59cm (3.38")
6.68cm (2.63")
4.45cm (1.75")
7.62cm (3.00")
11.13cm (4.38")
6.68cm (2.63")
4.45cm (1.75")
9.22cm (3.63")
Woodhead Series No.
3000
3001
3050
3080
3081
3090
Standard and Extended Outlet Box with MAX-LOC®
Dimension A
E-62
Interior Box Dimensions
Height
Width
Depth
8.6cm (3.38")
6.7cm (2.63")
4.4cm (1.75")
7.6cm (3.00")
11.13cm (4.38")
6.7cm (2.63")
4.4cm (1.75")
9.2cm (3.63")
Woodhead Series No.
3005
3059
3085
3086
3099
www.molex.com/woodhead
Technical Information
Outlet Boxes
Industrial
Power Distribution
E
Standard and Extended Feed-Thru Outlet Box with MAX-LOC®
Dimension A
Interior Box Dimensions
Height
Width
Depth
8.6cm (3.38")
6.7cm (2.63")
4.4cm (1.75")
7.6cm (3.00")
11.13cm (4.38")
6.7cm (2.63")
4.4cm (1.75")
9.2cm (3.63")
Woodhead Series No.
3000F
3001F
3003F
3050F
3006F
3008F
3080F
3081F
3083F
3085F
3086F
3088F
3090F
Extended GFCI Outlet Box with MAX-LOC
www.molex.com/woodhead
E-63
Technical Information
Outlet Boxes
Industrial
Angled Outlet Boxes
Power Distribution
E
Quad Outlet Box
Low Profile Outlet Box
E-64
www.molex.com/woodhead
Technical Information
Outlet Boxes
Industrial
Super-Safeway™ Multi-Tap and Strip
Power Distribution
E
Safeway® Multi-Tap and Strip
www.molex.com/woodhead
E-65
Technical Information
Outlet Boxes
Industrial
Multiple Outlet Box, Series 3400
Power Distribution
E
Multiple Outlet Box, Series 3100
Pendant Quad-Tap
E-66
www.molex.com/woodhead
Test/Control
TEST/CONTROL
Push-Button Pendant Products . . . . . . . . . . . . .
Watertite® Pushbutton Pendant Station . . . . . . .
Pushbutton Swinger Switch . . . . . . . . . . . . . . . .
Super-Safeway™ Pushbutton Pendant Station . . .
Super-Safeway Pendant Covers for FS/FD Box . .
Super-Safeway Pushbutton Pendant Enclosures .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
F
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
F-4
F-5
F-6
F-7
F-8
F-9
Testers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-11
Receptacle Circuit Tester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-12
Receptacle Tension Tester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-12
Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-13
www.molex.com/woodhead
F-1
TEST/CONTROL
PUSH-BUTTON PENDANT PRODUCTS Ergonomically designed
hand-held control boxes; available in a wide range of industrial-grade
pendants and enclosures that feature compact Watertite® nylon or durable NEo
¯TEX®
rubber construction.
TESTERS3HUIRUPEDVLFYHULÀFDWLRQDQGPXOWLIXQFWLRQZLUHWHVWLQJZLWK
compact, simple-to-use devices that are a must for any toolbox.
PUSH-BUTTON
PENDANT PRODUCTS
WOODHEAD® PUSH-BUTTON PENDANT PRODUCTS ARE ERGONOMICALLY
DESIGNED HAND-HELD CONTROL BOXES, AVAILABLE IN A WIDE RANGE OF
INDUSTRIAL-GRADE PENDANTS AND ENCLOSURES THAT FEATURE COMPACT
WATERTITE® NYLON OR DURABLE NEďTEX® RUBBER CONSTRUCTION
Watertite pendant stations are rugged enough to withstand the most hostile industrial
HQYLURQPHQWV\HWHUJRQRPLFDOO\GHVLJQHGWRÀWDQRSHUDWRU·VKDQG6XSHU6DIHZD\® pushbutton
pendant stations feature NEo
¯TEX rubber construction to protect buttons from industrial
elements. Weather-resistant pushbutton covers transform your F.S./F.D. box into a pendant
station. Constructed of NEo
¯TEX rubber, the cover includes integral push buttons that can be
wired normally-open or normally-closed.
FEATURES AND
BENEFITS
APPLICATIONS
Ergonomic
design
Increased user comfort and satisfaction
Available in Watertite and
Super-Safeway constructions
Suitable for a wide range of applications
NEo
¯TEX rubber
construction
Optimum resistance to the effects of
heat, cold, abrasion and chemicals
• Automated assembly equipment
• Automatic doors
• Automation controllers
• Automation equipment
• Automotive plants
• Workstations
Features and Benefits
• Lightweight, polycarbonate pendant enclosure is double
insulated, UV stabilized and chemically resistant to
provide long life
• Ergonomic design fits easily in the palm of your hand
for greater comfort and reduced fatigue
• Single and two-speed button pairs have mechanical
interlocks for improved safety
• The common circuit is pre-wired to save installation time
• An elastic, chemically resistant gasket ensures a tight
seal between front and back
• MAX-LOC® strain relief included as standard to provide
maximum cord pull-out resistance
• Legend sheet included
Pendant Station
Reference Information
UL File No.: E70531
5052
Number of Speeds
2
2
2
4
4
4
4
6
6
6
6
8
8
8
8
8
1
N/A
N/A
1
1
1
2
1
1
1
2
1
1
1
2
3
Environmental
Rating: Wet industrial duty
NEMA Enclosure Rating: NEMA 4X, IP56
Temperature Rating: -10 to 150°F
F
5054
Number of Buttons
Physical
Pendant Housing: Polycarbonate
Switches: 3A, 125/250V
Single and Two-Speed Switch Pairs: Mechanically
interlocked
Cover Face Screws: Stainless Steel
Gasket and O-Ring Seal: Rubber
Cord Connection; MAX-LOC nylon strain relief with rubber
grommet
Cord Grip Body Size: F3 ¾"
Cord Diameter: 9.53 to 20.63mm (.375 to .812")
5056
5058
M = Momentary;
N = Maintained
M
N
M
N
M
N
M
M
N
M
M
Woodhead No.*
Order No.
5052-1
5052-M
5052-N
5054-1
5054-1M
5054-1N
5054-2
5056-1
5056-1M
5056-1N
5056-2M
5058-1
5058-1M
5058-1N
5058-2M
5058-3M
130126-0243
130126-0246
130126-0247
130126-0248
130126-0249
130126-0250
130126-0251
130126-0256
130126-0257
130126-0258
130126-0260
130126-0262
130126-0263
130126-0264
130126-0266
130126-0268
* Momentary and Maintained refer to On/Off buttons only in first and second positions. Without an “M” or “N,” no On/Off is present.
Dimensions
Accessory/Replacement Parts†
Description
2-position selector switch‡
3-position selector switch—NO In Center ‡
2-button single speed switch—1 NO
2-button single speed switch—2 NO
2-button single speed switch—NO/NC
2-button 2-speed switch—1 NO
2-button switch Momentary On/Off—NO/NC
2-button switch Maintained On/Off—NO/NC
Pilot light, green, shroud mount
Pilot light, red, shroud mount
Pilot light, white, shroud mount
Red mushroom On/Off switch‡
Button cover, Black high ambient chemical resistance
Button cover legend sheet
†
‡
Woodhead No.
505SS-2
505SS-3NO
505SW-1
505SW-12NO
505SW-1NONC
505SW-2
505SW-M
505SW-N
505PL-GS
505PL-RS
505PL-YS
505B-RM
505BC-C
505BC-L
Order No.
130126-0025
130126-0027
130126-0028
130126-0029
130126-0030
130126-0031
130126-0033
130126-0034
130126-0021
130126-0022
130126-0023
130126-0012
130126-0008
130126-0009
Length with
MAX-LOC
18.8cm
24.9cm
30.7cm
36.8cm
7.4"
9.8"
12.1"
14.5"
Width
Depth
Woodhead Series No.
8.9cm 3.5"
5.8cm 2.3"
5052
5054
5056
5058
See Strain Relief Grips for wiring device/enclosure boxes for additional support
Requires larger hole in enclosure if done as a retrofit
www.molex.com/woodhead
Test/Control
Pushbuttons
Watertite®
F-5
Pushbuttons
Watertite®
Test/Control
Pendant Station
FF
Features and Benefits
• Lightweight, polycarbonate pendant enclosure is double
insulated, UV stabilized and chemically resistant to
provide long life
• Ergonomic design fits easily in the palm of your hand
for greater comfort and reduced fatigue
• Single speed, double-throw, momentary contacts can
be wired either normally-open or normally-closed for
complete application flexibility
• An elastic, chemically resistant gasket ensures a tight
seal between front and back
• MAX-LOC® strain relief included as standard to provide
maximum cord pull-out resistance
Physical
Pendant Housing: Nylon
Switches: Single-speed, double throw, momentary type,
fine sliver, SPDT-DB
Cover Face Screws: Stainless Steel
Pushbutton Diaphragm Seal: Rubber
Cover Gasket Seal: Neoprene
Cord Connection; MAX-LOC nylon strain relief with rubber
grommet
Nameplate Set: 35 self-adhesive, pre-printed labels on one
acetate sheet
Cord Grip Body Size: F2 ½"
Cord Diameter: 7.92 to 15.88mm (.312 to .625")
Reference Information
UL File No.: See switch rating
CSA File No.: LR32400
Environmental
Rating: Wet industrial duty
NEMA Enclosure Rating: NEMA IP67
Number of Buttons
2
2
Body Color
Yellow
Black
Woodhead No.
4052
4052BLK
Order No.
130126-0231
130126-0232
Switch Characteristics
Dimensions
Contact Arrangement: Single speed SPDT-DB
Continuous
Control
10A @ 125 to 250V AC*
1/2 HP @ 125V AC*
3/4 HP @ 250V AC*
1 HP @ 125V AC or 250V AC
10A 28V DC Inductive
15A 28V DC Resisitive
120VAC 60A Make 6A Break
240VAC 30A Make 3A Break
A-300 Contact rating Per U.L. Std. 508
* UL listed and CSA certified
Replacement Parts†
Description
Replacement switch—one speed, momentary
Rubber switch diaphragm
Legend kit—labels, function pushbutton station
†
Woodhead No.
42-2190
00-5150
31-5800
Order No.
130186-0318
130180-0468
130228-0721
See Strain Relief Grips for wiring device/enclosure boxes for additional support
Pushbuttons
Swinger Switch
Mini-Change®
Features and Benefits
• One-button, momentary contact switch provides quick
and easy on/off actuation
• Durable weather-resistant rubber housing protects
switch against harmful elements
Electrical
Voltage: 120V AC/250V AC
Physical
Housing: Nylon
Reference Information
UL File No.: E70531
CSA File No.: LR44136
Throw
Sngle
Single
Double
Single
F-6
Pole Position
Normally open
Normally closed
Normally open/Normally closed
Normally open
Woodhead No.
55501
55502
55503
55504
Order No.
130023-0001
130023-0002
130023-0003
130023-0004
www.molex.com/woodhead
Features and Benefits
• Unique, industry-leading, NEo-TEX® Paracril OZO
rubber pendant stations yield the best performance for
abrasion, chemical exposure and temperature extremes
• Ergonomic design fits easily in the palm of your hand
for greater comfort and reduced fatigue
• Housing to cover fitted with tongue and groove design
for best sealing performance
• Pushbuttons are not exposed beyond enclosure face to
prevent unwanted activation and button protection
• Single and two-speed buttons can be wired as an
electrical interlock for improved safety
• An elastic, chemically resistant gasket ensures a tight
seal between front and back
• MAX-LOC® strain relief included as standard to provide
maximum cord pull-out resistance
• Built-in ground connection saves installation time
• Legend sheet included
• All buttons are momentary, except for the E-Stop which
is maintained
Pendant Station
4024
4025ES
Number of Buttons
2
2
2
3
3
3
4
4
4
6
6
6
8
8
8
Cord Grip Body Size*
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F3 ¾"
F4 1"
F3 ¾"
F4 1"
F3 ¾"
F4 1"
Number of Speeds
1
1
2
1
1
2
1
1
2
1
1
2
1
1
2
Emergency Stop
Yes
Yes
Yes
Yes
Yes
Reference Information
CSA certified switches: LR32400
Physical
Pendant Cover and Housing: : NEo-TEX Paracril OZO rubber
Messenger Cable Bracket and Cover Screws: Steel Zinc-plated
Gasket and O-Ring Seal: Neoprene
Cord Connection; MAX-LOC nylon strain relief with rubber
grommet
Nameplate Set: 35 self-adhesive, pre-printed labels on one
acetate sheet
Environmental
Rating: 4022—Rain Tight
4024, 4026, 4028—Testing pending
F
Cord Diameter
12.70–17.45mm (.500–.687")
12.70–17.45mm (.500–.687")
12.70–17.45mm (.500–.687")
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
12.70–19.05mm (.500–.750")
14.27–20.63mm (.562–.812")
17.45–23.80mm (.687–.937")
14.27–20.63mm (.562–.812")
17.45–23.80mm (.687–.937")
14.27–20.63mm (.562–.812")
17.45–23.80mm (.687–.937")
Woodhead No.
4022
4022ES
4022-2
4023
4023ES
4023-2
4024
4024ES
4024-2
4026
4026ES
4026-2
4028
4028ES
4028-2
Order No.
130126-0199
130126-0204
130126-0200
130126-0207
130126-0209
130126-0208
130126-0212
130126-0214
130126-0213
130126-0218
130126-0222
130126-0219
130126-0036
130126-0226
130126-0224
* F3 nut is non-metalic. F4 nut is metallic.
Switch Ratings
Dimensions
Single Speed
20A @ 125 to
250V AC
Two Speed
10A @ 125 or
250V AC
Maintain
25A @ 24V DC
1/3 HP @ 125V
8A @ 250V AC
0.5A @ 250V DC
1/2 HP @ 250V
1 HP @ 125 or
250V AC
Pendant Pushbutton Station
16A @ 125V AC
1 HP @ 125V AC
2 HP @ 250V AC
Length
Width
Depth
Woodhead No.
Order No.
14.9cm (5.88")
7.6cm (3.00")
6.7cm (2.66")
19.0cm (7.50")
7.6cm (3.00")
6.7cm (2.66")
23.1cm (9.13")
7.6cm (3.00")
6.7cm (2.66")
27.3cm (10.75")
7.6cm (3.00")
6.7cm (2.66")
40.0cm (15.75")
7.6cm (3.00")
6.7cm (2.66")
46.3cm (18.25")
7.6cm (3.00")
6.7cm (2.66")
4022
4023
4022ES
4024
4023ES
4026
4024ES
4028
4026ES
4028ES
130126-0199
130126-0207
130126-0204
130126-0212
130126-0209
130126-0218
130126-0214
130126-0036
130126-0222
130126-0226
Replacement Gasket Kits
Number of Buttons
2
3
4
6
8
Woodhead No.
4022G
4023G
4024G
4026G
4028G
Order No.
130126-0205
130126-0210
130126-0216
130126-0223
130126-0227
Replacement Switches
Description
Red mushroom on/off switch
4020 replacement switch
4020-2 replacement switch, 2-speed
Legend Kit
Emergency Stop
Yes
Enclosure Rating
NEMA 4X
Number of Speeds
1
2
Woodhead No.
505B-RM
4020
4020-2
71-4220
Order No.
130126-0012
130128-0100
130128-0101
130203-1295
Replacement Covers
Description
Replacement cover 4022
Replacement cover 4023
Replacement cover 4024
Replacement cover 4026
Replacement cover 4028
www.molex.com/woodhead
Number of Buttons
2
3
4
6
8
Woodhead No.
00-3063
00-3823
00-3073
00-3083
00-0463
Test/Control
Pushbuttons
Super-Safeway™
Order No.
130128-0079
130128-0082
130128-0080
130128-0081
130128-0078
F-7
Pushbuttons
Super-Safeway™
Test/Control
Pushbutton
Covers for FS/FD Boxes
Features and Benefits
• Unique, industry-leading, NEo-TEX® Paracril OZO rubber
pendant covers yield the best performance for abrasion,
chemical exposure and temperature extremes
• Switches can be wired as normally open or normally
closed for flexibility of application
• The cover has integral pushbuttons which operate
mechanically coupled pushbutton contact blocks for
time-saving installation
• Switches function as single speed or two speed
momentary contact operation for flexibility of application
• Single speed function can be wired as electrically
interlocked for improved safety
• Switches mounted on molded-in steel mounting plate
• Legend sheet included
FF
Physical
Pendant Cover: NEo-TEX Paracril OZO rubber
Nameplate Set: 35 self-adhesive, pre-printed labels on one
acetate sheet
Environmental
Rating: Indoor damp location
Switch Ratings
Single Speed
20A @ 125 to480VAC
5A @ 600VAC
1 HP @ 125VAC
2 HP @ 250VAC
Two Speed
10A @ 125 or 250VAC
1/3 HP @ 125V
1/2 HP @ 250V
Woodhead No.
4032
4032-2
4032BLK
Order No.
130126-0228
130126-0229
130126-0230
Covers for FS/FD Boxes*
Color
Yellow
Yellow
Black
Number of Speeds
1
2
1
* For FS/FD boxes, see Power Distribution FS/FD Boxes and Coverplates
F-8
www.molex.com/woodhead
Features and Benefits
• Unique, industry-leading, NEo-TEX® Paracril OZO rubber
pendant enclosures yield the best performance for
abrasion, chemical exposure and temperature extremes
• Accepts industry standard 30mm and 22mm pushbutton
and pilot devices
• Protective ribs provide recess for pushbutton operators
and pilot lights preventing unintended operation and
device protection
• Metal suspension bracket allows for messenger cable to
support pendant and provide longer operational life of
the system
• MAX-LOC® strain relief included as standard to provide
maximum cord pull-out resistance
• Internal ground strap common to all pilot devices and
cord entry provides for safe electrical operation
Pendant Pushbutton Enclosures
Reference Information
CSA File No.: LR32400
Physical
Pendant Housing and Cover: NEo-TEX Paracril OZO rubber
Messenger Cable Bracket and Cover Screws: Steel Zinc-plated
Cord Connection; MAX-LOC nylon Strain Relief with rubber
grommet
Cover to Housing Screws: Stainless Steel
Ground Strip: Brass
Environmental
Rating: Industrial duty
Test/Control
Pushbuttons
Super-Safeway™
F
Super-Safeway Pushbutton Enclosure
Dimensional data for enclosure with 2 openings
Dimensional data for enclosure with 2 openings
Dimensional data for enclosure with 3 openings
Dimensional data for enclosure with 3 openings
Dimensional data for enclosure with 4 openings
Dimensional data for enclosure with 4 openings
Dimensional data for enclosure with 5 openings
Dimensional data for enclosure with 5 openings
Dimensional data for enclosure with 6 openings
Dimensional data for enclosure with 6 openings
Dimensional data for enclosure with 7 openings
Dimensional data for enclosure with 7 openings
Dimensional data for enclosure with 8 openings
Dimensional data for enclosure with 8 openings
Opening Size
30mm
22mm
30mm
22mm
30mm
22mm
30mm
22mm
30mm
22mm
30mm
22mm
30mm
22mm
A
B
C
D
38.7cm (15.25")
38.7cm (15.25")
15.9cm (6.25")
27.3cm (10.75")
8.9cm (3.50")
38.7cm (15.25")
54.6cm (21.50")
Woodhead No.
4002
4202
4003
4203
4004
4204
4005
4205
4006
4206
4007
4207
4008
4208
Order No.
130126-0186
130126-0235
130126-0187
130126-0236
130126-0188
130148-0072
130126-0189
130148-0073
130126-0190
130126-0237
130126-0192
130126-0238
130126-0193
130126-0239
Dimensional Data for Enclosure Cross Section
Cross Section
A
B
C
D
E
7.3cm (2.88")
6.4cm (2.5")
6.2cm (2.44")
2.9cm (1.13")
0.64cm (.25")
F
0.48cm (.187") radius
Dimensional Data for Enclosure
Super-Safeway Pushbutton Enclosure
Dimensional data for enclosure with 2 openings
A
15.9cm (6.25")
B
8.9cm (3.50")
Dimensional data for enclosure with 3 or 4 openings
27.3cm (10.75")
8.9cm (3.50")
4003 to 4004/4203 to 4204
Dimensional data for enclosure with 5 or 6 openings
38.7cm (15.25")
8.9cm (3.50")
4005 to 4006/4205 to 4206
Dimensional data for enclosure with 7 or 8 openings
54.6cm (21.50")
8.9cm (3.50")
www.molex.com/woodhead
C
27.3cm (10.75")
D
27.3cm (10.75")
Woodhead No.
4002/4202
4007 to 4008/4207 to 4208
F-9
Pushbuttons
Super-Safeway™
Test/Control
Pendant Pushbutton Enclosures
• Unique, industry-leading, NEo-TEX® Paracril OZO rubber
pendant enclosures yield the best performance for
abrasion, chemical exposure and temperature extremes
• Accepts industry standard 30mm and 22mm pushbutton
and pilot devices
• Protective ribs provide recess for pushbutton operators
and pilot lights preventing unintended operation and
device protection
• Metal suspension bracket allows for messenger cable to
support pendant and provide longer operational life of
the system
• MAX-LOC® strain relief included as standard to provide
maximum cord pull-out resistance
• Internal ground strap common to all pilot devices and
cord entry provides for safe electrical operation
Physical
Pendant Housing and Cover: NEo-TEX Paracril OZO rubber
Messenger Cable Bracket and Cover Screws: Steel Zinc-plated
Cord Connection; MAX-LOC nylon Strain Relief with rubber
grommet
Cover to Housing Screws: Stainless Steel
Ground Strip: Brass
Environmental
Rating: Wet industrial duty
Reference Information
CSA File No.: LR32400
FF
Features and Benefits
Dimensional Data for Enclosure
Super-Safeway Pushbutton Enclosure
Dimensional data for enclosure with 9 openings
Dimensional data for enclosure with 9 openings
Dimensional data for enclosure with 10 openings
Dimensional data for enclosure with 10 openings
Dimensional data for enclosure with 11 openings
Dimensional data for enclosure with 12 openings
Dimensional data for enclosure with 12 openings
Opening Size
30mm
22mm
30mm
22mm
30mm
30mm
22mm
A
B
66.0cm (26.00")
C
D
Woodhead No.
4009
4209
4010
4210
4011
4012
4212
27.3cm (10.75")
8.9cm (3.50")
77.5cm (30.50")
38.7cm (15.25")
38.7cm (15.25")
Order No.
130126-0195
130126-0240
130126-0196
130126-0241
130126-0197
130126-0198
130126-0242
Dimensional Data for Enclosure Cross Section
Cross Section
A
5.7cm (2.25")
F-10
B
3.1cm (1.22")
for 30mm models,
2.2cm (.866") for
22mm models
C
D
E
F
2.9cm (1.13")
10.8cm (4.25")
4.4cm (1.75")
.32cm (.125")
inside radius
www.molex.com/woodhead
TESTERS
WOODHEAD®
TESTERS
PERFORM
BASIC-VERIFICATION
AND
MULTI-
FUNCTION WIRE TESTING WITH COMPACT, SIMPLE-TO-USE DEVICES THAT
ARE A MUST FOR ANY TOOLBOX
Woodhead testers are small devices with testing abilities that include reverse polarity, openground, open-neutral, open-hot, hot-and-ground-reversed, hot-on-neutral, hot-unwired, Ground
Fault Circuit Interrupter (GFCI) functional and receptacle tension.
FEATURES AND
BENEFITS
APPLICATIONS
Plug-in
design
Enables a quick-read; go versus
no-go indication
NEo
¯TEX® rubber
construction
Optimum resistance to the affects of
heat, cold, abrasion and chemicals
Wide variety of
tooling capabilities
Provides customer convenience
• Electrical contractors
• Inspection tools
• Service tools
Test/Control
Woodhead®
Receptacle Circuit Tester
Features and Benefits
• Unique, industry-leading, NEo-TEX® Paracril OZO Rubber
exterior yields the best performance for abrasion,
chemical exposure and temperature extremes
• Compact tester with three neon indicating lights to check
for correct wiring; reversed polarity, open ground, open
neutral, open hot, hot and ground reversed and hot on
neutral/hot unwired
• Select the 1751 Tester to check for proper GFCI operation
to assure proper operation for GFCI required circuits
Physical
Receptacle Tester Housing: NEo-TEX Paracril OZO rubber
Receptacle Tester Plug Blades: Brass, Nickel-plated
Receptacle Tester Insert: Nylon
Environmental
Rating: Industrial duty
Reference Information
UL File No.: E38751
CSA File No.: LR22103
FF
GFCI Test
Yes
Woodhead No.
1751
Woodhead®
Receptacle Tension Tester
Woodhead No.
1760
F-12
Order No.
130127-0003
Features and Benefits
• Through a simple tool insertion into a standard, straight
blade receptacle, one can measure the spring contact
tension or holding potential on the plug blades (below
4 ounces a replacement is recommended, between 4-10
ounces indicates a receptacle to be monitored) NFPA
Standard 99-1996 Ref. 3-3.3.3.3(d)
• Tester works with the following NEMA Types; 1-15,
5-15, 5-20, so one needs to carry just one tool.
• Receptacle contacts are monitored independently for
complete assurance of compliance and trouble-free
power system operation
• The completely insulated housing allows testing to
be performed on live circuits to allow continued,
uninterrupted power service
• Impact-resistant housing and carrying case provide
tester protection and an exceptional service life
Physical
Tester Housing: Impact resistant plastic
Tension Tester Plug Blades: Stainless Steel
Environmental
Rating: Industrial duty
Order No.
130127-0007
www.molex.com/woodhead
Technical Information
Test and Control
Wiring of Switches
The switches supplied with this station are rated at currents
substantially higher than those normally encountered in
When a set of two pushbuttons is used to control
control applications. It should be noted, however, that
complementary functions such as Up-Down, Open-Close,
Left-Right, etc., the two buttons should be wired as shown electrical failures in associated equipment can cause
in the diagram below to provide an electrical interlock. This currents to flow which far exceed even these high ratings.
electrical interlock method of wiring provides two primary
benefits:
Assembly Instructions
Pushbutton Stations
Test/Control
• It prevents the simultaneous operation of both
functions, thus protecting equipment from damage.
• If a pushbutton switch should fail, depressing the
complementary button opens the control circuit, thus
providing an emergency stop.
Single-Speed Interlock Applications
F
Circuit Schematic for Two Single Switches Wired for Interlock
(Note: NO = Normally Open; NC = Normally Closed)
Two-Speed Interlock Applications
Super-Safeway Pendant Station, 402X and 4032 Series, Two-Speed Contact Ratings
Volts
AC Current
Horsepower
125
10
¹⁄ 3 HP, 125V AC
250
10
½ HP, 250V AC
Circuit Schematic
4052 Pushbutton Station Switch Characteristics
Legends for 402X and 4032 Series Pushbutton Stations
Bridge
Crane
Close
Down
Door
East
Fwd
Fast
High
Hoist
In
Lower
Legend
Left
Low
Magnet
North
No. 1
No. 2
No. 3
On
Open
Off
Out
Rev
Right
Raise
South
Stop
Start
Slow
Trolley
Up
West
Blank(2)
Series
Woodhead Numbers
Order No.
4020
71-4220
130203-1295
Series
Woodhead Numbers
Order No.
505X
505BC-L
130126-0009
Note: Switches are UL Listed.
Legends for 505X Series Pushbutton Stations
Legend
OFF
UP
LEFT
FWD
NORTH
EAST
OPEN
IN
RAISE
START
ON
DOWN
RIGHT
REV
www.molex.com/woodhead
SOUTH
WEST
CLOSE
OUT
LOWER
STOP
F-13
Technical Information
Test and Control
Test/Control
Wiring and Marking Information
FF
F-14
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
120226-1602
130018-0366
130023-0001
130023-0002
130023-0003
130023-0004
130083-0222
130083-0223
130083-0224
130083-0225
130083-0227
130083-0228
130083-0229
130083-0230
130083-0231
130083-0232
130083-0233
130083-0234
130083-0236
130083-0237
130083-0238
130083-0239
130083-0240
130083-0242
130083-0245
130083-0246
130083-0247
130083-0248
130083-0249
130083-0250
130083-0252
130083-0254
130083-0262
130083-0263
130083-0264
130083-0265
130083-0266
130083-0269
130083-0270
130083-0271
130083-0279
130083-0280
130083-0284
130083-0286
130083-0287
130083-0288
130083-0289
130083-0291
130083-0766
130083-0767
130083-0772
130083-0773
130083-0775
130083-0781
130083-0782
130083-0784
9504. . . . . . . . . . . . . . . . . . . . B-14
65W04 . . . . . . . . . . . . . . D-5, D-20
55501. . . . . . . . . . . . . . . . . . . . F-6
55502. . . . . . . . . . . . . . . . . . . . F-6
55503. . . . . . . . . . . . . . . . . . . . F-6
55504. . . . . . . . . . . . . . . . . . . . F-6
9206. . . . . . . . . . . . . . . . . . . . B-10
9208. . . . . . . . . . . . . . . . . . . . B-10
9224. . . . . . . . . . . . . . . .B-10, B-11
9228. . . . . . . . . . . . . . . .B-10, B-11
9234. . . . . . . . . . . . . . . . . . . . B-10
9238. . . . . . . . . . . . . . . . . . . . B-10
92401. . . . . . . . . . . . . . . . . . . B-10
92402. . . . . . . . . . . . . . . . . . . B-10
92411. . . . . . . . . . . . . . . . . . . B-10
92433. . . . . . . . . . . . . . .B-10, B-12
92434. . . . . . . . . . . . . . .B-10, B-12
92443. . . . . . . . . . . . . . . . . . . B-10
92444. . . . . . . . . . . . . . . . . . . B-10
92463. . . . . . . . . . . . . . . . . . . B-10
92464. . . . . . . . . . . . . . . . . . . B-10
92481. . . . . . . . . . . . . . . . . . . B-10
92482. . . . . . . . . . . . . . . . . . . B-10
9253. . . . . . . . . . . B-10, B-11, B-12
9253-1610S . . . . . . . . . . . . . . B-11
9253-3000 . . . . . . . . . . . . . . . B-12
9306. . . . . . . . . . . . . . . . . . . . B-10
9308. . . . . . . . . . . . . . . . . . . . B-10
9358. . . . . . . . . . . B-10, B-11, B-12
9358-106US . . . . . . . . . . . . . . B-11
9358-1547 . . . . . . . . . . . . . . . B-12
9358-3070G . . . . . . . . . . . . . . B-12
9363. . . . . . . . . . . . . . . . . . . . B-10
9367. . . . . . . . . . . . . . . . . . . . B-10
9383. . . . . . . . . . . . . . . .B-10, B-12
9383-1533 . . . . . . . . . . . . . . . B-12
9383-1547 . . . . . . . . . . . . . . . B-12
9383-3000 . . . . . . . . . . . . . . . B-12
9383-3070G . . . . . . . . . . . . . . B-12
9383-3080 . . . . . . . . . . . . . . . B-12
9385. . . . . . . . . . . . . . . .B-10, B-12
9385-3080 . . . . . . . . . . . . . . . B-12
9394. . . . . . . . . . . . . . . . . . . . B-10
ERA4000 . . . . . . . . . . . . . . . . . B-20
ERA4040 . . . . . . . . . . . . . . . . . B-20
ERA4150 . . . . . . . . . . . . . . . . . B-20
ERA4250 . . . . . . . . . . . . . . . . . B-20
ERA4940 . . . . . . . . . . . . . . . . . B-20
9224-1610S . . . . . . . . . . . . . . B-11
9224-86 . . . . . . . . . . . . . . . . . B-11
9228-106US . . . . . . . . . . . . . . B-11
9228-1610S . . . . . . . . . . . . . . B-11
9228-86 . . . . . . . . . . . . . . . . . B-11
92433-1533 . . . . . . . . . . . . . . B-12
92433-1547 . . . . . . . . . . . . . . B-12
92433-3000 . . . . . . . . . . . . . . B-12
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130083-0786
130083-0787
130083-0852
130083-0913
130084-0119
130084-0120
130084-0121
130084-0123
130084-0124
130084-0128
130084-0129
130084-0131
130084-0132
130084-0133
130084-0134
130084-0135
130084-0136
130084-0138
130084-0139
130084-0140
130084-0141
130084-0142
130084-0143
130084-0144
130084-0145
130084-0146
130084-0147
130084-0148
130084-0149
130084-0150
130084-0151
130084-0152
130084-0155
130084-0318
130085-0025
130085-0359
130085-0360
130085-0361
130085-0363
130085-0364
130085-0365
130085-0366
130085-0367
130085-0368
130085-0370
130085-0372
130085-0373
130085-0374
130085-0375
130085-0376
130085-0377
130085-0379
130085-0381
130085-0382
130085-0905
130085-0949
92433-3070G . . . . . . . . . . . . . B-12
92433-3080 . . . . . . . . . . . . . . B-12
9358-1610S . . . . . . . . . . . . . . B-11
92434-3080 . . . . . . . . . . . . . . B-12
92501AN. . . . . . . . . . . . . . . . . B-13
92502N. . . . . . . . . . . . . . . . . . B-13
92511AN. . . . . . . . . . . . . . . . . B-13
92512AN. . . . . . . . . . . . . . . . . B-13
92512BN. . . . . . . . . . . . . . . . . B-13
92526BN. . . . . . . . . . . . . . . . . B-13
92531N. . . . . . . . . . . . . . . . . . B-13
92532N. . . . . . . . . . . . . . . . . . B-13
92533N. . . . . . . . . . . . . . . . . . B-13
92534N. . . . . . . . . . . . . . . . . . B-13
92535AN. . . . . . . . . . . . . . . . . B-13
92535BN. . . . . . . . . . . . . . . . . B-13
92536N. . . . . . . . . . . . . . . . . . B-13
92541N. . . . . . . . . . . . . . . . . . B-13
92542N. . . . . . . . . . . . . . . . . . B-13
92543N. . . . . . . . . . . . . . . . . . B-13
92544AN. . . . . . . . . . . . . . . . . B-13
92544BN. . . . . . . . . . . . . . . . . B-13
92545AN. . . . . . . . . . . . . . . . . B-13
92545BN. . . . . . . . . . . . . . . . . B-13
92546N. . . . . . . . . . . . . . . . . . B-13
92561N. . . . . . . . . . . . . . . . . . B-13
92562AN. . . . . . . . . . . . . . . . . B-13
92562BN. . . . . . . . . . . . . . . . . B-13
92564N. . . . . . . . . . . . . . . . . . B-13
92581N. . . . . . . . . . . . . . . . . . B-13
92582N. . . . . . . . . . . . . . . . . . B-13
92583N. . . . . . . . . . . . . . . . . . B-13
92663. . . . . . . . . . . . . . . . . . . B-13
9242. . . . . . . . . . . . . . . . . . . . B-10
92764. . . . . . . . . . . . . . . . . . . B-14
92631. . . . . . . . . . . . . . . . . . . B-14
92632. . . . . . . . . . . . . . . . . . . B-14
92633. . . . . . . . . . . . . . . . . . . B-14
92642. . . . . . . . . . . . . . . . . . . B-14
92643. . . . . . . . . . . . . . . . . . . B-14
92661. . . . . . . . . . . . . . . . . . . B-14
92681. . . . . . . . . . . . . . . . . . . B-14
92702. . . . . . . . . . . . . . . . . . . B-14
92712. . . . . . . . . . . . . . . . . . . B-14
92733. . . . . . . . . . . . . . . . . . . B-14
92736. . . . . . . . . . . . . . . . . . . B-14
92742. . . . . . . . . . . . . . . . . . . B-14
92743. . . . . . . . . . . . . . . . . . . B-14
92744. . . . . . . . . . . . . . . . . . . B-14
92745. . . . . . . . . . . . . . . . . . . B-14
92746. . . . . . . . . . . . . . . . . . . B-14
92762. . . . . . . . . . . . . . . . . . . B-14
92782. . . . . . . . . . . . . . . . . . . B-14
92783. . . . . . . . . . . . . . . . . . . B-14
92735. . . . . . . . . . . . . . . . . . . B-14
92726. . . . . . . . . . . . . . . . . . . B-14
Page
Order No.
Woodhead No.
130086-0177
130087-0057
130087-0058
130087-0059
130087-0063
130087-0064
130090-0008
130090-0009
130090-0010
130090-0015
130090-0018
130090-0019
130091-0013
130091-0020
130091-0021
130091-0023
130091-0025
130091-0027
130091-0028
130091-0030
130091-0045
130091-0049
130091-0053
130091-0055
130091-0056
130091-0057
130091-0059
130091-0061
130091-0062
130091-0064
130091-0085
130091-0087
130091-0090
130091-0094
130091-0192
130091-0201
130091-0202
130091-0203
130091-0204
130091-0205
130091-0206
130091-0207
130091-0208
130091-0209
130091-0210
130091-0211
130091-0212
130091-0213
130091-0214
130094-0209
130094-0211
130094-0213
130094-0215
130094-0217
130094-0219
130094-0221
9505. . . . . . . . . . . . . . . . . . . . B-14
930. . . . . . . . . . . . . . . . . . . . . B-19
930B123 . . . . . . . . . . . . . . . . . B-19
930B143 . . . . . . . . . . . . . . . . . B-19
930D123. . . . . . . . . . . . . . . . . B-19
930D143. . . . . . . . . . . . . . . . . B-19
945-1547 . . . . . . . . . . . . . . . . . B-8
945-3 . . . . . . . . . . . . . B-5, B-6, B-7
945-3-86. . . . . . . . . . . . . . . . . . B-6
963. . . . . . . . . . . . . . . . . . . . . . B-7
965. . . . . . . . . . . . . . . . . . . . . . B-7
966. . . . . . . . . . . . . . . . . . . . . . B-8
980. . . . . . . . . . . . . . . B-5, B-6, B-7
980-1610S . . . . . . . . . . . . . . . . B-7
980-271US . . . . . . . . . . . . . . . . B-7
980-3000 . . . . . . . . . . . . . . . . . B-8
980-3070G . . . . . . . . . . . . . . . . B-8
980-83 . . . . . . . . . . . . . . . . . . . B-6
980-86 . . . . . . . . . . . . . . . . . . . B-6
980A-83 . . . . . . . . . . . . . . . . . . B-6
990. . . . . . . . . . . . . . . B-5, B-6, B-7
990-106US . . . . . . . . . . . . . . . . B-7
990-1547 . . . . . . . . . . . . . . . . . B-8
990-1610S . . . . . . . . . . . . . . . . B-7
990-271US . . . . . . . . . . . . . . . . B-7
990-3000 . . . . . . . . . . . . . . . . . B-8
990-3070G . . . . . . . . . . . . . . . . B-8
990-83 . . . . . . . . . . . . . . . . . . . B-6
990-86 . . . . . . . . . . . . . . . . . . . B-6
990A-83 . . . . . . . . . . . . . . . . . . B-6
997. . . . . . . . . . . . . . . . . . . . . . B-5
997-1547 . . . . . . . . . . . . . . . . . B-8
997-3000 . . . . . . . . . . . . . . . . . B-8
997-3070G . . . . . . . . . . . . . . . . B-8
8500. . . . . . . . . . . . . . . . . . . . A-30
998-3080 . . . . . . . . . . . . . . . . . B-8
998. . . . . . . . . . . . . . . . . . . . . . B-5
998-1533 . . . . . . . . . . . . . . . . . B-8
998-3070G20 . . . . . . . . . . . . . . B-8
998L . . . . . . . . . . . . . . . . . . . . . B-5
998L-2747 . . . . . . . . . . . . . . . . B-8
998L-3070G20 . . . . . . . . . . . . . B-8
998L-1533 . . . . . . . . . . . . . . . . B-8
998L-3080 . . . . . . . . . . . . . . . . B-8
997L . . . . . . . . . . . . . . . . . . . . . B-5
997L-2547 . . . . . . . . . . . . . . . . B-8
997L-3070G . . . . . . . . . . . . . . . B-8
997L-1547 . . . . . . . . . . . . . . . . B-8
997L-3000 . . . . . . . . . . . . . . . . B-8
35001. . . . . . . . . . . . . . . . . . . C-33
35002. . . . . . . . . . . . . . . . . . . C-33
35003. . . . . . . . . . . . . . . . . . . C-33
35004. . . . . . . . . . . . . . . . . . . C-33
35005. . . . . . . . . . . . . . . . . . . C-33
35006. . . . . . . . . . . . . . . . . . . C-33
35007. . . . . . . . . . . . . . . . . . . C-33
Page
i
Order No. Index
Order No.
Woodhead No.
130094-0223
130094-0225
130094-0227
130094-0228
130094-0230
130094-0232
130094-0234
130094-0236
130094-0238
130094-0240
130094-0242
130094-0244
130094-0246
130094-0247
130094-0249
130094-0251
130094-0253
130094-0255
130094-0257
130094-0259
130094-0261
130094-0263
130094-0265
130094-0267
130094-0268
130094-0269
130094-0271
130094-0273
130094-0275
130094-0276
130094-0278
130094-0279
130094-0280
130094-0281
130094-0283
130094-0284
130094-0288
130094-0290
130094-0292
130094-0294
130094-0296
130094-0298
130094-0300
130094-0302
130094-0304
130094-0306
130094-0308
130094-0310
130094-0312
130094-0314
130094-0316
130094-0318
130094-0320
130094-0322
130094-0324
130094-0326
35008. . . . . . . . . . . . . . . . . . . C-33
35009. . . . . . . . . . . . . . . . . . . C-33
35010. . . . . . . . . . . . . . . . . . . C-33
35011. . . . . . . . . . . . . . . . . . . C-33
35030. . . . . . . . . . . . . . . . . . . C-32
35031. . . . . . . . . . . . . . . . . . . C-32
35032. . . . . . . . . . . . . . . . . . . C-32
35033. . . . . . . . . . . . . . . . . . . C-32
35034. . . . . . . . . . . . . . . . . . . C-32
35035. . . . . . . . . . . . . . . . . . . C-32
35036. . . . . . . . . . . . . . . . . . . C-32
35037. . . . . . . . . . . . . . . . . . . C-32
35038. . . . . . . . . . . . . . . . . . . C-32
35039. . . . . . . . . . . . . . . . . . . C-32
35040. . . . . . . . . . . . . . . . . . . C-32
35060. . . . . . . . . . . . . . . . . . . C-34
35061. . . . . . . . . . . . . . . . . . . C-34
35062. . . . . . . . . . . . . . . . . . . C-34
35063. . . . . . . . . . . . . . . . . . . C-34
35064. . . . . . . . . . . . . . . . . . . C-34
35065. . . . . . . . . . . . . . . . . . . C-34
35066. . . . . . . . . . . . . . . . . . . C-34
35067. . . . . . . . . . . . . . . . . . . C-34
35068. . . . . . . . . . . . . . . . . . . C-34
35069. . . . . . . . . . . . . . . . . . . C-34
35070. . . . . . . . . . . . . . . . . . . C-34
35090. . . . . . . . . . . . . . . . . . . C-35
35091. . . . . . . . . . . . . . . . . . . C-35
35092. . . . . . . . . . . . . . . . . . . C-35
35093. . . . . . . . . . . . . . . . . . . C-35
35094. . . . . . . . . . . . . . . . . . . C-35
35095. . . . . . . . . . . . . . . . . . . C-35
35096. . . . . . . . . . . . . . . . . . . C-35
35097. . . . . . . . . . . . . . . . . . . C-35
35098. . . . . . . . . . . . . . . . . . . C-35
35099. . . . . . . . . . . . . . . . . . . C-35
35135. . . . . . . . . . . . . . . . . . . C-33
35136. . . . . . . . . . . . . . . . . . . C-33
35137. . . . . . . . . . . . . . . . . . . C-33
35138. . . . . . . . . . . . . . . . . . . C-33
35139. . . . . . . . . . . . . . . . . . . C-33
35140. . . . . . . . . . . . . . . . . . . C-33
35141. . . . . . . . . . . . . . . . . . . C-33
35142. . . . . . . . . . . . . . . . . . . C-33
35143. . . . . . . . . . . . . . . . . . . C-33
35144. . . . . . . . . . . . . . . . . . . C-33
35145. . . . . . . . . . . . . . . . . . . C-33
35165. . . . . . . . . . . . . . . . . . . C-32
35166. . . . . . . . . . . . . . . . . . . C-32
35167. . . . . . . . . . . . . . . . . . . C-32
35168. . . . . . . . . . . . . . . . . . . C-32
35169. . . . . . . . . . . . . . . . . . . C-32
35170. . . . . . . . . . . . . . . . . . . C-32
35171. . . . . . . . . . . . . . . . . . . C-32
35172. . . . . . . . . . . . . . . . . . . C-32
35173. . . . . . . . . . . . . . . . . . . C-32
ii
Page
Order No.
Woodhead No.
130094-0328
130094-0329
130094-0330
130094-0332
130094-0334
130094-0336
130094-0338
130094-0340
130094-0342
130094-0344
130094-0346
130094-0348
130094-0350
130094-0352
130094-0354
130094-0356
130094-0357
130094-0358
130094-0359
130094-0360
130094-0361
130094-0367
130094-0368
130094-0370
130094-0372
130094-0374
130094-0376
130094-0378
130094-0380
130094-0382
130094-0383
130094-0384
130094-0385
130094-0387
130094-0389
130094-0391
130094-0393
130094-0395
130094-0397
130094-0399
130094-0401
130094-0403
130094-0406
130094-0408
130094-0410
130094-0412
130094-0414
130094-0416
130094-0418
130094-0420
130094-0422
130094-0424
130094-0426
130094-0429
130094-0430
130094-0432
35174. . . . . . . . . . . . . . . . . . . C-32
35175. . . . . . . . . . . . . . . . . . . C-32
35195. . . . . . . . . . . . . . . . . . . C-34
35196. . . . . . . . . . . . . . . . . . . C-34
35197. . . . . . . . . . . . . . . . . . . C-34
35198. . . . . . . . . . . . . . . . . . . C-34
35199. . . . . . . . . . . . . . . . . . . C-34
35200. . . . . . . . . . . . . . . . . . . C-34
35201. . . . . . . . . . . . . . . . . . . C-34
35202. . . . . . . . . . . . . . . . . . . C-34
35203. . . . . . . . . . . . . . . . . . . C-34
35204. . . . . . . . . . . . . . . . . . . C-34
35205. . . . . . . . . . . . . . . . . . . C-34
35225. . . . . . . . . . . . . . . . . . . C-35
35226. . . . . . . . . . . . . . . . . . . C-35
35227. . . . . . . . . . . . . . . . . . . C-35
35228. . . . . . . . . . . . . . . . . . . C-35
35229. . . . . . . . . . . . . . . . . . . C-35
35230. . . . . . . . . . . . . . . . . . . C-35
35231. . . . . . . . . . . . . . . . . . . C-35
35232. . . . . . . . . . . . . . . . . . . C-35
35270. . . . . . . . . . . . . . . . . . . C-33
35271. . . . . . . . . . . . . . . . . . . C-33
35272. . . . . . . . . . . . . . . . . . . C-33
35273. . . . . . . . . . . . . . . . . . . C-33
35274. . . . . . . . . . . . . . . . . . . C-33
35275. . . . . . . . . . . . . . . . . . . C-33
35276. . . . . . . . . . . . . . . . . . . C-33
35277. . . . . . . . . . . . . . . . . . . C-33
35278. . . . . . . . . . . . . . . . . . . C-33
35279. . . . . . . . . . . . . . . . . . . C-33
35280. . . . . . . . . . . . . . . . . . . C-33
35285. . . . . . . . . . . . . . . . . . . C-32
35286. . . . . . . . . . . . . . . . . . . C-32
35287. . . . . . . . . . . . . . . . . . . C-32
35288. . . . . . . . . . . . . . . . . . . C-32
35289. . . . . . . . . . . . . . . . . . . C-32
35290. . . . . . . . . . . . . . . . . . . C-32
35291. . . . . . . . . . . . . . . . . . . C-32
35292. . . . . . . . . . . . . . . . . . . C-32
35293. . . . . . . . . . . . . . . . . . . C-32
35294. . . . . . . . . . . . . . . . . . . C-32
35300. . . . . . . . . . . . . . . . . . . C-34
35301. . . . . . . . . . . . . . . . . . . C-34
35302. . . . . . . . . . . . . . . . . . . C-34
35303. . . . . . . . . . . . . . . . . . . C-34
35304. . . . . . . . . . . . . . . . . . . C-34
35305. . . . . . . . . . . . . . . . . . . C-34
35306. . . . . . . . . . . . . . . . . . . C-34
35307. . . . . . . . . . . . . . . . . . . C-34
35308. . . . . . . . . . . . . . . . . . . C-34
35309. . . . . . . . . . . . . . . . . . . C-34
35310. . . . . . . . . . . . . . . . . . . C-34
35330. . . . . . . . . . . . . . . . . . . C-35
35331. . . . . . . . . . . . . . . . . . . C-35
35332. . . . . . . . . . . . . . . . . . . C-35
Page
Order No.
Woodhead No.
130094-0434
130094-0435
130094-0436
130094-0437
130094-0438
130094-0439
130094-0440
130094-0442
130094-0444
130094-0446
130094-0448
130094-0450
130094-0452
130094-0453
130094-0455
130094-0457
130094-0459
130094-0461
130094-0463
130094-0465
130094-0466
130094-0468
130094-0470
130094-0472
130094-0474
130094-0476
130094-0478
130094-0479
130094-0480
130094-0482
130094-0484
130094-0486
130094-0488
130094-0489
130094-0490
130094-0491
130094-0492
130094-0493
130094-0494
130094-0495
130094-0496
130094-0497
130094-0498
130094-0499
130094-0500
130094-0501
130094-0502
130094-0503
130094-0504
130094-0505
130094-0506
130094-0507
130094-0509
130094-0510
130094-0511
130094-0512
35333. . . . . . . . . . . . . . . . . . . C-35
35334. . . . . . . . . . . . . . . . . . . C-35
35335. . . . . . . . . . . . . . . . . . . C-35
35336. . . . . . . . . . . . . . . . . . . C-35
35337. . . . . . . . . . . . . . . . . . . C-35
35340. . . . . . . . . . . . . . . . . . . C-35
35425. . . . . . . . . . . . . . . . . . . C-37
35426. . . . . . . . . . . . . . . . . . . C-37
35427. . . . . . . . . . . . . . . . . . . C-37
35428. . . . . . . . . . . . . . . . . . . C-37
35429. . . . . . . . . . . . . . . . . . . C-37
35430. . . . . . . . . . . . . . . . . . . C-37
35431. . . . . . . . . . . . . . . . . . . C-37
35432. . . . . . . . . . . . . . . . . . . C-37
35433. . . . . . . . . . . . . . . . . . . C-37
35435. . . . . . . . . . . . . . . . . . . C-36
35436. . . . . . . . . . . . . . . . . . . C-36
35437. . . . . . . . . . . . . . . . . . . C-36
35438. . . . . . . . . . . . . . . . . . . C-36
35440. . . . . . . . . . . . . . . . . . . C-37
35441. . . . . . . . . . . . . . . . . . . C-37
35442. . . . . . . . . . . . . . . . . . . C-37
35443. . . . . . . . . . . . . . . . . . . C-37
35444. . . . . . . . . . . . . . . . . . . C-37
35445. . . . . . . . . . . . . . . . . . . C-37
35446. . . . . . . . . . . . . . . . . . . C-37
35447. . . . . . . . . . . . . . . . . . . C-37
35448. . . . . . . . . . . . . . . . . . . C-37
35450. . . . . . . . . . . . . . . . . . . C-36
35451. . . . . . . . . . . . . . . . . . . C-36
35452. . . . . . . . . . . . . . . . . . . C-36
35453. . . . . . . . . . . . . . . . . . . C-36
36241. . . . . . . . . . . . . . . . . . . C-39
36560. . . . . . . . . . . . . . . . . . . C-39
36560SS . . . . . . . . . . . . . . . . . C-39
36562. . . . . . . . . . . . . . . . . . . C-39
36562SS . . . . . . . . . . . . . . . . . C-39
36564. . . . . . . . . . . . . . . . . . . C-39
36564SS . . . . . . . . . . . . . . . . . C-39
36567. . . . . . . . . . . . . . . . . . . C-39
36567SS . . . . . . . . . . . . . . . . . C-39
36569. . . . . . . . . . . . . . . . . . . C-39
36569SS . . . . . . . . . . . . . . . . . C-39
36571. . . . . . . . . . . . . . . . . . . C-39
36571SS . . . . . . . . . . . . . . . . . C-39
36573. . . . . . . . . . . . . . . . . . . C-38
36574. . . . . . . . . . . . . . . . . . . C-39
36574SS . . . . . . . . . . . . . . . . . C-39
36575. . . . . . . . . . . . . . . . . . . C-38
36576. . . . . . . . . . . . . . . . . . . C-38
36577. . . . . . . . . . . . . . . . . . . C-38
36578. . . . . . . . . . . . . . . . . . . C-38
36579. . . . . . . . . . . . . . . . . . . C-38
36580. . . . . . . . . . . . . . . . . . . C-39
36581. . . . . . . . . . . . . . . . . . . C-38
36582. . . . . . . . . . . . . . . . . . . C-39
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130094-0513
130094-0514
130094-0515
130094-0516
130094-0517
130094-0519
130094-0520
130094-0521
130094-0522
130094-0523
130094-0524
130094-0525
130094-0526
130094-0527
130094-0528
130094-0529
130094-0530
130094-0531
130094-0532
130094-0533
130094-0534
130094-0535
130094-1042
130094-1400
130094-1401
130095-0123
130095-0124
130095-0125
130095-0126
130095-0127
130095-0128
130095-0129
130095-0130
130095-0131
130095-0132
130095-0133
130095-0134
130095-0135
130095-0136
130095-0137
130095-0138
130095-0139
130095-0140
130095-0141
130095-0142
130095-0143
130095-0144
130095-0145
130095-0146
130095-0147
130095-0148
130095-0149
130095-0150
130095-0151
130095-0152
130095-0153
36583. . . . . . . . . . . . . . . . . . . C-38
36584. . . . . . . . . . . . . . . . . . . C-39
36585. . . . . . . . . . . . . . . . . . . C-38
36586. . . . . . . . . . . . . . . . . . . C-38
36587. . . . . . . . . . . . . . . . . . . C-39
36589. . . . . . . . . . . . . . . . . . . C-39
36591. . . . . . . . . . . . . . . . . . . C-39
36594. . . . . . . . . . . . . . . . . . . C-39
36670. . . . . . . . . . . . . . . . . . . C-48
36671. . . . . . . . . . . . . . . . . . . C-48
36672. . . . . . . . . . . . . . . . . . . C-48
36673. . . . . . . . . . . . . . . . . . . C-48
36674. . . . . . . . . . . . . . . . . . . C-48
36675. . . . . . . . . . . . . . . . . . . C-48
36676. . . . . . . . . . . . . . . . . . . C-48
36680. . . . . . . . . . . . . . . . . . . C-48
36681. . . . . . . . . . . . . . . . . . . C-48
36682. . . . . . . . . . . . . . . . . . . C-48
36683. . . . . . . . . . . . . . . . . . . C-48
36684. . . . . . . . . . . . . . . . . . . C-48
36685. . . . . . . . . . . . . . . . . . . C-48
36686. . . . . . . . . . . . . . . . . . . C-48
35338. . . . . . . . . . . . . . . . . . . C-35
35339. . . . . . . . . . . . . . . . . . . C-35
36241SS . . . . . . . . . . . . . . . . . C-39
35851. . . . . . . . . . . . . . . . . . . C-44
35865. . . . . . . . . . . . . . . . . . . C-44
35866. . . . . . . . . . . . . . . . . . . C-44
35867. . . . . . . . . . . . . . . . . . . C-44
35868. . . . . . . . . . . . . . . . . . . C-44
35869. . . . . . . . . . . . . . . . . . . C-44
35870. . . . . . . . . . . . . . . . . . . C-44
35871. . . . . . . . . . . . . . . . . . . C-44
35872. . . . . . . . . . . . . . . . . . . C-44
35873. . . . . . . . . . . . . . . . . . . C-44
35874. . . . . . . . . . . . . . . . . . . C-44
35875. . . . . . . . . . . . . . . . . . . C-44
35880. . . . . . . . . . . . . . . . . . . C-44
35881. . . . . . . . . . . . . . . . . . . C-44
35882. . . . . . . . . . . . . . . . . . . C-44
35883. . . . . . . . . . . . . . . . . . . C-44
35884. . . . . . . . . . . . . . . . . . . C-44
35885. . . . . . . . . . . . . . . . . . . C-44
35886. . . . . . . . . . . . . . . . . . . C-44
35887. . . . . . . . . . . . . . . . . . . C-44
38897. . . . . . . . . . . . . . . . . . . C-44
35898. . . . . . . . . . . . . . . . . . . C-44
35899. . . . . . . . . . . . . . . . . . . C-44
35901. . . . . . . . . . . . . . . . . . . C-41
35902. . . . . . . . . . . . . . . . . . . C-41
35903. . . . . . . . . . . . . . . . . . . C-41
35904. . . . . . . . . . . . . . . . . . . C-41
35905. . . . . . . . . . . . . . . . . . . C-41
35906. . . . . . . . . . . . . . . . . . . C-41
35907. . . . . . . . . . . . . . . . . . . C-41
35908. . . . . . . . . . . . . . . . . . . C-41
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130095-0154
130095-0165
130095-0166
130095-0167
130095-0168
130095-0169
130095-0170
130095-0171
130095-0172
130095-0173
130095-0174
130095-0175
130095-0176
130095-0177
130095-0178
130095-0179
130095-0180
130095-0181
130095-0182
130095-0183
130095-0184
130095-0185
130095-0186
130095-0187
130095-0188
130095-0189
130095-0190
130095-0191
130095-0192
130095-0194
130095-0196
130095-0197
130095-0198
130095-0200
130095-0201
130095-0202
130095-0203
130095-0205
130095-0225
130095-0227
130095-0229
130095-0230
130095-0231
130095-0232
130095-0233
130095-0240
130095-0241
130095-0242
130095-0243
130095-0244
130095-0245
130095-0246
130095-0247
130095-0248
130095-0253
130095-0255
35909. . . . . . . . . . . . . . . . . . . C-41
35930. . . . . . . . . . . . . . . . . . . C-42
35931. . . . . . . . . . . . . . . . . . . C-42
35932. . . . . . . . . . . . . . . . . . . C-42
35933. . . . . . . . . . . . . . . . . . . C-42
35934. . . . . . . . . . . . . . . . . . . C-42
35935. . . . . . . . . . . . . . . . . . . C-42
35937. . . . . . . . . . . . . . . . . . . C-42
35940. . . . . . . . . . . . . . . . . . . C-43
35941. . . . . . . . . . . . . . . . . . . C-43
35942. . . . . . . . . . . . . . . . . . . C-43
35943. . . . . . . . . . . . . . . . . . . C-43
35944. . . . . . . . . . . . . . . . . . . C-43
35945. . . . . . . . . . . . . . . . . . . C-43
35946. . . . . . . . . . . . . . . . . . . C-43
35947. . . . . . . . . . . . . . . . . . . C-43
35948. . . . . . . . . . . . . . . . . . . C-43
35950. . . . . . . . . . . . . . . . . . . C-43
35951. . . . . . . . . . . . . . . . . . . C-43
35952. . . . . . . . . . . . . . . . . . . C-43
35953. . . . . . . . . . . . . . . . . . . C-43
35954. . . . . . . . . . . . . . . . . . . C-43
35955. . . . . . . . . . . . . . . . . . . C-43
35956. . . . . . . . . . . . . . . . . . . C-43
35960. . . . . . . . . . . . . . . . . . . C-43
35961. . . . . . . . . . . . . . . . . . . C-43
35962. . . . . . . . . . . . . . . . . . . C-43
35963. . . . . . . . . . . . . . . . . . . C-43
35964. . . . . . . . . . . . . . . . . . . C-43
35970. . . . . . . . . . . . . . . C-41, C-56
35971. . . . . . . . . . . . . . . C-41, C-56
35972. . . . . . . . . . . . . . . C-41, C-56
35973. . . . . . . . . . . . . . . C-41, C-56
35974. . . . . . . . . . . . . . . C-41, C-56
35975. . . . . . . . . . . . . . . C-41, C-56
35976. . . . . . . . . . . . . . . . . . . C-41
35980. . . . . . . . . . . . . . . . . . . C-43
36010. . . . . . . . . . . . . . . . . . . C-44
36101. . . . . . . . . . . . . . . . . . . C-47
36102. . . . . . . . . . . . . . . . . . . C-47
36103. . . . . . . . . . . . . . . . . . . C-47
36104. . . . . . . . . . . . . . . . . . . C-47
36105. . . . . . . . . . . . . . . . . . . C-47
36106. . . . . . . . . . . . . . . . . . . C-47
36107. . . . . . . . . . . . . . . . . . . C-47
36120. . . . . . . . . . . . . . . . . . . C-47
36121. . . . . . . . . . . . . . . . . . . C-47
36122. . . . . . . . . . . . . . . . . . . C-47
36123. . . . . . . . . . . . . . . . . . . C-47
36124. . . . . . . . . . . . . . . . . . . C-47
36125. . . . . . . . . . . . . . . . . . . C-47
36126. . . . . . . . . . . . . . . . . . . C-47
36127. . . . . . . . . . . . . . . . . . . C-47
36128. . . . . . . . . . . . . . . . . . . C-47
36140. . . . . . . . . . . . . . . . . . . C-47
36141. . . . . . . . . . . . . . . . . . . C-47
Page
Order No.
Woodhead No.
130095-0256
130095-0257
130095-0258
130095-0259
130095-0260
130095-0261
130095-0262
130095-0263
130095-0272
130095-0273
130095-0274
130095-0275
130095-0276
130095-0277
130095-0278
130095-0279
130095-0280
130095-0281
130095-0282
130095-0283
130095-0284
130095-0285
130095-0286
130095-0287
130095-0288
130095-0289
130095-0290
130095-0291
130095-0292
130095-0293
130095-0294
130095-0295
130095-0297
130095-0298
130095-0299
130095-0300
130096-0034
130096-0036
130096-0037
130096-0038
130096-0039
130096-0040
130096-0041
130096-0042
130096-0043
130096-0044
130096-0045
130096-0046
130096-0047
130096-0048
130096-0049
130096-0050
130096-0051
130096-0052
130096-0053
130096-0054
36142. . . . . . . . . . . . . . . . . . . C-47
36143. . . . . . . . . . . . . . . . . . . C-47
36144. . . . . . . . . . . . . . . . . . . C-47
36145. . . . . . . . . . . . . . . . . . . C-47
36146. . . . . . . . . . . . . . . . . . . C-47
36147. . . . . . . . . . . . . . . . . . . C-47
36148. . . . . . . . . . . . . . . . . . . C-47
36149. . . . . . . . . . . . . . . . . . . C-47
36610. . . . . . . . . . . . . . . . . . . C-46
36611. . . . . . . . . . . . . . . . . . . C-46
36612. . . . . . . . . . . . . . . . . . . C-46
36613. . . . . . . . . . . . . . . . . . . C-46
36614. . . . . . . . . . . . . . . . . . . C-46
36615. . . . . . . . . . . . . . . . . . . C-46
36620. . . . . . . . . . . . . . . . . . . C-45
36621. . . . . . . . . . . . . . . . . . . C-45
36622. . . . . . . . . . . . . . . . . . . C-45
36623. . . . . . . . . . . . . . . . . . . C-45
36624. . . . . . . . . . . . . . . . . . . C-45
36625. . . . . . . . . . . . . . . . . . . C-45
36626. . . . . . . . . . . . . . . . . . . C-45
36627. . . . . . . . . . . . . . . . . . . C-45
36628. . . . . . . . . . . . . . . . . . . C-45
36629. . . . . . . . . . . . . . . . . . . C-45
36640. . . . . . . . . . . . . . . . . . . C-45
36641. . . . . . . . . . . . . . . . . . . C-45
36642. . . . . . . . . . . . . . . . . . . C-45
36643. . . . . . . . . . . . . . . . . . . C-45
36644. . . . . . . . . . . . . . . . . . . C-45
36645. . . . . . . . . . . . . . . . . . . C-45
36646. . . . . . . . . . . . . . . . . . . C-45
36647. . . . . . . . . . . . . . . . . . . C-45
36661. . . . . . . . . . . . . . . . . . . C-48
36662. . . . . . . . . . . . . . . . . . . C-48
36663. . . . . . . . . . . . . . . . . . . C-48
36664. . . . . . . . . . . . . . . . . . . C-48
36370. . . . . . . . . . . . . . . . . . . C-25
36371. . . . . . . . . . . . . . . . . . . C-25
36372. . . . . . . . . . . . . . . . . . . C-25
36373. . . . . . . . . . . . . . . . . . . C-25
36374. . . . . . . . . . . . . . . . . . . C-25
36375. . . . . . . . . . . . . . . . . . . C-25
36380. . . . . . . . . . . . . . . . . . . C-25
36381. . . . . . . . . . . . . . . . . . . C-25
36382. . . . . . . . . . . . . . . . . . . C-25
36390. . . . . . . . . . . . . . . . . . . C-25
36391. . . . . . . . . . . . . . . . . . . C-25
36392. . . . . . . . . . . . . . . . . . . C-25
36393. . . . . . . . . . . . . . . . . . . C-25
36394. . . . . . . . . . . . . . . . . . . C-25
36395. . . . . . . . . . . . . . . . . . . C-25
36400. . . . . . . . . . . . . . . . . . . C-25
36401. . . . . . . . . . . . . . . . . . . C-25
36402. . . . . . . . . . . . . . . . . . . C-25
36403. . . . . . . . . . . . . . . . . . . C-25
36404. . . . . . . . . . . . . . . . . . . C-25
Page
iii
Order No. Index
Order No.
Woodhead No.
130096-0055
130096-0056
130096-0058
130096-0059
130096-0060
130096-0061
130096-0062
130096-0063
130096-0064
130096-0065
130096-0066
130096-0067
130096-0069
130096-0070
130096-0071
130096-0072
130096-0073
130096-0074
130096-0075
130096-0076
130096-0077
130096-0078
130096-0079
130097-0156
130097-0157
130097-0158
130097-0159
130097-0160
130097-0161
130097-0163
130097-0165
130097-0166
130097-0167
130097-0168
130097-0170
130097-0171
130097-0172
130097-0173
130097-0174
130097-0175
130097-0176
130097-0177
130097-0178
130097-0179
130097-0180
130097-0181
130097-0182
130097-0183
130097-0184
130097-0185
130097-0186
130097-0187
130097-0188
130097-0189
130097-0190
130097-0191
36405. . . . . . . . . . . . . . . . . . . C-25
36440. . . . . . . . . . . . . . . . . . . C-25
36443. . . . . . . . . . . . . . . . . . . C-25
36550. . . . . . . . . . . . . . . . . . . C-30
36551. . . . . . . . . . . . . . . . . . . C-30
36552. . . . . . . . . . . . . . . . . . . C-30
36553. . . . . . . . . . . . . . . . . . . C-30
36554. . . . . . . . . . . . . . . . . . . C-30
36555. . . . . . . . . . . . . . . . . . . C-30
37030. . . . . . . . . . . . . . . . . . . C-25
37031. . . . . . . . . . . . . . . . . . . C-25
37032. . . . . . . . . . . . . . . . . . . C-25
37101. . . . . . . . . . . . . . . . . . . C-26
37101-90 . . . . . . . . . . . . . . . . C-26
37102. . . . . . . . . . . . . . . . . . . C-26
37102-90 . . . . . . . . . . . . . . . . C-26
37103. . . . . . . . . . . . . . . . . . . C-26
37103-90 . . . . . . . . . . . . . . . . C-26
37104. . . . . . . . . . . . . . . . . . . C-26
37104-90 . . . . . . . . . . . . . . . . C-26
37105. . . . . . . . . . . . . . . . . . . C-26
37105-90 . . . . . . . . . . . . . . . . C-26
37106. . . . . . . . . . . . . . . . . . . C-26
36245. . . . . . . . . . . . . . . . . . . . C-6
36246. . . . . . . . . . . . . . . . . . . . C-6
36248. . . . . . . . . . . . . . . . . . . . C-7
36249. . . . . . . . . . . . . . . . . . . . C-8
36250. . . . . . . . . . . . . . . . . . . . C-6
36251. . . . . . . . . . . . . . . . . . . . C-6
36254. . . . . . . . . . . . . . . . . . . . C-6
36256. . . . . . . . . . . . . . . . . . . . C-6
36257. . . . . . . . . . . . . . . . . . . . C-7
36259. . . . . . . . . . . . . . . . . . . . C-7
36261. . . . . . . . . . . . . . . . . . . . C-7
36263. . . . . . . . . . . . . . . . . . . . C-7
36265. . . . . . . . . . . . . . . . . . . . C-8
36267. . . . . . . . . . . . . . . . . . . . C-8
36269. . . . . . . . . . . . . . . . . . . . C-8
36270. . . . . . . . . . . . . . . . . . . . C-8
36271. . . . . . . . . . . . . . . . . . . . C-8
36272. . . . . . . . . . . . . . . . . . . . C-8
36273. . . . . . . . . . . . . . . . . . . . C-8
36274. . . . . . . . . . . . . . . . . . . . C-8
36275. . . . . . . . . . . . . . . . . . . . C-8
36276. . . . . . . . . . . . . . . . . . . . C-8
36277. . . . . . . . . . . . . . . . . . . . C-8
36278. . . . . . . . . . . . . . . . . . . . C-9
36279. . . . . . . . . . . . . . . . . . . . C-9
36280. . . . . . . . . . . . . . . . . . . . C-6
36282. . . . . . . . . . . . . . . . . . . . C-6
36284. . . . . . . . . . . . . . . . . . . . C-6
36286. . . . . . . . . . . . . . . . . . . . C-6
36287. . . . . . . . . . . . . . . . . . . . C-9
36288. . . . . . . . . . . . . . . . . . . . C-9
36289. . . . . . . . . . . . . . . . . . . . C-9
36290. . . . . . . . . . . . . . . . . . . . C-7
iv
Page
Order No.
Woodhead No.
130097-0192
130097-0193
130097-0194
130097-0195
130097-0197
130097-0198
130097-0199
130097-0200
130097-0201
130097-0202
130097-0203
130097-0204
130097-0205
130097-0206
130097-0207
130097-0210
130097-0211
130097-0212
130097-0213
130097-0214
130097-0215
130097-0216
130097-0217
130097-0218
130097-0219
130097-0220
130097-0221
130097-0222
130097-0223
130097-0224
130097-0231
130097-0232
130097-0233
130097-0234
130097-0235
130097-0236
130097-0237
130097-0238
130097-0239
130097-0240
130097-0241
130097-0242
130097-0243
130097-0244
130097-0245
130097-0246
130097-0247
130097-0248
130097-0249
130097-0252
130097-0253
130097-0254
130097-0255
130097-0256
130097-0258
130097-0260
36294. . . . . . . . . . . . . . . . . . . . C-7
36298. . . . . . . . . . . . . . . . . . . . C-8
36300. . . . . . . . . . . . . . . . . . . . C-8
36302. . . . . . . . . . . . . . . . . . . . C-8
36310. . . . . . . . . . . . . . . . . . . . C-6
36312. . . . . . . . . . . . . . . . . . . . C-6
36314. . . . . . . . . . . . . . . . . . . . C-6
36316. . . . . . . . . . . . . . . . . . . . C-6
36317. . . . . . . . . . . . . . . . . . . . C-7
36319. . . . . . . . . . . . . . . . . . . . C-7
36321. . . . . . . . . . . . . . . . . . . . C-7
36323. . . . . . . . . . . . . . . . . . . . C-7
36326. . . . . . . . . . . . . . . . . . . . C-8
36328. . . . . . . . . . . . . . . . . . . . C-8
36330. . . . . . . . . . . . . . . . . . . . C-8
36340. . . . . . . . . . . . . . . . . . . . C-6
36342. . . . . . . . . . . . . . . . . . . . C-6
36344. . . . . . . . . . . . . . . . . . . . C-6
36346. . . . . . . . . . . . . . . . . . . . C-6
36347. . . . . . . . . . . . . . . . . . . . C-7
36349. . . . . . . . . . . . . . . . . . . . C-7
36351. . . . . . . . . . . . . . . . . . . . C-7
36353. . . . . . . . . . . . . . . . . . . . C-7
36355. . . . . . . . . . . . . . . . . . . . C-8
36357. . . . . . . . . . . . . . . . . . . . C-8
36359. . . . . . . . . . . . . . . . . . . . C-8
36361. . . . . . . . . . . . . . . . . . . . C-8
36362. . . . . . . . . . . . . . . . . . . . C-8
36363. . . . . . . . . . . . . . . . . . . . C-8
36364. . . . . . . . . . . . . . . . . . . . C-8
36470. . . . . . . . . . . . . . . . . . . . C-9
36471. . . . . . . . . . . . . . . . . . . . C-9
36472. . . . . . . . . . . . . . . . . . . . C-9
36473. . . . . . . . . . . . . . . . . . . . C-9
36475. . . . . . . . . . . . . . . . . . . . C-9
36476. . . . . . . . . . . . . . . . . . . . C-9
36477. . . . . . . . . . . . . . . . . . . . C-9
36478. . . . . . . . . . . . . . . . . . . . C-9
36479. . . . . . . . . . . . . . . . . . . . C-9
36480. . . . . . . . . . . . . . . . . . . . C-9
36481. . . . . . . . . . . . . . . . . . . . C-9
36482. . . . . . . . . . . . . . . . . . . . C-9
36483. . . . . . . . . . . . . . . . . . . . C-9
36484. . . . . . . . . . . . . . . . . . . . C-9
36485. . . . . . . . . . . . . . . . . . . . C-9
36486. . . . . . . . . . . . . . . . . . . . C-9
36487. . . . . . . . . . . . . . . . . . . . C-9
36488. . . . . . . . . . . . . . . . . . . . C-9
36489. . . . . . . . . . . . . . . . . . . . C-9
36497. . . . . . . . . . . . . . . . . . . . C-9
36498. . . . . . . . . . . . . . . . . . . . C-9
36499. . . . . . . . . . . . . . . . . . . . C-9
36500. . . . . . . . . . . . . . . . . . . . C-9
36501. . . . . . . . . . . . . . . . . . . . C-5
36503. . . . . . . . . . . . . . . . . . . . C-5
36505. . . . . . . . . . . . . . . . . . . . C-5
Page
Order No.
Woodhead No.
130097-0262
130097-0265
130097-0269
130097-0271
130097-0272
130097-0273
130097-0274
130097-0276
130097-0277
130097-0278
130097-0279
130097-0280
130097-0281
130097-0282
130097-0283
130097-0284
130097-0285
130097-0286
130097-0287
130097-0288
130097-0289
130097-0290
130097-0291
130097-0292
130097-0293
130097-0294
130097-0295
130097-0296
130097-0297
130097-0321
130097-0322
130097-0323
130097-0324
130097-0325
130097-0326
130097-0327
130097-0328
130097-0329
130097-0330
130097-0331
130097-0332
130097-0333
130097-0334
130097-0335
130097-0336
130097-0337
130097-0338
130097-0340
130097-0341
130097-0496
130097-0627
130097-0628
130097-0629
130097-0630
130097-0631
130097-0632
36508. . . . . . . . . . . . . . . . . . . . C-5
36512. . . . . . . . . . . . . . . . . . . . C-5
36515. . . . . . . . . . . . . . . . . . . . C-5
36516. . . . . . . . . . . . . . . . . . . . C-5
36517. . . . . . . . . . . . . . . . . . . . C-5
36518. . . . . . . . . . . . . . . . . . . . C-5
36519. . . . . . . . . . . . . . . . . . . . C-5
36800. . . . . . . . . . . . . . . . . . . C-10
36801. . . . . . . . . . . . . . . . . . . C-10
36802. . . . . . . . . . . . . . . . . . . C-10
36803. . . . . . . . . . . . . . . . . . . C-10
36804. . . . . . . . . . . . . . . . . . . C-10
36805. . . . . . . . . . . . . . . . . . . C-10
36806. . . . . . . . . . . . . . . . . . . C-10
36807. . . . . . . . . . . . . . . . . . . C-10
36808. . . . . . . . . . . . . . . . . . . C-10
36809. . . . . . . . . . . . . . . . . . . C-10
36810. . . . . . . . . . . . . . . . . . . C-10
36811. . . . . . . . . . . . . . . . . . . C-10
36812. . . . . . . . . . . . . . . . . . . C-10
36813. . . . . . . . . . . . . . . . . . . C-10
36814. . . . . . . . . . . . . . . . . . . C-10
36815. . . . . . . . . . . . . . . . . . . C-10
36816. . . . . . . . . . . . . . . . . . . . C-9
36818. . . . . . . . . . . . . . . . . . . . C-8
36827. . . . . . . . . . . . . . . . . . . . C-8
36829. . . . . . . . . . . . . . . . . . . . C-8
36830. . . . . . . . . . . . . . . . . . . . C-8
36831. . . . . . . . . . . . . . . . . . . . C-8
5522MSS. . . . . . . . . . . . . . . . . C-24
5524MSS. . . . . . . . . . . . . . . . . C-24
5526MSS. . . . . . . . . . . . . . . . . C-24
5528MSS. . . . . . . . . . . . . . . . . C-24
5530MSS. . . . . . . . . . . . . . . . . C-24
5532MSS. . . . . . . . . . . . . . . . . C-24
5534. . . . . . . . . . . . . . . . . . . . C-12
5534MSS. . . . . . . . . . . . . . . . . C-24
5536MSS. . . . . . . . . . . . . . . . . C-24
5538MSS. . . . . . . . . . . . . . . . . C-24
5540MSS. . . . . . . . . . . . . . . . . C-24
5542MSS. . . . . . . . . . . . . . . . . C-24
5544MSS. . . . . . . . . . . . . . . . . C-24
5548MSS. . . . . . . . . . . . . . . . . C-24
5552MSS. . . . . . . . . . . . . . . . . C-24
5554MSS. . . . . . . . . . . . . . . . . C-24
5556MSS. . . . . . . . . . . . . . . . . C-24
5560MSS. . . . . . . . . . . . . . . . . C-24
5622MSS. . . . . . . . . . . . . . . . . C-24
5624MSS. . . . . . . . . . . . . . . . . C-24
36296. . . . . . . . . . . . . . . . . . . . C-7
36292. . . . . . . . . . . . . . . . . . . . C-7
36819. . . . . . . . . . . . . . . . . . . . C-8
36826. . . . . . . . . . . . . . . . . . . . C-8
5546MSS. . . . . . . . . . . . . . . . . C-24
5550MSS. . . . . . . . . . . . . . . . . C-24
5558MSS. . . . . . . . . . . . . . . . . C-24
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130097-0633
130098-0024
130098-0025
130098-0026
130098-0027
130098-0028
130098-0029
130098-0030
130098-0031
130098-0032
130098-0033
130098-0034
130098-0035
130098-0036
130098-0037
130098-0038
130098-0039
130098-0040
130098-0041
130098-0043
130098-0044
130098-0045
130098-0046
130098-0048
130098-0049
130098-0050
130098-0051
130098-0052
130098-0055
130098-0056
130098-0057
130098-0058
130098-0060
130098-0061
130098-0063
130098-0064
130098-0065
130098-0066
130098-0068
130098-0069
130098-0070
130098-0071
130098-0072
130098-0073
130098-0075
130098-0076
130098-0077
130098-0078
130098-0079
130098-0080
130098-0081
130098-0082
130098-0085
130098-0086
130098-0087
130098-0089
5562MSS. . . . . . . . . . . . . . . . . C-24
5398. . . . . . . . . . . . . . . . . . . . C-11
5400. . . . . . . . . . . . . . . . . . . . C-11
5402. . . . . . . . . . . . . . . . . . . . C-11
5500. . . . . . . . . . . . . . . . . . . . C-11
5501. . . . . . . . . . . . . . . . . . . . C-18
5502. . . . . . . . . . . . . . . . . . . . C-11
5503. . . . . . . . . . . . . . . . . . . . C-18
5504. . . . . . . . . . . . . . . . . . . . C-11
5506. . . . . . . . . . . . . . . . . . . . C-11
5507. . . . . . . . . . . . . . . . . . . . C-18
5508. . . . . . . . . . . . . . . . . . . . C-11
5509. . . . . . . . . . . . . . . . . . . . C-18
5518. . . . . . . . . . . . . . . . . . . . C-12
5518SS . . . . . . . . . . . . . . . . . . C-24
5518W . . . . . . . . . . . . . . . . . . C-12
5519. . . . . . . . . . . . . . . . . . . . C-18
5519W . . . . . . . . . . . . . . . . . . C-18
5520. . . . . . . . . . . . . . . . . . . . C-12
5520W . . . . . . . . . . . . . . . . . . C-12
5521. . . . . . . . . . . . . . . . . . . . C-18
5521W . . . . . . . . . . . . . . . . . . C-18
5522. . . . . . . . . . . . . . . . . . . . C-12
5522SS . . . . . . . . . . . . . . . . . . C-24
5522W . . . . . . . . . . . . . . . . . . C-12
5523. . . . . . . . . . . . . . . . . . . . C-18
5523W . . . . . . . . . . . . . . . . . . C-18
5524. . . . . . . . . . . . . . . . . . . . C-12
5524SS . . . . . . . . . . . . . . . . . . C-24
5524W . . . . . . . . . . . . . . . . . . C-12
5524WBLK. . . . . . . . . . . . . . . . C-13
5525. . . . . . . . . . . . . . . . . . . . C-18
5525W . . . . . . . . . . . . . . . . . . C-18
5526. . . . . . . . . . . . . . . . . . . . C-12
5526SS . . . . . . . . . . . . . . . . . . C-24
5526W . . . . . . . . . . . . . . . . . . C-12
5526WBLK. . . . . . . . . . . . . . . . C-13
5527. . . . . . . . . . . . . . . . . . . . C-18
5527W . . . . . . . . . . . . . . . . . . C-18
5528. . . . . . . . . . . . . . . . . . . . C-12
5528SS . . . . . . . . . . . . . . . . . . C-24
5528W . . . . . . . . . . . . . . . . . . C-12
5528WBLK. . . . . . . . . . . . . . . . C-13
5529. . . . . . . . . . . . . . . . . . . . C-18
5529W . . . . . . . . . . . . . . . . . . C-18
5530. . . . . . . . . . . . . . . . . . . . C-12
5530SS . . . . . . . . . . . . . . . . . . C-24
5530W . . . . . . . . . . . . . . . . . . C-12
5530WBLK. . . . . . . . . . . . . . . . C-13
5531. . . . . . . . . . . . . . . . . . . . C-18
5531W . . . . . . . . . . . . . . . . . . C-18
5532. . . . . . . . . . . . . . . . . . . . C-12
5532SS . . . . . . . . . . . . . . . . . . C-24
5532W . . . . . . . . . . . . . . . . . . C-12
5532WBLK. . . . . . . . . . . . . . . . C-13
5533. . . . . . . . . . . . . . . . . . . . C-18
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130098-0090
130098-0092
130098-0093
130098-0095
130098-0096
130098-0099
130098-0100
130098-0101
130098-0102
130098-0103
130098-0106
130098-0107
130098-0108
130098-0109
130098-0111
130098-0112
130098-0113
130098-0114
130098-0115
130098-0116
130098-0117
130098-0118
130098-0121
130098-0122
130098-0123
130098-0125
130098-0126
130098-0128
130098-0129
130098-0130
130098-0131
130098-0132
130098-0133
130098-0134
130098-0135
130098-0136
130098-0137
130098-0138
130098-0139
130098-0141
130098-0142
130098-0143
130098-0145
130098-0146
130098-0147
130098-0148
130098-0149
130098-0150
130098-0151
130098-0152
130098-0153
130098-0154
130098-0155
130098-0157
130098-0158
130098-0159
5533W . . . . . . . . . . . . . . . . . . C-18
5534W . . . . . . . . . . . . . . . . . . C-12
5535. . . . . . . . . . . . . . . . . . . . C-18
5535W . . . . . . . . . . . . . . . . . . C-18
5536. . . . . . . . . . . . . . . . . . . . C-14
5536W . . . . . . . . . . . . . . . . . . C-14
5536WBLK. . . . . . . . . . . . . . . . C-15
5537. . . . . . . . . . . . . . . . . . . . C-20
5537W . . . . . . . . . . . . . . . . . . C-20
5538. . . . . . . . . . . . . . . . . . . . C-14
5538SS . . . . . . . . . . . . . . . . . . C-24
5538W . . . . . . . . . . . . . . . . . . C-14
5538WBLK. . . . . . . . . . . . . . . . C-15
5539. . . . . . . . . . . . . . . . . . . . C-20
5539W . . . . . . . . . . . . . . . . . . C-20
5540. . . . . . . . . . . . . . . . . . . . C-14
5540SS . . . . . . . . . . . . . . . . . . C-24
5540W . . . . . . . . . . . . . . . . . . C-14
5540WBLK. . . . . . . . . . . . . . . . C-15
5541. . . . . . . . . . . . . . . . . . . . C-20
5541W . . . . . . . . . . . . . . . . . . C-20
5542. . . . . . . . . . . . . . . . . . . . C-14
5542W . . . . . . . . . . . . . . . . . . C-14
5542WBLK. . . . . . . . . . . . . . . . C-15
5543. . . . . . . . . . . . . . . . . . . . C-20
5543W . . . . . . . . . . . . . . . . . . C-20
5544. . . . . . . . . . . . . . . . . . . . C-14
5544SS . . . . . . . . . . . . . . . . . . C-24
5544W . . . . . . . . . . . . . . . . . . C-14
5545. . . . . . . . . . . . . . . . . . . . C-20
5545W . . . . . . . . . . . . . . . . . . C-20
5546. . . . . . . . . . . . . . . . . . . . C-16
5546W . . . . . . . . . . . . . . . . . . C-16
5547. . . . . . . . . . . . . . . . . . . . C-21
5547W . . . . . . . . . . . . . . . . . . C-21
5548. . . . . . . . . . . . . . . . . . . . C-16
5548W . . . . . . . . . . . . . . . . . . C-16
5549. . . . . . . . . . . . . . . . . . . . C-21
5550. . . . . . . . . . . . . . . . . . . . C-16
5550W . . . . . . . . . . . . . . . . . . C-16
5551. . . . . . . . . . . . . . . . . . . . C-21
5552. . . . . . . . . . . . . . . . . . . . C-16
5552SS . . . . . . . . . . . . . . . . . . C-24
5552W . . . . . . . . . . . . . . . . . . C-16
5552WBLK. . . . . . . . . . . . . . . . C-16
5553. . . . . . . . . . . . . . . . . . . . C-21
5553W . . . . . . . . . . . . . . . . . . C-21
5554. . . . . . . . . . . . . . . . . . . . C-16
5554W . . . . . . . . . . . . . . . . . . C-16
5554WBLK. . . . . . . . . . . . . . . . C-16
5555. . . . . . . . . . . . . . . . . . . . C-21
5555W . . . . . . . . . . . . . . . . . . C-21
5556. . . . . . . . . . . . . . . . . . . . C-16
5556W . . . . . . . . . . . . . . . . . . C-16
5556WBLK. . . . . . . . . . . . . . . . C-16
5557. . . . . . . . . . . . . . . . . . . . C-21
Page
Order No.
Woodhead No.
130098-0160
130098-0161
130098-0164
130098-0165
130098-0166
130098-0167
130098-0168
130098-0169
130098-0170
130098-0171
130098-0172
130098-0173
130098-0174
130098-0175
130098-0176
130098-0177
130098-0178
130098-0179
130098-0180
130098-0181
130098-0182
130098-0184
130098-0185
130098-0186
130098-0187
130098-0188
130098-0189
130098-0190
130098-0191
130098-0192
130098-0193
130098-0195
130098-0196
130098-0197
130098-0198
130098-0199
130098-0200
130098-0202
130098-0203
130098-0204
130098-0205
130098-0207
130098-0208
130098-0210
130098-0212
130098-0213
130098-0215
130098-0216
130098-0217
130098-0218
130098-0221
130098-0222
130098-0223
130098-0224
130098-0225
130098-0227
5557W . . . . . . . . . . . . . . . . . . C-21
5558. . . . . . . . . . . . . . . . . . . . C-16
5558W . . . . . . . . . . . . . . . . . . C-16
5559. . . . . . . . . . . . . . . . . . . . C-21
5560. . . . . . . . . . . . . . . . . . . . C-16
5560W . . . . . . . . . . . . . . . . . . C-16
5560WBLK. . . . . . . . . . . . . . . . C-16
5561. . . . . . . . . . . . . . . . . . . . C-21
5561W . . . . . . . . . . . . . . . . . . C-21
5562. . . . . . . . . . . . . . . . . . . . C-16
5562W . . . . . . . . . . . . . . . . . . C-16
5563. . . . . . . . . . . . . . . . . . . . C-21
5568. . . . . . . . . . . . . . . . . . . . C-17
5569. . . . . . . . . . . . . . . . . . . . C-22
5570. . . . . . . . . . . . . . . . . . . . C-17
5571. . . . . . . . . . . . . . . . . . . . C-22
5572. . . . . . . . . . . . . . . . . . . . C-17
5573. . . . . . . . . . . . . . . . . . . . C-22
5574. . . . . . . . . . . . . . . . . . . . C-17
5575. . . . . . . . . . . . . . . . . . . . C-22
5576. . . . . . . . . . . . . . . . . . . . C-17
5577. . . . . . . . . . . . . . . . . . . . C-22
5580. . . . . . . . . . . . . . . . . . . . C-13
5580W . . . . . . . . . . . . . . . . . . C-13
5581. . . . . . . . . . . . . . . . . . . . C-19
5582. . . . . . . . . . . . . . . . . . . . C-13
5582W . . . . . . . . . . . . . . . . . . C-13
5583. . . . . . . . . . . . . . . . . . . . C-19
5584. . . . . . . . . . . . . . . . . . . . C-15
5586. . . . . . . . . . . . . . . . . . . . C-15
5587. . . . . . . . . . . . . . . . . . . . C-20
5594-004 . . . . . . . . . . . . . . . . C-13
5594-004W . . . . . . . . . . . . . . . C-13
5594-005 . . . . . . . . . . . . . . . . C-13
5594-005W . . . . . . . . . . . . . . . C-13
5594-006 . . . . . . . . . . . . . . . . C-13
5594-006W . . . . . . . . . . . . . . . C-13
5594-007 . . . . . . . . . . . . . . . . C-13
5594-007W . . . . . . . . . . . . . . . C-13
5594-008 . . . . . . . . . . . . . . . . C-13
5594-008W . . . . . . . . . . . . . . . C-13
5595-004 . . . . . . . . . . . . . . . . C-19
5595-004W . . . . . . . . . . . . . . . C-19
5595-005W . . . . . . . . . . . . . . . C-19
5595-008 . . . . . . . . . . . . . . . . C-19
5595-008W . . . . . . . . . . . . . . . C-19
5620W . . . . . . . . . . . . . . . . . . C-14
5620WBLK. . . . . . . . . . . . . . . . C-15
5621. . . . . . . . . . . . . . . . . . . . C-20
5621W . . . . . . . . . . . . . . . . . . C-20
5622W . . . . . . . . . . . . . . . . . . C-14
5622WBLK. . . . . . . . . . . . . . . . C-15
5623. . . . . . . . . . . . . . . . . . . . C-20
5623W . . . . . . . . . . . . . . . . . . C-20
5624. . . . . . . . . . . . . . . . . . . . C-14
5624W . . . . . . . . . . . . . . . . . . C-14
Page
v
Order No. Index
Order No.
Woodhead No.
130098-0228
130098-0229
130098-0230
130098-0235
130098-0236
130098-0238
130098-0239
130098-0241
130098-0243
130098-0244
130098-0245
130098-0246
130098-0248
130098-0249
130098-0250
130098-0251
130098-0252
130098-0253
130098-0254
130098-0255
130098-0424
130098-0425
130098-0426
130098-0429
130099-0051
130099-0052
130099-0068
130099-0069
130099-0070
130099-0071
130099-0072
130099-0073
130099-0074
130099-0075
130099-0076
130099-0077
130099-0078
130099-0079
130099-0080
130099-0081
130099-0082
130099-0083
130099-0084
130099-0085
130099-0086
130099-0087
130099-0088
130099-0089
130099-0090
130099-0091
130099-0092
130099-0093
130099-0094
130099-0095
130099-0096
130099-0097
5624WBLK. . . . . . . . . . . . . . . . C-15
5625. . . . . . . . . . . . . . . . . . . . C-20
5625W . . . . . . . . . . . . . . . . . . C-20
5620. . . . . . . . . . . . . . . . . . . . C-14
5622. . . . . . . . . . . . . . . . . . . . C-14
5595-007W . . . . . . . . . . . . . . . C-19
5585. . . . . . . . . . . . . . . . . . . . C-20
5595-006W . . . . . . . . . . . . . . . C-19
5534SS . . . . . . . . . . . . . . . . . . C-24
5622SS . . . . . . . . . . . . . . . . . . C-24
5624SS . . . . . . . . . . . . . . . . . . C-24
5536SS . . . . . . . . . . . . . . . . . . C-24
5546SS . . . . . . . . . . . . . . . . . . C-24
5548SS . . . . . . . . . . . . . . . . . . C-24
5550SS . . . . . . . . . . . . . . . . . . C-24
5554SS . . . . . . . . . . . . . . . . . . C-24
5556SS . . . . . . . . . . . . . . . . . . C-24
5558SS . . . . . . . . . . . . . . . . . . C-24
5560SS . . . . . . . . . . . . . . . . . . C-24
5562SS . . . . . . . . . . . . . . . . . . C-24
5520SS . . . . . . . . . . . . . . . . . . C-24
5505. . . . . . . . . . . . . . . . . . . . C-18
5542SS . . . . . . . . . . . . . . . . . . C-24
5558WBLK. . . . . . . . . . . . . . . . C-16
36237. . . . . . . . . . . . . . . . . . . C-39
36238. . . . . . . . . . . . . . . . . . . C-39
5522M . . . . . . . . . . . . . . . . . . C-12
5522NM . . . . . . . . . . . . . . . . . C-12
5523M . . . . . . . . . . . . . . . . . . C-18
5523NM . . . . . . . . . . . . . . . . . C-18
5524M . . . . . . . . . . . . . . . . . . C-12
5524NM . . . . . . . . . . . . . . . . . C-12
5525M . . . . . . . . . . . . . . . . . . C-18
5525NM . . . . . . . . . . . . . . . . . C-18
5526M . . . . . . . . . . . . . . . . . . C-12
5526NM . . . . . . . . . . . . . . . . . C-12
5527M . . . . . . . . . . . . . . . . . . C-18
5527NM . . . . . . . . . . . . . . . . . C-18
5528M . . . . . . . . . . . . . . . . . . C-12
5528NM . . . . . . . . . . . . . . . . . C-12
5529M . . . . . . . . . . . . . . . . . . C-18
5529NM . . . . . . . . . . . . . . . . . C-18
5530M . . . . . . . . . . . . . . . . . . C-12
5530NM . . . . . . . . . . . . . . . . . C-12
5531M . . . . . . . . . . . . . . . . . . C-18
5531NM . . . . . . . . . . . . . . . . . C-18
5532M . . . . . . . . . . . . . . . . . . C-12
5533M . . . . . . . . . . . . . . . . . . C-18
5534M . . . . . . . . . . . . . . . . . . C-12
5535M . . . . . . . . . . . . . . . . . . C-18
5536M . . . . . . . . . . . . . . . . . . C-14
5536NM . . . . . . . . . . . . . . . . . C-14
5537M . . . . . . . . . . . . . . . . . . C-20
5537NM . . . . . . . . . . . . . . . . . C-20
5538M . . . . . . . . . . . . . . . . . . C-14
5538NM . . . . . . . . . . . . . . . . . C-14
vi
Page
Order No.
Woodhead No.
130099-0098
130099-0099
130099-0100
130099-0101
130099-0102
130099-0103
130099-0104
130099-0105
130099-0106
130099-0107
130099-0108
130099-0109
130099-0110
130099-0111
130099-0112
130099-0113
130099-0114
130099-0115
130099-0116
130099-0117
130099-0118
130099-0119
130099-0120
130099-0121
130099-0122
130099-0123
130099-0124
130099-0125
130099-0126
130099-0127
130099-0128
130099-0129
130099-0130
130099-0131
130099-0132
130099-0134
130099-0135
130099-0136
130099-0137
130099-0141
130099-0142
130099-0143
130099-0144
130099-0145
130099-0146
130099-0147
130099-0148
130099-0149
130099-0150
130099-0151
130099-0152
130099-0153
130099-0154
130099-0157
130099-0158
130099-0159
5539M . . . . . . . . . . . . . . . . . . C-20
5539NM . . . . . . . . . . . . . . . . . C-20
5540M . . . . . . . . . . . . . . . . . . C-14
5540NM . . . . . . . . . . . . . . . . . C-14
5541M . . . . . . . . . . . . . . . . . . C-20
5641NM . . . . . . . . . . . . . . . . . C-20
5542M . . . . . . . . . . . . . . . . . . C-14
5542NM . . . . . . . . . . . . . . . . . C-14
5543M . . . . . . . . . . . . . . . . . . C-20
5543NM . . . . . . . . . . . . . . . . . C-20
5544M . . . . . . . . . . . . . . . . . . C-14
5545M . . . . . . . . . . . . . . . . . . C-20
5546M . . . . . . . . . . . . . . . . . . C-16
5546NM . . . . . . . . . . . . . . . . . C-16
5547NM . . . . . . . . . . . . . . . . . C-21
5548M . . . . . . . . . . . . . . . . . . C-16
5548NM . . . . . . . . . . . . . . . . . C-16
5549NM . . . . . . . . . . . . . . . . . C-21
5550M . . . . . . . . . . . . . . . . . . C-16
5550NM . . . . . . . . . . . . . . . . . C-16
5551M . . . . . . . . . . . . . . . . . . C-21
5552M . . . . . . . . . . . . . . . . . . C-16
5552NM . . . . . . . . . . . . . . . . . C-16
5553M . . . . . . . . . . . . . . . . . . C-21
5553NM . . . . . . . . . . . . . . . . . C-21
5554M . . . . . . . . . . . . . . . . . . C-16
5554NM . . . . . . . . . . . . . . . . . C-16
5555M . . . . . . . . . . . . . . . . . . C-21
5555NM . . . . . . . . . . . . . . . . . C-21
5556M . . . . . . . . . . . . . . . . . . C-16
5556NM . . . . . . . . . . . . . . . . . C-16
5557M . . . . . . . . . . . . . . . . . . C-21
5557NM . . . . . . . . . . . . . . . . . C-21
5558M . . . . . . . . . . . . . . . . . . C-16
5558NM . . . . . . . . . . . . . . . . . C-16
5560M . . . . . . . . . . . . . . . . . . C-16
5560NM . . . . . . . . . . . . . . . . . C-16
5561M . . . . . . . . . . . . . . . . . . C-21
5561NM . . . . . . . . . . . . . . . . . C-21
5599. . . . . . . . . . . . . . . . . . . . C-23
5600. . . . . . . . . . . . . . . . . . . . C-23
5601. . . . . . . . . . . . . . . . . . . . C-23
5602. . . . . . . . . . . . . . . . . . . . C-23
5603. . . . . . . . . . . . . . . . . . . . C-23
5604. . . . . . . . . . . . . . . . . . . . C-23
5609. . . . . . . . . . . . . . . . . . . . C-23
5610. . . . . . . . . . . . . . . . . . . . C-23
5611. . . . . . . . . . . . . . . . . . . . C-23
5612. . . . . . . . . . . . . . . . . . . . C-23
5613. . . . . . . . . . . . . . . . . . . . C-23
5614. . . . . . . . . . . . . . . . . . . . C-23
5620M . . . . . . . . . . . . . . . . . . C-14
5620NM . . . . . . . . . . . . . . . . . C-14
5622M . . . . . . . . . . . . . . . . . . C-14
5622NM . . . . . . . . . . . . . . . . . C-14
5623M . . . . . . . . . . . . . . . . . . C-20
Page
Order No.
Woodhead No.
130099-0160
130099-0161
130099-0162
130099-0163
130099-0164
130099-0165
130099-0166
130099-0167
130099-0168
130099-0169
130099-0170
130099-0171
130099-0172
130099-0173
130099-0174
130099-0175
130099-0176
130099-0177
130099-0178
130099-0179
130099-0180
130099-0181
130099-0182
130099-0183
130099-0184
130099-0185
130099-0186
130099-0187
130099-0188
130099-0189
130099-0190
130099-0227
130099-0228
130099-0229
130102-0080
130102-0081
130102-0082
130102-0083
130102-0084
130102-0085
130102-0086
130102-0087
130102-0088
130102-0090
130102-0091
130102-0093
130102-0095
130102-0096
130102-0097
130102-0098
130102-0099
130102-0100
130102-0101
130102-0102
130102-0103
130102-0106
5623NM . . . . . . . . . . . . . . . . . C-20
5624M . . . . . . . . . . . . . . . . . . C-14
5624NM . . . . . . . . . . . . . . . . . C-14
5625NM . . . . . . . . . . . . . . . . . C-20
5628M . . . . . . . . . . . . . . . . . . C-28
5630M . . . . . . . . . . . . . . . . . . C-27
5630NM . . . . . . . . . . . . . . . . . C-27
5631M . . . . . . . . . . . . . . . . . . C-27
5631NM . . . . . . . . . . . . . . . . . C-27
5632M . . . . . . . . . . . . . . . . . . C-27
5632NM . . . . . . . . . . . . . . . . . C-27
5633M . . . . . . . . . . . . . . . . . . C-28
5633NM . . . . . . . . . . . . . . . . . C-28
5634M . . . . . . . . . . . . . . . . . . C-28
5634NM . . . . . . . . . . . . . . . . . C-28
5635M . . . . . . . . . . . . . . . . . . C-28
5635NM . . . . . . . . . . . . . . . . . C-28
5636M . . . . . . . . . . . . . . . . . . C-29
5636NM . . . . . . . . . . . . . . . . . C-29
5637M . . . . . . . . . . . . . . . . . . C-29
5637NM . . . . . . . . . . . . . . . . . C-29
5638M . . . . . . . . . . . . . . . . . . C-29
5638NM . . . . . . . . . . . . . . . . . C-29
5639M . . . . . . . . . . . . . . . . . . C-29
5639NM . . . . . . . . . . . . . . . . . C-29
5640M . . . . . . . . . . . . . . . . . . C-28
5640NM . . . . . . . . . . . . . . . . . C-28
5645M . . . . . . . . . . . . . . . . . . C-28
5646M . . . . . . . . . . . . . . . . . . C-29
5647M . . . . . . . . . . . . . . . . . . C-27
5648M . . . . . . . . . . . . . . . . . . C-27
5625M . . . . . . . . . . . . . . . . . . C-20
36237SS . . . . . . . . . . . . . . . . . C-39
36238SS . . . . . . . . . . . . . . . . . C-39
105. . . . . . . . . . . . . . . . . . . . . A-15
105A163 . . . . . . . . . . . . . . . . . A-15
105B163 . . . . . . . . . . . . . . . . . A-15
105S . . . . . . . . . . . . . . . . . . . . A-15
105SA163 . . . . . . . . . . . . . . . . A-15
105SB163 . . . . . . . . . . . . . . . . A-15
105U. . . . . . . . . . . . . . . . . . . . A-15
105UA163. . . . . . . . . . . . . . . . A-15
105UB163. . . . . . . . . . . . . . . . A-15
105US. . . . . . . . . . . . . . . . . . . A-15
105USA163 . . . . . . . . . . . . . . . A-15
105USB163 . . . . . . . . . . . . . . . A-15
106. . . . . . . . . . . . . . . . . . . . . A-15
106A163 . . . . . . . . . . . . . . . . . A-15
106B163 . . . . . . . . . . . . . . . . . A-15
106I . . . . . . . . . . . . . . . . . . . . A-15
106IA163 . . . . . . . . . . . . . . . . A-15
106IB163 . . . . . . . . . . . . . . . . A-15
106S . . . . . . . . . . . . . . . . . . . . A-15
106SA163 . . . . . . . . . . . . . . . . A-15
106SB163 . . . . . . . . . . . . . . . . A-15
106SI . . . . . . . . . . . . . . . . . . . A-15
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130102-0107
130102-0108
130102-0109
130102-0110
130102-0111
130102-0112
130102-0113
130102-0114
130102-0117
130102-0120
130102-0123
130102-0124
130102-0125
130102-0138
130102-0140
130102-0141
130102-0142
130102-0143
130102-0145
130102-0146
130102-0148
130102-0152
130102-0153
130102-0158
130102-0159
130102-0160
130102-0163
130102-0164
130102-0165
130102-0167
130102-0168
130102-0169
130102-0171
130102-0172
130102-0173
130102-0176
130102-0177
130102-0178
130102-0180
130102-0183
130102-0184
130102-0185
130102-0188
130102-0189
130102-0190
130102-0192
130102-0193
130102-0194
130102-0196
130102-0198
130102-0199
130102-0200
130102-0201
130102-0202
130102-0203
130102-0204
106SIB163 . . . . . . . . . . . . . . . A-15
106U. . . . . . . . . . . . . . . . . . . . A-15
106UA163. . . . . . . . . . . . . . . . A-15
106UB163. . . . . . . . . . . . . . . . A-15
106UI . . . . . . . . . . . . . . . . . . . A-15
106UIA163 . . . . . . . . . . . . . . . A-15
106UIB163 . . . . . . . . . . . . . . . A-15
106US. . . . . . . . . . . . . . . .A-15, B-7
106USA163 . . . . . . . . . . . . . . . A-15
106USB163 . . . . . . . . . . . . . . . A-15
106USI . . . . . . . . . . . . . . . . . . A-15
106USIA163 . . . . . . . . . . . . . . A-15
106USIB163 . . . . . . . . . . . . . . A-15
110. . . . . . . . . . . . . . . . . . . . . A-16
110U. . . . . . . . . . . . . . . . . . . . A-16
110UA163. . . . . . . . . . . . . . . . A-16
110UB163. . . . . . . . . . . . . . . . A-16
110US. . . . . . . . . . . . . . . . . . . A-16
111. . . . . . . . . . . . . . . . . . . . . A-17
111A163 . . . . . . . . . . . . . . . . . A-17
111B163 . . . . . . . . . . . . . . . . . A-17
111IB163 . . . . . . . . . . . . . . . . A-17
111S . . . . . . . . . . . . . . . . . . . . A-17
111U. . . . . . . . . . . . . . . . . . . . A-17
111UA163. . . . . . . . . . . . . . . . A-17
111UB163. . . . . . . . . . . . . . . . A-17
111UIB163 . . . . . . . . . . . . . . . A-17
111US. . . . . . . . . . . . . . . . . . . A-17
111USA163 . . . . . . . . . . . . . . . A-17
114. . . . . . . . . . . . . . . . . . . . . A-16
114A163 . . . . . . . . . . . . . . . . . A-16
114B163 . . . . . . . . . . . . . . . . . A-16
114U. . . . . . . . . . . . . . . . . . . . A-16
114UA163. . . . . . . . . . . . . . . . A-16
114UB163. . . . . . . . . . . . . . . . A-16
114UI . . . . . . . . . . . . . . . . . . . A-16
114US. . . . . . . . . . . . . . . . . . . A-16
114USA163 . . . . . . . . . . . . . . . A-16
114USB163 . . . . . . . . . . . . . . . A-16
114USIA163 . . . . . . . . . . . . . . A-16
114USIB163 . . . . . . . . . . . . . . A-16
115. . . . . . . . . . . . . . . . . . . . . A-17
115B163 . . . . . . . . . . . . . . . . . A-17
115I . . . . . . . . . . . . . . . . . . . . A-17
115IB163 . . . . . . . . . . . . . . . . A-17
115U. . . . . . . . . . . . . . . . . . . . A-17
115UA163. . . . . . . . . . . . . . . . A-17
115UB163. . . . . . . . . . . . . . . . A-17
115UI . . . . . . . . . . . . . . . . . . . A-17
115US. . . . . . . . . . . . . . . . . . . A-17
115USA163 . . . . . . . . . . . . . . . A-17
115USB163 . . . . . . . . . . . . . . . A-17
115USI . . . . . . . . . . . . . . . . . . A-17
115USIA163 . . . . . . . . . . . . . . A-17
115USIB163 . . . . . . . . . . . . . . A-17
1173. . . . . . A-15, A-16, A-17, A-18
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130102-0207
130102-0210
130102-0210
130102-0211
130102-0212
130102-0213
130102-0214
130102-0215
130102-0216
130102-0217
130102-0221
130102-0222
130102-0223
130102-0224
130102-0226
130102-0227
130102-0228
130102-0229
130102-0230
130102-0233
130102-0234
130102-0235
130102-0245
130102-0246
130102-0247
130102-0252
130102-0253
130102-0254
130102-0256
130102-0257
130102-0258
130102-0259
130102-0260
130102-0261
130102-0266
130102-0268
130102-0269
130102-0270
130102-0271
130102-0272
130102-0273
130102-0274
130103-0014
130103-0015
130103-0016
130103-0017
130103-0018
130103-0019
130103-0020
130103-0021
130103-0022
130103-0024
130103-0025
130103-0026
130103-0027
130103-0029
1174. . . . . . A-15, A-16, A-17, A-18
1175U. . . . . . . . . . . . . . . . . . . A-16
1175U . . . . A-15, A-16, A-17, A-18
1175US . . . . A-15, A-16, A-17, A-18
118. . . . . . . . . . . . . . . . . . . . . A-16
118A163 . . . . . . . . . . . . . . . . . A-16
118B163 . . . . . . . . . . . . . . . . . A-16
118S . . . . . . . . . . . . . . . . . . . . A-16
118SA163 . . . . . . . . . . . . . . . . A-16
118SB163 . . . . . . . . . . . . . . . . A-16
118UB163. . . . . . . . . . . . . . . . A-16
118US. . . . . . . . . . . . . . . . . . . A-16
118USA163 . . . . . . . . . . . . . . . A-16
118USB163 . . . . . . . . . . . . . . . A-16
119. . . . . . . . . . . . . . . . . . . . . A-18
119A163 . . . . . . . . . . . . . . . . . A-18
119B163 . . . . . . . . . . . . . . . . . A-18
119S . . . . . . . . . . . . . . . . . . . . A-18
119SA163 . . . . . . . . . . . . . . . . A-18
119UB163. . . . . . . . . . . . . . . . A-18
119US. . . . . . . . . . . . . . . . . . . A-18
119USA163 . . . . . . . . . . . . . . . A-18
270-1 . . . . . . . . . . . . . . . . . . . A-20
270-2 . . . . . . . . . . . . . . . . . . . A-20
270-3 . . . . . . . . . . . . . . . . . . . A-20
271S . . . . . . . . . . . . . . . . . . . . A-20
271SA163 . . . . . . . . . . . . . . . . A-20
271SB163 . . . . . . . . . . . . . . . . A-20
271U. . . . . . . . . . . . . . . . . . . . A-20
271UA163. . . . . . . . . . . . . . . . A-20
271UB163. . . . . . . . . . . . . . . . A-20
271US. . . . . . . . . . . . . . . .A-20, B-7
271USA163 . . . . . . . . . . . . . . . A-20
271USB163 . . . . . . . . . . . . . . . A-20
276S . . . . . . . . . . . . . . . . . . . . A-20
276SB163 . . . . . . . . . . . . . . . . A-20
276U. . . . . . . . . . . . . . . . . . . . A-20
276UA163. . . . . . . . . . . . . . . . A-20
276UB163. . . . . . . . . . . . . . . . A-20
276US. . . . . . . . . . . . . . . . . . . A-20
276USA163 . . . . . . . . . . . . . . . A-20
276USB163 . . . . . . . . . . . . . . . A-20
1203. . . . . . . . . . . . . . . . . . . . A-13
1203A163 . . . . . . . . . . . . . . . . A-13
1203B163 . . . . . . . . . . . . . . . . A-13
1203D163. . . . . . . . . . . . . . . . A-13
1203GC. . . . . . . . . . . . . . . . . . A-13
1203GCA163 . . . . . . . . . . . . . . A-13
1203GCB163 . . . . . . . . . . . . . . A-13
1203I . . . . . . . . . . . . . . . . . . . A-13
1203IA163 . . . . . . . . . . . . . . . A-13
1203IB163 . . . . . . . . . . . . . . . A-13
1203IB163P . . . . . . . . . . . . . . A-13
1203ID163 . . . . . . . . . . . . . . . A-13
1203IGC . . . . . . . . . . . . . . . . . A-13
1203P . . . . . . . . . . . . . . . . . . . A-13
Page
Order No.
Woodhead No.
130103-0030
130103-0034
130103-0035
130103-0036
130103-0037
130103-0038
130103-0041
130103-0042
130103-0043
130103-0044
130103-0045
130103-0048
130103-0049
130103-0050
130103-0052
130103-0054
130103-0055
130103-0056
130103-0057
130103-0058
130103-0060
130103-0061
130103-0062
130103-0063
130103-0064
130103-0065
130103-0066
130104-0021
130104-0022
130104-0023
130104-0024
130104-0025
130104-0026
130104-0027
130104-0028
130104-0029
130104-0030
130104-0031
130104-0032
130104-0033
130104-0034
130104-0035
130104-0038
130104-0039
130104-0040
130104-0041
130104-0042
130104-0043
130104-0044
130104-0045
130104-0048
130104-0049
130104-0054
130104-0055
130104-0056
130104-0057
1203PQOA163. . . . . . . . . . . . . A-13
1203PRI . . . . . . . . . . . . . . . . . A-13
1203QO . . . . . . . . . . . . . . . . . A-13
1203QOA163. . . . . . . . . . . . . . A-13
1203QOB163. . . . . . . . . . . . . . A-13
1203QOGC . . . . . . . . . . . . . . . A-13
1203R. . . . . . . . . . . . . . . . . . . A-13
1203RA163 . . . . . . . . . . . . . . . A-13
1203RA163P . . . . . . . . . . . . . . A-13
1203RB163 . . . . . . . . . . . . . . . A-13
1203RB163P . . . . . . . . . . . . . . A-13
1203RGC . . . . . . . . . . . . . . . . . A-13
1203RI . . . . . . . . . . . . . . . . . . A-13
1203RIA163 . . . . . . . . . . . . . . A-13
1203RIB163 . . . . . . . . . . . . . . A-13
1203RID163 . . . . . . . . . . . . . . A-13
1207. . . . . . . . . . . . . . . . . . . . A-13
1207A163 . . . . . . . . . . . . . . . . A-13
1207B163 . . . . . . . . . . . . . . . . A-13
1207GC. . . . . . . . . . . . . . . . . . A-13
1207R. . . . . . . . . . . . . . . . . . . A-13
1207RA163. . . . . . . . . . . . . . . A-13
1207RB163 . . . . . . . . . . . . . . . A-13
1207RGC . . . . . . . . . . . . . . . . . A-13
1220. . . . . . . . . . . . . . . . . . . . A-13
1223. . . . . . . . . . . . . . . . . . . . A-13
1225. . . . . . . . . . . . . . . . . . . . A-13
1090-HZ . . . . . . . . . . . . . . . . . . A-7
1090-HZ12A163 . . . . . . . . . . . . A-7
1090-HZ12B163 . . . . . . . . . . . . A-7
1090-HZ12D143 . . . . . . . . . . . . A-7
1090-HZ12IA163. . . . . . . . . . . . A-7
1090-HZ12IB163. . . . . . . . . . . . A-7
1090-HZ12IB163P. . . . . . . . . . . A-7
1090-HZ12ID143. . . . . . . . . . . . A-7
1090-HZ12ID143P. . . . . . . . . . . A-7
1090-HZA143 . . . . . . . . . . . . . . A-7
1090-HZA163 . . . . . . . . . . . . . . A-7
1090-HZB143 . . . . . . . . . . . . . . A-7
1090-HZB163 . . . . . . . . . . . . . . A-7
1090-HZD143 . . . . . . . . . . . . . . A-7
1090-HZD163 . . . . . . . . . . . . . . A-7
1645-12 . . . . . . . . . . . . . . . . . . A-9
340310A . . . . . . . . . . . . . . . . . A-33
340510A . . . . . . . . . . . . . . . . . A-33
61430. . . . . . . . . . . . . . . . . . . . A-8
61430A143 . . . . . . . . . . . . . . . . A-8
61430A163 . . . . . . . . . . . . . . . . A-8
61430B143 . . . . . . . . . . . . . . . . A-8
61430B163 . . . . . . . . . . . . . . . . A-8
61430D143. . . . . . . . . . . . . . . . A-8
61430D163. . . . . . . . . . . . . . . . A-8
61451. . . . . . . . . . . . . . . . . . . . A-8
61452. . . . . . . . . . . . . . . . . . . . A-8
61455. . . . . . . . . . . . . . . . . . . . A-8
61435. . . . . . . . . . . . . . . . . . . . A-8
Page
vii
Order No. Index
Order No.
Woodhead No.
130104-0057
130104-0082
130104-0083
130104-0084
130104-0085
130104-0086
130104-0087
130104-0088
130104-0095
130104-0096
130104-0097
130104-0098
130105-0028
130105-0029
130105-0030
130105-0031
130105-0032
130105-0033
130105-0034
130105-0035
130105-0036
130105-0037
130105-0038
130105-0039
130105-0041
130105-0042
130105-0043
130105-0044
130105-0045
130105-0046
130105-0048
130105-0050
130105-0052
130105-0056
130105-0057
130105-0058
130105-0059
130105-0062
130105-0064
130105-0065
130105-0066
130105-0067
130105-0082
130105-0083
130106-0097
130106-0104
130106-0105
130106-0106
130106-0107
130106-0108
130106-0109
130106-0110
130106-0111
130106-0112
130106-0113
130106-0114
61436. . . . . . . . . . . . . . . . . . . . A-5
61450. . . . . . . . . . . . . . . . . . . . A-5
61450A143 . . . . . . . . . . . . . . . . A-5
61450B143 . . . . . . . . . . . . . . . . A-5
61450D143. . . . . . . . . . . . . . . . A-5
61450A163 . . . . . . . . . . . . . . . . A-5
61450B163 . . . . . . . . . . . . . . . . A-5
61450D163. . . . . . . . . . . . . . . . A-5
61451. . . . . . . . . . . . . . . . . . . . A-5
61452. . . . . . . . . . . . . . . . . . . . A-5
61455. . . . . . . . . . . . . . . . . . . . A-5
61457. . . . . . . . . . . . . . . . .A-5, A-8
1600-12A . . . . . . . . . . . . . . . . A-10
1600-12B . . . . . . . . . . . . . . . . A-10
1601-12A . . . . . . . . . . . . . . . . A-10
1601-12B . . . . . . . . . . . . . . . . A-10
1606. . . . . . . . . . . . . . . . . . . . A-11
1610. . . . . . . . . . . . . . . . . . . . A-11
1610S . . . . . . . . . . . . . . . .A-11, B-7
1612. . . . . . . . . . . . . . . . . . . . A-11
1612S . . . . . . . . . . . . . . . . . . . A-11
1621-12A . . . . . . . . . . . . . . . . A-10
1621-12B . . . . . . . . . . . . . . . . A-10
1621-12B-P. . . . . . . . . . . . . . . A-10
1625-12A . . . . . . . . . . . . . . . . A-10
1625-12B . . . . . . . . . . . . . . . . A-10
1631-12A . . . . . . . . . . . . . . . . A-10
1631-12B . . . . . . . . . . . . . . . . A-10
1635-12A . . . . . . . . . . . . . . . . . A-9
1635-12B . . . . . . . . . . . . . . . . . A-9
1638-12 . . . . . . . . . . . . . . . . . A-11
1640-12 . . . . . . . . . . . . . . . . . . A-9
1642-12 . . . . . . . . . . . . . . . . . . A-9
1646-12 . . . . . . . . . . . . . . . . . A-10
1647-12 . . . . . . . . . . . . . . . . . A-11
1648-12 . . . . . . . . . . . . . . . . . A-10
1649-12 . . . . . . . . . . . . . . . . . A-10
1684S . . . . . . . . . . . . . . . . . . . A-11
1691-12B . . . . . . . . . . . . . . . . A-11
1691-12BS . . . . . . . . . . . . . . . A-11
1692-12B . . . . . . . . . . . . . . . . A-11
1692-12BS . . . . . . . . . . . . . . . A-11
1655-12A . . . . . . . . . . . . . . . . . A-6
1655-12B . . . . . . . . . . . . . . . . . A-6
310243 . . . . . . . . . . . . . . . . . . A-35
323123 . . . . . . . . . . . . . . . . . . A-34
323124 . . . . . . . . . . . . . . . . . . A-34
323125 . . . . . . . . . . . . . . . . . . A-34
323126 . . . . . . . . . . . . . . . . . . A-34
323133 . . . . . . . . . . . . . . . . . . A-34
323134 . . . . . . . . . . . . . . . . . . A-34
323135 . . . . . . . . . . . . . . . . . . A-34
323136 . . . . . . . . . . . . . . . . . . A-34
323523 . . . . . . . . . . . . . . . . . . A-34
323524 . . . . . . . . . . . . . . . . . . A-34
323525 . . . . . . . . . . . . . . . . . . A-34
viii
Page
Order No.
Woodhead No.
130106-0115
130106-0116
130106-0117
130106-0118
130106-0119
130106-0120
130107-0024
130107-0025
130107-0028
130107-0029
130107-0030
130107-0031
130107-0032
130107-0033
130107-0034
130107-0038
130107-0039
130107-0040
130107-0042
130107-0043
130107-0046
130108-0078
130108-0083
130108-0085
130108-0088
130108-0091
130108-0092
130108-0093
130108-0094
130108-0095
130108-0097
130108-0098
130108-0099
130108-0100
130108-0101
130108-0102
130108-0103
130108-0104
130108-0105
130108-0106
130108-0119
130108-0120
130108-0121
130108-0122
130108-0123
130108-0125
130108-0126
130108-0128
130108-0133
130108-0134
130108-0136
130108-0139
130108-0141
130108-0142
130108-0143
130108-0144
323526 . . . . . . . . . . . . . . . . . . A-34
323533 . . . . . . . . . . . . . . . . . . A-34
323534 . . . . . . . . . . . . . . . . . . A-34
323535 . . . . . . . . . . . . . . . . . . A-34
323536 . . . . . . . . . . . . . . . . . . A-34
342510A . . . . . . . . . . . . . . . . . A-33
300. . . . . . . . . . . . . . . . . . . . . A-35
300W . . . . . . . . . . . . . . . . . . . A-35
302U. . . . . . . . . . . . . . . . . . . . A-35
310. . . . . . . . . . . . . . . . . . . . . A-35
310123 . . . . . . . . . . . . . . . . . . A-35
310143 . . . . . . . . . . . . . . . . . . A-35
310323 . . . . . . . . . . . . . . . . . . A-35
310423 . . . . . . . . . . . . . . . . . . A-35
310W . . . . . . . . . . . . . . . . . . . A-35
380010A . . . . . . . . . . . . . . . . . A-33
380310A . . . . . . . . . . . . . . . . . A-33
380510A . . . . . . . . . . . . . . . . . A-33
387010A . . . . . . . . . . . . . . . . . A-33
387510A . . . . . . . . . . . . . . . . . A-33
310223 . . . . . . . . . . . . . . . . . . A-35
1003-3 . . . . . . . . . . . . . . . . . . A-19
1005-3 . . . . . . . . . . . . . . . . . . A-19
1013-3 . . . . . . . . . . . . . . . . . . A-19
1015-3 . . . . . . . . . . . . . . . . . . A-19
1045. . . . . . . . . . . . . . . . . . . . A-19
1049. . . . . . . . . . . . . . . . . . . . A-19
1050-12 . . . . . . . . . . . . . . . . . A-28
1050-PL . . . . . . . . . . . . . . . . . A-28
1050-PL12 . . . . . . . . . . . . . . . A-28
1051-12 . . . . . . . . . . . . . . . . . A-28
1051-PL . . . . . . . . . . . . . . . . . A-28
1051-PL12 . . . . . . . . . . . . . . . A-28
1052-12 . . . . . . . . . . . . . . . . . A-28
1052-PL . . . . . . . . . . . . . . . . . A-28
1052-PL12 . . . . . . . . . . . . . . . A-28
1060-PL . . . . . . . . . . . . . . . . . A-28
1061-PL . . . . . . . . . . . . . . . . . A-28
1062-PL . . . . . . . . . . . . . . . . . A-28
1083-3 . . . . . . . . . . . . . . . . . . A-19
1083-3M . . . . . . . . . . . . . . . . . A-31
1083-3MM . . . . . . . . . . . . . . . A-31
1083-3MM-24 . . . . . . . . . . . . . A-31
1083-3NS . . . . . . . . . . . . . . . . A-19
1083-3-P. . . . . . . . . . . . . . . . . A-19
1085-3 . . . . . . . . . . . . . . . . . . A-19
1085-3-P. . . . . . . . . . . . . . . . . A-19
1086-3 . . . . . . . . . . . . . . . . . . A-19
1086-3HO . . . . . . . . . . . . . . . . A-19
1086-3NS . . . . . . . . . . . . . . . . A-19
1087-3 . . . . . . . . . . . . . . . . . . A-19
1093-3 . . . . . . . . . . . . . . . . . . A-19
1093-3M . . . . . . . . . . . . . . . . . A-31
1093-3MM . . . . . . . . . . . . . . . A-31
1095-3 . . . . . . . . . . . . . . . . . . A-19
1097-3 . . . . . . . . . . . . . . . . . . A-19
Page
Order No.
Woodhead No.
130108-0146
130108-0148
130108-0149
130108-0151
130108-0155
130108-0156
130108-0157
130108-0158
130108-0160
130108-0162
130108-0164
130108-0167
130108-0170
130108-0173
130108-0179
130108-0181
130108-0183
130108-0187
130108-0188
130108-0191
130108-0193
130108-0194
130108-0199
130108-0202
130108-0203
130108-0206
130108-0207
130108-0209
130108-0210
130108-0300
130108-0301
130108-0302
130108-0303
130108-0304
130108-0305
130108-0306
130108-0307
130109-0007
130109-0009
130109-0017
130109-0020
130109-0026
130109-0027
130109-0028
130109-0029
130110-0021
130110-0022
130110-0023
130110-0026
130110-0027
130110-0031
130110-0033
130110-0034
130110-0035
130110-0038
130110-0042
1097-3M . . . . . . . . . . . . . . . . . A-31
1097-3MM . . . . . . . . . . . . . . . A-31
1099-3 . . . . . . . . . . . . . . . . . . A-19
1324. . . . . . . . . . . . . . . . . . . . A-28
1326. . . . . . . . . . . . . . . . . . . . A-28
1334. . . . . . . . . . . . . . . . . . . . A-28
1335. . . . . . . . . . . . . . . . . . . . A-28
1336. . . . . . . . . . . . . . . . . . . . A-28
1337. . . . . . . . . . . . . . . . . . . . A-28
1350. . . . . . . . . . . . . . . . . . . . A-28
1351. . . . . . . . . . . . . . . . . . . . A-28
1352. . . . . . . . . . . . . . . . . . . . A-28
1913SA . . . . . . . . . . . . . . . . . . A-14
1913SB . . . . . . . . . . . . . . . . . . A-14
1926SA . . . . . . . . . . . . . . . . . . A-14
1926SB . . . . . . . . . . . . . . . . . . A-14
1940SA . . . . . . . . . . . . . . . . . . A-14
2000. . . . . . . . . . . . . . . . . . . . A-27
2000PLX25 . . . . . . . . . . . . . . . A-27
2001. . . . . . . . . . . . . . . . . . . . A-27
2002. . . . . . . . . . . . . . . . . . . . A-27
2003. . . . . . . . . . . . . . . . . . . . A-27
2030. . . . . . . . . . . . . . . . . . . . A-27
2031. . . . . . . . . . . . . . . . . . . . A-27
2031-P . . . . . . . . . . . . . . . . . . A-27
2113MS. . . . . . . . . . . . . . . . . . A-31
2113S . . . . . . . . . . . . . . . . . . . A-31
2126MS. . . . . . . . . . . . . . . . . . A-31
2126S . . . . . . . . . . . . . . . . . . . A-31
2000-LED . . . . . . . . . . . . . . . . A-26
2001-LED . . . . . . . . . . . . . . . . A-26
2002-LED . . . . . . . . . . . . . . . . A-26
2003-LED . . . . . . . . . . . . . . . . A-26
2010-LED . . . . . . . . . . . . . . . . A-26
2011-LED . . . . . . . . . . . . . . . . A-26
2012-LED . . . . . . . . . . . . . . . . A-26
2013-LED . . . . . . . . . . . . . . . . A-26
402. . . . . . . . . . . . . . . . . . . . . A-21
405. . . . . . . . . . . . . . . . . . . . . A-21
WT3C-20 . . . . . . . . . . . . . . . . . A-22
WT3F-20 . . . . . . . . . . . . . . . . . A-23
WT6C-25 . . . . . . . . . . . . . . . . . A-22
WT6C-50 . . . . . . . . . . . . . . . . . A-22
WT6F-25 . . . . . . . . . . . . . . . . . A-23
WT6F-50 . . . . . . . . . . . . . . . . . A-23
8500M . . . . . . . . . . . . . . . . . . A-30
8506M . . . . . . . . . . . . . . . . . . A-30
8511. . . . . . . . . . . . . . . . . . . . A-30
8540M . . . . . . . . . . . . . . . . . . A-31
8540P . . . . . . . . . . . . . . . . . . . A-31
8565. . . . . . . . . . . . . . . . . . . . A-29
8565F . . . . . . . . . . . . . . . . . . . A-29
8565F-MH . . . . . . . . . . . . . . . . A-29
8565-MH. . . . . . . . . . . . . . . . . A-29
8575-MH. . . . . . . . . . . . . . . . . A-30
SBG2500 . . . . . . . . . . . . . . . . . A-30
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130110-0043
130110-0050
130110-0060
130110-0061
130111-0023
130111-0024
130111-0026
130111-0027
130111-0030
130111-0031
130111-0044
130111-0047
130112-0068
130112-0079
130112-0085
130112-0087
130112-0092
130112-0095
130112-0097
130112-0099
130112-0101
130112-0102
130112-0104
130112-0105
130112-0106
130112-0108
130112-0110
130112-0111
130112-0114
130112-0119
130112-0128
130112-0129
130112-0130
130112-0131
130112-0132
130112-0133
130112-0134
130112-0135
130112-0144
130112-0153
130112-0154
130112-0156
130112-0157
130112-0158
130112-0160
130112-0161
130112-0162
130112-0163
130112-0164
130112-0166
130112-0169
130112-0171
130112-0172
130112-0173
130112-0174
130112-0176
SBS2500 . . . . . . . . . . . . . . . . . A-30
8575-MH-PS . . . . . . . . . . . . . . A-30
8565-LED . . . . . . . . . . . . . . . . A-29
8565F-LED. . . . . . . . . . . . . . . . A-29
202SRL . . . . . . . . . . . . . . . . . . A-37
302SRL . . . . . . . . . . . . . . . . . . A-37
302SRLCA . . . . . . . . . . . . . . . . A-37
5000. . . . . . . . . . . . . . . . . . . . A-36
5002. . . . . . . . . . . . . . . . . . . . A-36
5003. . . . . . . . . . . . . . . . . . . . A-36
5030. . . . . . . . . . . . . . . . . . . . A-37
302SRLCA-F . . . . . . . . . . . . . . . A-37
1083-3HON . . . . . . . . . . . . . . . A-19
1152. . . . . . . . . . . . . . . . . . . . A-10
1156. . . . . . . . . . . . . . . .A-10, A-15
1156IG . . . . . . . . . . . . . . . . . . A-15
1160. . . . . . . . . . . . . . . . . . . . A-16
1161. . . . . . . . . . . . . . . . . . . . A-17
1161IG . . . . . . . . . . . . . . . . . . A-17
1164. . . . . . . . . . . . . . . . . . . . A-16
1164IG . . . . . . . . . . . . . . . . . . A-16
1165. . . . . . . . . . . . . . . . . . . . A-17
1165IG . . . . . . . . . . . . . . . . . . A-17
1166. . . . . . . . . . . . . . . . . . . . A-15
1168. . . . . . . . . . . . . . . . . . . . A-16
1181. . . . . . . . . . . . . . . . . . . . A-18
1229. . . . . . . . . . . . . . . .A-10, A-13
1255. . . . . . . . . . . . . . . .A-10, A-13
1255R. . . . . . . . . . . . . . . . . . . A-13
1259. . . . . . . . . . . . . . . . . . . . A-13
1660. . . . . . . . . . . . . . . . . . . . A-11
1660S . . . . . . . . . . . . . . . . . . . A-11
1668. . . . . . . . . . . . . . . . . . . . A-11
1675-12 . . . . . . . . . . . . . . . . . A-10
1676. . . . . . . . . . . . . . . . . . . . A-10
1676-EX . . . . . . . . . . . . . . .A-6, A-9
1677. . . . . . . . . . . . . . . . . .A-6, A-9
1678-12 . . . . . . . . . . . . . . . . . . A-9
305. . . . . . . . . . . . . . . . . . . . . A-35
362V . . . . . . . . . . . . . . . . . . . . A-36
364V . . . . . . . . . . . . . . . . . . . . A-36
367. . . . . . . . . . . . . . . . . . . . . A-36
367V . . . . . . . . . . . . . . . . . . . . A-36
368. . . . . . . . . . . . . . . . . . . . . A-36
370. . . . . . . . . . . . . . . . . . . . . A-34
372. . . . . . . . . . . . . . . . . . . . . A-34
372V . . . . . . . . . . . . . . . . . . . . A-34
377. . . . . . . . . . . . . . . . . . . . . A-34
377V . . . . . . . . . . . . . . . . . . . . A-34
378V . . . . . . . . . . . . . . . . . . . . A-34
380R. . . . . . . . . . . . . . . . . . . . A-36
381R. . . . . . . . . . . . . . . . . . . . A-34
382. . . . . . . . . . . . . . . . . . . . . A-36
383. . . . . . . . . . . . . . . . . . . . . A-34
385. . . . . . . . . . . . . . . . . . . . . A-34
40-1040 . . . . . . . . . . . . . . . . . A-19
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130112-0186
130112-0196
130112-0246
130112-0258
130112-0263
130112-0272
130113-0007
130114-0017
130114-0018
130114-0019
130126-0008
130126-0009
130126-0012
130126-0021
130126-0022
130126-0023
130126-0025
130126-0027
130126-0028
130126-0029
130126-0030
130126-0031
130126-0033
130126-0034
130126-0036
130126-0186
130126-0187
130126-0188
130126-0189
130126-0190
130126-0192
130126-0193
130126-0195
130126-0196
130126-0197
130126-0198
130126-0199
130126-0200
130126-0204
130126-0205
130126-0207
130126-0208
130126-0209
130126-0210
130126-0212
130126-0213
130126-0214
130126-0216
130126-0218
130126-0219
130126-0222
130126-0223
130126-0224
130126-0226
130126-0227
130126-0228
41-6762 . . . . . . . . . . . . . . . . . A-13
50-8575 . . . . . . . . . . . . . . . . . A-30
STR101 . . . . . . . . . . . . . . . . . . A-37
STR105 . . . . . . . . . . . . . . . . . . A-37
130112-0263 . . . . . . . . . . . . . A-29
1679-12 . . . . . . . . . . . . . . . . . . A-6
40-9442 . . . . . . . . . . . . . . . . . . A-7
362. . . . . . . . . . . . . . . . . . . . . A-36
364. . . . . . . . . . . . . . . . . . . . . A-36
378. . . . . . . . . . . . . . . . . . . . . A-34
505BC-C . . . . . . . . . . . . . . . . . . F-5
505BC-L . . . . . . . . . . . . . . F-5, F-13
505B-RM . . . . . . . . . . . . . . . F-5, F-7
505PL-GS . . . . . . . . . . . . . . . . . F-5
505PL-RS. . . . . . . . . . . . . . . . . . F-5
505PL-YS. . . . . . . . . . . . . . . . . . F-5
505SS-2 . . . . . . . . . . . . . . . . . . F-5
505SS-3NO . . . . . . . . . . . . . . . . F-5
505SW-1 . . . . . . . . . . . . . . . . . . F-5
505SW-12NO. . . . . . . . . . . . . . . F-5
505SW-1NONC. . . . . . . . . . . . . . F-5
505SW-2 . . . . . . . . . . . . . . . . . . F-5
505SW-M. . . . . . . . . . . . . . . . . . F-5
505SW-N. . . . . . . . . . . . . . . . . . F-5
4028. . . . . . . . . . . . . . . . . . . . . F-7
4002. . . . . . . . . . . . . . . . . . . . . F-9
4003. . . . . . . . . . . . . . . . . . . . . F-9
4004. . . . . . . . . . . . . . . . . . . . . F-9
4005. . . . . . . . . . . . . . . . . . . . . F-9
4006. . . . . . . . . . . . . . . . . . . . . F-9
4007. . . . . . . . . . . . . . . . . . . . . F-9
4008. . . . . . . . . . . . . . . . . . . . . F-9
4009. . . . . . . . . . . . . . . . . . . . F-10
4010. . . . . . . . . . . . . . . . . . . . F-10
4011. . . . . . . . . . . . . . . . . . . . F-10
4012. . . . . . . . . . . . . . . . . . . . F-10
4022. . . . . . . . . . . . . . . . . . . . . F-7
4022-2 . . . . . . . . . . . . . . . . . . . F-7
4022ES . . . . . . . . . . . . . . . . . . . F-7
4022G. . . . . . . . . . . . . . . . . . . . F-7
4023. . . . . . . . . . . . . . . . . . . . . F-7
4023-2 . . . . . . . . . . . . . . . . . . . F-7
4023ES . . . . . . . . . . . . . . . . . . . F-7
4023G. . . . . . . . . . . . . . . . . . . . F-7
4024. . . . . . . . . . . . . . . . . . . . . F-7
4024-2 . . . . . . . . . . . . . . . . . . . F-7
4024ES . . . . . . . . . . . . . . . . . . . F-7
4024G. . . . . . . . . . . . . . . . . . . . F-7
4026. . . . . . . . . . . . . . . . . . . . . F-7
4026-2 . . . . . . . . . . . . . . . . . . . F-7
4026ES . . . . . . . . . . . . . . . . . . . F-7
4026G. . . . . . . . . . . . . . . . . . . . F-7
4028-2 . . . . . . . . . . . . . . . . . . . F-7
4028ES . . . . . . . . . . . . . . . . . . . F-7
4028G. . . . . . . . . . . . . . . . . . . . F-7
4032. . . . . . . . . . . . . . . . . . . . . F-8
Page
Order No.
Woodhead No.
130126-0229
130126-0230
130126-0231
130126-0232
130126-0235
130126-0236
130126-0237
130126-0238
130126-0239
130126-0240
130126-0241
130126-0242
130126-0243
130126-0246
130126-0247
130126-0248
130126-0249
130126-0250
130126-0251
130126-0256
130126-0257
130126-0258
130126-0260
130126-0262
130126-0263
130126-0264
130126-0266
130126-0268
130127-0003
130127-0007
130128-0078
130128-0079
130128-0080
130128-0081
130128-0082
130128-0100
130128-0101
130128-0111
130128-0112
130128-0113
130128-0114
130128-0115
130128-0116
130128-0117
130128-0118
130128-0119
130128-0120
130128-0150
130128-0151
130128-0152
130128-0160
130128-0161
130128-0162
130128-0167
130128-0168
130135-0013
4032-2 . . . . . . . . . . . . . . . . . . . F-8
4032BLK . . . . . . . . . . . . . . . . . . F-8
4052. . . . . . . . . . . . . . . . . . . . . F-6
4052BLK . . . . . . . . . . . . . . . . . . F-6
4202. . . . . . . . . . . . . . . . . . . . . F-9
4203. . . . . . . . . . . . . . . . . . . . . F-9
4206. . . . . . . . . . . . . . . . . . . . . F-9
4207. . . . . . . . . . . . . . . . . . . . . F-9
4208. . . . . . . . . . . . . . . . . . . . . F-9
4209. . . . . . . . . . . . . . . . . . . . F-10
4210. . . . . . . . . . . . . . . . . . . . F-10
4212. . . . . . . . . . . . . . . . . . . . F-10
5052-1 . . . . . . . . . . . . . . . . . . . F-5
5052-M . . . . . . . . . . . . . . . . . . . F-5
5052-N . . . . . . . . . . . . . . . . . . . F-5
5054-1 . . . . . . . . . . . . . . . . . . . F-5
5054-1M . . . . . . . . . . . . . . . . . . F-5
5054-1N . . . . . . . . . . . . . . . . . . F-5
5054-2 . . . . . . . . . . . . . . . . . . . F-5
5056-1 . . . . . . . . . . . . . . . . . . . F-5
5056-1M . . . . . . . . . . . . . . . . . . F-5
5056-1N . . . . . . . . . . . . . . . . . . F-5
5056-2M . . . . . . . . . . . . . . . . . . F-5
5058-1 . . . . . . . . . . . . . . . . . . . F-5
5058-1M . . . . . . . . . . . . . . . . . . F-5
5058-1N . . . . . . . . . . . . . . . . . . F-5
5058-2M . . . . . . . . . . . . . . . . . . F-5
5058-3M . . . . . . . . . . . . . . . . . . F-5
1751. . . . . . . . . . . . . . . . . . . . F-12
1760. . . . . . . . . . . . . . . . . . . . F-12
00-0463 . . . . . . . . . . . . . . . . . . F-7
00-3063 . . . . . . . . . . . . . . . . . . F-7
00-3073 . . . . . . . . . . . . . . . . . . F-7
00-3083 . . . . . . . . . . . . . . . . . . F-7
00-3823 . . . . . . . . . . . . . . . . . . F-7
4020. . . . . . . . . . . . . . . . . . . . . F-7
4020-2 . . . . . . . . . . . . . . . . . . . F-7
450. . . . . . . . . . . . . . . . . . . . . E-49
451. . . . . . . . . . . . . . . . . . . . . E-49
452. . . . . . . . . . . . . . . . . . . . . E-49
452CR . . . . . . . . . . . . . . . . . . . E-33
453. . . . . . . . . . . . . . . . . . . . . E-49
453CR . . . . . . . . . . . . . . . . . . . E-33
453GF . . . . . . . . . . . . . . . . . . . E-49
454. . . . . . . . . . . . . . . . . . . . . E-49
454CR . . . . . . . . . . . . . . . . . . . E-33
454GF . . . . . . . . . . . . . . . . . . . E-49
455-FD1 . . . . . . . . . . . . . . . . . E-32
455-FD2 . . . . . . . . . . . . . . . . . E-32
455-FD3 . . . . . . . . . . . . . . . . . E-32
455-FD1BLK . . . . . . . . . . . . . . E-32
455-FD2BLK . . . . . . . . . . . . . . E-32
455-FD3BLK . . . . . . . . . . . . . . E-32
455-TA50 . . . . . . . . . . . . . . . . E-32
455-TA75 . . . . . . . . . . . . . . . . E-32
3320D123. . . . . . . . . . . . . . . . E-44
Page
ix
Order No. Index
Order No.
Woodhead No.
130135-0014
130135-0015
130135-0076
130135-0078
130135-0177
130135-0181
130135-0185
130135-0186
130135-0187
130135-0195
130135-0196
130135-0197
130135-0198
130135-0200
130135-0201
130135-0203
130135-0204
130135-0205
130135-0207
130135-0208
130135-0209
130135-0211
130135-0213
130135-0216
130135-0217
130135-0219
130135-0220
130135-0228
130135-0230
130135-0231
130135-0233
130135-0234
130135-0235
130135-0236
130135-0245
130135-0246
130135-0247
130135-0248
130135-0249
130135-0250
130135-0251
130135-0254
130135-0255
130135-0256
130135-0257
130135-0258
130135-0259
130135-0260
130135-0262
130135-0263
130135-0268
130135-0272
130135-0273
130135-0276
130135-0278
130135-0279
3321A123 . . . . . . . . . . . . . . . .
3324FL123 . . . . . . . . . . . . . . .
09106. . . . . . . . . . . . . . . . . . .
09107. . . . . . . . . . . . . . . . . . .
3123. . . . . . . . . . . . . . . . . . . .
3129. . . . . . . . . . . . . . . . . . . .
3200. . . . . . . . . . . . . . . . . . . .
3210. . . . . . . . . . . . . . . . . . . .
3215. . . . . . . . . . . . . . . . . . . .
3290-1 . . . . . . . . . . . . . . . . . .
3290-1B143 . . . . . . . . . . . . . .
3290-1E143 . . . . . . . . . . . . . .
3290-2 . . . . . . . . . . . . . . . . . .
3290-2E143 . . . . . . . . . . . . . .
3290-3 . . . . . . . . . . . . . . . . . .
3290-3E123 . . . . . . . . . . . . . .
3290-9 . . . . . . . . . . . . . . . . . .
3290-9E123 . . . . . . . . . . . . . .
32G15E123 . . . . . . . . . . . . . . .
32G15L123 . . . . . . . . . . . . . . .
32G20A123. . . . . . . . . . . . . . .
32G20E123 . . . . . . . . . . . . . . .
32GM15A123 . . . . . . . . . . . . .
32GM15L123. . . . . . . . . . . . . .
32GM20A123 . . . . . . . . . . . . .
32GM20E123. . . . . . . . . . . . . .
32GM20L123. . . . . . . . . . . . . .
32W33 . . . . . . . . . . . . . . . . . .
32W47 . . . . . . . . . . . . . . . . . .
32W47A123 . . . . . . . . . . . . . .
32W90-1 . . . . . . . . . . . . . . . . .
32W90-1E143 . . . . . . . . . . . . .
32W90-2 . . . . . . . . . . . . . . . . .
32W90-2E143 . . . . . . . . . . . . .
3300. . . . . . . . . . . . . . . . . . . .
3320. . . . . . . . . . . . . . . . . . . .
3320A123 . . . . . . . . . . . . . . . .
3320B123 . . . . . . . . . . . . . . . .
3320E123 . . . . . . . . . . . . . . . .
3320FA123 . . . . . . . . . . . . . . .
3320L123 . . . . . . . . . . . . . . . .
3321E123 . . . . . . . . . . . . . . . .
3321L123 . . . . . . . . . . . . . . . .
3322. . . . . . . . . . . . . . . . . . . .
3322A123 . . . . . . . . . . . . . . . .
3322B123 . . . . . . . . . . . . . . . .
3322D123. . . . . . . . . . . . . . . .
3322E123 . . . . . . . . . . . . . . . .
3322FL123 . . . . . . . . . . . . . . .
3322L123 . . . . . . . . . . . . . . . .
3324L123 . . . . . . . . . . . . . . . .
3325L123 . . . . . . . . . . . . . . . .
3327A123 . . . . . . . . . . . . . . . .
3327L123 . . . . . . . . . . . . . . . .
3330A123 . . . . . . . . . . . . . . . .
3330B123 . . . . . . . . . . . . . . . .
x
Page
E-46
E-45
E-57
E-57
E-56
E-56
E-50
E-50
E-50
E-48
E-48
E-48
E-48
E-48
E-48
E-48
E-48
E-48
E-47
E-47
E-47
E-47
E-47
E-47
E-47
E-47
E-47
E-29
E-29
E-29
E-29
E-29
E-29
E-29
E-50
E-44
E-44
E-44
E-44
E-44
E-44
E-46
E-46
E-45
E-45
E-45
E-45
E-45
E-45
E-45
E-45
E-46
E-44
E-44
E-44
E-44
Order No.
Woodhead No.
130135-0281
130135-0283
130135-0285
130135-0287
130135-0288
130135-0289
130135-0291
130135-0292
130135-0293
130135-0294
130135-0295
130135-0296
130135-0298
130135-0303
130135-0304
130135-0309
130135-0312
130135-0313
130135-0314
130135-0315
130135-0316
130135-0317
130135-0322
130135-0323
130135-0329
130135-0333
130135-0343
130136-0001
130136-0025
130136-0027
130136-0029
130136-0030
130136-0033
130136-0034
130136-0035
130136-0036
130136-0037
130136-0038
130136-0039
130136-0042
130136-0043
130136-0044
130136-0045
130136-0046
130136-0047
130136-0048
130136-0049
130136-0050
130136-0052
130136-0053
130136-0054
130136-0055
130136-0057
130136-0058
130136-0059
130136-0060
3330L123 . . . . . . . . . . . . . . . . E-44
3330RA123 . . . . . . . . . . . . . . . E-44
3330RE123 . . . . . . . . . . . . . . . E-44
3330RL123 . . . . . . . . . . . . . . . E-44
3331RB123 . . . . . . . . . . . . . . . E-45
3331RE123 . . . . . . . . . . . . . . . E-45
3332A123 . . . . . . . . . . . . . . . . E-44
3332B123 . . . . . . . . . . . . . . . . E-44
3332L123 . . . . . . . . . . . . . . . . E-44
3332R. . . . . . . . . . . . . . . . . . . E-44
3332RA123 . . . . . . . . . . . . . . . E-44
3332RB123 . . . . . . . . . . . . . . . E-44
3332RL123 . . . . . . . . . . . . . . . E-44
34047. . . . . . . . . . . . . . . . . . . E-57
34047L . . . . . . . . . . . . . . . . . . E-57
34048. . . . . . . . . . . . . . . . . . . E-57
34547. . . . . . . . . . . . . . . . . . . E-57
3492. . . . . . . . . . . . . . . . . . . . E-30
3493. . . . . . . . . . . . . . . . . . . . E-30
3494. . . . . . . . . . . . . . . . . . . . E-30
35W34 . . . . . . . . . . . . . . . . . . E-29
35W47 . . . . . . . . . . . . . . . . . . E-29
75W47L143. . . . . . . . . . . . . . . E-31
8506. . . . . . . . . . . . . . . . . . . . A-30
32W90-1B143 . . . . . . . . . . . . . E-29
32G15A123. . . . . . . . . . . . . . . E-47
3323FL123 . . . . . . . . . . . . . . . E-46
32547B123 . . . . . . . . . . . . . . . E-53
31565. . . . . . . . . . . . . . . . . . . E-53
31565A123 . . . . . . . . . . . . . . . E-53
31565A143 . . . . . . . . . . . . . . . E-53
31565B123 . . . . . . . . . . . . . . . E-53
31593. . . . . . . . . . . . . . . . . . . E-53
315933 . . . . . . . . . . . . . . . . . . E-53
31593A123 . . . . . . . . . . . . . . . E-53
31593A143 . . . . . . . . . . . . . . . E-53
31593A143IN . . . . . . . . . . . . . E-53
31593B123 . . . . . . . . . . . . . . . E-53
31593B143 . . . . . . . . . . . . . . . E-53
31594. . . . . . . . . . . . . . . . . . . E-53
31594A123 . . . . . . . . . . . . . . . E-53
31594A143 . . . . . . . . . . . . . . . E-53
31594B123 . . . . . . . . . . . . . . . E-53
32547. . . . . . . . . . . . . . . . . . . E-53
32547A123 . . . . . . . . . . . . . . . E-53
32547A143 . . . . . . . . . . . . . . . E-53
32547B143 . . . . . . . . . . . . . . . E-53
32553. . . . . . . . . . . . . . . . . . . E-53
32553B123 . . . . . . . . . . . . . . . E-53
32708. . . . . . . . . . . . . . . . . . . E-53
32708A123 . . . . . . . . . . . . . . . E-53
32708A143 . . . . . . . . . . . . . . . E-53
32708B143 . . . . . . . . . . . . . . . E-53
32747. . . . . . . . . . . . . . . . . . . E-53
32747A123 . . . . . . . . . . . . . . . E-53
32747B123 . . . . . . . . . . . . . . . E-53
Page
Order No.
Woodhead No.
130136-0061
130136-0065
130136-0066
130136-0067
130136-0070
130137-0006
130137-0007
130137-0008
130137-0009
130137-0010
130137-0011
130137-0013
130137-0014
130137-0087
130137-0088
130137-0089
130137-0090
130137-0091
130137-0093
130137-0095
130137-0097
130137-0099
130137-0100
130137-0101
130137-0102
130137-0113
130137-0115
130137-0117
130137-0118
130137-0121
130137-0124
130137-0126
130137-0127
130137-0128
130137-0130
130137-0132
130137-0147
130137-0148
130137-0149
130137-0150
130137-0153
130137-0155
130137-0156
130137-0157
130137-0158
130137-0159
130137-0162
130137-0165
130137-0166
130137-0167
130137-0169
130137-0171
130137-0176
130137-0177
130137-0178
130137-0179
32747B143 . . . . . . . . . . . . . . . E-53
3510. . . . . . . . . . . . . . . . . . . . E-54
3510A143 . . . . . . . . . . . . . . . . E-54
3510PLG . . . . . . . . . . . . . . . . . E-54
442. . . . . . . . . . . . . . . . . . . . . E-52
3086F . . . . . . . . . . . . . . . . . . . E-39
3080. . . . . . . . . . . . . . . . . . . . E-39
3081. . . . . . . . . . . . . . . . . . . . E-39
3082. . . . . . . . . . . . . . . . . . . . E-39
3085. . . . . . . . . . . . . . . . . . . . E-39
3086. . . . . . . . . . . . . . . . . . . . E-39
3090. . . . . . . . . . . . . . . . . . . . E-39
3091. . . . . . . . . . . . . . . . . . . . E-39
3000. . . . . . . . . . . . . . . . . . . . E-39
3000-1 . . . . . . . . . . . . . . . . . . E-34
3000-10 . . . . . . . . . . . . . . . . . E-37
3000-10A123 . . . . . . . . . . . . . E-37
3000-10A123BLK . . . . . . . . . . E-41
3000-10E123 . . . . . . . . . . . . . E-37
3000-1A143 . . . . . . . . . . . . . . E-34
3000-1B143 . . . . . . . . . . . . . . E-34
3000-1BLK . . . . . . . . . . . . . . . E-41
3000-1E143 . . . . . . . . . . . . . . E-34
3000-1L143 . . . . . . . . . . . . . . E-34
3000-1L143IN . . . . . . . . . . . . . E-34
3000BLK . . . . . . . . . . . . . . . . . E-41
3000F . . . . . . . . . . . . . . . . . . . E-34
3000F-1BLK. . . . . . . . . . . . . . . E-41
3000FBLK . . . . . . . . . . . . . . . . E-41
3001. . . . . . . . . . . . . . . . . . . . E-39
3003. . . . . . . . . . . . . . . . . . . . E-39
3005. . . . . . . . . . . . . . . . . . . . E-39
3005-1 . . . . . . . . . . . . . . . . . . E-34
3005-1A143 . . . . . . . . . . . . . . E-34
3005-1B143 . . . . . . . . . . . . . . E-34
3005-1E143 . . . . . . . . . . . . . . E-34
3050. . . . . . . . . . . . . . . . . . . . E-39
3050F . . . . . . . . . . . . . . . . . . . E-39
3059. . . . . . . . . . . . . . . . . . . . E-39
3065. . . . . . . . . . . . . . . . . . . . E-33
3070F-GFI . . . . . . . . . . . . . . . . E-36
3070-GFI. . . . . . . . . . . . . . . . . E-36
3070-GFI20. . . . . . . . . . . . . . . E-38
3070-GFIA123 . . . . . . . . . . . . . E-36
3070-GFIA143 . . . . . . . . . . . . . E-36
3070-GFIB123 . . . . . . . . . . . . . E-36
3070-GFID123. . . . . . . . . . . . . E-36
3080-1 . . . . . . . . . . . . . . . . . . E-35
3080-10 . . . . . . . . . . . . . . . . . E-37
3080-10A123 . . . . . . . . . . . . . E-37
3080-10B123 . . . . . . . . . . . . . E-37
3080-10E123 . . . . . . . . . . . . . E-37
3080F . . . . . . . . . . . . . . . . . . . E-39
3080F-1 . . . . . . . . . . . . . . . . . E-35
3080F-GFI . . . . . . . . . . . . . . . . E-36
3080F-GFI20 . . . . . . . . . . . . . . E-38
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130137-0180
130137-0181
130137-0185
130137-0191
130137-0192
130137-0193
130137-0194
130137-0195
130137-0196
130137-0199
130137-0204
130137-0205
130137-0210
130137-0211
130137-0213
130137-0214
130137-0216
130137-0217
130137-0221
130137-0222
130137-0223
130137-0224
130137-0225
130137-0226
130137-0227
130137-0234
130137-0235
130137-0236
130137-0237
130137-0238
130137-0240
130137-0241
130137-0246
130137-0293
130137-0294
130138-0004
130138-0020
130138-0021
130138-0022
130138-0023
130138-0024
130138-0025
130138-0026
130138-0028
130138-0029
130138-0030
130138-0032
130138-0033
130138-0034
130138-0035
130138-0036
130138-0037
130138-0038
130138-0039
130138-0040
130138-0041
3080-GFI. . . . . . . . . . . . . . . . . E-36
3080-GFI20. . . . . . . . . . . . . . . E-38
3083. . . . . . . . . . . . . . . . . . . . E-39
3085-1 . . . . . . . . . . . . . . . . . . E-35
3085-10 . . . . . . . . . . . . . . . . . E-37
3085-10A123 . . . . . . . . . . . . . E-37
3085-10B123 . . . . . . . . . . . . . E-37
3085-10BLK . . . . . . . . . . . . . . E-41
3085-10D123 . . . . . . . . . . . . . E-37
3085F . . . . . . . . . . . . . . . . . . . E-39
3090F . . . . . . . . . . . . . . . . . . . E-39
3090FBLK . . . . . . . . . . . . . . . . E-41
3091F . . . . . . . . . . . . . . . . . . . E-39
3091FBLK . . . . . . . . . . . . . . . . E-41
3095-000 . . . . . . . . . . . . . . . . E-43
3095-002 . . . . . . . . . . . . . . . . E-43
3099. . . . . . . . . . . . . . . . . . . . E-39
3099BLK . . . . . . . . . . . . . . . . . E-41
3301GFA143 . . . . . . . . . . . . . . E-28
3301GFB143 . . . . . . . . . . . . . . E-28
3301GFD143 . . . . . . . . . . . . . . E-28
3301GFL143 . . . . . . . . . . . . . . E-28
3301GGFA143 . . . . . . . . . . . . . E-28
3301GGFB143 . . . . . . . . . . . . . E-28
3301GGFL143 . . . . . . . . . . . . . E-28
3304GFA123 . . . . . . . . . . . . . . E-28
3304GFB123 . . . . . . . . . . . . . . E-28
3304GFD123 . . . . . . . . . . . . . . E-28
3304GFL123 . . . . . . . . . . . . . . E-28
3304GGFA123 . . . . . . . . . . . . . E-28
3304GGFL123 . . . . . . . . . . . . . E-28
3362GF . . . . . . . . . . . . . . . . . . E-33
40-3070G . . . . . . . . . . . . . . . . E-36
3059BLK . . . . . . . . . . . . . . . . . E-41
3091BLK . . . . . . . . . . . . . . . . . E-41
459. . . . . . . . . . . . . . . . . E-33, E-49
3051. . . . . . . . . . . . . . . . . . . . E-40
3051BLK . . . . . . . . . . . . . . . . . E-42
3052. . . . . . . . . . . . . . . . . . . . E-40
3054. . . . . . . . . . . . . . . . . . . . E-40
3055. . . . . . . . . . . . . . . . . . . . E-40
3056. . . . . . . . . . . . . . . . . . . . E-40
3056BLK . . . . . . . . . . . . . . . . . E-42
3057. . . . . . . . . . . . . . . . . . . . E-40
3058. . . . . . . . . . . . . . . . . . . . E-40
3060. . . . . . . . . . . . . . . . . . . . E-40
3061. . . . . . . . . . . . . . . . . . . . E-40
3061BLK . . . . . . . . . . . . . . . . . E-42
3066. . . . . . . . . . . . . . . . . . . . E-33
3260. . . . . . . . . . . . . . . . . . . . E-50
3260W . . . . . . . . . . . . . . . . . . E-51
3261. . . . . . . . . . . . . . . . . . . . E-50
3261W . . . . . . . . . . . . . . . . . . E-51
3262. . . . . . . . . . . . . . . . . . . . E-50
3262W . . . . . . . . . . . . . . . . . . E-51
3263. . . . . . . . . . . . . . . . . . . . E-50
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130138-0042
130138-0043
130138-0044
130138-0045
130138-0046
130138-0047
130138-0048
130138-0049
130138-0050
130138-0051
130138-0053
130138-0054
130138-0057
130138-0058
130138-0059
130138-0061
130138-0069
130138-0072
130138-0073
130138-0075
130138-0076
130138-0077
130138-0079
130138-0081
130138-0082
130138-0083
130138-0085
130138-0086
130138-0087
130138-0088
130138-0095
130138-0096
130138-0097
130138-0102
130141-0006
130141-0007
130141-0008
130141-0010
130141-0011
130141-0012
130141-0014
130141-0015
130141-0016
130141-0017
130141-0020
130141-0022
130141-0023
130141-0024
130141-0025
130141-0027
130141-0030
130141-0031
130141-0032
130141-0033
130141-0036
130141-0038
3263W . . . . . . . . . . . . . . . . . . E-51
3264W . . . . . . . . . . . . . . . . . . E-51
3265. . . . . . . . . . . . . . . . . . . . E-50
3266. . . . . . . . . . . . . . . . . . . . E-51
3267W . . . . . . . . . . . . . . . . . . E-51
3362. . . . . . . . . . . . . . . . . . . . E-33
3363. . . . . . . . . . . . . . . . . . . . E-40
3400. . . . . . . . . . . . . . . . . . . . E-55
3400-20 . . . . . . . . . . . . . . . . . E-55
3400-20A123 . . . . . . . . . . . . . E-55
3400L . . . . . . . . . . . . . . . . . . . E-55
3400L-20 . . . . . . . . . . . . . . . . E-55
3410. . . . . . . . . . . . . . . . . . . . E-55
3410-20 . . . . . . . . . . . . . . . . . E-55
3410L-20 . . . . . . . . . . . . . . . . E-55
3413-20 . . . . . . . . . . . . . . . . . E-55
40-3660 . . . . . . . . . . . . . . . . . E-53
440. . . . . . . . . . . . . . . . . . . . . E-52
440F . . . . . . . . . . . . . . . . . . . . E-52
446. . . . . . . . . . . . . . . . . . . . . E-52
70W33A123 . . . . . . . . . . . . . . E-31
70W33A123GF . . . . . . . . . . . . E-31
70W33L123. . . . . . . . . . . . . . . E-31
70W33M123 . . . . . . . . . . . . . . E-31
70W33M123GF . . . . . . . . . . . . E-31
70W47A143GF . . . . . . . . . . . . E-31
70W47L143. . . . . . . . . . . . . . . E-31
70W47L143GF. . . . . . . . . . . . . E-31
70W47M143 . . . . . . . . . . . . . . E-31
70W47M143GF . . . . . . . . . . . . E-31
77W47M123GF . . . . . . . . . . . . E-31
3413L-20 . . . . . . . . . . . . . . . . E-55
3410L . . . . . . . . . . . . . . . . . . . E-55
3264. . . . . . . . . . . . . . . . . . . . E-50
1404. . . . . . . . . . . . . . . . D-6, D-63
1407. . . . . . . . . . . . . . . . D-6, D-78
1419. . . . . . . . . . . . . . . . D-6, D-63
1433. . . . . . . . . . . . . . . . D-6, D-73
1433BLK . . . . . . . . . . . . . . . . . D-73
1433EZ . . . . . . . . . . . . . . . . . . D-73
1434. . . . . . . . . . . . . . . . D-6, D-72
1447. . . . . . . . . . . . . . . . D-6, D-65
1447BLK . . . . . . . . . . . . . . . . . D-65
1447EZ . . . . . . . . . . . . . . . . . . D-65
1448. . . . . . . . . . . . . . . . D-6, D-76
1449. . . . . . . . . . . . . . . . D-6, D-70
1504. . . . . . . . . . . . . . . . D-6, D-63
1507. . . . . . . . . . . . . . . . D-6, D-78
1533. . . . . . . . . . . . . . . . D-6, D-73
1533GCM . . . . . . . . . . . . . . . . D-73
1534. . . . . . . . . . . . . . . . D-6, D-72
1547. . . . . . . . . . . . . . . . D-6, D-65
1547BLK . . . . . . . . . . . . . . . . . D-65
1547GCM . . . . . . . . . . . . . . . . D-65
1548. . . . . . . . . . . . . . . . D-6, D-76
1549. . . . . . . . . . . . . . . . D-6, D-70
Page
Order No.
Woodhead No.
130141-0040
130141-0041
130141-0043
130141-0044
130141-0045
130141-0047
130141-0048
130141-0051
130141-0052
130141-0053
130141-0054
130141-0056
130141-0057
130141-0060
130141-0061
130141-0062
130141-0063
130141-0064
130141-0065
130141-0066
130141-0067
130141-0068
130141-0069
130141-0070
130141-0071
130142-0002
130142-0004
130142-0006
130142-0009
130142-0010
130142-0012
130142-0014
130142-0015
130142-0016
130142-0017
130142-0018
130142-0019
130142-0021
130142-0023
130142-0024
130142-0025
130142-0026
130142-0028
130142-0029
130142-0030
130142-0031
130142-0032
130142-0033
130142-0034
130142-0035
130142-0036
130142-0037
130142-0038
130142-0039
130142-0040
130142-0041
15L47 . . . . . . . . . . . . . . . . . . . D-65
15L47BLK . . . . . . . . . . . . . . . . D-65
2404. . . . . . . . . . . . . . . . D-6, D-79
2407. . . . . . . . . . . . . . . . D-6, D-95
2434. . . . . . . . . . . . . . . . D-6, D-84
2447. . . . . . . . . . . . . . . . D-6, D-81
2447EZ . . . . . . . . . . . . . . . . . . D-81
2449. . . . . . . . . . . . . . . . D-6, D-83
2504. . . . . . . . . . . . . . . . D-6, D-79
2507. . . . . . . . . . . . . . . . D-6, D-95
2534. . . . . . . . . . . . . . . . D-6, D-84
2547. . . . . . . . . . . . . . . . D-6, D-81
2547GCM . . . . . . . . . . . . . . . . D-81
2549. . . . . . . . . . . . . . . . D-6, D-83
2607. . . . . . . . . . . . . . . . D-6, D-80
2647. . . . . . . . . . . . . . . . D-6, D-85
2648. . . . . . . . . . . . . . . . D-6, D-88
2649. . . . . . . . . . . . . . . . D-6, D-90
2707. . . . . . . . . . . . . . . . D-6, D-80
2748. . . . . . . . . . . . . . . . D-6, D-88
2947. . . . . . . . . . . . . . . . D-6, D-91
2948. . . . . . . . . . . . . . . . D-6, D-92
2949. . . . . . . . . . . . . . . . D-6, D-94
85000. . . . . . . . . . . . . . . . . . . D-65
85002. . . . . . . . . . . . . . . . . . . D-65
2608. . . . . . . . . . . . . . . . D-6, D-96
2608G. . . . . . . . . . . . . . . D-6, D-96
2609. . . . . . . . . . . . . . . D-6, D-113
2674. . . . . . . . . . . . . . . . D-6, D-99
2675. . . . . . . . . . . . . . . D-6, D-101
2676. . . . . . . . . . . . . . . D-6, D-102
2681. . . . . . . . . . . . . . . D-6, D-114
2682. . . . . . . . . . . . . . . D-6, D-114
2683. . . . . . . . . . . . . . . D-6, D-115
2708. . . . . . . . . . . . . . . . D-6, D-96
2708G. . . . . . . . . . . . . . . D-6, D-96
2709. . . . . . . . . . . . . . . D-6, D-113
2747. . . . . . . . . . . . . . . . D-6, D-85
2749. . . . . . . . . . . . . . . . D-6, D-90
2774. . . . . . . . . . . . . . . . D-6, D-99
2775. . . . . . . . . . . . . . . D-6, D-101
2776. . . . . . . . . . . . . . . D-6, D-102
2781. . . . . . . . . . . . . . . D-6, D-114
2782. . . . . . . . . . . . . . . D-6, D-114
2783. . . . . . . . . . . . . . . D-6, D-115
2808. . . . . . . . . . . . . . . . D-6, D-98
2809. . . . . . . . . . . . . . . D-6, D-113
2847. . . . . . . . . . . . . . . . D-6, D-91
2848. . . . . . . . . . . . . . . . D-6, D-92
2849. . . . . . . . . . . . . . . . D-6, D-94
2874. . . . . . . . . . . . . . . D-6, D-103
2875. . . . . . . . . . . . . . . D-6, D-104
2876. . . . . . . . . . . . . . . D-6, D-105
2877. . . . . . . . . . . . . . . D-6, D-107
2881. . . . . . . . . . . . . . . D-6, D-115
2882. . . . . . . . . . . . . . . D-6, D-116
Page
xi
Order No. Index
Order No.
Woodhead No.
130142-0042
130142-0043
130142-0044
130142-0045
130142-0046
130142-0047
130142-0048
130142-0049
130142-0051
130142-0052
130143-0014
130143-0015
130143-0017
130143-0018
130143-0083
130143-0084
130143-0086
130143-0088
130143-0091
130143-0093
130143-0095
130143-0097
130143-0099
130143-0102
130143-0103
130143-0104
130143-0111
130143-0113
130143-0114
130143-0115
130143-0119
130143-0121
130143-0124
130143-0125
130143-0126
130143-0129
130143-0131
130143-0134
130143-0135
130143-0137
130143-0138
130143-0139
130143-0140
130143-0141
130143-0143
130143-0148
130143-0149
130143-0150
130143-0151
130143-0153
130143-0154
130143-0154
130143-0156
130143-0157
130143-0159
130143-0169
2883. . . . . . . . . . . . . . . D-6, D-116
2974. . . . . . . . . . . . . . . D-6, D-103
2975. . . . . . . . . . . . . . . D-6, D-104
2976. . . . . . . . . . . . . . . D-6, D-105
2977. . . . . . . . . . . . . . . D-6, D-107
2981. . . . . . . . . . . . . . . D-6, D-115
2982. . . . . . . . . . . . . . . D-6, D-116
2983. . . . . . . . . . . . . . . D-6, D-116
8664. . . . . . . . . . .D-6, D-78, D-133
8665. . . . . . . . . . .D-6, D-78, D-133
2404MB . . . . . . . . . . . . . D-7, D-79
24W04B162 . . . . . . . . . . . . . . D-20
24W34A163 . . . . . . . . . . . . . . D-26
28W75B124 . . . . . . . . . . . . . . D-43
1404A162 . . . . . . . . . . . . . . . . D-64
1433A123 . . . . . . . . . . . . . . . . D-74
1433A143 . . . . . . . . . . . . . . . . D-74
1433B123 . . . . . . . . . . . . . . . . D-74
1433D123. . . . . . . . . . . . . . . . D-74
1447A123 . . . . . . . . . . . . . . . . D-68
1447A143 . . . . . . . . . . . . . . . . D-68
1447A163 . . . . . . . . . . . . . . . . D-68
1447B123 . . . . . . . . . . . . . . . . D-68
1447B143 . . . . . . . . . . . . . . . . D-68
1447B143IN . . . . . . . . . . . . . . D-68
1447B163 . . . . . . . . . . . . . . . . D-68
1447D143. . . . . . . . . . . . . . . . D-68
1447D163. . . . . . . . . . . . . . . . D-68
1447L143 . . . . . . . . . . . . . . . . D-68
1448A143 . . . . . . . . . . . . . . . . D-77
1449B143 . . . . . . . . . . . . . . . . D-71
14W33A123 . . . . . . . . . . . . . . D-15
14W33A143 . . . . . . . . . . . . . . D-15
14W33B123 . . . . . . . . . . . . . . D-15
14W33B123IN. . . . . . . . . . . . . D-15
14W33D123 . . . . . . . . . . . . . . D-15
14W33D143 . . . . . . . . . . . . . . D-15
14W47A143 . . . . . . . . . . . . . . . D-9
14W47A143IN. . . . . . . . . . . . . D-10
14W47A163 . . . . . . . . . . . . . . . D-9
14W47B123 . . . . . . . . . . . . . . . D-9
14W47B123IN. . . . . . . . . . . . . D-10
14W47B143 . . . . . . . . . . . . . . . D-9
14W47B143IN. . . . . . . . . . . . . D-10
14W47B163 . . . . . . . . . . . . . . . D-9
14W47D123 . . . . . . . . . . . . . . . D-9
14W47D123IN. . . . . . . . . . . . . D-10
14W47D143 . . . . . . . . . . . . . . . D-9
14W47D143IN. . . . . . . . . . . . . D-10
14W47D163 . . . . . . . . . . . . . . . D-9
14W47 . . . . . . . . . . . . . . . . . . . D-4
14W47L143. . . . . . . . . . . . . . . . D-9
14W48D143 . . . . . . . . . . . . . . D-17
14W49A143 . . . . . . . . . . . . . . D-12
14W49B143 . . . . . . . . . . . . . . D-12
2407A143 . . . . . . . . . . . . . . . . D-95
xii
Page
Order No.
Woodhead No.
130143-0171
130143-0174
130143-0176
130143-0178
130143-0180
130143-0187
130143-0189
130143-0190
130143-0191
130143-0192
130143-0193
130143-0195
130143-0196
130143-0198
130143-0201
130143-0203
130143-0204
130143-0205
130143-0207
130143-0209
130143-0210
130143-0211
130143-0212
130143-0214
130143-0217
130143-0218
130143-0221
130143-0222
130143-0223
130143-0224
130143-0225
130143-0226
130143-0227
130143-0228
130143-0235
130143-0236
130143-0237
130143-0238
130143-0240
130143-0245
130143-0246
130143-0247
130143-0248
130143-0252
130143-0254
130143-0255
130143-0257
130143-0261
130143-0262
130143-0263
130143-0266
130143-0270
130143-0271
130143-0273
130143-0274
130143-0275
2407B163 . . . . . . . . . . . . . . . . D-95
2447A163 . . . . . . . . . . . . . . . . D-82
2447B143 . . . . . . . . . . . . . . . . D-82
2447D143. . . . . . . . . . . . . . . . D-82
24W04A142 . . . . . . . . . . . . . . D-20
24W47A143 . . . . . . . . . . . . . . D-22
24W47A163 . . . . . . . . . . . . . . D-22
24W47B123 . . . . . . . . . . . . . . D-22
24W47B143 . . . . . . . . . . . . . . D-22
24W47B143IN. . . . . . . . . . . . . D-23
24W47B163 . . . . . . . . . . . . . . D-22
24W47D143 . . . . . . . . . . . . . . D-22
24W47D163 . . . . . . . . . . . . . . D-22
24W49A143 . . . . . . . . . . . . . . D-25
2608B143 . . . . . . . . . . . . . . . . D-97
2647A123 . . . . . . . . . . . . . . . . D-86
2647A143 . . . . . . . . . . . . . . . . D-86
2647B123 . . . . . . . . . . . . . . . . D-86
2647B143 . . . . . . . . . . . . . . . . D-86
2647D123. . . . . . . . . . . . . . . . D-86
2647E123IN . . . . . . . . . . . . . . D-86
2648A123 . . . . . . . . . . . . . . . . D-89
2648A143 . . . . . . . . . . . . . . . . D-89
2674B124 . . . . . . . . . . . . . . . D-100
26W08A143 . . . . . . . . . . . . . . D-36
26W08B143 . . . . . . . . . . . . . . D-36
26W47A123 . . . . . . . . . . . . . . D-27
26W47A143 . . . . . . . . . . . . . . D-27
26W47B123 . . . . . . . . . . . . . . D-27
26W47B123IN. . . . . . . . . . . . . D-27
26W47B143 . . . . . . . . . . . . . . D-27
26W47D123 . . . . . . . . . . . . . . D-27
26W47D143 . . . . . . . . . . . . . . D-27
26W47E123IN . . . . . . . . . . . . . D-27
26W74A124 . . . . . . . . . . . . . . D-39
26W74A124BLK. . . . . . . . . . . . D-39
26W74A144 . . . . . . . . . . . . . . D-39
26W74B124 . . . . . . . . . . . . . . D-39
26W74B144 . . . . . . . . . . . . . . D-39
26W76A124 . . . . . . . . . . . . . . D-41
26W76A144 . . . . . . . . . . . . . . D-41
26W76B124 . . . . . . . . . . . . . . D-41
26W81A145 . . . . . . . . . . . . . . D-50
2847A123 . . . . . . . . . . . . . . . . D-91
2848A103 . . . . . . . . . . . . . . . . D-93
2848A123 . . . . . . . . . . . . . . . . D-93
2876B104 . . . . . . . . . . . . . . . D-106
28W47A103 . . . . . . . . . . . . . . D-32
28W47A123 . . . . . . . . . . . . . . D-32
28W47B103 . . . . . . . . . . . . . . D-32
28W48A103 . . . . . . . . . . . . . . D-33
28W74A104 . . . . . . . . . . . . . . D-42
28W74B104 . . . . . . . . . . . . . . D-42
28W74D104 . . . . . . . . . . . . . . D-42
28W75A104 . . . . . . . . . . . . . . D-43
28W75A124 . . . . . . . . . . . . . . D-43
Page
Order No.
Woodhead No.
130143-0276
130143-0277
130143-0278
130143-0279
130143-0280
130143-0307
130143-0308
130143-0310
130143-0312
130144-0008
130144-0014
130144-0016
130144-0017
130144-0019
130144-0021
130144-0022
130144-0023
130144-0024
130144-0025
130144-0026
130144-0027
130144-0029
130144-0031
130144-0033
130144-0034
130144-0035
130144-0036
130144-0043
130144-0044
130144-0048
130144-0050
130144-0053
130144-0054
130144-0057
130144-0061
130144-0062
130144-0063
130144-0064
130144-0065
130144-0067
130144-0069
130144-0071
130144-0075
130144-0076
130144-0077
130144-0078
130144-0079
130144-0080
130144-0081
130144-0082
130144-0084
130144-0087
130144-0088
130144-0089
130144-0094
130145-0002
28W75B104 . . . . . . . . . . . . . . D-43
28W75D104 . . . . . . . . . . . . . . D-43
28W76A104 . . . . . . . . . . . . . . D-44
28W76A124 . . . . . . . . . . . . . . D-44
28W77A104 . . . . . . . . . . . . . . D-45
24W04D142 . . . . . . . . . . . . . . D-20
26W81D125 . . . . . . . . . . . . . . D-50
28W74A104BLK. . . . . . . . . . . . D-42
2848B103 . . . . . . . . . . . . . . . . D-93
5176. . . . . . . . . . . . . . . . D-7, D-63
14F47 . . . . . . . . . . . . . D-66, D-136
14R47. . . . . . . . . . . . . D-66, D-136
24T04 . . . . . . . . . . . . . . . D-7, D-79
25T04 . . . . . . . . . . . . . . . D-7, D-79
26T07 . . . . . . . . . . . . . . . D-7, D-80
27T07 . . . . . . . . . . . . . . . D-7, D-80
4720. . . . . . . . . . . . . . . . D-7, D-81
4720YL . . . . . . . . . . . . . . . . . . D-81
4729. . . . . . . . . . . . . . . . D-7, D-81
4729YL . . . . . . . . . . . . . . . . . . D-81
4730. . . . . . . . . . . . . . . . D-7, D-95
4739. . . . . . . . . . . . . . . . D-7, D-95
4770. . . . . . . . . . . . . . . . D-7, D-84
4779. . . . . . . . . . . . . . . . D-7, D-84
5166. . . . . . . . . . . . . . . . D-7, D-63
5169. . . . . . . . . . . . . . . . D-7, D-63
5266. . . . . . . . . . . . . . . . D-7, D-66
5266YL . . . . . . . . . . . . . . . . . . D-66
5269. . . . . . . . . . . . . . . . D-7, D-66
5269L . . . . . . . . . . . . . D-66, D-136
5269YL . . . . . . . . . . . . . . . . . . D-66
5366. . . . . . . . . . . . . . . . D-7, D-73
5366ORG . . . . . . . . . . . . . . . . D-73
5369. . . . . . . . . . . . . . . . D-7, D-73
5466. . . . . . . . . . . . . . . . D-7, D-76
5466YL . . . . . . . . . . . . . . . . . . D-76
5469. . . . . . . . . . . . . . . . D-7, D-76
5469YL . . . . . . . . . . . . . . . . . . D-76
5666. . . . . . . . . . . . . . . . D-7, D-70
5669. . . . . . . . . . . . . . . . D-7, D-70
5766. . . . . . . . . . . . . . . . D-7, D-72
5769. . . . . . . . . . . . . . . . D-7, D-72
85050. . . . . . . . . . . . . D-66, D-136
85053. . . . . . . . . . . . . . . . . . . D-73
85125. . . . . . . . . . . . . . . . . . D-136
85266. . . . . . . . . . . . . . . . . . . D-66
85266YL . . . . . . . . . . . . . . . . . D-66
85269. . . . . . . . . . . . . . . . . . . D-66
85269YL . . . . . . . . . . . . . . . . . D-66
85366. . . . . . . . . . . . . . . . . . . D-73
85369. . . . . . . . . . . . . . . . . . . D-73
85447. . . . . . . . . . . . . D-66, D-136
85447L . . . . . . . . . . . . D-66, D-136
85547. . . . . . . . . . . . . . . . . . . D-66
603. . . . . . . . . . . . . . . . . . . . . A-35
26T08 . . . . . . . . . . . . . . . D-7, D-96
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130145-0008
130145-0010
130145-0011
130145-0012
130145-0013
130145-0015
130145-0017
130145-0019
130145-0025
130145-0030
130145-0031
130145-0032
130145-0033
130145-0034
130145-0035
130145-0037
130145-0039
130145-0048
130145-0050
130145-0052
130145-0054
130145-0056
130145-0058
130145-0066
130145-0067
130145-0071
130145-0072
130145-0076
130145-0078
130145-0080
130145-0082
130146-0015
130146-0016
130146-0022
130146-0023
130146-0024
130146-0028
130146-0031
130146-0032
130146-0035
130146-0040
130146-0041
130146-0044
130146-0045
130146-0050
130146-0052
130146-0053
130146-0054
130146-0056
130146-0059
130146-0060
130146-0061
130146-0063
130146-0065
130146-0068
130146-0069
26T47 . . . . . . . . . . . . . . . D-7, D-85
26T47YL . . . . . . . . . . . . . . . . . D-85
26T48 . . . . . . . . . . . . . . . D-7, D-88
26T48YL . . . . . . . . . . . . . . . . . D-88
26T49 . . . . . . . . . . . . . . . D-7, D-90
26T74 . . . . . . . . . . . . . . . D-7, D-99
26T75 . . . . . . . . . . . . . . D-7, D-101
26T76 . . . . . . . . . . . . . . D-7, D-102
27T08 . . . . . . . . . . . . . . . D-7, D-96
27T47 . . . . . . . . . . . . . . . D-7, D-85
27T47YL . . . . . . . . . . . . . . . . . D-85
27T48 . . . . . . . . . . . . . . . D-7, D-88
27T48YL . . . . . . . . . . . . . . . . . D-88
27T49 . . . . . . . . . . . . . . . D-7, D-90
27T74 . . . . . . . . . . . . . . . D-7, D-99
27T75 . . . . . . . . . . . . . . D-7, D-101
27T76 . . . . . . . . . . . . . . D-7, D-102
28T47 . . . . . . . . . . . . . . . D-7, D-91
28T48 . . . . . . . . . . . . . . . D-7, D-92
28T74 . . . . . . . . . . . . . . D-7, D-103
28T75 . . . . . . . . . . . . . . D-7, D-104
28T76 . . . . . . . . . . . . . . D-7, D-105
28T77 . . . . . . . . . . . . . . D-7, D-107
2908. . . . . . . . . . . . . . . . D-6, D-98
2909. . . . . . . . . . . . . . . D-6, D-113
29T47 . . . . . . . . . . . . . . . D-7, D-91
29T48 . . . . . . . . . . . . . . . D-7, D-92
29T74 . . . . . . . . . . . . . . D-7, D-103
29T75 . . . . . . . . . . . . . . D-7, D-104
29T76 . . . . . . . . . . . . . . D-7, D-105
29T77 . . . . . . . . . . . . . . D-7, D-107
14W07 . . . . . . . . . . . . . . D-4, D-19
14W07A163 . . . . . . . . . . . . . . D-19
14W33 . . . . . . . . . . . . . . D-4, D-14
14W33BLK. . . . . . . . . . . . . . . . D-14
14W33EZ. . . . . . . . . . . . . . . . . D-14
14W34 . . . . . . . . . . . . . . D-4, D-13
14W47 . . . . . . . . . . . . . . . . . . . D-9
14W47BLK. . . . . . . . . . . . . . . . . D-9
14W47EZ. . . . . . . . . . . . . . . . . . D-9
14W48 . . . . . . . . . . . . . . D-4, D-17
14W48BLK. . . . . . . . . . . . . . . . D-17
14W49 . . . . . . . . . . . . . . D-4, D-12
14W49BLK. . . . . . . . . . . . . . . . D-12
15W07 . . . . . . . . . . . . . . D-4, D-19
15W33 . . . . . . . . . . . . . . D-4, D-14
15W33BLK. . . . . . . . . . . . . . . . D-14
15W33GCM . . . . . . . . . . . . . . . D-14
15W33MB . . . . . . . . . . . . D-5, D-16
15W34 . . . . . . . . . . . . . . D-4, D-13
15W47 . . . . . . . . . . . . . . . D-4, D-9
15W47BLK. . . . . . . . . . . . . . . . . D-9
15W47GCM . . . . . . . . . . . . . . . . D-9
15W47MB . . . . . . . . . . . . D-5, D-11
15W48 . . . . . . . . . . . . . . D-4, D-17
15W48BLK. . . . . . . . . . . . . . . . D-17
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130146-0072
130146-0074
130146-0076
130146-0077
130146-0078
130146-0079
130146-0080
130146-0082
130146-0083
130146-0084
130146-0088
130146-0090
130146-0091
130146-0092
130146-0094
130146-0095
130146-0096
130146-0097
130146-0099
130146-0100
130146-0101
130146-0103
130146-0106
130146-0107
130146-0108
130146-0110
130146-0112
130146-0114
130146-0115
130146-0116
130146-0117
130146-0118
130146-0121
130146-0122
130146-0123
130146-0125
130146-0127
130146-0128
130146-0129
130146-0130
130146-0131
130146-0133
130146-0135
130146-0137
130146-0138
130146-0139
130146-0140
130146-0141
130146-0142
130146-0143
130146-0145
130146-0146
130146-0147
130146-0148
130146-0149
130146-0150
15W48MB . . . . . . . . . . . . D-5, D-18
15W49 . . . . . . . . . . . . . . D-4, D-12
15W49MB . . . . . . . . . . . . D-5, D-12
24W04 . . . . . . . . . . . . . . D-4, D-20
24W07 . . . . . . . . . . . . . . D-4, D-35
24W34 . . . . . . . . . . . . . . D-4, D-26
24W34BLK. . . . . . . . . . . . . . . . D-26
24W47 . . . . . . . . . . . . . . D-4, D-22
24W47BLK. . . . . . . . . . . . . . . . D-22
24W47EZ. . . . . . . . . . . . . . . . . D-22
24W49 . . . . . . . . . . . . . . D-4, D-25
25W04 . . . . . . . . . . . . . . D-4, D-20
25W04MB . . . . . . . . . . . . D-5, D-20
25W07 . . . . . . . . . . . . . . D-4, D-35
25W07MB . . . . . . . . . . . . D-5, D-35
25W34 . . . . . . . . . . . . . . D-4, D-26
25W34BLK. . . . . . . . . . . . . . . . D-26
25W34MB . . . . . . . . . . . . D-5, D-26
25W47 . . . . . . . . . . . . . . D-4, D-22
25W47BLK. . . . . . . . . . . . . . . . D-22
25W47GCM . . . . . . . . . . . . . . . D-22
25W47MB . . . . . . . . . . . . D-5, D-24
25W49 . . . . . . . . . . . . . . D-4, D-25
25W49MB . . . . . . . . . . . . D-5, D-25
26W07 . . . . . . . . . . . . . . D-4, D-21
27W07 . . . . . . . . . . . . . . D-4, D-21
27W07MB . . . . . . . . . . . . D-5, D-21
59W07 . . . . . . . . . . . . . . . . . . . D-5
59W33 . . . . . . . . . . . . . . D-5, D-16
59W47 . . . . . . . . . . . . . . D-5, D-11
59W48 . . . . . . . . . . . . . . D-5, D-18
59W49 . . . . . . . . . . . . . . D-5, D-12
60W07 . . . . . . . . . . . . . . D-5, D-19
60W07DPLX . . . . . . . . . . D-5, D-19
60W33 . . . . . . . . . . . . . . D-5, D-16
60W33DPLX . . . . . . . . . . D-5, D-16
60W34 . . . . . . . . . . . . . . D-5, D-13
60W34DPLX . . . . . . . . . . D-5, D-13
60W47 . . . . . . . . . . . . . . D-5, D-11
60W47BLK. . . . . . . . . . . . . . . . D-11
60W47DPLX . . . . . . . . . . D-5, D-11
60W48 . . . . . . . . . . . . . . D-5, D-18
60W48DPLX . . . . . . . . . . D-5, D-18
60W49 . . . . . . . . . . . . . . D-5, D-12
60W49DPLX . . . . . . . . . . D-5, D-12
64W04 . . . . . . . . . . . . . . D-5, D-20
64W07 . . . . . . . . . . . . . . D-5, D-35
64W34 . . . . . . . . . . . . . . D-5, D-26
64W47 . . . . . . . . . . . . . . D-5, D-24
64W49 . . . . . . . . . . . . . . D-5, D-25
65W07 . . . . . . . . . . . . . . D-5, D-35
65W07DPLX . . . . . . . . . . D-5, D-35
65W34 . . . . . . . . . . . . . . D-5, D-26
65W34DPLX . . . . . . . . . . D-5, D-26
65W47 . . . . . . . . . . . . . . D-5, D-24
65W47BLK. . . . . . . . . . . . . . . . D-24
Page
Order No.
Woodhead No.
130146-0151
130146-0153
130146-0154
130146-0155
130146-0156
130146-0157
130147-0005
130147-0012
130147-0014
130147-0015
130147-0016
130147-0017
130147-0018
130147-0019
130147-0021
130147-0022
130147-0023
130147-0025
130147-0026
130147-0027
130147-0028
130147-0029
130147-0030
130147-0031
130147-0032
130147-0033
130147-0034
130147-0035
130147-0036
130147-0037
130147-0038
130147-0039
130147-0040
130147-0041
130147-0043
130147-0044
130147-0045
130147-0047
130147-0048
130147-0049
130147-0050
130147-0051
130147-0052
130147-0053
130147-0054
130147-0055
130147-0056
130147-0057
130147-0058
130147-0059
130147-0060
130147-0061
130147-0062
130147-0063
130147-0064
130147-0065
65W47DPLX . . . . . . . . . . D-5, D-24
65W49 . . . . . . . . . . . . . . D-5, D-25
65W49DPLX . . . . . . . . . . D-5, D-25
66W07 . . . . . . . . . . . . . . D-5, D-21
67W07 . . . . . . . . . . . . . . D-5, D-21
67W07DPLX . . . . . . . . . . D-5, D-21
68W49 . . . . . . . . . . . . . . . . . . . D-5
26W08 . . . . . . . . . . . . . . D-4, D-36
26W08G . . . . . . . . . . . . . D-4, D-37
26W09 . . . . . . . . . . . . . . D-4, D-48
26W09BLK. . . . . . . . . . . . . . . . D-48
26W10 . . . . . . . . . . . . . . D-4, D-53
26W47 . . . . . . . . . . . . . . D-4, D-27
26W47BLK. . . . . . . . . . . . . . . . D-27
26W48 . . . . . . . . . . . . . . D-4, D-30
26W48BLK. . . . . . . . . . . . . . . . D-30
26W49 . . . . . . . . . . . . . . D-4, D-31
26W74 . . . . . . . . . . . . . . D-4, D-39
26W74BLK. . . . . . . . . . . . . . . . D-39
26W75 . . . . . . . . . . . . . . D-4, D-40
26W75BLK. . . . . . . . . . . . . . . . D-40
26W76 . . . . . . . . . . . . . . D-4, D-41
26W76BLK. . . . . . . . . . . . . . . . D-41
26W81 . . . . . . . . . . . . . . D-4, D-50
26W81BLK. . . . . . . . . . . . . . . . D-50
26W82 . . . . . . . . . . . . . . D-4, D-51
26W83 . . . . . . . . . . . . . . D-4, D-52
27W08 . . . . . . . . . . . . . . D-4, D-36
27W08G . . . . . . . . . . . . . D-4, D-37
27W08MB . . . . . . . . . . . . D-5, D-36
27W09 . . . . . . . . . . . . . . D-4, D-48
27W09BLK. . . . . . . . . . . . . . . . D-48
27W09MB . . . . . . . . . . . . D-5, D-48
27W10 . . . . . . . . . . . . . . D-4, D-53
27W10MB . . . . . . . . . . . . D-5, D-53
27W47 . . . . . . . . . . . . . . D-4, D-27
27W47BLK. . . . . . . . . . . . . . . . D-27
27W47MB . . . . . . . . . . . . D-5, D-29
27W48 . . . . . . . . . . . . . . D-4, D-30
27W48BLK. . . . . . . . . . . . . . . . D-30
27W48MB . . . . . . . . . . . . D-5, D-30
27W49 . . . . . . . . . . . . . . D-4, D-31
27W49MB . . . . . . . . . . . . D-5, D-31
27W74 . . . . . . . . . . . . . . D-4, D-39
27W74BLK. . . . . . . . . . . . . . . . D-39
27W74MB . . . . . . . . . . . . D-5, D-39
27W75 . . . . . . . . . . . . . . D-4, D-40
27W75BLK. . . . . . . . . . . . . . . . D-40
27W75MB . . . . . . . . . . . . D-5, D-40
27W76 . . . . . . . . . . . . . . D-4, D-41
27W76BLK. . . . . . . . . . . . . . . . D-41
27W76MB . . . . . . . . . . . . D-5, D-41
27W81 . . . . . . . . . . . . . . D-4, D-50
27W81BLK. . . . . . . . . . . . . . . . D-50
27W81MB . . . . . . . . . . . . D-5, D-50
27W82 . . . . . . . . . . . . . . D-4, D-51
Page
xiii
Order No. Index
Order No.
Woodhead No.
130147-0066
130147-0067
130147-0068
130147-0069
130147-0071
130147-0072
130147-0073
130147-0074
130147-0075
130147-0076
130147-0077
130147-0078
130147-0079
130147-0080
130147-0081
130147-0082
130147-0083
130147-0084
130147-0085
130147-0086
130147-0088
130147-0089
130147-0090
130147-0091
130147-0093
130147-0094
130147-0095
130147-0096
130147-0097
130147-0098
130147-0099
130147-0101
130147-0102
130147-0103
130147-0104
130147-0105
130147-0106
130147-0107
130147-0108
130147-0109
130147-0110
130147-0111
130147-0112
130147-0115
130147-0116
130147-0117
130147-0118
130147-0119
130147-0120
130147-0121
130147-0122
130147-0124
130147-0125
130147-0126
130147-0127
130147-0128
27W82MB . . . . . . . . . . . . D-5, D-51
27W83 . . . . . . . . . . . . . . D-4, D-52
27W83MB . . . . . . . . . . . . D-5, D-52
28W08 . . . . . . . . . . . . . . D-4, D-38
28W09 . . . . . . . . . . . . . . D-4, D-49
28W47 . . . . . . . . . . . . . . D-4, D-32
28W47BLK. . . . . . . . . . . . . . . . D-32
28W48 . . . . . . . . . . . . . . D-4, D-33
28W48BLK. . . . . . . . . . . . . . . . D-33
28W49 . . . . . . . . . . . . . . . . . . . D-4
28W74 . . . . . . . . . . . . . . D-4, D-42
28W74BLK. . . . . . . . . . . . . . . . D-42
28W75 . . . . . . . . . . . . . . D-4, D-43
28W75BLK. . . . . . . . . . . . . . . . D-43
28W76 . . . . . . . . . . . . . . D-4, D-44
28W76BLK. . . . . . . . . . . . . . . . D-44
28W77 . . . . . . . . . . . . . . D-4, D-45
28W77BLK. . . . . . . . . . . . . . . . D-45
28W81 . . . . . . . . . . . . . . D-4, D-54
28W82 . . . . . . . . . . . . . . D-4, D-55
28W83 . . . . . . . . . . . . . . D-4, D-56
29W08 . . . . . . . . . . . . . . D-4, D-38
29W08MB . . . . . . . . . . . . D-5, D-38
29W09 . . . . . . . . . . . . . . D-4, D-49
29W47 . . . . . . . . . . . . . . D-4, D-32
29W47BLK. . . . . . . . . . . . . . . . D-32
29W47MB . . . . . . . . . . . . D-5, D-32
29W48 . . . . . . . . . . . . . . D-4, D-33
29W48BLK. . . . . . . . . . . . . . . . D-33
29W48MB . . . . . . . . . . . . D-5, D-33
29W49 . . . . . . . . . . . . . . . . . . . D-4
29W49MB . . . . . . . . . . . . . . . . . D-5
29W74 . . . . . . . . . . . . . . D-4, D-42
29W74BLK. . . . . . . . . . . . . . . . D-42
29W74MB . . . . . . . . . . . . D-5, D-42
29W75 . . . . . . . . . . . . . . D-4, D-43
29W75BLK. . . . . . . . . . . . . . . . D-43
29W75MB . . . . . . . . . . . . D-5, D-43
29W76 . . . . . . . . . . . . . . D-4, D-44
29W76BLK. . . . . . . . . . . . . . . . D-44
29W76MB . . . . . . . . . . . . D-5, D-44
29W77 . . . . . . . . . . . . . . D-4, D-45
29W77BLK. . . . . . . . . . . . . . . . D-45
29W77MB . . . . . . . . . . . . D-5, D-45
29W81 . . . . . . . . . . . . . . D-4, D-54
29W81MB . . . . . . . . . . . . D-5, D-54
29W82 . . . . . . . . . . . . . . D-4, D-55
29W82MB . . . . . . . . . . . . D-5, D-55
29W83 . . . . . . . . . . . . . . D-4, D-56
29W83MB . . . . . . . . . . . . D-5, D-56
64W64 . . . . . . . . . . . . . . D-5, D-47
66W08 . . . . . . . . . . . . . . D-5, D-36
66W09 . . . . . . . . . . . . . . D-5, D-48
66W10 . . . . . . . . . . . . . . D-5, D-53
66W47 . . . . . . . . . . . . . . D-5, D-29
66W48 . . . . . . . . . . . . . . D-5, D-30
xiv
Page
Order No.
Woodhead No.
130147-0129
130147-0131
130147-0132
130147-0133
130147-0134
130147-0135
130147-0136
130147-0137
130147-0139
130147-0140
130147-0141
130147-0142
130147-0144
130147-0145
130147-0146
130147-0147
130147-0149
130147-0150
130147-0151
130147-0152
130147-0153
130147-0154
130147-0155
130147-0157
130147-0158
130147-0159
130147-0160
130147-0161
130147-0162
130147-0163
130147-0164
130147-0165
130147-0166
130147-0168
130147-0169
130147-0170
130147-0173
130147-0174
130147-0175
130147-0176
130147-0177
130147-0178
130147-0179
130148-0072
130148-0073
130148-0074
130148-0075
130148-0076
130148-0083
130148-0084
130148-0086
130148-0089
130148-0091
130148-0097
130148-0099
130148-0100
66W49 . . . . . . . . . . . . . . D-5, D-31
66W74 . . . . . . . . . . . . . . D-5, D-39
66W75 . . . . . . . . . . . . . . D-5, D-40
66W76 . . . . . . . . . . . . . . D-5, D-41
66W81 . . . . . . . . . . . . . . D-5, D-50
66W82 . . . . . . . . . . . . . . D-5, D-51
66W83 . . . . . . . . . . . . . . D-5, D-52
67W08 . . . . . . . . . . . . . . D-5, D-36
67W09 . . . . . . . . . . . . . . D-5, D-48
67W10 . . . . . . . . . . . . . . D-5, D-53
67W47 . . . . . . . . . . . . . . D-5, D-29
67W47BLK. . . . . . . . . . . . . . . . D-29
67W48 . . . . . . . . . . . . . . D-5, D-30
67W49 . . . . . . . . . . . . . . D-5, D-31
67W64 . . . . . . . . . . . . . . D-5, D-34
67W74 . . . . . . . . . . . . . . D-5, D-39
67W75 . . . . . . . . . . . . . . D-5, D-40
67W76 . . . . . . . . . . . . . . D-5, D-41
67W81 . . . . . . . . . . . . . . D-5, D-50
67W81BLK. . . . . . . . . . . . . . . . D-50
67W82 . . . . . . . . . . . . . . D-5, D-51
67W83 . . . . . . . . . . . . . . D-5, D-52
68W08 . . . . . . . . . . . . . . D-5, D-38
68W47 . . . . . . . . . . . . . . D-5, D-32
68W48 . . . . . . . . . . . . . . D-5, D-33
68W74 . . . . . . . . . . . . . . D-5, D-42
68W75 . . . . . . . . . . . . . . D-5, D-43
68W76 . . . . . . . . . . . . . . D-5, D-44
68W77 . . . . . . . . . . . . . . D-5, D-45
68W81 . . . . . . . . . . . . . . D-5, D-54
68W82 . . . . . . . . . . . . . . D-5, D-55
68W83 . . . . . . . . . . . . . . D-5, D-56
69W08 . . . . . . . . . . . . . . D-5, D-38
69W47 . . . . . . . . . . . . . . D-5, D-32
69W48 . . . . . . . . . . . . . . D-5, D-33
69W49 . . . . . . . . . . . . . . . . . . . D-5
69W74 . . . . . . . . . . . . . . D-5, D-42
69W75 . . . . . . . . . . . . . . D-5, D-43
69W76 . . . . . . . . . . . . . . D-5, D-44
69W77 . . . . . . . . . . . . . . D-5, D-45
69W81 . . . . . . . . . . . . . . D-5, D-54
69W82 . . . . . . . . . . . . . . D-5, D-55
69W83 . . . . . . . . . . . . . . D-5, D-56
4204. . . . . . . . . . . . . . . . . . . . . F-9
4205. . . . . . . . . . . . . . . . . . . . . F-9
4700DW . . . . . . . . . . . . . . . . . D-81
5252DW . . . . . . . . . . . . . . . . . D-67
5252DWBLK . . . . . . . . . . . . . . D-67
5262DW . . . . . . . . . . . . . . . . . D-67
5262DWCR . . . . . . . . . . . . . . . D-67
5262DWI. . . . . . . . . . . . . . . . . D-67
5262DWW . . . . . . . . . . . . . . . . D-67
5362DWBL . . . . . . . . . . . . . . . D-74
5362DW . . . . . . . . . . . . . . . . . D-74
5362DWBLK . . . . . . . . . . . . . . D-74
5362DWCR . . . . . . . . . . . . . . . D-74
Page
Order No.
Woodhead No.
130148-0102
130148-0104
130148-0106
130148-0107
130148-0108
130148-0111
130148-0112
130148-0114
130148-0115
130148-0116
130148-0117
130148-0118
130148-0119
130148-0121
130148-0122
130148-0123
130149-0005
130149-0007
130149-0008
130149-0011
130149-0012
130149-0013
130149-0014
130149-0016
130149-0017
130149-0018
130149-0019
130149-0020
130149-0021
130149-0022
130149-0024
130149-0027
130149-0028
130149-0029
130149-0036
130149-0039
130149-0040
130149-0041
130149-0042
130149-0048
130149-0049
130149-0051
130149-0052
130149-0053
130149-0059
130149-0060
130149-0061
130149-0066
130149-0067
130149-0068
130149-0069
130149-0070
130149-0071
130149-0072
130149-0074
130149-0085
5362DWI. . . . . . . . . . . . . . . . . D-74
5362DWR . . . . . . . . . . . . . . . . D-74
5452DW . . . . . . . . . . . . . . . . . D-76
5462DW . . . . . . . . . . . . . . . . . D-76
5462DWCR . . . . . . . . . . . . . . . D-76
5662DW . . . . . . . . . . . . . . . . . D-70
5662DWCR . . . . . . . . . . . . . . . D-70
85262DW . . . . . . . . . . . . . . . . D-67
85262DWI. . . . . . . . . . . . . . . . D-67
85262DWR . . . . . . . . . . . . . . . D-67
85262DWW . . . . . . . . . . . . . . . D-67
85362DW . . . . . . . . . . . . . . . . D-74
85362DWBLK . . . . . . . . . . . . . D-74
85362DWI. . . . . . . . . . . . . . . . D-74
85362DWR . . . . . . . . . . . . . . . D-74
85362DWW . . . . . . . . . . . . . . . D-74
1404MB . . . . . . . . . . . . . D-7, D-64
1433MB . . . . . . . . . . . . . D-7, D-74
1447MB . . . . . . . . . . . . . D-7, D-67
1533MB . . . . . . . . . . . . . D-7, D-74
1547MB . . . . . . . . . . . . . D-7, D-67
1548MB . . . . . . . . . . . . . D-7, D-76
2407MB . . . . . . . . . . . . . D-7, D-95
2447MB . . . . . . . . . . . . . D-7, D-81
2449MB . . . . . . . . . . . . . D-7, D-83
2504MB . . . . . . . . . . . . . D-7, D-79
2507MB . . . . . . . . . . . . . D-7, D-95
2534MB . . . . . . . . . . . . . D-7, D-84
2547MB . . . . . . . . . . . . . D-7, D-81
2549MB . . . . . . . . . . . . . D-7, D-83
2608MB . . . . . . . . . . . . . D-7, D-96
2647MB . . . . . . . . . . . . . D-7, D-85
2648MB . . . . . . . . . . . . . D-7, D-88
2674MB . . . . . . . . . . . . . D-7, D-99
2708MB . . . . . . . . . . . . . D-7, D-96
2747MB . . . . . . . . . . . . . D-7, D-85
2748MB . . . . . . . . . . . . . D-7, D-88
2749MB . . . . . . . . . . . . . D-7, D-90
2774MB . . . . . . . . . . . . . D-7, D-99
2847MB . . . . . . . . . . . . . . . . . . D-7
2848MB . . . . . . . . . . . . . . . . . . D-7
2874MB . . . . . . . . . . . . D-7, D-103
2875MB . . . . . . . . . . . . D-7, D-104
2876MB . . . . . . . . . . . . D-7, D-105
2974MB . . . . . . . . . . . . D-7, D-103
2975MB . . . . . . . . . . . . D-7, D-104
2976MB . . . . . . . . . . . . D-7, D-105
4747. . . . . . . . . . . . . . . . . . . . D-85
4747CR . . . . . . . . . . . . . . . . . . D-85
4748. . . . . . . . . . . . . . . . . . . . D-88
4748CR . . . . . . . . . . . . . . . . . . D-88
4749. . . . . . . . . . . . . . . . . . . . D-90
4774. . . . . . . . . . . . . . . . . . . . D-99
4775. . . . . . . . . . . . . . . . . . . D-101
4776. . . . . . . . . . . . . . . . . . . D-102
4976. . . . . . . . . . . . . . . . . . . D-105
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130149-0086
130149-0087
130149-0088
130149-0089
130149-0094
130150-0036
130150-0037
130150-0038
130150-0039
130150-0040
130150-0049
130150-0050
130150-0051
130150-0052
130150-0053
130150-0056
130150-0057
130150-0058
130150-0059
130150-0105
130150-0106
130150-0107
130150-0108
130150-0112
130150-0113
130150-0114
130150-0115
130150-0116
130150-0117
130150-0118
130150-0119
130150-0125
130150-0126
130150-0127
130150-0128
130150-0129
130150-0135
130150-0136
130150-0137
130150-0138
130150-0139
130150-0141
130150-0142
130150-0143
130150-0144
130150-0145
130150-0146
130150-0147
130150-0148
130150-0148
130150-0149
130150-0150
130150-0156
130150-0157
130150-0158
130150-0160
4976CR . . . . . . . . . . . . . . . . . D-105
5261DW . . . . . . . . . . . . . . . . . D-67
5261DWI. . . . . . . . . . . . . . . . . D-67
5361DW . . . . . . . . . . . . . . . . . D-74
85447MB . . . . . . . . . . . . . . . . D-67
320C4 . . . . . . . . . . . . . . . . . . D-120
320C4W . . . . . . . . . . . . . . . . . D-61
320C5 . . . . . . . . . . . . . . . . . . D-120
320C6 . . . . . . . . . . . . . . . . . . D-120
320C6W . . . . . . . . . . . . . . . . . D-61
320P4 . . . . . . . . . . . . . . . . . . D-120
320P4W . . . . . . . . . . . . . . . . . D-61
320P5 . . . . . . . . . . . . . . . . . . D-120
320P6 . . . . . . . . . . . . . . . . . . D-120
320P6W . . . . . . . . . . . . . . . . . D-61
320R4. . . . . . . . . . . . . . . . . . D-120
320R4W . . . . . . . . . . . . . . . . . D-61
320R6. . . . . . . . . . . . . . . . . . D-120
320R6W . . . . . . . . . . . . . . . . . D-61
4100C12W . . . . . . . . . . . . . . . D-61
4100C5W . . . . . . . . . . . . . . . . D-61
4100C7W . . . . . . . . . . . . . . . . D-61
4100C9W . . . . . . . . . . . . . . . . D-61
4100P12W . . . . . . . . . . . . . . . D-61
4100P5W . . . . . . . . . . . . . . . . D-61
4100P7W . . . . . . . . . . . . . . . . D-61
4100P9W . . . . . . . . . . . . . . . . D-61
4100R12W . . . . . . . . . . . . . . . D-61
4100R5W . . . . . . . . . . . . . . . . D-61
4100R7W . . . . . . . . . . . . . . . . D-61
4100R9W . . . . . . . . . . . . . . . . D-61
420C5 . . . . . . . . . . . . . . . . . . D-120
420C5W . . . . . . . . . . . . . . . . . D-61
420C7 . . . . . . . . . . . . . . . . . . D-120
420C7W . . . . . . . . . . . . . . . . . D-61
420C9W . . . . . . . . . . . . . . . . . D-61
420P12 . . . . . . . . . . . . . . . . . D-120
420P12W . . . . . . . . . . . . . . . . D-61
420P5 . . . . . . . . . . . . . . . . . . D-120
420P5W . . . . . . . . . . . . . . . . . D-61
420P7 . . . . . . . . . . . . . . . . . . D-120
420P9 . . . . . . . . . . . . . . . . . . D-120
420P9W . . . . . . . . . . . . . . . . . D-61
420R12 . . . . . . . . . . . . . . . . . D-120
420R12W . . . . . . . . . . . . . . . . D-61
420R5. . . . . . . . . . . . . . . . . . D-120
420R5W . . . . . . . . . . . . . . . . . D-61
420R7. . . . . . . . . . . . . . . . . . D-120
420P7W . . . . . . . . . . . . . . . . . D-61
420R7W . . . . . . . . . . . . . . . . . D-61
420R9. . . . . . . . . . . . . . . . . . D-120
420R9W . . . . . . . . . . . . . . . . . D-61
430C5W . . . . . . . . . . . . . . . . . D-61
430C7 . . . . . . . . . . . . . . . . . . D-120
430C7W . . . . . . . . . . . . . . . . . D-61
430C9W . . . . . . . . . . . . . . . . . D-61
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130150-0169
130150-0170
130150-0171
130150-0173
130150-0175
130150-0177
130150-0179
130150-0185
130150-0186
130150-0187
130150-0188
130150-0189
130150-0190
130150-0191
130150-0192
130150-0198
130150-0199
130150-0200
130150-0201
130150-0202
130150-0203
130150-0204
130150-0205
130150-0206
130150-0207
130150-0208
130150-0209
130150-0210
130150-0211
130150-0212
130150-0213
130150-0227
130150-0229
130150-0238
130150-0240
130150-0242
130150-0244
130150-0280
130150-0282
130150-0284
130150-0285
130150-0287
130150-0288
130150-0289
130150-0320
130150-0325
130151-0001
130151-0002
130151-0012
130151-0013
130151-0014
130151-0015
130151-0016
130151-0017
130151-0018
130151-0019
430P5W . . . . . . . . . . . . . . . . . D-61
430P7 . . . . . . . . . . . . . . . . . . D-120
430P7W . . . . . . . . . . . . . . . . . D-61
430P9W . . . . . . . . . . . . . . . . . D-61
430R5W . . . . . . . . . . . . . . . . . D-61
430R7W . . . . . . . . . . . . . . . . . D-61
430R9W . . . . . . . . . . . . . . . . . D-61
460C12 . . . . . . . . . . . . . . . . . D-120
460C12W . . . . . . . . . . . . . . . . D-61
460C5 . . . . . . . . . . . . . . . . . . D-120
460C5W . . . . . . . . . . . . . . . . . D-61
460C7 . . . . . . . . . . . . . . . . . . D-120
460C7W . . . . . . . . . . . . . . . . . D-61
460C9 . . . . . . . . . . . . . . . . . . D-120
460C9W . . . . . . . . . . . . . . . . . D-61
460P12 . . . . . . . . . . . . . . . . . D-120
460P12W . . . . . . . . . . . . . . . . D-61
460P5 . . . . . . . . . . . . . . . . . . D-120
460P5W . . . . . . . . . . . . . . . . . D-61
460P7 . . . . . . . . . . . . . . . . . . D-120
460P7W . . . . . . . . . . . . . . . . . D-61
460P9 . . . . . . . . . . . . . . . . . . D-120
460P9W . . . . . . . . . . . . . . . . . D-61
460R12 . . . . . . . . . . . . . . . . . D-120
460R12W . . . . . . . . . . . . . . . . D-61
460R5. . . . . . . . . . . . . . . . . . D-120
460R5W . . . . . . . . . . . . . . . . . D-61
460R7. . . . . . . . . . . . . . . . . . D-120
460R7W . . . . . . . . . . . . . . . . . D-61
460R9. . . . . . . . . . . . . . . . . . D-120
460R9W . . . . . . . . . . . . . . . . . D-61
520C7 . . . . . . . . . . . . . . . . . . D-120
520C9 . . . . . . . . . . . . . . . . . . D-120
520P7 . . . . . . . . . . . . . . . . . . D-120
520P9 . . . . . . . . . . . . . . . . . . D-120
520R7. . . . . . . . . . . . . . . . . . D-120
520R9. . . . . . . . . . . . . . . . . . D-120
Y560B . . . . . . . . . . . . . . . . . . D-119
Y560CF . . . . . . . . . . . . . . . . . D-119
Y560PF . . . . . . . . . . . . . . . . . D-119
Y560R . . . . . . . . . . . . . . . . . . D-119
Y561R . . . . . . . . . . . . . . . . . . D-119
420C9 . . . . . . . . . . . . . . . . . . D-120
320R5. . . . . . . . . . . . . . . . . . D-120
DW4M20 . . . . . . . . . . . . . . . . . D-60
DW4F20 . . . . . . . . . . . . . . . . . D-60
00136. . . . . . . . . . . . D-117, D-118
00137. . . . . . . . . . . . D-117, D-118
1702. . . . . . . . . . . . . D-117, D-118
1704. . . . . . . . . . . . . D-117, D-118
1705. . . . . . . . . . . . . D-117, D-118
1706. . . . . . . . . . . . . D-117, D-118
1708. . . . . . . . . . . . . D-117, D-118
1712. . . . . . . . . . . . . D-117, D-118
1719. . . . . . . . . . . . . D-117, D-118
1725. . . . . . . . . . . . . D-117, D-118
Page
Order No.
Woodhead No.
130151-0020
130151-0021
130151-0022
130151-0023
130151-0024
130151-0025
130151-0026
130152-0016
130152-0020
130152-0021
130153-0017
130153-0019
130153-0020
130153-0021
130153-0022
130153-0023
130153-0024
130153-0025
130153-0026
130153-0027
130153-0028
130153-0029
130153-0030
130153-0031
130153-0032
130153-0033
130153-0034
130153-0035
130153-0036
130153-0037
130153-0038
130153-0039
130153-0040
130153-0041
130153-0042
130153-0043
130153-0044
130153-0045
130153-0046
130153-0047
130153-0048
130153-0049
130153-0050
130153-0051
130153-0052
130153-0053
130153-0056
130153-0059
130153-0061
130153-0063
130153-0065
130153-0066
130153-0068
130153-0070
130153-0071
130153-0072
1730. . . . . . . . . . . . . D-117, D-118
1732. . . . . . . . . . . . . D-117, D-118
1733. . . . . . . . . . . . . D-117, D-118
1740. . . . . . . . . . . . . D-117, D-118
1741. . . . . . . . . . . . . D-117, D-118
1744. . . . . . . . . . . . . D-117, D-118
1783. . . . . . . . . . . . . D-117, D-118
600. . . . . . . . . . . . . . . . . . . . . A-35
601. . . . . . . . . . . . . . . . . . . . . A-35
606. . . . . . . . . . . . . . . . . . . . . A-35
09484. . . . . . . . . . . . . . . . . . . . E-6
15050-1 . . . . . . . . . . . . . . . . . E-22
15050-1A . . . . . . . . . . . . . . . . . E-5
15050-1M . . . . . . . . . . . . . . . . . E-5
15050-25 . . . . . . . . . . . . . . . . E-22
15050-25A . . . . . . . . . . . . . . . . E-5
15050-25M . . . . . . . . . . . . . . . . E-5
15050-25TT. . . . . . . . . . . . . . . E-22
15050-25TTA. . . . . . . . . . . E-5, E-20
15050-25TTM . . . . . . . . . . E-5, E-20
15050-3TT. . . . . . . . . . . . . . . . E-22
15050-3TTA. . . . . . . . . . . . E-5, E-20
15050-3TTM . . . . . . . . . . . E-5, E-20
15050-50A . . . . . . . . . . . . . . . . E-5
15050-50M . . . . . . . . . . . . . . . . E-5
15050-50TT. . . . . . . . . . . . . . . E-22
15050-50TTA. . . . . . . . . . . E-5, E-20
15050-50TTM . . . . . . . . . . E-5, E-20
15050-6 . . . . . . . . . . . . . . . . . E-22
15050-6A . . . . . . . . . . . . . . . . . E-5
15050-6M . . . . . . . . . . . . . . . . . E-5
15050-6TT. . . . . . . . . . . . . . . . E-22
15050-6TTA. . . . . . . . . . . . E-5, E-20
15050-6TTM . . . . . . . . . . . E-5, E-20
15051-1 . . . . . . . . . . . . . . . . . E-22
15051-1A . . . . . . . . . . . . . . . . . E-6
15051-1M . . . . . . . . . . . . . . . . . E-6
15051-25 . . . . . . . . . . . . . . . . E-22
15051-25A . . . . . . . . . . . . . . . . E-6
15051-25M . . . . . . . . . . . . . . . . E-6
15051-50 . . . . . . . . . . . . . . . . E-22
15051-50A . . . . . . . . . . . . . . . . E-6
15051-50M . . . . . . . . . . . . . . . . E-6
15051-6 . . . . . . . . . . . . . . . . . E-22
15051-6A . . . . . . . . . . . . . . . . . E-6
15051-6M . . . . . . . . . . . . . . . . . E-6
15052-1A . . . . . . . . . . . . . . . . . E-6
15052-1M . . . . . . . . . . . . . . . . . E-6
15052-25A . . . . . . . . . . . . . . . . E-6
15052-25M . . . . . . . . . . . . . . . . E-6
15052-50A . . . . . . . . . . . . . . . . E-6
15052-50M . . . . . . . . . . . . . . . . E-6
15052-6A . . . . . . . . . . . . . . . . . E-6
15052-6M . . . . . . . . . . . . . . . . . E-6
15053-2 . . . . . . . . . . . . . . . . . E-23
15053-25 . . . . . . . . . . . . . . . . E-23
Page
xv
Order No. Index
Order No.
Woodhead No.
130153-0073
130153-0074
130153-0075
130153-0076
130153-0077
130153-0078
130153-0079
130153-0080
130153-0081
130153-0082
130153-0083
130153-0084
130153-0085
130153-0087
130153-0088
130153-0089
130153-0090
130153-0091
130153-0092
130153-0093
130153-0094
130153-0095
130153-0096
130153-0097
130153-0098
130153-0099
130153-0100
130153-0109
130153-0110
130153-0111
130153-0112
130153-0113
130153-0114
130153-0115
130153-0116
130153-0117
130153-0118
130153-0119
130153-0120
130153-0121
130153-0123
130153-0126
130153-0128
130153-0130
130153-0132
130153-0134
130153-0137
130153-0138
130153-0139
130153-0140
130153-0141
130153-0142
130153-0143
130153-0144
130153-0145
130153-0146
15053-25A . . . . . . . . . . . . . . . . E-8
15053-25M . . . . . . . . . . . . . . . . E-8
15053-2A . . . . . . . . . . . . . . . . . E-8
15053-2M . . . . . . . . . . . . . . . . . E-8
15053-50 . . . . . . . . . . . . . . . . E-23
15053-50A . . . . . . . . . . . . . . . . E-8
15053-50M . . . . . . . . . . . . . . . . E-8
15053W-2 . . . . . . . . . . . . . . . . E-23
15053W-25 . . . . . . . . . . . . . . . E-23
15053W-25A . . . . . . . . . . . . . . . E-8
15053W-25M . . . . . . . . . . . . . . E-8
15053W-2A . . . . . . . . . . . . . . . . E-8
15053W-2M . . . . . . . . . . . . . . . E-8
15053W-50A . . . . . . . . . . . . . . . E-8
15053W-50M . . . . . . . . . . . . . . E-8
15054. . . . . . . . . . . . . . . . . . . E-23
15054-1 . . . . . . . . . . . . . . . . . E-23
15054-1A . . . . . . . . . . . . . E-7, E-21
15054-1M . . . . . . . . . . . . . E-7, E-21
15054-1TTA. . . . . . . . . . . . . . . . E-7
15054-1TTM . . . . . . . . . . . . . . . E-7
15054-25A . . . . . . . . . . . . E-7, E-21
15054-25M . . . . . . . . . . . . E-7, E-21
15054-25TTA. . . . . . . . . . . . . . . E-7
15054-25TTM . . . . . . . . . . . . . . E-7
15054A . . . . . . . . . . . . . . . . . . . E-7
15054M . . . . . . . . . . . . . . . . . . E-7
20051-0A . . . . . . . . . . . . . E-9, E-20
20051-0M . . . . . . . . . . . . . E-9, E-20
20051-1 . . . . . . . . . . . . . . . . . E-24
20051-1A . . . . . . . . . . . . . E-9, E-20
20051-1M . . . . . . . . . . . . . E-9, E-20
20051-1MLDA . . . . . . . . . . . . . E-12
20051-1MLDM. . . . . . . . . . . . . E-12
20051-25 . . . . . . . . . . . . . . . . E-24
20051-25A . . . . . . . . . . . . E-9, E-20
20051-25M . . . . . . . . . . . . E-9, E-20
20051-6 . . . . . . . . . . . . . . . . . E-24
20051-6A . . . . . . . . . . . . . E-9, E-20
20051-6M . . . . . . . . . . . . . E-9, E-20
20052-1A . . . . . . . . . . . . . . . . E-10
20052-1M . . . . . . . . . . . . . . . . E-10
20052-25A . . . . . . . . . . . . . . . E-10
20052-25M . . . . . . . . . . . . . . . E-10
20052-6A . . . . . . . . . . . . . . . . E-10
20052-6M . . . . . . . . . . . . . . . . E-10
20053-2 . . . . . . . . . . . . . . . . . E-24
20053-2A . . . . . . . . . . . . . . . . E-11
20053-2M . . . . . . . . . . . . . . . . E-11
20053W-2 . . . . . . . . . . . . . . . . E-24
20053W-2A . . . . . . . . . . . . . . . E-11
20053W-2M . . . . . . . . . . . . . . E-11
20053W-6 . . . . . . . . . . . . . . . . E-24
20054. . . . . . . . . . . . . . . E-22, E-24
20054-1 . . . . . . . . . . . . . . . . . E-24
20054-25 . . . . . . . . . . . . . . . . E-24
xvi
Page
Order No.
Woodhead No.
130153-0147
130153-0153
130153-0154
130153-0155
130153-0156
130153-0157
130153-0158
130153-0159
130153-0160
130153-0161
130153-0162
130153-0163
130153-0164
130153-0165
130153-0166
130153-0167
130153-0168
130153-0169
130153-0170
130153-0171
130153-0172
130153-0174
130153-0175
130153-0176
130153-0177
130153-0179
130153-0180
130153-0181
130153-0182
130153-0184
130153-0185
130153-0187
130153-0188
130153-0190
130153-0191
130153-0193
130153-0194
130153-0196
130153-0197
130153-0199
130153-0200
130153-0227
130153-0239
130153-0240
130153-0241
130153-0242
130153-0243
130153-0244
130153-0245
130153-0246
130153-0247
130153-0248
130153-0249
130153-0250
130153-0251
130153-0252
20054-6 . . . . . . . . . . . . . . . . . E-24
24052-0A . . . . . . . . . . . . . . . . . E-9
24052-0M . . . . . . . . . . . . . . . . . E-9
24052-1A . . . . . . . . . . . . . . . . E-13
24052-1M . . . . . . . . . . . . . . . . E-13
24052-1MLDA . . . . . . . . . . . . . E-13
24052-1MLDM. . . . . . . . . . . . . E-13
24052-25A . . . . . . . . . . . . . . . E-13
24052-25M . . . . . . . . . . . . . . . E-13
24052-6A . . . . . . . . . . . . . . . . E-13
24052-6M . . . . . . . . . . . . . . . . E-13
30051-1 . . . . . . . . . . . . . . . . . E-25
30051-1A . . . . . . . . . . . . E-14, E-21
30051-1M . . . . . . . . . . . . E-14, E-21
30051-1MLDA . . . . . . . . . . . . . E-14
30051-1MLDM. . . . . . . . . . . . . E-14
30051-25A . . . . . . . . . . . E-14, E-21
30051-25M . . . . . . . . . . . E-14, E-21
30051-6 . . . . . . . . . . . . . . . . . E-25
30051-6A . . . . . . . . . . . . E-14, E-21
30051-6M . . . . . . . . . . . . E-14, E-21
30052-1A . . . . . . . . . . . . . . . . E-15
30052-1M . . . . . . . . . . . . . . . . E-15
30052-25A . . . . . . . . . . . . . . . E-15
30052-25M . . . . . . . . . . . . . . . E-15
30052-6A . . . . . . . . . . . . . . . . E-15
30052-6M . . . . . . . . . . . . . . . . E-15
30053-0A . . . . . . . . . . . . . . . . E-16
30053-0M . . . . . . . . . . . . . . . . E-16
30053-1A . . . . . . . . . . . . . . . . E-16
30053-1M . . . . . . . . . . . . . . . . E-16
30053-25A . . . . . . . . . . . . . . . E-16
30053-25M . . . . . . . . . . . . . . . E-16
30053-6A . . . . . . . . . . . . . . . . E-16
30053-6M . . . . . . . . . . . . . . . . E-16
30054-1A . . . . . . . . . . . . . . . . E-17
30054-1M . . . . . . . . . . . . . . . . E-17
30054-25A . . . . . . . . . . . . . . . E-17
30054-25M . . . . . . . . . . . . . . . E-17
30054-6A . . . . . . . . . . . . . . . . E-17
30054-6M . . . . . . . . . . . . . . . . E-17
. . . . . . . . . . . . . . . . . . . . . . . . . E-6
30053-2M6F . . . . . . . . . . . . . . E-19
30053-2M3F . . . . . . . . . . . . . . E-19
30053-2M2F . . . . . . . . . . . . . . E-19
30053-2M5F . . . . . . . . . . . . . . E-19
30053-2A6F . . . . . . . . . . . . . . E-19
30053-2A3F . . . . . . . . . . . . . . E-19
30053-2A2F . . . . . . . . . . . . . . E-19
30053-2A5F . . . . . . . . . . . . . . E-19
30053-0M6P . . . . . . . . . . . . . . E-18
30053-0M3P . . . . . . . . . . . . . . E-18
30053-0M2P . . . . . . . . . . . . . . E-18
30053-0M5P . . . . . . . . . . . . . . E-18
30053-0A6P . . . . . . . . . . . . . . E-18
30053-0A3P . . . . . . . . . . . . . . E-18
Page
Order No.
Woodhead No.
130153-0253
130153-0254
130153-0261
130153-0262
130153-0265
130153-0266
130153-0267
130154-0033
130154-0034
130154-0035
130154-0037
130154-0038
130154-0039
130154-0040
130154-0041
130154-0042
130154-0043
130154-0044
130154-0046
130154-0047
130154-0048
130154-0049
130154-0050
130154-0052
130154-0055
130154-0056
130154-0058
130154-0059
130154-0060
130154-0061
130154-0062
130154-0063
130154-0064
130154-0065
130154-0068
130154-0069
130154-0070
130154-0071
130154-0073
130154-0105
130154-0106
130155-0017
130155-0018
130155-0020
130155-0021
130155-0028
130155-0029
130155-0030
130155-0031
130155-0032
130155-0041
130155-0042
130155-0043
130155-0044
130155-0077
130155-0078
30053-0A2P . . . . . . . . . . . . . . E-18
30053-0A5P . . . . . . . . . . . . . . E-18
30051-0A . . . . . . . . . . . . E-14, E-21
30051-0M . . . . . . . . . . . . E-14, E-21
30053-2AF . . . . . . . . . . . . . . . E-17
30053-2MF . . . . . . . . . . . . . . . E-17
15051-0M . . . . . . . . . . . . . . . . . E-5
1433-W. . . . . . . . . . . . . . . . . . D-75
1433-Y . . . . . . . . . . . . . . . . . . D-75
1447-W. . . . . . . . . . . . . . . . . . D-69
1447-W-IN . . . . . . . . . . . . . . . D-69
1447-Y . . . . . . . . . . . . . . . . . . D-69
1447-YB . . . . . . . . . . . . . . . . . D-69
1447-Y-IN . . . . . . . . . . . . . . . . D-69
1448-Y . . . . . . . . . . . . . . . . . . D-77
1449-W. . . . . . . . . . . . . . . . . . D-71
14W33-W . . . . . . . . . . . . . . . . D-15
14W33-Y . . . . . . . . . . . . . . . . . D-15
14W47-W . . . . . . . . . . . . . . . . D-10
14W47-W-IN . . . . . . . . . . . . . . D-11
14W47-Y . . . . . . . . . . . . . . . . . D-10
14W47-Y-IN. . . . . . . . . . . . . . . D-11
14W48-W . . . . . . . . . . . . . . . . D-17
14W48-Y . . . . . . . . . . . . . . . . . D-17
2447-W. . . . . . . . . . . . . . . . . . D-82
2447-Y . . . . . . . . . . . . . . . . . . D-82
24W47-W . . . . . . . . . . . . . . . . D-23
24W47-W-IN . . . . . . . . . . . . . . D-23
24W47-Y . . . . . . . . . . . . . . . . . D-23
24W47-Y-IN. . . . . . . . . . . . . . . D-23
2647-W. . . . . . . . . . . . . . . . . . D-87
2647-W-IN . . . . . . . . . . . . . . . D-87
2647-Y . . . . . . . . . . . . . . . . . . D-87
2647-Y-IN . . . . . . . . . . . . . . . . D-87
26W47-W . . . . . . . . . . . . . . . . D-28
26W47-W-IN . . . . . . . . . . . . . . D-28
26W47-Y . . . . . . . . . . . . . . . . . D-28
26W47-Y-IN. . . . . . . . . . . . . . . D-28
2848-Y . . . . . . . . . . . . . . . . . . D-93
1433-W-IN . . . . . . . . . . . . . . . D-75
2608-Y . . . . . . . . . . . . . . . . . . D-97
6902. . . . . . . . . . . . . . . . . . . . E-33
6903. . . . . . . . . . . . . . . . . . . . E-33
14W . . . . . . . . . . . . . . . . . . . . D-57
14WBLK . . . . . . . . . . . . . . . . . D-57
26W . . . . . . . . . . . . . . . . . . . . D-57
26WBLK . . . . . . . . . . . . . . . . . D-57
28W . . . . . . . . . . . . . . . . . . . . D-58
28WBLK . . . . . . . . . . . . . . . . . D-58
30W . . . . . . . . . . . . . . . . . . . . D-58
3764N. . . . . . . . . . . . . . D-7, D-112
3765N. . . . . . . . . . . . . . D-7, D-112
3769. . . . . . . . . . . . . . . D-7, D-112
3775. . . . . . . . . . . . . . . D-7, D-112
50W50 . . . . . . . . . . . . . . . . . . D-57
50W50BLK. . . . . . . . . . . . . . . . D-57
Page
www.molex.com/woodhead
Order No. Index
Order No.
Woodhead No.
130155-0080
130155-0081
130155-0082
130155-0083
130155-0084
130155-0091
130155-0092
130155-0104
130155-0105
130155-0107
130155-0108
130155-0109
130155-0110
130155-0122
130155-0123
130155-0133
130155-0134
130155-0135
130155-0137
130155-0141
130155-0142
130155-0144
130155-0145
130155-0146
130155-0147
130155-0148
130155-0149
130155-0154
130155-0155
130155-0156
130155-0157
130155-0158
130155-0159
130155-0160
130155-0161
130155-0166
130155-0167
130155-0182
130155-0183
130155-0184
130155-0185
130155-0186
130155-0187
130155-0190
130155-0192
130161-0005
130161-0006
130161-0007
130161-0009
130161-0012
130161-0014
50W52 . . . . . . . . . . . . . . . . . . D-57
50W52BLK. . . . . . . . . . . . . . . . D-57
50W54 . . . . . . . . . . . . . . . . . . D-58
50W54BLK. . . . . . . . . . . . . . . . D-58
50W56 . . . . . . . . . . . . . . . . . . D-58
60W33DPLXGF. . . . . . . . . . . . . D-16
60W47DPLXGF. . . . . . . . . . . . . D-11
63W64 . . . . . . . . . . . . . . D-4, D-46
63W65 . . . . . . . . . . . . . . D-4, D-46
6503. . . . . . . . . . . . . . . . . . . . E-33
65W47DPLXGF. . . . . . . . . . . . . D-24
6703. . . . . . . . . . . . . . . . . . . . E-33
67W47GF . . . . . . . . . . . . . . . . D-29
7764N. . . . . . . . . . . . . . . . . . D-111
7765N. . . . . . . . . . . . . . . . . . D-111
CS6364N . . . . . . . . . . . . . . . . D-108
CS6365N . . . . . . . . . . . . . . . . D-108
CS6369 . . . . . . . . . . . . . D-7, D-108
CS6375 . . . . . . . . . . . . . D-7, D-108
CS63W64. . . . . . . . . . . . . D-4, D-46
CS63W65. . . . . . . . . . . . . D-4, D-46
CS8164N . . . . . . . . . . . . D-7, D-110
CS8165N . . . . . . . . . . . . D-7, D-110
CS8169 . . . . . . . . . . . . . D-7, D-110
CS8175 . . . . . . . . . . . . . D-7, D-110
CS81W64. . . . . . . . . . . . . D-4, D-47
CS81W65. . . . . . . . . . . . . D-4, D-47
CS82W64. . . . . . . . . . . . . D-4, D-34
CS82W65. . . . . . . . . . . . . D-4, D-34
CS8364N . . . . . . . . . . . . D-7, D-109
CS8365N . . . . . . . . . . . . D-7, D-109
CS8369 . . . . . . . . . . . . . D-7, D-109
CS8375 . . . . . . . . . . . . . D-7, D-109
CS83W64. . . . . . . . . . . . . D-4, D-47
CS83W65. . . . . . . . . . . . . D-4, D-47
CS84W64. . . . . . . . . . . . . D-4, D-34
CS84W65. . . . . . . . . . . . . D-4, D-34
DW730-30M . . . . . . . . . . . . . . D-60
DW730-30R. . . . . . . . . . . . . . . D-60
DW760-60F . . . . . . . . . . . . . . . D-60
DW760-60M . . . . . . . . . . . . . . D-60
DW760-60M75 . . . . . . . . . . . . D-60
DW760-60R. . . . . . . . . . . . . . . D-60
DW730-30F . . . . . . . . . . . . . . . D-60
DW760-60M38 . . . . . . . . . . . . D-60
DA230. . . . . . . . . . . . . . . . . . . B-20
DA300. . . . . . . . . . . . . . . . . . . B-20
DA330. . . . . . . . . . . . . . . . . . . B-20
DB350. . . . . . . . . . . . . . . . . . . B-20
DB400. . . . . . . . . . . . . . . . . . . B-20
DB450. . . . . . . . . . . . . . . . . . . B-20
www.molex.com/woodhead
Page
Order No.
Woodhead No.
130180-0163
130180-0179
130180-0181
130180-0182
130180-0186
130180-0278
00-4963 . . . . . . . . . . . . . C-11, C-18
00-1470 . . . . . . . . . . . . . . . . . . A-7
00-1480 . . . . . . . . . . . . . . . . . . A-7
00-1490 . . . . . . . . . . . . . . . . . . A-7
00-4962 . . . . . . . . . . . . . C-11, C-18
00-4980 . . . . . . . . . . . . C-14, C-15,
C-20, D-59, E-50
00-4981 . . . . . . . . . . . . C-14, C-15,
C-20, D-59, E-50
00-4982 . . . . . . . . . . . . C-14, C-15,
C-20, D-59, E-50
00-4983 . . . . . . . . . . . . C-14, C-15,
C-20, D-59, E-50
00-4992 . . . . . . . . C-16, C-21, D-59
00-4993 . . . . . . . . C-16, C-21, D-59
00-4996 . . . . . . . . C-16, C-21, D-59
00-4998 . . . . . . . . C-16, C-21, D-59
00-5263 . . . .C-12, C-13, C-18, D-59
00-5264 . . . .C-12, C-13, C-18, D-59
00-5266 . . . .C-12, C-13, C-18, D-59
00-5267 . . . . . . . . C-12, C-18, D-59
00-5070 . . . . . . . . C-17, C-22, D-59
00-5071 . . . . . . . . C-17, C-22, D-59
00-5072 . . . . . . . . C-17, C-22, D-59
00-5073 . . . . . . . . C-17, C-22, D-59
00-5074 . . . . . . . . C-17, C-22, D-59
00-0820 . . . . . . . . . . . . . . . . . C-23
00-1921 . . . . . . . . . . . . . C-13, C-19
00-1922 . . . . . . . . . . . . . C-13, C-19
00-1923 . . . . . . . . . . . . . C-13, C-19
00-1924 . . . . . . . . . . . . . C-13, C-19
00-1925 . . . . . . . . . . . . . C-13, C-19
00-0822 . . . . . . . . . . . . . . . . . C-23
00-0824 . . . . . . . . . . . . . . . . . C-23
00-0920 . . . . . . . . . . . . . . . . . C-11
00-0921 . . . . . . . . . . . . . . . . . C-11
00-0922 . . . . . . . . . . . . . . . . . C-11
00-4940 . . . . . . . . C-13, C-19, D-59
00-4941 . . . . . . . . C-13, C-19, D-59
00-4950 . . . . . . . . C-15, C-20, D-59
00-4951 . . . . . . . . C-15, C-20, D-59
00-4960 . . . . . . . . . . . . . C-11, C-18
00-4961 . . . . . . . . . . . . . C-11, C-18
00-4964 . . . . . . . . . . . . . C-11, C-18
00-4970 . . . . . . . . C-12, C-18, D-59
00-4971 . . . . . . . . C-12, C-18, D-59
00-4972 . . . .C-12, C-13, C-18, D-59
00-4975 . . . .C-12, C-13, C-18, D-59
00-4978 . . . . . . . . C-12, C-18, D-59
00-4984 . . . .C-14, C-20, D-59, E-50
00-4985 . . . . . . . . . . . . C-14, C-15,
C-18, C-20, D-59, E-50
130180-0279
130180-0280
130180-0281
130180-0282
130180-0283
130180-0284
130180-0285
130180-0286
130180-0287
130180-0288
130180-0289
130180-0308
130180-0309
130180-0310
130180-0311
130180-0312
130180-0314
130180-0315
130180-0316
130180-0317
130180-0318
130180-0319
130180-0333
130180-0334
130180-0335
130180-0336
130180-0337
130180-0392
130180-0393
130180-0395
130180-0396
130180-0398
130180-0399
130180-0400
130180-0401
130180-0402
130180-0403
130180-0404
130180-0405
130180-0406
130180-0407
Page
Order No.
Woodhead No.
Page
130180-0408 00-4986 . . . . . . . . . . . . C-14, C-15,
C-20, D-59, E-50
130180-0409 00-4987 . . . . . . . . . . . . C-14, C-15,
C-20, D-59, E-50
130180-0410 00-4990 . . . . . . . . C-16, C-21, D-59
130180-0411 00-4991 . . . . . . . . C-16, C-21, D-59
130180-0412 00-4994 . . . . . . . . C-16, C-21, D-59
130180-0413 00-4995 . . . . . . . . C-16, C-21, D-59
130180-0414 00-4997 . . . . . . . . C-16, C-21, D-59
130180-0468 00-5150 . . . . . . . . . . . . . . . . . . F-6
130185-0358 6702. . . . . . . . . . . . . . . . . . . . E-33
130185-0471 37-8574 . . . . . . . . . . . . . . . . . A-29
130185-0558 37-8564 . . . . . . . . . . . . . . . . . A-29
130186-0318 42-2190 . . . . . . . . . . . . . . . . . . F-6
130186-0535 40-9100 . . . . . . . . . . . . . . . . . E-33
130186-0561 40-9456 . . . . . . . . . . . . . . . . . . A-7
130186-0719 40-9441 . . . . . . . . . . . . . . . . . . A-7
130191-0021 34-0350 . . . . . . . . . . . . . . . . . A-19
130191-0031 1652-12 . . . . . . . . . . . . . .A-9, A-10
130191-0035 34-0120 . . . . . . . . . . . . . . . . . A-19
130191-0036 34-0130 . . . . . . . . . . . . . . . . . A-19
130191-0085 306. . . . . . . . . . . . . . . . . . . . . A-35
130191-0086 1253. . . . . . . . . . . . . . . .A-10, A-13
130198-0118 420C12W . . . . . . . . . . . . . . . . D-61
130198-0124 420C12 . . . . . . . . . . . . . . . . . D-120
130201-0750 50-8578 . . . . . . . . . . . . . . . . . A-30
130203-1295 71-4220 . . . . . . . . . . . . . . F-7, F-13
130226-1600 9501. . . . . . . . . . . . . . . . . . . . B-14
130226-1601 9503. . . . . . . . . . . . . . . . . . . . B-14
130228-0721 31-5800 . . . . . . . . . . . . . . . . . . F-6
130243-0001 1075HZ25025143 . . . . . . . . . . A-25
130243-0002 1075HZ2F003143F003 . . . . . . A-25
130243-0003 1075HZ2F003123F003 . . . . . . A-25
130243-0005 1075HZ25050143 . . . . . . . . . . A-25
130243-0007 1075HZ2X025143X025 . . . . . . A-25
130243-0008 1075HZ2X050143X050 . . . . . . A-25
130243-0009 1075HZ2X003123X003 . . . . . . A-25
130243-0021 1076HZ25025143 . . . . . . . . . . A-25
130243-0022 1076HZ2F003143F003 . . . . . . A-25
130243-0023 1076HZ2F003123F003 . . . . . . A-25
130243-0025 1076HZ25050143 . . . . . . . . . . A-25
130243-0027 1076HZ2X025143X003 . . . . . . A-25
130243-0028 1076HZ2X050143X003 . . . . . . A-25
130243-0029 1076HZ2X003123X003 . . . . . . A-25
130243-0030 1076HZ21L19BPC . . . . . . . . . . A-25
130243-0031 1076HZ2F003123 . . . . . . . . . . A-25
130243-0032 1076HZ21L1RBPC1L1R . . . . . . A-25
130243-0033 1076HZ2X050143 . . . . . . . . . . A-25
xvii
Woodhead No. Index
Woodhead No.
Order No.
Page
. . . . . . . . . . . . . . . . . . . .130153-0227 . . . . . . . . . E-6
00-0463 . . . . . . . . . . . . .130128-0078 . . . . . . . . . F-7
00-0820 . . . . . . . . . . . . .130180-0314 . . . . . . . . C-23
00-0822 . . . . . . . . . . . . .130180-0333 . . . . . . . . C-23
00-0824 . . . . . . . . . . . . .130180-0334 . . . . . . . . C-23
00-0920 . . . . . . . . . . . . .130180-0335 . . . . . . . . C-11
00-0921 . . . . . . . . . . . . .130180-0336 . . . . . . . . C-11
00-0922 . . . . . . . . . . . . .130180-0337 . . . . . . . . C-11
00-1470 . . . . . . . . . . . . .130180-0179 . . . . . . . . . A-7
00-1480 . . . . . . . . . . . . .130180-0181 . . . . . . . . . A-7
00-1490 . . . . . . . . . . . . .130180-0182 . . . . . . . . . A-7
00-1921 . . . . . . . . . . . . .130180-0315 . . . .C-13, C-19
00-1922 . . . . . . . . . . . . .130180-0316 . . . .C-13, C-19
00-1923 . . . . . . . . . . . . .130180-0317 . . . .C-13, C-19
00-1924 . . . . . . . . . . . . .130180-0318 . . . .C-13, C-19
00-1925 . . . . . . . . . . . . .130180-0319 . . . .C-13, C-19
00-3063 . . . . . . . . . . . . .130128-0079 . . . . . . . . . F-7
00-3073 . . . . . . . . . . . . .130128-0080 . . . . . . . . . F-7
00-3083 . . . . . . . . . . . . .130128-0081 . . . . . . . . . F-7
00-3823 . . . . . . . . . . . . .130128-0082 . . . . . . . . . F-7
00-4940 . . . . . . . . . . . . .130180-0392 . . . . . . . .C-13,
C-19, D-59
00-4941 . . . . . . . . . . . . .130180-0393 . . . . . . . .C-13,
C-19, D-59
00-4950 . . . . . . . . . . . . .130180-0395 . . . . . . . .C-15,
C-20, D-59
00-4951 . . . . . . . . . . . . .130180-0396 . . . . . . . .C-15,
C-20, D-59
00-4960 . . . . . . . . . . . . .130180-0398 . . . .C-11, C-18
00-4961 . . . . . . . . . . . . .130180-0399 . . . .C-11, C-18
00-4962 . . . . . . . . . . . . .130180-0186 . . . .C-11, C-18
00-4963 . . . . . . . . . . . . .130180-0163 . . . .C-11, C-18
00-4964 . . . . . . . . . . . . .130180-0400 . . . .C-11, C-18
00-4970 . . . . . . . . . . . . .130180-0401 . . . . . . . .C-12,
C-18, D-59
00-4971 . . . . . . . . . . . . .130180-0402 . . . . . . . .C-12,
C-18, D-59
00-4972 . . . . . . . . . . . . .130180-0403 . . . C-12, C-13,
C-18, D-59
00-4975 . . . . . . . . . . . . .130180-0404 . . . C-12, C-13,
C-18, D-59
00-4978 . . . . . . . . . . . . .130180-0405 . . . . . . . .C-12,
C-18, D-59
00-4980 . . . . . . . . . . . . .130180-0278 . . . C-14, C-15,
C-20, D-59, E-50
00-4981 . . . . . . . . . . . . .130180-0279 . . . C-14, C-15,
C-20, D-59, E-50
00-4982 . . . . . . . . . . . . .130180-0280 . . . C-14, C-15,
C-20, D-59, E-50
00-4983 . . . . . . . . . . . . .130180-0281 . . . C-14, C-15,
C-20, D-59, E-50
00-4984 . . . . . . . . . . . . .130180-0406 . . . C-14, C-20,
D-59, E-50
00-4985 . . . . . . . . . . . . .130180-0407 . . . C-14, C-15,
C-18, C-20, D-59, E-50
00-4986 . . . . . . . . . . . . .130180-0408 . . . C-14, C-15,
C-20, D-59, E-50
00-4987 . . . . . . . . . . . . .130180-0409 . . . C-14, C-15,
C-20, D-59, E-50
xviii
Woodhead No.
Order No.
Page
00-4990 . . . . . . . . . . . . .130180-0410 . . . . . . . .C-16,
C-21, D-59
00-4991 . . . . . . . . . . . . .130180-0411 . . . . . . . .C-16,
C-21, D-59
00-4992 . . . . . . . . . . . . .130180-0282 . . . . . . . .C-16,
C-21, D-59
00-4993 . . . . . . . . . . . . .130180-0283 . . . . . . . .C-16,
C-21, D-59
00-4994 . . . . . . . . . . . . .130180-0412 . . . . . . . .C-16,
C-21, D-59
00-4995 . . . . . . . . . . . . .130180-0413 . . . . . . . .C-16,
C-21, D-59
00-4996 . . . . . . . . . . . . .130180-0284 . . . . . . . .C-16,
C-21, D-59
00-4997 . . . . . . . . . . . . .130180-0414 . . . . . . . .C-16,
C-21, D-59
00-4998 . . . . . . . . . . . . .130180-0285 . . . . . . . .C-16,
C-21, D-59
00-5070 . . . . . . . . . . . . .130180-0308 . . . . . . . .C-17,
C-22, D-59
00-5071 . . . . . . . . . . . . .130180-0309 . . . . . . . .C-17,
C-22, D-59
00-5072 . . . . . . . . . . . . .130180-0310 . . . . . . . .C-17,
C-22, D-59
00-5073 . . . . . . . . . . . . .130180-0311 . . . . . . . .C-17,
C-22, D-59
00-5074 . . . . . . . . . . . . .130180-0312 . . . . . . . .C-17,
C-22, D-59
00-5150 . . . . . . . . . . . . .130180-0468 . . . . . . . . . F-6
00-5263 . . . . . . . . . . . . .130180-0286 . . . C-12, C-13,
C-18, D-59
00-5264 . . . . . . . . . . . . .130180-0287 . . . C-12, C-13,
C-18, D-59
00-5266 . . . . . . . . . . . . .130180-0288 . . . C-12, C-13,
C-18, D-59
00-5267 . . . . . . . . . . . . .130180-0289 . . . . . . . .C-12,
C-18, D-59
00136. . . . . . . . . . . . . . .130151-0001 . D-117, D-118
00137. . . . . . . . . . . . . . .130151-0002 . D-117, D-118
09106. . . . . . . . . . . . . . .130135-0076 . . . . . . . . E-57
09107. . . . . . . . . . . . . . .130135-0078 . . . . . . . . E-57
09484. . . . . . . . . . . . . . .130153-0017 . . . . . . . . . E-6
1003-3 . . . . . . . . . . . . . .130108-0078 . . . . . . . . A-19
1005-3 . . . . . . . . . . . . . .130108-0083 . . . . . . . . A-19
1013-3 . . . . . . . . . . . . . .130108-0085 . . . . . . . . A-19
1015-3 . . . . . . . . . . . . . .130108-0088 . . . . . . . . A-19
1045. . . . . . . . . . . . . . . .130108-0091 . . . . . . . . A-19
1049. . . . . . . . . . . . . . . .130108-0092 . . . . . . . . A-19
105. . . . . . . . . . . . . . . . .130102-0080 . . . . . . . . A-15
1050-12 . . . . . . . . . . . . .130108-0093 . . . . . . . . A-28
1050-PL . . . . . . . . . . . . .130108-0094 . . . . . . . . A-28
1050-PL12 . . . . . . . . . . .130108-0095 . . . . . . . . A-28
1051-12 . . . . . . . . . . . . .130108-0097 . . . . . . . . A-28
1051-PL . . . . . . . . . . . . .130108-0098 . . . . . . . . A-28
1051-PL12 . . . . . . . . . . .130108-0099 . . . . . . . . A-28
1052-12 . . . . . . . . . . . . .130108-0100 . . . . . . . . A-28
1052-PL . . . . . . . . . . . . .130108-0101 . . . . . . . . A-28
1052-PL12 . . . . . . . . . . .130108-0102 . . . . . . . . A-28
105A163. . . . . . . . . . . . .130102-0081 . . . . . . . . A-15
105B163 . . . . . . . . . . . .130102-0082 . . . . . . . . A-15
Woodhead No.
Order No.
Page
105S . . . . . . . . . . . . . . . .130102-0083 . . . . . . . . A-15
105SA163 . . . . . . . . . . . .130102-0084 . . . . . . . . A-15
105SB163 . . . . . . . . . . . .130102-0085 . . . . . . . . A-15
105U . . . . . . . . . . . . . . .130102-0086 . . . . . . . . A-15
105UA163 . . . . . . . . . . .130102-0087 . . . . . . . . A-15
105UB163 . . . . . . . . . . .130102-0088 . . . . . . . . A-15
105US. . . . . . . . . . . . . . .130102-0090 . . . . . . . . A-15
105USA163 . . . . . . . . . .130102-0091 . . . . . . . . A-15
105USB163 . . . . . . . . . .130102-0093 . . . . . . . . A-15
106. . . . . . . . . . . . . . . . .130102-0095 . . . . . . . . A-15
1060-PL . . . . . . . . . . . . .130108-0103 . . . . . . . . A-28
1061-PL . . . . . . . . . . . . .130108-0104 . . . . . . . . A-28
1062-PL . . . . . . . . . . . . .130108-0105 . . . . . . . . A-28
106A163. . . . . . . . . . . . .130102-0096 . . . . . . . . A-15
106B163 . . . . . . . . . . . .130102-0097 . . . . . . . . A-15
106I . . . . . . . . . . . . . . . .130102-0098 . . . . . . . . A-15
106IA163 . . . . . . . . . . . .130102-0099 . . . . . . . . A-15
106IB163 . . . . . . . . . . . .130102-0100 . . . . . . . . A-15
106S . . . . . . . . . . . . . . . .130102-0101 . . . . . . . . A-15
106SA163 . . . . . . . . . . . .130102-0102 . . . . . . . . A-15
106SB163 . . . . . . . . . . . .130102-0103 . . . . . . . . A-15
106SI . . . . . . . . . . . . . . .130102-0106 . . . . . . . . A-15
106SIB163 . . . . . . . . . . .130102-0107 . . . . . . . . A-15
106U . . . . . . . . . . . . . . .130102-0108 . . . . . . . . A-15
106UA163 . . . . . . . . . . .130102-0109 . . . . . . . . A-15
106UB163 . . . . . . . . . . .130102-0110 . . . . . . . . A-15
106UI . . . . . . . . . . . . . . .130102-0111 . . . . . . . . A-15
106UIA163 . . . . . . . . . . .130102-0112 . . . . . . . . A-15
106UIB163 . . . . . . . . . . .130102-0113 . . . . . . . . A-15
106US. . . . . . . . . . . . . . .130102-0114 . . . . A-15, B-7
106USA163 . . . . . . . . . .130102-0117 . . . . . . . . A-15
106USB163 . . . . . . . . . .130102-0120 . . . . . . . . A-15
106USI . . . . . . . . . . . . . .130102-0123 . . . . . . . . A-15
106USIA163 . . . . . . . . . .130102-0124 . . . . . . . . A-15
106USIB163 . . . . . . . . . .130102-0125 . . . . . . . . A-15
1075HZ25025143 . . . . .130243-0001 . . . . . . . . A-25
1075HZ25050143 . . . . .130243-0005 . . . . . . . . A-25
1075HZ2F003123F003 . .130243-0003 . . . . . . . . A-25
1075HZ2F003143F003 . .130243-0002 . . . . . . . . A-25
1075HZ2X003123X003 .130243-0009 . . . . . . . . A-25
1075HZ2X025143X025 .130243-0007 . . . . . . . . A-25
1075HZ2X050143X050 .130243-0008 . . . . . . . . A-25
1076HZ21L19BPC . . . . . .130243-0030 . . . . . . . . A-25
1076HZ21L1RBPC1L1R . .130243-0032 . . . . . . . . A-25
1076HZ25025143 . . . . .130243-0021 . . . . . . . . A-25
1076HZ25050143 . . . . .130243-0025 . . . . . . . . A-25
1076HZ2F003123. . . . . .130243-0031 . . . . . . . . A-25
1076HZ2F003123F003 . .130243-0023 . . . . . . . . A-25
1076HZ2F003143F003 . .130243-0022 . . . . . . . . A-25
1076HZ2X003123X003 .130243-0029 . . . . . . . . A-25
1076HZ2X025143X003 .130243-0027 . . . . . . . . A-25
1076HZ2X050143 . . . . .130243-0033 . . . . . . . . A-25
1076HZ2X050143X003 .130243-0028 . . . . . . . . A-25
1083-3 . . . . . . . . . . . . . .130108-0106 . . . . . . . . A-19
1083-3-P . . . . . . . . . . . .130108-0123 . . . . . . . . A-19
1083-3HON . . . . . . . . . .130112-0068 . . . . . . . . A-19
1083-3M. . . . . . . . . . . . .130108-0119 . . . . . . . . A-31
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
1083-3MM . . . . . . . . . . .130108-0120 . . . . . . . . A-31
1083-3MM-24. . . . . . . . .130108-0121 . . . . . . . . A-31
1083-3NS . . . . . . . . . . . .130108-0122 . . . . . . . . A-19
1085-3 . . . . . . . . . . . . . .130108-0125 . . . . . . . . A-19
1085-3-P . . . . . . . . . . . .130108-0126 . . . . . . . . A-19
1086-3 . . . . . . . . . . . . . .130108-0128 . . . . . . . . A-19
1086-3HO . . . . . . . . . . . .130108-0133 . . . . . . . . A-19
1086-3NS . . . . . . . . . . . .130108-0134 . . . . . . . . A-19
1087-3 . . . . . . . . . . . . . .130108-0136 . . . . . . . . A-19
1090-HZ . . . . . . . . . . . . .130104-0021 . . . . . . . . . A-7
1090-HZ12A163 . . . . . . .130104-0022 . . . . . . . . . A-7
1090-HZ12B163 . . . . . . .130104-0023 . . . . . . . . . A-7
1090-HZ12D143 . . . . . . .130104-0024 . . . . . . . . . A-7
1090-HZ12IA163 . . . . . .130104-0025 . . . . . . . . . A-7
1090-HZ12IB163 . . . . . .130104-0026 . . . . . . . . . A-7
1090-HZ12IB163P . . . . .130104-0027 . . . . . . . . . A-7
1090-HZ12ID143 . . . . . .130104-0028 . . . . . . . . . A-7
1090-HZ12ID143P . . . . .130104-0029 . . . . . . . . . A-7
1090-HZA143 . . . . . . . . .130104-0030 . . . . . . . . . A-7
1090-HZA163 . . . . . . . . .130104-0031 . . . . . . . . . A-7
1090-HZB143 . . . . . . . . .130104-0032 . . . . . . . . . A-7
1090-HZB163 . . . . . . . . .130104-0033 . . . . . . . . . A-7
1090-HZD143 . . . . . . . . .130104-0034 . . . . . . . . . A-7
1090-HZD163 . . . . . . . . .130104-0035 . . . . . . . . . A-7
1093-3 . . . . . . . . . . . . . .130108-0139 . . . . . . . . A-19
1093-3M. . . . . . . . . . . . .130108-0141 . . . . . . . . A-31
1093-3MM . . . . . . . . . . .130108-0142 . . . . . . . . A-31
1095-3 . . . . . . . . . . . . . .130108-0143 . . . . . . . . A-19
1097-3 . . . . . . . . . . . . . .130108-0144 . . . . . . . . A-19
1097-3M. . . . . . . . . . . . .130108-0146 . . . . . . . . A-31
1097-3MM . . . . . . . . . . .130108-0148 . . . . . . . . A-31
1099-3 . . . . . . . . . . . . . .130108-0149 . . . . . . . . A-19
110. . . . . . . . . . . . . . . . .130102-0138 . . . . . . . . A-16
110U . . . . . . . . . . . . . . .130102-0140 . . . . . . . . A-16
110UA163 . . . . . . . . . . .130102-0141 . . . . . . . . A-16
110UB163 . . . . . . . . . . .130102-0142 . . . . . . . . A-16
110US. . . . . . . . . . . . . . .130102-0143 . . . . . . . . A-16
111. . . . . . . . . . . . . . . . .130102-0145 . . . . . . . . A-17
111A163. . . . . . . . . . . . .130102-0146 . . . . . . . . A-17
111B163 . . . . . . . . . . . .130102-0148 . . . . . . . . A-17
111IB163 . . . . . . . . . . . .130102-0152 . . . . . . . . A-17
111S . . . . . . . . . . . . . . . .130102-0153 . . . . . . . . A-17
111U . . . . . . . . . . . . . . .130102-0158 . . . . . . . . A-17
111UA163 . . . . . . . . . . .130102-0159 . . . . . . . . A-17
111UB163 . . . . . . . . . . .130102-0160 . . . . . . . . A-17
111UIB163 . . . . . . . . . . .130102-0163 . . . . . . . . A-17
111US. . . . . . . . . . . . . . .130102-0164 . . . . . . . . A-17
111USA163 . . . . . . . . . .130102-0165 . . . . . . . . A-17
114. . . . . . . . . . . . . . . . .130102-0167 . . . . . . . . A-16
114A163. . . . . . . . . . . . .130102-0168 . . . . . . . . A-16
114B163 . . . . . . . . . . . .130102-0169 . . . . . . . . A-16
114U . . . . . . . . . . . . . . .130102-0171 . . . . . . . . A-16
114UA163 . . . . . . . . . . .130102-0172 . . . . . . . . A-16
114UB163 . . . . . . . . . . .130102-0173 . . . . . . . . A-16
114UI . . . . . . . . . . . . . . .130102-0176 . . . . . . . . A-16
114US. . . . . . . . . . . . . . .130102-0177 . . . . . . . . A-16
114USA163 . . . . . . . . . .130102-0178 . . . . . . . . A-16
www.molex.com/woodhead
Woodhead No.
Order No.
Page
114USB163 . . . . . . . . . .130102-0180 . . . . . . . . A-16
114USIA163 . . . . . . . . . .130102-0183 . . . . . . . . A-16
114USIB163 . . . . . . . . . .130102-0184 . . . . . . . . A-16
115. . . . . . . . . . . . . . . . .130102-0185 . . . . . . . . A-17
1152. . . . . . . . . . . . . . . .130112-0079 . . . . . . . . A-10
1156. . . . . . . . . . . . . . . .130112-0085 . . . A-10, A-15
1156IG . . . . . . . . . . . . . .130112-0087 . . . . . . . . A-15
115B163 . . . . . . . . . . . .130102-0188 . . . . . . . . A-17
115I . . . . . . . . . . . . . . . .130102-0189 . . . . . . . . A-17
115IB163 . . . . . . . . . . . .130102-0190 . . . . . . . . A-17
115U . . . . . . . . . . . . . . .130102-0192 . . . . . . . . A-17
115UA163 . . . . . . . . . . .130102-0193 . . . . . . . . A-17
115UB163 . . . . . . . . . . .130102-0194 . . . . . . . . A-17
115UI . . . . . . . . . . . . . . .130102-0196 . . . . . . . . A-17
115US. . . . . . . . . . . . . . .130102-0198 . . . . . . . . A-17
115USA163 . . . . . . . . . .130102-0199 . . . . . . . . A-17
115USB163 . . . . . . . . . .130102-0200 . . . . . . . . A-17
115USI . . . . . . . . . . . . . .130102-0201 . . . . . . . . A-17
115USIA163 . . . . . . . . . .130102-0202 . . . . . . . . A-17
115USIB163 . . . . . . . . . .130102-0203 . . . . . . . . A-17
1160. . . . . . . . . . . . . . . .130112-0092 . . . . . . . . A-16
1161. . . . . . . . . . . . . . . .130112-0095 . . . . . . . . A-17
1161IG . . . . . . . . . . . . . .130112-0097 . . . . . . . . A-17
1164. . . . . . . . . . . . . . . .130112-0099 . . . . . . . . A-16
1164IG . . . . . . . . . . . . . .130112-0101 . . . . . . . . A-16
1165. . . . . . . . . . . . . . . .130112-0102 . . . . . . . . A-17
1165IG . . . . . . . . . . . . . .130112-0104 . . . . . . . . A-17
1166. . . . . . . . . . . . . . . .130112-0105 . . . . . . . . A-15
1168. . . . . . . . . . . . . . . .130112-0106 . . . . . . . . A-16
1173. . . . . . . . . . . . . . . .130102-0204 . . . A-15, A-16,
A-17, A-18
1174. . . . . . . . . . . . . . . .130102-0207 . . . A-15, A-16,
A-17, A-18
1175U . . . . . . . . . . . . . .130102-0210 . . . . . . . . A-16
1175U . . . . . . . . . . . . . .130102-0210 . . . A-15, A-16,
A-17, A-18
1175US. . . . . . . . . . . . . .130102-0211 . . . A-15, A-16,
A-17, A-18
118. . . . . . . . . . . . . . . . .130102-0212 . . . . . . . . A-16
1181. . . . . . . . . . . . . . . .130112-0108 . . . . . . . . A-18
118A163. . . . . . . . . . . . .130102-0213 . . . . . . . . A-16
118B163 . . . . . . . . . . . .130102-0214 . . . . . . . . A-16
118S . . . . . . . . . . . . . . . .130102-0215 . . . . . . . . A-16
118SA163 . . . . . . . . . . . .130102-0216 . . . . . . . . A-16
118SB163 . . . . . . . . . . . .130102-0217 . . . . . . . . A-16
118UB163 . . . . . . . . . . .130102-0221 . . . . . . . . A-16
118US. . . . . . . . . . . . . . .130102-0222 . . . . . . . . A-16
118USA163 . . . . . . . . . .130102-0223 . . . . . . . . A-16
118USB163 . . . . . . . . . .130102-0224 . . . . . . . . A-16
119. . . . . . . . . . . . . . . . .130102-0226 . . . . . . . . A-18
119A163. . . . . . . . . . . . .130102-0227 . . . . . . . . A-18
119B163 . . . . . . . . . . . .130102-0228 . . . . . . . . A-18
119S . . . . . . . . . . . . . . . .130102-0229 . . . . . . . . A-18
119SA163 . . . . . . . . . . . .130102-0230 . . . . . . . . A-18
119UB163 . . . . . . . . . . .130102-0233 . . . . . . . . A-18
119US. . . . . . . . . . . . . . .130102-0234 . . . . . . . . A-18
119USA163 . . . . . . . . . .130102-0235 . . . . . . . . A-18
1203. . . . . . . . . . . . . . . .130103-0014 . . . . . . . . A-13
Woodhead No.
Order No.
Page
1203A163 . . . . . . . . . . .130103-0015 . . . . . . . . A-13
1203B163 . . . . . . . . . . .130103-0016 . . . . . . . . A-13
1203D163 . . . . . . . . . . .130103-0017 . . . . . . . . A-13
1203GC . . . . . . . . . . . . .130103-0018 . . . . . . . . A-13
1203GCA163 . . . . . . . . .130103-0019 . . . . . . . . A-13
1203GCB163 . . . . . . . . .130103-0020 . . . . . . . . A-13
1203I . . . . . . . . . . . . . . .130103-0021 . . . . . . . . A-13
1203IA163 . . . . . . . . . . .130103-0022 . . . . . . . . A-13
1203IB163 . . . . . . . . . . .130103-0024 . . . . . . . . A-13
1203IB163P . . . . . . . . . .130103-0025 . . . . . . . . A-13
1203ID163 . . . . . . . . . . .130103-0026 . . . . . . . . A-13
1203IGC . . . . . . . . . . . . .130103-0027 . . . . . . . . A-13
1203P. . . . . . . . . . . . . . .130103-0029 . . . . . . . . A-13
1203PQOA163 . . . . . . . .130103-0030 . . . . . . . . A-13
1203PRI . . . . . . . . . . . . .130103-0034 . . . . . . . . A-13
1203QO . . . . . . . . . . . . .130103-0035 . . . . . . . . A-13
1203QOA163 . . . . . . . . .130103-0036 . . . . . . . . A-13
1203QOB163 . . . . . . . . .130103-0037 . . . . . . . . A-13
1203QOGC . . . . . . . . . . .130103-0038 . . . . . . . . A-13
1203R. . . . . . . . . . . . . . .130103-0041 . . . . . . . . A-13
1203RA163 . . . . . . . . . .130103-0042 . . . . . . . . A-13
1203RA163P. . . . . . . . . .130103-0043 . . . . . . . . A-13
1203RB163 . . . . . . . . . .130103-0044 . . . . . . . . A-13
1203RB163P. . . . . . . . . .130103-0045 . . . . . . . . A-13
1203RGC . . . . . . . . . . . .130103-0048 . . . . . . . . A-13
1203RI . . . . . . . . . . . . . .130103-0049 . . . . . . . . A-13
1203RIA163 . . . . . . . . . .130103-0050 . . . . . . . . A-13
1203RIB163 . . . . . . . . . .130103-0052 . . . . . . . . A-13
1203RID163 . . . . . . . . . .130103-0054 . . . . . . . . A-13
1207. . . . . . . . . . . . . . . .130103-0055 . . . . . . . . A-13
1207A163 . . . . . . . . . . .130103-0056 . . . . . . . . A-13
1207B163 . . . . . . . . . . .130103-0057 . . . . . . . . A-13
1207GC . . . . . . . . . . . . .130103-0058 . . . . . . . . A-13
1207R. . . . . . . . . . . . . . .130103-0060 . . . . . . . . A-13
1207RA163 . . . . . . . . . .130103-0061 . . . . . . . . A-13
1207RB163 . . . . . . . . . .130103-0062 . . . . . . . . A-13
1207RGC . . . . . . . . . . . .130103-0063 . . . . . . . . A-13
1220. . . . . . . . . . . . . . . .130103-0064 . . . . . . . . A-13
1223. . . . . . . . . . . . . . . .130103-0065 . . . . . . . . A-13
1225. . . . . . . . . . . . . . . .130103-0066 . . . . . . . . A-13
1229. . . . . . . . . . . . . . . .130112-0110 . . . A-10, A-13
1253. . . . . . . . . . . . . . . .130191-0086 . . . A-10, A-13
1255. . . . . . . . . . . . . . . .130112-0111 . . . A-10, A-13
1255R. . . . . . . . . . . . . . .130112-0114 . . . . . . . . A-13
1259. . . . . . . . . . . . . . . .130112-0119 . . . . . . . . A-13
130112-0263 . . . . . . . . .130112-0263 . . . . . . . . A-29
1324. . . . . . . . . . . . . . . .130108-0151 . . . . . . . . A-28
1326. . . . . . . . . . . . . . . .130108-0155 . . . . . . . . A-28
1334. . . . . . . . . . . . . . . .130108-0156 . . . . . . . . A-28
1335. . . . . . . . . . . . . . . .130108-0157 . . . . . . . . A-28
1336. . . . . . . . . . . . . . . .130108-0158 . . . . . . . . A-28
1337. . . . . . . . . . . . . . . .130108-0160 . . . . . . . . A-28
1350. . . . . . . . . . . . . . . .130108-0162 . . . . . . . . A-28
1351. . . . . . . . . . . . . . . .130108-0164 . . . . . . . . A-28
1352. . . . . . . . . . . . . . . .130108-0167 . . . . . . . . A-28
1404. . . . . . . . . . . . . . . .130141-0006 . . . . D-6, D-63
1404A162 . . . . . . . . . . .130143-0083 . . . . . . . . D-64
xix
Woodhead No. Index
Woodhead No.
Order No.
Page
1404MB . . . . . . . . . . . . .130149-0005 . . . . D-7, D-64
1407. . . . . . . . . . . . . . . .130141-0007 . . . . D-6, D-78
1419. . . . . . . . . . . . . . . .130141-0008 . . . . D-6, D-63
1433. . . . . . . . . . . . . . . .130141-0010 . . . . D-6, D-73
1433-W . . . . . . . . . . . . .130154-0033 . . . . . . . . D-75
1433-W-IN . . . . . . . . . . .130154-0105 . . . . . . . . D-75
1433-Y . . . . . . . . . . . . . .130154-0034 . . . . . . . . D-75
1433A123 . . . . . . . . . . .130143-0084 . . . . . . . . D-74
1433A143 . . . . . . . . . . .130143-0086 . . . . . . . . D-74
1433B123 . . . . . . . . . . .130143-0088 . . . . . . . . D-74
1433BLK . . . . . . . . . . . . .130141-0011 . . . . . . . . D-73
1433D123 . . . . . . . . . . .130143-0091 . . . . . . . . D-74
1433EZ . . . . . . . . . . . . . .130141-0012 . . . . . . . . D-73
1433MB . . . . . . . . . . . . .130149-0007 . . . . D-7, D-74
1434. . . . . . . . . . . . . . . .130141-0014 . . . . D-6, D-72
1447. . . . . . . . . . . . . . . .130141-0015 . . . . D-6, D-65
1447-W . . . . . . . . . . . . .130154-0035 . . . . . . . . D-69
1447-W-IN . . . . . . . . . . .130154-0037 . . . . . . . . D-69
1447-Y . . . . . . . . . . . . . .130154-0038 . . . . . . . . D-69
1447-Y-IN . . . . . . . . . . . .130154-0040 . . . . . . . . D-69
1447-YB . . . . . . . . . . . . .130154-0039 . . . . . . . . D-69
1447A123 . . . . . . . . . . .130143-0093 . . . . . . . . D-68
1447A143 . . . . . . . . . . .130143-0095 . . . . . . . . D-68
1447A163 . . . . . . . . . . .130143-0097 . . . . . . . . D-68
1447B123 . . . . . . . . . . .130143-0099 . . . . . . . . D-68
1447B143 . . . . . . . . . . .130143-0102 . . . . . . . . D-68
1447B143IN . . . . . . . . . .130143-0103 . . . . . . . . D-68
1447B163 . . . . . . . . . . .130143-0104 . . . . . . . . D-68
1447BLK . . . . . . . . . . . . .130141-0016 . . . . . . . . D-65
1447D143 . . . . . . . . . . .130143-0111 . . . . . . . . D-68
1447D163 . . . . . . . . . . .130143-0113 . . . . . . . . D-68
1447EZ . . . . . . . . . . . . . .130141-0017 . . . . . . . . D-65
1447L143 . . . . . . . . . . . .130143-0114 . . . . . . . . D-68
1447MB . . . . . . . . . . . . .130149-0008 . . . . D-7, D-67
1448. . . . . . . . . . . . . . . .130141-0020 . . . . D-6, D-76
1448-Y . . . . . . . . . . . . . .130154-0041 . . . . . . . . D-77
1448A143 . . . . . . . . . . .130143-0115 . . . . . . . . D-77
1449. . . . . . . . . . . . . . . .130141-0022 . . . . D-6, D-70
1449-W . . . . . . . . . . . . .130154-0042 . . . . . . . . D-71
1449B143 . . . . . . . . . . .130143-0119 . . . . . . . . D-71
14F47 . . . . . . . . . . . . . . .130144-0014 . . D-66, D-136
14R47. . . . . . . . . . . . . . .130144-0016 . . D-66, D-136
14W . . . . . . . . . . . . . . . .130155-0020 . . . . . . . . D-57
14W07 . . . . . . . . . . . . . .130146-0015 . . . . D-4, D-19
14W07A163 . . . . . . . . . .130146-0016 . . . . . . . . D-19
14W33 . . . . . . . . . . . . . .130146-0022 . . . . D-4, D-14
14W33-W . . . . . . . . . . . .130154-0043 . . . . . . . . D-15
14W33-Y. . . . . . . . . . . . .130154-0044 . . . . . . . . D-15
14W33A123 . . . . . . . . . .130143-0121 . . . . . . . . D-15
14W33A143 . . . . . . . . . .130143-0124 . . . . . . . . D-15
14W33B123 . . . . . . . . . .130143-0125 . . . . . . . . D-15
14W33B123IN . . . . . . . .130143-0126 . . . . . . . . D-15
14W33BLK . . . . . . . . . . .130146-0023 . . . . . . . . D-14
14W33D123 . . . . . . . . . .130143-0129 . . . . . . . . D-15
14W33D143 . . . . . . . . . .130143-0131 . . . . . . . . D-15
14W33EZ . . . . . . . . . . . .130146-0024 . . . . . . . . D-14
14W34 . . . . . . . . . . . . . .130146-0028 . . . . D-4, D-13
xx
Woodhead No.
Order No.
Page
14W47 . . . . . . . . . . . . . .130143-0154 . . . . . . . . . D-4
14W47 . . . . . . . . . . . . . .130146-0031 . . . . . . . . . D-9
14W47-W . . . . . . . . . . . .130154-0046 . . . . . . . . D-10
14W47-W-IN . . . . . . . . . .130154-0047 . . . . . . . . D-11
14W47-Y. . . . . . . . . . . . .130154-0048 . . . . . . . . D-10
14W47-Y-IN . . . . . . . . . .130154-0049 . . . . . . . . D-11
14W47A143 . . . . . . . . . .130143-0134 . . . . . . . . . D-9
14W47A143IN . . . . . . . .130143-0135 . . . . . . . . D-10
14W47A163 . . . . . . . . . .130143-0137 . . . . . . . . . D-9
14W47B123 . . . . . . . . . .130143-0138 . . . . . . . . . D-9
14W47B123IN . . . . . . . .130143-0139 . . . . . . . . D-10
14W47B143 . . . . . . . . . .130143-0140 . . . . . . . . . D-9
14W47B143IN . . . . . . . .130143-0141 . . . . . . . . D-10
14W47B163 . . . . . . . . . .130143-0143 . . . . . . . . . D-9
14W47BLK . . . . . . . . . . .130146-0032 . . . . . . . . . D-9
14W47D123 . . . . . . . . . .130143-0148 . . . . . . . . . D-9
14W47D123IN . . . . . . . .130143-0149 . . . . . . . . D-10
14W47D143 . . . . . . . . . .130143-0150 . . . . . . . . . D-9
14W47D143IN . . . . . . . .130143-0151 . . . . . . . . D-10
14W47D163 . . . . . . . . . .130143-0153 . . . . . . . . . D-9
14W47EZ . . . . . . . . . . . .130146-0035 . . . . . . . . . D-9
14W47L143 . . . . . . . . . .130143-0154 . . . . . . . . . D-9
14W48 . . . . . . . . . . . . . .130146-0040 . . . . D-4, D-17
14W48-W . . . . . . . . . . . .130154-0050 . . . . . . . . D-17
14W48-Y. . . . . . . . . . . . .130154-0052 . . . . . . . . D-17
14W48BLK . . . . . . . . . . .130146-0041 . . . . . . . . D-17
14W48D143 . . . . . . . . . .130143-0156 . . . . . . . . D-17
14W49 . . . . . . . . . . . . . .130146-0044 . . . . D-4, D-12
14W49A143 . . . . . . . . . .130143-0157 . . . . . . . . D-12
14W49B143 . . . . . . . . . .130143-0159 . . . . . . . . D-12
14W49BLK . . . . . . . . . . .130146-0045 . . . . . . . . D-12
14WBLK . . . . . . . . . . . . .130155-0021 . . . . . . . . D-57
1504. . . . . . . . . . . . . . . .130141-0023 . . . . D-6, D-63
15050-1 . . . . . . . . . . . . .130153-0019 . . . . . . . . E-22
15050-1A . . . . . . . . . . . .130153-0020 . . . . . . . . . E-5
15050-1M. . . . . . . . . . . .130153-0021 . . . . . . . . . E-5
15050-25 . . . . . . . . . . . .130153-0022 . . . . . . . . E-22
15050-25A . . . . . . . . . . .130153-0023 . . . . . . . . . E-5
15050-25M. . . . . . . . . . .130153-0024 . . . . . . . . . E-5
15050-25TT . . . . . . . . . .130153-0025 . . . . . . . . E-22
15050-25TTA . . . . . . . . .130153-0026 . . . . .E-5, E-20
15050-25TTM . . . . . . . . .130153-0027 . . . . .E-5, E-20
15050-3TT . . . . . . . . . . .130153-0028 . . . . . . . . E-22
15050-3TTA . . . . . . . . . .130153-0029 . . . . .E-5, E-20
15050-3TTM . . . . . . . . . .130153-0030 . . . . .E-5, E-20
15050-50A . . . . . . . . . . .130153-0031 . . . . . . . . . E-5
15050-50M. . . . . . . . . . .130153-0032 . . . . . . . . . E-5
15050-50TT . . . . . . . . . .130153-0033 . . . . . . . . E-22
15050-50TTA . . . . . . . . .130153-0034 . . . . .E-5, E-20
15050-50TTM . . . . . . . . .130153-0035 . . . . .E-5, E-20
15050-6 . . . . . . . . . . . . .130153-0036 . . . . . . . . E-22
15050-6A . . . . . . . . . . . .130153-0037 . . . . . . . . . E-5
15050-6M. . . . . . . . . . . .130153-0038 . . . . . . . . . E-5
15050-6TT . . . . . . . . . . .130153-0039 . . . . . . . . E-22
15050-6TTA . . . . . . . . . .130153-0040 . . . . .E-5, E-20
15050-6TTM . . . . . . . . . .130153-0041 . . . . .E-5, E-20
15051-0M. . . . . . . . . . . .130153-0267 . . . . . . . . . E-5
Woodhead No.
Order No.
Page
15051-1 . . . . . . . . . . . . .130153-0042 . . . . . . . . E-22
15051-1A . . . . . . . . . . . .130153-0043 . . . . . . . . . E-6
15051-1M. . . . . . . . . . . .130153-0044 . . . . . . . . . E-6
15051-25 . . . . . . . . . . . .130153-0045 . . . . . . . . E-22
15051-25A . . . . . . . . . . .130153-0046 . . . . . . . . . E-6
15051-25M. . . . . . . . . . .130153-0047 . . . . . . . . . E-6
15051-50 . . . . . . . . . . . .130153-0048 . . . . . . . . E-22
15051-50A . . . . . . . . . . .130153-0049 . . . . . . . . . E-6
15051-50M. . . . . . . . . . .130153-0050 . . . . . . . . . E-6
15051-6 . . . . . . . . . . . . .130153-0051 . . . . . . . . E-22
15051-6A . . . . . . . . . . . .130153-0052 . . . . . . . . . E-6
15051-6M. . . . . . . . . . . .130153-0053 . . . . . . . . . E-6
15052-1A . . . . . . . . . . . .130153-0056 . . . . . . . . . E-6
15052-1M. . . . . . . . . . . .130153-0059 . . . . . . . . . E-6
15052-25A . . . . . . . . . . .130153-0061 . . . . . . . . . E-6
15052-25M. . . . . . . . . . .130153-0063 . . . . . . . . . E-6
15052-50A . . . . . . . . . . .130153-0065 . . . . . . . . . E-6
15052-50M. . . . . . . . . . .130153-0066 . . . . . . . . . E-6
15052-6A . . . . . . . . . . . .130153-0068 . . . . . . . . . E-6
15052-6M. . . . . . . . . . . .130153-0070 . . . . . . . . . E-6
15053-2 . . . . . . . . . . . . .130153-0071 . . . . . . . . E-23
15053-25 . . . . . . . . . . . .130153-0072 . . . . . . . . E-23
15053-25A . . . . . . . . . . .130153-0073 . . . . . . . . . E-8
15053-25M. . . . . . . . . . .130153-0074 . . . . . . . . . E-8
15053-2A . . . . . . . . . . . .130153-0075 . . . . . . . . . E-8
15053-2M. . . . . . . . . . . .130153-0076 . . . . . . . . . E-8
15053-50 . . . . . . . . . . . .130153-0077 . . . . . . . . E-23
15053-50A . . . . . . . . . . .130153-0078 . . . . . . . . . E-8
15053-50M. . . . . . . . . . .130153-0079 . . . . . . . . . E-8
15053W-2 . . . . . . . . . . .130153-0080 . . . . . . . . E-23
15053W-25 . . . . . . . . . .130153-0081 . . . . . . . . E-23
15053W-25A . . . . . . . . .130153-0082 . . . . . . . . . E-8
15053W-25M . . . . . . . . .130153-0083 . . . . . . . . . E-8
15053W-2A . . . . . . . . . .130153-0084 . . . . . . . . . E-8
15053W-2M . . . . . . . . . .130153-0085 . . . . . . . . . E-8
15053W-50A . . . . . . . . .130153-0087 . . . . . . . . . E-8
15053W-50M . . . . . . . . .130153-0088 . . . . . . . . . E-8
15054. . . . . . . . . . . . . . .130153-0089 . . . . . . . . E-23
15054-1 . . . . . . . . . . . . .130153-0090 . . . . . . . . E-23
15054-1A . . . . . . . . . . . .130153-0091 . . . . .E-7, E-21
15054-1M. . . . . . . . . . . .130153-0092 . . . . .E-7, E-21
15054-1TTA . . . . . . . . . .130153-0093 . . . . . . . . . E-7
15054-1TTM . . . . . . . . . .130153-0094 . . . . . . . . . E-7
15054-25A . . . . . . . . . . .130153-0095 . . . . .E-7, E-21
15054-25M. . . . . . . . . . .130153-0096 . . . . .E-7, E-21
15054-25TTA . . . . . . . . .130153-0097 . . . . . . . . . E-7
15054-25TTM . . . . . . . . .130153-0098 . . . . . . . . . E-7
15054A. . . . . . . . . . . . . .130153-0099 . . . . . . . . . E-7
15054M . . . . . . . . . . . . .130153-0100 . . . . . . . . . E-7
1507. . . . . . . . . . . . . . . .130141-0024 . . . . D-6, D-78
1533. . . . . . . . . . . . . . . .130141-0025 . . . . D-6, D-73
1533GCM . . . . . . . . . . . .130141-0027 . . . . . . . . D-73
1533MB . . . . . . . . . . . . .130149-0011 . . . . D-7, D-74
1534. . . . . . . . . . . . . . . .130141-0030 . . . . D-6, D-72
1547. . . . . . . . . . . . . . . .130141-0031 . . . . D-6, D-65
1547BLK . . . . . . . . . . . . .130141-0032 . . . . . . . . D-65
1547GCM . . . . . . . . . . . .130141-0033 . . . . . . . . D-65
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
1547MB . . . . . . . . . . . . .130149-0012 . . . . D-7, D-67
1548. . . . . . . . . . . . . . . .130141-0036 . . . . D-6, D-76
1548MB . . . . . . . . . . . . .130149-0013 . . . . D-7, D-76
1549. . . . . . . . . . . . . . . .130141-0038 . . . . D-6, D-70
15L47 . . . . . . . . . . . . . . .130141-0040 . . . . . . . . D-65
15L47BLK . . . . . . . . . . . .130141-0041 . . . . . . . . D-65
15W07 . . . . . . . . . . . . . .130146-0050 . . . . D-4, D-19
15W33 . . . . . . . . . . . . . .130146-0052 . . . . D-4, D-14
15W33BLK . . . . . . . . . . .130146-0053 . . . . . . . . D-14
15W33GCM . . . . . . . . . . .130146-0054 . . . . . . . . D-14
15W33MB . . . . . . . . . . . .130146-0056 . . . . D-5, D-16
15W34 . . . . . . . . . . . . . .130146-0059 . . . . D-4, D-13
15W47 . . . . . . . . . . . . . .130146-0060 . . . . . D-4, D-9
15W47BLK . . . . . . . . . . .130146-0061 . . . . . . . . . D-9
15W47GCM . . . . . . . . . . .130146-0063 . . . . . . . . . D-9
15W47MB . . . . . . . . . . . .130146-0065 . . . . D-5, D-11
15W48 . . . . . . . . . . . . . .130146-0068 . . . . D-4, D-17
15W48BLK . . . . . . . . . . .130146-0069 . . . . . . . . D-17
15W48MB . . . . . . . . . . . .130146-0072 . . . . D-5, D-18
15W49 . . . . . . . . . . . . . .130146-0074 . . . . D-4, D-12
15W49MB . . . . . . . . . . . .130146-0076 . . . . D-5, D-12
1600-12A . . . . . . . . . . . .130105-0028 . . . . . . . . A-10
1600-12B . . . . . . . . . . . .130105-0029 . . . . . . . . A-10
1601-12A . . . . . . . . . . . .130105-0030 . . . . . . . . A-10
1601-12B . . . . . . . . . . . .130105-0031 . . . . . . . . A-10
1606. . . . . . . . . . . . . . . .130105-0032 . . . . . . . . A-11
1610. . . . . . . . . . . . . . . .130105-0033 . . . . . . . . A-11
1610S . . . . . . . . . . . . . . .130105-0034 . . . . A-11, B-7
1612. . . . . . . . . . . . . . . .130105-0035 . . . . . . . . A-11
1612S . . . . . . . . . . . . . . .130105-0036 . . . . . . . . A-11
1621-12A . . . . . . . . . . . .130105-0037 . . . . . . . . A-10
1621-12B . . . . . . . . . . . .130105-0038 . . . . . . . . A-10
1621-12B-P . . . . . . . . . .130105-0039 . . . . . . . . A-10
1625-12A . . . . . . . . . . . .130105-0041 . . . . . . . . A-10
1625-12B . . . . . . . . . . . .130105-0042 . . . . . . . . A-10
1631-12A . . . . . . . . . . . .130105-0043 . . . . . . . . A-10
1631-12B . . . . . . . . . . . .130105-0044 . . . . . . . . A-10
1635-12A . . . . . . . . . . . .130105-0045 . . . . . . . . . A-9
1635-12B . . . . . . . . . . . .130105-0046 . . . . . . . . . A-9
1638-12 . . . . . . . . . . . . .130105-0048 . . . . . . . . A-11
1640-12 . . . . . . . . . . . . .130105-0050 . . . . . . . . . A-9
1642-12 . . . . . . . . . . . . .130105-0052 . . . . . . . . . A-9
1645-12 . . . . . . . . . . . . .130104-0038 . . . . . . . . . A-9
1646-12 . . . . . . . . . . . . .130105-0056 . . . . . . . . A-10
1647-12 . . . . . . . . . . . . .130105-0057 . . . . . . . . A-11
1648-12 . . . . . . . . . . . . .130105-0058 . . . . . . . . A-10
1649-12 . . . . . . . . . . . . .130105-0059 . . . . . . . . A-10
1652-12 . . . . . . . . . . . . .130191-0031 . . . . A-9, A-10
1655-12A . . . . . . . . . . . .130105-0082 . . . . . . . . . A-6
1655-12B . . . . . . . . . . . .130105-0083 . . . . . . . . . A-6
1660. . . . . . . . . . . . . . . .130112-0128 . . . . . . . . A-11
1660S . . . . . . . . . . . . . . .130112-0129 . . . . . . . . A-11
1668. . . . . . . . . . . . . . . .130112-0130 . . . . . . . . A-11
1675-12 . . . . . . . . . . . . .130112-0131 . . . . . . . . A-10
1676. . . . . . . . . . . . . . . .130112-0132 . . . . . . . . A-10
1676-EX . . . . . . . . . . . . .130112-0133 . . . . . A-6, A-9
1677. . . . . . . . . . . . . . . .130112-0134 . . . . . A-6, A-9
www.molex.com/woodhead
Woodhead No.
Order No.
Page
1678-12 . . . . . . . . . . . . .130112-0135 . . . . . . . . . A-9
1679-12 . . . . . . . . . . . . .130112-0272 . . . . . . . . . A-6
1684S . . . . . . . . . . . . . . .130105-0062 . . . . . . . . A-11
1691-12B . . . . . . . . . . . .130105-0064 . . . . . . . . A-11
1691-12BS . . . . . . . . . . .130105-0065 . . . . . . . . A-11
1692-12B . . . . . . . . . . . .130105-0066 . . . . . . . . A-11
1692-12BS . . . . . . . . . . .130105-0067 . . . . . . . . A-11
1702. . . . . . . . . . . . . . . .130151-0012 . .D-117, D-118
1704. . . . . . . . . . . . . . . .130151-0013 . .D-117, D-118
1705. . . . . . . . . . . . . . . .130151-0014 . .D-117, D-118
1706. . . . . . . . . . . . . . . .130151-0015 . .D-117, D-118
1708. . . . . . . . . . . . . . . .130151-0016 . .D-117, D-118
1712. . . . . . . . . . . . . . . .130151-0017 . .D-117, D-118
1719. . . . . . . . . . . . . . . .130151-0018 . .D-117, D-118
1725. . . . . . . . . . . . . . . .130151-0019 . .D-117, D-118
1730. . . . . . . . . . . . . . . .130151-0020 . .D-117, D-118
1732. . . . . . . . . . . . . . . .130151-0021 . .D-117, D-118
1733. . . . . . . . . . . . . . . .130151-0022 . .D-117, D-118
1740. . . . . . . . . . . . . . . .130151-0023 . .D-117, D-118
1741. . . . . . . . . . . . . . . .130151-0024 . .D-117, D-118
1744. . . . . . . . . . . . . . . .130151-0025 . .D-117, D-118
1751. . . . . . . . . . . . . . . .130127-0003 . . . . . . . . F-12
1760. . . . . . . . . . . . . . . .130127-0007 . . . . . . . . F-12
1783. . . . . . . . . . . . . . . .130151-0026 . .D-117, D-118
1913SA . . . . . . . . . . . . . .130108-0170 . . . . . . . . A-14
1913SB . . . . . . . . . . . . . .130108-0173 . . . . . . . . A-14
1926SA . . . . . . . . . . . . . .130108-0179 . . . . . . . . A-14
1926SB . . . . . . . . . . . . . .130108-0181 . . . . . . . . A-14
1940SA . . . . . . . . . . . . . .130108-0183 . . . . . . . . A-14
2000. . . . . . . . . . . . . . . .130108-0187 . . . . . . . . A-27
2000-LED . . . . . . . . . . . .130108-0300 . . . . . . . . A-26
2000PLX25 . . . . . . . . . . .130108-0188 . . . . . . . . A-27
2001. . . . . . . . . . . . . . . .130108-0191 . . . . . . . . A-27
2001-LED . . . . . . . . . . . .130108-0301 . . . . . . . . A-26
2002. . . . . . . . . . . . . . . .130108-0193 . . . . . . . . A-27
2002-LED . . . . . . . . . . . .130108-0302 . . . . . . . . A-26
2003. . . . . . . . . . . . . . . .130108-0194 . . . . . . . . A-27
2003-LED . . . . . . . . . . . .130108-0303 . . . . . . . . A-26
20051-0A . . . . . . . . . . . .130153-0109 . . . . .E-9, E-20
20051-0M. . . . . . . . . . . .130153-0110 . . . . .E-9, E-20
20051-1 . . . . . . . . . . . . .130153-0111 . . . . . . . . E-24
20051-1A . . . . . . . . . . . .130153-0112 . . . . .E-9, E-20
20051-1M. . . . . . . . . . . .130153-0113 . . . . .E-9, E-20
20051-1MLDA. . . . . . . . .130153-0114 . . . . . . . . E-12
20051-1MLDM . . . . . . . .130153-0115 . . . . . . . . E-12
20051-25 . . . . . . . . . . . .130153-0116 . . . . . . . . E-24
20051-25A . . . . . . . . . . .130153-0117 . . . . .E-9, E-20
20051-25M. . . . . . . . . . .130153-0118 . . . . .E-9, E-20
20051-6 . . . . . . . . . . . . .130153-0119 . . . . . . . . E-24
20051-6A . . . . . . . . . . . .130153-0120 . . . . .E-9, E-20
20051-6M. . . . . . . . . . . .130153-0121 . . . . .E-9, E-20
20052-1A . . . . . . . . . . . .130153-0123 . . . . . . . . E-10
20052-1M. . . . . . . . . . . .130153-0126 . . . . . . . . E-10
20052-25A . . . . . . . . . . .130153-0128 . . . . . . . . E-10
20052-25M. . . . . . . . . . .130153-0130 . . . . . . . . E-10
20052-6A . . . . . . . . . . . .130153-0132 . . . . . . . . E-10
20052-6M. . . . . . . . . . . .130153-0134 . . . . . . . . E-10
Woodhead No.
Order No.
Page
20053-2 . . . . . . . . . . . . .130153-0137 . . . . . . . . E-24
20053-2A . . . . . . . . . . . .130153-0138 . . . . . . . . E-11
20053-2M. . . . . . . . . . . .130153-0139 . . . . . . . . E-11
20053W-2 . . . . . . . . . . .130153-0140 . . . . . . . . E-24
20053W-2A . . . . . . . . . .130153-0141 . . . . . . . . E-11
20053W-2M . . . . . . . . . .130153-0142 . . . . . . . . E-11
20053W-6 . . . . . . . . . . .130153-0143 . . . . . . . . E-24
20054. . . . . . . . . . . . . . .130153-0144 . . . .E-22, E-24
20054-1 . . . . . . . . . . . . .130153-0145 . . . . . . . . E-24
20054-25 . . . . . . . . . . . .130153-0146 . . . . . . . . E-24
20054-6 . . . . . . . . . . . . .130153-0147 . . . . . . . . E-24
2010-LED . . . . . . . . . . . .130108-0304 . . . . . . . . A-26
2011-LED . . . . . . . . . . . .130108-0305 . . . . . . . . A-26
2012-LED . . . . . . . . . . . .130108-0306 . . . . . . . . A-26
2013-LED . . . . . . . . . . . .130108-0307 . . . . . . . . A-26
202SRL . . . . . . . . . . . . . .130111-0023 . . . . . . . . A-37
2030. . . . . . . . . . . . . . . .130108-0199 . . . . . . . . A-27
2031. . . . . . . . . . . . . . . .130108-0202 . . . . . . . . A-27
2031-P . . . . . . . . . . . . . .130108-0203 . . . . . . . . A-27
2113MS . . . . . . . . . . . . .130108-0206 . . . . . . . . A-31
2113S . . . . . . . . . . . . . . .130108-0207 . . . . . . . . A-31
2126MS . . . . . . . . . . . . .130108-0209 . . . . . . . . A-31
2126S . . . . . . . . . . . . . . .130108-0210 . . . . . . . . A-31
2404. . . . . . . . . . . . . . . .130141-0043 . . . . D-6, D-79
2404MB . . . . . . . . . . . . .130143-0014 . . . . D-7, D-79
24052-0A . . . . . . . . . . . .130153-0153 . . . . . . . . . E-9
24052-0M. . . . . . . . . . . .130153-0154 . . . . . . . . . E-9
24052-1A . . . . . . . . . . . .130153-0155 . . . . . . . . E-13
24052-1M. . . . . . . . . . . .130153-0156 . . . . . . . . E-13
24052-1MLDA. . . . . . . . .130153-0157 . . . . . . . . E-13
24052-1MLDM . . . . . . . .130153-0158 . . . . . . . . E-13
24052-25A . . . . . . . . . . .130153-0159 . . . . . . . . E-13
24052-25M. . . . . . . . . . .130153-0160 . . . . . . . . E-13
24052-6A . . . . . . . . . . . .130153-0161 . . . . . . . . E-13
24052-6M. . . . . . . . . . . .130153-0162 . . . . . . . . E-13
2407. . . . . . . . . . . . . . . .130141-0044 . . . . D-6, D-95
2407A143 . . . . . . . . . . .130143-0169 . . . . . . . . D-95
2407B163 . . . . . . . . . . .130143-0171 . . . . . . . . D-95
2407MB . . . . . . . . . . . . .130149-0014 . . . . D-7, D-95
2434. . . . . . . . . . . . . . . .130141-0045 . . . . D-6, D-84
2447. . . . . . . . . . . . . . . .130141-0047 . . . . D-6, D-81
2447-W . . . . . . . . . . . . .130154-0055 . . . . . . . . D-82
2447-Y . . . . . . . . . . . . . .130154-0056 . . . . . . . . D-82
2447A163 . . . . . . . . . . .130143-0174 . . . . . . . . D-82
2447B143 . . . . . . . . . . .130143-0176 . . . . . . . . D-82
2447D143 . . . . . . . . . . .130143-0178 . . . . . . . . D-82
2447EZ . . . . . . . . . . . . . .130141-0048 . . . . . . . . D-81
2447MB . . . . . . . . . . . . .130149-0016 . . . . D-7, D-81
2449. . . . . . . . . . . . . . . .130141-0051 . . . . D-6, D-83
2449MB . . . . . . . . . . . . .130149-0017 . . . . D-7, D-83
24T04 . . . . . . . . . . . . . . .130144-0017 . . . . D-7, D-79
24W04 . . . . . . . . . . . . . .130146-0077 . . . . D-4, D-20
24W04A142 . . . . . . . . . .130143-0180 . . . . . . . . D-20
24W04B162 . . . . . . . . . .130143-0015 . . . . . . . . D-20
24W04D142 . . . . . . . . . .130143-0307 . . . . . . . . D-20
24W07 . . . . . . . . . . . . . .130146-0078 . . . . D-4, D-35
24W34 . . . . . . . . . . . . . .130146-0079 . . . . D-4, D-26
xxi
Woodhead No. Index
Woodhead No.
Order No.
Page
24W34A163 . . . . . . . . . .130143-0017 . . . . . . . . D-26
24W34BLK . . . . . . . . . . .130146-0080 . . . . . . . . D-26
24W47 . . . . . . . . . . . . . .130146-0082 . . . . D-4, D-22
24W47-W . . . . . . . . . . . .130154-0058 . . . . . . . . D-23
24W47-W-IN . . . . . . . . . .130154-0059 . . . . . . . . D-23
24W47-Y. . . . . . . . . . . . .130154-0060 . . . . . . . . D-23
24W47-Y-IN . . . . . . . . . .130154-0061 . . . . . . . . D-23
24W47A143 . . . . . . . . . .130143-0187 . . . . . . . . D-22
24W47A163 . . . . . . . . . .130143-0189 . . . . . . . . D-22
24W47B123 . . . . . . . . . .130143-0190 . . . . . . . . D-22
24W47B143 . . . . . . . . . .130143-0191 . . . . . . . . D-22
24W47B143IN . . . . . . . .130143-0192 . . . . . . . . D-23
24W47B163 . . . . . . . . . .130143-0193 . . . . . . . . D-22
24W47BLK . . . . . . . . . . .130146-0083 . . . . . . . . D-22
24W47D143 . . . . . . . . . .130143-0195 . . . . . . . . D-22
24W47D163 . . . . . . . . . .130143-0196 . . . . . . . . D-22
24W47EZ . . . . . . . . . . . .130146-0084 . . . . . . . . D-22
24W49 . . . . . . . . . . . . . .130146-0088 . . . . D-4, D-25
24W49A143 . . . . . . . . . .130143-0198 . . . . . . . . D-25
2504. . . . . . . . . . . . . . . .130141-0052 . . . . D-6, D-79
2504MB . . . . . . . . . . . . .130149-0018 . . . . D-7, D-79
2507. . . . . . . . . . . . . . . .130141-0053 . . . . D-6, D-95
2507MB . . . . . . . . . . . . .130149-0019 . . . . D-7, D-95
2534. . . . . . . . . . . . . . . .130141-0054 . . . . D-6, D-84
2534MB . . . . . . . . . . . . .130149-0020 . . . . D-7, D-84
2547. . . . . . . . . . . . . . . .130141-0056 . . . . D-6, D-81
2547GCM . . . . . . . . . . . .130141-0057 . . . . . . . . D-81
2547MB . . . . . . . . . . . . .130149-0021 . . . . D-7, D-81
2549. . . . . . . . . . . . . . . .130141-0060 . . . . D-6, D-83
2549MB . . . . . . . . . . . . .130149-0022 . . . . D-7, D-83
25T04 . . . . . . . . . . . . . . .130144-0019 . . . . D-7, D-79
25W04 . . . . . . . . . . . . . .130146-0090 . . . . D-4, D-20
25W04MB . . . . . . . . . . . .130146-0091 . . . . D-5, D-20
25W07 . . . . . . . . . . . . . .130146-0092 . . . . D-4, D-35
25W07MB . . . . . . . . . . . .130146-0094 . . . . D-5, D-35
25W34 . . . . . . . . . . . . . .130146-0095 . . . . D-4, D-26
25W34BLK . . . . . . . . . . .130146-0096 . . . . . . . . D-26
25W34MB . . . . . . . . . . . .130146-0097 . . . . D-5, D-26
25W47 . . . . . . . . . . . . . .130146-0099 . . . . D-4, D-22
25W47BLK . . . . . . . . . . .130146-0100 . . . . . . . . D-22
25W47GCM . . . . . . . . . . .130146-0101 . . . . . . . . D-22
25W47MB . . . . . . . . . . . .130146-0103 . . . . D-5, D-24
25W49 . . . . . . . . . . . . . .130146-0106 . . . . D-4, D-25
25W49MB . . . . . . . . . . . .130146-0107 . . . . D-5, D-25
2607. . . . . . . . . . . . . . . .130141-0061 . . . . D-6, D-80
2608. . . . . . . . . . . . . . . .130142-0002 . . . . D-6, D-96
2608-Y . . . . . . . . . . . . . .130154-0106 . . . . . . . . D-97
2608B143 . . . . . . . . . . .130143-0201 . . . . . . . . D-97
2608G . . . . . . . . . . . . . .130142-0004 . . . . D-6, D-96
2608MB . . . . . . . . . . . . .130149-0024 . . . . D-7, D-96
2609. . . . . . . . . . . . . . . .130142-0006 . . . D-6, D-113
2647. . . . . . . . . . . . . . . .130141-0062 . . . . D-6, D-85
2647-W . . . . . . . . . . . . .130154-0062 . . . . . . . . D-87
2647-W-IN . . . . . . . . . . .130154-0063 . . . . . . . . D-87
2647-Y . . . . . . . . . . . . . .130154-0064 . . . . . . . . D-87
2647-Y-IN . . . . . . . . . . . .130154-0065 . . . . . . . . D-87
2647A123 . . . . . . . . . . .130143-0203 . . . . . . . . D-86
xxii
Woodhead No.
Order No.
Page
2647A143 . . . . . . . . . . .130143-0204 . . . . . . . . D-86
2647B123 . . . . . . . . . . .130143-0205 . . . . . . . . D-86
2647B143 . . . . . . . . . . .130143-0207 . . . . . . . . D-86
2647D123 . . . . . . . . . . .130143-0209 . . . . . . . . D-86
2647E123IN . . . . . . . . . .130143-0210 . . . . . . . . D-86
2647MB . . . . . . . . . . . . .130149-0027 . . . . D-7, D-85
2648. . . . . . . . . . . . . . . .130141-0063 . . . . D-6, D-88
2648A123 . . . . . . . . . . .130143-0211 . . . . . . . . D-89
2648A143 . . . . . . . . . . .130143-0212 . . . . . . . . D-89
2648MB . . . . . . . . . . . . .130149-0028 . . . . D-7, D-88
2649. . . . . . . . . . . . . . . .130141-0064 . . . . D-6, D-90
2674. . . . . . . . . . . . . . . .130142-0009 . . . . D-6, D-99
2674B124 . . . . . . . . . . .130143-0214 . . . . . . . D-100
2674MB . . . . . . . . . . . . .130149-0029 . . . . D-7, D-99
2675. . . . . . . . . . . . . . . .130142-0010 . . . D-6, D-101
2676. . . . . . . . . . . . . . . .130142-0012 . . . D-6, D-102
2681. . . . . . . . . . . . . . . .130142-0014 . . . D-6, D-114
2682. . . . . . . . . . . . . . . .130142-0015 . . . D-6, D-114
2683. . . . . . . . . . . . . . . .130142-0016 . . . D-6, D-115
26T07 . . . . . . . . . . . . . . .130144-0021 . . . . D-7, D-80
26T08 . . . . . . . . . . . . . . .130145-0002 . . . . D-7, D-96
26T47 . . . . . . . . . . . . . . .130145-0008 . . . . D-7, D-85
26T47YL . . . . . . . . . . . . .130145-0010 . . . . . . . . D-85
26T48 . . . . . . . . . . . . . . .130145-0011 . . . . D-7, D-88
26T48YL . . . . . . . . . . . . .130145-0012 . . . . . . . . D-88
26T49 . . . . . . . . . . . . . . .130145-0013 . . . . D-7, D-90
26T74 . . . . . . . . . . . . . . .130145-0015 . . . . D-7, D-99
26T75 . . . . . . . . . . . . . . .130145-0017 . . . D-7, D-101
26T76 . . . . . . . . . . . . . . .130145-0019 . . . D-7, D-102
26W . . . . . . . . . . . . . . . .130155-0028 . . . . . . . . D-57
26W07 . . . . . . . . . . . . . .130146-0108 . . . . D-4, D-21
26W08 . . . . . . . . . . . . . .130147-0012 . . . . D-4, D-36
26W08A143 . . . . . . . . . .130143-0217 . . . . . . . . D-36
26W08B143 . . . . . . . . . .130143-0218 . . . . . . . . D-36
26W08G . . . . . . . . . . . . .130147-0014 . . . . D-4, D-37
26W09 . . . . . . . . . . . . . .130147-0015 . . . . D-4, D-48
26W09BLK . . . . . . . . . . .130147-0016 . . . . . . . . D-48
26W10 . . . . . . . . . . . . . .130147-0017 . . . . D-4, D-53
26W47 . . . . . . . . . . . . . .130147-0018 . . . . D-4, D-27
26W47-W . . . . . . . . . . . .130154-0068 . . . . . . . . D-28
26W47-W-IN . . . . . . . . . .130154-0069 . . . . . . . . D-28
26W47-Y. . . . . . . . . . . . .130154-0070 . . . . . . . . D-28
26W47-Y-IN . . . . . . . . . .130154-0071 . . . . . . . . D-28
26W47A123 . . . . . . . . . .130143-0221 . . . . . . . . D-27
26W47A143 . . . . . . . . . .130143-0222 . . . . . . . . D-27
26W47B123 . . . . . . . . . .130143-0223 . . . . . . . . D-27
26W47B123IN . . . . . . . .130143-0224 . . . . . . . . D-27
26W47B143 . . . . . . . . . .130143-0225 . . . . . . . . D-27
26W47BLK . . . . . . . . . . .130147-0019 . . . . . . . . D-27
26W47D123 . . . . . . . . . .130143-0226 . . . . . . . . D-27
26W47D143 . . . . . . . . . .130143-0227 . . . . . . . . D-27
26W47E123IN. . . . . . . . .130143-0228 . . . . . . . . D-27
26W48 . . . . . . . . . . . . . .130147-0021 . . . . D-4, D-30
26W48BLK . . . . . . . . . . .130147-0022 . . . . . . . . D-30
26W49 . . . . . . . . . . . . . .130147-0023 . . . . D-4, D-31
26W74 . . . . . . . . . . . . . .130147-0025 . . . . D-4, D-39
26W74A124 . . . . . . . . . .130143-0235 . . . . . . . . D-39
Woodhead No.
Order No.
Page
26W74A124BLK . . . . . . .130143-0236 . . . . . . . . D-39
26W74A144 . . . . . . . . . .130143-0237 . . . . . . . . D-39
26W74B124 . . . . . . . . . .130143-0238 . . . . . . . . D-39
26W74B144 . . . . . . . . . .130143-0240 . . . . . . . . D-39
26W74BLK . . . . . . . . . . .130147-0026 . . . . . . . . D-39
26W75 . . . . . . . . . . . . . .130147-0027 . . . . D-4, D-40
26W75BLK . . . . . . . . . . .130147-0028 . . . . . . . . D-40
26W76 . . . . . . . . . . . . . .130147-0029 . . . . D-4, D-41
26W76A124 . . . . . . . . . .130143-0245 . . . . . . . . D-41
26W76A144 . . . . . . . . . .130143-0246 . . . . . . . . D-41
26W76B124 . . . . . . . . . .130143-0247 . . . . . . . . D-41
26W76BLK . . . . . . . . . . .130147-0030 . . . . . . . . D-41
26W81 . . . . . . . . . . . . . .130147-0031 . . . . D-4, D-50
26W81A145 . . . . . . . . . .130143-0248 . . . . . . . . D-50
26W81BLK . . . . . . . . . . .130147-0032 . . . . . . . . D-50
26W81D125 . . . . . . . . . .130143-0308 . . . . . . . . D-50
26W82 . . . . . . . . . . . . . .130147-0033 . . . . D-4, D-51
26W83 . . . . . . . . . . . . . .130147-0034 . . . . D-4, D-52
26WBLK . . . . . . . . . . . . .130155-0029 . . . . . . . . D-57
270-1 . . . . . . . . . . . . . . .130102-0245 . . . . . . . . A-20
270-2 . . . . . . . . . . . . . . .130102-0246 . . . . . . . . A-20
270-3 . . . . . . . . . . . . . . .130102-0247 . . . . . . . . A-20
2707. . . . . . . . . . . . . . . .130141-0065 . . . . D-6, D-80
2708. . . . . . . . . . . . . . . .130142-0017 . . . . D-6, D-96
2708G . . . . . . . . . . . . . .130142-0018 . . . . D-6, D-96
2708MB . . . . . . . . . . . . .130149-0036 . . . . D-7, D-96
2709. . . . . . . . . . . . . . . .130142-0019 . . . D-6, D-113
271S . . . . . . . . . . . . . . . .130102-0252 . . . . . . . . A-20
271SA163 . . . . . . . . . . . .130102-0253 . . . . . . . . A-20
271SB163 . . . . . . . . . . . .130102-0254 . . . . . . . . A-20
271U . . . . . . . . . . . . . . .130102-0256 . . . . . . . . A-20
271UA163 . . . . . . . . . . .130102-0257 . . . . . . . . A-20
271UB163 . . . . . . . . . . .130102-0258 . . . . . . . . A-20
271US. . . . . . . . . . . . . . .130102-0259 . . . . A-20, B-7
271USA163 . . . . . . . . . .130102-0260 . . . . . . . . A-20
271USB163 . . . . . . . . . .130102-0261 . . . . . . . . A-20
2747. . . . . . . . . . . . . . . .130142-0021 . . . . D-6, D-85
2747MB . . . . . . . . . . . . .130149-0039 . . . . D-7, D-85
2748. . . . . . . . . . . . . . . .130141-0066 . . . . D-6, D-88
2748MB . . . . . . . . . . . . .130149-0040 . . . . D-7, D-88
2749. . . . . . . . . . . . . . . .130142-0023 . . . . D-6, D-90
2749MB . . . . . . . . . . . . .130149-0041 . . . . D-7, D-90
276S . . . . . . . . . . . . . . . .130102-0266 . . . . . . . . A-20
276SB163 . . . . . . . . . . . .130102-0268 . . . . . . . . A-20
276U . . . . . . . . . . . . . . .130102-0269 . . . . . . . . A-20
276UA163 . . . . . . . . . . .130102-0270 . . . . . . . . A-20
276UB163 . . . . . . . . . . .130102-0271 . . . . . . . . A-20
276US. . . . . . . . . . . . . . .130102-0272 . . . . . . . . A-20
276USA163 . . . . . . . . . .130102-0273 . . . . . . . . A-20
276USB163 . . . . . . . . . .130102-0274 . . . . . . . . A-20
2774. . . . . . . . . . . . . . . .130142-0024 . . . . D-6, D-99
2774MB . . . . . . . . . . . . .130149-0042 . . . . D-7, D-99
2775. . . . . . . . . . . . . . . .130142-0025 . . . D-6, D-101
2776. . . . . . . . . . . . . . . .130142-0026 . . . D-6, D-102
2781. . . . . . . . . . . . . . . .130142-0028 . . . D-6, D-114
2782. . . . . . . . . . . . . . . .130142-0029 . . . D-6, D-114
2783. . . . . . . . . . . . . . . .130142-0030 . . . D-6, D-115
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
27T07 . . . . . . . . . . . . . . .130144-0022 . . . . D-7, D-80
27T08 . . . . . . . . . . . . . . .130145-0025 . . . . D-7, D-96
27T47 . . . . . . . . . . . . . . .130145-0030 . . . . D-7, D-85
27T47YL . . . . . . . . . . . . .130145-0031 . . . . . . . . D-85
27T48 . . . . . . . . . . . . . . .130145-0032 . . . . D-7, D-88
27T48YL . . . . . . . . . . . . .130145-0033 . . . . . . . . D-88
27T49 . . . . . . . . . . . . . . .130145-0034 . . . . D-7, D-90
27T74 . . . . . . . . . . . . . . .130145-0035 . . . . D-7, D-99
27T75 . . . . . . . . . . . . . . .130145-0037 . . . D-7, D-101
27T76 . . . . . . . . . . . . . . .130145-0039 . . . D-7, D-102
27W07 . . . . . . . . . . . . . .130146-0110 . . . . D-4, D-21
27W07MB . . . . . . . . . . . .130146-0112 . . . . D-5, D-21
27W08 . . . . . . . . . . . . . .130147-0035 . . . . D-4, D-36
27W08G . . . . . . . . . . . . .130147-0036 . . . . D-4, D-37
27W08MB . . . . . . . . . . . .130147-0037 . . . . D-5, D-36
27W09 . . . . . . . . . . . . . .130147-0038 . . . . D-4, D-48
27W09BLK . . . . . . . . . . .130147-0039 . . . . . . . . D-48
27W09MB . . . . . . . . . . . .130147-0040 . . . . D-5, D-48
27W10 . . . . . . . . . . . . . .130147-0041 . . . . D-4, D-53
27W10MB . . . . . . . . . . . .130147-0043 . . . . D-5, D-53
27W47 . . . . . . . . . . . . . .130147-0044 . . . . D-4, D-27
27W47BLK . . . . . . . . . . .130147-0045 . . . . . . . . D-27
27W47MB . . . . . . . . . . . .130147-0047 . . . . D-5, D-29
27W48 . . . . . . . . . . . . . .130147-0048 . . . . D-4, D-30
27W48BLK . . . . . . . . . . .130147-0049 . . . . . . . . D-30
27W48MB . . . . . . . . . . . .130147-0050 . . . . D-5, D-30
27W49 . . . . . . . . . . . . . .130147-0051 . . . . D-4, D-31
27W49MB . . . . . . . . . . . .130147-0052 . . . . D-5, D-31
27W74 . . . . . . . . . . . . . .130147-0053 . . . . D-4, D-39
27W74BLK . . . . . . . . . . .130147-0054 . . . . . . . . D-39
27W74MB . . . . . . . . . . . .130147-0055 . . . . D-5, D-39
27W75 . . . . . . . . . . . . . .130147-0056 . . . . D-4, D-40
27W75BLK . . . . . . . . . . .130147-0057 . . . . . . . . D-40
27W75MB . . . . . . . . . . . .130147-0058 . . . . D-5, D-40
27W76 . . . . . . . . . . . . . .130147-0059 . . . . D-4, D-41
27W76BLK . . . . . . . . . . .130147-0060 . . . . . . . . D-41
27W76MB . . . . . . . . . . . .130147-0061 . . . . D-5, D-41
27W81 . . . . . . . . . . . . . .130147-0062 . . . . D-4, D-50
27W81BLK . . . . . . . . . . .130147-0063 . . . . . . . . D-50
27W81MB . . . . . . . . . . . .130147-0064 . . . . D-5, D-50
27W82 . . . . . . . . . . . . . .130147-0065 . . . . D-4, D-51
27W82MB . . . . . . . . . . . .130147-0066 . . . . D-5, D-51
27W83 . . . . . . . . . . . . . .130147-0067 . . . . D-4, D-52
27W83MB . . . . . . . . . . . .130147-0068 . . . . D-5, D-52
2808. . . . . . . . . . . . . . . .130142-0031 . . . . D-6, D-98
2809. . . . . . . . . . . . . . . .130142-0032 . . . D-6, D-113
2847. . . . . . . . . . . . . . . .130142-0033 . . . . D-6, D-91
2847A123 . . . . . . . . . . .130143-0252 . . . . . . . . D-91
2847MB . . . . . . . . . . . . .130149-0048 . . . . . . . . . D-7
2848. . . . . . . . . . . . . . . .130142-0034 . . . . D-6, D-92
2848-Y . . . . . . . . . . . . . .130154-0073 . . . . . . . . D-93
2848A103 . . . . . . . . . . .130143-0254 . . . . . . . . D-93
2848A123 . . . . . . . . . . .130143-0255 . . . . . . . . D-93
2848B103 . . . . . . . . . . .130143-0312 . . . . . . . . D-93
2848MB . . . . . . . . . . . . .130149-0049 . . . . . . . . . D-7
2849. . . . . . . . . . . . . . . .130142-0035 . . . . D-6, D-94
2874. . . . . . . . . . . . . . . .130142-0036 . . . D-6, D-103
www.molex.com/woodhead
Woodhead No.
Order No.
Page
2874MB . . . . . . . . . . . . .130149-0051 . . . D-7, D-103
2875. . . . . . . . . . . . . . . .130142-0037 . . . D-6, D-104
2875MB . . . . . . . . . . . . .130149-0052 . . . D-7, D-104
2876. . . . . . . . . . . . . . . .130142-0038 . . . D-6, D-105
2876B104 . . . . . . . . . . .130143-0257 . . . . . . . D-106
2876MB . . . . . . . . . . . . .130149-0053 . . . D-7, D-105
2877. . . . . . . . . . . . . . . .130142-0039 . . . D-6, D-107
2881. . . . . . . . . . . . . . . .130142-0040 . . . D-6, D-115
2882. . . . . . . . . . . . . . . .130142-0041 . . . D-6, D-116
2883. . . . . . . . . . . . . . . .130142-0042 . . . D-6, D-116
28T47 . . . . . . . . . . . . . . .130145-0048 . . . . D-7, D-91
28T48 . . . . . . . . . . . . . . .130145-0050 . . . . D-7, D-92
28T74 . . . . . . . . . . . . . . .130145-0052 . . . D-7, D-103
28T75 . . . . . . . . . . . . . . .130145-0054 . . . D-7, D-104
28T76 . . . . . . . . . . . . . . .130145-0056 . . . D-7, D-105
28T77 . . . . . . . . . . . . . . .130145-0058 . . . D-7, D-107
28W . . . . . . . . . . . . . . . .130155-0030 . . . . . . . . D-58
28W08 . . . . . . . . . . . . . .130147-0069 . . . . D-4, D-38
28W09 . . . . . . . . . . . . . .130147-0071 . . . . D-4, D-49
28W47 . . . . . . . . . . . . . .130147-0072 . . . . D-4, D-32
28W47A103 . . . . . . . . . .130143-0261 . . . . . . . . D-32
28W47A123 . . . . . . . . . .130143-0262 . . . . . . . . D-32
28W47B103 . . . . . . . . . .130143-0263 . . . . . . . . D-32
28W47BLK . . . . . . . . . . .130147-0073 . . . . . . . . D-32
28W48 . . . . . . . . . . . . . .130147-0074 . . . . D-4, D-33
28W48A103 . . . . . . . . . .130143-0266 . . . . . . . . D-33
28W48BLK . . . . . . . . . . .130147-0075 . . . . . . . . D-33
28W49 . . . . . . . . . . . . . .130147-0076 . . . . . . . . . D-4
28W74 . . . . . . . . . . . . . .130147-0077 . . . . D-4, D-42
28W74A104 . . . . . . . . . .130143-0270 . . . . . . . . D-42
28W74A104BLK . . . . . . .130143-0310 . . . . . . . . D-42
28W74B104 . . . . . . . . . .130143-0271 . . . . . . . . D-42
28W74BLK . . . . . . . . . . .130147-0078 . . . . . . . . D-42
28W74D104 . . . . . . . . . .130143-0273 . . . . . . . . D-42
28W75 . . . . . . . . . . . . . .130147-0079 . . . . D-4, D-43
28W75A104 . . . . . . . . . .130143-0274 . . . . . . . . D-43
28W75A124 . . . . . . . . . .130143-0275 . . . . . . . . D-43
28W75B104 . . . . . . . . . .130143-0276 . . . . . . . . D-43
28W75B124 . . . . . . . . . .130143-0018 . . . . . . . . D-43
28W75BLK . . . . . . . . . . .130147-0080 . . . . . . . . D-43
28W75D104 . . . . . . . . . .130143-0277 . . . . . . . . D-43
28W76 . . . . . . . . . . . . . .130147-0081 . . . . D-4, D-44
28W76A104 . . . . . . . . . .130143-0278 . . . . . . . . D-44
28W76A124 . . . . . . . . . .130143-0279 . . . . . . . . D-44
28W76BLK . . . . . . . . . . .130147-0082 . . . . . . . . D-44
28W77 . . . . . . . . . . . . . .130147-0083 . . . . D-4, D-45
28W77A104 . . . . . . . . . .130143-0280 . . . . . . . . D-45
28W77BLK . . . . . . . . . . .130147-0084 . . . . . . . . D-45
28W81 . . . . . . . . . . . . . .130147-0085 . . . . D-4, D-54
28W82 . . . . . . . . . . . . . .130147-0086 . . . . D-4, D-55
28W83 . . . . . . . . . . . . . .130147-0088 . . . . D-4, D-56
28WBLK . . . . . . . . . . . . .130155-0031 . . . . . . . . D-58
2908. . . . . . . . . . . . . . . .130145-0066 . . . . D-6, D-98
2909. . . . . . . . . . . . . . . .130145-0067 . . . D-6, D-113
2947. . . . . . . . . . . . . . . .130141-0067 . . . . D-6, D-91
2948. . . . . . . . . . . . . . . .130141-0068 . . . . D-6, D-92
2949. . . . . . . . . . . . . . . .130141-0069 . . . . D-6, D-94
Woodhead No.
Order No.
Page
2974. . . . . . . . . . . . . . . .130142-0043 . . . D-6, D-103
2974MB . . . . . . . . . . . . .130149-0059 . . . D-7, D-103
2975. . . . . . . . . . . . . . . .130142-0044 . . . D-6, D-104
2975MB . . . . . . . . . . . . .130149-0060 . . . D-7, D-104
2976. . . . . . . . . . . . . . . .130142-0045 . . . D-6, D-105
2976MB . . . . . . . . . . . . .130149-0061 . . . D-7, D-105
2977. . . . . . . . . . . . . . . .130142-0046 . . . D-6, D-107
2981. . . . . . . . . . . . . . . .130142-0047 . . . D-6, D-115
2982. . . . . . . . . . . . . . . .130142-0048 . . . D-6, D-116
2983. . . . . . . . . . . . . . . .130142-0049 . . . D-6, D-116
29T47 . . . . . . . . . . . . . . .130145-0071 . . . . D-7, D-91
29T48 . . . . . . . . . . . . . . .130145-0072 . . . . D-7, D-92
29T74 . . . . . . . . . . . . . . .130145-0076 . . . D-7, D-103
29T75 . . . . . . . . . . . . . . .130145-0078 . . . D-7, D-104
29T76 . . . . . . . . . . . . . . .130145-0080 . . . D-7, D-105
29T77 . . . . . . . . . . . . . . .130145-0082 . . . D-7, D-107
29W08 . . . . . . . . . . . . . .130147-0089 . . . . D-4, D-38
29W08MB . . . . . . . . . . . .130147-0090 . . . . D-5, D-38
29W09 . . . . . . . . . . . . . .130147-0091 . . . . D-4, D-49
29W47 . . . . . . . . . . . . . .130147-0093 . . . . D-4, D-32
29W47BLK . . . . . . . . . . .130147-0094 . . . . . . . . D-32
29W47MB . . . . . . . . . . . .130147-0095 . . . . D-5, D-32
29W48 . . . . . . . . . . . . . .130147-0096 . . . . D-4, D-33
29W48BLK . . . . . . . . . . .130147-0097 . . . . . . . . D-33
29W48MB . . . . . . . . . . . .130147-0098 . . . . D-5, D-33
29W49 . . . . . . . . . . . . . .130147-0099 . . . . . . . . . D-4
29W49MB . . . . . . . . . . . .130147-0101 . . . . . . . . . D-5
29W74 . . . . . . . . . . . . . .130147-0102 . . . . D-4, D-42
29W74BLK . . . . . . . . . . .130147-0103 . . . . . . . . D-42
29W74MB . . . . . . . . . . . .130147-0104 . . . . D-5, D-42
29W75 . . . . . . . . . . . . . .130147-0105 . . . . D-4, D-43
29W75BLK . . . . . . . . . . .130147-0106 . . . . . . . . D-43
29W75MB . . . . . . . . . . . .130147-0107 . . . . D-5, D-43
29W76 . . . . . . . . . . . . . .130147-0108 . . . . D-4, D-44
29W76BLK . . . . . . . . . . .130147-0109 . . . . . . . . D-44
29W76MB . . . . . . . . . . . .130147-0110 . . . . D-5, D-44
29W77 . . . . . . . . . . . . . .130147-0111 . . . . D-4, D-45
29W77BLK . . . . . . . . . . .130147-0112 . . . . . . . . D-45
29W77MB . . . . . . . . . . . .130147-0115 . . . . D-5, D-45
29W81 . . . . . . . . . . . . . .130147-0116 . . . . D-4, D-54
29W81MB . . . . . . . . . . . .130147-0117 . . . . D-5, D-54
29W82 . . . . . . . . . . . . . .130147-0118 . . . . D-4, D-55
29W82MB . . . . . . . . . . . .130147-0119 . . . . D-5, D-55
29W83 . . . . . . . . . . . . . .130147-0120 . . . . D-4, D-56
29W83MB . . . . . . . . . . . .130147-0121 . . . . D-5, D-56
300. . . . . . . . . . . . . . . . .130107-0024 . . . . . . . . A-35
3000. . . . . . . . . . . . . . . .130137-0087 . . . . . . . . E-39
3000-1 . . . . . . . . . . . . . .130137-0088 . . . . . . . . E-34
3000-10 . . . . . . . . . . . . .130137-0089 . . . . . . . . E-37
3000-10A123 . . . . . . . . .130137-0090 . . . . . . . . E-37
3000-10A123BLK . . . . . .130137-0091 . . . . . . . . E-41
3000-10E123 . . . . . . . . .130137-0093 . . . . . . . . E-37
3000-1A143 . . . . . . . . . .130137-0095 . . . . . . . . E-34
3000-1B143 . . . . . . . . . .130137-0097 . . . . . . . . E-34
3000-1BLK . . . . . . . . . . .130137-0099 . . . . . . . . E-41
3000-1E143 . . . . . . . . . .130137-0100 . . . . . . . . E-34
3000-1L143 . . . . . . . . . .130137-0101 . . . . . . . . E-34
xxiii
Woodhead No. Index
Woodhead No.
Order No.
Page
3000-1L143IN . . . . . . . .130137-0102 . . . . . . . . E-34
3000BLK . . . . . . . . . . . . .130137-0113 . . . . . . . . E-41
3000F . . . . . . . . . . . . . . .130137-0115 . . . . . . . . E-34
3000F-1BLK . . . . . . . . . .130137-0117 . . . . . . . . E-41
3000FBLK . . . . . . . . . . . .130137-0118 . . . . . . . . E-41
3001. . . . . . . . . . . . . . . .130137-0121 . . . . . . . . E-39
3003. . . . . . . . . . . . . . . .130137-0124 . . . . . . . . E-39
3005. . . . . . . . . . . . . . . .130137-0126 . . . . . . . . E-39
3005-1 . . . . . . . . . . . . . .130137-0127 . . . . . . . . E-34
3005-1A143 . . . . . . . . . .130137-0128 . . . . . . . . E-34
3005-1B143 . . . . . . . . . .130137-0130 . . . . . . . . E-34
3005-1E143 . . . . . . . . . .130137-0132 . . . . . . . . E-34
30051-0A . . . . . . . . . . . .130153-0261 . . . .E-14, E-21
30051-0M. . . . . . . . . . . .130153-0262 . . . .E-14, E-21
30051-1 . . . . . . . . . . . . .130153-0163 . . . . . . . . E-25
30051-1A . . . . . . . . . . . .130153-0164 . . . .E-14, E-21
30051-1M. . . . . . . . . . . .130153-0165 . . . .E-14, E-21
30051-1MLDA . . . . . . . . .130153-0166 . . . . . . . . E-14
30051-1MLDM . . . . . . . .130153-0167 . . . . . . . . E-14
30051-25A . . . . . . . . . . .130153-0168 . . . .E-14, E-21
30051-25M. . . . . . . . . . .130153-0169 . . . .E-14, E-21
30051-6 . . . . . . . . . . . . .130153-0170 . . . . . . . . E-25
30051-6A . . . . . . . . . . . .130153-0171 . . . .E-14, E-21
30051-6M. . . . . . . . . . . .130153-0172 . . . .E-14, E-21
30052-1A . . . . . . . . . . . .130153-0174 . . . . . . . . E-15
30052-1M. . . . . . . . . . . .130153-0175 . . . . . . . . E-15
30052-25A . . . . . . . . . . .130153-0176 . . . . . . . . E-15
30052-25M. . . . . . . . . . .130153-0177 . . . . . . . . E-15
30052-6A . . . . . . . . . . . .130153-0179 . . . . . . . . E-15
30052-6M. . . . . . . . . . . .130153-0180 . . . . . . . . E-15
30053-0A . . . . . . . . . . . .130153-0181 . . . . . . . . E-16
30053-0A2P . . . . . . . . . .130153-0253 . . . . . . . . E-18
30053-0A3P . . . . . . . . . .130153-0252 . . . . . . . . E-18
30053-0A5P . . . . . . . . . .130153-0254 . . . . . . . . E-18
30053-0A6P . . . . . . . . . .130153-0251 . . . . . . . . E-18
30053-0M. . . . . . . . . . . .130153-0182 . . . . . . . . E-16
30053-0M2P . . . . . . . . . .130153-0249 . . . . . . . . E-18
30053-0M3P . . . . . . . . . .130153-0248 . . . . . . . . E-18
30053-0M5P . . . . . . . . . .130153-0250 . . . . . . . . E-18
30053-0M6P . . . . . . . . . .130153-0247 . . . . . . . . E-18
30053-1A . . . . . . . . . . . .130153-0184 . . . . . . . . E-16
30053-1M. . . . . . . . . . . .130153-0185 . . . . . . . . E-16
30053-25A . . . . . . . . . . .130153-0187 . . . . . . . . E-16
30053-25M. . . . . . . . . . .130153-0188 . . . . . . . . E-16
30053-2A2F . . . . . . . . . .130153-0245 . . . . . . . . E-19
30053-2A3F . . . . . . . . . .130153-0244 . . . . . . . . E-19
30053-2A5F . . . . . . . . . .130153-0246 . . . . . . . . E-19
30053-2A6F . . . . . . . . . .130153-0243 . . . . . . . . E-19
30053-2AF . . . . . . . . . . .130153-0265 . . . . . . . . E-17
30053-2M2F . . . . . . . . . .130153-0241 . . . . . . . . E-19
30053-2M3F . . . . . . . . . .130153-0240 . . . . . . . . E-19
30053-2M5F . . . . . . . . . .130153-0242 . . . . . . . . E-19
30053-2M6F . . . . . . . . . .130153-0239 . . . . . . . . E-19
30053-2MF . . . . . . . . . . .130153-0266 . . . . . . . . E-17
30053-6A . . . . . . . . . . . .130153-0190 . . . . . . . . E-16
30053-6M. . . . . . . . . . . .130153-0191 . . . . . . . . E-16
30054-1A . . . . . . . . . . . .130153-0193 . . . . . . . . E-17
xxiv
Woodhead No.
Order No.
Page
30054-1M. . . . . . . . . . . .130153-0194 . . . . . . . . E-17
30054-25A . . . . . . . . . . .130153-0196 . . . . . . . . E-17
30054-25M. . . . . . . . . . .130153-0197 . . . . . . . . E-17
30054-6A . . . . . . . . . . . .130153-0199 . . . . . . . . E-17
30054-6M. . . . . . . . . . . .130153-0200 . . . . . . . . E-17
300W . . . . . . . . . . . . . . .130107-0025 . . . . . . . . A-35
302SRL . . . . . . . . . . . . . .130111-0024 . . . . . . . . A-37
302SRLCA . . . . . . . . . . . .130111-0026 . . . . . . . . A-37
302SRLCA-F . . . . . . . . . .130111-0047 . . . . . . . . A-37
302U . . . . . . . . . . . . . . .130107-0028 . . . . . . . . A-35
305. . . . . . . . . . . . . . . . .130112-0144 . . . . . . . . A-35
3050. . . . . . . . . . . . . . . .130137-0147 . . . . . . . . E-39
3050F . . . . . . . . . . . . . . .130137-0148 . . . . . . . . E-39
3051. . . . . . . . . . . . . . . .130138-0020 . . . . . . . . E-40
3051BLK . . . . . . . . . . . . .130138-0021 . . . . . . . . E-42
3052. . . . . . . . . . . . . . . .130138-0022 . . . . . . . . E-40
3054. . . . . . . . . . . . . . . .130138-0023 . . . . . . . . E-40
3055. . . . . . . . . . . . . . . .130138-0024 . . . . . . . . E-40
3056. . . . . . . . . . . . . . . .130138-0025 . . . . . . . . E-40
3056BLK . . . . . . . . . . . . .130138-0026 . . . . . . . . E-42
3057. . . . . . . . . . . . . . . .130138-0028 . . . . . . . . E-40
3058. . . . . . . . . . . . . . . .130138-0029 . . . . . . . . E-40
3059. . . . . . . . . . . . . . . .130137-0149 . . . . . . . . E-39
3059BLK . . . . . . . . . . . . .130137-0293 . . . . . . . . E-41
306. . . . . . . . . . . . . . . . .130191-0085 . . . . . . . . A-35
3060. . . . . . . . . . . . . . . .130138-0030 . . . . . . . . E-40
3061. . . . . . . . . . . . . . . .130138-0032 . . . . . . . . E-40
3061BLK . . . . . . . . . . . . .130138-0033 . . . . . . . . E-42
3065. . . . . . . . . . . . . . . .130137-0150 . . . . . . . . E-33
3066. . . . . . . . . . . . . . . .130138-0034 . . . . . . . . E-33
3070-GFI . . . . . . . . . . . .130137-0155 . . . . . . . . E-36
3070-GFI20 . . . . . . . . . .130137-0156 . . . . . . . . E-38
3070-GFIA123 . . . . . . . .130137-0157 . . . . . . . . E-36
3070-GFIA143 . . . . . . . .130137-0158 . . . . . . . . E-36
3070-GFIB123 . . . . . . . .130137-0159 . . . . . . . . E-36
3070-GFID123 . . . . . . . .130137-0162 . . . . . . . . E-36
3070F-GFI. . . . . . . . . . . .130137-0153 . . . . . . . . E-36
3080. . . . . . . . . . . . . . . .130137-0007 . . . . . . . . E-39
3080-1 . . . . . . . . . . . . . .130137-0165 . . . . . . . . E-35
3080-10 . . . . . . . . . . . . .130137-0166 . . . . . . . . E-37
3080-10A123 . . . . . . . . .130137-0167 . . . . . . . . E-37
3080-10B123 . . . . . . . . .130137-0169 . . . . . . . . E-37
3080-10E123 . . . . . . . . .130137-0171 . . . . . . . . E-37
3080-GFI . . . . . . . . . . . .130137-0180 . . . . . . . . E-36
3080-GFI20 . . . . . . . . . .130137-0181 . . . . . . . . E-38
3080F . . . . . . . . . . . . . . .130137-0176 . . . . . . . . E-39
3080F-1 . . . . . . . . . . . . .130137-0177 . . . . . . . . E-35
3080F-GFI. . . . . . . . . . . .130137-0178 . . . . . . . . E-36
3080F-GFI20. . . . . . . . . .130137-0179 . . . . . . . . E-38
3081. . . . . . . . . . . . . . . .130137-0008 . . . . . . . . E-39
3082. . . . . . . . . . . . . . . .130137-0009 . . . . . . . . E-39
3083. . . . . . . . . . . . . . . .130137-0185 . . . . . . . . E-39
3085. . . . . . . . . . . . . . . .130137-0010 . . . . . . . . E-39
3085-1 . . . . . . . . . . . . . .130137-0191 . . . . . . . . E-35
3085-10 . . . . . . . . . . . . .130137-0192 . . . . . . . . E-37
3085-10A123 . . . . . . . . .130137-0193 . . . . . . . . E-37
3085-10B123 . . . . . . . . .130137-0194 . . . . . . . . E-37
Woodhead No.
Order No.
Page
3085-10BLK . . . . . . . . . .130137-0195 . . . . . . . . E-41
3085-10D123 . . . . . . . . .130137-0196 . . . . . . . . E-37
3085F . . . . . . . . . . . . . . .130137-0199 . . . . . . . . E-39
3086. . . . . . . . . . . . . . . .130137-0011 . . . . . . . . E-39
3086F . . . . . . . . . . . . . . .130137-0006 . . . . . . . . E-39
3090. . . . . . . . . . . . . . . .130137-0013 . . . . . . . . E-39
3090F . . . . . . . . . . . . . . .130137-0204 . . . . . . . . E-39
3090FBLK . . . . . . . . . . . .130137-0205 . . . . . . . . E-41
3091. . . . . . . . . . . . . . . .130137-0014 . . . . . . . . E-39
3091BLK . . . . . . . . . . . . .130137-0294 . . . . . . . . E-41
3091F . . . . . . . . . . . . . . .130137-0210 . . . . . . . . E-39
3091FBLK . . . . . . . . . . . .130137-0211 . . . . . . . . E-41
3095-000 . . . . . . . . . . . .130137-0213 . . . . . . . . E-43
3095-002 . . . . . . . . . . . .130137-0214 . . . . . . . . E-43
3099. . . . . . . . . . . . . . . .130137-0216 . . . . . . . . E-39
3099BLK . . . . . . . . . . . . .130137-0217 . . . . . . . . E-41
30W . . . . . . . . . . . . . . . .130155-0032 . . . . . . . . D-58
31-5800 . . . . . . . . . . . . .130228-0721 . . . . . . . . . F-6
310. . . . . . . . . . . . . . . . .130107-0029 . . . . . . . . A-35
310123. . . . . . . . . . . . . .130107-0030 . . . . . . . . A-35
310143. . . . . . . . . . . . . .130107-0031 . . . . . . . . A-35
310223. . . . . . . . . . . . . .130107-0046 . . . . . . . . A-35
310243. . . . . . . . . . . . . .130106-0097 . . . . . . . . A-35
310323. . . . . . . . . . . . . .130107-0032 . . . . . . . . A-35
310423. . . . . . . . . . . . . .130107-0033 . . . . . . . . A-35
310W . . . . . . . . . . . . . . .130107-0034 . . . . . . . . A-35
3123. . . . . . . . . . . . . . . .130135-0177 . . . . . . . . E-56
3129. . . . . . . . . . . . . . . .130135-0181 . . . . . . . . E-56
31565. . . . . . . . . . . . . . .130136-0025 . . . . . . . . E-53
31565A123 . . . . . . . . . .130136-0027 . . . . . . . . E-53
31565A143 . . . . . . . . . .130136-0029 . . . . . . . . E-53
31565B123 . . . . . . . . . .130136-0030 . . . . . . . . E-53
31593. . . . . . . . . . . . . . .130136-0033 . . . . . . . . E-53
315933. . . . . . . . . . . . . .130136-0034 . . . . . . . . E-53
31593A123 . . . . . . . . . .130136-0035 . . . . . . . . E-53
31593A143 . . . . . . . . . .130136-0036 . . . . . . . . E-53
31593A143IN . . . . . . . . .130136-0037 . . . . . . . . E-53
31593B123 . . . . . . . . . .130136-0038 . . . . . . . . E-53
31593B143 . . . . . . . . . .130136-0039 . . . . . . . . E-53
31594. . . . . . . . . . . . . . .130136-0042 . . . . . . . . E-53
31594A123 . . . . . . . . . .130136-0043 . . . . . . . . E-53
31594A143 . . . . . . . . . .130136-0044 . . . . . . . . E-53
31594B123 . . . . . . . . . .130136-0045 . . . . . . . . E-53
3200. . . . . . . . . . . . . . . .130135-0185 . . . . . . . . E-50
320C4 . . . . . . . . . . . . . . .130150-0036 . . . . . . . D-120
320C4W . . . . . . . . . . . . .130150-0037 . . . . . . . . D-61
320C5 . . . . . . . . . . . . . . .130150-0038 . . . . . . . D-120
320C6 . . . . . . . . . . . . . . .130150-0039 . . . . . . . D-120
320C6W . . . . . . . . . . . . .130150-0040 . . . . . . . . D-61
320P4. . . . . . . . . . . . . . .130150-0049 . . . . . . . D-120
320P4W . . . . . . . . . . . . .130150-0050 . . . . . . . . D-61
320P5. . . . . . . . . . . . . . .130150-0051 . . . . . . . D-120
320P6. . . . . . . . . . . . . . .130150-0052 . . . . . . . D-120
320P6W . . . . . . . . . . . . .130150-0053 . . . . . . . . D-61
320R4. . . . . . . . . . . . . . .130150-0056 . . . . . . . D-120
320R4W . . . . . . . . . . . . .130150-0057 . . . . . . . . D-61
320R5. . . . . . . . . . . . . . .130150-0289 . . . . . . . D-120
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
320R6. . . . . . . . . . . . . . .130150-0058 . . . . . . . D-120
320R6W . . . . . . . . . . . . .130150-0059 . . . . . . . . D-61
3210. . . . . . . . . . . . . . . .130135-0186 . . . . . . . . E-50
3215. . . . . . . . . . . . . . . .130135-0187 . . . . . . . . E-50
323123. . . . . . . . . . . . . .130106-0104 . . . . . . . . A-34
323124. . . . . . . . . . . . . .130106-0105 . . . . . . . . A-34
323125. . . . . . . . . . . . . .130106-0106 . . . . . . . . A-34
323126. . . . . . . . . . . . . .130106-0107 . . . . . . . . A-34
323133. . . . . . . . . . . . . .130106-0108 . . . . . . . . A-34
323134. . . . . . . . . . . . . .130106-0109 . . . . . . . . A-34
323135. . . . . . . . . . . . . .130106-0110 . . . . . . . . A-34
323136. . . . . . . . . . . . . .130106-0111 . . . . . . . . A-34
323523. . . . . . . . . . . . . .130106-0112 . . . . . . . . A-34
323524. . . . . . . . . . . . . .130106-0113 . . . . . . . . A-34
323525. . . . . . . . . . . . . .130106-0114 . . . . . . . . A-34
323526. . . . . . . . . . . . . .130106-0115 . . . . . . . . A-34
323533. . . . . . . . . . . . . .130106-0116 . . . . . . . . A-34
323534. . . . . . . . . . . . . .130106-0117 . . . . . . . . A-34
323535. . . . . . . . . . . . . .130106-0118 . . . . . . . . A-34
323536. . . . . . . . . . . . . .130106-0119 . . . . . . . . A-34
32547. . . . . . . . . . . . . . .130136-0046 . . . . . . . . E-53
32547A123 . . . . . . . . . .130136-0047 . . . . . . . . E-53
32547A143 . . . . . . . . . .130136-0048 . . . . . . . . E-53
32547B123 . . . . . . . . . .130136-0001 . . . . . . . . E-53
32547B143 . . . . . . . . . .130136-0049 . . . . . . . . E-53
32553. . . . . . . . . . . . . . .130136-0050 . . . . . . . . E-53
32553B123 . . . . . . . . . .130136-0052 . . . . . . . . E-53
3260. . . . . . . . . . . . . . . .130138-0035 . . . . . . . . E-50
3260W . . . . . . . . . . . . . .130138-0036 . . . . . . . . E-51
3261. . . . . . . . . . . . . . . .130138-0037 . . . . . . . . E-50
3261W . . . . . . . . . . . . . .130138-0038 . . . . . . . . E-51
3262. . . . . . . . . . . . . . . .130138-0039 . . . . . . . . E-50
3262W . . . . . . . . . . . . . .130138-0040 . . . . . . . . E-51
3263. . . . . . . . . . . . . . . .130138-0041 . . . . . . . . E-50
3263W . . . . . . . . . . . . . .130138-0042 . . . . . . . . E-51
3264. . . . . . . . . . . . . . . .130138-0102 . . . . . . . . E-50
3264W . . . . . . . . . . . . . .130138-0043 . . . . . . . . E-51
3265. . . . . . . . . . . . . . . .130138-0044 . . . . . . . . E-50
3266. . . . . . . . . . . . . . . .130138-0045 . . . . . . . . E-51
3267W . . . . . . . . . . . . . .130138-0046 . . . . . . . . E-51
32708. . . . . . . . . . . . . . .130136-0053 . . . . . . . . E-53
32708A123 . . . . . . . . . .130136-0054 . . . . . . . . E-53
32708A143 . . . . . . . . . .130136-0055 . . . . . . . . E-53
32708B143 . . . . . . . . . .130136-0057 . . . . . . . . E-53
32747. . . . . . . . . . . . . . .130136-0058 . . . . . . . . E-53
32747A123 . . . . . . . . . .130136-0059 . . . . . . . . E-53
32747B123 . . . . . . . . . .130136-0060 . . . . . . . . E-53
32747B143 . . . . . . . . . .130136-0061 . . . . . . . . E-53
3290-1 . . . . . . . . . . . . . .130135-0195 . . . . . . . . E-48
3290-1B143 . . . . . . . . . .130135-0196 . . . . . . . . E-48
3290-1E143 . . . . . . . . . .130135-0197 . . . . . . . . E-48
3290-2 . . . . . . . . . . . . . .130135-0198 . . . . . . . . E-48
3290-2E143 . . . . . . . . . .130135-0200 . . . . . . . . E-48
3290-3 . . . . . . . . . . . . . .130135-0201 . . . . . . . . E-48
3290-3E123 . . . . . . . . . .130135-0203 . . . . . . . . E-48
3290-9 . . . . . . . . . . . . . .130135-0204 . . . . . . . . E-48
3290-9E123 . . . . . . . . . .130135-0205 . . . . . . . . E-48
www.molex.com/woodhead
Woodhead No.
Order No.
Page
32G15A123 . . . . . . . . . .130135-0333 . . . . . . . . E-47
32G15E123. . . . . . . . . . .130135-0207 . . . . . . . . E-47
32G15L123. . . . . . . . . . .130135-0208 . . . . . . . . E-47
32G20A123 . . . . . . . . . .130135-0209 . . . . . . . . E-47
32G20E123. . . . . . . . . . .130135-0211 . . . . . . . . E-47
32GM15A123 . . . . . . . . .130135-0213 . . . . . . . . E-47
32GM15L123 . . . . . . . . .130135-0216 . . . . . . . . E-47
32GM20A123 . . . . . . . . .130135-0217 . . . . . . . . E-47
32GM20E123 . . . . . . . . .130135-0219 . . . . . . . . E-47
32GM20L123 . . . . . . . . .130135-0220 . . . . . . . . E-47
32W33 . . . . . . . . . . . . . .130135-0228 . . . . . . . . E-29
32W47 . . . . . . . . . . . . . .130135-0230 . . . . . . . . E-29
32W47A123 . . . . . . . . . .130135-0231 . . . . . . . . E-29
32W90-1 . . . . . . . . . . . .130135-0233 . . . . . . . . E-29
32W90-1B143 . . . . . . . .130135-0329 . . . . . . . . E-29
32W90-1E143 . . . . . . . . .130135-0234 . . . . . . . . E-29
32W90-2 . . . . . . . . . . . .130135-0235 . . . . . . . . E-29
32W90-2E143 . . . . . . . . .130135-0236 . . . . . . . . E-29
3300. . . . . . . . . . . . . . . .130135-0245 . . . . . . . . E-50
3301GFA143. . . . . . . . . .130137-0221 . . . . . . . . E-28
3301GFB143. . . . . . . . . .130137-0222 . . . . . . . . E-28
3301GFD143 . . . . . . . . .130137-0223 . . . . . . . . E-28
3301GFL143 . . . . . . . . . .130137-0224 . . . . . . . . E-28
3301GGFA143 . . . . . . . .130137-0225 . . . . . . . . E-28
3301GGFB143 . . . . . . . .130137-0226 . . . . . . . . E-28
3301GGFL143 . . . . . . . . .130137-0227 . . . . . . . . E-28
3304GFA123. . . . . . . . . .130137-0234 . . . . . . . . E-28
3304GFB123. . . . . . . . . .130137-0235 . . . . . . . . E-28
3304GFD123 . . . . . . . . .130137-0236 . . . . . . . . E-28
3304GFL123 . . . . . . . . . .130137-0237 . . . . . . . . E-28
3304GGFA123 . . . . . . . .130137-0238 . . . . . . . . E-28
3304GGFL123 . . . . . . . . .130137-0240 . . . . . . . . E-28
3320. . . . . . . . . . . . . . . .130135-0246 . . . . . . . . E-44
3320A123 . . . . . . . . . . .130135-0247 . . . . . . . . E-44
3320B123 . . . . . . . . . . .130135-0248 . . . . . . . . E-44
3320D123 . . . . . . . . . . .130135-0013 . . . . . . . . E-44
3320E123 . . . . . . . . . . . .130135-0249 . . . . . . . . E-44
3320FA123 . . . . . . . . . . .130135-0250 . . . . . . . . E-44
3320L123 . . . . . . . . . . . .130135-0251 . . . . . . . . E-44
3321A123 . . . . . . . . . . .130135-0014 . . . . . . . . E-46
3321E123 . . . . . . . . . . . .130135-0254 . . . . . . . . E-46
3321L123 . . . . . . . . . . . .130135-0255 . . . . . . . . E-46
3322. . . . . . . . . . . . . . . .130135-0256 . . . . . . . . E-45
3322A123 . . . . . . . . . . .130135-0257 . . . . . . . . E-45
3322B123 . . . . . . . . . . .130135-0258 . . . . . . . . E-45
3322D123 . . . . . . . . . . .130135-0259 . . . . . . . . E-45
3322E123 . . . . . . . . . . . .130135-0260 . . . . . . . . E-45
3322FL123 . . . . . . . . . . .130135-0262 . . . . . . . . E-45
3322L123 . . . . . . . . . . . .130135-0263 . . . . . . . . E-45
3323FL123 . . . . . . . . . . .130135-0343 . . . . . . . . E-46
3324FL123 . . . . . . . . . . .130135-0015 . . . . . . . . E-45
3324L123 . . . . . . . . . . . .130135-0268 . . . . . . . . E-45
3325L123 . . . . . . . . . . . .130135-0272 . . . . . . . . E-46
3327A123 . . . . . . . . . . .130135-0273 . . . . . . . . E-44
3327L123 . . . . . . . . . . . .130135-0276 . . . . . . . . E-44
3330A123 . . . . . . . . . . .130135-0278 . . . . . . . . E-44
3330B123 . . . . . . . . . . .130135-0279 . . . . . . . . E-44
Woodhead No.
Order No.
Page
3330L123 . . . . . . . . . . . .130135-0281 . . . . . . . . E-44
3330RA123 . . . . . . . . . .130135-0283 . . . . . . . . E-44
3330RE123 . . . . . . . . . . .130135-0285 . . . . . . . . E-44
3330RL123 . . . . . . . . . . .130135-0287 . . . . . . . . E-44
3331RB123 . . . . . . . . . .130135-0288 . . . . . . . . E-45
3331RE123 . . . . . . . . . . .130135-0289 . . . . . . . . E-45
3332A123 . . . . . . . . . . .130135-0291 . . . . . . . . E-44
3332B123 . . . . . . . . . . .130135-0292 . . . . . . . . E-44
3332L123 . . . . . . . . . . . .130135-0293 . . . . . . . . E-44
3332R. . . . . . . . . . . . . . .130135-0294 . . . . . . . . E-44
3332RA123 . . . . . . . . . .130135-0295 . . . . . . . . E-44
3332RB123 . . . . . . . . . .130135-0296 . . . . . . . . E-44
3332RL123 . . . . . . . . . . .130135-0298 . . . . . . . . E-44
3362. . . . . . . . . . . . . . . .130138-0047 . . . . . . . . E-33
3362GF. . . . . . . . . . . . . .130137-0241 . . . . . . . . E-33
3363. . . . . . . . . . . . . . . .130138-0048 . . . . . . . . E-40
34-0120 . . . . . . . . . . . . .130191-0035 . . . . . . . . A-19
34-0130 . . . . . . . . . . . . .130191-0036 . . . . . . . . A-19
34-0350 . . . . . . . . . . . . .130191-0021 . . . . . . . . A-19
3400. . . . . . . . . . . . . . . .130138-0049 . . . . . . . . E-55
3400-20 . . . . . . . . . . . . .130138-0050 . . . . . . . . E-55
3400-20A123 . . . . . . . . .130138-0051 . . . . . . . . E-55
3400L . . . . . . . . . . . . . . .130138-0053 . . . . . . . . E-55
3400L-20 . . . . . . . . . . . .130138-0054 . . . . . . . . E-55
340310A. . . . . . . . . . . . .130104-0039 . . . . . . . . A-33
34047. . . . . . . . . . . . . . .130135-0303 . . . . . . . . E-57
34047L . . . . . . . . . . . . . .130135-0304 . . . . . . . . E-57
34048. . . . . . . . . . . . . . .130135-0309 . . . . . . . . E-57
340510A. . . . . . . . . . . . .130104-0040 . . . . . . . . A-33
3410. . . . . . . . . . . . . . . .130138-0057 . . . . . . . . E-55
3410-20 . . . . . . . . . . . . .130138-0058 . . . . . . . . E-55
3410L . . . . . . . . . . . . . . .130138-0097 . . . . . . . . E-55
3410L-20 . . . . . . . . . . . .130138-0059 . . . . . . . . E-55
3413-20 . . . . . . . . . . . . .130138-0061 . . . . . . . . E-55
3413L-20 . . . . . . . . . . . .130138-0096 . . . . . . . . E-55
342510A. . . . . . . . . . . . .130106-0120 . . . . . . . . A-33
34547. . . . . . . . . . . . . . .130135-0312 . . . . . . . . E-57
3492. . . . . . . . . . . . . . . .130135-0313 . . . . . . . . E-30
3493. . . . . . . . . . . . . . . .130135-0314 . . . . . . . . E-30
3494. . . . . . . . . . . . . . . .130135-0315 . . . . . . . . E-30
35001. . . . . . . . . . . . . . .130094-0209 . . . . . . . . C-33
35002. . . . . . . . . . . . . . .130094-0211 . . . . . . . . C-33
35003. . . . . . . . . . . . . . .130094-0213 . . . . . . . . C-33
35004. . . . . . . . . . . . . . .130094-0215 . . . . . . . . C-33
35005. . . . . . . . . . . . . . .130094-0217 . . . . . . . . C-33
35006. . . . . . . . . . . . . . .130094-0219 . . . . . . . . C-33
35007. . . . . . . . . . . . . . .130094-0221 . . . . . . . . C-33
35008. . . . . . . . . . . . . . .130094-0223 . . . . . . . . C-33
35009. . . . . . . . . . . . . . .130094-0225 . . . . . . . . C-33
35010. . . . . . . . . . . . . . .130094-0227 . . . . . . . . C-33
35011. . . . . . . . . . . . . . .130094-0228 . . . . . . . . C-33
35030. . . . . . . . . . . . . . .130094-0230 . . . . . . . . C-32
35031. . . . . . . . . . . . . . .130094-0232 . . . . . . . . C-32
35032. . . . . . . . . . . . . . .130094-0234 . . . . . . . . C-32
35033. . . . . . . . . . . . . . .130094-0236 . . . . . . . . C-32
35034. . . . . . . . . . . . . . .130094-0238 . . . . . . . . C-32
35035. . . . . . . . . . . . . . .130094-0240 . . . . . . . . C-32
xxv
Woodhead No. Index
Woodhead No.
Order No.
Page
35036. . . . . . . . . . . . . . .130094-0242 . . . . . . . . C-32
35037. . . . . . . . . . . . . . .130094-0244 . . . . . . . . C-32
35038. . . . . . . . . . . . . . .130094-0246 . . . . . . . . C-32
35039. . . . . . . . . . . . . . .130094-0247 . . . . . . . . C-32
35040. . . . . . . . . . . . . . .130094-0249 . . . . . . . . C-32
35060. . . . . . . . . . . . . . .130094-0251 . . . . . . . . C-34
35061. . . . . . . . . . . . . . .130094-0253 . . . . . . . . C-34
35062. . . . . . . . . . . . . . .130094-0255 . . . . . . . . C-34
35063. . . . . . . . . . . . . . .130094-0257 . . . . . . . . C-34
35064. . . . . . . . . . . . . . .130094-0259 . . . . . . . . C-34
35065. . . . . . . . . . . . . . .130094-0261 . . . . . . . . C-34
35066. . . . . . . . . . . . . . .130094-0263 . . . . . . . . C-34
35067. . . . . . . . . . . . . . .130094-0265 . . . . . . . . C-34
35068. . . . . . . . . . . . . . .130094-0267 . . . . . . . . C-34
35069. . . . . . . . . . . . . . .130094-0268 . . . . . . . . C-34
35070. . . . . . . . . . . . . . .130094-0269 . . . . . . . . C-34
35090. . . . . . . . . . . . . . .130094-0271 . . . . . . . . C-35
35091. . . . . . . . . . . . . . .130094-0273 . . . . . . . . C-35
35092. . . . . . . . . . . . . . .130094-0275 . . . . . . . . C-35
35093. . . . . . . . . . . . . . .130094-0276 . . . . . . . . C-35
35094. . . . . . . . . . . . . . .130094-0278 . . . . . . . . C-35
35095. . . . . . . . . . . . . . .130094-0279 . . . . . . . . C-35
35096. . . . . . . . . . . . . . .130094-0280 . . . . . . . . C-35
35097. . . . . . . . . . . . . . .130094-0281 . . . . . . . . C-35
35098. . . . . . . . . . . . . . .130094-0283 . . . . . . . . C-35
35099. . . . . . . . . . . . . . .130094-0284 . . . . . . . . C-35
3510. . . . . . . . . . . . . . . .130136-0065 . . . . . . . . E-54
3510A143 . . . . . . . . . . .130136-0066 . . . . . . . . E-54
3510PLG . . . . . . . . . . . . .130136-0067 . . . . . . . . E-54
35135. . . . . . . . . . . . . . .130094-0288 . . . . . . . . C-33
35136. . . . . . . . . . . . . . .130094-0290 . . . . . . . . C-33
35137. . . . . . . . . . . . . . .130094-0292 . . . . . . . . C-33
35138. . . . . . . . . . . . . . .130094-0294 . . . . . . . . C-33
35139. . . . . . . . . . . . . . .130094-0296 . . . . . . . . C-33
35140. . . . . . . . . . . . . . .130094-0298 . . . . . . . . C-33
35141. . . . . . . . . . . . . . .130094-0300 . . . . . . . . C-33
35142. . . . . . . . . . . . . . .130094-0302 . . . . . . . . C-33
35143. . . . . . . . . . . . . . .130094-0304 . . . . . . . . C-33
35144. . . . . . . . . . . . . . .130094-0306 . . . . . . . . C-33
35145. . . . . . . . . . . . . . .130094-0308 . . . . . . . . C-33
35165. . . . . . . . . . . . . . .130094-0310 . . . . . . . . C-32
35166. . . . . . . . . . . . . . .130094-0312 . . . . . . . . C-32
35167. . . . . . . . . . . . . . .130094-0314 . . . . . . . . C-32
35168. . . . . . . . . . . . . . .130094-0316 . . . . . . . . C-32
35169. . . . . . . . . . . . . . .130094-0318 . . . . . . . . C-32
35170. . . . . . . . . . . . . . .130094-0320 . . . . . . . . C-32
35171. . . . . . . . . . . . . . .130094-0322 . . . . . . . . C-32
35172. . . . . . . . . . . . . . .130094-0324 . . . . . . . . C-32
35173. . . . . . . . . . . . . . .130094-0326 . . . . . . . . C-32
35174. . . . . . . . . . . . . . .130094-0328 . . . . . . . . C-32
35175. . . . . . . . . . . . . . .130094-0329 . . . . . . . . C-32
35195. . . . . . . . . . . . . . .130094-0330 . . . . . . . . C-34
35196. . . . . . . . . . . . . . .130094-0332 . . . . . . . . C-34
35197. . . . . . . . . . . . . . .130094-0334 . . . . . . . . C-34
35198. . . . . . . . . . . . . . .130094-0336 . . . . . . . . C-34
35199. . . . . . . . . . . . . . .130094-0338 . . . . . . . . C-34
35200. . . . . . . . . . . . . . .130094-0340 . . . . . . . . C-34
xxvi
Woodhead No.
Order No.
Page
35201. . . . . . . . . . . . . . .130094-0342 . . . . . . . . C-34
35202. . . . . . . . . . . . . . .130094-0344 . . . . . . . . C-34
35203. . . . . . . . . . . . . . .130094-0346 . . . . . . . . C-34
35204. . . . . . . . . . . . . . .130094-0348 . . . . . . . . C-34
35205. . . . . . . . . . . . . . .130094-0350 . . . . . . . . C-34
35225. . . . . . . . . . . . . . .130094-0352 . . . . . . . . C-35
35226. . . . . . . . . . . . . . .130094-0354 . . . . . . . . C-35
35227. . . . . . . . . . . . . . .130094-0356 . . . . . . . . C-35
35228. . . . . . . . . . . . . . .130094-0357 . . . . . . . . C-35
35229. . . . . . . . . . . . . . .130094-0358 . . . . . . . . C-35
35230. . . . . . . . . . . . . . .130094-0359 . . . . . . . . C-35
35231. . . . . . . . . . . . . . .130094-0360 . . . . . . . . C-35
35232. . . . . . . . . . . . . . .130094-0361 . . . . . . . . C-35
35270. . . . . . . . . . . . . . .130094-0367 . . . . . . . . C-33
35271. . . . . . . . . . . . . . .130094-0368 . . . . . . . . C-33
35272. . . . . . . . . . . . . . .130094-0370 . . . . . . . . C-33
35273. . . . . . . . . . . . . . .130094-0372 . . . . . . . . C-33
35274. . . . . . . . . . . . . . .130094-0374 . . . . . . . . C-33
35275. . . . . . . . . . . . . . .130094-0376 . . . . . . . . C-33
35276. . . . . . . . . . . . . . .130094-0378 . . . . . . . . C-33
35277. . . . . . . . . . . . . . .130094-0380 . . . . . . . . C-33
35278. . . . . . . . . . . . . . .130094-0382 . . . . . . . . C-33
35279. . . . . . . . . . . . . . .130094-0383 . . . . . . . . C-33
35280. . . . . . . . . . . . . . .130094-0384 . . . . . . . . C-33
35285. . . . . . . . . . . . . . .130094-0385 . . . . . . . . C-32
35286. . . . . . . . . . . . . . .130094-0387 . . . . . . . . C-32
35287. . . . . . . . . . . . . . .130094-0389 . . . . . . . . C-32
35288. . . . . . . . . . . . . . .130094-0391 . . . . . . . . C-32
35289. . . . . . . . . . . . . . .130094-0393 . . . . . . . . C-32
35290. . . . . . . . . . . . . . .130094-0395 . . . . . . . . C-32
35291. . . . . . . . . . . . . . .130094-0397 . . . . . . . . C-32
35292. . . . . . . . . . . . . . .130094-0399 . . . . . . . . C-32
35293. . . . . . . . . . . . . . .130094-0401 . . . . . . . . C-32
35294. . . . . . . . . . . . . . .130094-0403 . . . . . . . . C-32
35300. . . . . . . . . . . . . . .130094-0406 . . . . . . . . C-34
35301. . . . . . . . . . . . . . .130094-0408 . . . . . . . . C-34
35302. . . . . . . . . . . . . . .130094-0410 . . . . . . . . C-34
35303. . . . . . . . . . . . . . .130094-0412 . . . . . . . . C-34
35304. . . . . . . . . . . . . . .130094-0414 . . . . . . . . C-34
35305. . . . . . . . . . . . . . .130094-0416 . . . . . . . . C-34
35306. . . . . . . . . . . . . . .130094-0418 . . . . . . . . C-34
35307. . . . . . . . . . . . . . .130094-0420 . . . . . . . . C-34
35308. . . . . . . . . . . . . . .130094-0422 . . . . . . . . C-34
35309. . . . . . . . . . . . . . .130094-0424 . . . . . . . . C-34
35310. . . . . . . . . . . . . . .130094-0426 . . . . . . . . C-34
35330. . . . . . . . . . . . . . .130094-0429 . . . . . . . . C-35
35331. . . . . . . . . . . . . . .130094-0430 . . . . . . . . C-35
35332. . . . . . . . . . . . . . .130094-0432 . . . . . . . . C-35
35333. . . . . . . . . . . . . . .130094-0434 . . . . . . . . C-35
35334. . . . . . . . . . . . . . .130094-0435 . . . . . . . . C-35
35335. . . . . . . . . . . . . . .130094-0436 . . . . . . . . C-35
35336. . . . . . . . . . . . . . .130094-0437 . . . . . . . . C-35
35337. . . . . . . . . . . . . . .130094-0438 . . . . . . . . C-35
35338. . . . . . . . . . . . . . .130094-1042 . . . . . . . . C-35
35339. . . . . . . . . . . . . . .130094-1400 . . . . . . . . C-35
35340. . . . . . . . . . . . . . .130094-0439 . . . . . . . . C-35
35425. . . . . . . . . . . . . . .130094-0440 . . . . . . . . C-37
Woodhead No.
Order No.
Page
35426. . . . . . . . . . . . . . .130094-0442 . . . . . . . . C-37
35427. . . . . . . . . . . . . . .130094-0444 . . . . . . . . C-37
35428. . . . . . . . . . . . . . .130094-0446 . . . . . . . . C-37
35429. . . . . . . . . . . . . . .130094-0448 . . . . . . . . C-37
35430. . . . . . . . . . . . . . .130094-0450 . . . . . . . . C-37
35431. . . . . . . . . . . . . . .130094-0452 . . . . . . . . C-37
35432. . . . . . . . . . . . . . .130094-0453 . . . . . . . . C-37
35433. . . . . . . . . . . . . . .130094-0455 . . . . . . . . C-37
35435. . . . . . . . . . . . . . .130094-0457 . . . . . . . . C-36
35436. . . . . . . . . . . . . . .130094-0459 . . . . . . . . C-36
35437. . . . . . . . . . . . . . .130094-0461 . . . . . . . . C-36
35438. . . . . . . . . . . . . . .130094-0463 . . . . . . . . C-36
35440. . . . . . . . . . . . . . .130094-0465 . . . . . . . . C-37
35441. . . . . . . . . . . . . . .130094-0466 . . . . . . . . C-37
35442. . . . . . . . . . . . . . .130094-0468 . . . . . . . . C-37
35443. . . . . . . . . . . . . . .130094-0470 . . . . . . . . C-37
35444. . . . . . . . . . . . . . .130094-0472 . . . . . . . . C-37
35445. . . . . . . . . . . . . . .130094-0474 . . . . . . . . C-37
35446. . . . . . . . . . . . . . .130094-0476 . . . . . . . . C-37
35447. . . . . . . . . . . . . . .130094-0478 . . . . . . . . C-37
35448. . . . . . . . . . . . . . .130094-0479 . . . . . . . . C-37
35450. . . . . . . . . . . . . . .130094-0480 . . . . . . . . C-36
35451. . . . . . . . . . . . . . .130094-0482 . . . . . . . . C-36
35452. . . . . . . . . . . . . . .130094-0484 . . . . . . . . C-36
35453. . . . . . . . . . . . . . .130094-0486 . . . . . . . . C-36
35851. . . . . . . . . . . . . . .130095-0123 . . . . . . . . C-44
35865. . . . . . . . . . . . . . .130095-0124 . . . . . . . . C-44
35866. . . . . . . . . . . . . . .130095-0125 . . . . . . . . C-44
35867. . . . . . . . . . . . . . .130095-0126 . . . . . . . . C-44
35868. . . . . . . . . . . . . . .130095-0127 . . . . . . . . C-44
35869. . . . . . . . . . . . . . .130095-0128 . . . . . . . . C-44
35870. . . . . . . . . . . . . . .130095-0129 . . . . . . . . C-44
35871. . . . . . . . . . . . . . .130095-0130 . . . . . . . . C-44
35872. . . . . . . . . . . . . . .130095-0131 . . . . . . . . C-44
35873. . . . . . . . . . . . . . .130095-0132 . . . . . . . . C-44
35874. . . . . . . . . . . . . . .130095-0133 . . . . . . . . C-44
35875. . . . . . . . . . . . . . .130095-0134 . . . . . . . . C-44
35880. . . . . . . . . . . . . . .130095-0135 . . . . . . . . C-44
35881. . . . . . . . . . . . . . .130095-0136 . . . . . . . . C-44
35882. . . . . . . . . . . . . . .130095-0137 . . . . . . . . C-44
35883. . . . . . . . . . . . . . .130095-0138 . . . . . . . . C-44
35884. . . . . . . . . . . . . . .130095-0139 . . . . . . . . C-44
35885. . . . . . . . . . . . . . .130095-0140 . . . . . . . . C-44
35886. . . . . . . . . . . . . . .130095-0141 . . . . . . . . C-44
35887. . . . . . . . . . . . . . .130095-0142 . . . . . . . . C-44
35898. . . . . . . . . . . . . . .130095-0144 . . . . . . . . C-44
35899. . . . . . . . . . . . . . .130095-0145 . . . . . . . . C-44
35901. . . . . . . . . . . . . . .130095-0146 . . . . . . . . C-41
35902. . . . . . . . . . . . . . .130095-0147 . . . . . . . . C-41
35903. . . . . . . . . . . . . . .130095-0148 . . . . . . . . C-41
35904. . . . . . . . . . . . . . .130095-0149 . . . . . . . . C-41
35905. . . . . . . . . . . . . . .130095-0150 . . . . . . . . C-41
35906. . . . . . . . . . . . . . .130095-0151 . . . . . . . . C-41
35907. . . . . . . . . . . . . . .130095-0152 . . . . . . . . C-41
35908. . . . . . . . . . . . . . .130095-0153 . . . . . . . . C-41
35909. . . . . . . . . . . . . . .130095-0154 . . . . . . . . C-41
35930. . . . . . . . . . . . . . .130095-0165 . . . . . . . . C-42
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
35931. . . . . . . . . . . . . . .130095-0166 . . . . . . . . C-42
35932. . . . . . . . . . . . . . .130095-0167 . . . . . . . . C-42
35933. . . . . . . . . . . . . . .130095-0168 . . . . . . . . C-42
35934. . . . . . . . . . . . . . .130095-0169 . . . . . . . . C-42
35935. . . . . . . . . . . . . . .130095-0170 . . . . . . . . C-42
35937. . . . . . . . . . . . . . .130095-0171 . . . . . . . . C-42
35940. . . . . . . . . . . . . . .130095-0172 . . . . . . . . C-43
35941. . . . . . . . . . . . . . .130095-0173 . . . . . . . . C-43
35942. . . . . . . . . . . . . . .130095-0174 . . . . . . . . C-43
35943. . . . . . . . . . . . . . .130095-0175 . . . . . . . . C-43
35944. . . . . . . . . . . . . . .130095-0176 . . . . . . . . C-43
35945. . . . . . . . . . . . . . .130095-0177 . . . . . . . . C-43
35946. . . . . . . . . . . . . . .130095-0178 . . . . . . . . C-43
35947. . . . . . . . . . . . . . .130095-0179 . . . . . . . . C-43
35948. . . . . . . . . . . . . . .130095-0180 . . . . . . . . C-43
35950. . . . . . . . . . . . . . .130095-0181 . . . . . . . . C-43
35951. . . . . . . . . . . . . . .130095-0182 . . . . . . . . C-43
35952. . . . . . . . . . . . . . .130095-0183 . . . . . . . . C-43
35953. . . . . . . . . . . . . . .130095-0184 . . . . . . . . C-43
35954. . . . . . . . . . . . . . .130095-0185 . . . . . . . . C-43
35955. . . . . . . . . . . . . . .130095-0186 . . . . . . . . C-43
35956. . . . . . . . . . . . . . .130095-0187 . . . . . . . . C-43
35960. . . . . . . . . . . . . . .130095-0188 . . . . . . . . C-43
35961. . . . . . . . . . . . . . .130095-0189 . . . . . . . . C-43
35962. . . . . . . . . . . . . . .130095-0190 . . . . . . . . C-43
35963. . . . . . . . . . . . . . .130095-0191 . . . . . . . . C-43
35964. . . . . . . . . . . . . . .130095-0192 . . . . . . . . C-43
35970. . . . . . . . . . . . . . .130095-0194 . . . .C-41, C-56
35971. . . . . . . . . . . . . . .130095-0196 . . . .C-41, C-56
35972. . . . . . . . . . . . . . .130095-0197 . . . .C-41, C-56
35973. . . . . . . . . . . . . . .130095-0198 . . . .C-41, C-56
35974. . . . . . . . . . . . . . .130095-0200 . . . .C-41, C-56
35975. . . . . . . . . . . . . . .130095-0201 . . . .C-41, C-56
35976. . . . . . . . . . . . . . .130095-0202 . . . . . . . . C-41
35980. . . . . . . . . . . . . . .130095-0203 . . . . . . . . C-43
35W34 . . . . . . . . . . . . . .130135-0316 . . . . . . . . E-29
35W47 . . . . . . . . . . . . . .130135-0317 . . . . . . . . E-29
36010. . . . . . . . . . . . . . .130095-0205 . . . . . . . . C-44
36101. . . . . . . . . . . . . . .130095-0225 . . . . . . . . C-47
36102. . . . . . . . . . . . . . .130095-0227 . . . . . . . . C-47
36103. . . . . . . . . . . . . . .130095-0229 . . . . . . . . C-47
36104. . . . . . . . . . . . . . .130095-0230 . . . . . . . . C-47
36105. . . . . . . . . . . . . . .130095-0231 . . . . . . . . C-47
36106. . . . . . . . . . . . . . .130095-0232 . . . . . . . . C-47
36107. . . . . . . . . . . . . . .130095-0233 . . . . . . . . C-47
36120. . . . . . . . . . . . . . .130095-0240 . . . . . . . . C-47
36121. . . . . . . . . . . . . . .130095-0241 . . . . . . . . C-47
36122. . . . . . . . . . . . . . .130095-0242 . . . . . . . . C-47
36123. . . . . . . . . . . . . . .130095-0243 . . . . . . . . C-47
36124. . . . . . . . . . . . . . .130095-0244 . . . . . . . . C-47
36125. . . . . . . . . . . . . . .130095-0245 . . . . . . . . C-47
36126. . . . . . . . . . . . . . .130095-0246 . . . . . . . . C-47
36127. . . . . . . . . . . . . . .130095-0247 . . . . . . . . C-47
36128. . . . . . . . . . . . . . .130095-0248 . . . . . . . . C-47
36140. . . . . . . . . . . . . . .130095-0253 . . . . . . . . C-47
36141. . . . . . . . . . . . . . .130095-0255 . . . . . . . . C-47
36142. . . . . . . . . . . . . . .130095-0256 . . . . . . . . C-47
www.molex.com/woodhead
Woodhead No.
Order No.
Page
36143. . . . . . . . . . . . . . .130095-0257 . . . . . . . . C-47
36144. . . . . . . . . . . . . . .130095-0258 . . . . . . . . C-47
36145. . . . . . . . . . . . . . .130095-0259 . . . . . . . . C-47
36146. . . . . . . . . . . . . . .130095-0260 . . . . . . . . C-47
36147. . . . . . . . . . . . . . .130095-0261 . . . . . . . . C-47
36148. . . . . . . . . . . . . . .130095-0262 . . . . . . . . C-47
36149. . . . . . . . . . . . . . .130095-0263 . . . . . . . . C-47
362. . . . . . . . . . . . . . . . .130114-0017 . . . . . . . . A-36
36237. . . . . . . . . . . . . . .130099-0051 . . . . . . . . C-39
36237SS . . . . . . . . . . . . .130099-0228 . . . . . . . . C-39
36238. . . . . . . . . . . . . . .130099-0052 . . . . . . . . C-39
36238SS . . . . . . . . . . . . .130099-0229 . . . . . . . . C-39
36241. . . . . . . . . . . . . . .130094-0488 . . . . . . . . C-39
36241SS . . . . . . . . . . . . .130094-1401 . . . . . . . . C-39
36245. . . . . . . . . . . . . . .130097-0156 . . . . . . . . . C-6
36246. . . . . . . . . . . . . . .130097-0157 . . . . . . . . . C-6
36248. . . . . . . . . . . . . . .130097-0158 . . . . . . . . . C-7
36249. . . . . . . . . . . . . . .130097-0159 . . . . . . . . . C-8
36250. . . . . . . . . . . . . . .130097-0160 . . . . . . . . . C-6
36251. . . . . . . . . . . . . . .130097-0161 . . . . . . . . . C-6
36254. . . . . . . . . . . . . . .130097-0163 . . . . . . . . . C-6
36256. . . . . . . . . . . . . . .130097-0165 . . . . . . . . . C-6
36257. . . . . . . . . . . . . . .130097-0166 . . . . . . . . . C-7
36259. . . . . . . . . . . . . . .130097-0167 . . . . . . . . . C-7
36261. . . . . . . . . . . . . . .130097-0168 . . . . . . . . . C-7
36263. . . . . . . . . . . . . . .130097-0170 . . . . . . . . . C-7
36265. . . . . . . . . . . . . . .130097-0171 . . . . . . . . . C-8
36267. . . . . . . . . . . . . . .130097-0172 . . . . . . . . . C-8
36269. . . . . . . . . . . . . . .130097-0173 . . . . . . . . . C-8
36270. . . . . . . . . . . . . . .130097-0174 . . . . . . . . . C-8
36271. . . . . . . . . . . . . . .130097-0175 . . . . . . . . . C-8
36272. . . . . . . . . . . . . . .130097-0176 . . . . . . . . . C-8
36273. . . . . . . . . . . . . . .130097-0177 . . . . . . . . . C-8
36274. . . . . . . . . . . . . . .130097-0178 . . . . . . . . . C-8
36275. . . . . . . . . . . . . . .130097-0179 . . . . . . . . . C-8
36276. . . . . . . . . . . . . . .130097-0180 . . . . . . . . . C-8
36277. . . . . . . . . . . . . . .130097-0181 . . . . . . . . . C-8
36278. . . . . . . . . . . . . . .130097-0182 . . . . . . . . . C-9
36279. . . . . . . . . . . . . . .130097-0183 . . . . . . . . . C-9
36280. . . . . . . . . . . . . . .130097-0184 . . . . . . . . . C-6
36282. . . . . . . . . . . . . . .130097-0185 . . . . . . . . . C-6
36284. . . . . . . . . . . . . . .130097-0186 . . . . . . . . . C-6
36286. . . . . . . . . . . . . . .130097-0187 . . . . . . . . . C-6
36287. . . . . . . . . . . . . . .130097-0188 . . . . . . . . . C-9
36288. . . . . . . . . . . . . . .130097-0189 . . . . . . . . . C-9
36289. . . . . . . . . . . . . . .130097-0190 . . . . . . . . . C-9
36290. . . . . . . . . . . . . . .130097-0191 . . . . . . . . . C-7
36292. . . . . . . . . . . . . . .130097-0627 . . . . . . . . . C-7
36294. . . . . . . . . . . . . . .130097-0192 . . . . . . . . . C-7
36296. . . . . . . . . . . . . . .130097-0496 . . . . . . . . . C-7
36298. . . . . . . . . . . . . . .130097-0193 . . . . . . . . . C-8
362V. . . . . . . . . . . . . . . .130112-0153 . . . . . . . . A-36
36300. . . . . . . . . . . . . . .130097-0194 . . . . . . . . . C-8
36302. . . . . . . . . . . . . . .130097-0195 . . . . . . . . . C-8
36310. . . . . . . . . . . . . . .130097-0197 . . . . . . . . . C-6
36312. . . . . . . . . . . . . . .130097-0198 . . . . . . . . . C-6
36314. . . . . . . . . . . . . . .130097-0199 . . . . . . . . . C-6
Woodhead No.
Order No.
Page
36316. . . . . . . . . . . . . . .130097-0200 . . . . . . . . . C-6
36317. . . . . . . . . . . . . . .130097-0201 . . . . . . . . . C-7
36319. . . . . . . . . . . . . . .130097-0202 . . . . . . . . . C-7
36321. . . . . . . . . . . . . . .130097-0203 . . . . . . . . . C-7
36323. . . . . . . . . . . . . . .130097-0204 . . . . . . . . . C-7
36326. . . . . . . . . . . . . . .130097-0205 . . . . . . . . . C-8
36328. . . . . . . . . . . . . . .130097-0206 . . . . . . . . . C-8
36330. . . . . . . . . . . . . . .130097-0207 . . . . . . . . . C-8
36340. . . . . . . . . . . . . . .130097-0210 . . . . . . . . . C-6
36342. . . . . . . . . . . . . . .130097-0211 . . . . . . . . . C-6
36344. . . . . . . . . . . . . . .130097-0212 . . . . . . . . . C-6
36346. . . . . . . . . . . . . . .130097-0213 . . . . . . . . . C-6
36347. . . . . . . . . . . . . . .130097-0214 . . . . . . . . . C-7
36349. . . . . . . . . . . . . . .130097-0215 . . . . . . . . . C-7
36351. . . . . . . . . . . . . . .130097-0216 . . . . . . . . . C-7
36353. . . . . . . . . . . . . . .130097-0217 . . . . . . . . . C-7
36355. . . . . . . . . . . . . . .130097-0218 . . . . . . . . . C-8
36357. . . . . . . . . . . . . . .130097-0219 . . . . . . . . . C-8
36359. . . . . . . . . . . . . . .130097-0220 . . . . . . . . . C-8
36361. . . . . . . . . . . . . . .130097-0221 . . . . . . . . . C-8
36362. . . . . . . . . . . . . . .130097-0222 . . . . . . . . . C-8
36363. . . . . . . . . . . . . . .130097-0223 . . . . . . . . . C-8
36364. . . . . . . . . . . . . . .130097-0224 . . . . . . . . . C-8
36370. . . . . . . . . . . . . . .130096-0034 . . . . . . . . C-25
36371. . . . . . . . . . . . . . .130096-0036 . . . . . . . . C-25
36372. . . . . . . . . . . . . . .130096-0037 . . . . . . . . C-25
36373. . . . . . . . . . . . . . .130096-0038 . . . . . . . . C-25
36374. . . . . . . . . . . . . . .130096-0039 . . . . . . . . C-25
36375. . . . . . . . . . . . . . .130096-0040 . . . . . . . . C-25
36380. . . . . . . . . . . . . . .130096-0041 . . . . . . . . C-25
36381. . . . . . . . . . . . . . .130096-0042 . . . . . . . . C-25
36382. . . . . . . . . . . . . . .130096-0043 . . . . . . . . C-25
36390. . . . . . . . . . . . . . .130096-0044 . . . . . . . . C-25
36391. . . . . . . . . . . . . . .130096-0045 . . . . . . . . C-25
36392. . . . . . . . . . . . . . .130096-0046 . . . . . . . . C-25
36393. . . . . . . . . . . . . . .130096-0047 . . . . . . . . C-25
36394. . . . . . . . . . . . . . .130096-0048 . . . . . . . . C-25
36395. . . . . . . . . . . . . . .130096-0049 . . . . . . . . C-25
364. . . . . . . . . . . . . . . . .130114-0018 . . . . . . . . A-36
36400. . . . . . . . . . . . . . .130096-0050 . . . . . . . . C-25
36401. . . . . . . . . . . . . . .130096-0051 . . . . . . . . C-25
36402. . . . . . . . . . . . . . .130096-0052 . . . . . . . . C-25
36403. . . . . . . . . . . . . . .130096-0053 . . . . . . . . C-25
36404. . . . . . . . . . . . . . .130096-0054 . . . . . . . . C-25
36405. . . . . . . . . . . . . . .130096-0055 . . . . . . . . C-25
36440. . . . . . . . . . . . . . .130096-0056 . . . . . . . . C-25
36443. . . . . . . . . . . . . . .130096-0058 . . . . . . . . C-25
36470. . . . . . . . . . . . . . .130097-0231 . . . . . . . . . C-9
36471. . . . . . . . . . . . . . .130097-0232 . . . . . . . . . C-9
36472. . . . . . . . . . . . . . .130097-0233 . . . . . . . . . C-9
36473. . . . . . . . . . . . . . .130097-0234 . . . . . . . . . C-9
36475. . . . . . . . . . . . . . .130097-0235 . . . . . . . . . C-9
36476. . . . . . . . . . . . . . .130097-0236 . . . . . . . . . C-9
36477. . . . . . . . . . . . . . .130097-0237 . . . . . . . . . C-9
36478. . . . . . . . . . . . . . .130097-0238 . . . . . . . . . C-9
36479. . . . . . . . . . . . . . .130097-0239 . . . . . . . . . C-9
36480. . . . . . . . . . . . . . .130097-0240 . . . . . . . . . C-9
xxvii
Woodhead No. Index
Woodhead No.
Order No.
Page
36481. . . . . . . . . . . . . . .130097-0241 . . . . . . . . . C-9
36482. . . . . . . . . . . . . . .130097-0242 . . . . . . . . . C-9
36483. . . . . . . . . . . . . . .130097-0243 . . . . . . . . . C-9
36484. . . . . . . . . . . . . . .130097-0244 . . . . . . . . . C-9
36485. . . . . . . . . . . . . . .130097-0245 . . . . . . . . . C-9
36486. . . . . . . . . . . . . . .130097-0246 . . . . . . . . . C-9
36487. . . . . . . . . . . . . . .130097-0247 . . . . . . . . . C-9
36488. . . . . . . . . . . . . . .130097-0248 . . . . . . . . . C-9
36489. . . . . . . . . . . . . . .130097-0249 . . . . . . . . . C-9
36497. . . . . . . . . . . . . . .130097-0252 . . . . . . . . . C-9
36498. . . . . . . . . . . . . . .130097-0253 . . . . . . . . . C-9
36499. . . . . . . . . . . . . . .130097-0254 . . . . . . . . . C-9
364V. . . . . . . . . . . . . . . .130112-0154 . . . . . . . . A-36
36500. . . . . . . . . . . . . . .130097-0255 . . . . . . . . . C-9
36501. . . . . . . . . . . . . . .130097-0256 . . . . . . . . . C-5
36503. . . . . . . . . . . . . . .130097-0258 . . . . . . . . . C-5
36505. . . . . . . . . . . . . . .130097-0260 . . . . . . . . . C-5
36508. . . . . . . . . . . . . . .130097-0262 . . . . . . . . . C-5
36512. . . . . . . . . . . . . . .130097-0265 . . . . . . . . . C-5
36515. . . . . . . . . . . . . . .130097-0269 . . . . . . . . . C-5
36516. . . . . . . . . . . . . . .130097-0271 . . . . . . . . . C-5
36517. . . . . . . . . . . . . . .130097-0272 . . . . . . . . . C-5
36518. . . . . . . . . . . . . . .130097-0273 . . . . . . . . . C-5
36519. . . . . . . . . . . . . . .130097-0274 . . . . . . . . . C-5
36550. . . . . . . . . . . . . . .130096-0059 . . . . . . . . C-30
36551. . . . . . . . . . . . . . .130096-0060 . . . . . . . . C-30
36552. . . . . . . . . . . . . . .130096-0061 . . . . . . . . C-30
36553. . . . . . . . . . . . . . .130096-0062 . . . . . . . . C-30
36554. . . . . . . . . . . . . . .130096-0063 . . . . . . . . C-30
36555. . . . . . . . . . . . . . .130096-0064 . . . . . . . . C-30
36560. . . . . . . . . . . . . . .130094-0489 . . . . . . . . C-39
36560SS . . . . . . . . . . . . .130094-0490 . . . . . . . . C-39
36562. . . . . . . . . . . . . . .130094-0491 . . . . . . . . C-39
36562SS . . . . . . . . . . . . .130094-0492 . . . . . . . . C-39
36564. . . . . . . . . . . . . . .130094-0493 . . . . . . . . C-39
36564SS . . . . . . . . . . . . .130094-0494 . . . . . . . . C-39
36567. . . . . . . . . . . . . . .130094-0495 . . . . . . . . C-39
36567SS . . . . . . . . . . . . .130094-0496 . . . . . . . . C-39
36569. . . . . . . . . . . . . . .130094-0497 . . . . . . . . C-39
36569SS . . . . . . . . . . . . .130094-0498 . . . . . . . . C-39
36571. . . . . . . . . . . . . . .130094-0499 . . . . . . . . C-39
36571SS . . . . . . . . . . . . .130094-0500 . . . . . . . . C-39
36573. . . . . . . . . . . . . . .130094-0501 . . . . . . . . C-38
36574. . . . . . . . . . . . . . .130094-0502 . . . . . . . . C-39
36574SS . . . . . . . . . . . . .130094-0503 . . . . . . . . C-39
36575. . . . . . . . . . . . . . .130094-0504 . . . . . . . . C-38
36576. . . . . . . . . . . . . . .130094-0505 . . . . . . . . C-38
36577. . . . . . . . . . . . . . .130094-0506 . . . . . . . . C-38
36578. . . . . . . . . . . . . . .130094-0507 . . . . . . . . C-38
36579. . . . . . . . . . . . . . .130094-0509 . . . . . . . . C-38
36580. . . . . . . . . . . . . . .130094-0510 . . . . . . . . C-39
36581. . . . . . . . . . . . . . .130094-0511 . . . . . . . . C-38
36582. . . . . . . . . . . . . . .130094-0512 . . . . . . . . C-39
36583. . . . . . . . . . . . . . .130094-0513 . . . . . . . . C-38
36584. . . . . . . . . . . . . . .130094-0514 . . . . . . . . C-39
36585. . . . . . . . . . . . . . .130094-0515 . . . . . . . . C-38
36586. . . . . . . . . . . . . . .130094-0516 . . . . . . . . C-38
xxviii
Woodhead No.
Order No.
Page
36587. . . . . . . . . . . . . . .130094-0517 . . . . . . . . C-39
36589. . . . . . . . . . . . . . .130094-0519 . . . . . . . . C-39
36591. . . . . . . . . . . . . . .130094-0520 . . . . . . . . C-39
36594. . . . . . . . . . . . . . .130094-0521 . . . . . . . . C-39
36610. . . . . . . . . . . . . . .130095-0272 . . . . . . . . C-46
36611. . . . . . . . . . . . . . .130095-0273 . . . . . . . . C-46
36612. . . . . . . . . . . . . . .130095-0274 . . . . . . . . C-46
36613. . . . . . . . . . . . . . .130095-0275 . . . . . . . . C-46
36614. . . . . . . . . . . . . . .130095-0276 . . . . . . . . C-46
36615. . . . . . . . . . . . . . .130095-0277 . . . . . . . . C-46
36620. . . . . . . . . . . . . . .130095-0278 . . . . . . . . C-45
36621. . . . . . . . . . . . . . .130095-0279 . . . . . . . . C-45
36622. . . . . . . . . . . . . . .130095-0280 . . . . . . . . C-45
36623. . . . . . . . . . . . . . .130095-0281 . . . . . . . . C-45
36624. . . . . . . . . . . . . . .130095-0282 . . . . . . . . C-45
36625. . . . . . . . . . . . . . .130095-0283 . . . . . . . . C-45
36626. . . . . . . . . . . . . . .130095-0284 . . . . . . . . C-45
36627. . . . . . . . . . . . . . .130095-0285 . . . . . . . . C-45
36628. . . . . . . . . . . . . . .130095-0286 . . . . . . . . C-45
36629. . . . . . . . . . . . . . .130095-0287 . . . . . . . . C-45
36640. . . . . . . . . . . . . . .130095-0288 . . . . . . . . C-45
36641. . . . . . . . . . . . . . .130095-0289 . . . . . . . . C-45
36642. . . . . . . . . . . . . . .130095-0290 . . . . . . . . C-45
36643. . . . . . . . . . . . . . .130095-0291 . . . . . . . . C-45
36644. . . . . . . . . . . . . . .130095-0292 . . . . . . . . C-45
36645. . . . . . . . . . . . . . .130095-0293 . . . . . . . . C-45
36646. . . . . . . . . . . . . . .130095-0294 . . . . . . . . C-45
36647. . . . . . . . . . . . . . .130095-0295 . . . . . . . . C-45
36661. . . . . . . . . . . . . . .130095-0297 . . . . . . . . C-48
36662. . . . . . . . . . . . . . .130095-0298 . . . . . . . . C-48
36663. . . . . . . . . . . . . . .130095-0299 . . . . . . . . C-48
36664. . . . . . . . . . . . . . .130095-0300 . . . . . . . . C-48
36670. . . . . . . . . . . . . . .130094-0522 . . . . . . . . C-48
36671. . . . . . . . . . . . . . .130094-0523 . . . . . . . . C-48
36672. . . . . . . . . . . . . . .130094-0524 . . . . . . . . C-48
36673. . . . . . . . . . . . . . .130094-0525 . . . . . . . . C-48
36674. . . . . . . . . . . . . . .130094-0526 . . . . . . . . C-48
36675. . . . . . . . . . . . . . .130094-0527 . . . . . . . . C-48
36676. . . . . . . . . . . . . . .130094-0528 . . . . . . . . C-48
36680. . . . . . . . . . . . . . .130094-0529 . . . . . . . . C-48
36681. . . . . . . . . . . . . . .130094-0530 . . . . . . . . C-48
36682. . . . . . . . . . . . . . .130094-0531 . . . . . . . . C-48
36683. . . . . . . . . . . . . . .130094-0532 . . . . . . . . C-48
36684. . . . . . . . . . . . . . .130094-0533 . . . . . . . . C-48
36685. . . . . . . . . . . . . . .130094-0534 . . . . . . . . C-48
36686. . . . . . . . . . . . . . .130094-0535 . . . . . . . . C-48
367. . . . . . . . . . . . . . . . .130112-0156 . . . . . . . . A-36
367V. . . . . . . . . . . . . . . .130112-0157 . . . . . . . . A-36
368. . . . . . . . . . . . . . . . .130112-0158 . . . . . . . . A-36
36800. . . . . . . . . . . . . . .130097-0276 . . . . . . . . C-10
36801. . . . . . . . . . . . . . .130097-0277 . . . . . . . . C-10
36802. . . . . . . . . . . . . . .130097-0278 . . . . . . . . C-10
36803. . . . . . . . . . . . . . .130097-0279 . . . . . . . . C-10
36804. . . . . . . . . . . . . . .130097-0280 . . . . . . . . C-10
36805. . . . . . . . . . . . . . .130097-0281 . . . . . . . . C-10
36806. . . . . . . . . . . . . . .130097-0282 . . . . . . . . C-10
36807. . . . . . . . . . . . . . .130097-0283 . . . . . . . . C-10
Woodhead No.
Order No.
Page
36808. . . . . . . . . . . . . . .130097-0284 . . . . . . . . C-10
36809. . . . . . . . . . . . . . .130097-0285 . . . . . . . . C-10
36810. . . . . . . . . . . . . . .130097-0286 . . . . . . . . C-10
36811. . . . . . . . . . . . . . .130097-0287 . . . . . . . . C-10
36812. . . . . . . . . . . . . . .130097-0288 . . . . . . . . C-10
36813. . . . . . . . . . . . . . .130097-0289 . . . . . . . . C-10
36814. . . . . . . . . . . . . . .130097-0290 . . . . . . . . C-10
36815. . . . . . . . . . . . . . .130097-0291 . . . . . . . . C-10
36816. . . . . . . . . . . . . . .130097-0292 . . . . . . . . . C-9
36818. . . . . . . . . . . . . . .130097-0293 . . . . . . . . . C-8
36819. . . . . . . . . . . . . . .130097-0628 . . . . . . . . . C-8
36826. . . . . . . . . . . . . . .130097-0629 . . . . . . . . . C-8
36827. . . . . . . . . . . . . . .130097-0294 . . . . . . . . . C-8
36829. . . . . . . . . . . . . . .130097-0295 . . . . . . . . . C-8
36830. . . . . . . . . . . . . . .130097-0296 . . . . . . . . . C-8
36831. . . . . . . . . . . . . . .130097-0297 . . . . . . . . . C-8
37-8564 . . . . . . . . . . . . .130185-0558 . . . . . . . . A-29
37-8574 . . . . . . . . . . . . .130185-0471 . . . . . . . . A-29
370. . . . . . . . . . . . . . . . .130112-0160 . . . . . . . . A-34
37030. . . . . . . . . . . . . . .130096-0065 . . . . . . . . C-25
37031. . . . . . . . . . . . . . .130096-0066 . . . . . . . . C-25
37032. . . . . . . . . . . . . . .130096-0067 . . . . . . . . C-25
37101. . . . . . . . . . . . . . .130096-0069 . . . . . . . . C-26
37101-90 . . . . . . . . . . . .130096-0070 . . . . . . . . C-26
37102. . . . . . . . . . . . . . .130096-0071 . . . . . . . . C-26
37102-90 . . . . . . . . . . . .130096-0072 . . . . . . . . C-26
37103. . . . . . . . . . . . . . .130096-0073 . . . . . . . . C-26
37103-90 . . . . . . . . . . . .130096-0074 . . . . . . . . C-26
37104. . . . . . . . . . . . . . .130096-0075 . . . . . . . . C-26
37104-90 . . . . . . . . . . . .130096-0076 . . . . . . . . C-26
37105. . . . . . . . . . . . . . .130096-0077 . . . . . . . . C-26
37105-90 . . . . . . . . . . . .130096-0078 . . . . . . . . C-26
37106. . . . . . . . . . . . . . .130096-0079 . . . . . . . . C-26
372. . . . . . . . . . . . . . . . .130112-0161 . . . . . . . . A-34
372V. . . . . . . . . . . . . . . .130112-0162 . . . . . . . . A-34
3764N . . . . . . . . . . . . . .130155-0041 . . . D-7, D-112
3765N . . . . . . . . . . . . . .130155-0042 . . . D-7, D-112
3769. . . . . . . . . . . . . . . .130155-0043 . . . D-7, D-112
377. . . . . . . . . . . . . . . . .130112-0163 . . . . . . . . A-34
3775. . . . . . . . . . . . . . . .130155-0044 . . . D-7, D-112
377V. . . . . . . . . . . . . . . .130112-0164 . . . . . . . . A-34
378. . . . . . . . . . . . . . . . .130114-0019 . . . . . . . . A-34
378V. . . . . . . . . . . . . . . .130112-0166 . . . . . . . . A-34
380010A. . . . . . . . . . . . .130107-0038 . . . . . . . . A-33
380310A. . . . . . . . . . . . .130107-0039 . . . . . . . . A-33
380510A. . . . . . . . . . . . .130107-0040 . . . . . . . . A-33
380R. . . . . . . . . . . . . . . .130112-0169 . . . . . . . . A-36
381R. . . . . . . . . . . . . . . .130112-0171 . . . . . . . . A-34
382. . . . . . . . . . . . . . . . .130112-0172 . . . . . . . . A-36
383. . . . . . . . . . . . . . . . .130112-0173 . . . . . . . . A-34
385. . . . . . . . . . . . . . . . .130112-0174 . . . . . . . . A-34
387010A. . . . . . . . . . . . .130107-0042 . . . . . . . . A-33
387510A. . . . . . . . . . . . .130107-0043 . . . . . . . . A-33
38897. . . . . . . . . . . . . . .130095-0143 . . . . . . . . C-44
40-1040 . . . . . . . . . . . . .130112-0176 . . . . . . . . A-19
40-3070G . . . . . . . . . . . .130137-0246 . . . . . . . . E-36
40-3660 . . . . . . . . . . . . .130138-0069 . . . . . . . . E-53
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
40-9100 . . . . . . . . . . . . .130186-0535 . . . . . . . . E-33
40-9441 . . . . . . . . . . . . .130186-0719 . . . . . . . . . A-7
40-9442 . . . . . . . . . . . . .130113-0007 . . . . . . . . . A-7
40-9456 . . . . . . . . . . . . .130186-0561 . . . . . . . . . A-7
4002. . . . . . . . . . . . . . . .130126-0186 . . . . . . . . . F-9
4003. . . . . . . . . . . . . . . .130126-0187 . . . . . . . . . F-9
4004. . . . . . . . . . . . . . . .130126-0188 . . . . . . . . . F-9
4005. . . . . . . . . . . . . . . .130126-0189 . . . . . . . . . F-9
4006. . . . . . . . . . . . . . . .130126-0190 . . . . . . . . . F-9
4007. . . . . . . . . . . . . . . .130126-0192 . . . . . . . . . F-9
4008. . . . . . . . . . . . . . . .130126-0193 . . . . . . . . . F-9
4009. . . . . . . . . . . . . . . .130126-0195 . . . . . . . . F-10
4010. . . . . . . . . . . . . . . .130126-0196 . . . . . . . . F-10
4011. . . . . . . . . . . . . . . .130126-0197 . . . . . . . . F-10
4012. . . . . . . . . . . . . . . .130126-0198 . . . . . . . . F-10
402. . . . . . . . . . . . . . . . .130109-0007 . . . . . . . . A-21
4020. . . . . . . . . . . . . . . .130128-0100 . . . . . . . . . F-7
4020-2 . . . . . . . . . . . . . .130128-0101 . . . . . . . . . F-7
4022. . . . . . . . . . . . . . . .130126-0199 . . . . . . . . . F-7
4022-2 . . . . . . . . . . . . . .130126-0200 . . . . . . . . . F-7
4022ES . . . . . . . . . . . . . .130126-0204 . . . . . . . . . F-7
4022G . . . . . . . . . . . . . .130126-0205 . . . . . . . . . F-7
4023. . . . . . . . . . . . . . . .130126-0207 . . . . . . . . . F-7
4023-2 . . . . . . . . . . . . . .130126-0208 . . . . . . . . . F-7
4023ES . . . . . . . . . . . . . .130126-0209 . . . . . . . . . F-7
4023G . . . . . . . . . . . . . .130126-0210 . . . . . . . . . F-7
4024. . . . . . . . . . . . . . . .130126-0212 . . . . . . . . . F-7
4024-2 . . . . . . . . . . . . . .130126-0213 . . . . . . . . . F-7
4024ES . . . . . . . . . . . . . .130126-0214 . . . . . . . . . F-7
4024G . . . . . . . . . . . . . .130126-0216 . . . . . . . . . F-7
4026. . . . . . . . . . . . . . . .130126-0218 . . . . . . . . . F-7
4026-2 . . . . . . . . . . . . . .130126-0219 . . . . . . . . . F-7
4026ES . . . . . . . . . . . . . .130126-0222 . . . . . . . . . F-7
4026G . . . . . . . . . . . . . .130126-0223 . . . . . . . . . F-7
4028. . . . . . . . . . . . . . . .130126-0036 . . . . . . . . . F-7
4028-2 . . . . . . . . . . . . . .130126-0224 . . . . . . . . . F-7
4028ES . . . . . . . . . . . . . .130126-0226 . . . . . . . . . F-7
4028G . . . . . . . . . . . . . .130126-0227 . . . . . . . . . F-7
4032. . . . . . . . . . . . . . . .130126-0228 . . . . . . . . . F-8
4032-2 . . . . . . . . . . . . . .130126-0229 . . . . . . . . . F-8
4032BLK . . . . . . . . . . . . .130126-0230 . . . . . . . . . F-8
405. . . . . . . . . . . . . . . . .130109-0009 . . . . . . . . A-21
4052. . . . . . . . . . . . . . . .130126-0231 . . . . . . . . . F-6
4052BLK . . . . . . . . . . . . .130126-0232 . . . . . . . . . F-6
41-6762 . . . . . . . . . . . . .130112-0186 . . . . . . . . A-13
4100C12W . . . . . . . . . . .130150-0105 . . . . . . . . D-61
4100C5W . . . . . . . . . . . .130150-0106 . . . . . . . . D-61
4100C7W . . . . . . . . . . . .130150-0107 . . . . . . . . D-61
4100C9W . . . . . . . . . . . .130150-0108 . . . . . . . . D-61
4100P12W . . . . . . . . . . .130150-0112 . . . . . . . . D-61
4100P5W . . . . . . . . . . . .130150-0113 . . . . . . . . D-61
4100P7W . . . . . . . . . . . .130150-0114 . . . . . . . . D-61
4100P9W . . . . . . . . . . . .130150-0115 . . . . . . . . D-61
4100R12W . . . . . . . . . . .130150-0116 . . . . . . . . D-61
4100R5W . . . . . . . . . . . .130150-0117 . . . . . . . . D-61
4100R7W . . . . . . . . . . . .130150-0118 . . . . . . . . D-61
4100R9W . . . . . . . . . . . .130150-0119 . . . . . . . . D-61
www.molex.com/woodhead
Woodhead No.
Order No.
Page
42-2190 . . . . . . . . . . . . .130186-0318 . . . . . . . . . F-6
4202. . . . . . . . . . . . . . . .130126-0235 . . . . . . . . . F-9
4203. . . . . . . . . . . . . . . .130126-0236 . . . . . . . . . F-9
4204. . . . . . . . . . . . . . . .130148-0072 . . . . . . . . . F-9
4205. . . . . . . . . . . . . . . .130148-0073 . . . . . . . . . F-9
4206. . . . . . . . . . . . . . . .130126-0237 . . . . . . . . . F-9
4207. . . . . . . . . . . . . . . .130126-0238 . . . . . . . . . F-9
4208. . . . . . . . . . . . . . . .130126-0239 . . . . . . . . . F-9
4209. . . . . . . . . . . . . . . .130126-0240 . . . . . . . . F-10
420C12 . . . . . . . . . . . . . .130198-0124 . . . . . . . D-120
420C12W . . . . . . . . . . . .130198-0118 . . . . . . . . D-61
420C5 . . . . . . . . . . . . . . .130150-0125 . . . . . . . D-120
420C5W . . . . . . . . . . . . .130150-0126 . . . . . . . . D-61
420C7 . . . . . . . . . . . . . . .130150-0127 . . . . . . . D-120
420C7W . . . . . . . . . . . . .130150-0128 . . . . . . . . D-61
420C9 . . . . . . . . . . . . . . .130150-0288 . . . . . . . D-120
420C9W . . . . . . . . . . . . .130150-0129 . . . . . . . . D-61
420P12. . . . . . . . . . . . . .130150-0135 . . . . . . . D-120
420P12W . . . . . . . . . . . .130150-0136 . . . . . . . . D-61
420P5. . . . . . . . . . . . . . .130150-0137 . . . . . . . D-120
420P5W . . . . . . . . . . . . .130150-0138 . . . . . . . . D-61
420P7. . . . . . . . . . . . . . .130150-0139 . . . . . . . D-120
420P7W . . . . . . . . . . . . .130150-0148 . . . . . . . . D-61
420P9. . . . . . . . . . . . . . .130150-0141 . . . . . . . D-120
420P9W . . . . . . . . . . . . .130150-0142 . . . . . . . . D-61
420R12 . . . . . . . . . . . . .130150-0143 . . . . . . . D-120
420R12W . . . . . . . . . . . .130150-0144 . . . . . . . . D-61
420R5. . . . . . . . . . . . . . .130150-0145 . . . . . . . D-120
420R5W . . . . . . . . . . . . .130150-0146 . . . . . . . . D-61
420R7. . . . . . . . . . . . . . .130150-0147 . . . . . . . D-120
420R7W . . . . . . . . . . . . .130150-0148 . . . . . . . . D-61
420R9. . . . . . . . . . . . . . .130150-0149 . . . . . . . D-120
420R9W . . . . . . . . . . . . .130150-0150 . . . . . . . . D-61
4210. . . . . . . . . . . . . . . .130126-0241 . . . . . . . . F-10
4212. . . . . . . . . . . . . . . .130126-0242 . . . . . . . . F-10
430C5W . . . . . . . . . . . . .130150-0156 . . . . . . . . D-61
430C7 . . . . . . . . . . . . . . .130150-0157 . . . . . . . D-120
430C7W . . . . . . . . . . . . .130150-0158 . . . . . . . . D-61
430C9W . . . . . . . . . . . . .130150-0160 . . . . . . . . D-61
430P5W . . . . . . . . . . . . .130150-0169 . . . . . . . . D-61
430P7. . . . . . . . . . . . . . .130150-0170 . . . . . . . D-120
430P7W . . . . . . . . . . . . .130150-0171 . . . . . . . . D-61
430P9W . . . . . . . . . . . . .130150-0173 . . . . . . . . D-61
430R5W . . . . . . . . . . . . .130150-0175 . . . . . . . . D-61
430R7W . . . . . . . . . . . . .130150-0177 . . . . . . . . D-61
430R9W . . . . . . . . . . . . .130150-0179 . . . . . . . . D-61
440. . . . . . . . . . . . . . . . .130138-0072 . . . . . . . . E-52
440F . . . . . . . . . . . . . . . .130138-0073 . . . . . . . . E-52
442. . . . . . . . . . . . . . . . .130136-0070 . . . . . . . . E-52
446. . . . . . . . . . . . . . . . .130138-0075 . . . . . . . . E-52
450. . . . . . . . . . . . . . . . .130128-0111 . . . . . . . . E-49
451. . . . . . . . . . . . . . . . .130128-0112 . . . . . . . . E-49
452. . . . . . . . . . . . . . . . .130128-0113 . . . . . . . . E-49
452CR . . . . . . . . . . . . . . .130128-0114 . . . . . . . . E-33
453. . . . . . . . . . . . . . . . .130128-0115 . . . . . . . . E-49
453CR . . . . . . . . . . . . . . .130128-0116 . . . . . . . . E-33
453GF. . . . . . . . . . . . . . .130128-0117 . . . . . . . . E-49
Woodhead No.
Order No.
Page
454. . . . . . . . . . . . . . . . .130128-0118 . . . . . . . . E-49
454CR . . . . . . . . . . . . . . .130128-0119 . . . . . . . . E-33
454GF. . . . . . . . . . . . . . .130128-0120 . . . . . . . . E-49
455-FD1 . . . . . . . . . . . . .130128-0150 . . . . . . . . E-32
455-FD1BLK . . . . . . . . . .130128-0160 . . . . . . . . E-32
455-FD2 . . . . . . . . . . . . .130128-0151 . . . . . . . . E-32
455-FD2BLK . . . . . . . . . .130128-0161 . . . . . . . . E-32
455-FD3 . . . . . . . . . . . . .130128-0152 . . . . . . . . E-32
455-FD3BLK . . . . . . . . . .130128-0162 . . . . . . . . E-32
455-TA50 . . . . . . . . . . . .130128-0167 . . . . . . . . E-32
455-TA75 . . . . . . . . . . . .130128-0168 . . . . . . . . E-32
459. . . . . . . . . . . . . . . . .130138-0004 . . . .E-33, E-49
460C12 . . . . . . . . . . . . . .130150-0185 . . . . . . . D-120
460C12W . . . . . . . . . . . .130150-0186 . . . . . . . . D-61
460C5 . . . . . . . . . . . . . . .130150-0187 . . . . . . . D-120
460C5W . . . . . . . . . . . . .130150-0188 . . . . . . . . D-61
460C7 . . . . . . . . . . . . . . .130150-0189 . . . . . . . D-120
460C7W . . . . . . . . . . . . .130150-0190 . . . . . . . . D-61
460C9 . . . . . . . . . . . . . . .130150-0191 . . . . . . . D-120
460C9W . . . . . . . . . . . . .130150-0192 . . . . . . . . D-61
460P12. . . . . . . . . . . . . .130150-0198 . . . . . . . D-120
460P12W . . . . . . . . . . . .130150-0199 . . . . . . . . D-61
460P5. . . . . . . . . . . . . . .130150-0200 . . . . . . . D-120
460P5W . . . . . . . . . . . . .130150-0201 . . . . . . . . D-61
460P7. . . . . . . . . . . . . . .130150-0202 . . . . . . . D-120
460P7W . . . . . . . . . . . . .130150-0203 . . . . . . . . D-61
460P9. . . . . . . . . . . . . . .130150-0204 . . . . . . . D-120
460P9W . . . . . . . . . . . . .130150-0205 . . . . . . . . D-61
460R12 . . . . . . . . . . . . .130150-0206 . . . . . . . D-120
460R12W . . . . . . . . . . . .130150-0207 . . . . . . . . D-61
460R5. . . . . . . . . . . . . . .130150-0208 . . . . . . . D-120
460R5W . . . . . . . . . . . . .130150-0209 . . . . . . . . D-61
460R7. . . . . . . . . . . . . . .130150-0210 . . . . . . . D-120
460R7W . . . . . . . . . . . . .130150-0211 . . . . . . . . D-61
460R9. . . . . . . . . . . . . . .130150-0212 . . . . . . . D-120
460R9W . . . . . . . . . . . . .130150-0213 . . . . . . . . D-61
4700DW . . . . . . . . . . . . .130148-0074 . . . . . . . . D-81
4720. . . . . . . . . . . . . . . .130144-0023 . . . . D-7, D-81
4720YL . . . . . . . . . . . . . .130144-0024 . . . . . . . . D-81
4729. . . . . . . . . . . . . . . .130144-0025 . . . . D-7, D-81
4729YL . . . . . . . . . . . . . .130144-0026 . . . . . . . . D-81
4730. . . . . . . . . . . . . . . .130144-0027 . . . . D-7, D-95
4739. . . . . . . . . . . . . . . .130144-0029 . . . . D-7, D-95
4747. . . . . . . . . . . . . . . .130149-0066 . . . . . . . . D-85
4747CR . . . . . . . . . . . . . .130149-0067 . . . . . . . . D-85
4748. . . . . . . . . . . . . . . .130149-0068 . . . . . . . . D-88
4748CR . . . . . . . . . . . . . .130149-0069 . . . . . . . . D-88
4749. . . . . . . . . . . . . . . .130149-0070 . . . . . . . . D-90
4770. . . . . . . . . . . . . . . .130144-0031 . . . . D-7, D-84
4774. . . . . . . . . . . . . . . .130149-0071 . . . . . . . . D-99
4775. . . . . . . . . . . . . . . .130149-0072 . . . . . . . D-101
4776. . . . . . . . . . . . . . . .130149-0074 . . . . . . . D-102
4779. . . . . . . . . . . . . . . .130144-0033 . . . . D-7, D-84
4976. . . . . . . . . . . . . . . .130149-0085 . . . . . . . D-105
4976CR . . . . . . . . . . . . . .130149-0086 . . . . . . . D-105
50-8575 . . . . . . . . . . . . .130112-0196 . . . . . . . . A-30
50-8578 . . . . . . . . . . . . .130201-0750 . . . . . . . . A-30
xxix
Woodhead No. Index
Woodhead No.
Order No.
Page
5000. . . . . . . . . . . . . . . .130111-0027 . . . . . . . . A-36
5002. . . . . . . . . . . . . . . .130111-0030 . . . . . . . . A-36
5003. . . . . . . . . . . . . . . .130111-0031 . . . . . . . . A-36
5030. . . . . . . . . . . . . . . .130111-0044 . . . . . . . . A-37
5052-1 . . . . . . . . . . . . . .130126-0243 . . . . . . . . . F-5
5052-M. . . . . . . . . . . . . .130126-0246 . . . . . . . . . F-5
5052-N . . . . . . . . . . . . . .130126-0247 . . . . . . . . . F-5
5054-1 . . . . . . . . . . . . . .130126-0248 . . . . . . . . . F-5
5054-1M. . . . . . . . . . . . .130126-0249 . . . . . . . . . F-5
5054-1N . . . . . . . . . . . . .130126-0250 . . . . . . . . . F-5
5054-2 . . . . . . . . . . . . . .130126-0251 . . . . . . . . . F-5
5056-1 . . . . . . . . . . . . . .130126-0256 . . . . . . . . . F-5
5056-1M. . . . . . . . . . . . .130126-0257 . . . . . . . . . F-5
5056-1N . . . . . . . . . . . . .130126-0258 . . . . . . . . . F-5
5056-2M. . . . . . . . . . . . .130126-0260 . . . . . . . . . F-5
5058-1 . . . . . . . . . . . . . .130126-0262 . . . . . . . . . F-5
5058-1M. . . . . . . . . . . . .130126-0263 . . . . . . . . . F-5
5058-1N . . . . . . . . . . . . .130126-0264 . . . . . . . . . F-5
5058-2M. . . . . . . . . . . . .130126-0266 . . . . . . . . . F-5
5058-3M. . . . . . . . . . . . .130126-0268 . . . . . . . . . F-5
505B-RM. . . . . . . . . . . . .130126-0012 . . . . . .F-5, F-7
505BC-C . . . . . . . . . . . . .130126-0008 . . . . . . . . . F-5
505BC-L . . . . . . . . . . . . .130126-0009 . . . . .F-5, F-13
505PL-GS . . . . . . . . . . . .130126-0021 . . . . . . . . . F-5
505PL-RS . . . . . . . . . . . .130126-0022 . . . . . . . . . F-5
505PL-YS . . . . . . . . . . . .130126-0023 . . . . . . . . . F-5
505SS-2 . . . . . . . . . . . . .130126-0025 . . . . . . . . . F-5
505SS-3NO . . . . . . . . . . .130126-0027 . . . . . . . . . F-5
505SW-1 . . . . . . . . . . . . .130126-0028 . . . . . . . . . F-5
505SW-12NO . . . . . . . . .130126-0029 . . . . . . . . . F-5
505SW-1NONC . . . . . . . .130126-0030 . . . . . . . . . F-5
505SW-2 . . . . . . . . . . . . .130126-0031 . . . . . . . . . F-5
505SW-M . . . . . . . . . . . .130126-0033 . . . . . . . . . F-5
505SW-N . . . . . . . . . . . .130126-0034 . . . . . . . . . F-5
50W50 . . . . . . . . . . . . . .130155-0077 . . . . . . . . D-57
50W50BLK . . . . . . . . . . .130155-0078 . . . . . . . . D-57
50W52 . . . . . . . . . . . . . .130155-0080 . . . . . . . . D-57
50W52BLK . . . . . . . . . . .130155-0081 . . . . . . . . D-57
50W54 . . . . . . . . . . . . . .130155-0082 . . . . . . . . D-58
50W54BLK . . . . . . . . . . .130155-0083 . . . . . . . . D-58
50W56 . . . . . . . . . . . . . .130155-0084 . . . . . . . . D-58
5166. . . . . . . . . . . . . . . .130144-0034 . . . . D-7, D-63
5169. . . . . . . . . . . . . . . .130144-0035 . . . . D-7, D-63
5176. . . . . . . . . . . . . . . .130144-0008 . . . . D-7, D-63
520C7 . . . . . . . . . . . . . . .130150-0227 . . . . . . . D-120
520C9 . . . . . . . . . . . . . . .130150-0229 . . . . . . . D-120
520P7. . . . . . . . . . . . . . .130150-0238 . . . . . . . D-120
520P9. . . . . . . . . . . . . . .130150-0240 . . . . . . . D-120
520R7. . . . . . . . . . . . . . .130150-0242 . . . . . . . D-120
520R9. . . . . . . . . . . . . . .130150-0244 . . . . . . . D-120
5252DW . . . . . . . . . . . . .130148-0075 . . . . . . . . D-67
5252DWBLK . . . . . . . . . .130148-0076 . . . . . . . . D-67
5261DW . . . . . . . . . . . . .130149-0087 . . . . . . . . D-67
5261DWI . . . . . . . . . . . .130149-0088 . . . . . . . . D-67
5262DW . . . . . . . . . . . . .130148-0083 . . . . . . . . D-67
5262DWCR . . . . . . . . . . .130148-0084 . . . . . . . . D-67
5262DWI . . . . . . . . . . . .130148-0086 . . . . . . . . D-67
xxx
Woodhead No.
Order No.
Page
5262DWW . . . . . . . . . . .130148-0089 . . . . . . . . D-67
5266. . . . . . . . . . . . . . . .130144-0036 . . . . D-7, D-66
5266YL . . . . . . . . . . . . . .130144-0043 . . . . . . . . D-66
5269. . . . . . . . . . . . . . . .130144-0044 . . . . D-7, D-66
5269L . . . . . . . . . . . . . . .130144-0048 . . D-66, D-136
5269YL . . . . . . . . . . . . . .130144-0050 . . . . . . . . D-66
5361DW . . . . . . . . . . . . .130149-0089 . . . . . . . . D-74
5362DW . . . . . . . . . . . . .130148-0097 . . . . . . . . D-74
5362DWBL . . . . . . . . . . .130148-0091 . . . . . . . . D-74
5362DWBLK . . . . . . . . . .130148-0099 . . . . . . . . D-74
5362DWCR . . . . . . . . . . .130148-0100 . . . . . . . . D-74
5362DWI . . . . . . . . . . . .130148-0102 . . . . . . . . D-74
5362DWR . . . . . . . . . . . .130148-0104 . . . . . . . . D-74
5366. . . . . . . . . . . . . . . .130144-0053 . . . . D-7, D-73
5366ORG . . . . . . . . . . . .130144-0054 . . . . . . . . D-73
5369. . . . . . . . . . . . . . . .130144-0057 . . . . D-7, D-73
5398. . . . . . . . . . . . . . . .130098-0024 . . . . . . . . C-11
5400. . . . . . . . . . . . . . . .130098-0025 . . . . . . . . C-11
5402. . . . . . . . . . . . . . . .130098-0026 . . . . . . . . C-11
5452DW . . . . . . . . . . . . .130148-0106 . . . . . . . . D-76
5462DW . . . . . . . . . . . . .130148-0107 . . . . . . . . D-76
5462DWCR . . . . . . . . . . .130148-0108 . . . . . . . . D-76
5466. . . . . . . . . . . . . . . .130144-0061 . . . . D-7, D-76
5466YL . . . . . . . . . . . . . .130144-0062 . . . . . . . . D-76
5469. . . . . . . . . . . . . . . .130144-0063 . . . . D-7, D-76
5469YL . . . . . . . . . . . . . .130144-0064 . . . . . . . . D-76
5500. . . . . . . . . . . . . . . .130098-0027 . . . . . . . . C-11
5501. . . . . . . . . . . . . . . .130098-0028 . . . . . . . . C-18
5502. . . . . . . . . . . . . . . .130098-0029 . . . . . . . . C-11
5503. . . . . . . . . . . . . . . .130098-0030 . . . . . . . . C-18
5504. . . . . . . . . . . . . . . .130098-0031 . . . . . . . . C-11
5505. . . . . . . . . . . . . . . .130098-0425 . . . . . . . . C-18
5506. . . . . . . . . . . . . . . .130098-0032 . . . . . . . . C-11
5507. . . . . . . . . . . . . . . .130098-0033 . . . . . . . . C-18
5508. . . . . . . . . . . . . . . .130098-0034 . . . . . . . . C-11
5509. . . . . . . . . . . . . . . .130098-0035 . . . . . . . . C-18
5518. . . . . . . . . . . . . . . .130098-0036 . . . . . . . . C-12
5518SS . . . . . . . . . . . . . .130098-0037 . . . . . . . . C-24
5518W . . . . . . . . . . . . . .130098-0038 . . . . . . . . C-12
5519. . . . . . . . . . . . . . . .130098-0039 . . . . . . . . C-18
5519W . . . . . . . . . . . . . .130098-0040 . . . . . . . . C-18
5520. . . . . . . . . . . . . . . .130098-0041 . . . . . . . . C-12
5520SS . . . . . . . . . . . . . .130098-0424 . . . . . . . . C-24
5520W . . . . . . . . . . . . . .130098-0043 . . . . . . . . C-12
5521. . . . . . . . . . . . . . . .130098-0044 . . . . . . . . C-18
5521W . . . . . . . . . . . . . .130098-0045 . . . . . . . . C-18
5522. . . . . . . . . . . . . . . .130098-0046 . . . . . . . . C-12
5522M . . . . . . . . . . . . . .130099-0068 . . . . . . . . C-12
5522MSS . . . . . . . . . . . .130097-0321 . . . . . . . . C-24
5522NM . . . . . . . . . . . . .130099-0069 . . . . . . . . C-12
5522SS . . . . . . . . . . . . . .130098-0048 . . . . . . . . C-24
5522W . . . . . . . . . . . . . .130098-0049 . . . . . . . . C-12
5523. . . . . . . . . . . . . . . .130098-0050 . . . . . . . . C-18
5523M . . . . . . . . . . . . . .130099-0070 . . . . . . . . C-18
5523NM . . . . . . . . . . . . .130099-0071 . . . . . . . . C-18
5523W . . . . . . . . . . . . . .130098-0051 . . . . . . . . C-18
5524. . . . . . . . . . . . . . . .130098-0052 . . . . . . . . C-12
Woodhead No.
Order No.
Page
5524M . . . . . . . . . . . . . .130099-0072 . . . . . . . . C-12
5524MSS . . . . . . . . . . . .130097-0322 . . . . . . . . C-24
5524NM . . . . . . . . . . . . .130099-0073 . . . . . . . . C-12
5524SS . . . . . . . . . . . . . .130098-0055 . . . . . . . . C-24
5524W . . . . . . . . . . . . . .130098-0056 . . . . . . . . C-12
5524WBLK . . . . . . . . . . .130098-0057 . . . . . . . . C-13
5525. . . . . . . . . . . . . . . .130098-0058 . . . . . . . . C-18
5525M . . . . . . . . . . . . . .130099-0074 . . . . . . . . C-18
5525NM . . . . . . . . . . . . .130099-0075 . . . . . . . . C-18
5525W . . . . . . . . . . . . . .130098-0060 . . . . . . . . C-18
5526. . . . . . . . . . . . . . . .130098-0061 . . . . . . . . C-12
5526M . . . . . . . . . . . . . .130099-0076 . . . . . . . . C-12
5526MSS . . . . . . . . . . . .130097-0323 . . . . . . . . C-24
5526NM . . . . . . . . . . . . .130099-0077 . . . . . . . . C-12
5526SS . . . . . . . . . . . . . .130098-0063 . . . . . . . . C-24
5526W . . . . . . . . . . . . . .130098-0064 . . . . . . . . C-12
5526WBLK . . . . . . . . . . .130098-0065 . . . . . . . . C-13
5527. . . . . . . . . . . . . . . .130098-0066 . . . . . . . . C-18
5527M . . . . . . . . . . . . . .130099-0078 . . . . . . . . C-18
5527NM . . . . . . . . . . . . .130099-0079 . . . . . . . . C-18
5527W . . . . . . . . . . . . . .130098-0068 . . . . . . . . C-18
5528. . . . . . . . . . . . . . . .130098-0069 . . . . . . . . C-12
5528M . . . . . . . . . . . . . .130099-0080 . . . . . . . . C-12
5528MSS . . . . . . . . . . . .130097-0324 . . . . . . . . C-24
5528NM . . . . . . . . . . . . .130099-0081 . . . . . . . . C-12
5528SS . . . . . . . . . . . . . .130098-0070 . . . . . . . . C-24
5528W . . . . . . . . . . . . . .130098-0071 . . . . . . . . C-12
5528WBLK . . . . . . . . . . .130098-0072 . . . . . . . . C-13
5529. . . . . . . . . . . . . . . .130098-0073 . . . . . . . . C-18
5529M . . . . . . . . . . . . . .130099-0082 . . . . . . . . C-18
5529NM . . . . . . . . . . . . .130099-0083 . . . . . . . . C-18
5529W . . . . . . . . . . . . . .130098-0075 . . . . . . . . C-18
5530. . . . . . . . . . . . . . . .130098-0076 . . . . . . . . C-12
5530M . . . . . . . . . . . . . .130099-0084 . . . . . . . . C-12
5530MSS . . . . . . . . . . . .130097-0325 . . . . . . . . C-24
5530NM . . . . . . . . . . . . .130099-0085 . . . . . . . . C-12
5530SS . . . . . . . . . . . . . .130098-0077 . . . . . . . . C-24
5530W . . . . . . . . . . . . . .130098-0078 . . . . . . . . C-12
5530WBLK . . . . . . . . . . .130098-0079 . . . . . . . . C-13
5531. . . . . . . . . . . . . . . .130098-0080 . . . . . . . . C-18
5531M . . . . . . . . . . . . . .130099-0086 . . . . . . . . C-18
5531NM . . . . . . . . . . . . .130099-0087 . . . . . . . . C-18
5531W . . . . . . . . . . . . . .130098-0081 . . . . . . . . C-18
5532. . . . . . . . . . . . . . . .130098-0082 . . . . . . . . C-12
5532M . . . . . . . . . . . . . .130099-0088 . . . . . . . . C-12
5532MSS . . . . . . . . . . . .130097-0326 . . . . . . . . C-24
5532SS . . . . . . . . . . . . . .130098-0085 . . . . . . . . C-24
5532W . . . . . . . . . . . . . .130098-0086 . . . . . . . . C-12
5532WBLK . . . . . . . . . . .130098-0087 . . . . . . . . C-13
5533. . . . . . . . . . . . . . . .130098-0089 . . . . . . . . C-18
5533M . . . . . . . . . . . . . .130099-0089 . . . . . . . . C-18
5533W . . . . . . . . . . . . . .130098-0090 . . . . . . . . C-18
5534. . . . . . . . . . . . . . . .130097-0327 . . . . . . . . C-12
5534M . . . . . . . . . . . . . .130099-0090 . . . . . . . . C-12
5534MSS . . . . . . . . . . . .130097-0328 . . . . . . . . C-24
5534SS . . . . . . . . . . . . . .130098-0243 . . . . . . . . C-24
5534W . . . . . . . . . . . . . .130098-0092 . . . . . . . . C-12
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
5535. . . . . . . . . . . . . . . .130098-0093 . . . . . . . . C-18
5535M . . . . . . . . . . . . . .130099-0091 . . . . . . . . C-18
5535W . . . . . . . . . . . . . .130098-0095 . . . . . . . . C-18
5536. . . . . . . . . . . . . . . .130098-0096 . . . . . . . . C-14
5536M . . . . . . . . . . . . . .130099-0092 . . . . . . . . C-14
5536MSS . . . . . . . . . . . .130097-0329 . . . . . . . . C-24
5536NM . . . . . . . . . . . . .130099-0093 . . . . . . . . C-14
5536SS . . . . . . . . . . . . . .130098-0246 . . . . . . . . C-24
5536W . . . . . . . . . . . . . .130098-0099 . . . . . . . . C-14
5536WBLK . . . . . . . . . . .130098-0100 . . . . . . . . C-15
5537. . . . . . . . . . . . . . . .130098-0101 . . . . . . . . C-20
5537M . . . . . . . . . . . . . .130099-0094 . . . . . . . . C-20
5537NM . . . . . . . . . . . . .130099-0095 . . . . . . . . C-20
5537W . . . . . . . . . . . . . .130098-0102 . . . . . . . . C-20
5538. . . . . . . . . . . . . . . .130098-0103 . . . . . . . . C-14
5538M . . . . . . . . . . . . . .130099-0096 . . . . . . . . C-14
5538MSS . . . . . . . . . . . .130097-0330 . . . . . . . . C-24
5538NM . . . . . . . . . . . . .130099-0097 . . . . . . . . C-14
5538SS . . . . . . . . . . . . . .130098-0106 . . . . . . . . C-24
5538W . . . . . . . . . . . . . .130098-0107 . . . . . . . . C-14
5538WBLK . . . . . . . . . . .130098-0108 . . . . . . . . C-15
5539. . . . . . . . . . . . . . . .130098-0109 . . . . . . . . C-20
5539M . . . . . . . . . . . . . .130099-0098 . . . . . . . . C-20
5539NM . . . . . . . . . . . . .130099-0099 . . . . . . . . C-20
5539W . . . . . . . . . . . . . .130098-0111 . . . . . . . . C-20
5540. . . . . . . . . . . . . . . .130098-0112 . . . . . . . . C-14
5540M . . . . . . . . . . . . . .130099-0100 . . . . . . . . C-14
5540MSS . . . . . . . . . . . .130097-0331 . . . . . . . . C-24
5540NM . . . . . . . . . . . . .130099-0101 . . . . . . . . C-14
5540SS . . . . . . . . . . . . . .130098-0113 . . . . . . . . C-24
5540W . . . . . . . . . . . . . .130098-0114 . . . . . . . . C-14
5540WBLK . . . . . . . . . . .130098-0115 . . . . . . . . C-15
5541. . . . . . . . . . . . . . . .130098-0116 . . . . . . . . C-20
5541M . . . . . . . . . . . . . .130099-0102 . . . . . . . . C-20
5541W . . . . . . . . . . . . . .130098-0117 . . . . . . . . C-20
5542. . . . . . . . . . . . . . . .130098-0118 . . . . . . . . C-14
5542M . . . . . . . . . . . . . .130099-0104 . . . . . . . . C-14
5542MSS . . . . . . . . . . . .130097-0332 . . . . . . . . C-24
5542NM . . . . . . . . . . . . .130099-0105 . . . . . . . . C-14
5542SS . . . . . . . . . . . . . .130098-0426 . . . . . . . . C-24
5542W . . . . . . . . . . . . . .130098-0121 . . . . . . . . C-14
5542WBLK . . . . . . . . . . .130098-0122 . . . . . . . . C-15
5543. . . . . . . . . . . . . . . .130098-0123 . . . . . . . . C-20
5543M . . . . . . . . . . . . . .130099-0106 . . . . . . . . C-20
5543NM . . . . . . . . . . . . .130099-0107 . . . . . . . . C-20
5543W . . . . . . . . . . . . . .130098-0125 . . . . . . . . C-20
5544. . . . . . . . . . . . . . . .130098-0126 . . . . . . . . C-14
5544M . . . . . . . . . . . . . .130099-0108 . . . . . . . . C-14
5544MSS . . . . . . . . . . . .130097-0333 . . . . . . . . C-24
5544SS . . . . . . . . . . . . . .130098-0128 . . . . . . . . C-24
5544W . . . . . . . . . . . . . .130098-0129 . . . . . . . . C-14
5545. . . . . . . . . . . . . . . .130098-0130 . . . . . . . . C-20
5545M . . . . . . . . . . . . . .130099-0109 . . . . . . . . C-20
5545W . . . . . . . . . . . . . .130098-0131 . . . . . . . . C-20
5546. . . . . . . . . . . . . . . .130098-0132 . . . . . . . . C-16
5546M . . . . . . . . . . . . . .130099-0110 . . . . . . . . C-16
5546MSS . . . . . . . . . . . .130097-0630 . . . . . . . . C-24
www.molex.com/woodhead
Woodhead No.
Order No.
Page
5546NM . . . . . . . . . . . . .130099-0111 . . . . . . . . C-16
5546SS . . . . . . . . . . . . . .130098-0248 . . . . . . . . C-24
5546W . . . . . . . . . . . . . .130098-0133 . . . . . . . . C-16
5547. . . . . . . . . . . . . . . .130098-0134 . . . . . . . . C-21
5547NM . . . . . . . . . . . . .130099-0112 . . . . . . . . C-21
5547W . . . . . . . . . . . . . .130098-0135 . . . . . . . . C-21
5548. . . . . . . . . . . . . . . .130098-0136 . . . . . . . . C-16
5548M . . . . . . . . . . . . . .130099-0113 . . . . . . . . C-16
5548MSS . . . . . . . . . . . .130097-0334 . . . . . . . . C-24
5548NM . . . . . . . . . . . . .130099-0114 . . . . . . . . C-16
5548SS . . . . . . . . . . . . . .130098-0249 . . . . . . . . C-24
5548W . . . . . . . . . . . . . .130098-0137 . . . . . . . . C-16
5549. . . . . . . . . . . . . . . .130098-0138 . . . . . . . . C-21
5549NM . . . . . . . . . . . . .130099-0115 . . . . . . . . C-21
5550. . . . . . . . . . . . . . . .130098-0139 . . . . . . . . C-16
55501. . . . . . . . . . . . . . .130023-0001 . . . . . . . . . F-6
55502. . . . . . . . . . . . . . .130023-0002 . . . . . . . . . F-6
55503. . . . . . . . . . . . . . .130023-0003 . . . . . . . . . F-6
55504. . . . . . . . . . . . . . .130023-0004 . . . . . . . . . F-6
5550M . . . . . . . . . . . . . .130099-0116 . . . . . . . . C-16
5550MSS . . . . . . . . . . . .130097-0631 . . . . . . . . C-24
5550NM . . . . . . . . . . . . .130099-0117 . . . . . . . . C-16
5550SS . . . . . . . . . . . . . .130098-0250 . . . . . . . . C-24
5550W . . . . . . . . . . . . . .130098-0141 . . . . . . . . C-16
5551. . . . . . . . . . . . . . . .130098-0142 . . . . . . . . C-21
5551M . . . . . . . . . . . . . .130099-0118 . . . . . . . . C-21
5552. . . . . . . . . . . . . . . .130098-0143 . . . . . . . . C-16
5552M . . . . . . . . . . . . . .130099-0119 . . . . . . . . C-16
5552MSS . . . . . . . . . . . .130097-0335 . . . . . . . . C-24
5552NM . . . . . . . . . . . . .130099-0120 . . . . . . . . C-16
5552SS . . . . . . . . . . . . . .130098-0145 . . . . . . . . C-24
5552W . . . . . . . . . . . . . .130098-0146 . . . . . . . . C-16
5552WBLK . . . . . . . . . . .130098-0147 . . . . . . . . C-16
5553. . . . . . . . . . . . . . . .130098-0148 . . . . . . . . C-21
5553M . . . . . . . . . . . . . .130099-0121 . . . . . . . . C-21
5553NM . . . . . . . . . . . . .130099-0122 . . . . . . . . C-21
5553W . . . . . . . . . . . . . .130098-0149 . . . . . . . . C-21
5554. . . . . . . . . . . . . . . .130098-0150 . . . . . . . . C-16
5554M . . . . . . . . . . . . . .130099-0123 . . . . . . . . C-16
5554MSS . . . . . . . . . . . .130097-0336 . . . . . . . . C-24
5554NM . . . . . . . . . . . . .130099-0124 . . . . . . . . C-16
5554SS . . . . . . . . . . . . . .130098-0251 . . . . . . . . C-24
5554W . . . . . . . . . . . . . .130098-0151 . . . . . . . . C-16
5554WBLK . . . . . . . . . . .130098-0152 . . . . . . . . C-16
5555. . . . . . . . . . . . . . . .130098-0153 . . . . . . . . C-21
5555M . . . . . . . . . . . . . .130099-0125 . . . . . . . . C-21
5555NM . . . . . . . . . . . . .130099-0126 . . . . . . . . C-21
5555W . . . . . . . . . . . . . .130098-0154 . . . . . . . . C-21
5556. . . . . . . . . . . . . . . .130098-0155 . . . . . . . . C-16
5556M . . . . . . . . . . . . . .130099-0127 . . . . . . . . C-16
5556MSS . . . . . . . . . . . .130097-0337 . . . . . . . . C-24
5556NM . . . . . . . . . . . . .130099-0128 . . . . . . . . C-16
5556SS . . . . . . . . . . . . . .130098-0252 . . . . . . . . C-24
5556W . . . . . . . . . . . . . .130098-0157 . . . . . . . . C-16
5556WBLK . . . . . . . . . . .130098-0158 . . . . . . . . C-16
5557. . . . . . . . . . . . . . . .130098-0159 . . . . . . . . C-21
5557M . . . . . . . . . . . . . .130099-0129 . . . . . . . . C-21
Woodhead No.
Order No.
Page
5557NM . . . . . . . . . . . . .130099-0130 . . . . . . . . C-21
5557W . . . . . . . . . . . . . .130098-0160 . . . . . . . . C-21
5558. . . . . . . . . . . . . . . .130098-0161 . . . . . . . . C-16
5558M . . . . . . . . . . . . . .130099-0131 . . . . . . . . C-16
5558MSS . . . . . . . . . . . .130097-0632 . . . . . . . . C-24
5558NM . . . . . . . . . . . . .130099-0132 . . . . . . . . C-16
5558SS . . . . . . . . . . . . . .130098-0253 . . . . . . . . C-24
5558W . . . . . . . . . . . . . .130098-0164 . . . . . . . . C-16
5558WBLK . . . . . . . . . . .130098-0429 . . . . . . . . C-16
5559. . . . . . . . . . . . . . . .130098-0165 . . . . . . . . C-21
5560. . . . . . . . . . . . . . . .130098-0166 . . . . . . . . C-16
5560M . . . . . . . . . . . . . .130099-0134 . . . . . . . . C-16
5560MSS . . . . . . . . . . . .130097-0338 . . . . . . . . C-24
5560NM . . . . . . . . . . . . .130099-0135 . . . . . . . . C-16
5560SS . . . . . . . . . . . . . .130098-0254 . . . . . . . . C-24
5560W . . . . . . . . . . . . . .130098-0167 . . . . . . . . C-16
5560WBLK . . . . . . . . . . .130098-0168 . . . . . . . . C-16
5561. . . . . . . . . . . . . . . .130098-0169 . . . . . . . . C-21
5561M . . . . . . . . . . . . . .130099-0136 . . . . . . . . C-21
5561NM . . . . . . . . . . . . .130099-0137 . . . . . . . . C-21
5561W . . . . . . . . . . . . . .130098-0170 . . . . . . . . C-21
5562. . . . . . . . . . . . . . . .130098-0171 . . . . . . . . C-16
5562MSS . . . . . . . . . . . .130097-0633 . . . . . . . . C-24
5562SS . . . . . . . . . . . . . .130098-0255 . . . . . . . . C-24
5562W . . . . . . . . . . . . . .130098-0172 . . . . . . . . C-16
5563. . . . . . . . . . . . . . . .130098-0173 . . . . . . . . C-21
5568. . . . . . . . . . . . . . . .130098-0174 . . . . . . . . C-17
5569. . . . . . . . . . . . . . . .130098-0175 . . . . . . . . C-22
5570. . . . . . . . . . . . . . . .130098-0176 . . . . . . . . C-17
5571. . . . . . . . . . . . . . . .130098-0177 . . . . . . . . C-22
5572. . . . . . . . . . . . . . . .130098-0178 . . . . . . . . C-17
5573. . . . . . . . . . . . . . . .130098-0179 . . . . . . . . C-22
5574. . . . . . . . . . . . . . . .130098-0180 . . . . . . . . C-17
5575. . . . . . . . . . . . . . . .130098-0181 . . . . . . . . C-22
5576. . . . . . . . . . . . . . . .130098-0182 . . . . . . . . C-17
5577. . . . . . . . . . . . . . . .130098-0184 . . . . . . . . C-22
5580. . . . . . . . . . . . . . . .130098-0185 . . . . . . . . C-13
5580W . . . . . . . . . . . . . .130098-0186 . . . . . . . . C-13
5581. . . . . . . . . . . . . . . .130098-0187 . . . . . . . . C-19
5582. . . . . . . . . . . . . . . .130098-0188 . . . . . . . . C-13
5582W . . . . . . . . . . . . . .130098-0189 . . . . . . . . C-13
5583. . . . . . . . . . . . . . . .130098-0190 . . . . . . . . C-19
5584. . . . . . . . . . . . . . . .130098-0191 . . . . . . . . C-15
5585. . . . . . . . . . . . . . . .130098-0239 . . . . . . . . C-20
5586. . . . . . . . . . . . . . . .130098-0192 . . . . . . . . C-15
5587. . . . . . . . . . . . . . . .130098-0193 . . . . . . . . C-20
5594-004 . . . . . . . . . . . .130098-0195 . . . . . . . . C-13
5594-004W . . . . . . . . . .130098-0196 . . . . . . . . C-13
5594-005 . . . . . . . . . . . .130098-0197 . . . . . . . . C-13
5594-005W . . . . . . . . . .130098-0198 . . . . . . . . C-13
5594-006 . . . . . . . . . . . .130098-0199 . . . . . . . . C-13
5594-006W . . . . . . . . . .130098-0200 . . . . . . . . C-13
5594-007 . . . . . . . . . . . .130098-0202 . . . . . . . . C-13
5594-007W . . . . . . . . . .130098-0203 . . . . . . . . C-13
5594-008 . . . . . . . . . . . .130098-0204 . . . . . . . . C-13
5594-008W . . . . . . . . . .130098-0205 . . . . . . . . C-13
5595-004 . . . . . . . . . . . .130098-0207 . . . . . . . . C-19
xxxi
Woodhead No. Index
Woodhead No.
Order No.
Page
5595-004W . . . . . . . . . .130098-0208 . . . . . . . . C-19
5595-005W . . . . . . . . . .130098-0210 . . . . . . . . C-19
5595-006W . . . . . . . . . .130098-0241 . . . . . . . . C-19
5595-007W . . . . . . . . . .130098-0238 . . . . . . . . C-19
5595-008 . . . . . . . . . . . .130098-0212 . . . . . . . . C-19
5595-008W . . . . . . . . . .130098-0213 . . . . . . . . C-19
5599. . . . . . . . . . . . . . . .130099-0141 . . . . . . . . C-23
5600. . . . . . . . . . . . . . . .130099-0142 . . . . . . . . C-23
5601. . . . . . . . . . . . . . . .130099-0143 . . . . . . . . C-23
5602. . . . . . . . . . . . . . . .130099-0144 . . . . . . . . C-23
5603. . . . . . . . . . . . . . . .130099-0145 . . . . . . . . C-23
5604. . . . . . . . . . . . . . . .130099-0146 . . . . . . . . C-23
5609. . . . . . . . . . . . . . . .130099-0147 . . . . . . . . C-23
5610. . . . . . . . . . . . . . . .130099-0148 . . . . . . . . C-23
5611. . . . . . . . . . . . . . . .130099-0149 . . . . . . . . C-23
5612. . . . . . . . . . . . . . . .130099-0150 . . . . . . . . C-23
5613. . . . . . . . . . . . . . . .130099-0151 . . . . . . . . C-23
5614. . . . . . . . . . . . . . . .130099-0152 . . . . . . . . C-23
5620. . . . . . . . . . . . . . . .130098-0235 . . . . . . . . C-14
5620M . . . . . . . . . . . . . .130099-0153 . . . . . . . . C-14
5620NM . . . . . . . . . . . . .130099-0154 . . . . . . . . C-14
5620W . . . . . . . . . . . . . .130098-0215 . . . . . . . . C-14
5620WBLK . . . . . . . . . . .130098-0216 . . . . . . . . C-15
5621. . . . . . . . . . . . . . . .130098-0217 . . . . . . . . C-20
5621W . . . . . . . . . . . . . .130098-0218 . . . . . . . . C-20
5622. . . . . . . . . . . . . . . .130098-0236 . . . . . . . . C-14
5622M . . . . . . . . . . . . . .130099-0157 . . . . . . . . C-14
5622MSS . . . . . . . . . . . .130097-0340 . . . . . . . . C-24
5622NM . . . . . . . . . . . . .130099-0158 . . . . . . . . C-14
5622SS . . . . . . . . . . . . . .130098-0244 . . . . . . . . C-24
5622W . . . . . . . . . . . . . .130098-0221 . . . . . . . . C-14
5622WBLK . . . . . . . . . . .130098-0222 . . . . . . . . C-15
5623. . . . . . . . . . . . . . . .130098-0223 . . . . . . . . C-20
5623M . . . . . . . . . . . . . .130099-0159 . . . . . . . . C-20
5623NM . . . . . . . . . . . . .130099-0160 . . . . . . . . C-20
5623W . . . . . . . . . . . . . .130098-0224 . . . . . . . . C-20
5624. . . . . . . . . . . . . . . .130098-0225 . . . . . . . . C-14
5624M . . . . . . . . . . . . . .130099-0161 . . . . . . . . C-14
5624MSS . . . . . . . . . . . .130097-0341 . . . . . . . . C-24
5624NM . . . . . . . . . . . . .130099-0162 . . . . . . . . C-14
5624SS . . . . . . . . . . . . . .130098-0245 . . . . . . . . C-24
5624W . . . . . . . . . . . . . .130098-0227 . . . . . . . . C-14
5624WBLK . . . . . . . . . . .130098-0228 . . . . . . . . C-15
5625. . . . . . . . . . . . . . . .130098-0229 . . . . . . . . C-20
5625M . . . . . . . . . . . . . .130099-0227 . . . . . . . . C-20
5625NM . . . . . . . . . . . . .130099-0163 . . . . . . . . C-20
5625W . . . . . . . . . . . . . .130098-0230 . . . . . . . . C-20
5628M . . . . . . . . . . . . . .130099-0164 . . . . . . . . C-28
5630M . . . . . . . . . . . . . .130099-0165 . . . . . . . . C-27
5630NM . . . . . . . . . . . . .130099-0166 . . . . . . . . C-27
5631M . . . . . . . . . . . . . .130099-0167 . . . . . . . . C-27
5631NM . . . . . . . . . . . . .130099-0168 . . . . . . . . C-27
5632M . . . . . . . . . . . . . .130099-0169 . . . . . . . . C-27
5632NM . . . . . . . . . . . . .130099-0170 . . . . . . . . C-27
5633M . . . . . . . . . . . . . .130099-0171 . . . . . . . . C-28
5633NM . . . . . . . . . . . . .130099-0172 . . . . . . . . C-28
5634M . . . . . . . . . . . . . .130099-0173 . . . . . . . . C-28
xxxii
Woodhead No.
Order No.
Page
5634NM . . . . . . . . . . . . .130099-0174 . . . . . . . . C-28
5635M . . . . . . . . . . . . . .130099-0175 . . . . . . . . C-28
5635NM . . . . . . . . . . . . .130099-0176 . . . . . . . . C-28
5636M . . . . . . . . . . . . . .130099-0177 . . . . . . . . C-29
5636NM . . . . . . . . . . . . .130099-0178 . . . . . . . . C-29
5637M . . . . . . . . . . . . . .130099-0179 . . . . . . . . C-29
5637NM . . . . . . . . . . . . .130099-0180 . . . . . . . . C-29
5638M . . . . . . . . . . . . . .130099-0181 . . . . . . . . C-29
5638NM . . . . . . . . . . . . .130099-0182 . . . . . . . . C-29
5639M . . . . . . . . . . . . . .130099-0183 . . . . . . . . C-29
5639NM . . . . . . . . . . . . .130099-0184 . . . . . . . . C-29
5640M . . . . . . . . . . . . . .130099-0185 . . . . . . . . C-28
5640NM . . . . . . . . . . . . .130099-0186 . . . . . . . . C-28
5641NM . . . . . . . . . . . . .130099-0103 . . . . . . . . C-20
5645M . . . . . . . . . . . . . .130099-0187 . . . . . . . . C-28
5646M . . . . . . . . . . . . . .130099-0188 . . . . . . . . C-29
5647M . . . . . . . . . . . . . .130099-0189 . . . . . . . . C-27
5648M . . . . . . . . . . . . . .130099-0190 . . . . . . . . C-27
5662DW . . . . . . . . . . . . .130148-0111 . . . . . . . . D-70
5662DWCR . . . . . . . . . . .130148-0112 . . . . . . . . D-70
5666. . . . . . . . . . . . . . . .130144-0065 . . . . D-7, D-70
5669. . . . . . . . . . . . . . . .130144-0067 . . . . D-7, D-70
5766. . . . . . . . . . . . . . . .130144-0069 . . . . D-7, D-72
5769. . . . . . . . . . . . . . . .130144-0071 . . . . D-7, D-72
59W07 . . . . . . . . . . . . . .130146-0114 . . . . . . . . . D-5
59W33 . . . . . . . . . . . . . .130146-0115 . . . . D-5, D-16
59W47 . . . . . . . . . . . . . .130146-0116 . . . . D-5, D-11
59W48 . . . . . . . . . . . . . .130146-0117 . . . . D-5, D-18
59W49 . . . . . . . . . . . . . .130146-0118 . . . . D-5, D-12
600. . . . . . . . . . . . . . . . .130152-0016 . . . . . . . . A-35
601. . . . . . . . . . . . . . . . .130152-0020 . . . . . . . . A-35
603. . . . . . . . . . . . . . . . .130144-0094 . . . . . . . . A-35
606. . . . . . . . . . . . . . . . .130152-0021 . . . . . . . . A-35
60W07 . . . . . . . . . . . . . .130146-0121 . . . . D-5, D-19
60W07DPLX . . . . . . . . . .130146-0122 . . . . D-5, D-19
60W33 . . . . . . . . . . . . . .130146-0123 . . . . D-5, D-16
60W33DPLX . . . . . . . . . .130146-0125 . . . . D-5, D-16
60W33DPLXGF . . . . . . . .130155-0091 . . . . . . . . D-16
60W34 . . . . . . . . . . . . . .130146-0127 . . . . D-5, D-13
60W34DPLX . . . . . . . . . .130146-0128 . . . . D-5, D-13
60W47 . . . . . . . . . . . . . .130146-0129 . . . . D-5, D-11
60W47BLK . . . . . . . . . . .130146-0130 . . . . . . . . D-11
60W47DPLX . . . . . . . . . .130146-0131 . . . . D-5, D-11
60W47DPLXGF . . . . . . . .130155-0092 . . . . . . . . D-11
60W48 . . . . . . . . . . . . . .130146-0133 . . . . D-5, D-18
60W48DPLX . . . . . . . . . .130146-0135 . . . . D-5, D-18
60W49 . . . . . . . . . . . . . .130146-0137 . . . . D-5, D-12
60W49DPLX . . . . . . . . . .130146-0138 . . . . D-5, D-12
61430. . . . . . . . . . . . . . .130104-0041 . . . . . . . . . A-8
61430A143 . . . . . . . . . .130104-0042 . . . . . . . . . A-8
61430A163 . . . . . . . . . .130104-0043 . . . . . . . . . A-8
61430B143 . . . . . . . . . .130104-0044 . . . . . . . . . A-8
61430B163 . . . . . . . . . .130104-0045 . . . . . . . . . A-8
61430D143 . . . . . . . . . .130104-0048 . . . . . . . . . A-8
61430D163 . . . . . . . . . .130104-0049 . . . . . . . . . A-8
61435. . . . . . . . . . . . . . .130104-0057 . . . . . . . . . A-8
61436. . . . . . . . . . . . . . .130104-0057 . . . . . . . . . A-5
Woodhead No.
Order No.
Page
61450. . . . . . . . . . . . . . .130104-0082 . . . . . . . . . A-5
61450A143 . . . . . . . . . .130104-0083 . . . . . . . . . A-5
61450A163 . . . . . . . . . .130104-0086 . . . . . . . . . A-5
61450B143 . . . . . . . . . .130104-0084 . . . . . . . . . A-5
61450B163 . . . . . . . . . .130104-0087 . . . . . . . . . A-5
61450D143 . . . . . . . . . .130104-0085 . . . . . . . . . A-5
61450D163 . . . . . . . . . .130104-0088 . . . . . . . . . A-5
61451. . . . . . . . . . . . . . .130104-0054 . . . . . . . . . A-8
61451. . . . . . . . . . . . . . .130104-0095 . . . . . . . . . A-5
61452. . . . . . . . . . . . . . .130104-0055 . . . . . . . . . A-8
61452. . . . . . . . . . . . . . .130104-0096 . . . . . . . . . A-5
61455. . . . . . . . . . . . . . .130104-0056 . . . . . . . . . A-8
61455. . . . . . . . . . . . . . .130104-0097 . . . . . . . . . A-5
61457. . . . . . . . . . . . . . .130104-0098 . . . . . A-5, A-8
63W64 . . . . . . . . . . . . . .130155-0104 . . . . D-4, D-46
63W65 . . . . . . . . . . . . . .130155-0105 . . . . D-4, D-46
64W04 . . . . . . . . . . . . . .130146-0139 . . . . D-5, D-20
64W07 . . . . . . . . . . . . . .130146-0140 . . . . D-5, D-35
64W34 . . . . . . . . . . . . . .130146-0141 . . . . D-5, D-26
64W47 . . . . . . . . . . . . . .130146-0142 . . . . D-5, D-24
64W49 . . . . . . . . . . . . . .130146-0143 . . . . D-5, D-25
64W64 . . . . . . . . . . . . . .130147-0122 . . . . D-5, D-47
6503. . . . . . . . . . . . . . . .130155-0107 . . . . . . . . E-33
65W04 . . . . . . . . . . . . . .130018-0366 . . . . D-5, D-20
65W07 . . . . . . . . . . . . . .130146-0145 . . . . D-5, D-35
65W07DPLX . . . . . . . . . .130146-0146 . . . . D-5, D-35
65W34 . . . . . . . . . . . . . .130146-0147 . . . . D-5, D-26
65W34DPLX . . . . . . . . . .130146-0148 . . . . D-5, D-26
65W47 . . . . . . . . . . . . . .130146-0149 . . . . D-5, D-24
65W47BLK . . . . . . . . . . .130146-0150 . . . . . . . . D-24
65W47DPLX . . . . . . . . . .130146-0151 . . . . D-5, D-24
65W47DPLXGF . . . . . . . .130155-0108 . . . . . . . . D-24
65W49 . . . . . . . . . . . . . .130146-0153 . . . . D-5, D-25
65W49DPLX . . . . . . . . . .130146-0154 . . . . D-5, D-25
66W07 . . . . . . . . . . . . . .130146-0155 . . . . D-5, D-21
66W08 . . . . . . . . . . . . . .130147-0124 . . . . D-5, D-36
66W09 . . . . . . . . . . . . . .130147-0125 . . . . D-5, D-48
66W10 . . . . . . . . . . . . . .130147-0126 . . . . D-5, D-53
66W47 . . . . . . . . . . . . . .130147-0127 . . . . D-5, D-29
66W48 . . . . . . . . . . . . . .130147-0128 . . . . D-5, D-30
66W49 . . . . . . . . . . . . . .130147-0129 . . . . D-5, D-31
66W74 . . . . . . . . . . . . . .130147-0131 . . . . D-5, D-39
66W75 . . . . . . . . . . . . . .130147-0132 . . . . D-5, D-40
66W76 . . . . . . . . . . . . . .130147-0133 . . . . D-5, D-41
66W81 . . . . . . . . . . . . . .130147-0134 . . . . D-5, D-50
66W82 . . . . . . . . . . . . . .130147-0135 . . . . D-5, D-51
66W83 . . . . . . . . . . . . . .130147-0136 . . . . D-5, D-52
6702. . . . . . . . . . . . . . . .130185-0358 . . . . . . . . E-33
6703. . . . . . . . . . . . . . . .130155-0109 . . . . . . . . E-33
67W07 . . . . . . . . . . . . . .130146-0156 . . . . D-5, D-21
67W07DPLX . . . . . . . . . .130146-0157 . . . . D-5, D-21
67W08 . . . . . . . . . . . . . .130147-0137 . . . . D-5, D-36
67W09 . . . . . . . . . . . . . .130147-0139 . . . . D-5, D-48
67W10 . . . . . . . . . . . . . .130147-0140 . . . . D-5, D-53
67W47 . . . . . . . . . . . . . .130147-0141 . . . . D-5, D-29
67W47BLK . . . . . . . . . . .130147-0142 . . . . . . . . D-29
67W47GF . . . . . . . . . . . .130155-0110 . . . . . . . . D-29
www.molex.com/woodhead
Woodhead No. Index
Woodhead No.
Order No.
Page
67W48 . . . . . . . . . . . . . .130147-0144 . . . . D-5, D-30
67W49 . . . . . . . . . . . . . .130147-0145 . . . . D-5, D-31
67W64 . . . . . . . . . . . . . .130147-0146 . . . . D-5, D-34
67W74 . . . . . . . . . . . . . .130147-0147 . . . . D-5, D-39
67W75 . . . . . . . . . . . . . .130147-0149 . . . . D-5, D-40
67W76 . . . . . . . . . . . . . .130147-0150 . . . . D-5, D-41
67W81 . . . . . . . . . . . . . .130147-0151 . . . . D-5, D-50
67W81BLK . . . . . . . . . . .130147-0152 . . . . . . . . D-50
67W82 . . . . . . . . . . . . . .130147-0153 . . . . D-5, D-51
67W83 . . . . . . . . . . . . . .130147-0154 . . . . D-5, D-52
68W08 . . . . . . . . . . . . . .130147-0155 . . . . D-5, D-38
68W47 . . . . . . . . . . . . . .130147-0157 . . . . D-5, D-32
68W48 . . . . . . . . . . . . . .130147-0158 . . . . D-5, D-33
68W49 . . . . . . . . . . . . . .130147-0005 . . . . . . . . . D-5
68W74 . . . . . . . . . . . . . .130147-0159 . . . . D-5, D-42
68W75 . . . . . . . . . . . . . .130147-0160 . . . . D-5, D-43
68W76 . . . . . . . . . . . . . .130147-0161 . . . . D-5, D-44
68W77 . . . . . . . . . . . . . .130147-0162 . . . . D-5, D-45
68W81 . . . . . . . . . . . . . .130147-0163 . . . . D-5, D-54
68W82 . . . . . . . . . . . . . .130147-0164 . . . . D-5, D-55
68W83 . . . . . . . . . . . . . .130147-0165 . . . . D-5, D-56
6902. . . . . . . . . . . . . . . .130155-0017 . . . . . . . . E-33
6903. . . . . . . . . . . . . . . .130155-0018 . . . . . . . . E-33
69W08 . . . . . . . . . . . . . .130147-0166 . . . . D-5, D-38
69W47 . . . . . . . . . . . . . .130147-0168 . . . . D-5, D-32
69W48 . . . . . . . . . . . . . .130147-0169 . . . . D-5, D-33
69W49 . . . . . . . . . . . . . .130147-0170 . . . . . . . . . D-5
69W74 . . . . . . . . . . . . . .130147-0173 . . . . D-5, D-42
69W75 . . . . . . . . . . . . . .130147-0174 . . . . D-5, D-43
69W76 . . . . . . . . . . . . . .130147-0175 . . . . D-5, D-44
69W77 . . . . . . . . . . . . . .130147-0176 . . . . D-5, D-45
69W81 . . . . . . . . . . . . . .130147-0177 . . . . D-5, D-54
69W82 . . . . . . . . . . . . . .130147-0178 . . . . D-5, D-55
69W83 . . . . . . . . . . . . . .130147-0179 . . . . D-5, D-56
70W33A123 . . . . . . . . . .130138-0076 . . . . . . . . E-31
70W33A123GF . . . . . . . .130138-0077 . . . . . . . . E-31
70W33L123 . . . . . . . . . .130138-0079 . . . . . . . . E-31
70W33M123 . . . . . . . . . .130138-0081 . . . . . . . . E-31
70W33M123GF . . . . . . . .130138-0082 . . . . . . . . E-31
70W47A143GF . . . . . . . .130138-0083 . . . . . . . . E-31
70W47L143 . . . . . . . . . .130138-0085 . . . . . . . . E-31
70W47L143GF . . . . . . . .130138-0086 . . . . . . . . E-31
70W47M143 . . . . . . . . . .130138-0087 . . . . . . . . E-31
70W47M143GF . . . . . . . .130138-0088 . . . . . . . . E-31
71-4220 . . . . . . . . . . . . .130203-1295 . . . . .F-7, F-13
75W47L143 . . . . . . . . . .130135-0322 . . . . . . . . E-31
7764N . . . . . . . . . . . . . .130155-0122 . . . . . . . D-111
7765N . . . . . . . . . . . . . .130155-0123 . . . . . . . D-111
77W47M123GF . . . . . . . .130138-0095 . . . . . . . . E-31
8500. . . . . . . . . . . . . . . .130091-0192 . . . . . . . . A-30
85000. . . . . . . . . . . . . . .130141-0070 . . . . . . . . D-65
85002. . . . . . . . . . . . . . .130141-0071 . . . . . . . . D-65
8500M . . . . . . . . . . . . . .130110-0021 . . . . . . . . A-30
85050. . . . . . . . . . . . . . .130144-0075 . . D-66, D-136
85053. . . . . . . . . . . . . . .130144-0076 . . . . . . . . D-73
8506. . . . . . . . . . . . . . . .130135-0323 . . . . . . . . A-30
8506M . . . . . . . . . . . . . .130110-0022 . . . . . . . . A-30
www.molex.com/woodhead
Woodhead No.
Order No.
Page
8511. . . . . . . . . . . . . . . .130110-0023 . . . . . . . . A-30
85125. . . . . . . . . . . . . . .130144-0077 . . . . . . . D-136
85262DW . . . . . . . . . . . .130148-0114 . . . . . . . . D-67
85262DWI . . . . . . . . . . .130148-0115 . . . . . . . . D-67
85262DWR . . . . . . . . . . .130148-0116 . . . . . . . . D-67
85262DWW . . . . . . . . . .130148-0117 . . . . . . . . D-67
85266. . . . . . . . . . . . . . .130144-0078 . . . . . . . . D-66
85266YL . . . . . . . . . . . . .130144-0079 . . . . . . . . D-66
85269. . . . . . . . . . . . . . .130144-0080 . . . . . . . . D-66
85269YL . . . . . . . . . . . . .130144-0081 . . . . . . . . D-66
85362DW . . . . . . . . . . . .130148-0118 . . . . . . . . D-74
85362DWBLK . . . . . . . . .130148-0119 . . . . . . . . D-74
85362DWI . . . . . . . . . . .130148-0121 . . . . . . . . D-74
85362DWR . . . . . . . . . . .130148-0122 . . . . . . . . D-74
85362DWW . . . . . . . . . .130148-0123 . . . . . . . . D-74
85366. . . . . . . . . . . . . . .130144-0082 . . . . . . . . D-73
85369. . . . . . . . . . . . . . .130144-0084 . . . . . . . . D-73
8540M . . . . . . . . . . . . . .130110-0026 . . . . . . . . A-31
8540P. . . . . . . . . . . . . . .130110-0027 . . . . . . . . A-31
85447. . . . . . . . . . . . . . .130144-0087 . . D-66, D-136
85447L . . . . . . . . . . . . . .130144-0088 . . D-66, D-136
85447MB . . . . . . . . . . . .130149-0094 . . . . . . . . D-67
85547. . . . . . . . . . . . . . .130144-0089 . . . . . . . . D-66
8565. . . . . . . . . . . . . . . .130110-0031 . . . . . . . . A-29
8565-LED . . . . . . . . . . . .130110-0060 . . . . . . . . A-29
8565-MH . . . . . . . . . . . .130110-0035 . . . . . . . . A-29
8565F . . . . . . . . . . . . . . .130110-0033 . . . . . . . . A-29
8565F-LED . . . . . . . . . . .130110-0061 . . . . . . . . A-29
8565F-MH. . . . . . . . . . . .130110-0034 . . . . . . . . A-29
8575-MH . . . . . . . . . . . .130110-0038 . . . . . . . . A-30
8575-MH-PS . . . . . . . . . .130110-0050 . . . . . . . . A-30
8664. . . . . . . . . . . . . . . .130142-0051 . . . . . . . . D-6,
D-78, D-133
8665. . . . . . . . . . . . . . . .130142-0052 . . . . . . . . D-6,
D-78, D-133
9206. . . . . . . . . . . . . . . .130083-0222 . . . . . . . . B-10
9208. . . . . . . . . . . . . . . .130083-0223 . . . . . . . . B-10
9224. . . . . . . . . . . . . . . .130083-0224 . . . B-10, B-11
9224-1610S . . . . . . . . . .130083-0766 . . . . . . . . B-11
9224-86 . . . . . . . . . . . . .130083-0767 . . . . . . . . B-11
9228. . . . . . . . . . . . . . . .130083-0225 . . . B-10, B-11
9228-106US . . . . . . . . . .130083-0772 . . . . . . . . B-11
9228-1610S . . . . . . . . . .130083-0773 . . . . . . . . B-11
9228-86 . . . . . . . . . . . . .130083-0775 . . . . . . . . B-11
9234. . . . . . . . . . . . . . . .130083-0227 . . . . . . . . B-10
9238. . . . . . . . . . . . . . . .130083-0228 . . . . . . . . B-10
92401. . . . . . . . . . . . . . .130083-0229 . . . . . . . . B-10
92402. . . . . . . . . . . . . . .130083-0230 . . . . . . . . B-10
92411. . . . . . . . . . . . . . .130083-0231 . . . . . . . . B-10
9242. . . . . . . . . . . . . . . .130084-0318 . . . . . . . . B-10
92433. . . . . . . . . . . . . . .130083-0232 . . . B-10, B-12
92433-1533 . . . . . . . . . .130083-0781 . . . . . . . . B-12
92433-1547 . . . . . . . . . .130083-0782 . . . . . . . . B-12
92433-3000 . . . . . . . . . .130083-0784 . . . . . . . . B-12
92433-3070G . . . . . . . . .130083-0786 . . . . . . . . B-12
92433-3080 . . . . . . . . . .130083-0787 . . . . . . . . B-12
92434. . . . . . . . . . . . . . .130083-0233 . . . B-10, B-12
92434-3080 . . . . . . . . . .130083-0913 . . . . . . . . B-12
Woodhead No.
Order No.
Page
92443. . . . . . . . . . . . . . .130083-0234 . . . . . . . . B-10
92444. . . . . . . . . . . . . . .130083-0236 . . . . . . . . B-10
92463. . . . . . . . . . . . . . .130083-0237 . . . . . . . . B-10
92464. . . . . . . . . . . . . . .130083-0238 . . . . . . . . B-10
92481. . . . . . . . . . . . . . .130083-0239 . . . . . . . . B-10
92482. . . . . . . . . . . . . . .130083-0240 . . . . . . . . B-10
92501AN . . . . . . . . . . . .130084-0119 . . . . . . . . B-13
92502N . . . . . . . . . . . . .130084-0120 . . . . . . . . B-13
92511AN . . . . . . . . . . . .130084-0121 . . . . . . . . B-13
92512AN . . . . . . . . . . . .130084-0123 . . . . . . . . B-13
92512BN . . . . . . . . . . . .130084-0124 . . . . . . . . B-13
92526BN . . . . . . . . . . . .130084-0128 . . . . . . . . B-13
9253. . . . . . . . . . . . . . . .130083-0242 . . . . . . . B-10,
B-11, B-12
9253-1610S . . . . . . . . . .130083-0245 . . . . . . . . B-11
9253-3000 . . . . . . . . . . .130083-0246 . . . . . . . . B-12
92531N . . . . . . . . . . . . .130084-0129 . . . . . . . . B-13
92532N . . . . . . . . . . . . .130084-0131 . . . . . . . . B-13
92533N . . . . . . . . . . . . .130084-0132 . . . . . . . . B-13
92534N . . . . . . . . . . . . .130084-0133 . . . . . . . . B-13
92535AN . . . . . . . . . . . .130084-0134 . . . . . . . . B-13
92535BN . . . . . . . . . . . .130084-0135 . . . . . . . . B-13
92536N . . . . . . . . . . . . .130084-0136 . . . . . . . . B-13
92541N . . . . . . . . . . . . .130084-0138 . . . . . . . . B-13
92542N . . . . . . . . . . . . .130084-0139 . . . . . . . . B-13
92543N . . . . . . . . . . . . .130084-0140 . . . . . . . . B-13
92544AN . . . . . . . . . . . .130084-0141 . . . . . . . . B-13
92544BN . . . . . . . . . . . .130084-0142 . . . . . . . . B-13
92545AN . . . . . . . . . . . .130084-0143 . . . . . . . . B-13
92545BN . . . . . . . . . . . .130084-0144 . . . . . . . . B-13
92546N . . . . . . . . . . . . .130084-0145 . . . . . . . . B-13
92561N . . . . . . . . . . . . .130084-0146 . . . . . . . . B-13
92562AN . . . . . . . . . . . .130084-0147 . . . . . . . . B-13
92562BN . . . . . . . . . . . .130084-0148 . . . . . . . . B-13
92564N . . . . . . . . . . . . .130084-0149 . . . . . . . . B-13
92581N . . . . . . . . . . . . .130084-0150 . . . . . . . . B-13
92582N . . . . . . . . . . . . .130084-0151 . . . . . . . . B-13
92583N . . . . . . . . . . . . .130084-0152 . . . . . . . . B-13
92631. . . . . . . . . . . . . . .130085-0359 . . . . . . . . B-14
92632. . . . . . . . . . . . . . .130085-0360 . . . . . . . . B-14
92633. . . . . . . . . . . . . . .130085-0361 . . . . . . . . B-14
92642. . . . . . . . . . . . . . .130085-0363 . . . . . . . . B-14
92643. . . . . . . . . . . . . . .130085-0364 . . . . . . . . B-14
92661. . . . . . . . . . . . . . .130085-0365 . . . . . . . . B-14
92663. . . . . . . . . . . . . . .130084-0155 . . . . . . . . B-13
92681. . . . . . . . . . . . . . .130085-0366 . . . . . . . . B-14
92702. . . . . . . . . . . . . . .130085-0367 . . . . . . . . B-14
92712. . . . . . . . . . . . . . .130085-0368 . . . . . . . . B-14
92726. . . . . . . . . . . . . . .130085-0949 . . . . . . . . B-14
92733. . . . . . . . . . . . . . .130085-0370 . . . . . . . . B-14
92735. . . . . . . . . . . . . . .130085-0905 . . . . . . . . B-14
92736. . . . . . . . . . . . . . .130085-0372 . . . . . . . . B-14
92742. . . . . . . . . . . . . . .130085-0373 . . . . . . . . B-14
92743. . . . . . . . . . . . . . .130085-0374 . . . . . . . . B-14
92744. . . . . . . . . . . . . . .130085-0375 . . . . . . . . B-14
92745. . . . . . . . . . . . . . .130085-0376 . . . . . . . . B-14
92746. . . . . . . . . . . . . . .130085-0377 . . . . . . . . B-14
92762. . . . . . . . . . . . . . .130085-0379 . . . . . . . . B-14
xxxiii
Woodhead No. Index
Woodhead No.
Order No.
Page
92764. . . . . . . . . . . . . . .130085-0025 . . . . . . . . B-14
92782. . . . . . . . . . . . . . .130085-0381 . . . . . . . . B-14
92783. . . . . . . . . . . . . . .130085-0382 . . . . . . . . B-14
930. . . . . . . . . . . . . . . . .130087-0057 . . . . . . . . B-19
9306. . . . . . . . . . . . . . . .130083-0247 . . . . . . . . B-10
9308. . . . . . . . . . . . . . . .130083-0248 . . . . . . . . B-10
930B123 . . . . . . . . . . . .130087-0058 . . . . . . . . B-19
930B143 . . . . . . . . . . . .130087-0059 . . . . . . . . B-19
930D123 . . . . . . . . . . . .130087-0063 . . . . . . . . B-19
930D143 . . . . . . . . . . . .130087-0064 . . . . . . . . B-19
9358. . . . . . . . . . . . . . . .130083-0249 . . . . . . . B-10,
B-11, B-12
9358-106US . . . . . . . . . .130083-0250 . . . . . . . . B-11
9358-1547 . . . . . . . . . . .130083-0252 . . . . . . . . B-12
9358-1610S . . . . . . . . . .130083-0852 . . . . . . . . B-11
9358-3070G . . . . . . . . . .130083-0254 . . . . . . . . B-12
9363. . . . . . . . . . . . . . . .130083-0262 . . . . . . . . B-10
9367. . . . . . . . . . . . . . . .130083-0263 . . . . . . . . B-10
9383. . . . . . . . . . . . . . . .130083-0264 . . . B-10, B-12
9383-1533 . . . . . . . . . . .130083-0265 . . . . . . . . B-12
9383-1547 . . . . . . . . . . .130083-0266 . . . . . . . . B-12
9383-3000 . . . . . . . . . . .130083-0269 . . . . . . . . B-12
9383-3070G . . . . . . . . . .130083-0270 . . . . . . . . B-12
9383-3080 . . . . . . . . . . .130083-0271 . . . . . . . . B-12
9385. . . . . . . . . . . . . . . .130083-0279 . . . B-10, B-12
9385-3080 . . . . . . . . . . .130083-0280 . . . . . . . . B-12
9394. . . . . . . . . . . . . . . .130083-0284 . . . . . . . . B-10
945-1547 . . . . . . . . . . . .130090-0008 . . . . . . . . . B-8
945-3 . . . . . . . . . . . . . . .130090-0009 . .B-5, B-6, B-7
945-3-86 . . . . . . . . . . . .130090-0010 . . . . . . . . . B-6
9501. . . . . . . . . . . . . . . .130226-1600 . . . . . . . . B-14
9503. . . . . . . . . . . . . . . .130226-1601 . . . . . . . . B-14
9504. . . . . . . . . . . . . . . .120226-1602 . . . . . . . . B-14
9505. . . . . . . . . . . . . . . .130086-0177 . . . . . . . . B-14
963. . . . . . . . . . . . . . . . .130090-0015 . . . . . . . . . B-7
965. . . . . . . . . . . . . . . . .130090-0018 . . . . . . . . . B-7
966. . . . . . . . . . . . . . . . .130090-0019 . . . . . . . . . B-8
980. . . . . . . . . . . . . . . . .130091-0013 . .B-5, B-6, B-7
980-1610S . . . . . . . . . . .130091-0020 . . . . . . . . . B-7
980-271US . . . . . . . . . . .130091-0021 . . . . . . . . . B-7
980-3000 . . . . . . . . . . . .130091-0023 . . . . . . . . . B-8
980-3070G . . . . . . . . . . .130091-0025 . . . . . . . . . B-8
980-83 . . . . . . . . . . . . . .130091-0027 . . . . . . . . . B-6
980-86 . . . . . . . . . . . . . .130091-0028 . . . . . . . . . B-6
xxxiv
Woodhead No.
Order No.
Page
980A-83 . . . . . . . . . . . . .130091-0030 . . . . . . . . . B-6
990. . . . . . . . . . . . . . . . .130091-0045 . .B-5, B-6, B-7
990-106US . . . . . . . . . . .130091-0049 . . . . . . . . . B-7
990-1547 . . . . . . . . . . . .130091-0053 . . . . . . . . . B-8
990-1610S . . . . . . . . . . .130091-0055 . . . . . . . . . B-7
990-271US . . . . . . . . . . .130091-0056 . . . . . . . . . B-7
990-3000 . . . . . . . . . . . .130091-0057 . . . . . . . . . B-8
990-3070G . . . . . . . . . . .130091-0059 . . . . . . . . . B-8
990-83 . . . . . . . . . . . . . .130091-0061 . . . . . . . . . B-6
990-86 . . . . . . . . . . . . . .130091-0062 . . . . . . . . . B-6
990A-83 . . . . . . . . . . . . .130091-0064 . . . . . . . . . B-6
997. . . . . . . . . . . . . . . . .130091-0085 . . . . . . . . . B-5
997-1547 . . . . . . . . . . . .130091-0087 . . . . . . . . . B-8
997-3000 . . . . . . . . . . . .130091-0090 . . . . . . . . . B-8
997-3070G . . . . . . . . . . .130091-0094 . . . . . . . . . B-8
997L . . . . . . . . . . . . . . . .130091-0210 . . . . . . . . . B-5
997L-1547 . . . . . . . . . . .130091-0213 . . . . . . . . . B-8
997L-2547 . . . . . . . . . . .130091-0211 . . . . . . . . . B-8
997L-3000 . . . . . . . . . . .130091-0214 . . . . . . . . . B-8
997L-3070G . . . . . . . . . .130091-0212 . . . . . . . . . B-8
998. . . . . . . . . . . . . . . . .130091-0202 . . . . . . . . . B-5
998-1533 . . . . . . . . . . . .130091-0203 . . . . . . . . . B-8
998-3070G20 . . . . . . . . .130091-0204 . . . . . . . . . B-8
998-3080 . . . . . . . . . . . .130091-0201 . . . . . . . . . B-8
998L . . . . . . . . . . . . . . . .130091-0205 . . . . . . . . . B-5
998L-1533 . . . . . . . . . . .130091-0208 . . . . . . . . . B-8
998L-2747 . . . . . . . . . . .130091-0206 . . . . . . . . . B-8
998L-3070G20 . . . . . . . .130091-0207 . . . . . . . . . B-8
998L-3080 . . . . . . . . . . .130091-0209 . . . . . . . . . B-8
CS6364N . . . . . . . . . . . . .130155-0133 . . . . . . . D-108
CS6365N . . . . . . . . . . . . .130155-0134 . . . . . . . D-108
CS6369 . . . . . . . . . . . . . .130155-0135 . . . D-7, D-108
CS6375 . . . . . . . . . . . . . .130155-0137 . . . D-7, D-108
CS63W64 . . . . . . . . . . . .130155-0141 . . . . D-4, D-46
CS63W65 . . . . . . . . . . . .130155-0142 . . . . D-4, D-46
CS8164N . . . . . . . . . . . . .130155-0144 . . . D-7, D-110
CS8165N . . . . . . . . . . . . .130155-0145 . . . D-7, D-110
CS8169 . . . . . . . . . . . . . .130155-0146 . . . D-7, D-110
CS8175 . . . . . . . . . . . . . .130155-0147 . . . D-7, D-110
CS81W64 . . . . . . . . . . . .130155-0148 . . . . D-4, D-47
CS81W65 . . . . . . . . . . . .130155-0149 . . . . D-4, D-47
CS82W64 . . . . . . . . . . . .130155-0154 . . . . D-4, D-34
CS82W65 . . . . . . . . . . . .130155-0155 . . . . D-4, D-34
CS8364N . . . . . . . . . . . . .130155-0156 . . . D-7, D-109
Woodhead No.
Order No.
Page
CS8365N . . . . . . . . . . . . .130155-0157 . . . D-7, D-109
CS8369 . . . . . . . . . . . . . .130155-0158 . . . D-7, D-109
CS8375 . . . . . . . . . . . . . .130155-0159 . . . D-7, D-109
CS83W64 . . . . . . . . . . . .130155-0160 . . . . D-4, D-47
CS83W65 . . . . . . . . . . . .130155-0161 . . . . D-4, D-47
CS84W64 . . . . . . . . . . . .130155-0166 . . . . D-4, D-34
CS84W65 . . . . . . . . . . . .130155-0167 . . . . D-4, D-34
DA230 . . . . . . . . . . . . . .130161-0005 . . . . . . . . B-20
DA300 . . . . . . . . . . . . . .130161-0006 . . . . . . . . B-20
DA330 . . . . . . . . . . . . . .130161-0007 . . . . . . . . B-20
DB350 . . . . . . . . . . . . . .130161-0009 . . . . . . . . B-20
DB400 . . . . . . . . . . . . . .130161-0012 . . . . . . . . B-20
DB450 . . . . . . . . . . . . . .130161-0014 . . . . . . . . B-20
DW4F20 . . . . . . . . . . . . .130150-0325 . . . . . . . . D-60
DW4M20. . . . . . . . . . . . .130150-0320 . . . . . . . . D-60
DW730-30F. . . . . . . . . . .130155-0190 . . . . . . . . D-60
DW730-30M . . . . . . . . . .130155-0182 . . . . . . . . D-60
DW730-30R . . . . . . . . . .130155-0183 . . . . . . . . D-60
DW760-60F. . . . . . . . . . .130155-0184 . . . . . . . . D-60
DW760-60M . . . . . . . . . .130155-0185 . . . . . . . . D-60
DW760-60M38 . . . . . . . .130155-0192 . . . . . . . . D-60
DW760-60M75 . . . . . . . .130155-0186 . . . . . . . . D-60
DW760-60R . . . . . . . . . .130155-0187 . . . . . . . . D-60
ERA4000 . . . . . . . . . . . . .130083-0286 . . . . . . . . B-20
ERA4040 . . . . . . . . . . . . .130083-0287 . . . . . . . . B-20
ERA4150 . . . . . . . . . . . . .130083-0288 . . . . . . . . B-20
ERA4250 . . . . . . . . . . . . .130083-0289 . . . . . . . . B-20
ERA4940 . . . . . . . . . . . . .130083-0291 . . . . . . . . B-20
SBG2500. . . . . . . . . . . . .130110-0042 . . . . . . . . A-30
SBS2500 . . . . . . . . . . . . .130110-0043 . . . . . . . . A-30
STR101 . . . . . . . . . . . . . .130112-0246 . . . . . . . . A-37
STR105 . . . . . . . . . . . . . .130112-0258 . . . . . . . . A-37
WT3C-20 . . . . . . . . . . . . .130109-0017 . . . . . . . . A-22
WT3F-20 . . . . . . . . . . . . .130109-0020 . . . . . . . . A-23
WT6C-25 . . . . . . . . . . . . .130109-0026 . . . . . . . . A-22
WT6C-50 . . . . . . . . . . . . .130109-0027 . . . . . . . . A-22
WT6F-25 . . . . . . . . . . . . .130109-0028 . . . . . . . . A-23
WT6F-50 . . . . . . . . . . . . .130109-0029 . . . . . . . . A-23
Y560B. . . . . . . . . . . . . . .130150-0280 . . . . . . . D-119
Y560CF . . . . . . . . . . . . . .130150-0282 . . . . . . . D-119
Y560PF . . . . . . . . . . . . . .130150-0284 . . . . . . . D-119
Y560R. . . . . . . . . . . . . . .130150-0285 . . . . . . . D-119
Y561R. . . . . . . . . . . . . . .130150-0287 . . . . . . . D-119
www.molex.com/woodhead
All trademarks used herein are the
property of their respective owners.
Reference to any non-Molex trademarks
is not intended to claim any endorsement
or association between Molex and
the respective trademark owners, and
should not be construed.
www.woodhead.com
3
Order No. 987650-7737 Rev. 4
USA/10k/RT/RRD/2017.08
©2018 Molex
工商网监
湘ICP备2023018690号
