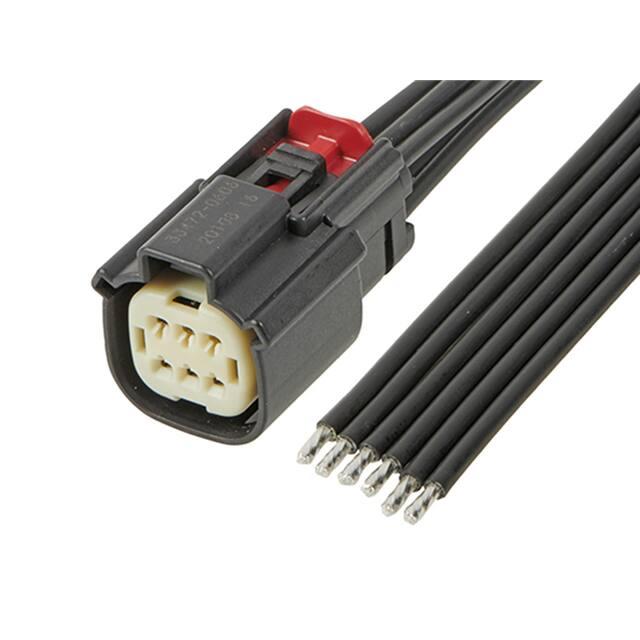

2162861061

Part Number : 2162861061 Product Description : MX150 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly, Dual Row, 150.00mm Length, Tin (Sn) Plating, 6 Circuits, Black Series Number : 216286 Status : Active Product Category : Power and Signal Cable Assemblies Documents & Resources Drawings Drawing 2162861061_sd.pdf Packaging Design Drawing 2162801021-001.pdf 3D Models and Design Files 3D Model 2162861061_stp.zip Product Environment Compliance Compliance GADSL/IMDS Not Relevant China RoHS EU ELV Not Relevant Low-Halogen Status Low-Halogen per IEC 61249-2-21 REACH SVHC Not Contained per D(2023)3788-DC (14 Jun 2023) EU RoHS Compliant per EU 2015/863 Multiple Part Product Compliance Statements - Eu RoHS - REACH SVHC - Low-Halogen Multiple Part Industry Compliance Documents - IPC 1752A Class C - IPC 1752A Class D - Molex Product Compliance Declaration - IEC-62474 - chemSHERPA (xml) EU RoHS Certificate of Compliance Part Details General Status Active Category Power and Signal Cable Assemblies Series 216286 Description MX150 Female-to-Pigtail Off-theShelf (OTS) Cable Assembly, Dual Row, 150.00mm Length, Tin (Sn) Plating, 6 Circuits, Black Application Power, Wire-to-Board, Wire-to-Wire Assembly Configuration Single Ended Connector Connector to Connector MX150-to-Pigtail Product Family MX150 Sealed and Unsealed Connector System Product Name MX150 Type Discrete Wire Assembly, Sealed Assembly UPC 193264714629 Current - Maximum per Contact 22.0A Voltage - Maximum 14V DC Cable Length 150.00mm Circuits (Loaded) 6 Circuits (maximum) 6 Color - Resin Black Gender Female-Pigtail Lock to Mating Part Yes Material - Metal High Performance Alloy (HPA) Material - Plating Mating Tin Material - Plating Termination Tin Electrical Physical Material - Resin SPS/Nylon Net Weight 324.100/g Number of Rows 2 Overmolded No Packaging Type Bag Pitch - Mating Interface 3.50mm Single Ended Yes Termination Interface Style Crimp or Compression Wire/Cable Type TXL Stranded Wire Insulation Diameter 2.70mm max. Wire Size (AWG) 14 Mates With / Use With Mates with Part(s) Description Part Number MX150 Mat-Sealed Dual Row Male Connector Assemblies 33482 This document was generated on Jan 24, 2024
