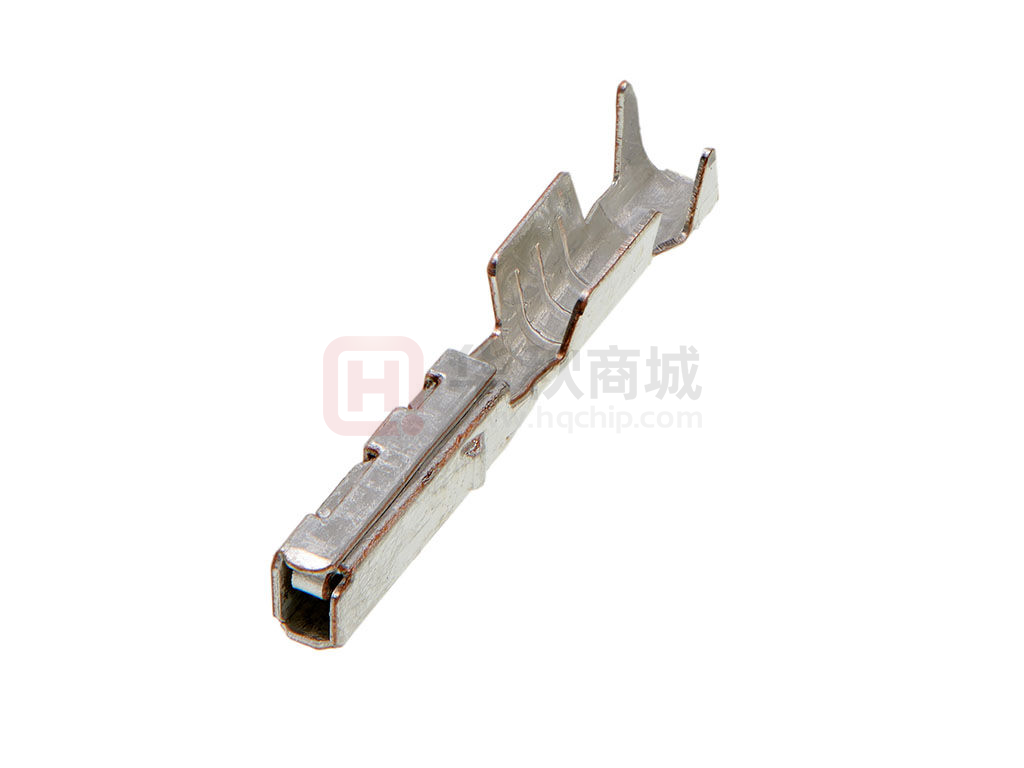

APPLICATION SPECIFICATION CTX64 MAT SEAL RECEPTACLE CRIMP TERMINAL (7.0mm pitch) 1.0 SCOPE This specification details the crimping information and common practices of general crimps for the Molex CTX64 mat seal receptacle terminal. Please refer to the sales drawing SD-34803-002 for additional part information. The information in this document is for reference and benchmark purposes only. Customers are required to complete their own validation testing if tooling and/or wire is different than what is shown in this specification. All measurements are in millimeters and Newtons unless specified otherwise. Terminals shown in this document are generic representations. They are not intended to be an image of any terminal listed in the scope. 2.0 PRODUCT DESCRIPTION DEFINITION OF TERMS: 1 BEND UP 4 ROLLING 3 TWISTING BEND DOWN CONDUCTOR CRIMP 2 INSULATION CRIMP FRONT BELL MOUTH 6 (not shown) 5 REAR BELL MOUTH Figure 1 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 1 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION DEFINITIONS OF TERMS (CONT.): 9 L STRIP LENGTH K 7 K L CONDUCTOR BRUSH CUT-OFF TAB END OF INSULATION Figure 2 INSULATION CRIMP WIDTH (ICW) CONDUCTOR CRIMP WIDTH (CCW) 11 13 INSULATION CRIMP HEIGHT (ICH) CONDUCTOR CRIMP HEIGHT (CCH) 12 10 SECTION L-L SECTION K-K Figure 3 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 2 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION BELLMOUTH (FLARE) 5 6 The flare that is formed on the edge of the conductor crimp acts as a funnel for the wire strands. This funnel reduces the possibility that a sharp edge on the conductor crimp will cut or nick the wire strands. A rear bellmouth is required on the conductor crimp. A front bellmouth is optional. Caution: Excessively large bellmouths will reduce crimp area and reduce pull forces. See Table 3 for bellmouth specifications. Bellmouth too large Reduced Crimp Area, Lower Pull Forces Bellmouth per specification Bad Crimp Good Crimp Figure 4 CUT-OFF TAB 7 This is the material that protrudes outside the insulation crimp after the terminal is separated from the carrier strip. A cut-off tab that is too long may expose a terminal outside the housing; it may fail electrical spacing requirements. See Table 3 for cut-off tab length specifications. Caution: Burrs on the cut-off tab are not allowed as they have the potential to cut mat seals. 7b ab 5 Figure 7a b CONDUCTOR BRUSH 8 The conductor brush is made up of the wire strands that extend past the conductor crimp on the contact side of the terminal. This helps ensure that mechanical compression occurs over the full length of the conductor crimp. The conductor brush should not extend into the contact area or above the conductor crimp/transition wall height (whichever is tallest). CAUTION: Excessive conductor brush extended above the transition/crimp area can cause terminal retention issues inside plastic cavity and potentially could compromise/tear the glands of the mat seal. 8a b 8b b Figure 6 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 3 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION For the CTX64 receptacle terminal, the conductor brush extension past the conductor crimp must be greater than 0.2mm and less than 1.0mm. And, depending on where the brush ends, it must be either below the conductor crimp height or transition wall; whichever is taller. See Figure 7 for an example of brush height boundary. Crimp height taller than transition wall; end of brush to be below crimp height boundary Crimp height shorter than transition wall; end of brush to be below crimp height/transition wall boundary 1.0mm 0.2mm 1.0mm 0.2mm Figure 7 CONDUCTOR STRIP LENGTH 9 The strip length is determined by measuring the exposed conductor strands after the insulation is removed. The strip length determines the conductor brush length when the end-of-insulation position is centered in the transition area between conductor and insulation crimps. See Table 3 for the length requirement. CAUTION: Care must be taken not to leave indentations on the wire strands during the strip and cut operation as this can compromise the effectiveness of the mat seal and can result in leaks. CONDUCTOR CRIMP This is the metallurgical compression of a terminal around the wire's conductor. This connection creates a common electrical path with low resistance and high current carrying capabilities. CONDUCTOR CRIMP HEIGHT 10 The conductor crimp height is measured from the top surface of the formed crimp to the bottom most radial surface. Do not include the extrusion points in this measurement. Measuring crimp height is a quick, nondestructive way to help ensure the correct metallurgical compression of a terminal around the wire's conductor and is an excellent attribute for process control. The crimp height specification is typically set as a balance between electrical and mechanical performance over the complete range of wire stranding and coatings, and terminal materials and plating. Although it is possible to optimize a crimp height to individual wire strands and terminal plating, one crimp height specification is normally created. See Table 2 for crimp height specifications. REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 4 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION INSULATION CRIMP HEIGHT 12 Insulation crimp heights are specified in Table 2. CTX64 receptacle terminal insulation grips are designed to accommodate multiple wire sizes. Even though the insulation grip may completely surround a smaller wire and only partially surround a larger wire, an acceptable insulation crimp is still provided. The insulation crimp should be visually evaluated to confirm it provides adequate compression on the wire. It should also be evaluated by sectioning through the center of the crimped insulation grip. The grip should compress the wire but not pierce it or otherwise damage the integrity of the insulation. The grip should not contact the conductors under any circumstance. Mechanically, the insulation grip should withstand repeated flexing of the wire as shown in Figure 8 without pulling out of the grip. The wire is flexed 5 times each in two perpendicular planes in the following sequence: b to a, a to b, b to c, c to b, then repeat (see Figure 8). Once the optimum setting for an insulation crimp height is determined, it is important to document it. The operator can then check it as part of the setup procedure. a b c 20 x wire diameter or 60mm min Figure 8 EXTRUSIONS (ANVIL FLASH / BURR) 14 These are the small flares that form on the bottom of the conductor crimp resulting from the clearance between the punch and anvil tooling. If the anvil is worn or the terminal is over-crimped, excessive extrusion can result. An uneven extrusion may also result if the punch and anvil are misaligned, if the feed is misadjusted or if there is insufficient or excessive terminal drag. CAUTION: Anvil Flash has the potential to damage mat seals and should be maintained within specifications (see Figure 9 and Table 3). 14 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 ANVIL FLASH Figure 9 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 5 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION INSULATION GRIP STEP 15 The insulation grip step is the designed offset between the conductor grip and the insulation grip which must be met by the crimp process (see Figure 10 and Table 3). 15 Figure 10 J J1 J2 END-OF-INSULATION POSITION This is the location of the insulation in relation to the transition area between the conductor and insulation crimps. Equal amounts of the conductor strands and insulation needs to be visible in the transition area. The end-of-insulation position ensures that the insulation is crimped along the full length of the insulation crimp and that no insulation gets crimped under the conductor crimp. The end-of-insulation position is set by the wire stop and strip length for bench applications. For automatic wire processing applications the end-ofinsulation position is set by the in/out press adjustment (see Figure 2). WING DISSYMMETRY 16 Wing dissymmetry is the crimped offset between the ends of core wings (see Figure 11 and Table 3). SPACE BETWEEN WING TIPS AND CRIMP BOTTOM 17 The space between the crimp wing tips and the bottom of the crimp is designed to assure no contact between wing tips and the crimp bottom (see Figure 11 and Table 3). 17 16 Figure 11 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 6 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION CRIMP BULGE 18 Caution needs to be taken with the crimp tooling to prevent a bulge in the transition area during crimping. The transition should generally flow smoothly from the conductor crimp to the terminal box. Any bulge must not exceed the width shown in Table 3. See Figure 12 for an example of crimp bulge. 18 Good Crimp (No Bulge) Bad Crimp (Bulge) Figure 12 WIRE CONDITION AFTER CRIMP The wire, after crimping, should not have any scratches, grooves or dents. Such imperfections act as a leak path at the junction between the wire and the mat seal. At a minimum, check the condition of the wire on a sample length of 26mm as shown in Figure 13. 26mm MIN 4mm Figure 13 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 No scratches, grooves or dents permitted on this region of the wire after crimping CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 7 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION 3.0 PRODUCT SPECIFICATIONS Table 1 Terminal Family CTX64 REVISION: C1 Gender Receptacle Sealing Plating Special Characteristics Sn Standard Performance Tin (Std. Sn) Sn High Performance Tin (HP Sn) Ag High Performance Silver (HP Ag) Sn Standard Performance Tin (Std. Sn) Sn High Performance Tin (HP Sn) Ag High Performance Silver (HP Ag) Insulation Diameter Range (mm) Grip Size Wire Range S 0.22 – 0.35 mm 22 AWG L 0.5 – 0.85 mm 20 AWG 2 1.1 – 1.65 Mat Seal ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION 2 1.4 – 1.9 SHEET No. 8 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION Table 2 Molex Product Attribute Grip Size Validated Wire Special Characteristics Standard Performance Tin Wire Type Wire Size TXL3,c 22 AWG Conductor Barrel Insulation Barrel CCH ± 0.05 ICH CC W Pull Out Force (N) MIN ICW 0.69 ± 0.03 High Performance Tin 1.8 MAX 60 0.72 ± 0.03 FLRY-A1,3,e S B2M PSA FTP:00949_12_00996 Standard Performance Tin AVSS2,b Standard Performance Tin High Performance Tin 1,a 0.22mm2 0.65 ± 0.03 1.46 ± 0.04 0.30mm2 0.75 ± 0.03 (1.3) PSA FTP: AEEV_AREF08_0909 ( A3d ) PSA FTP: AEEV_AREF08_1035 ( A3d ) ACOME T3-ZHID PSA FTP: 00949_10_00766 0.35mm 2 TXL3,c 1.62 ± 0.04 [1.7 MAX4] 20 AWG ACOME T3-ZHID1,3,a,e PSA FTP: 00949_10_00767 High Performance Silver Standard Performance Tin AVSS2,b Standard Performance Tin High Performance Tin ACOME T3-ZHID1,3,a,e PSA FTP: 00949_10_00768 High Performance Silver ACOME T3-ZHID1,a,e ACOME FLR2XA3ZH-A1,e,g PSA FTP: 00949_10_00768 Standard Performance Tin High Performance Tin High Performance Silver PSA FTP: AEEV_AREF07_0821 (CE31,f ) Standard Performance Tin AVSS2,b 60 0.69 ± 0.03 ACOME T3-ZHID1,a,e PSA FTP: 00949_10_00766 Standard Performance Tin High Performance Tin Standard Performance Tin High Performance Tin (1.45) [1.6 MAX4] 1.8 MAX 1.90 ± 0.05 1,3,a,e High Performance Silver L 35 Standard Performance Tin 0.50mm 2 0.95 2.0 MAX 90 70 0.95 1.76 ± 0.04 [2.0 MAX4] 2.0 MAX 90 1.05 0.75mm2 (1.75) [1.9 MAX4] (1.4) 0.95 90 2.0 MAX 1.07 0.85mm2 1.10 130 The above specifications are guidelines to an optimum crimp. Crimp heights/widths are applicable for punch/anvil tooling shown in Figures 15 – 18. Pull force should be measured with no influence from the insulation crimp. Customers are required to complete their own validation testing if tooling and/or wire is different than what is shown in this specification. 4 Values in brackets are the maximum size permitted for insulation crimp height/width for terminals crimped to wires other than those shown in Table 2 above. Terminal crimps were validated to following specifications: 1 PSA STE 96 341 150 99, B21 7050 2 RSA 36-05-019, 36-05-036 (Mechanicals and Visuals Only) 3 USCAR-21 Wires are in accordance with following specifications: a PSA B25 1110: NFS-Conventional electrical conductor b JASO D 6111: AVSS type c SAE J1128: TXL type d PSA B25 1110: Augmented Insulation (0.5mm2 insulation on 0.35mm2 conductor)  FTP: AEEV_AREF08_1035 for Nexans wire  FTP: AEEV_AREF08_0909 for Acome wire e ISO 6722: Thin wall type f PSA 96 904 053 99: electrical sealing wire and FTP: AEEV_AREF07_0821 (0.75mm2) g GMW 15626: Single-Core Stranded ISO Cable REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 9 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION Table 3 Specifications Balloon # Description Requirement 1 Bend Up 1° MAX 2 Bend Down 2° MAX 3 Twisting 4° MAX 4 Rolling 6° MAX 5 Rear Bell Mouth 0.20 – 0.55 6 Front Bell Mouth Not Required 7 Cut-Off Tab 8 b No Burrs a 0.2 – 1.0 b Not to extend above conductor crimp/transition height Conductor Brush Conductor Strip Length 4.0 – 4.5 for reference 10 Conductor Crimp Height See Table 2 11 Conductor Crimp Width See Table 2 12 Insulation Crimp Height See Table 2 13 Insulation Crimp Width See Table 2 14 Conductor Anvil Flash 0.10 MAX Insulation Grip Step 0.20 ± 0.05 From J1-J2 (see Figure 9) 16 Wing Dissymmetry 17 Space Between Wing Tips and Crimp Bottom 18 C1 0.30 MAX 9 15 REVISION: a EC No: UAU2016-1050 DATE: 2016 / 01 / 05 AS-502306-002 Wire Size < 0.22mm 2 No Contact Wire Size > 0.35mm 2 0.10 MIN Crimp Bulge ECR/ECN INFORMATION: TITLE: DOCUMENT NUMBER: 0.20 MAX Not to exceed conductor crimp width CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 10 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION 4.0 REFERENCE DOCUMENTS Reference documentation for general practices is located on the website per the below links: 1. Molex Quality Crimping Handbook http://www.molex.com/images/products/apptool/qual_crimp.pdf 2. Molex-Recognizing Good Crimps http://www.molex.com, search for Application Tooling 5.0 PROCEDURE 5.1 GENERAL MEASUREMENT AND EVALUATION REQUIREMENTS Crimp Height Measurement (Extrusion Evaluation) 1. Complete tool set-up procedure. 2. Crimp a minimum of 5 samples. 3. Place the flat blade of the crimp micrometer across the center of the dual radii of the conductor crimp. Do not take the measurement near the conductor bell mouth (see Figure 14). 4. Rotate the micrometer dial until the point contacts the bottom most radial surface Figure 14 6.0 CRIMP TOOLING GEOMETRY The crimp tooling information shown below is based on the tooling that Molex used to perform validation testing to establish recommended crimp height and widths. The user is responsible for validating crimp performance based on tooling, equipment and wire that is being used. REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 11 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION Table 4 (see Figure 15 for geometry) Wire Application Grip Size Wire Size 22AWG 2 0.22mm 2 0.30mm 2 0.35mm 20AWG 2 0.50mm 2 0.75mm 2 0.85mm S L Conductor Punch A B C D 0.35 1.30 0.60 0.30 0.38 1.40 0.64 0.32 General Tolerances (unless specified) 2 PLACES ± 0.13 1 PLACE ± 0.25 ANGULAR ± 0.5° Figure 15 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 12 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION Table 5 (see Figure 16 for geometry) Wire Application Grip Size L E F G H J 1.45 0.725 2.40 2.00 1.12 1.75 0.875 2.50 2.50 0.79 Wire Size 22AWG 2 0.22mm 2 0.30mm 2 0.35mm 20AWG 2 0.50mm 2 0.75mm 2 0.85mm S Insulator Punch General Tolerances (unless specified) 2 PLACES ± 0.13 1 PLACE ± 0.25 ANGULAR ± 0.5° Thickness 2.70 ± 0.02 Figure 16 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 13 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION Table 6 (see Figure 17 for geometry) Wire Application Grip Wire Size Size S L 22AWG 2 0.22mm 2 0.30mm 2 0.35mm 20AWG 2 0.50mm 2 0.75mm 2 0.85mm Anvils L M N P R U W 1.30 0.05 1.40 0.13 1.00 0.15 0.20 1.40 0.05 1.70 0.19 1.20 0.20 0.20 Conductor Anvil General Tolerances (unless specified) 2 PLACES ± 0.13 1 PLACE ± 0.25 ANGULAR ± 0.5° Insulator Anvil Conductor Anvil Insulator Anvil Figure 17 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 14 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION 7.0 CRIMP STRAIGHTNESS A sample method for maintaining crimp straightness is shown in Figure 18 below. Figure 18 REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 15 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC APPLICATION SPECIFICATION 8.0 APPLICATION TOOLING Application Tooling for the CTX64 Receptacle Terminal can be obtained directly from Molex. To find the proper and latest Molex Application Tooling: 1. Go to http://www.molex.com 2. Enter the terminal / connector part number into the search box and select the “Go” button. a. Molex part numbers can also be found by searching on the product description. 3. Review the Application Tooling available on the right side of the product window. a. It may be necessary to scroll down on the right side of the terminal / connector product page to view all the tooling options. b. Hand tools and manual type tools require the loose terminal / connector part number to be used in the search. c. Applicator or semi-automatic type tools require the reeled terminal / connector part number to be used in the search. 4. Select the tool part number link 5. Review the tooling page for general tool information 6. Open the link for the Application Tooling Specification (ATS) (located on the left under Specifications & Other Documents) for additional details such as: a. Termination specifications: crimp height, pull force, wire strip length, insulation diameter, etc. b. Tool information: tool diagram, tool parts list, repair parts, perishable parts list. 7. Order Molex Application Tooling through your preferred distributor Notes: 1. Hand crimp tooling can only be used with certain wires and terminal part numbers. Check the Application Tooling Specification Sheet on the Molex website for details. 2. Application Tooling product numbers are subject to change without prior notice. Customers are advised to check the Molex website for the most up-to-date information. 3. Molex FineAdjust™ and MiniMac™ Application Tooling requires the use of left payoff (“D” Wind) parts. REVISION: C1 ECR/ECN INFORMATION: TITLE: EC No: UAU2016-1050 DATE: 2016 / 01 / 05 DOCUMENT NUMBER: AS-502306-002 CTX64 MAT SEAL RECEPTACLE 7.0mm PITCH APPLICATION SPECIFICATION SHEET No. 16 of 16 CREATED / REVISED BY: CHECKED BY: APPROVED BY: J.Burgio J.Pruneau B.Moser TEMPLATE FILENAME: CRIMP_SPEC[SIZE_A](V.1).DOC
