53254-0670

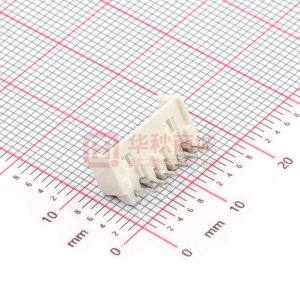

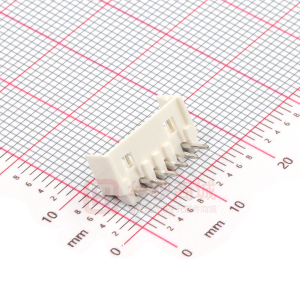

This document was generated on 06/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0532540670 Active microlatch 2.00mm (.079") Pitch Micro-Latch™ Wire-to-Board Header, Right Angle, Square Pin, Three-sided Shroud, Lead-free, 6 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-51065-016 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only LR19980 E29179 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Agency Certification CSA UL General Product Family Series Application MolexKits Overview Product Name PCB Headers 53254 Wire-to-Board Yes microlatch Micro-Latch™ Physical Breakaway Circuits (Loaded) Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Compliant Lock to Mating Part Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PC Tail Length (in) PC Tail Length (mm) PCB Locator PCB Retention PCB Thickness Recommended (in) PCB Thickness Recommended (mm) Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Polarized to Mating Part Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style No 6 30 No 94V-0 No Yes Brass Tin Tin Nylon 1 Right Angle 0.138 In 3.50 mm No Yes 0.062 In 1.60 mm Tray 0.079 In 2.00 mm 40 1.00 40 1.00 Yes No Partial No No -40°C to +105°C Through Hole Search Parts in this Series 53254Series Mates With 51065 Crimp Housing. 50212 Crimp Terminal Electrical Current - Maximum per Contact Voltage - Maximum 2A 125V Material Info Reference - Drawing Numbers Packaging Specification Product Specification SPK-53254-001 PS-51065-016, RPS-51065-002, RPS-51065-006, RPS-51065-007, RPS-51065-013, RPS-51065-015, RPS-51065-021, RPS-51065-022, RPS-51065-025, RPS-51065-026 SD-51065-006, SD-53254-001 Sales Drawing This document was generated on 06/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
