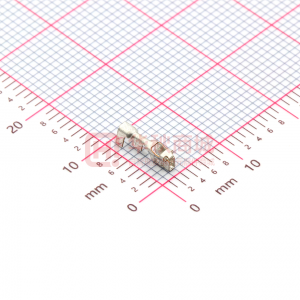

50351-8100

Datasheet for 76650-0230 General Information Kit Part Number: Connector Type: Solution: Molex Family: Certificates: Country of Origin: Specifications Circuit Size: Current Rating: Mounting Style: Orientation: Pitch: Tool Included: Voltage Rating: Wire Gauge (AWG): Product Hightlights 3, 4, 6 0.5-2A, 1.5-3A, 3A PCB Through Hole Receptacles, Vertical Headers 2.00mm (.079"), 2.50mm (.098") No 125V, 250V 28-22, 30-24 76650-0230 Wire-to-Board Off the Board Micro-Latch™, Mini-Latch™, Mini-Lock™ N/A Kit assembled in U.S.A Mini-Lock™ is a versatile wire-to-board system from Molex for a broad range of 2.50mm (.098") pitch industry standard applications. The kit includes vertical headers. Mini-Lock™ is fully shrouded to protect contacts, and includes high guide walls to facilitate mating. Mini-Latch™ connectors provide a reliable interface for industry-standard 2.50mm (.098" ) wire-to-board applications. The system includes a box-style contact design and housing-side terminal latch to provide protection to the contact area during and after assembly. The durable housing also includes guide rails and molded tabs to facilitate mating and unmating. Micro-Latch™ connectors provide a reliable connection interface for industry standard 2.00mm (.079") wire-to-board applications. The kit includes female crimp terminals, receptacle housings and semi-shrouded vertical headers. The connector applies a friction lock mechanism where the noses on the receptacle housings slide into the header wall openings. This ensures a durable mating and protection of the electrical circuits. Features and Benefits • Four point contact design for good electrical reliability • Box-style contact protects contact area • Polarizing features ensures proper mating • Friction lock for good mating retention • Surface Mount Component vertical header is reflow process capable • Fully shrouded headers to protect pins • Uses popular terminals • Thumb-latch locking feature for easy mating and unmating • High guide walls to facilitate mating Applications • Data Communication Equipment • White goods • Vending machines Page 1 • Home Entertainment • Automotive • PCs and Monitors • Printers/Faxes • TVs • PDAs Page 2 Bill of Materials Molex Part No. 50212-8100 51065-0300 51065-0400 51065-0600 51065-0800 53253-0370 53253-0470 53253-0670 50802-9101 51103-0300 51103-0400 51103-0600 53375-0310 53375-0410 53375-0610 50351-8100 51191-0300 51191-0400 51191-0600 22-04-1031 22-04-1041 22-04-1061 Description Micro-Latch™ Female Crimp Terminal, 30-24 AWG 2.00mm (.079") Pitch Micro-Latch™ Receptacle, 3 Circuits 2.00mm (.079") Pitch Micro-Latch™ Receptacle, 4 Circuits 2.00mm (.079") Pitch Micro-Latch™ Receptacle 6 Circuits 2.00mm (.079") Pitch Micro-Latch™ Receptacle, 8 Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Header, 3 Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Header, 4 Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Header, 6 Circuits Mini-Latch™ Female Crimp Terminal, 28-22 AWG 2.50mm (.098") Pitch, Mini-Lock™ Receptacle, 3 Circuits 2.50mm (.098") Pitch, Mini-Lock™ Receptacle, 4 Circuits 2.50mm (.098") Pitch Mini-Lock™ Receptacle, 6 Circuits 2.50mm (.098") Pitch, Mini-Lock™ Vertical Header, 3 Circuits 2.50mm (.098") Pitch, Mini-Lock™ Vertical Header, 4 Circuits 2.50mm (.098") Pitch Mini-Lock™ Vertical Header, 6 Circuits Mini-Lock™ Female CrimpTerminal, 28-22 AWG 2.50mm (.098") Pitch Mini-Latch™ Receptacle, 3 Circuits 2.50mm (.098") Pitch Mini-Latch™ Receptacle, 4 Circuits 2.50mm (.098") Pitch Mini-Latch™ Receptacle, 6 Circuits 2.50mm (.098") Pitch Vertical Header, 3 Circuits 2.50mm (.098") Pitch Vertical Header, 4 Circuits 2.50mm (.098") Pitch Vertical Header, 6 Circuits Quantity 50 5 5 5 0 5 5 5 50 5 5 5 5 5 5 50 5 5 5 5 5 5 Recommended Molex Tool Molex Part No. Descripition Page 3
