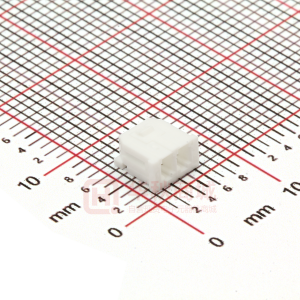

51065-0200

1801 Morgan Street Rockford, Illinois 61102 800-435-2931 www.molexkits.com Datasheet for 76650-0114 General Information Part Number: 76650-0114 Manufacturer: Title: Description: Product Family: Certificates: Molex / Waldom Micro-Latch Connector Kit Friction Lock Vertical and Right Angle Header and Receptacle Micro-Latch™ (Molex Parts within this kit) - EU and China RoHS Compliant, UL and CSA Country of Origin: Kit assembled in U.S.A. Specifications Design Configuration: Pitch: Connector Type: Mounting Orientation: Circuit Sizes: Current Rating: Voltage: Wire size: Product Highlights Micro-Latch connectors provide a reliable connection interface for industry standard 2.00mm (.079") wire-to-board applications. The kit includes female crimp terminals, receptacle housings and semi-shrouded right angle headers. The connector applies a friction lock mechanism where the noses on the receptacle housings slide into the header wall openings. This ensures a durable mating and protection of the electrical circuits. Features and Benefits • Uses popular terminals • Friction lock for good mating retention • Polarizing features ensures proper mating orientation • Surface Mount Component vertical header is reflow process capable Applications • Data Communication Equipment • Printers/Faxes • PC's and Monitors • Automotive • Home Entertainment Wire-to-Board 2.00mm (.079") Receptacle and Header Vertical and Right Angle 2, 3, 4, and 6 (0.5 - 2) Amps dependent on AWG 125 Volts 30-24 AWG For additional Molex / Waldom Design and Solution kits please go to www.molexkits.com Page 1 of 2 1801 Morgan Street Rockford, Illinois 61102 800-435-2931 www.molexkits.com Datasheet for 76650-0114 Bill of Materials for Part No. 76650-0114 Country Molex Part No. of Origin 50212-8100 51065-0200 51065-0300 51065-0400 51065-0600 53253-0270 53253-0370 53253-0470 53253-0670 53254-0270 53254-0370 53254-0470 53254-0670 Japan Description Micro-Latch™ Pitch Female Crimp Terminal 30-24 AWG Quantity in Kit 200 20 20 20 20 10 10 10 10 10 10 10 10 Malaysia 2.00mm (.079") Pitch Micro-Latch™ Receptacles 2 Circuits Malaysia 2.00mm (.079") Pitch Micro-Latch™ Receptacles 3 Circuits Malaysia 2.00mm (.079") Pitch Micro-Latch™ Receptacles 4 Circuits Malaysia 2.00mm (.079") Pitch Micro-Latch™ Receptacles 6 Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Headers 2 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Headers 3 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Headers 4 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Vertical Headers 6 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Right Angle Headers 2 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Right Angle Headers 3 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Right Angle Headers 4 Malaysia Circuits 2.00mm (.079") Pitch Micro-Latch™ Right Angle Headesr 6 Malaysia Circuits Recommended Molex Tool(s) for Part No. 76650-0114* Country Molex Part No. of Origin 63819-0500 * 57105-6000 * Sweden Hand Crimp Tool USA Extraction Tool Description *Tools not included in kit. Tools ordered separately. For additional Molex / Waldom Design and Solution kits please go to www.molexkits.com Page 2 of 2
