MP2315
High Efficiency 3A, 24V, 500kHz
Synchronous Step Down Converter
The Future of Analog IC Technology
DESCRIPTION
FEATURES
The MP2315 is a high frequency synchronous
rectified step-down switch mode converter with
built in internal power MOSFETs. It offers a
very compact solution to achieve 3A continuous
output current over a wide input supply range
with excellent load and line regulation. The
MP2315 has synchronous mode operation for
higher efficiency over output current load range.
Current mode operation provides fast transient
response and eases loop stabilization.
Full protection features include OCP and
thermal shut down.
The MP2315 requires a minimum number of
readily available standard external components
and is available in a space saving 8-pin
TSOT23 package.
Wide 4.5V to 24V Operating Input Range
3A Load Current
90mΩ/40mΩ Low Rds(on) Internal Power
MOSFETs
Low Quiescent Current
High Efficiency Synchronous Mode
Operation
Fixed 500kHz Switching Frequency
Frequency Sync from 200kHz to 2MHz
External Clock
AAM Power Save Mode
Internal Soft Start
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in an 8-pin TSOT-23 package
APPLICATIONS
Notebook Systems and I/O Power
Digital Set Top Boxes
Flat Panel Television and Monitors
All MPS parts are lead-free and adhere to the RoHS directive. For MPS green
status, please visit MPS website under Products, Quality Assurance page.
“MPS” and “The Future of Analog IC Technology” are registered trademarks of
Monolithic Power Systems, Inc.
TYPICAL APPLICATION
100
95
90
85
80
75
70
65
60
0.01
MP2315 Rev. 1.01
1/8/2014
0.1
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2014 MPS. All Rights Reserved.
1
10
1
MP2315 – 24V, 3A SYNC STEP DOWN CONVERTER

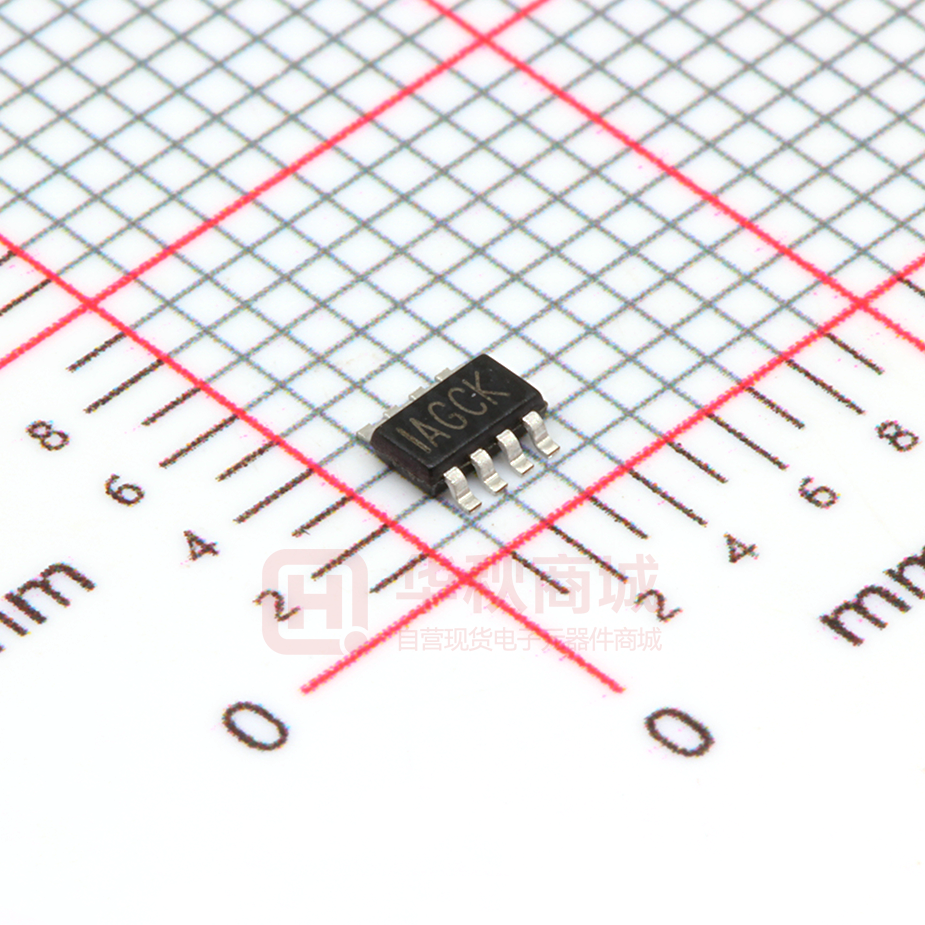

ORDERING INFORMATION
Part Number*
MP2315GJ
Package
TSOT23-8
Top Marking
AGC
* For Tape & Reel, add suffix –Z (e.g. MP2315GJ–Z);
PACKAGE REFERENCE
TOP VIEW
AAM
1
8
FB
IN
2
7
VCC
SW
3
6
EN/SYNC
GND
4
5
BST
TSOT23-8
ABSOLUTE MAXIMUM RATINGS (1)
Thermal Resistance
VIN ................................................–0.3V to +28V
VSW ........ –0.3V (-5V
