NTE6128

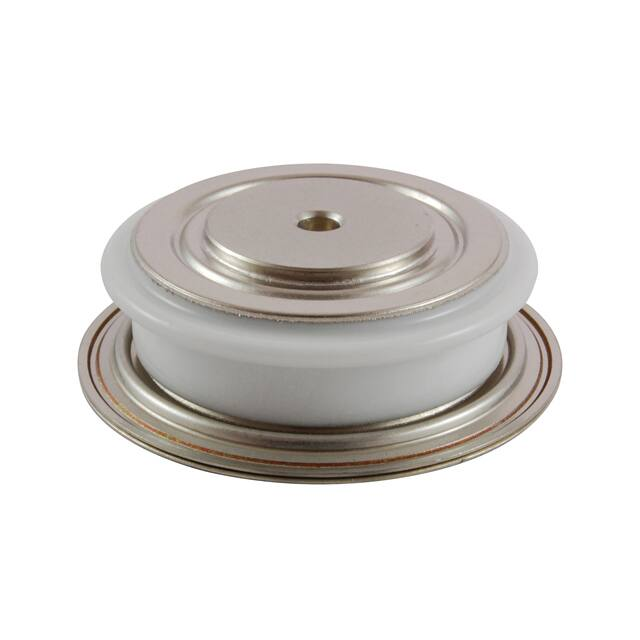

NTE6128 Silicon Power Rectifier Diode 430 Amp, DO200AA Features: D Fast Recovery Time D Soft Recovery Characteristics D High Surge Current Rating D High Rated Blocking Voltages Applications: D Inverter D Chopper D Transmitter D Free−Wheeling Diode Absolute Maximum Ratings: RMS Forward Current, IF(rms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625A Average Forward Current, IF(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430A Maximum Repetitive Peak Reverse Voltage, VRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400V Maximum Reverse Current (TJ = +150°C), IRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA Maximum Forward Surge Current (One Half Cycle), IFSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4500A Maximum Permissible Surge Energy (8.3ms), I2t For Fusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85000A2s Of Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 x 106A2s Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +190°C Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.095°C/W Thermal Resistance, Case−to−Sink (Lubricated), RthCS . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025°C/W Maximum Mounting Force, F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 to 1400 lbs. Electrical Characteristics: Parameter Symbol Forward Voltage Drop VFM Test Conditions TJ = +25°C, IFM = 800A Rating Unit 2.0 V 1600 V 1800 V Repetitive Peak Reverse Voltage VRRM Non−Repetitive Peak Reverse Voltage VRSM t ≤ 5ms Reverse Leakage Current (Peak) IRRM TJ = +150C, VRRM = 1400V 50 mA IFM = 785A, tp = 100μs, diR/dt = 25A/μs, TC = +25°C 1.0 μs Maximum Reverse Recovery Time trr .530 (13.46) 1.650 (41.91) Dia Max .030 (.762) .030 (.762) 1.440 (36.57) .750 (19.05) .750 (19.05) Cathode Marking .140 (3.55) Dia x .077 (1.94) Deep (Both Sides)
