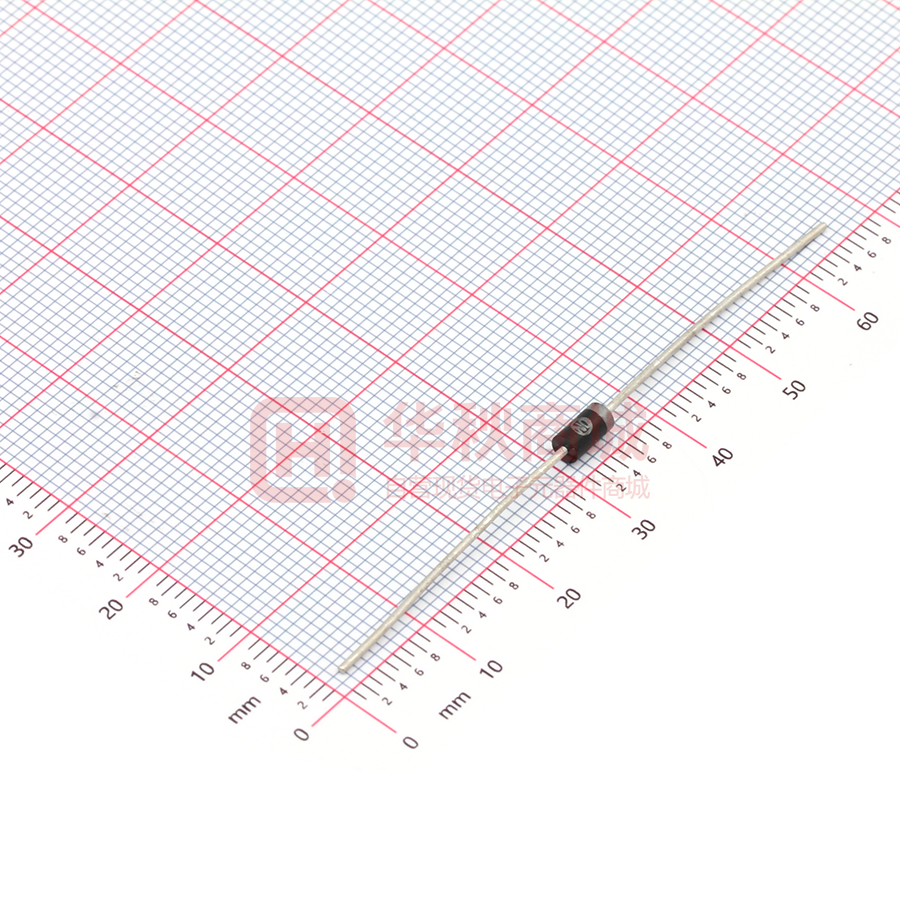

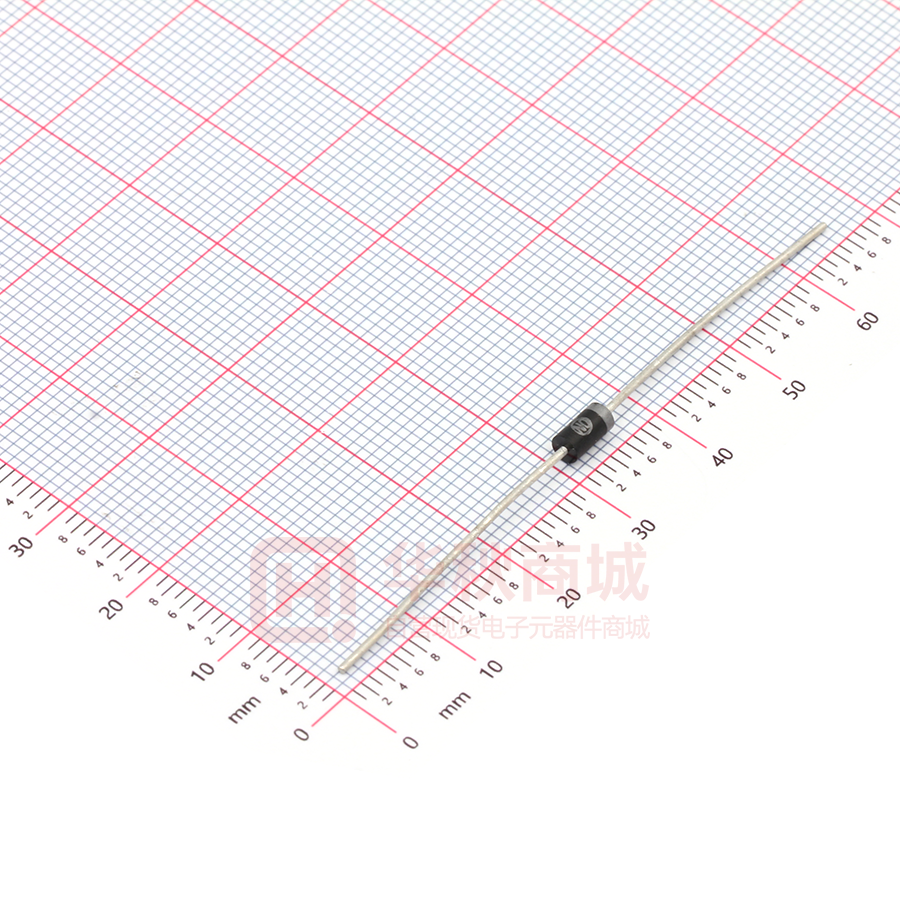

1N4007RLG

1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 Axial-Lead Glass Passivated Standard Recovery Rectifiers www.onsemi.com This data sheet provides information on subminiature size, axial lead mounted rectifiers for general−purpose low−power applications. Features • Shipped in Plastic Bags, 1000 per bag • Available Tape and Reeled, 5000 per reel, by adding a “RL” suffix to • • LEAD MOUNTED RECTIFIERS 50−1000 VOLTS DIFFUSED JUNCTION the part number Available in Fan−Fold Packaging, 3000 per box, by adding a “FF” suffix to the part number Pb−Free Packages are Available Mechanical Characteristics • Case: Epoxy, Molded • Weight: 0.4 gram (approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal CASE 59−10 AXIAL LEAD PLASTIC Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes: • 260°C Max. for 10 Seconds, 1/16 in. from case Polarity: Cathode Indicated by Polarity Band MARKING DIAGRAM *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. A 1N400x YYWWG G A = Assembly Location 1N400x = Device Number x = 1, 2, 3, 4, 5, 6 or 7 YY = Year WW = Work Week G = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION See detailed ordering and shipping information on page 5 of this data sheet. © Semiconductor Components Industries, LLC, 2012 June, 2018 − Rev. 14 1 Publication Order Number: 1N4001/D 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 MAXIMUM RATINGS Symbol 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 Unit †Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 50 100 200 400 600 800 1000 V †Non−Repetitive Peak Reverse Voltage (halfwave, single phase, 60 Hz) VRSM 60 120 240 480 720 1000 1200 V VR(RMS) 35 70 140 280 420 560 700 V †RMS Reverse Voltage †Average Rectified Forward Current (single phase, resistive load, 60 Hz, TA = 75°C) IO 1.0 A †Non−Repetitive Peak Surge Current (surge applied at rated load conditions) IFSM 30 (for 1 cycle) A Operating and Storage Junction Temperature Range TJ Tstg −65 to +175 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. †Indicates JEDEC Registered Data THERMAL CHARACTERISTICS Rating Maximum Thermal Resistance, Junction−to−Ambient Symbol Max Unit RqJA Note 1 °C/W ELECTRICAL CHARACTERISTICS† Rating Maximum Instantaneous Forward Voltage Drop, (iF = 1.0 Amp, TJ = 25°C) Maximum Full−Cycle Average Forward Voltage Drop, (IO = 1.0 Amp, TL = 75°C, 1 inch leads) Maximum Reverse Current (rated DC voltage) (TJ = 25°C) (TJ = 100°C) Symbol Typ Max Unit vF 0.93 1.1 V VF(AV) − 0.8 V 0.05 1.0 10 50 − 30 IR Maximum Full−Cycle Average Reverse Current, (IO = 1.0 Amp, TL = 75°C, 1 inch leads) IR(AV) mA mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. †Indicates JEDEC Registered Data www.onsemi.com 2 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 IR, REVERSE CURRENT (A) 1.0E−04 TC = 100°C 1 1.0E−05 TC = 150°C 1.0E−06 TC = 100°C 1.0E−07 TC = 150°C 0.1 0.5 1.0E−08 TC = 25°C TC = 25°C 0.6 0.7 0.8 0.9 1.1 1 1.2 1.0E−09 0 100 200 VF, INSTANTANEOUS FORWARD VOLTAGE (V) 300 400 500 Figure 2. Typical Reverse Current 100 TJ = 25°C 10 1 0 20 40 600 700 800 900 1000 VR, REVERSE VOLTAGE (V) Figure 1. Typical Forward Voltage C, CAPACITANCE (pF) IF, FORWARD CURRENT (A) 10 60 80 100 120 140 160 180 200 VR, REVERSE VOLTAGE (V) Figure 3. Typical Capacitance www.onsemi.com 3 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 NOTE 1. − AMBIENT MOUNTING DATA Data shown for thermal resistance, junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured. TYPICAL VALUES FOR RqJA IN STILL AIR Mounting Method 1 2 RqJA Lead Length, L 1/4 1/2 1/8 52 65 72 67 80 87 Units °C/W °C/W 50 °C/W 3 MOUNTING METHOD 1 L L ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ MOUNTING METHOD 2 ÉÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉÉ L L Vector Pin Mounting ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ MOUNTING METHOD 3 L = 3/8 ″ Board Ground Plane P.C. Board with 1−1/2 ″ X 1−1/2 ″ Copper Surface www.onsemi.com 4 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 ORDERING INFORMATION Package Shipping† 1N4001 Axial Lead* 1000 Units/Bag 1N4001G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4001FF Axial Lead* 3000 Units/Box 1N4001FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4001RL Axial Lead* 5000/Tape & Reel 1N4001RLG Axial Lead* (Pb−Free) 5000/Tape & Reel 1N4002 Axial Lead* 1000 Units/Bag 1N4002G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4002FF Axial Lead* 3000 Units/Box 1N4002FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4002RL Axial Lead* 5000/Tape & Reel 1N4002RLG Axial Lead* (Pb−Free) 5000/Tape & Reel 1N4003 Axial Lead* 1000 Units/Bag 1N4003G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4003FF Axial Lead* 3000 Units/Box 1N4003FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4003RL Axial Lead* 5000/Tape & Reel 1N4003RLG Axial Lead* (Pb−Free) 5000/Tape & Reel 1N4004 Axial Lead* 1000 Units/Bag 1N4004G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4004FF Axial Lead* 3000 Units/Box 1N4004FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4004RL Axial Lead* 5000/Tape & Reel 1N4004RLG Axial Lead* (Pb−Free) 5000/Tape & Reel 1N4005 Axial Lead* 1000 Units/Bag 1N4005G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4005FF Axial Lead* 3000 Units/Box 1N4005FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4005RL Axial Lead* 5000/Tape & Reel 1N4005RLG Axial Lead* (Pb−Free) 5000/Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *This package is inherently Pb−Free. www.onsemi.com 5 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 ORDERING INFORMATION Package Shipping† 1N4006 Axial Lead* 1000 Units/Bag 1N4006G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4006FF Axial Lead* 3000 Units/Box 1N4006FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4006RL Axial Lead* 5000/Tape & Reel 1N4006RLG Axial Lead* (Pb−Free) 5000/Tape & Reel 1N4007 Axial Lead* 1000 Units/Bag 1N4007G Axial Lead* (Pb−Free) 1000 Units/Bag 1N4007FF Axial Lead* 3000 Units/Box 1N4007FFG Axial Lead* (Pb−Free) 3000 Units/Box 1N4007RL Axial Lead* 5000/Tape & Reel 1N4007RLG Axial Lead* (Pb−Free) 5000/Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *This package is inherently Pb−Free. www.onsemi.com 6 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 PACKAGE DIMENSIONS AXIAL LEAD CASE 59−10 ISSUE U B K NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. ALL RULES AND NOTES ASSOCIATED WITH JEDEC DO−41 OUTLINE SHALL APPLY 4. POLARITY DENOTED BY CATHODE BAND. 5. LEAD DIAMETER NOT CONTROLLED WITHIN F DIMENSION. D F A POLARITY INDICATOR OPTIONAL AS NEEDED (SEE STYLES) DIM A B D F K F K INCHES MIN MAX 0.161 0.205 0.079 0.106 0.028 0.034 −−− 0.050 1.000 −−− MILLIMETERS MIN MAX 4.10 5.20 2.00 2.70 0.71 0.86 −−− 1.27 25.40 −−− ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 www.onsemi.com 7 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative 1N4001/D
